USER MANUAL WA 3745 CLATRONIC

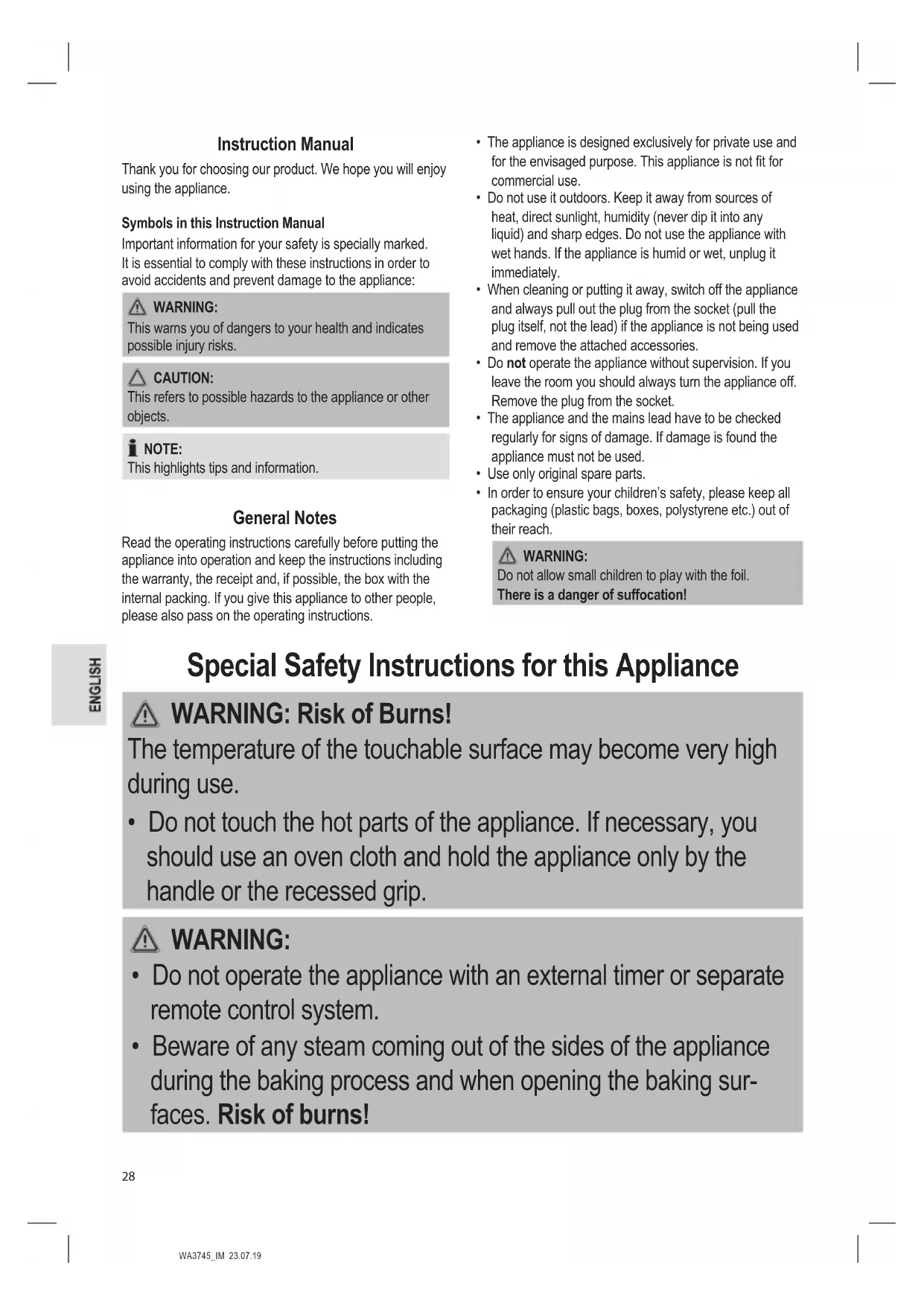

Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil. There is a danger of suffocation! Special Safety Instructions for this Appliance

WARNING: Risk of Burns!

The temperature of the touchable surface may become very high during use.

• Do not touch the hot parts of the appliance. If necessary, you should use an oven cloth and hold the appliance only by the handle or the recessed grip.

• Do not operate the appliance with an external timer or separate remote control system.

• Beware of any steam coming out of the sides of the appliance during the baking process and when opening the baking sur- faces. Risk of burns!WA3745_IM 23.07.19

• Place the appliance on a at and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the appliance.

• In order to prevent heat from building up, do not put the ap- pliance directly underneath a cupboard. Ensure that there is enough space all around!

• Do not move the appliance when it is working.

• Be cautious of heat escaping from the appliance! Never use the appliance near or below curtains or other ammable materials!

• Please ensure that the mains lead does not come into contact with the hot sections of the appliance.

• Allow the appliance to cool down before cleaning it and putting it away.

• Do not repair the appliance by yourself. Always contact an au- thorized technician. If the supply cord is damaged, it must be re- placed by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.WA3745_IM 23.07.19

CAUTION: This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter “Cleaning”. Starting-Up the Appliance Notes for Use Before you prepare the rst wafes for consumption:

• Remove any packaging that is still present. Unwind the mains lead completely.

• Clean the housing and the baking surfaces with a damp cloth. Electrical Connection

1. Check whether the mains voltage that you want to use

matches the one of the appliance. You will nd the infor- mation about this on the type plate.

2. Set the temperature control to the

3. Insert the plug in a duly installed protective contact

socket. The red control lamp will light up. Non-Stick Coating

1. Lightly grease the baking surfaces before the appliance

is used for the rst time.

2. Use the appliance for about 10 minutes with the toasting

surfaces closed (see “Using the Appliance”).

3. Remove the mains plug from the socket and allow the

appliance to cool down. NOTE:

• Any smoke or smells produced during this procedure are normal. Please ensure sufcient ventilation.

• Do not eat the wafes prepared during rst time operation.

4. After the appliance has cooled down, wipe the baking

surfaces off with a paper towel. Using the Appliance NOTE:

• Keep the baking surfaces closed while heating.

• After heating up the appliance, the green control lamp will turn off.

• The red control lamp remains on to show that the appliance is working.

• The green control lamp switches on and off during baking in order to maintain the baking temperature.

• The baking section should always be closed in the intervals between baking.

1. Set the temperature control to MAX in order to heat up

2. Open the lid and add dough onto the centre of the baking

• To obtain even wafes, spread the dough. Please put in only enough dough so that the lower baking surface is covered.

• The dough should be lled in quickly as otherwise the wafers will not brown evenly.

3. Gently close the lid and briey keep it pressed down.

Be careful of the emitted steam. Risk of burns!

4. The desired baking temperature can be set with the

• The baking process lasts approx. 3 - 6 minutes.

• This may vary depending on the consistency of the mixture.

• If your wafes are too dark, set the temperature control to a lower setting.

5. Remove the ready-to-eat wafes with a wooden fork or

6. Place the wafe on a platter or plate and sprinkle some

icing sugar on top of it.

7. Lightly grease the baking surfaces again as required

after each baking process. CAUTION: Do not use pointed or sharp objects to avoid damaging the coating of the baking surfaces. Switching Off In order to stop operation, set the temperature control to the position (off). Then disconnect the mains plug from the wall socket. The red control lamp goes off.WA3745_IM 23.07.19

Recipe for Wafes 5 egg yolks, 5 table spoons of hot water, 100 g sugar and 1 grated lemon peel should be mixed together until frothy and then a mixture of ½ teaspoon baking powder and 150 g our should be stirred in. Beat the 5 egg whites stiff and fold them into the batter. You can nd further recipes in our recipe books or else you can use a ready-made baking mix. Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the appliance has cooled down.

• Do not immerse the appliance in water! It could result in an elec- tric shock or re. CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents. Baking Surfaces

• Remove any food residues while they are still warm with a damp cloth or paper towel.

• Wash off the baking surfaces with a soft sponge and soapy water; then wipe with clean water and dry thor- oughly with a soft cloth. After drying please apply a thin lm of edible oil to the surface. Housing Clean the housing after use with a slightly damp cloth. Storage

As the housing and the metal parts become hot during operation, allow the appliance to cool down before putting it away.

• Clean the appliance as described and allow to dry completely. We recommend to keep the appliance in the original packaging if the appliance will not be used for long periods.

• Always keep the appliance out of the reach of children in a dry, well ventilated place. Mains Cable Take-Up Appliance The mains cable can be wound up on the base. Troubleshooting Malfunction Possible Causes Remedy The appliance does not work. The appliance has no power supply. Check the socket with another appliance and insert the mains plug properly. The temperature control is turned to

Select a higher temperature setting. The red power-on light does not come on. The power supply has been interrupted. Insert the plug into the socket. The appliance is broken. The wafes are varying degrees of brown. The lid is not correctly attached as too little batter has been poured in. Fill in and distribute the correct amount of batter. The batter has overow. You have poured into much batter. Fill in and distribute the correct amount of batter. The wafes are too light. The set temperature is too low. Select a higher temperature setting. The wafes are too dark. The set temperature is too high. Select a lower temperature setting.WA3745_IM 23.07.19

Technical Data Model:....................................................................... WA 3745 Power supply:.....................................220 - 240 V~, 50 / 60 Hz Power consumption: ...................................................1200 W Protection class: ..................................................................... Net weight: ..................................................... approx. 2.25 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibil- ity and low voltage directives, and has been constructed in accordance with the latest regulations. Disposal Meaning of the Symbol “Dustbin” Protect our environment; electrical appliances do not belong in household waste. Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use. You help reduce the potential impact of incorrect disposal on the environment and human health. You contribute to recycling, and other forms of recycling of electrical and electronic equipment. Information concerning the disposal of appliances can be obtained from your local or municipal authorities.WA3745_IM 23.07.19
