USER MANUAL TS 40 LED Theater Spot Cameo

CONNECTIONS, CONTROLS AND INDICATORS 5-6

SETTING UP AND MOUNTING 13

DMX ENGLISH YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM. PREVENTIVE MEASURES

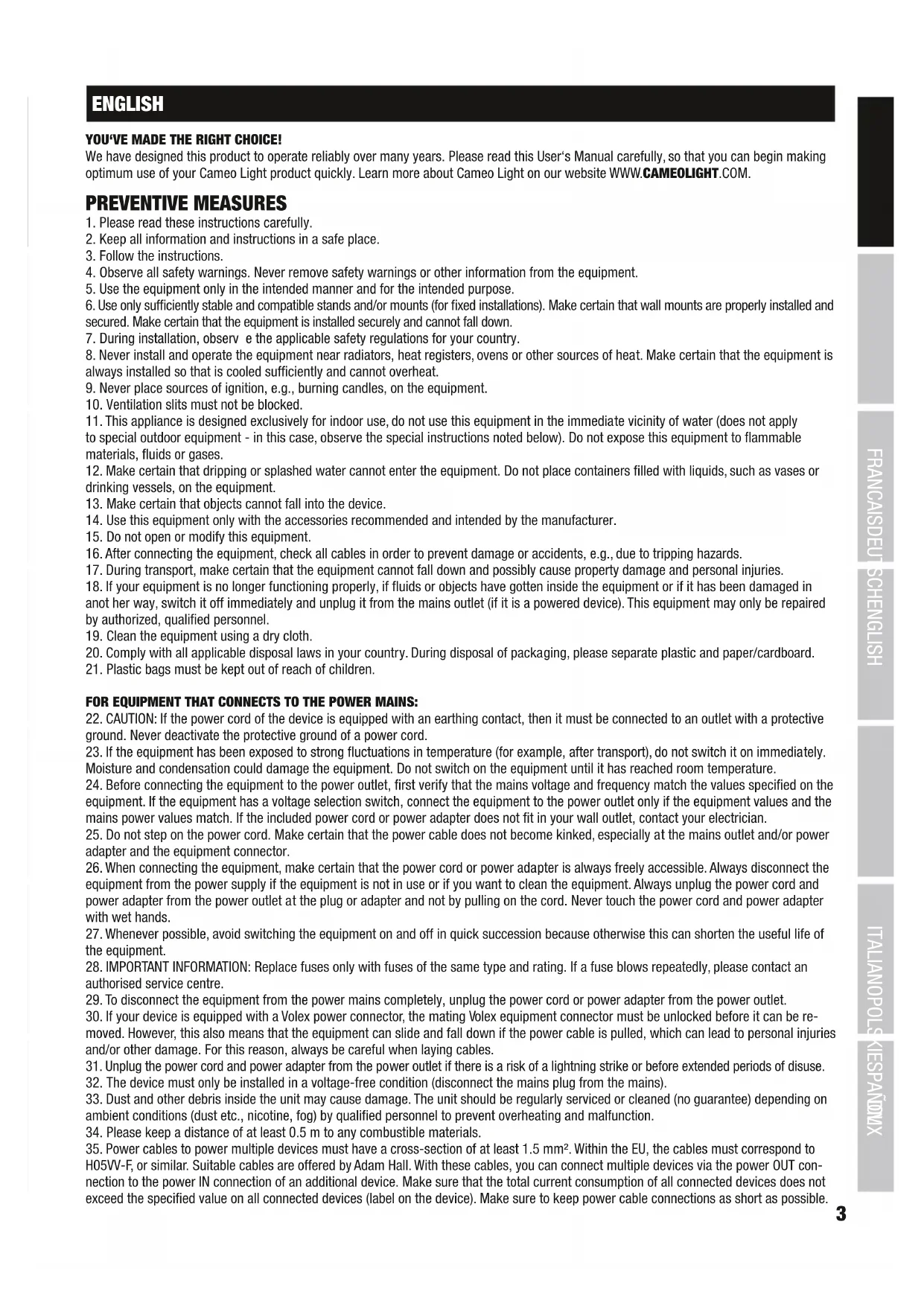

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases. 12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS: 22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician. 25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be re- moved. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.

34. Please keep a distance of at least 0.5 m to any combustible materials.

35. Power cables to power multiple devices must have a cross-section of at least 1.5 mm². Within the EU, the cables must correspond to H05VV-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT con- nection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.4 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS! 1. The product has been developed for professional use in the field of event technology and is not suitable as household lighting.

2. Do not stare, even temporarily, directly into the light beam.

3. Do not look at the beam directly with optical instruments such as magnifiers.

4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used. INTRODUCTION CONTROL FUNCTIONS: 1-channel, 3-channel, 5-channel DMX control (CLTS40WW) 3-channel, 4-channel, 5-channel, 7-channel and 13-channel DMX control (CLTS60RGBW) Master / Slave mode Standalone Functions FEATURES CLTS40WW: 1 x high-power 40 W warm white COB LED, 15° - 38° beam angle, 1,200 Hz refresh rate, DMX-512 control, RDM enabled, manual control, manual zoom, 16 bit dimming, master / slave operation, operating voltage 100 V - 240 V AC / 50 - 60 Hz, power consumption 40 W, mounting bracket and winged barndoor included. FEATURES CLTS60RGBW: 1 x high-power 60 W RGBW COB LED, RGBW colour mixing, 10° - 41° beam angle, 3,600 Hz refresh rate, DMX-512 control, RDM enabled, manual control, manual zoom, 16 bit dimming, master / slave operation, operating voltage 100 V - 240 V AC / 50 - 60 Hz, power consumption 65 W, mounting bracket and winged barndoor included. The spotlight is compliant with the RDM standard (Remote Device Management). This remote management system allows the status query and configuration of RDM devices via an RDM enabled controller.ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

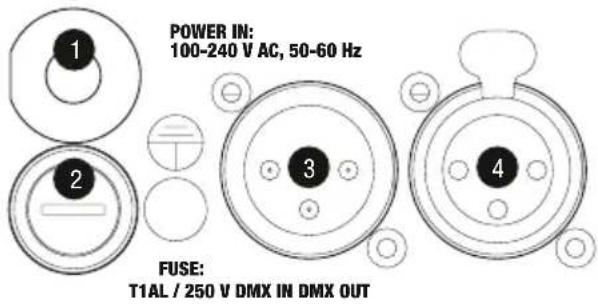

CONNECTIONS, CONTROLS AND INDICATORS

FUSE Fuse holder for 5 x 20 mm fine-wire fuses IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

DMX OUT 3-pin female XLR socket for looping through the DMX control signal.

Displays the operating mode and other system settings.

CONTROL BUTTONS MENU Pressing MENU will take you to the selection menu for system settings. Repeatedly pressing MODE takes you back to the main display. ENTER Makes it possible to change a value and confirm changes. UP and DOWN buttons Press the UP and DOWN buttons for example, to adjust the DMX address or the system settings.6 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX

NOTE: When the spotlight is properly connected to the mains, the following information appears successively on the display during the startup process: “Update Wait ...” (only for service purposes), “Welcome to Cameo”, “Fresnel” and the software version. After this step, the spot is ready for operation and the operating mode that was previously selected is activated.

MAIN DISPLAY DMX MODE

In the upper line of the display, “DMX Addr” is displayed and in the lower line the currently set DMX start address. As soon as the DMX sig- nal is interrupted, the display starts flashing; if the DMX signal is present again, the display stops flashing. The main display is automatically activated if no input is made within about 30 seconds.

MAIN DISPLAY STANDALONE MODE

In the lower line of the display, the currently set operating Standalone mode is displayed (e.g. Slave, Static). The main display is automati- cally activated if no input is made within about 30 seconds.

ZOOM Knurled knob for adjusting the beam size (right stop = maximum beam size, left stop = minimum beam size).

SAFETY EYELET Overhead installation should only be carried out by trained personnel. The spotlight must be secured with appropriate safety ropes to prevent falling.

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “DMX” sub-menu item and confirm by pressing ENTER. Using UP and DOWN, select the desired DMX mode (1CH, 3CH, 5CH) and confirm with ENTER. Press MENU twice to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. You will find tables with the channels of the different DMX modes in this manual under DMX CONTROL.

SELECTING THE DMX START ADDRESS

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “DMX Addr” and confirm with ENTER. Now you can select the DMX start address as desired by using the UP and DOWN buttons. Confirm with ENTER and press MENU once to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. STATIC MODE Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Static” and confirm by pressing ENTER twice. Now you can select the brightness of the spotlight as desired with values ranging from 000 (Blackout) to 255 (maximum brightness) by using the UP and DOWN buttons. Confirm with ENTER and press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. SLAVE MODE Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Slave” sub-menu item and confirm by pressing ENTER. Connect the slave and the master unit (same model) with a DMX cable and activate the Static standalone mode on the master unit. Now the slave unit follows the master unit. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. DEVICE SETTINGS Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Settings” and confirm with ENTER. You will then be taken to the sub-menu to set the sub-menu items (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.8 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX DEVICE INFORMATION Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Sys Info" and confirm with ENTER. You will then be taken to the sub-menu to display the device information. Use the UP and DOWN panels again to select the desired sub-menu item and then press ENTER to retrieve the information (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. Sys Info Temp = Temperature display of the LED unit Temp LED xxC / xxF Temp C°/F° °C (= display in degrees Celsius) °F (= display in degrees Fahrenheit) Op.Hours = Operating time display Hour Total Displays the total operating time in hours Firmware = Displays the device software version Vx. xx Settings Display = Display lighting Backlight ON permanently on Backlight Off deactivation after approx. 30 seconds of inactivity DMX Fail = Operation status with DMX signal interruption Hold last DMX command is held Blackout activates Blackout DimCurve = Dimmer Curve Linear

The light intensity increases linearly with the DMX value.

Exp Adjustment of the light intensity is finer in the lower DMX value range and coarser in the upper DMX value range. Log The light intensity can be adjusted coarsely in the lower DMX value range, and finely in the upper DMX value range. S Curve The adjustment of the light intensity is finer in the lower and upper DMX value ranges and coarser in the middle DMX value range. DimResp. = Dimmer response LED The spotlight responds abruptly to changes in the DMX value. Halogen The spotlight behaves in a manner similar to that of a halogen lamp with gentle changes in brightness.ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

NOTE: When the spotlight is properly connected to the mains, the following information appears successively on the display during the startup process: “Update Wait ...” (only for service purposes), “Welcome to Cameo”, “Fresnel” and the software version. After this step, the spot is ready for operation and the operating mode that was previously selected is activated.

MAIN DISPLAY DMX MODE

In the upper line of the display, “DMX Addr” is displayed and in the lower line the currently set DMX start address. As soon as the DMX sig- nal is interrupted, the display starts flashing; if the DMX signal is present again, the display stops flashing. The main display is automatically activated if no input is made within about 30 seconds.

MAIN DISPLAY STANDALONE MODE

In the lower line of the display, the currently set operating Standalone mode is displayed (Sound, Slave, Auto, Static, Macro). The main display is automatically activated if no input is made within about 30 seconds.

SETTING THE DMX MODE

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “DMX” sub-menu item and confirm by pressing ENTER. Using UP and DOWN, select the desired DMX mode (3CH, 4CH, 5CH, 7CH, 13CH) and confirm with ENTER. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. You will find tables with the channels of the different DMX modes in this manual under DMX CONTROL.

SELECTING THE DMX START ADDRESS

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “DMX Addr” and confirm with ENTER. Now you can select the DMX start address as desired by using the UP and DOWN buttons. Confirm with ENTER and press MENU once to return to the main display. The main display is automatically activated if no input is made within about 30 seconds.

Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Sound” sub-menu item and confirm by pressing ENTER. The Music Control mode is now activated and you can set the sensitivity to which the spotlight reacts to noise (bass pulses) as desired using the UP and DOWN buttons (Mic Sens 00 - 99). Confirm with ENTER and press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. SLAVE MODE Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Slave” sub-menu item and confirm by pressing ENTER.10 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX Connect the slave and the master unit (same model) with a DMX cable and activate one of the standalone modes (Sound, Auto, Static, Mac- ro) on the master unit. Now the slave unit follows the master unit. Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. AUTO MODE Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Auto” sub-menu item, confirm by pressing ENTER twice to adjust the program speed using UP and DOWN (Program Speed: 00 - 99). Confirm with ENTER and press MENU three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. STATIC MODE In the same way as with a DMX control unit, the static mode allows you to adjust all functions such as Dimmer, Strobe and Colour Macros directly on the device with values from 000 to 255. Thus, an individual scene can be created without an additional DMX controller. Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Static” menu item and confirm by pressing ENTER. Using the UP and DOWN buttons, select the desired function and confirm with ENTER. The value (Dimmer, Strobe etc., see table) of the corresponding function can now be set from 000 to 255 and press ENTER to confirm the input. Once all of the parameters have been set as desired, press MODE three times to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. Static Function Values Dimmer 000 - 255 0% to 100% Dim fine 000 - 255 0% to 100% Strobe

CTC (affects RGB and Colour Macros)

Sound (if on, override everything)

COLOUR MACROS Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item “Mode” (lower line) and confirm with ENTER. Now use the UP and DOWN buttons once more to select the “Macro” menu item and confirm by pressing ENTER. Using the UP and DOWN buttons, one of the 15 different Colour Macros can now be selected (see table). Confirm the input with ENTER. 1 Red 6 Turquoise 11 Magenta 2 Amber 7 Cyan 12 Pink 3 Yellow warm 8 Blue 13 Warm White 4 Yellow 9 Lavender 14 White 5 Green 10 Mauve 15 Cold White12 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX DEVICE SETTINGS Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Settings" and confirm with ENTER. You will then be taken to the sub-menu to set the sub-menu items (Select and adjust by pressing ENTER and UP and DOWN, for submenu items, see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. DEVICE INFORMATION Pressing MENU will take you to the selection menu for system settings. Using UP and DOWN, select the menu item "Sys Info" and confirm with ENTER. You will then be taken to the sub-menu to display the device information. Use the UP and DOWN panels again to select the desired sub-menu item and then press ENTER to retrieve the information (see table). Press MENU once more to return to the main display. The main display is automatically activated if no input is made within about 30 seconds. Settings Display = Display lighting Backlight ON permanently on Backlight Off deactivation after approx. 30 seconds of inactivity DMX Fail = Operation status with DMX signal interruption Hold last DMX command is held Blackout activates Blackout DimCurve = Dimmer Curve Linear

The light intensity increases linearly with the DMX value.

Exp Adjustment of the light intensity is finer in the lower DMX value range and coarser in the upper DMX value range. Log The light intensity can be adjusted coarsely in the lower DMX value range, and finely in the upper DMX value range. S Curve The adjustment of the light intensity is finer in the lower and upper DMX value ranges and coarser in the middle DMX value range. DimResp = Dimmer response LED The spotlight responds abruptly to changes in the DMX value. Halogen The spotlight behaves in a manner similar to that of a halogen lamp with gentle changes in brightness. Calibrat = Cross-mode calibration of the colour reproduc- tion in mixed colours. Red Adjusting the intensity with values ranging from 000 to 255 Green Adjusting the intensity with values ranging from 000 to 255 Blue Adjusting the intensity with values ranging from 000 to 255 White Adjusting the intensity with values ranging from 000 to 255ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

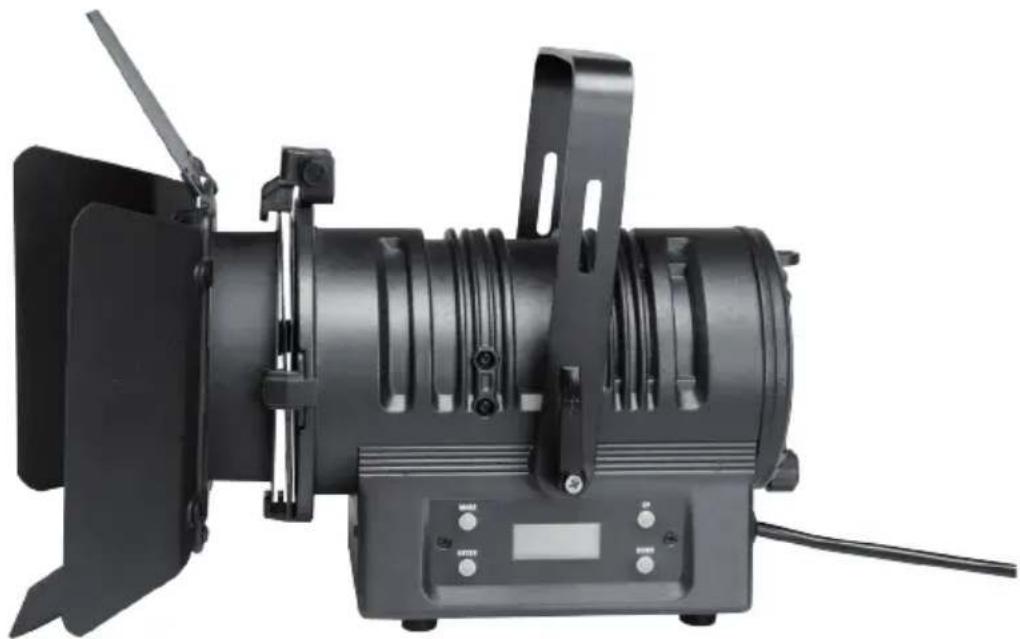

SETTING UP AND MOUNTING

Thanks to the integrated rubber feet, the spotlight can be placed in a suitable location on a flat surface. Mounting on a truss is performed with the help of a suitable truss clamp (not included). Make sure that the connection to the mounting bracket is solid, and secure the device with a suitable safety rope to the safety eyelet provided. Important Notice: Overhead installation should only be carried out by trained personnel. WINGED BARNDOOR AND FILTER FRAME MOUNTING / REMOVAL To install or remove the winged barndoor and the filter frame, please press on the spring-loaded button of the locking mechanism and fold it upwards. Place the locking mechanism in the same way in the original position. Menu Sys Info Sys Info Temp Sys Info Op. Hours Sys Info Firmware Sys Info Temp = Temperature display of the LED unit Temp LED xxC / xxF Temp C°/F° °C (= display in degrees Celsius) °F (= display in degrees Fahrenheit) Op.Hours = Operating time display Hour Total Displays the total operating time in hours Firmware = Displays the device software version Vx. xx14 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor). DMX CONNECTION DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller). 2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units. The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables. DMX CABLES When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions. Pin Assignment DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used): Shield

Shield DMX TERMINATORS (TERMINATING RESISTORS) To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt). 3-pin XLR connector with a terminating resistor: K3DMXT3 5-pin XLR connector with a terminating resistor: K3DMXT5 Pin Assignment 3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters. Pin Assignment DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020 Pins 4 and 5 are not used. Pin Assignment DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 Pins 4 and 5 are not used.ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

DMX Model Name: CLTS40WW CLTS60RGBW Product Type: LED spot LED spot Type: Theatre Spot with Zoom Function Theatre Spot with Zoom Function Colour Spectrum: warm white RGBW Number of LEDs: 1 1 LED Type: 40 W COB 60 W COB Refresh Rate: 1200 Hz 3600 Hz Beam Angle: 15° - 38° 10° - 41° DMX Input: 3-pin XLR male 3-pin XLR male DMX Output: 3-pin XLR female 3-pin XLR female DMX Mode: 1-channel, 3-channel, 5-channel 3-channel, 4-channel, 5-channel, 7-chan- nel, 13-channel DMX Functions: Dimmer, Dimmer Fine, Stroboscope, Dimmer Curve, Dimmer Response Dimmer, Dimmer fine, Stroboscope, Dim- mer Curve, RGBW, Colour Macros, Colour Jump, Colour Fade, Colour Temperature, Music Control, Dimmer Response, Fan Control Control: DMX512, RDM enabled DMX512, RDM enabled Standalone Functions: Dimmer, Master/Slave Dimmer, Dimmer fine, Stroboscope, RGBW, Colour Macros, Colour Jump, Colour Fade, Music Control, Auto Program Controls: Mode, Enter, Up, Down, Zoom Mode, Enter, Up, Down, Zoom Display Elements: backlit 2-line LC display backlit 2-line LC display Operating Voltage: 100 - 240 V AC / 50 - 60 Hz 100 - 240 V AC / 50 - 60 Hz Power Consumption: 40 W 65 W Illuminance (@ 1 m): 18,000 lx 19,800 lx Light Output: 1567 lm 907 lm Power Connector: permanently attached 1m power cord with CEE7/7 plug permanently attached 1m power cord with CEE7/7 plug Fuse: T1AL / 250 V (5 x 20 mm) T1AL / 250 V (5 x 20 mm) Temperature (during operation): 5°C to 40°C 5°C to 40°C Relative Humidity: < 80% non-condensing < 80% non-condensing Housing Material: metal metal Housing Colour: black black Housing Cooling: convection fan Dimensions (W x H x D, excluding bracket): 145 x 205 x 240 mm 145 x 205 x 240 mm Weight: 3.8 kg 3.8 kg Other Features: filter frame, winged barndoor and mounting bracket included, manual zoom filter frame, winged barndoor and mounting bracket included, manual zoom TECHNICAL SPECIFICATIONS

MANUFACTURER´S DECLARATIONS

CORRECT DISPOSAL OF THIS PRODUCT

CTC (affects RGB and Colour Macros)

Sound (if on, override everything)

Colour Temperature (affects RGB and Colour Macros)

Colour Temperature Correction

Sound (if on, override everything)

Sound Control ON Low -> High (Mic Sensitivity) 12 Set dimmer curve
