USER MANUAL TRIBAR 400 IR Cameo
CONNECTIONS, CONTROLS AND INDICATORS 5
OPERATION 6-7
SETTING UP AND MOUNTING 8
DMX TECHNOLOGY 9
TECHNICAL SPECIFICATIONS 10
MANUFACTURER INFORMATION 10
DMX CONTROL 51-52
DEUTSCH
We have designed this product to operate reliably over many years. Please read this User's Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website www.CAMEOLIGHT.COM.

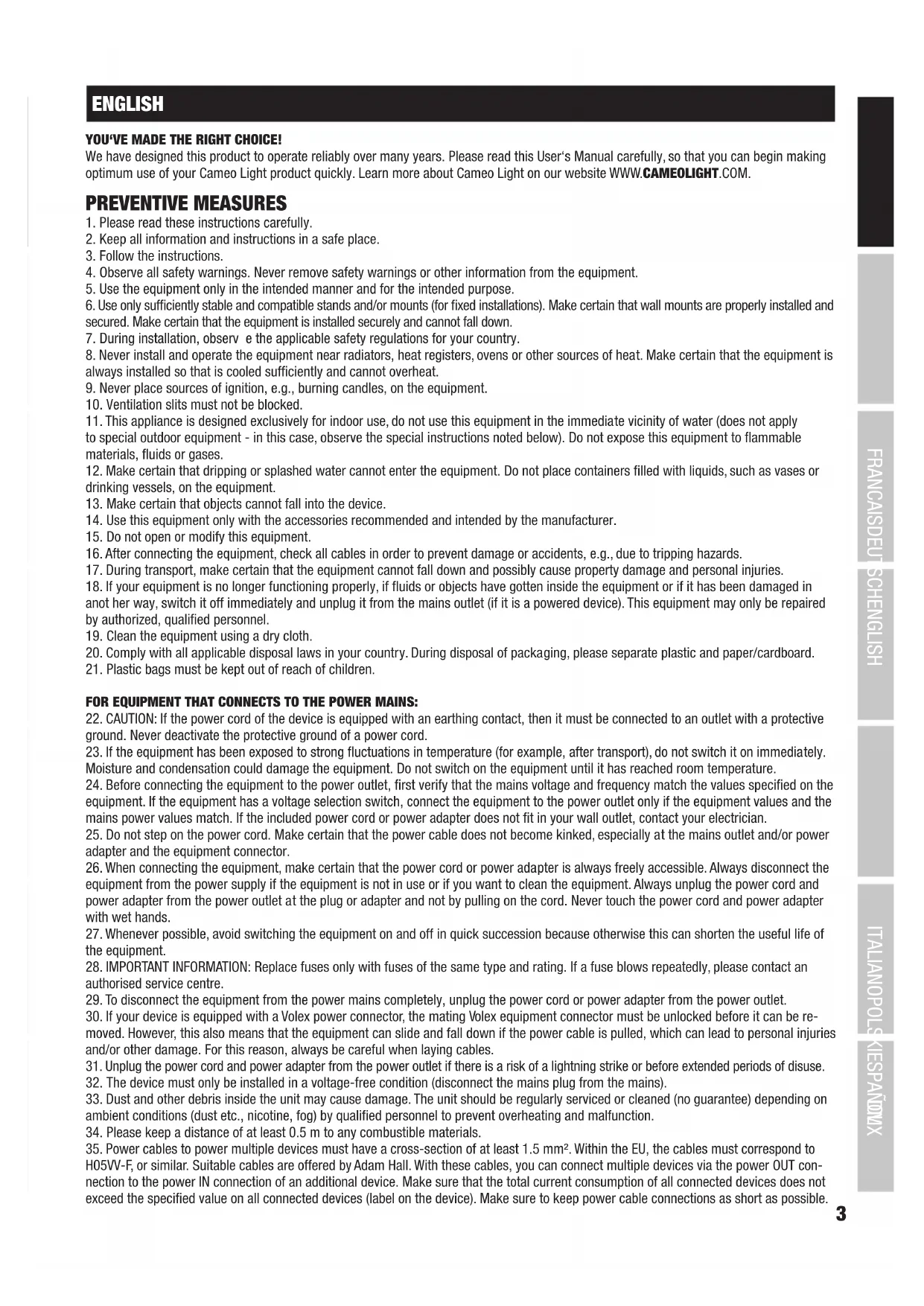

PREVENTIVE MEASURES
- Please read these instructions carefully.
- Keep all information and instructions in a safe place.
- Follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Use the equipment only in the intended manner and for the intended purpose.
- Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
- During installation, observe the applicable safety regulations for your country.
- Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
- Never place sources of ignition, e.g., burning candles, on the equipment.
- Ventilation slits must not be blocked
- This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases.
- Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
- Make certain that objects cannot fall into the device.
- Use this equipment only with the accessories recommended and intended by the manufacturer.
- Do not open or modify this equipment.
- After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
- During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
- If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
- Clean the equipment using a dry cloth.
- Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
- Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT Connects TO THE POWER MAINS:
- CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
- If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
- Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
- Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
- When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
- Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
- IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
- To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
- If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
- Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
- The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).
- Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.
- Please keep a distance of at least 0.5m to any combustible materials.
- Power cables to power multiple devices must have a cross-section of at least 1.5mm^2 . Within the EU, the cables must correspond to H05VW-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT connection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.
The warning triangle with exclamation mark indicates important operating and maintenance instructions.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device.
CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!
This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS!
- The product has been developed for professional use in the field of event technology and is not suitable as household lighting.
- Do not stare, even temporarily, directly into the light beam.
- Do not look at the beam directly with optical instruments such as magnifiers.
- Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely avoid places where strobes are used.
INTRODUCTION
PROFESSIONAL COLOUR BAR WITH IR REMOTE CONTROL
CLTRIBAR400IR 24 x 3W TRI RGB LEDs
CONTROL FUNCTIONS
2-channel, 3-channel 1, 3-channel 2, 9-channel and 12-channel DMX control
Auto Programs
Master / Slave mode
Infrared remote control
Music control
FEATURES
24 x 3 W TRI LEDs, DMX-512 control, Master/Slave operation, Music control via built-in microphone, Auto-Programs, IR remote control included, 3 LED segments can be operated separately via DMX, universal mounting options, convection cooling, operating voltage 100 - 240 V AC / 50 - 60 Hz, Power consumption 75 W

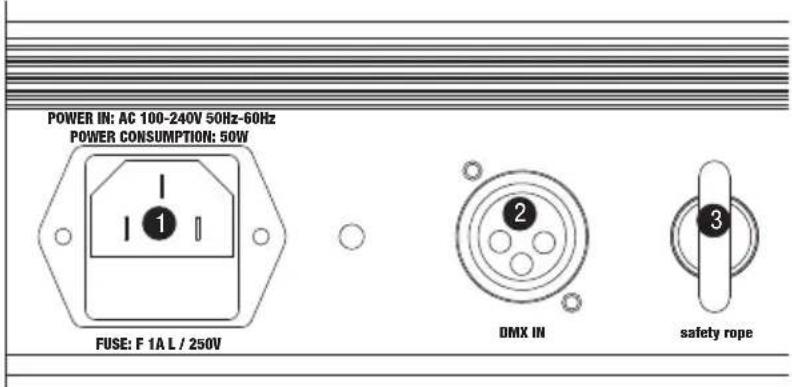

CONNECTIONS, CONTROLS AND INDICATORS
1 POWER INPUT
IEC power socket with built-in fuse holder. Connection via the included IEC power cord.
IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.
2 DMX IN
3-pin male XLR socket for connection of a DMX controller (e.g. DMX console).
3 EYELETS FOR SAFETY ROPE
Overhead installation should only be carried out by trained personnel. The spotlight must be secured with appropriate safety ropes to prevent falling.
4 LED DISPLAY
The four-digit LED display indicates the operating mode and other system information.
5 CONTROL BUTTONS
MODE: Selecting the different operating modes and system settings.
ENTER: Selecting the sub-menu items program running speed and stroboscope frequency.
UP and DOWN: Adjusting the colour macros, program running speed, stroboscope frequency and the DMX address.
6 DMX OUT
3-pin XLR socket for looping through the DMX control signal.
7 POWER OUT
The IEC mains output socket is used to supply power to additional CAMEO spotlights. Make sure that the total current consumption in amperes (A) of all connected devices does not exceed the specified value on the device.
OPERATION
After the spot has been correctly connected to the mains, the display briefly shows the software version (v1xx) and the spotlight is ready for use and starts in the mode that was previously selected.
SELECTING DMX MODE
Press the MODE button repeatedly until one of the five DMX modes appears on the display (2CH, 3CH1, 3CH2, 9CH, 12CH). Use the UP and DOWN buttons to select the desired DMX mode. You will find tables with the channels of the different DMX modes in this manual under DMX Control.
SELECTING THE DMX START ADDRESS
Press the MODE button repeatedly until the DMX start address appears on the display (A001 - A512). Using the UP and DOWN buttons, the DMX start address can now be set as desired from 001 to 512. The synchronous control of multiple spotlights (same model) through a DMX control unit (e.g. DMX mixer) can be achieved by assigning the spotlights to an identical DMX start address and connecting them using DMX cables.
INTERNAL PROGRAMS PG00 - PG12
Press the MODE button repeatedly until one of the 13 internal programs PG00 - PG12 appears on the display.
COLOUR MACROS AND STROBE PG00
Using the UP and DOWN buttons, select the PG00 program. To change the colour, press ENTER and select one of the 7 available colours or blackout by using the UP and DOWN buttons.
| Colour Macros | ||||
| C--0 = Blackout C--4 = Cyan | ||||
| C--1 = Red C--5 = Yellow | ||||
| C--2 = Green C--6 = Magenta | ||||
| C--3 = Blue C--7 = White | ||||
Confirm with ENTER. The display now shows "FSxx" and you can use the UP and DOWN buttons to add a strobe effect to the previously selected colour. (FS00 = strobe effect disabled, FS01 = minimum strobe speed, FS99 = maximum strobe speed). Once the desired stroboscope effect has been set, press ENTER to confirm the input.
COLOUR CHANGE PROGRAMS AND STROBOSCOPE PG01 - PG12
Using the UP and DOWN buttons, select one of the 12 colour change programs PG01 - PG12. The colours can spread over the entire width of the LED bar, or be displayed in the 3 segments of the LED bar. The colour change occurs abruptly, and the colours are blended into each other. The speed of the programs is separately adjustable and a stroboscope effect can also be activated.
Setting the program running speed: Once you have selected one of the 12 programs, press ENTER to confirm. The display changes to "SPxx" (Speed). Now you can adjust the speed as desired by using the UP and DOWN buttons (SP01 = slowest, SP99 = fastest speed).
Setting the strobe effect: Now, press ENTER again (the display changes to "FSxx") and using the UP and DOWN buttons, select the strobe speed (FS00 = strobe effect deactivated, FS01 = slowest frequency, FS99 = fastest frequency). Once the desired stroboscope effect has been set, press ENTER to confirm the input.
With the PG05 program, the colour can be adjusted in addition to the running speed and strobe effect. After setting the strobe effect as desired, and confirming the input with ENTER, the display shows "C1-x". Now use the UP and DOWN buttons to select the desired colour (C1-1 to C1-7) and press ENTER to confirm.
Program PG06 provides the ability to set both changing colours individually. After setting the strobe effect as desired, and confirming the input with ENTER, the display shows "C1-x". Now use the UP and DOWN buttons to select the desired program colour (C1-1 to C1-7) and press ENTER to confirm. In the same way, you can now select the program colour 2 (C2-1 to C2-7). Confirm the input with ENTER.
AUTO MODE
Press the MODE button repeatedly until "AUTO" appears on the display. The Auto mode combines the internal colour change programs, that is, the programs PG01 to PG12 are automatically activated in sequence. The running speed arises from the settings in programs PG01 to PG12.
MUSIC CONTROL
Press the MODE button repeatedly until "S0xx" appears on the display. Now the spotlight is controlled by the built-in microphone and the colour changes follow the beat of the music (bass pulses). Use the UP and DOWN buttons to select the sensitivity of the microphone (setting "S000" = lowest, "S031" = highest microphone sensitivity).
SLAVE MODE
Press the MODE button repeatedly until "SLA-" appears on the display. Connect the slave and the master unit (same model) with a DMX cable and activate one of the standalone modes (Auto, Music control...) on the master unit. Now the slave unit follows the master unit.
Point the infrared remote control directly at the infrared sensor installed on the front of the spotlight. The maximum range is about 8 metres. In the DMX and slave modes, the sensor on the spotlight is disabled.
BL (BLACKOUT) / ON/OFF
The BL button is used to activate blackout (switch off the lights), regardless of which operating mode is enabled on the remote control. Pressing the BL button once more activates the previously selected mode again.
SP (SPEED / SPEED)
11-level speed setting for the programs PG01 to PG12. First, press the SP button and then select the desired speed using the + and - buttons. Level 1 makes the colour change sequence run slowly. Pressing again activates level 2 with a faster colour change sequence, followed by levels 3 to 11, whereby level 11 activates the fastest colour change sequence.
11-level brightness adjustment for the programs PG01 to PG12, the colour macros CM, the sound control mode SC and the Auto mode AU. First, press the BRIGHTNESS button and then select the desired brightness using the + and - buttons.
FL (FLASH/STROBOSCOPE)
Stroboscope effect for the programs PG01 to PG12, the colour macros CM, the mode for colour mixing RGBWAU and depending on the model, the Auto mode AU. After pressing the FL button, select the flash frequency (10 levels) using the + and - buttons. Level 1 activates the slowest (about 1 Hz) and level 10 the fastest flash frequency (20 Hz).
R / G / B (RED, GREEN, BLUE, -W, A, U WITHOUT FUNCTION)
These 3 buttons can be used to create individual colour combinations. The 10 levels of brightness can be selected by pressing the corresponding colour button, then using the + and - buttons, whereby, at level 1, the LEDs are switched off.
For example: If you set red and green to their respective highest level and blue and white to their lowest, i.e., off, the result will be a bright yellow colour mix.
PG (PROGRAMS PG01 - PG12)
First, press the PG button and then select the desired program PG01 to PG12 using the + and - buttons. Select the speed at which the programs are running, using the SP (Speed) and + and - buttons.
CM (COLOUR MACROS)
Colour presets that can be accessed using the CM and + and - buttons. The colour sequence is red, green, blue, cyan, yellow, magenta, white, blackout..
SC (MUSIC-CONTROLLED COLOUR CHANGE PROGRAM)
To select the Music control mode on the spotlight, press the SC button. The sensitivity of the internal microphone is adjusted using the + and - buttons.
AU (AUTOMATIC MODE)
In this mode, the system automatically switches between programs from PG01 to PG12. The program speed is adjusted using the SP + and - buttons.
SETTING UP AND MOUNTING
The Cameo Tri Bars can be mounted using the mounting bracket on the left and right-hand side of the housing, either in a convenient location on the floor or similar, or on a truss system (truss clamp not included). Please use the safety eyelets on the housing to secure the spotlight against falling down. NOTE: Overhead installation should only be carried out by trained personnel.
DMX TECHNOLOGY
DMX-512
DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor).
DMX CONNECTION
DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.
SERIAL CONNECTION OF MULTIPLE LIGHTS
- Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller).
- Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units.
The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.
DMX CABLES
When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions.
Pin Assignment
DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):
DMX TERMINATORS (TERMINATING RESISTORS)
To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).
3-pin XLR connector with a terminating resistor: K3DMXT3
5-pin XLR connector with a terminating resistor: K3DMXT5
Pin Assignment
3-pin XLR connector: 5-pin XLR connector:
DMX ADAPTER
The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters.
Pin Assignment
DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020
Pins 4 and 5 are not used.
Pin Assignment
DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020
Pins 4 and 5 are not used.
SPECIFICATIONS
| Model Name: CLTRIBAR400IR | |
| Product Type: LED light bar | |
| Type: washer | |
| Colour Spectrum: RGB | |
| Number of LEDs: 24 | |
| LED Type: 3 W TRI LED | |
| Beam Angle: 20° (Beam), 36° (Field) | |
| DMX Input: XLR 3-pin male | |
| DMX Output: XLR 3-pin female | |
| DMX Modes: 2-channel, 3-channel 1, 3-channel 2, 9-channel, 12-channel | |
| DMX Functions: RGB, strobe, colour macros, 12 programs, music control, auto program | |
| Standalone Modes: colour macros, 12 programs, strobe, slave mode, auto mode, music control | |
| Controllers: Enter, Mode, Value Up, Value Down, IR remote control | |
| Display Element: | 4-digit LED display |
| Operating Voltage: | 100 - 240 V AC / 50 - 60 Hz |
| Power Consumption: | 75 W |
| Power Connector: | IEC power input and output |
| Fuse: T1AL / 250 V | |
| Temperature (during operation): | 0°C - 40°C |
| Relative Humidity: | < 80% non-condensing |
| Housing Material: | metal |
| Housing Colour: | black |
| Housing Cooling: convection | |
| Dimensions (W x H x D, excluding bracket): | 1007 x 65 x 65 mm |
| Weight: | 2.8 kg |
| Other Features: | power cable, IR remote control and mounting bracket included |
MANUFACTURER'S DECLARATIONS
MANUFACTURER'S WARRANTY & LIMITATIONS OF LIABILITY
You can find our current warranty conditions and limitations of liability at: http://www.adamhall.com/media/shop/downloads/documents/manufacturersdeclarations.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0. To enquire about the current declaration of conformity, please contact info@adamhall.com.
CORRECT DISPOSAL OF THIS PRODUCT
Valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product,
or on its documents indicates that the device may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal.
