DiVino CWC 154 EELN - Wine cellar CANDY - Free user manual and instructions

Brand	Candy
Model	DiVino CWC 154 EELN
Product type	Wine cellar
Capacity	Up to 154 bottles (estimated)
Dimensions (H x W x D)	Approximately 85 x 60 x 60 cm (estimated)
Weight	Approximately 45 kg (estimated)
Power supply	220-240 V ~ 50 Hz, earthed plug
Climate class	SN, N, ST, T (10 °C to 43 °C)
Refrigerant	R600a (isobutane), flammable
Temperature range	7 °C to 18 °C
Preset programs	Red wine (16 °C), White wine (12 °C), Champagne (8 °C), Mixed (14 °C)
Display	White digital LCD screen
Interior lighting	LED, switchable
Door	Reversible glass door
Shelves	6 sliding shelves + 2 removable wine racks
Adjustable feet	Yes, for leveling
Recommended use	Wine storage only, not for food
Cleaning	Interior: warm water + baking soda; exterior: non-abrasive cleaner
Spare parts availability	Thermostats, sensors, panels: 7 years; handles, gaskets: 10 years
Warranty	2 years (EU), varies by country

Frequently Asked Questions - DiVino CWC 154 EELN CANDY

What is the maximum capacity of the Candy DiVino CWC 154 EELN wine cellar?

The capacity is estimated at 154 bottles, with 6 sliding shelves and 2 removable wine racks.

How do I adjust the temperature of my wine cellar?

Use the TEMP °C button after selecting a program (Red wine, White wine, Champagne or Mixed). The temperature changes in steps of 1 °C between 7 and 18 °C. The change is applied 5 seconds after releasing the button.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to disassemble and reassemble the handle and hinges on the other side.

What should I do if the wine cellar is not cooling enough?

Check that the set temperature is correct, that the door is properly closed, that the seals are airtight, and that the appliance has sufficient ventilation space (at least 10 cm at the back and sides). Avoid opening the door too often.

How do I clean the interior of the wine cellar?

Unplug the appliance and remove the bottles. Clean the interior with a solution of warm water and baking soda (2 tablespoons per liter). Rinse and dry. Use a non-abrasive cleaner for the exterior.

Why is my wine cellar making noise?

Sounds like gurgling or clicking are normal (refrigerant circulation, wall contraction). If the noise is excessive, check that the appliance is level and not touching a wall or furniture.

Can I store food in this wine cellar?

No, this appliance is intended for wine storage only. The temperature is not low enough for preserving perishable food.

What does error code E1 mean?

Code E1 indicates a temperature sensor problem. Contact authorized after-sales service for repair.

How can I save energy with my wine cellar?

Place the appliance away from heat sources and sunlight, do not put hot food inside, do not block air circulation, defrost if necessary, and open the door as little as possible.

Where can I find spare parts?

Parts such as thermostats, sensors, electronic boards and lights are available for 7 years after the end of marketing. Handles, hinges, shelves and gaskets are available for 7 to 10 years. Contact after-sales service via the Haier Europe website.

USER MANUAL DiVino CWC 154 EELN CANDY

Please read this instruction booklet carefully before using your Candy Wine Cooler

LANGUAGES

Italiano 3

English 17

Francais 30

Espanol 44

Deutsch 58

Portuguese 72

Nederland 86

Elambdanuikα 100

Hrvatski 114

Srpski 126

Čestina 138

Polski 150

Slovenscina 164

Slovak 176

Romanian 189

Bulgarian 203

Hungarian 217

Russian 229

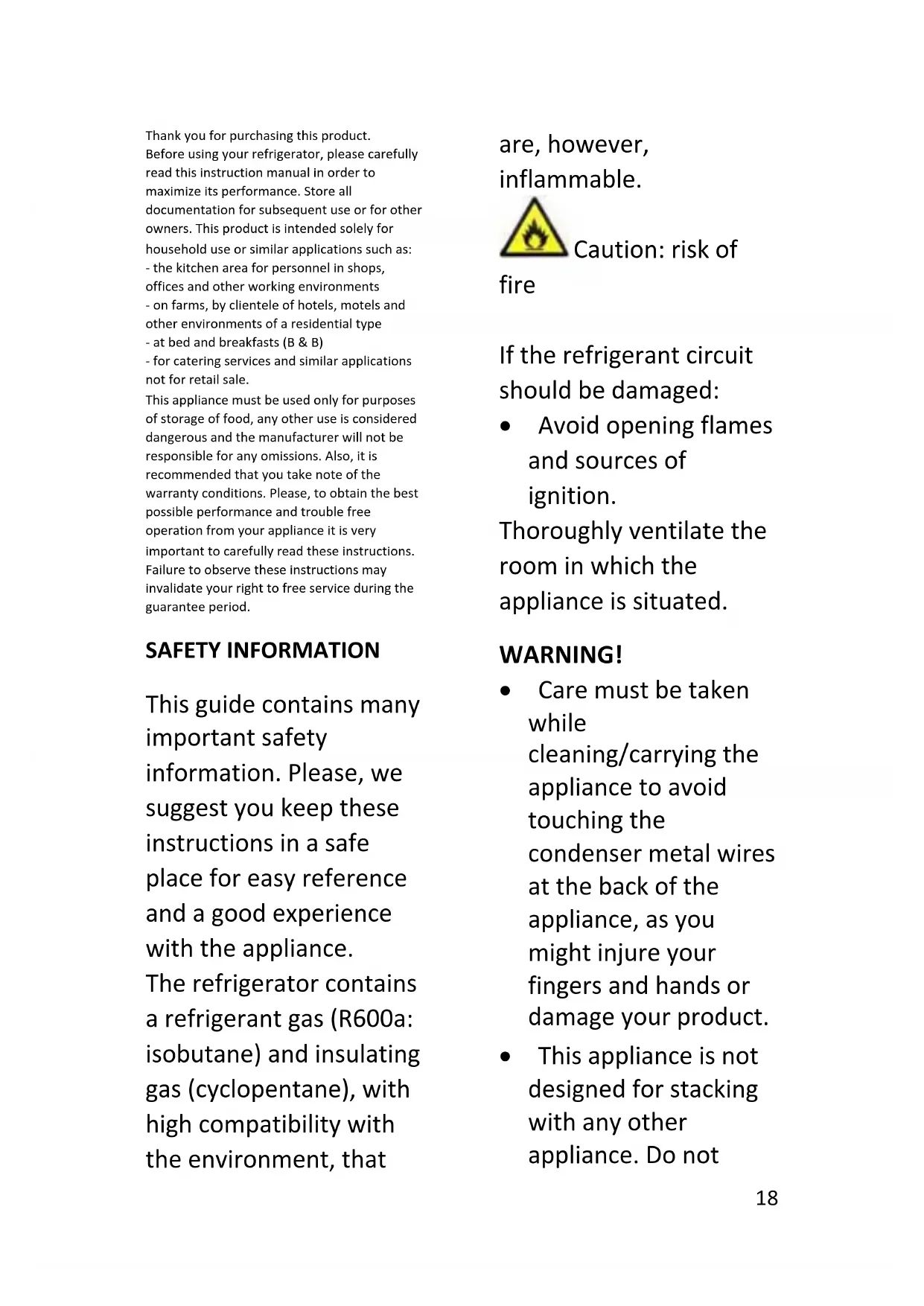

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for

household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very

important to carefully read these instructions.

Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information. Please keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that

are, however, inflammable.

Caution: risk of

fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

WARNING!

• Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
• This appliance is not designed for stacking with any other appliance. Do not

attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that the mains cable is not caught under the appliance during and after carrying or moving the appliance, to avoid the mains cable becoming cut or damaged.
• When positioning your appliance, take care not to damage your flooring, pipes, wall coverings, etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the

instructions not be followed.

• Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials.
• If there is a power failure, do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen. If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will

equalize and allow the lid to be opened normally after a few minutes.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
• Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
• This freezer must only be used for its intended purpose (i.e., storing and freezing of edible foodstuff).
• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled

reaction may occur that can cause risks.

• Before performing any operation, unplug the power cord from the power socket.
• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause

electrical shocks or fires.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.
• Do not place objects and/or containers filled with water on the top of the appliance.

We do not recommend the use of extension leads and multi-way adapters. - Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated. - The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes. - Do not use electrical appliances inside the food storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Do not use pointed or sharp-edged objects

such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Never use water to wash the compressor

position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause of fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.
• The guarantee does not in any way diminish your statutory or legal rights.
• Do not perform repairs on this wine cooler. All interventions must be performed solely by qualified personnel.

SAFETY CHILDREN!

• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical,

sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

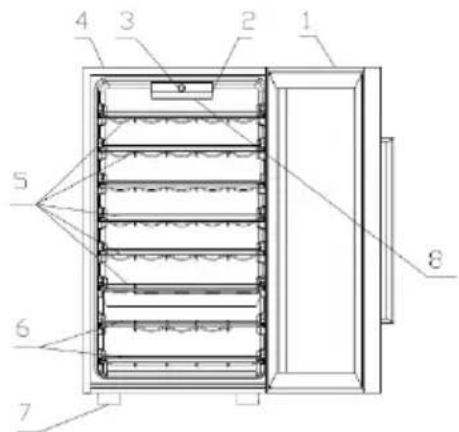

PARTS AND FEATURES

1. GLASS DOOR 2. LAMP SWITCH 3. USER INTERFACE 4. CABINET 5. CHROME/WOODEN RACK 6. CHROME/WOODEN RACK 7. FOOT 8. LED

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

• Remove the exterior and interior packing, including protective material.
• Check if the components or accessories are complete and in good condition. Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Cooler

• Place your appliance on a floor that is strong enough to support it when fully loaded. To level your appliance, adjust the legs at the front.
• Allow 5 inches of space between the back and sides of the appliance, which allows proper air circulation to cool the compressor.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating, and heat sources may increase electrical consumption.
• Extreme cold ambient temperatures may also cause the appliance not to perform properly.
• Avoid locating the appliance in moist areas. Too much moisture in the air will cause frost to form quickly on the evaporator.
• Plug the appliance into an exclusive, properly installed, grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center.

Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized products service center.

EXTERNAL HANDLE

If the external handle is presented in the product, follow the below steps for assembly.

1. Get ready of the product on a flat floor.	2. Take out the external handle and 4 screws.
3. Use a magnetic cross screw driver to fix the external handle on the 4 pre-screw holes.	4. Check and make sure all screws are fixed well

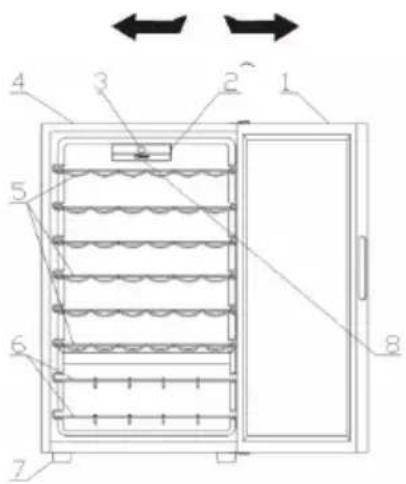

Reversing the Door Swing of Your Wine Cooler

This wine cooler has NO capability of either opening the door from the left or right side.

IMPORTANT SAFEGUARDS

Do not store food in the wine cooler, as the interior temperature may not be cool enough to prevent spoilage. As a natural result of condensation, in summer months or in areas of high humidity, the glass door may build up moisture on the outside. Just wipe it away.

It is recommended that you install the wine cooler in a place where the ambient temperature is between 22 - 25 degrees Celsius. If the ambient temperature is above or below the recommended range, conditions may cause the interior temperature to fluctuate.

If the interior light is left on, the temperature inside the wine cooler will be higher.

Recommended Temperatures for Chilling Wine

Red wines: 15.5-18.5°C

Dry/White Wines: 10-15°C

Sparkling Wines: 7.2-9.5°C

Rosé Wines: 9.5-10.5°C

The above temperatures may fluctuate depending on whether the interior bulb is on or off, and whether the bottles are located on the lower, middle, or upper section.

CANDY ELECTRONIC WITHOUT WI-FI

This specification concerns the function of the electronic display for wine cellars. The image below shows the Candy version of the user interface.

The user interface is formed by:

• 4 buttons (On/Off, Programmes,

Temperature °C and one side mechanical switch).

• 1 white digital LCD -4 white LEDs

Function

• On/Off: The appliance can be switched on or off with the "On/Off" button. Every time the appliance is switched on, the internal light will switch on as well. After 15 seconds, if the "light" button is set to off, the light will switch off; if it is set to on, the light will stay on. At each switching on, the last set programme and

temperature will be restored. At the first startup, the wine cellar will be set to "Red Wine" with a preset temperature of 16°C

• Programme: To select the cellar programme, press the programme button until reaching the required programme. Sequentially, the programmes that can be selected are: "Red Wine", "White Wine", "Champagne", "Mix". The LED corresponding to the programme will switch on at each programme change and the display will show the preset temperature (if the programme was selected for the first time) or the temperature set by the user (see table 1). The programme will start 5 seconds after the release of the button.
• Temperature ° C: To set the temperature, just press the button "TEMP C" after selecting the programme. The temperature will change according to the sequence (e.g. 7-8-9-10-11-12-13-14-15-16-17-18-7-8...). The temperature change will start 5 seconds after the release of the button.
• Light button: Pressing the light button, you switch the light on or off. -E1: Temperature probe problem

Suggested temperature settings
Position	Conditions
12°C	Summer or ambient temperature between 25-35 °C
12°C	Spring, autumn or ambient temperature between 15-25 °C
12°C	Winter, or ambient temperature between 5-15 °C

The table for temperature range and preset temperatures for each programme is shown here below:

PROGRAMME PRESET TEMPERATURES (Celsius)	TEMPERATURE RANGE
RED WINE 16°C 7-18°C
WHITE WINE 12°C 7-18°C
CHAMPAGE 8°C 7-18°C
MIX 14°C 7-18°C

Shelves

Shelf is chrome plated or wooden wine rack. To accommodate different size bottles, they can be moved up or down by sliding them out the tracks first. Shelves are designed to accommodate maximum amount of bottles.

Wine Rack

There is an additional wine rack at bottom section of the unit where you can store up to 6 wine bottles. This rack is removable for cleaning purpose.

There is a 4 to 6 C variance between the top and bottom shelves of the wine chiller.

Therefore, if you have set the wine chiller for red wine only and you want to place a mix of white and red wines, you should place the

white wine bottles on the bottom shelves and the red wines on the top shelves.

CARE AND MAINTENANCE

Cleaning Your Wine Cooler

• Unplug the wine cooler and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a liter of water.
• Wash the shelves and trays with a mild detergent solution.
• The outside of the wine cooler should be cleaned with mild detergent and warm water. It may also be necessary to periodically wipe the bottom part of the storage area, as the wine cooler is designed to retain humidity, and condensation may collect there.

Maintenance of Your Wine Cooler

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Vacation Time

During long absences, remove all the bottles; unplug your wine cooler, clean your wine cooler, and leave the door open slightly to avoid possible formation of condensation, mold, or odors.

Moving Your Wine Cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine cooler.
• Turn the levelling screws up to the base to avoid damage.
• Tape the doors shut.
• Be sure the wine cooler stays in the upright position during transportation.

TROUBLESHOOTING

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in. The circuit breaker tripped or blown fuse.
Wine cooler is not cold enough.	Check to be sure the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. The wine cooler does not have the correct clearances.
Compressor turns on and off frequently	The room temperature is hotter than normal. A large amount of contents has been added to the wine cooler. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The wine cooler does not have the correct clearances.
The light does not work.	The home circuit breaker or fuse has tripped. The wine cooler is unplugged. The bulb has burned out.

	The switch is in the "OFF" position.
Vibrations.	Check to assure that the wine cooler is level.
The wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cooler. Contraction and expansion of the inside walls may cause popping and crackling noises. The wine cooler is not level.
The door will not close properly.	The wine cooler is not level. The doors were reversed and not properly installed. The gasket is dirty. The shelves are out of position.

Technical specifications:

For detailed specifications, please refer to the nameplate at the back of the wine cellar. The specifications are subject to change without prior notice due to product improvements.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

ENERGY SAVING

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

IMPORTANT RECOMMENDATIONS

SAFETY INFORMATION

E1: temperature sensor problem

Predložene postavke temperature
Položaj	Uvjeti
12°C	Ljetna ili temperatura okoline izmedu 25-35 °C
12°C	Proljetna, jesenska ili temperatura okoline izmedu 15-25 °C
12°C	Zima ili temperatura okoline izmedu 5-15 °C

The table with temperature intervals and preset temperatures for each program is given below:

PROGRAM PRETHODNO POSTAVLIENE TEMPERATURE (Celzijevi stupnjevi)		INTERVAL TEMPERATURE
CRNO VINO 16°C 7-18°C
BIJELO VINO	12°C 7-18°C
PJENUŠAC	8°C	7-18°C
NAJMANJE 14°C 7-18°C

Shelves

The shelf is a chrome or wooden wine rack. To accommodate bottles of different sizes, the shelves can be moved up or down by pulling them out of the rails. The shelves are designed to hold the maximum number of bottles.

WINE RACK

There is an additional wine rack at the bottom of the refrigerator where you can store up to 6 bottles of wine. This rack can be removed for cleaning.

The temperature difference between the upper and lower shelves in the refrigerator is 4 to 6°C. Therefore, if you have set the wine cooler for chilling red wine, and you want to chill both white and red wines, place the white wine bottles on the lower shelves and the red wine on the upper shelves.

CARE AND MAINTENANCE

Cleaning the wine cooler

• Turn off the wine cooler and remove the bottles.
• Wash the interior with warm water and a baking soda solution. The solution should contain approximately 2 tablespoons of baking soda per liter of water.
• Wash the shelves and trays with a mild detergent solution. Clean the exterior of the wine cooler with a mild cleaning agent and lukewarm water.
• It may be necessary to occasionally wipe the lower part of the storage area, as the wine cooler is designed to retain moisture and condensation may accumulate.

Place the appliance correctly

Interior light

Power failure

The power failure is restored after some time and this should not affect the temperature inside, if you minimize the number of door openings. If the power is off for a longer time, it is necessary to take appropriate measures for food storage.

During vacation

During long absence, remove all bottles; disconnect your appliance from the power supply, clean it and leave the door open to avoid possible condensation, mold or odors.

Cleaning your appliance

Interior

• Remove all bottles. Clean with lukewarm water and mild detergent parts that can be removed inside the appliance. Close the drain holes towards the base to avoid damage. Close the doors.
• Make sure the appliance is in an upright position during transportation.

Troubleshooting

You can resolve most common problems yourself, which will save you the cost of service. Follow the suggestions below to see if you can resolve the problem before calling a technician.

ПОНБЛЕМ	ВъЗМоЖHA ПРИЧИHA
Хладильота Витрина за вино п пош.	He e Вкlioоча в Контakta. Прекьсвчыт Изкlioоча плие изrogenул праздаителя.
Xладильота Витрина за вино п подостаъчно студан.	Проберete, за за стесигун, настойки за уразваенье на temпераурatable.

	Външна т creда моче да Изwickва по-Bисоки насторік. Вразата ce OTваря Тьрдічесо. Вразата He e зотворени пьтно. Улътпгелей са Вразата He полягу Наьлно. Хладилна витрина за ВИно Наяnpавилнite otсторіня.
Компrecopь tc ce вklючва иизлочва чесо.	Стойнatable Temпература e по-толma ot Hopмално. Рекалено много 6утулки са постavenи в Хладилна витрина за ВИно. Вразата ce OTваря Тьрдічесо. Вразата He e зотворени пьтно. Temпература t He e настwoета равилно. Улътпгелей са Вразата He полягу Наьлно. Хладилна витriпна за ВИно Наяnpавилнite otсторіня.
CBETлIHATA HE PABOTI.	П配电ьсвачьт плип редпазиелега са ce Излочил. Xладилна витрина за ВИно e Излочеца OT KOонтakta. Крушикata e ИзэррILA. Кочeteо e на поцicnna "OFF".
Вибраци.	Проберete дa ce уberite, чЕ xладилна витрина за ВИно e ИиveлираHA.
Xладилна витрина за ВИно e Многош汞нha.	Травашит зву к може дa идва OTnotoka
	фреон, коeto e нормално. Когато Всеки цьл прикlioоча, може да чуetectьлбукши Звуши, причиненьот notoka Фреон ВьВ Вашаразхадины Витрина за вино. Свива对接и разшираянeto на Вытreamнite сてни Може Да превенka Трonaши и ручши Звуши. Хладинытабитрина за вино не e Нивелерана.
Вратута не e Затворега пльъно.	Хладинытабитрина за вино не e Нивелерана. Вратута e сьс сменения посока на OTваряne и не e мONTURA правлино. Улътени想不到е са замьрсян. Рафторе не са позицунерани правлино..

Technical specifications

For detailed specifications, please refer to the rating plate on the back of the appliance. Specifications are subject to change without prior notice, but are updated in the product.

DISPOSAL OF OLD APPLIANCES

Type and brand marking in accordance with European Directive 2012/19/EC regarding the disposal of electrical and electronic equipment (WEEE).

WEEE collection aims to recover materials (which may have a negative impact on the environment) as well as basic components (which can be reused). It is important that WEEE is placed in a specific container so that all hazardous substances are properly removed and all materials are collected and recycled.

Users are required to play an active role by ensuring that WEEE is not a problem for the environment; it is important to follow some basic rules:

WEEE must not be treated as household waste.

WEEE must be handed over to the appropriate collection points, managed by the municipality or by registered companies. For large WEEE in many countries there may be the possibility of home collection.

In many countries, when you buy a new device, the old one can be returned to the retailer, who must take it free of charge on a one-for-one basis, provided it is of equivalent type and has the same functions as the one being replaced.

ENERGY SAVING

For better energy efficiency, we recommend:

- Install the appliance away from heat sources and direct sunlight in a room with good ventilation. - Avoid placing hot food in the refrigerator, as this will increase the internal temperature, which will lead to longer compressor operation. Do not place too much food, to ensure good air circulation. Defrost the appliance, if there is ice, to improve cold air transfer. To save electricity, keep the refrigerator door closed as much as possible. - Open or close the refrigerator door as little as possible. - Avoid setting the temperature too low. - Clean the back of the appliance from dust.

COMPLIANCE

By placing the CE marking on this product, we confirm compliance with all European safety, health, and environmental protection requirements applicable to this product.

MAXIMUM USE

Characteristics. Keep all

documentation for future reference

for use by others

The device is intended

exclusively for domestic

use, as well as for the following

similar applications:

in kitchen areas for staff in

shops, offices, and other working

environments;

in farmhouses, for clients

of hotels, motels, and other residential

environments;

in bed and breakfast type establishments;

for catering and similar

services not in

retail trade.

The appliance should be used

Only for household products.

Use in new products may be

considered dangerous, the manufacturer

is not responsible for such

damage. It is also recommended to pay

attention to the warranty conditions. For

achieving maximum

productivity, it is very important to carefully

study the instructions for the electric appliance. Failure to comply

with these instructions may lead to

loss of the right to free

warranty service.

Information on technical safety

in this manual

General Manual

Contains

Important information

for safety.

We recommend

keeping these

instructions

in a safe place, with

easy access, for

future reference when

using

the appliance.

The refrigerator

contains

a flammable

refrigerant (R600a:

n3o6ytaH) nəIeRa3

(uzKJIOpeHTaH),

HMeIoune BbICOKyIO

COBmecTnMoCTb C

okpykaioe cpeo,

Ondako, OHHJIerko

BOcPnlaMeHraIOTcR.

OctopoXHo!

Onacnoctb noxapa

B clyuae noBpeJdeHna

KoHTypa OXlaJxDeHnIa:

He pOJIb3yI TeCb

OTKpbITbIM NlaMeHeM

N NCTOCHKamN

BocnilameHeHnra;

room,

in which the

electrical device is installed.

WARNING!

children and also

persons with

limited

physical,

sensory or

mental

capabilities,

insufficient

experience and knowledge,

corresponding

observations, and

instructed

on the order of

safe

use

of the electrical appliance, and

they are aware of the associated

dangers.

Do not allow children to

play with

the electrical appliance.

Children are infected

To use the device

User manual

Maintenance without

disassembly.

STAGES AND FUNCTIONS

REFRIGERATOR DOOR

1. GLASS DOOR 2. LAMP SWITCH 3. USER INTERFACE 4. CABINET 5. CHROME-PLATED/WOODEN SHELF 6. CHROME-PLATED/WOODEN SHELF 7. LEG 8. LIGHT

INSTALLATION INSTRUCTIONS

Before using the wine cooler

Remove the external and internal packaging, including the protective foam on the door panels. - Make sure you have the following components:

6 bottle racks 2 shelves 1 user manual

Before connecting the appliance to the power supply, let it stand upright for approximately 2 hours. This will reduce the possibility of malfunctions in the cooling system during transport. Wipe the interior surface with a soft cloth and warm water.

Installing the wine cooler

Place the appliance on a floor that is strong enough to

support a fully loaded appliance. To level the appliance, adjust the front legs. - Ensure 12.5 cm (5 inches) of space between the back and sides of the appliance to allow proper air circulation for cooling the compressor. Place the appliance away from direct sunlight and heat sources (stove, heater, radiator, etc.). Direct sunlight may damage the acrylic coating, and heat sources may increase energy consumption. - Extremely cold ambient temperatures can also cause improper operation of the appliance. - Avoid placing the appliance in humid rooms. Humid air will cause rapid ice formation on the evaporator. - Connect the appliance to a separate, properly grounded outlet. Under no circumstances should you cut or remove the third grounding prong from the power cord. For any questions regarding grounding, contact a certified electrician or an authorized service center.

Warning: Incorrect use of the grounded outlet can create a risk of electric shock. If the power cord is damaged, contact a service center for its replacement.

EXTERNAL HANDLE

If the appliance has an external handle, follow these steps for disassembly.

CLEANING THE WINE COOLER

Disconnect the wine cooler and remove the bottles. Clean the interior with a solution of warm water and baking soda.

The solution should be made from about 2 tablespoons of baking soda per quart of water.

Wipe the shelves with the cleaning solution.

The exterior of the wine cooler should be wiped with a mild detergent and warm water. It may also be necessary to periodically wipe the lower part of the storage area, as the wine cooler retains humidity, which leads to the accumulation of condensate.

SERVICING THE WINE

COOLER

TROUBLESHOOTING

Most power outages will be corrected within a few hours and should not affect the temperature of your wine cooler if you minimize the number of times the door is opened. If the power outage lasts for a longer period of time, you need to take proper measures to protect your contents.

VACATION TIME

During long vacations, remove all bottles; disconnect the wine cooler, clean it, and leave the door slightly open to avoid the formation of condensate, mold, or odors.

MOVING THE WINE COOLER

Remove all bottles. Securely fasten all loose items inside the wine cooler. - Turn the leveling feet to the base to avoid damage. - Close the door and seal it with tape. - Make sure the wine cooler remains in a vertical position during transport.

TROUBLESHOOTING

FAULT

You can easily solve many problems with the wine cooler, saving on the cost of a possible service call. Try the recommendations below to see if you can solve the problem before calling a specialist for after-sales service.

FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs

FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine

FOOD STORAGE

Position different food in different compartments according to the table below

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments. ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do no need coocking, such as ready-to-cat foods, deli meats, leftovers.
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meet, poultry, fish ·Middle drawer for frozen vegetables, chips. ·Top tray for ice cream, frozen fruit, frozen baked goods.

• It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.
• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crispier drawers, whenever present. If not present, maintain an average setting of the thermostat.
• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C)

POSITIONING

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C'
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C'
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C'
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C'

AVAILABILITY OF SPARE PARTS

"Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market".

GUARANTEE

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

TECHNICAL ASSISTANCE

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

BG

For wine storage: this appliance is intended to be used solely for storing wine

For free-standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Type of refrigeration compartment: 4 stars: for freezing fresh food and storing frozen food.

FREEZER STORAGE

Store different foods in different compartments, as indicated in the table.

Од��елене нахладилика	Видхраиа
Врараза плп поставкITE на врараза нахладилиото отд��елене	•Храни с ecTeCTBeHи KOнсерВaHTи KaTo KOнфПИори, сokOBc, habNTKN, пДПравКи. •He Дрьжte Там sbp3opaЗВаЛяпи ceхраии.
Чекmedжke 3a плобови и зелени (чекmedжke 3a сбсжо сьхсанни)	•Плобовete, блкITEи 3eЛeнчуиITE trябва за споставгт OTдELПО. •He сьхсанявaite 6aHaHи, ЛуК, картофи и чесьи вхладилика.
Рафт нахладилика - средEN	•Млесни подуктNi, рицa
Рафт нахладилика - ГорсEN	•Х рани, Конто Нс Сс Нждайт O налprимер ГOTOBи 3a KOнсумаIGNIЯхраии, DeЛикateСНМeca, OCTaТБПи.
Чекmedжete/поставka нахладиrelpa	•Храни 3a Дьл�срочи сьхсанни. •Най-дOLIHOTO чекmedжke e 3a сypobO месO, пТиПи и рибa. •СрсIHOTO чекmedжke e 3a Замразсн 3сЛeнчуи и 6лЯнширани karртофи. •Най-горната поставka e 3a сладол徳, 3amразецппл��дoveи 3amрazehипл��дoveи 3amрazehипechINA.

• It is recommended to set the temperature in the refrigerator compartment to 4°C and, if possible, to -18°C in the freezer compartment. For most food categories, the longest storage time in the refrigerator compartment is achieved at lower temperatures. Since certain products (such as fresh fruits and vegetables) may spoil at lower temperatures, it is recommended to store them in the crisper drawer for fresh storage, if available. Otherwise, adjust the thermostat to a higher setting. For frozen foods, follow the storage time indicated on the food packaging. This storage time is achieved when the settings correspond to the reference temperatures in the compartment (one star -6°C, two stars -12°C, three stars -18°C).

POSITIONING

Install the appliance in a location where the ambient temperature corresponds to the climate class, as indicated in the table with installation data:

• Extended temperate (SN): This refrigerating appliance is intended for use at ambient temperatures from 10°C to 32°C.
• Temperate (N): This refrigerating appliance is intended for use at ambient temperatures from 16°C to 32°C. Subtropical (ST): This refrigerating appliance is intended for use at ambient temperatures from 16°C to 38°C. Tropical (T): This refrigerating appliance is intended for use at ambient temperatures from 16°C to 43°C.

AVAILABILITY OF SPARE PARTS

Thermostats, temperature sensors, printed circuit boards, and light sources are available for a minimum of seven years after the last unit of the model is placed on the market. Door handles, door hinges, trays, and baskets are available for a minimum of seven years, and door gaskets for a minimum of ten years after the last unit of the model is placed on the market.

WARRANTY

The minimum warranty is: 2 years in EU countries, 3 years in Turkey, 1 year in the United Kingdom, 1 year in Russia, 3 years in Sweden, 2 years in Serbia, 5 years in Norway, 1 year in Morocco, 6 months for Algeria; for Tunisia, no legal warranty is required.

TECHNICAL SUPPORT

To contact technical support, visit our website: https://corperate.haier-europe.com/en/. In the "websites" section, select the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and a contact form for technical support.

For more information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label placed on the appliance.

ES
