USER MANUAL GS36VVWEW SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with an eye icon above (no text or symbols)

Illustration of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

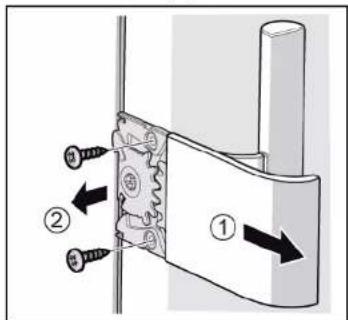

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Easy opening handle e свалена.

Cross-sectional diagram of a mechanical device showing internal components and a cylindrical shaft (no text or labels)

i

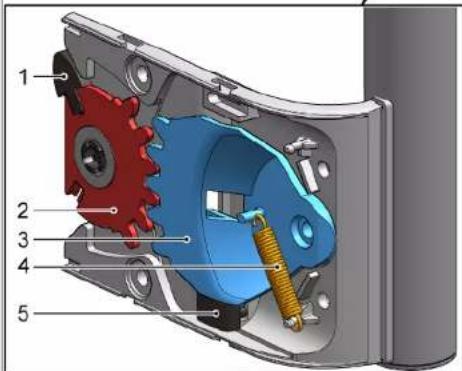

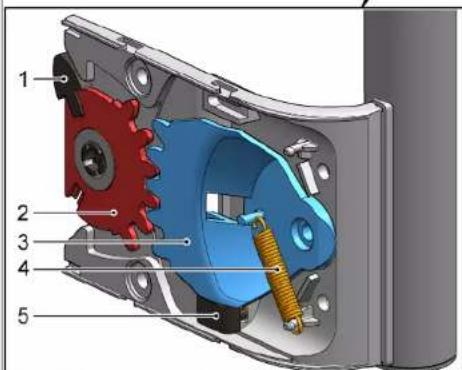

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Ремонт

1. 1. Развийте двата винта (1).

2. Свалете горната панта (2).

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Ремонт

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a device, labeled with arrows and numbered steps.

Diagram showing door lock mechanism with numbered components and directional arrows indicating assembly or repair steps

3D diagram of a rectangular device with a black arrow pointing to the top panel (no text or symbols)

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a blue folder with arrows labeled ① and ② indicating direction or movement, likely illustrating a process or system.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Ремонт

Diagram showing a device with red components and a downward arrow, possibly indicating a process or control mechanism.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with arrows indicating direction, no text or symbols present.

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Ručka easy opening handle je uklonjena.

4.3.2 Postavljanje ručke easy opening handle

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or labels)

i

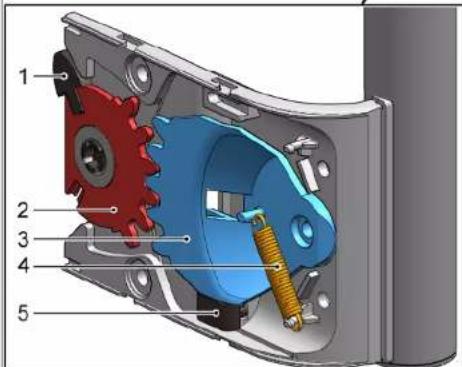

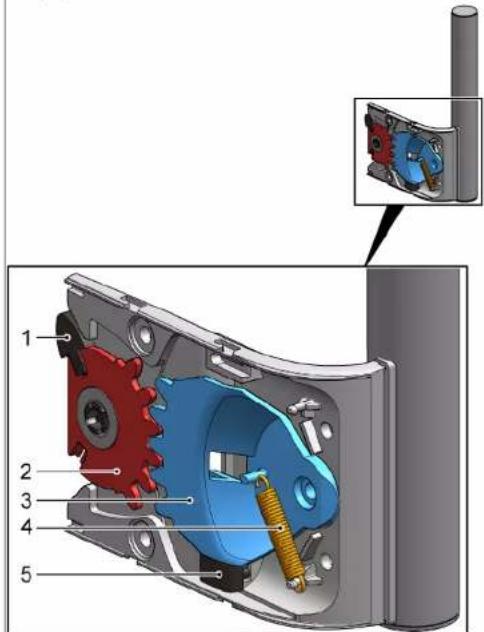

Technical diagram of a mechanical gear assembly with numbered components

Namještanje podkomponenti ručke easy opening handle za postavljanje desne strane vrata opisano je u uputama za postavljanje.

▶ Postavite obratnim redoslijedom.

Popravak

4.4 Zamjena gornjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Zahtjev:

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Popravak

1. 1. Odvijte dva vijka (1).

2. Uklonite gornji zglob (2).

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Gomji zglob vrata je uklonjen.

4.4.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Safety warning illustration showing a moving box with warning symbols and two 3D model diagrams comparing safety outcomes.

Popravak

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Uklonite poklopac gornjeg zgloba (3).

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

1. 1. Uklonite poklopac kutije za kabele (1).

2. Uklonite zaštitu kabela (2).

3. Odvojite električni priključak (3).
4. Odvijte dva vijka (4).
5. Uklonite gornji zglob (5).

Diagram showing three labeled mechanical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Gornji zglob vrata je uklonjen.

4.5.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6,3 mm (1/4") [00340865]

Zahtjev:

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

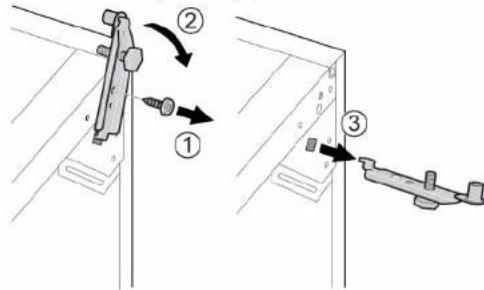

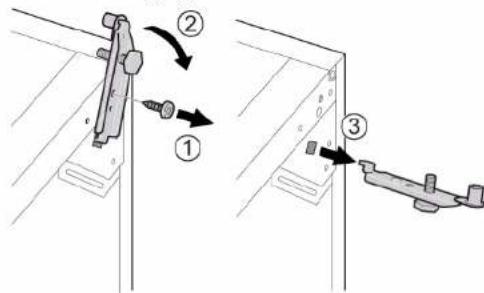

1. 1. Odvijte vijak (1).

2. Izvadite donji zglob (2).

3. Uklonite donji zglob (3).

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Donji je zglob uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process flow.

Spremnik za zamrznute namirnice je uklonjen.

4.8.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena ledomata

Zahtjev:

Vrata su otvorena.

4.9.1 Uklanjanje ledomata

1. Izvucite policu spremnika za zamrznute namirnice s ledomatom (1).
2. Otpustite kuke (2)
3. Uklonite ledomat (3).

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Ledomat je uklonjen.

4.9.2 Postavljanje ledomata

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Popravak

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

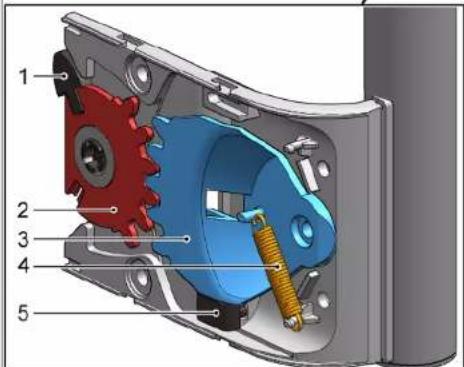

Technical diagram of a mechanical device with numbered components and an inset view showing internal parts.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Oprava

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model diagrams comparing safety outcomes.

Oprava

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Diagram showing a mechanical clamp or bracket with labeled parts and directional arrows indicating motion or force.

Diagram showing a door panel with labeled component ③ and a mechanical bracket diagram

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue envelope device with directional arrows labeled ① and ②, indicating movement or force in a technical or mechanical context.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Oprava

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and tray (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D mechanical assembly diagram showing internal components with a cylindrical shaft and mounting bracket (no text or symbols)

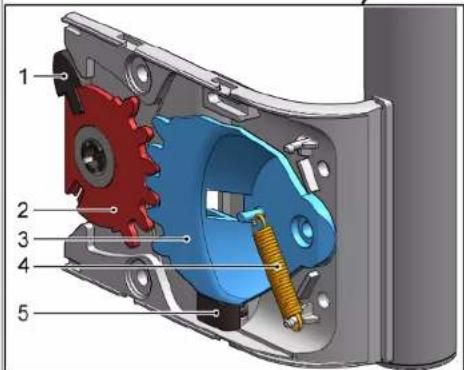

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Reparation

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Reparation

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating hand positioning and movement of a device, labeled with numbered steps ①, ②, and ③.

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a blue device being inserted into a wall, with numbered arrows indicating direction of movement.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Reparation

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and tray (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Cross-sectional diagram of a mechanical device showing internal components and a cylindrical shaft (no text or labels)

i

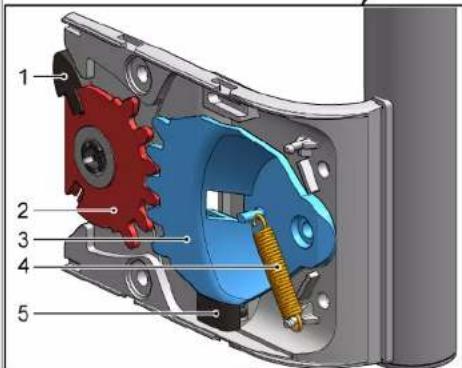

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Reparatie

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Reparatie

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a mechanical component, labeled ①, ②, and ③.

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly.

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Technical diagram showing three mechanical assembly steps with numbered annotations indicating sequence of movement.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Reparatie

Diagram showing a device with a red component labeled 'I' pointing to a grid of vertical lines, possibly indicating a control or sensor setup.

Repair hints - Freezer

i Concerning this document.... 116

1.1 Important information.... 116

1.1.1 Purpose.... 116

1.2 Explanation of symbols 116

1.2.1 Danger levels.... 116

1.2.2 Hazard symbols 116

1.2.3 Structure of the warnings.... 117

1.2.4 General symbols.... 117

Safety.... 118

2.1 General Safety instructions 118

2.1.1 All domestic appliances 118

Tools and aids.... 119

Repair 120

4.5 Replacing door upper hinge (door with display) 128

4.10.1 Removing LED light.... 136

4.10.2 Installing top LED light 137

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Phillips screwdriverPH2
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

1. If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Door handle is removed.

▶ Install in reverse order.

Repair

4.3 Replacing easy opening handle

Required tools:

Phillips screwdriver PH2

Prerequisite:

√ Appliance is disconnected from power supply.

Door is open.

4.3.1 Removing easy opening handle

1. Remove easy opening handle cover (1).
2. Unscrew two screws (2).

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Easy opening handle is removed.

4.3.2 Installing easy opening handle

Easy opening handle mechanism should be properly set before installation. Correct arrangement of push rod (1), toothed quadrants (2) and (3), spring (4) and limit stop (5) for the door left side installation is shown on the graphic.

i

Technical diagram of a mechanical assembly with numbered components, showing internal gears and housing structure

Arrangement of easy opening handle sub-components for door right side installation is described in the document "Installation instruction".

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by trained specialists.
▶ To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries ▶ Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2).

3. Remove upper hinge cover (3).

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Repair

1. 1. Unscrew two screws (1).
2. Remove upper hinge (2)

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
▶ To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Caution

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Warning

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Danger

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

▶ After the repair have a safety test according VDE 0701 or country-

specific regulations performed.

Danger

Risk of electric shock due to live parts!

Death by electrocution

▶ Disconnect appliances from electrical supply at least 60 seconds

before starting repairs.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

Repair

1. Place appliance on the back side.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Repair

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

2.1. Press upper hinge cover on both sides (1).

1. Move out upper hinge cover (2).
2. Remove upper hinge cover (3).

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

1. 1. Remove cable box cover (1).

2. Remove cable protection (2).

3. Disconnect electrical connection (3).
4. Unscrew two screws (4).
5. Remove upper hinge (5).

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

Door upper hinge is removed.

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Warning Heavy, bulky appliances! Back and muscle injuries • Appliance door removal op trained specialists. • To move the appliance, two • Use only suitable tools and

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Appliance is placed on the back side.

√ Upper hinge is removed.→ Page 128

4.6.1 Replacing door lower hinge

1. Remove door.

Diagram of a mechanical device with an arrow indicating direction, no text or symbols present

1. 1. Unscrew the screw (1).

2. Turn lower hinge out (2).

3. Remove lower hinge (3).

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Lower hinge is removed.

Repair

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

√ Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing frozen food container

Prerequisite:

√ Door is open.

4.8.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove frozen food container (2).

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

→ Frozen food container is removed.

4.8.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.9 Replacing ice maker

Prerequisite:

√ Door is open.

4.9.1 Removing ice maker

▶ 1. Pull out shelf frozen food container with ice maker (1).
2. Release hooks (2).
3. Remove ice maker (3).

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Ice maker is removed.

4.9.2 Installing ice maker

▶ Install in reverse order.

Repair

4.10 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.10.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Repair

1. Remove LED light moving it forward.

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

LED light is removed.

4.10.2 Installing top LED light

▶ Install in reverse order.

Remonditeave - Sügavkülmik

i Selle dokumendiga seoses 139

1.1 Tähtis teave 139

1.1.1 Eesmärk 139

1.2 Sümbolite selgitus 139

1.2.1 Ohutasemed.... 139

Illustration of hands connecting a cable to a rectangular device with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

3D diagram of a mechanical component with internal parts, shown in two views: one with a cylindrical shaft and one with a highlighted internal structure (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Remont

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical or electrical component.

Safety warning illustration showing a moving box with warning symbols and two 3D model diagrams comparing safety outcomes.

Remont

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a device, labeled with arrows and numbered steps.

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Easy opening handle -kahva on poistettu.

Safety warning illustration showing a box being locked with a warning sign and a checkmark indicating failure.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Korjaus

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force, marked as ① and ②.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with checkmark and cross marks indicating failure or damage.

Korjaus

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a base (no text or symbols)

1. 1. Kierrä ruuvi auki (1).

2. Kierrä alasarana ulos (2).

3. Poista alasarana (3).

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Alasarana on poistettu.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a blue envelope device with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Korjaus

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D diagram of a mechanical component with internal parts, shown in two views: one with a cylindrical shaft and one with a blue internal structure (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Réparation

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical or electrical component.

Safety warning illustration showing a moving box with warning symbols and two 3D model diagrams comparing safety outcomes.

Réparation

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step mechanical or electrical process steps with labeled arrows and directional arrows indicating movement.

Diagram showing two steps of installing a door panel, labeled with numbered instructions for installation or repair.

3D diagram of a rectangular box with a black arrow pointing upward on top, no text or symbols present

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue envelope device with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Réparation

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D diagram of a mechanical device with internal components and a cylindrical shaft, no visible text or symbols

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Instandsetzen

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Instandsetzen

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly.

3D diagram of a rectangular box with a black arrow pointing upward on top, no text or symbols present

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Instandsetzen

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door with shelves and arrows indicating force or movement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D cutaway view of a mechanical component with internal parts, no visible text or symbols

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Επισκευή

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Επισκευή

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a mechanical component, labeled ①, ②, and ③.

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly.

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red block and mechanical assembly (no text or symbols)

Επισκευή

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Javítás

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D mechanical assembly diagram showing internal components with no visible text or symbols

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Javítás

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical or electrical component.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Javítás

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing door lock mechanism with numbered components and directional arrows indicating assembly or repair steps

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Javítás

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

Diagram of hands connecting a cable to a rectangular panel with shelves, showing mechanical assembly (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

Technical diagram of a mechanical assembly with numbered parts, showing internal components like gears and springs.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with checkmarks and X marks indicating failure or damage.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Riparazione

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force, marked as ① and ②.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Riparazione

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a mechanical component, labeled ①, ②, and ③.

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly.

3D diagram of a rectangular device with an arrow pointing upward on the top panel (no text or symbols)

1. 1. Svitare la vite (1).
2. Ruotare la cerniera inferiore verso l'esterno (2).
3. Togliere la cerniera inferiore (3).

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue envelope device being inserted into a wall, with numbered arrows indicating direction of movement.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Riparazione

Diagram showing a device with a red component and a downward arrow, no readable text or symbols present.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with an eye icon above, showing internal compartments and arrows indicating movement (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating front and back (no text or symbols)

Remonts

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Durvju rokturis ir nonemts.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D diagram of a mechanical component with internal parts, shown in two views: one with a cylindrical shaft and one with a highlighted internal structure (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Remonts

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect states.

Remonts

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door lock mechanism with labeled parts and directional arrows indicating movement or assembly.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Ledus tvertne ir iznemta.

Diagram of a mechanical or electrical component with a red component and directional arrow, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

→ LED gaismeklis ir nonemts.

Illustration of hands connecting a cable to a rectangular device with shelves and components (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

„Easy open handle“ nuimta.

3D mechanical assembly diagram showing internal components with a cylindrical shaft and mounting bracket (no text or symbols)

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Remontas

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Remontas

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing three labeled mechanical components with arrows indicating motion or assembly steps

Diagram showing a door handle assembly with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Technical diagram showing three mechanical assembly steps with numbered annotations indicating sequence of movement or assembly.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a blue envelope device with directional arrows labeled ① and ②, indicating movement or force in a technical or mechanical context.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remontas

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

LED lemputė išimta.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

easy opening handle er demontert.

3D mechanical assembly diagram showing a component with internal parts and a cylindrical shaft (no text or symbols)

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Reparasjon

1. 1. Skru ut to skruer (1).

2. Demonter øvre hengsel (2).

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Reparasjon

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating hand positioning and movement of a device with numbered instructions for each step

Diagram showing three labeled mechanical components with arrows indicating motion or assembly steps

Diagram showing a door lock mechanism with labeled parts and directional arrows indicating movement or assembly.

3D diagram of a rectangular box with a lid and an arrow indicating direction (no text or symbols)

1. 1. Skru ut skruen (1).

2. Drei den nedre hengselen ut (2).

3. Demonter nedre hengsel (3).

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue device being inserted into a wall, with numbered arrows indicating direction of movement or assembly.

→ Beholderen for frysevarer er demontert.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Reparasjon

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

LED-lampen er demontert.

Illustration of hands connecting a cable to a refrigerator panel (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram of a mechanical assembly with numbered parts, showing internal components like gears and springs.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Naprawy

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical or electrical component.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Naprawy

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a device, labeled with arrows and numbered steps.

Diagram showing door lock mechanism with numbered components and directional arrows indicating assembly or repair steps

3D diagram of a white rectangular box with a black arrow pointing upward on top, no text or symbols present

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.7.2 Montaż półki

Diagram showing a blue envelope device with directional arrows labeled ① and ②, indicating movement or force in a technical or mechanical context.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Naprawy

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram of a mechanical device with numbered components and an inset view showing internal parts.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Reparação

1. 1. Desaperte dois parafusos (1).

2. Remova a dobradiça superior (2).

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Reparação

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating hand positioning and movement of a device with numbered instructions for each step

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly or repair.

3D diagram of a rectangular device with a black arrow pointing to the top panel (no text or symbols)

1. 1. Desaperte o parafuso (1).

2. Vire a dobradiça inferior para fora (2).

3. Remova a dobradiça inferior (3).

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing two blue plastic containers with arrows indicating movement or force, labeled ① and ②.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical component with a red arrow pointing to a specific area, no visible text or symbols.

Diagram of a screwdriver inserted into a mechanical component, showing no text or symbols

Reparação

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or labels)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Repararea

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Cap torx TX20 6.3 mm (1/4") [00340865]

AVERTISMENT

Aparate grele, masive!

Safety warning illustration showing a moving box with warning symbols and two 3D model diagrams comparing safety outcomes.

Repararea

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing two-step installation of a door handle mechanism with numbered components and directional arrows indicating assembly or repair.

Cap torx TX20 6.3 mm (1/4") [00340865]

Aparate grele, masive!

3D illustration of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a wall, with numbered arrows indicating process flow.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a ceiling-mounted device with a red component and black arrow indicating direction (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component with no visible text or symbols

Repararea

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Tesnenie dvierok je namontované.

Oprava

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

→ Úchytka easy opening handle je odobratá.

4.3.2 Montáž úchytky easy opening handle

Cross-sectional diagram of a mechanical device showing internal components and a cylindrical shaft (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Oprava

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Oprava

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with arrows indicating movement.

Diagram showing a door handle mechanism with numbered steps and directional arrows indicating movement or assembly.

3D diagram of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process flow.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical assembly with a tool inserted, showing a red component and a gray base (no text or symbols)

Oprava

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

LED svetlo je odobraté.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Ročaj easy opening handle je odstranjen.

Diagram showing a mechanical component with a magnified inset view (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D blocks with checkmarks and X marks indicating failure or failure.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Popravilo

1. 1. Odvijte vijaka (1).

2. Odstranite zgornji tečaj (2).

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Poškodbe hrbta in mišic

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Popravilo

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Diagram showing door lock mechanism with numbered components and directional arrows indicating assembly or repair steps

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Technical diagram showing three steps of a mechanical clamp or bracket assembly with labeled components and directional arrows.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Ledomat je odstranjen.

4.9.2 Namestitev ledomata

▶ Namestite v obratnem vrstnem redu.

Popravilo

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a mechanical assembly with a tool inserted into a component, no visible text or symbols

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

Diagram of a mechanical or electrical component with a red rectangular block and downward arrow, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door panel, with numbered instructions for each step.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram of a mechanical assembly with numbered parts, showing internal components like gears and springs.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled components and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Reparación

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical or electrical component.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Reparación

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step folding or dissection process of a device, labeled with arrows and numbered steps.

Diagram showing two steps of installing a door panel, labeled with numbered instructions for assembly or repair.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a flat base (no text or symbols)

Technical diagram showing three mechanical assembly steps with numbered annotations indicating motion directions.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue envelope device with labeled parts and directional arrows indicating movement or force.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparación

Diagram showing a device with red components and an arrow pointing to a component, possibly indicating a process or operation.

4.3 Byta Easy opening handle....509

4.3.1 Ta bort Easy opening handle 509

4.3.2 Montera Easy opening handle....509

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating handle and seat (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Diagram showing three-step installation of a door handle using screwdriver and tool, with numbered instructions.

4.3 Byta Easy opening handle

Nödvändiga verktyg:

Technical diagram showing gear assembly with labeled parts and directional arrows indicating movement or force

Easy opening handle har tagits bort.

4.3.2 Montera Easy opening handle

Technical diagram of a mechanical assembly with numbered components, showing internal gears and housing structure.

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Reparation

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D model comparisons below indicating correct and incorrect conditions.

Reparation

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating hand positioning and movement of a device with numbered instructions for each step

Diagram showing three labeled mechanical or electrical components with arrows indicating motion or assembly steps

Diagram showing a door lock mechanism with labeled parts and directional arrows indicating movement or assembly.

3D diagram of a white rectangular box with a black arrow pointing upward on top, placed on a base (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical component with a red rectangular block and directional arrow, no visible text or symbols.

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Reparation

Diagram showing a device with red components and a downward arrow, likely indicating a process or control mechanism.

→ LED-lampan har tagits bort.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Diagram showing three-step installation of a screwdriver on a door, with numbered instructions for each step.

Technical diagram showing gear assembly with labeled parts and directional arrows indicating movement or force

3D mechanical assembly diagram showing internal components and a cylindrical shaft (no text or symbols)

i

Technical diagram of a mechanical gear assembly with numbered components

Safety warning illustration showing a moving box with directional arrows and warning symbols, alongside two 3D diagrams illustrating correct and incorrect safety actions.

Diagram illustrating safety inspection steps with labeled symbols and checkmark indicators

Diagram illustrating three-step folding or dissection of a device, labeled ①, ②, and ③ with directional arrows indicating movement.

Onarim

Diagram showing two labeled components (① and ②) with arrows indicating direction of movement or force on a mechanical structure.

Safety warning illustration showing a moving box with warning symbols and two 3D blocks with check and cross marks indicating failure or damage.

Onarim

Diagram illustrating safety inspection steps with labeled icons and checkmark indicators

Diagram illustrating three-step instructions for using a tool, labeled ①, ②, and ③ with arrows indicating motion.

Diagram showing three labeled mechanical components with arrows indicating motion or assembly steps

Diagram showing a door lock mechanism with numbered instructions for adjusting parts, including a key inserted into a clip.

3D diagram of a rectangular box with a lid and an arrow indicating upward motion (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a blue plastic bag being inserted into a container, with numbered arrows indicating process steps.

Technical diagram showing three labeled mechanical components with directional arrows indicating movement or assembly.

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Onarim

Diagram showing a device with red components and a downward arrow, possibly indicating a process or control mechanism.

LED ışığı söküldü.
