USER MANUAL Combi 743 Q AE STIGA

Pedestrian-controlled walk-behind battery powered lawn mower

WARNING: read thoroughly the instruction booklet before using the machine.

ENGLISH - Translation of the original instruction

[2] Nominal power* [3] Max. motor operating speed * [4] MAX supply voltage [5] NOMINAL supply voltage [6] Machine weight * [7] Cutting width [8] Cutting means code [9] Sound pressure level [10] Measurement uncertainty [11] Measured acoustic power level [12] Guaranteed acoustic power level [13] Vibrations level [14] Accessories [15] Mulching kit [16] Battery, mod. [17] Battery charger, mod. [18] Table for the correct combination of batteries

• Please refer to the data indicated on the machine’s identication label for the exact gure.

[1] LT - TECHNINIAI DUOMENYS

1.1 HOW TO READ THE MANUAL

Some paragraphs in the manual contain important informa- tion regarding safety and operation and are emphasised in this manner: NOTE OR IMPORTANT these give details or further information on what has already been indicated, and aim to prevent damage to the machine. This symbol indicates danger. Failure to observe the warning can lead to possible personal and/or third party injury and/or damage. The paragraphs highlighted with a grey dotted square in- dicate the optional characteristics that are not available on all models documented in this manual. Check if the characteristics are available on this model. Whenever reference is made to a position on the machine "front", "back", "left" or "right" hand side, this refers to the oper- ator's working position.

The gures in these instructions for use are numbered 1, 2, 3, etc. The components indicated in the gures are identied with letters A, B, C, and so on. Reference to component C in gure 2 is indicated with the wording: "See g. 2.C" or simply "(Fig. 2.C)". The gures are given as a guide only. The actual pieces can dier from those illustrated in this document.

The manual is divided into chapters and paragraphs. The title of paragraph '2.1 Training" is a sub-title of "2. Safety regulations". References to titles or paragraphs are marked with the abbre- viation chap. or par. and the relevant number. Example: “chap. 2” or “par. 2.1"

Become acquainted with the controls and the proper use of the machine. Learn how to stop the motor quickly. Failure to follow the warnings and instructions may result in re and/or serious injury.

• Never allow children or persons unfamiliar with these instructions to use the machine. Local laws may establish a minimum age for users.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowl- edge if they have been given supervision or instructions concerning use of the appliance in a safe way and under- stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. WARNING!: READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE. Keep safe for future use.

3.1 Description of the machine and planned use ..... 3

12.1 For machines with electronic control ................ 10

12.2 For machines WITHOUT electronic control ......11

• Never use the machine if the user is tired or unwell, or has taken medicine, drugs, alcohol or any substances which may slow their reexes and compromise his judgement.

• Do not allow children or other passengers to ride on the machine.

• Bear in mind that the operator or user is responsible for accidents or unexpected events occurring to other people or their property. It is the user’s responsibility to assess the potential risk of the area where work is to be carried out and to take all the necessary precautions to ensure his own safety and that of others, particularly on slopes or rough, slippery and unstable ground.

• If the machine is sold or lent to others, make sure that the operator reads the user instructions contained in this manual.

2.2 PRELIMINARY PROCEDURES

Personal Protective Equipment (PPE)

• Always wear suitable work attire, hard-wearing safety footwear with non-slip soles and long trousers. Do not operate the machine barefoot or wearing open sandals. Wear hearing protection devices.

• Use of hearing protections can reduce the ability to hear any warnings (shouting or alarms). Be careful of what occurs around you in the work area.

• Wear protective gloves whenever your hands are at risk.

• Never wear scarves, shirts, necklaces, bracelets, loose owing clothing, laces or ties or any hanging or apping accessory that could get caught in the machine or in any objects or materials in the work area.

• Tie your hair back if it is long. Work area/Machine

• Thoroughly inspect the entire work area and remove any- thing that could be thrown by the machine or damage the cutting means/rotating units (stones, branches, iron wire, bones, etc.).

• Do not use the machine in environments at risk of explo- sion, in the presence of ammable liquids, gas or powder. Power tools create sparks which may ignite the dust or fumes.

• Work only in daylight or with good articial light in good visibility conditions.

• Keep persons, children and animals away from the work- ing area. Children must be supervised by another adult.

• Avoid working with wet grass, in the rain and when there is a risk of a thunderstorm, especially lightening.

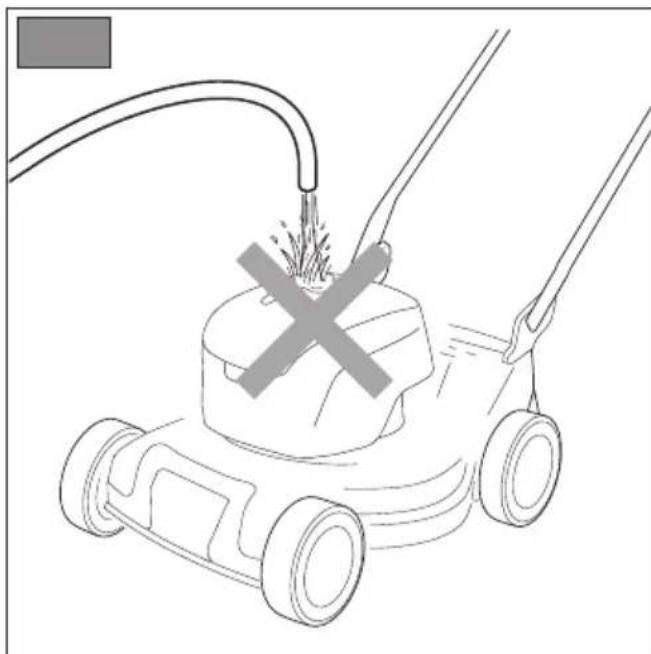

• Do not expose the machine to rain or wet environments. Water entering a power tool will increase the risk of elec- tric shock.

• Pay careful attention to uneven ground (hills, dips), slopes, hidden hazards and obstacles that could limit visibility.

• Be very careful near ravines, ditches or embankments. The machine could overturn if a wheel slides over the edge or if the earth gives way.

• Always mow across a slope and never up and down it, being very careful when changing direction, making sure you have rm footage and that the wheels do not hit any obstacles (such as stones, branches, roots, etc.) that may cause the machine to slide sideways or make you lose control of it.

• Look out for trac when using the machine near the road. Behaviour

• Exercise caution when reversing or moving backwards. Look behind you to make sure there are no obstacles before and during operations in reverse gear.

• Never run, always walk.

• Do not allow the lawnmower to pull you along.

• Always keep hands and feet away from the cutting means, when starting and when using the machine.

• Attention: the cutting means will continue to rotate for a few seconds after disengagement or after you have switched o the motor.

• Keep away from the discharge opening. If something breaks or an accident occurs during mowing, turn o the motor immediately and move the machine away to prevent further damage; if an accident occurs with injuries or third parties are injured, carry out the rst aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris which could cause damage or injury to persons or ani- mals if ignored. Use limitations

• Never operate the machine with guards damaged, miss- ing or incorrectly assembled (grass catcher, side dis- charge guards, rear discharge guards).

• Don’t use the machine if the attachments/tools are not installed in their seats.

• Never disengage, deactivate, remove or tamper with the safety systems/micro switches installed.

• Do not strain the machine too much and do not use a small machine for heavy-duty work; if you use the right machine, you will reduce the risk of hazards and improve the quality of your work.

2.4 MAINTENANCE, STORAGE

Ensure regular maintenance and correct storage to main- tain machine safety and high performance levels. Maintenance

• Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and never repaired.

• Be careful during adjustment of the machine to prevent entrapment of the ngers between moving parts of the cutting means and xed parts of the machine. The noise and vibration levels shown in these in- structions are the maximum levels for use of the machine. The use of an unbalanced cutting element, the excessive speed of movement, or lack of maintenance have a signif- icant inuence on noise emissions and vibrations. Conse- quently, it is necessary to take preventive steps to eliminate possible damage due to high levels of noise and stress from vibration; Maintain the machine well, wear ear protec- tion devices, and take breaks while working. Storage

• To reduce re risks, do not leave containers with debris inside a room.

2.5 BATTERY / BATTERY CHARGER

IMPORTANT The following safety instructions are in addition to the safety requirements provided in the specic battery and battery charger manual delivered with this machine.EN - 3

• Only use battery chargers recommended by the manufac- turer to recharge batteries. An inadequate battery charg- er may cause electric shock, overheating or corrosive liquid to leak from the battery.

• Use only batteries specically designed for your power tool. The use of other batteries may cause injuries and re risks.

• Make sure that the machine is switched o before insert- ing the battery. Inserting a battery in a machine which is switched on can cause a re.

• Keep all unused batteries at a distance from paper clips, coins, keys, nails, screws or other small metal objects as contact with the same can cause short circuits. Short circuits between battery contacts can lead to explosion or res.

• Do not use the battery charger in places where there are inammable vapours, substances or on easily inamma- ble surfaces like paper, fabric, etc. During recharge, the battery charger becomes heated and may cause re.

• When transporting accumulators, make sure the contacts never come into contact with each other and never use metal containers to transport them.

2.6 ENVIRONMENTAL PROTECTION

Safeguarding the environment must be a relevant and prior- ity aspect of machine use, of benet to the community and the environment we live in.

• Avoid being a disturbance to the neighbourhood. Use this machine at reasonable times of the day only (not early morning or late evening when the noise could cause disturbance).

• Comply with local regulations for the disposal of pack- aging, deteriorated parts or any elements with a strong environmental impact; this waste must not be disposed of with regular waste, but must be separated and taken to collection centres, which will recycle the materials.

• Comply with local regulations for the disposal of waste materials.

• When the machine is decommissioned, do not dispose of it in the environment, but take it to a waste disposal facili- ty in accordance with the local regulations in force. Do not throw electrical equipment away with domestic waste. According to the European Direc- tive 2012/19/EU on waste electrical and electronic equipment and its implementation in compliance with national standards, old electrical equipment must be collected separately, for eco-compatible recycling. If electrical equipment is disposed of in dumps or in landlls, hazardous substances can leak into the groundwater and con- taminate the food chain, damaging your health and well-being. For further information on the disposal of this product, contact your dealer or a domestic waste collection service. At the end of their working life, dispose of batteries paying due attention to the envi- ronment. Batteries contain material classied as hazardous for you and the environment. They must be removed and disposed of separately at a facility that accepts lithium-ion batteries. Separate waste collection of the products and packaging used allows the materials to be recycled and reused. Reuse of recycled ma- terials help to prevent environmental pollution and reduces the demand for raw materials.

PLANNED USE This machine is pedestrian-controlled lawnmower. The machine is essentially composed of a motor which drives a cutting means enclosed in a casing, equipped with wheels and a handle. The operator is able to operate the machine and use the main controls, always staying behind the handle at a safe distance from the rotating cutting means. If the operator leaves the machine, the motor and cutting means will stop within a few seconds.

This machine is designed and built to cut (and collect) grass in gardens and grassy areas, with a height according to its cutting capacity, driven by an operator walking behind it. Generally speaking this machine can:

1. Mow the grass and collect it in the grass catcher bag.

2. Mow the grass and discharge it on the ground through

3. Mow the grass and discharge it on the ground laterally

4. Mow the grass, chop it and discharge it on the ground

(mulching eect - if available). The use of special attachments provided for by the Manu- facturer as original equipment or which may be purchased separately, allows this work to be done in various operating modes, illustrated in this manual or the instructions that accompany the single attachments.

Any other usage not in keeping with the afore-mentioned ones may be hazardous and harm persons and/or damage things. Examples of improper use may include, but are not limited to: – Allowing children, animals or other passengers to ride on the machine as they could fall o and injure themselves or compromise safe driving by the operator. – Letting oneself be transported by the machine. – Using the machine to tow or push loads. – Using the cutting means on surfaces other than grass. – Use the machine for leaf or debris collection. – Using the machine to trim hedges, or for cutting vegetation other than grass. – Use of the machine by more than one person. IMPORTANT Improper use of the machine will invalidate the warranty, relieve the Manufacturer from all liabilities, and the user will consequently be liable for all and any dam- age or injury to himself or others.

This machine is intended for use by consumers, i.e. non-professional operators. It is intended for "DIY" use only. IMPORTANT The machine must be used exclusively by one operator.

The machine has various symbols on it (Fig. 2). Their func- tion is to remind the operator of the correct conduct for use, with due care and caution. Meanings of the symbols:EN - 4 Warning. Read the instructions before

Danger! Risk of thrown objects. Keep

Danger! Danger of cutting. Cutting

Be careful when using the sharp cutting means. Do not put hands or feet near or

IMPORTANT Any damaged or illegible decals must be replaced. Order replacement decals from an Authorised Service Centre.

11. Electrical protection rating.

IMPORTANT Quote the information on the product iden- tication label whenever you contact an Authorised Service Centre. IMPORTANT The example of the Declaration of Con- formity is provided on the last pages of the manual.

A. Chassis: this is the casing that houses the rotating

C. Cutting means: grass.

leased. K. Drive engagement lever (if available): this lever

L. Hatch for accessing the battery compartment M. Safety key (Deactivation device):-

Strictly observe the indications and the safety reg- ulations described in chap. 2.

Unpacking and completing the assembly should be performed on a at and stable surface, with enough space for handling the machine and its packaging.. Do not use the machine until all the indications provided in the “ASSEMBLY” section have been carried out.

4. Dispose of the box and packaging in compliance with

local regulations. Before assembling, make sure the safety key is not inserted into its housing.

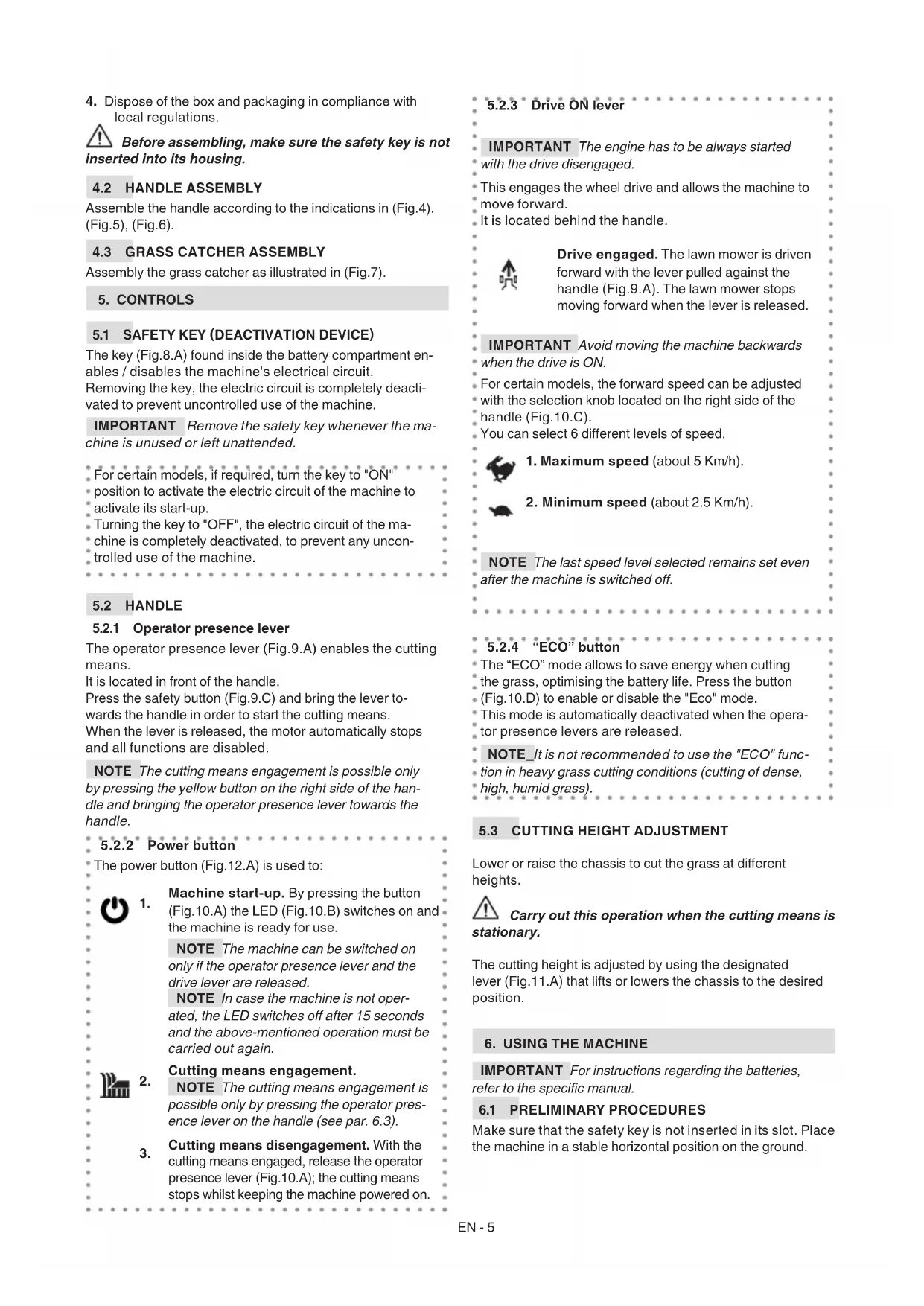

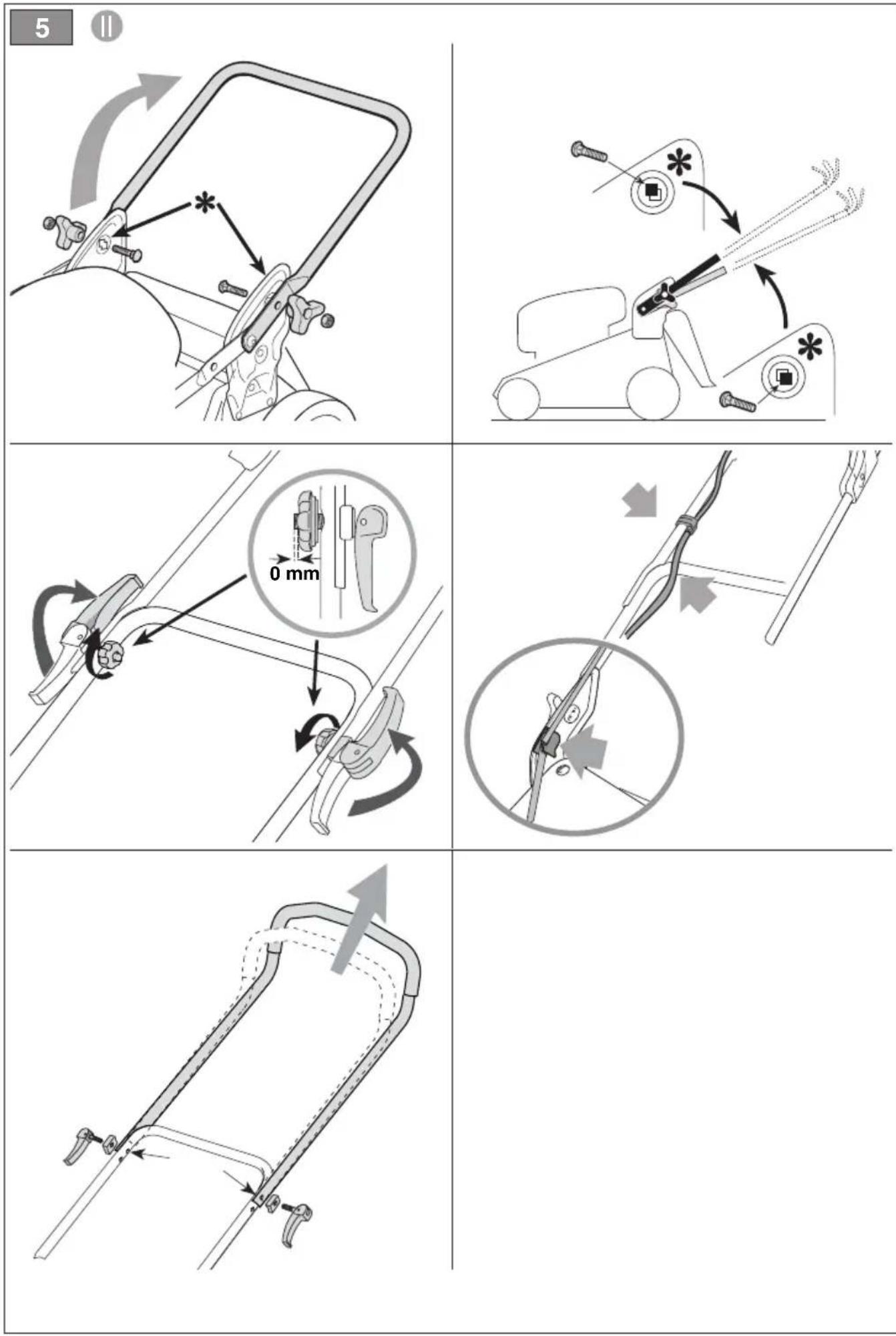

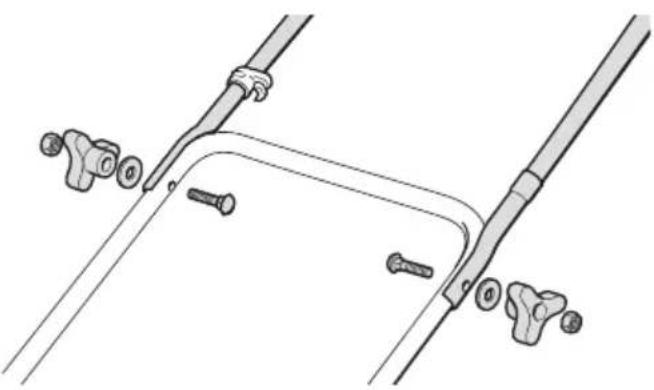

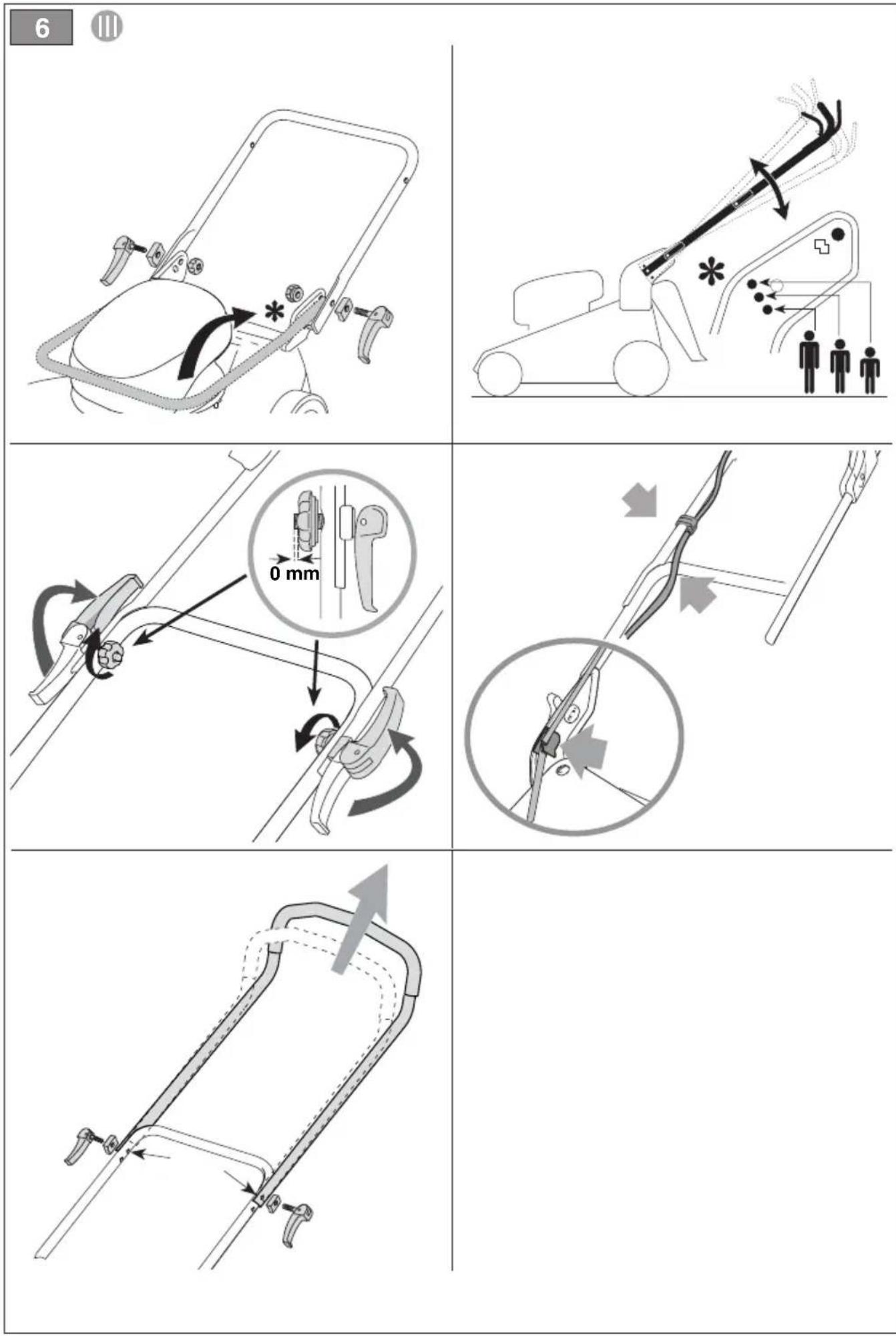

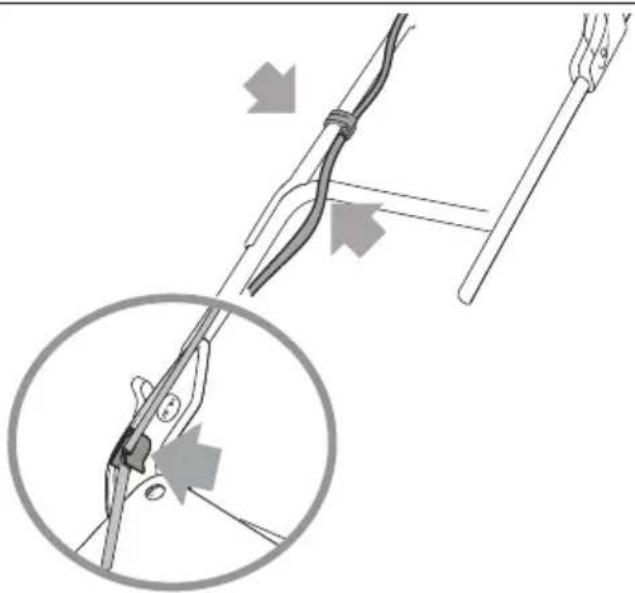

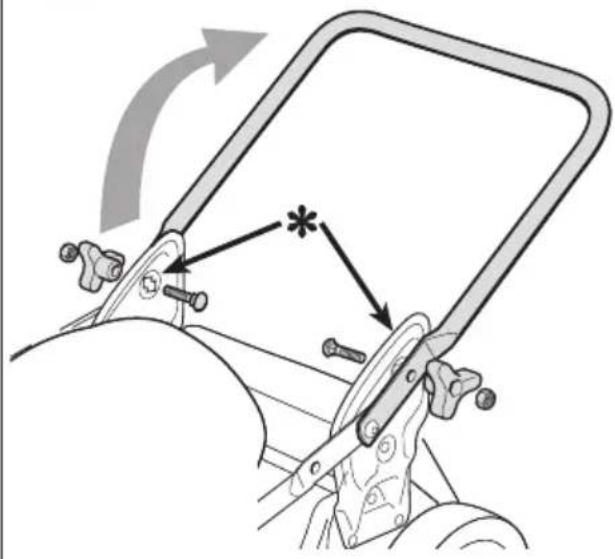

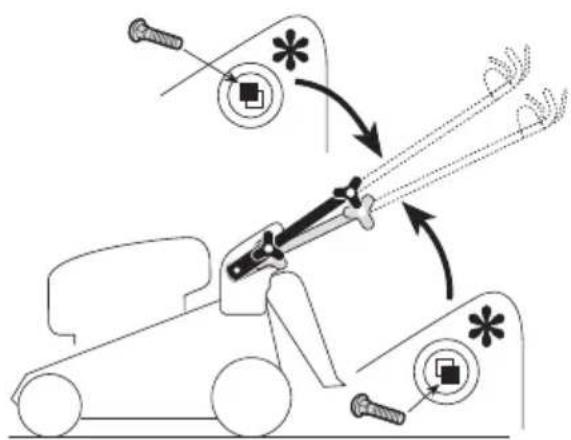

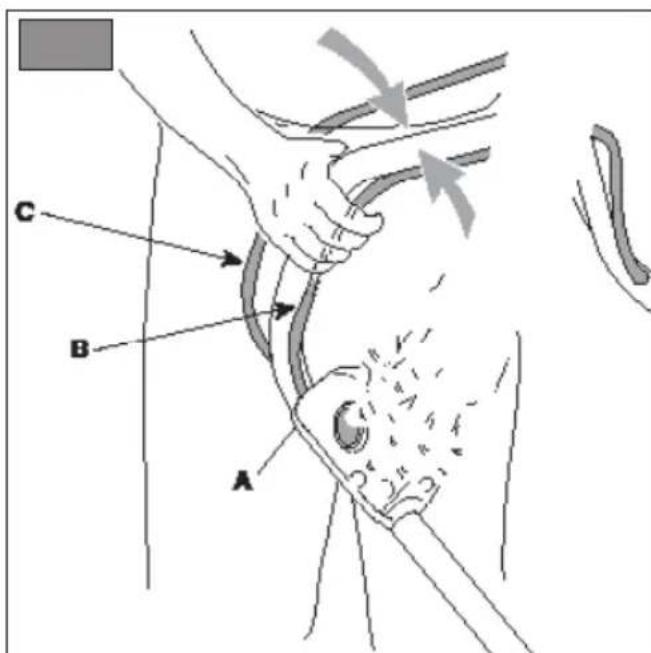

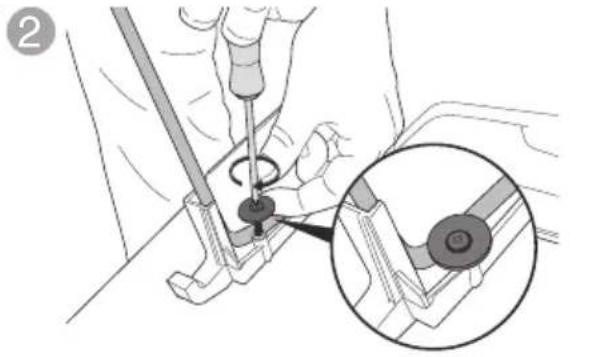

Assemble the handle according to the indications in (Fig.4), (Fig.5), (Fig.6).

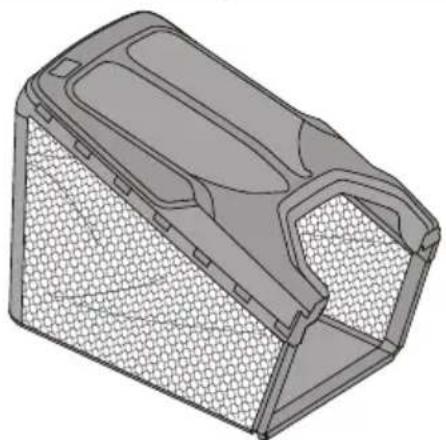

4.3 GRASS CATCHER ASSEMBLY

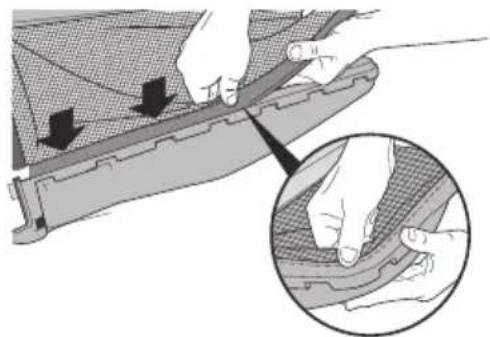

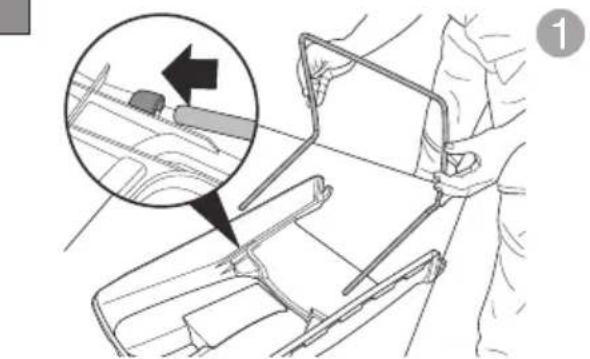

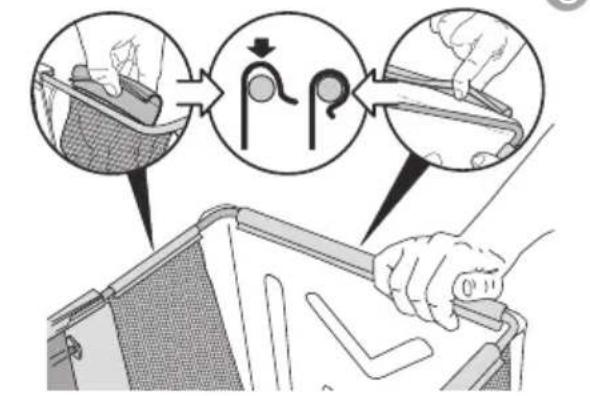

Assembly the grass catcher as illustrated in (Fig.7).

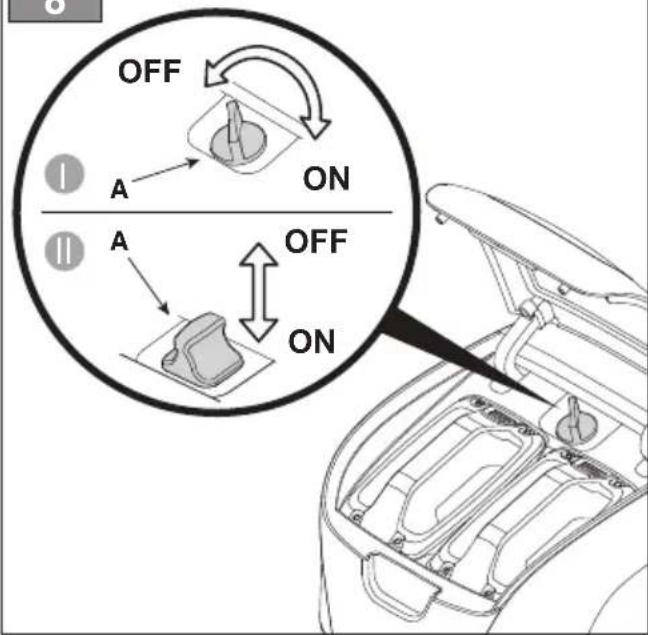

The key (Fig.8.A) found inside the battery compartment en- ables / disables the machine's electrical circuit. Removing the key, the electric circuit is completely deacti- vated to prevent uncontrolled use of the machine. IMPORTANT Remove the safety key whenever the ma- chine is unused or left unattended. For certain models, if required, turn the key to "ON" position to activate the electric circuit of the machine to activate its start-up. Turning the key to "OFF", the electric circuit of the ma- chine is completely deactivated, to prevent any uncon- trolled use of the machine.

The operator presence lever (Fig.9.A) enables the cutting means. It is located in front of the handle. Press the safety button (Fig.9.C) and bring the lever to- wards the handle in order to start the cutting means. When the lever is released, the motor automatically stops and all functions are disabled. NOTE The cutting means engagement is possible only by pressing the yellow button on the right side of the han- dle and bringing the operator presence lever towards the handle.

The power button (Fig.12.A) is used to:

Machine start-up. By pressing the button (Fig.10.A) the LED (Fig.10.B) switches on and the machine is ready for use. NOTE The machine can be switched on only if the operator presence lever and the drive lever are released. NOTE In case the machine is not oper- ated, the LED switches o after 15 seconds and the above-mentioned operation must be carried out again.

Cutting means engagement. NOTE The cutting means engagement is possible only by pressing the operator pres- ence lever on the handle (see par. 6.3).

Cutting means disengagement. With the cutting means engaged, release the operator presence lever (Fig.10.A); the cutting means stops whilst keeping the machine powered on.

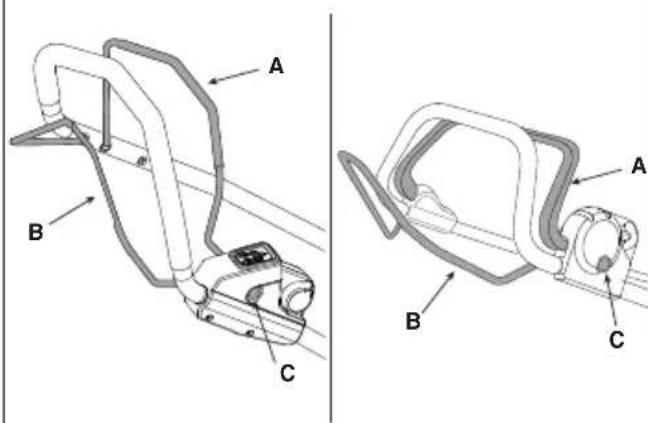

5.2.3 Drive ON lever

IMPORTANT The engine has to be always started with the drive disengaged. This engages the wheel drive and allows the machine to move forward. It is located behind the handle. Drive engaged. The lawn mower is driven forward with the lever pulled against the handle (Fig.9.A). The lawn mower stops moving forward when the lever is released. IMPORTANT Avoid moving the machine backwards when the drive is ON. For certain models, the forward speed can be adjusted with the selection knob located on the right side of the handle (Fig.10.C). You can select 6 dierent levels of speed.

1. Maximum speed (about 5 Km/h).

2. Minimum speed (about 2.5 Km/h).

NOTE The last speed level selected remains set even after the machine is switched o.

The “ECO” mode allows to save energy when cutting the grass, optimising the battery life. Press the button (Fig.10.D) to enable or disable the "Eco" mode. This mode is automatically deactivated when the opera- tor presence levers are released. NOTE_It is not recommended to use the "ECO" func- tion in heavy grass cutting conditions (cutting of dense, high, humid grass).

5.3 CUTTING HEIGHT ADJUSTMENT

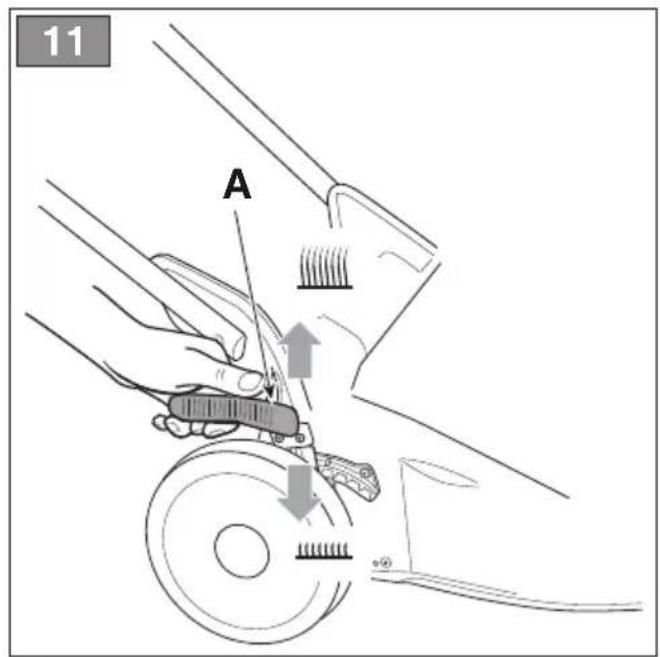

Lower or raise the chassis to cut the grass at dierent heights. Carry out this operation when the cutting means is stationary. The cutting height is adjusted by using the designated lever (Fig.11.A) that lifts or lowers the chassis to the desired position.

6. USING THE MACHINE

IMPORTANT For instructions regarding the batteries, refer to the specic manual.

6.1 PRELIMINARY PROCEDURES

Make sure that the safety key is not inserted in its slot. Place the machine in a stable horizontal position on the ground.EN - 6

6.1.1 Checking the battery

Before using the machine for the rst time after purchase, fully charge the battery following the instructions in the battery booklet. Before every use of the machine, check the battery charge status according to the instructions in the battery booklet.

6.1.2 Preparing the machine before starting work

NOTE This machine can be used to mow lawns in vari- ous ways. a. Preparation for grass cutting and collection in the grass catcher:

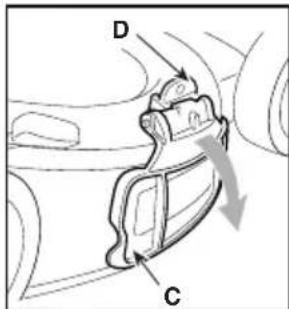

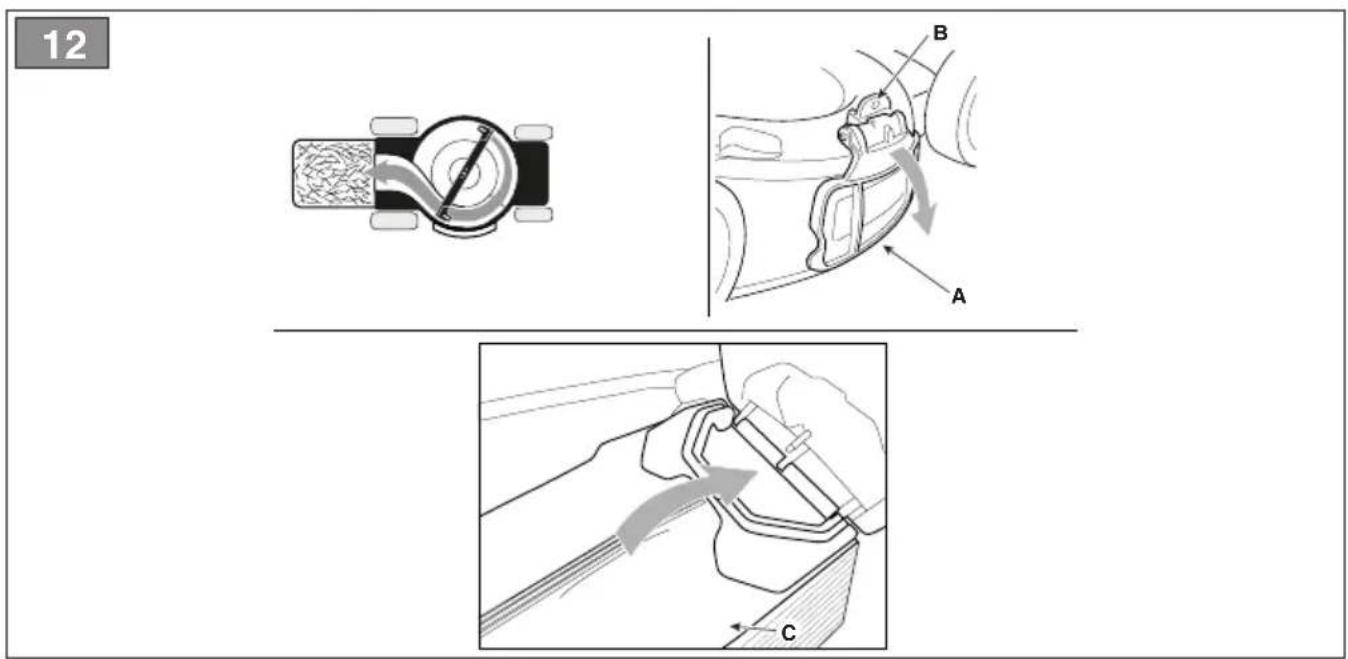

1. For side discharge models: make sure that the

guard (Fig. 12.A) is lowered and locked by the safe- ty lever (Fig. 12.B).

2. Insert the grass catcher (Fig.12.C).

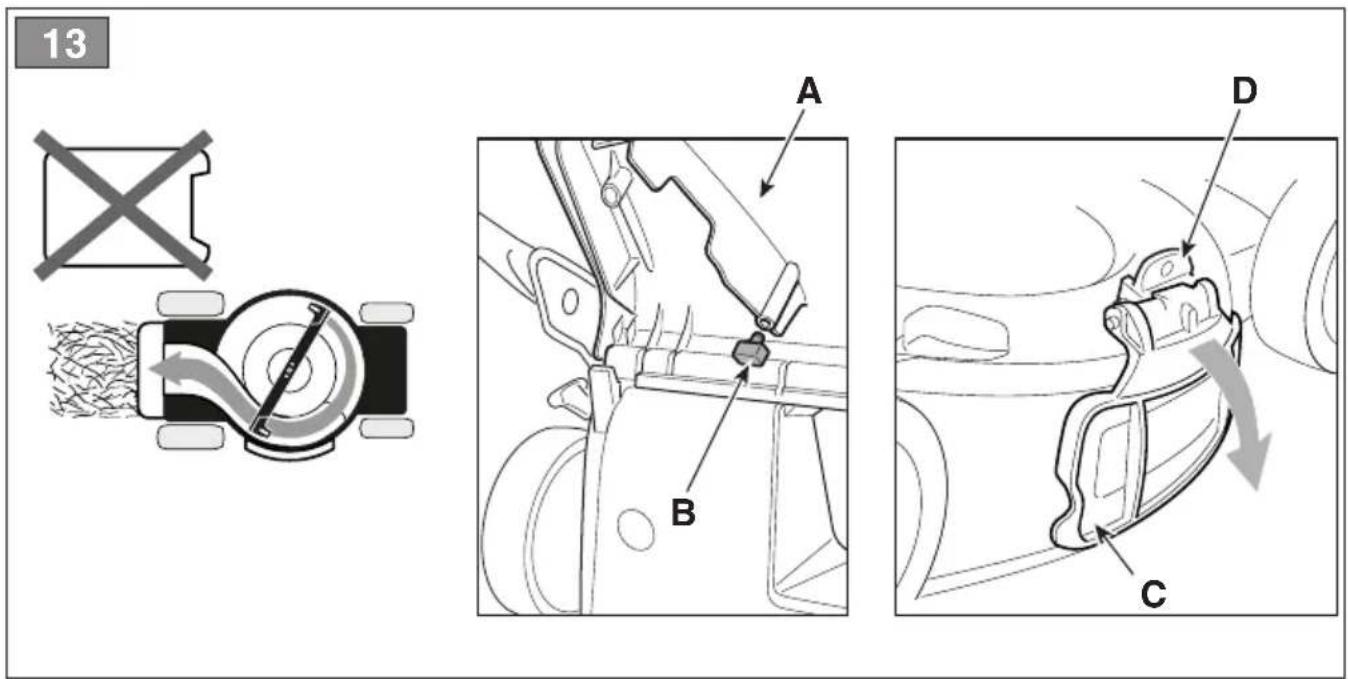

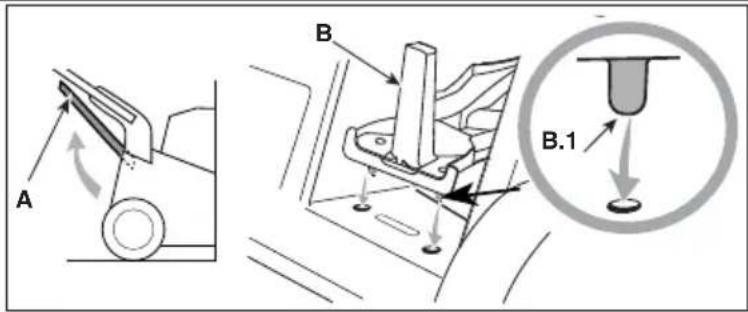

b. Preparation for grass cutting and rear grass discharge on the ground:

1. Lift the rear discharge guard (Fig.13.A) and t the pin

2. For models with side discharge option: make sure that

the guard (Fig. 13.C) is lowered and locked by the safe- ty lever (Fig. 13.D). To remove the pin: see Fig.13.A/B. c. Preparation for grass mowing and chopping (mulching function): Lift the rear discharge guard (Fig.14.A) and insert the chute plug (Fig.14.B) in the discharge opening, keeping it slightly tilted to the right; then fasten it by inserting the two pins (Fig.14.B.1) in the provided holes, until the engage- ment click is heard. For models with side discharge option: make sure that the side discharge guard (Fig. 14.C) is lowered and locked by the safety lever (Fig. 14.D). d. Preparation for grass cutting and side dis- charge on the ground:

1. Lift the rear discharge guard (Fig.15.A) and insert the

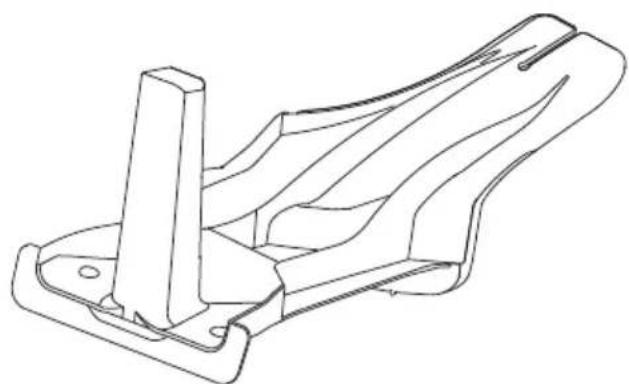

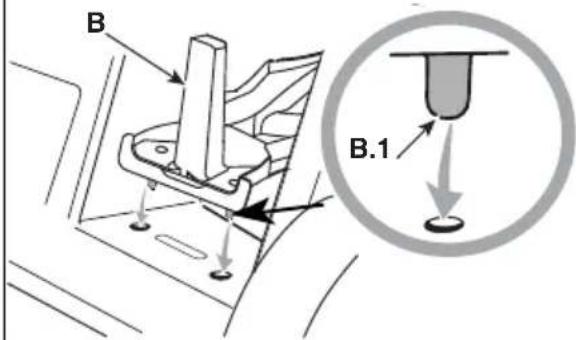

chute plug (Fig.15.B) in the discharge opening, keep- ing it slightly tilted to the right; then fasten it by insert- ing the two pins (Fig.15.B.1) in the provided holes, until the engagement click is heard.

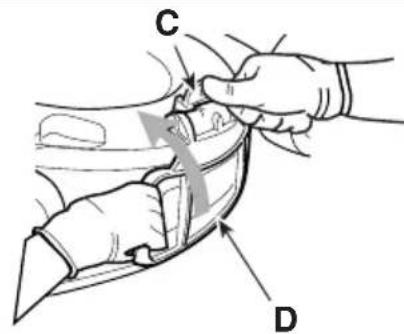

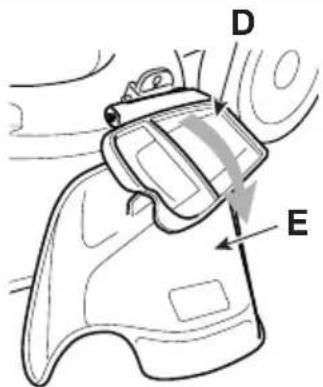

2. Slightly push the safety lever (Fig.15.C) and lift the side

discharge guard (Fig.15.D).

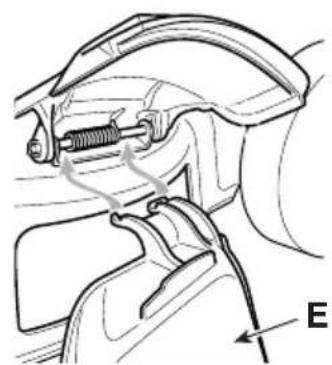

3. Insert the side discharge chute (Fig.15.E).

4. Close the side discharge guard (Fig.15.D) so as to lock

the side discharge chute (Fig.15.E). To remove the side discharge chute:

5. Slightly push the safety lever (Fig.15.C) and lift the

side discharge guard (Fig.15.D).

Always carry out the safety checks before use.

6.2.1 Safety check before every use

• Check the integrity and the correct mounting of all com- ponents of the machine;

• make sure that all fastening devices are correctly tight- ened;

• keep all surfaces of the machine clean and dry.

6.2.2 Machine operating test

1. Start the machine and

engage the cutting means (par.6.3).

2. Release the operator

presence lever (Fig.21 A).

1. The cutting means

automatically and rapidly to the neutral position, the engine must switch o and the cutting means must stop within a few seconds.

1. The wheels should

move the machine forward.

2. The wheels should

stop and the machine stops moving forward. Test driving No abnormal vibrations. No abnormal sound. If any of the results fail to match the indications provided in the tables, do not use the machine! Contact an Authorised Service Centre to have it checked and repaired if necessary.

NOTE Start the machine on a at surface without obsta- cles or high grass.

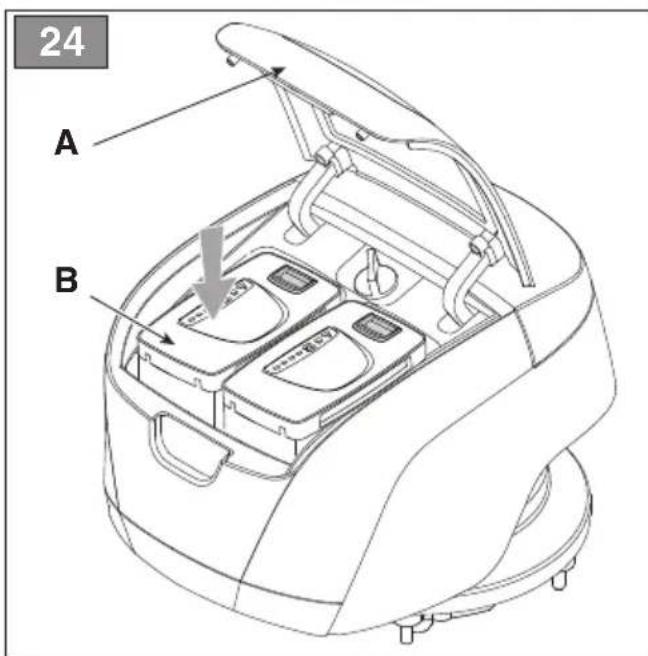

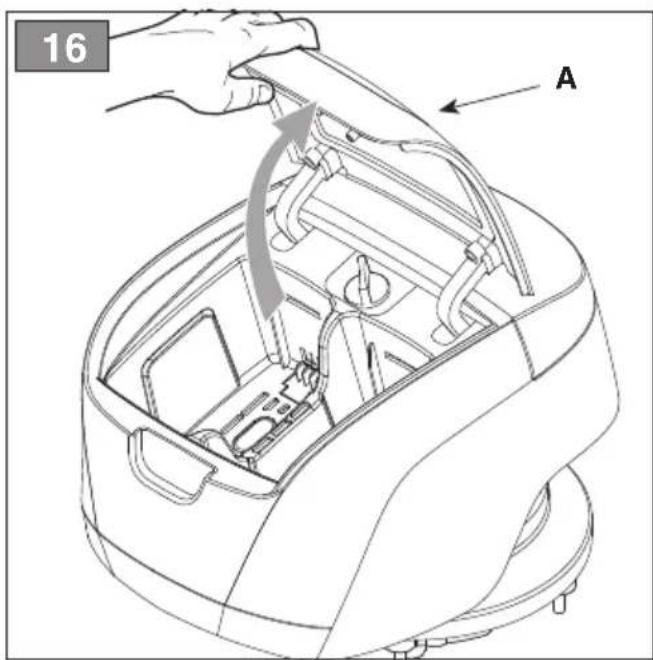

1. Open the hatch for accessing the battery compart-

2. Fit the batteries correctly in their compartments

(Fig. 7.2.3.A) pressing down until the end and until you hear it clicks rmly into position, ensuring thus the electrical contact.

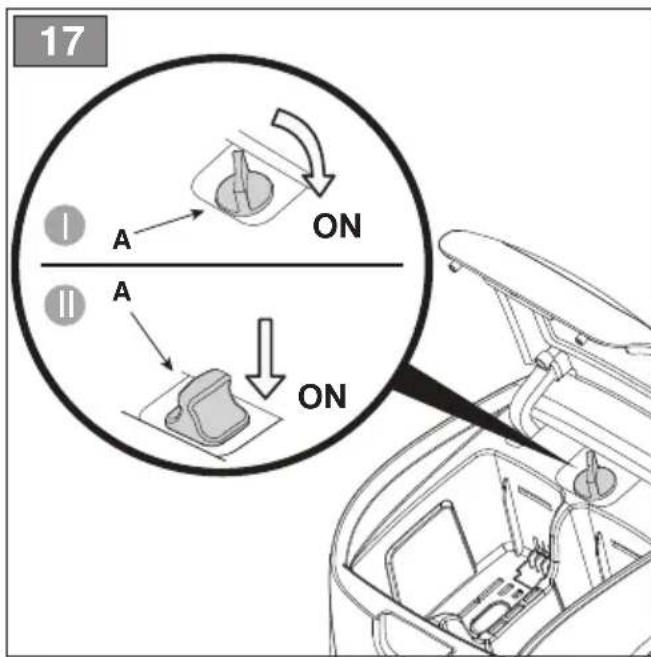

3. Insert the safety key until the end (Fig.17.A). If re-

quired, turn the key to "ON" position.

4. Completely close the hatch again.

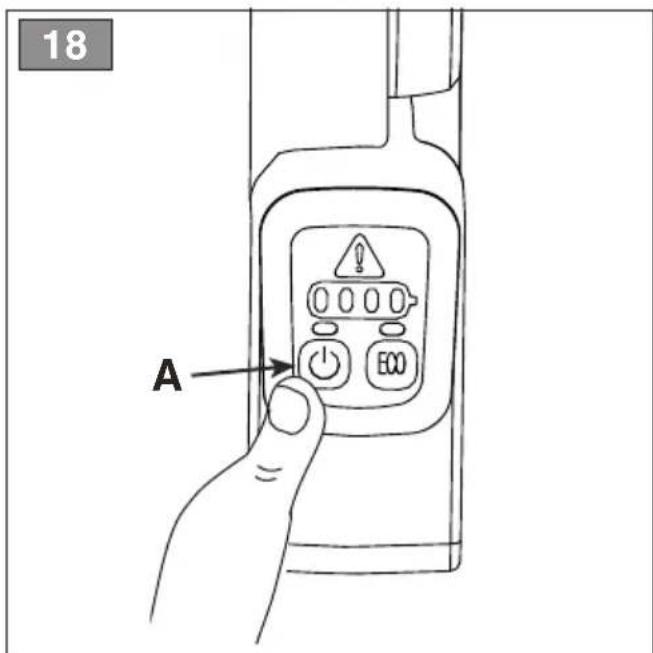

5. For models that require using a power button for

starting, use the power button (g. 18.A). The LED stays on for 15 seconds.

6. Engage the cutting means by rst pressing the

safety button (Fig.19.A) and then pressing the oper- ator presence lever (Fig.19.B).

7. To engage the traction, press the lever behind the

IMPORTANT When working, always keep a safe dis- tance from the cutting means, given by the length of the handle. The battery power reserve (and therefore the lawn surface to be mown before recharging) depends on many factors, described in (par. 7.2.1). During use, the charge status of the batteries is dis- played (remaining charge percentage) (Fig.10.E). IMPORTANT If the motor stops because it is overheated while mowing, you must wait approximately 5 minutes be- fore restarting it.

1. Start moving forward and mowing the grass area.

2. Adjust speed and cutting height (para 5.3) in rela-

tion to lawn conditions (grass height, density and humidity) and the amount of grass to be cut. For traction models (par. 5.2.3): It is recommended to avoid mowing on slopes with a degree higher than 15°.

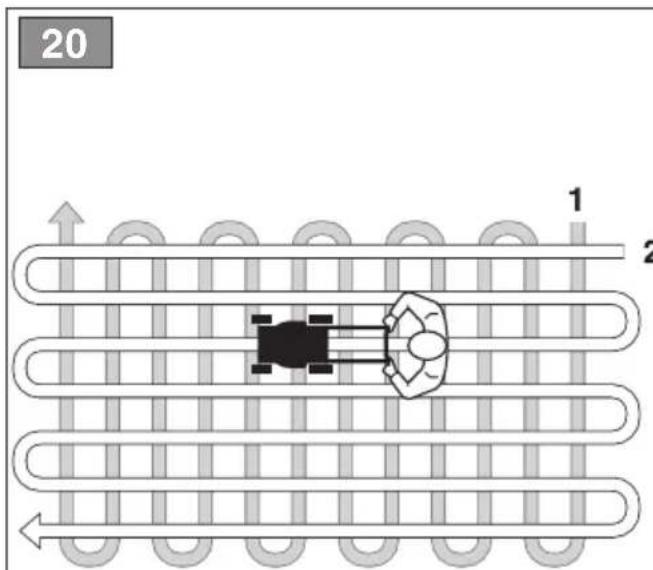

3. The appearance of the lawn will improve if you al-

ternate cutting in both directions at the same height (Fig.20). For side discharge: it is recommended to follow a path so as to avoid discharging the cut grass from the part of the lawn that is yet to be mown. For mulching or rear grass discharge:

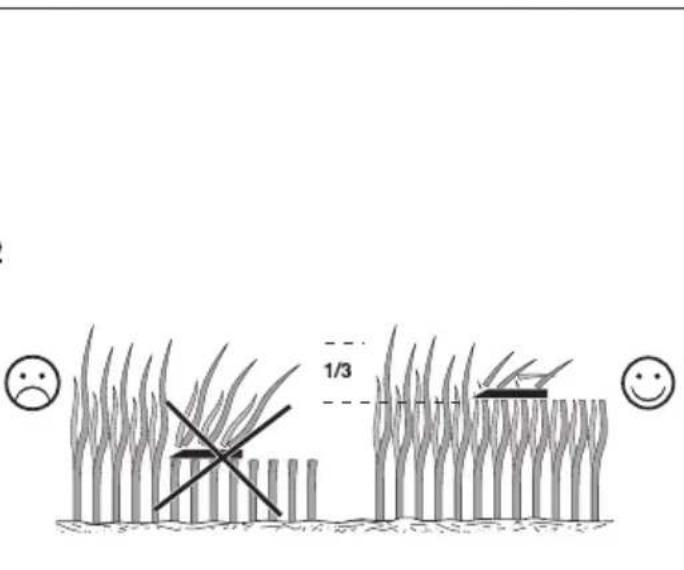

• Always avoid removing a large quantity of grass. Never cut more than one third of the total grass height per single pass (Fig.20).

For grass catcher with contents indicator device: Lifted = empty. Lowered = full*. that the grass catcher is full and must be emptied. To remove and empty the grass catcher:

1. Wait until the cutting means stops;

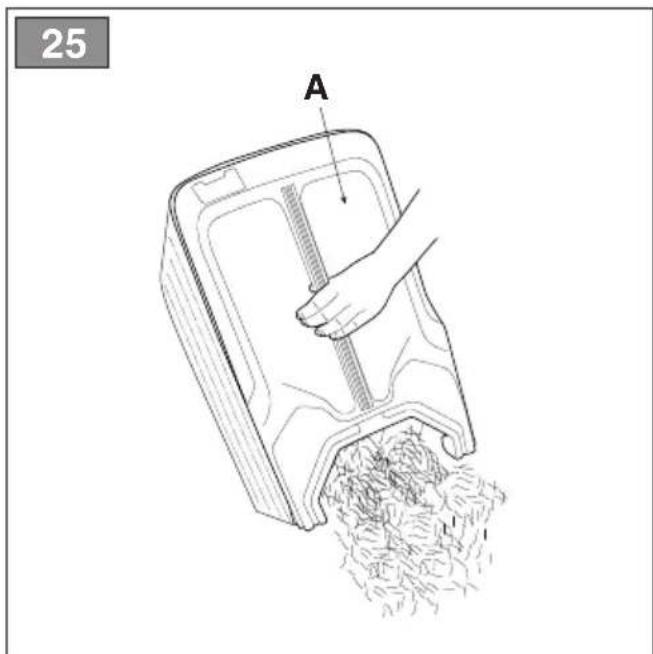

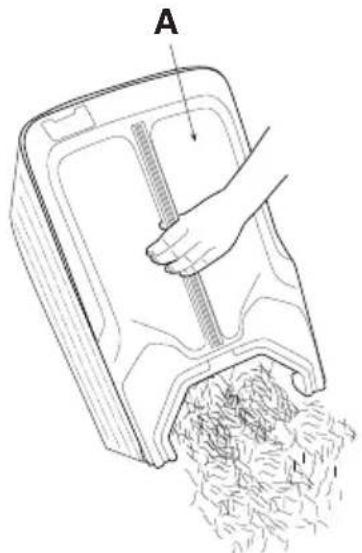

2. Remove the grass catcher (Fig.25.A).

6.5 STOPPING THE MACHINE

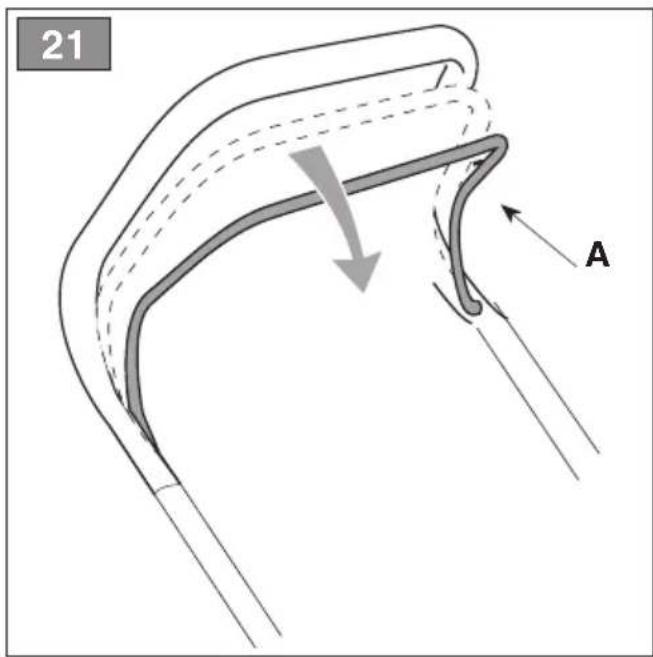

Release the operator presence lever (Fig.21 A).

2. For models that require using a power button for

starting, use the power button (g. 18.A).

3. Wait until the cutting means stops.

After stopping the machine, it will take a few sec- onds for the cutting means to stop. IMPORTANT Always stop the machine.

• When moving between work areas.

• When driving on grass free surfaces.

• Every time it is necessary to overcome an obstacle.

• Before adjusting the cutting height.

• Any time the grass catcher is removed or retted.

• Any time the side discharge chute (if available) is re- moved or retted.

2. If necessary, replace damaged components and tighten

any slack screws and bolts. IMPORTANT Remove the safety key whenever the ma- chine is unused or left unattended.

The safety regulations to follow are described in chap. 2. Strictly comply with these instructions to avoid serious risks or dangers. Before commencing any inspections, cleaning or maintenance/adjustments on the machine:

• Remove the safety key, (never leave the key insert- ed or within the reach of children or unauthorised persons).

• Make sure that all moving parts have come to a com- plete stop.

• Allow the motor to cool before storing in an enclosed space.

• Read the relevant instructions.

• Use suitable clothing, protective gloves and gog- gles.

• The frequency and types of maintenance are summarised in the "Maintenance Table". The table will help you main- tain your machine’s safety and performance. It summaris- es the main interventions to be made and the frequency applicable to each of them. Carry out the relevant task as soon as it is scheduled to be performed.

• The use of non-genuine and/or incorrectly assembled spare parts and attachments could adversely aect machine operation and safety. The manufacturer shall decline all liability in the event of injuries or damages caused by such parts.

• Genuine spare parts are supplied by Authorised Assis- tance Centres and Dealers. IMPORTANT Any maintenance and adjustment opera- tions not described in this manual must be carried out by your Authorised Service Centre.

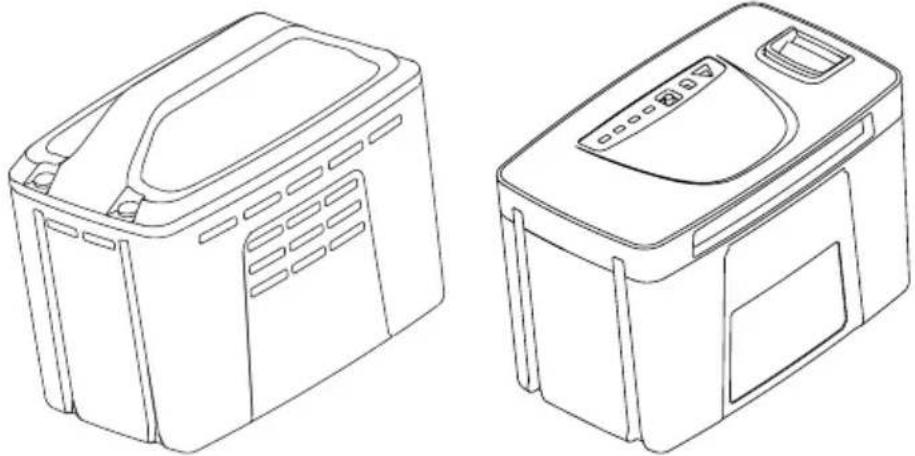

7.2.1 Battery power reserve

Battery power reserve (and therefore the lawn surface that can be mown before recharging is required) mainly depends on: a. Environmental factors that cause higher energy requirements:EN - 8 – Mowing dense, high and/or wet grass. b. Machine cutting width; wider settings involve high- er energy consumption. c. Operator behaviour that should be avoided: – Switching the machine on and o frequently whilst working. – Setting a cutting height that is too low for the lawn conditions. – Working at a speed that is too high in relation to the amount of grass to be removed. NOTE During use, the battery is protected against total drainage with a protective device that switches o the ma- chine and prevents its operation. To optimise battery power reserve it is always recommend- ed to: – Cut the grass when the lawn is dry. – Cut the grass frequently so that it doesn’t grow too tall. – Set a higher cutting height when the grass is very tall, then set a lower height and cut the lawn again. – Do not use the machine in "mulching" mode with very high grass. – Use of the “ECO” mode (par. 5.2.4). If the need arises to use the machine for sessions which ex- ceed the capability of a standard battery, it is possible to: – Purchase a second standard battery to immediately replace the discharged battery, without compromising the continuity of operations. – Purchase a battery with an extended power reserve compared to the standard version (par. 13.2).

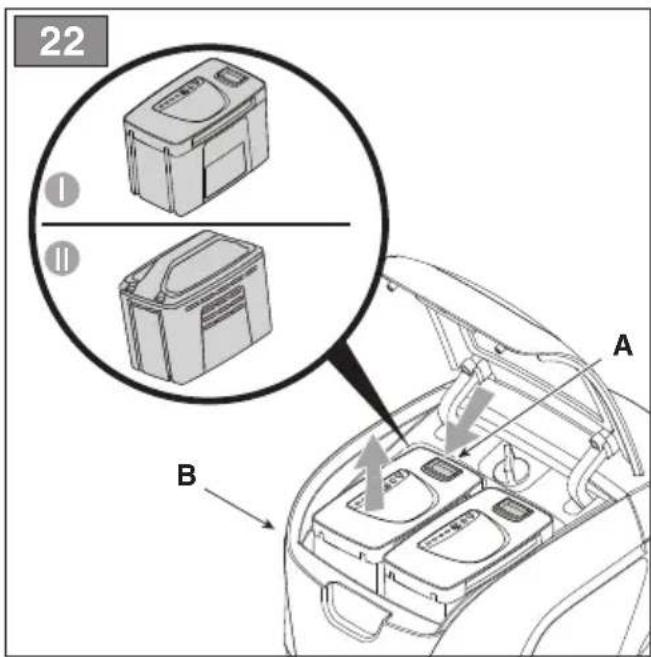

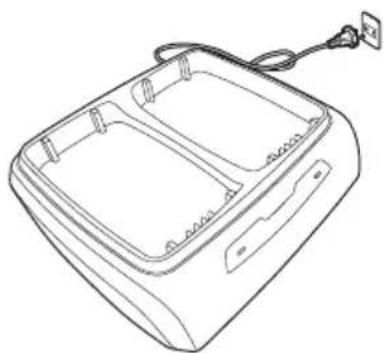

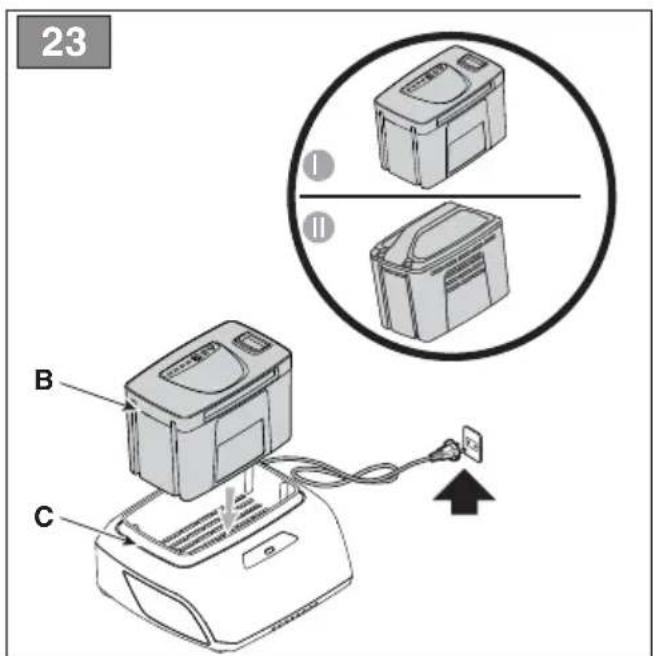

7.2.2 Battery removal and recharging

1. Open the battery compartment access hatch and re-

move the safety key.

2. Press the button on the battery (Fig.22.A) and remove

the battery (Fig.22.B).

3. Insert the battery (Fig.23.B) in its housing in the battery

4. Connect the battery charger to a power socket with the

voltage indicated on the rating plate.

5. Fully charge the battery according to the instructions in

the battery/battery charger booklet. NOTE The battery is equipped with a protective device that inhibits recharging if the environmental temperature is not between 0 and +45 °C. NOTE The battery can be recharged at any time, even partially, with no risk of damaging it.

7.2.3 Retting the battery on the machine

When recharging is completed:

1. Remove the battery from the housing in the battery

charger (do not keep recharging when recharging is completed).

2. Disconnect the battery charger from the mains power

3. Open the battery housing hatch (Fig.24.A), insert the

battery (Fig.24.B) into its housing pressing down until you hear it click rmly into position, ensuring thus the electrical contact. Completely close the hatch again.

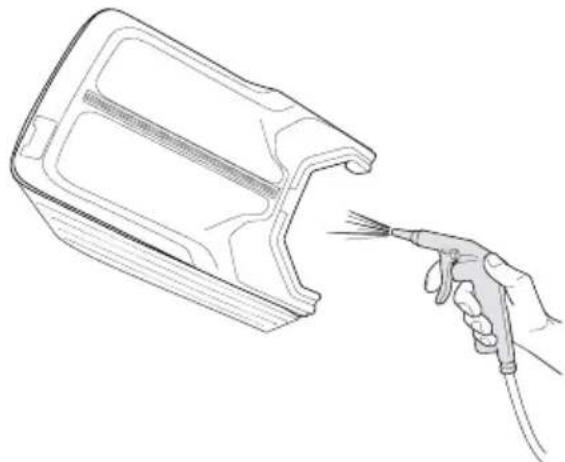

Clean thoroughly following the instructions below every time it is used.

7.3.1 Cleaning the machine

• Always make sure the air intakes are free of debris.

• Do not spray water onto the motor and electrical compo- nents, prevent them from getting wet (Fig.26).

• Do not use aggressive liquids to clean the chassis.

• To reduce the risk of re, keep the engine free of grass, leaves residues or excessive grease.

• Always keep the levers, display and buttons free of debris.

7.3.2 Cleaning the cutting means assembly

Keep all nuts, bolts and screws tight to be sure the equip- ment is in a safe working condition.

7.5 CLEANING THE AIR FILTER

The lter element must always be kept perfectly clean. Proceed as follows:

1. Clean around the air lter grid.

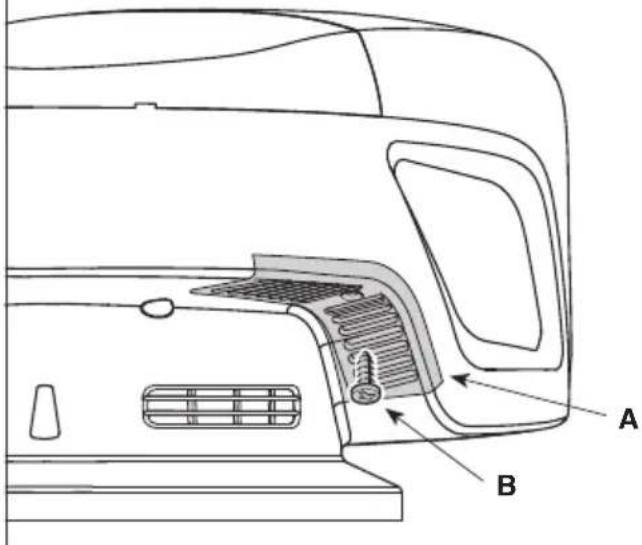

2. Unscrew the screw (Fig.28.B) to remove the grid

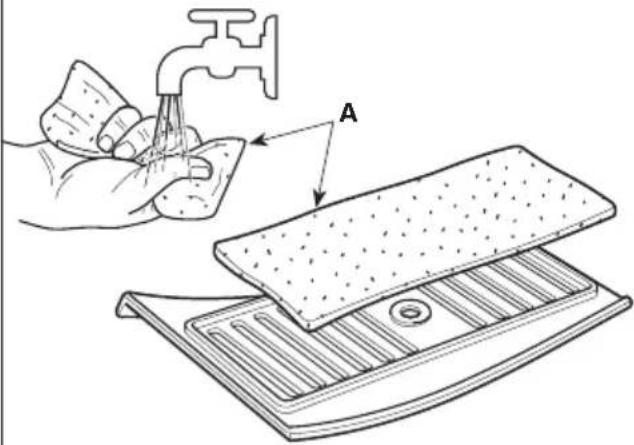

4. Blow the lter of wash it with water (Fig.29.A) to remove

the dust and residues.

5. Ret the lter element (Fig.29.A) in its housing,

ret the grid and tighten the screw (Fig.28.A) and (Fig. 28.B).

• Wear heavy duty gloves.

• Hold the machine in the points oering a safe grip, taking into account the weight and its division.

• Use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it must be placed or collected.

8. OCCASIONAL MAINTENANCE

Before commencing any inspections, cleaning or maintenance/adjustments on the machine:

• Remove the safety key, (never leave the key inserted or within the reach of children or unauthorised persons).

• Make sure that all moving parts have come to a complete stop.

• Allow the motor to cool before storing in an enclosed space.

• Read the relevant instructions.

• Use suitable clothing, protective gloves and goggles.

An improperly sharpened cutting means pulls at the grass and causes the lawn to turn yellow.EN - 9 Do not touch the cutting means until the key has been removed and the cutting means is completely sta- tionary. All operations on the cutting means (disassembly, sharpening, balancing, repairing, reassembly and/or replacing) are complex jobs that require special skills as well as special tools; For safety reasons, these jobs are best carried out at a Authorised Service Centre. Make sure damaged, misshapen or worn cutting means are replaced, together with the securing screws, to preserve balance. IMPORTANT Always use original cutting means bearing the code indicated in the 'Technical Data" table. Given product evolution, the cutting means listed in the "Technical Data" table may be replaced in time with others having similar interchangeable and operating safety fea- tures.

When the machine is to be stored away:

1. Wait for the engine to cool.

2. Remove the safety key.

3. Clean (par. 7.3).

4. Check the integrity of the machine.

• Protected from inclement weather.

• In a place where children cannot get to it.

• Making sure that keys or tools used for maintenance are removed.

9.2 STORING THE BATTERY

The battery must be kept in a cool, shaded place without humidity. NOTE In case of prolonged periods of inactivity, recharge the battery every two months.

10. HANDLING AND TRANSPORTATION

Whenever the machine is to be handled, raised, transported or tilted you must:

• Stop the machine (par.6.5) until the moving parts come to a complete halt.

• Wear heavy duty gloves.

• Hold the machine in the points oering a safe grip, taking into account the weight and its division.

• Use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it must be placed or collected.

• Make sure that machine movements do not cause damage or injuries. When transporting the machine on a vehicle or trailer, always:

• Use an access ramp of suitable strength, width and length.

• Load the machine with the motor switched o and pushed by an adequate number of people.

• Lower the cutting means assembly.

• Position it so that it cannot cause a hazard for anybody.

• Fasten rmly to the means of transport using ropes or chains to prevent it from tipping over.

11. MAINTENANCE TABLE

Intervention Frequency Notes MACHINE Check all fasteners ; Safety checks/check controls; Check the rear/lateral discharge guards; Check the grass catcher bag and lateral discharge chute; Check the cutting means. Before use par. 6.2 General cleaning and inspection; Checking for any damage to the machine. If nec- essary, contact the authorised service centre. After each use par. 7.3 Replacing the cutting means - par. 81 *** Check the battery charge status Before each use

• Refer to the battery/battery charger manual. ** The operation must be carried out by your Dealer or a specialised Authorised Service Centre *** Operation to be performed at the rst signs of any malfunctionEN - 10

If problems persist after having performed the above operations, contact your dealer.

PROBLEM PROBABLE CAUSE SOLUTION

1. After pressing the starter

button, the LED does not come ON. Safety key is not inserted or is inserted incorrectly. Insert the key (par. 6.3). Safety key in “OFF” position. Turn the safety key to "ON" position (par. 6.3). Battery is not inserted or is inserted incorrectly. Open the hatch and check that the battery is tted in its housing correctly (par. 7.2.3). Low battery. Check the battery status and recharge if nec- essary (par. 7.2.2). Incorrect battery combination. Check if the battery combination is correct, following the instructions supplied in the "Tech- nical data" table.

2. After pressing the starter

button, the LED does not come ON and the machine sets o a sound signal. Internal motor anomaly. Remove the safety key and contact the Author- ised Service Centre for checks, replacements or repairs.

3. The motor shuts down

whilst working. Battery is not inserted correctly. Open the hatch and check that the battery is tted in its housing correctly (par. 7.2.3). Low battery. Check the battery status and recharge if nec- essary (par. 7.2.2).

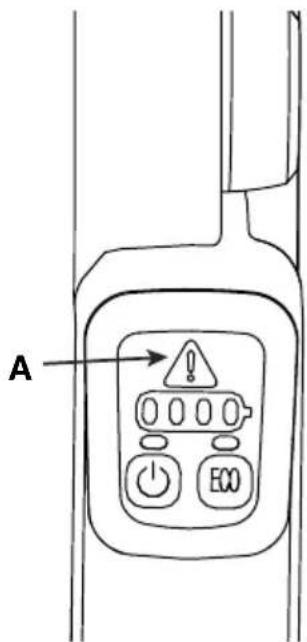

4. The danger LED lights up

(Fig. 30.A) and the ma- chine emits an acoustic signal. Cutting means blocked. Turn the machine o, remove the safety key and wear work gloves. Check and eventually remove any obstructions in the machine lower side (par. 7.3.2) that pre- vent rotation of the cutting means. If the problem continues, contact the Author- ised Service Centre for checks, replacements or repairs (par. 8.1). Machine fault Remove the safety key and contact the Author- ised Service Centre for checks, replacements or repairs.

5. The danger LED lights up

(Fig.30.A). The thermal protection has tripped due to overheating of the machine. Wait for at least 5 minutes and restart the machine.

6. Mowing is dicult. The cutting means is not in good state. Contact the Authorised Service Centre for

the sharpening or replacement of the cutting means.

7. Excessive noise and/or

vibration is experienced whilst working. Cutting means ttings are loose or the cutting means is damaged. Immediately turn o the motor and remove the safety key. Contact the Authorised Service Centre for checks, replacements or repairs (par. 8.1).

8. Battery power reserve

is low. Severe working conditions requiring greater current absorption. Optimise operations (par. 7.2.1). Battery is insucient for operating re- quirements. Use a second battery or extended battery (par. 13.2).EN - 11

9. The battery charger is

not charging the battery. Battery is not correctly inserted in the battery charger. Check it is correctly inserted (par. 7.2.3). Unsuitable environmental conditions. Recharge the battery in places with suitable temperatures (see battery/battery charger in- struction manual). Dirty contacts. Clean the contacts. The battery charger is not energised. Check it is plugged in and the power socket is energised. Faulty battery charger. Replace with an original spare part. If the problem persists, refer to the battery/ battery charger manual.

12.2 FOR MACHINES WITHOUT ELECTRONIC

CONTROL If problems persist after having performed the above operations, contact your dealer.

PROBLEM PROBABLE CAUSE SOLUTION

1. The engine does not start

when using the switch Safety key is not inserted or is inserted incorrectly. Insert the key (par. 6.3). Safety key in “OFF” position. Turn the safety key to "ON" position (par. 6.3). Battery is not inserted or is inserted incorrectly. Open the hatch and check that the battery is tted in its housing correctly (par. 7.2.3). Low battery. Check the battery status and recharge if nec- essary (par. 7.2.2). Incorrect battery combination. Check if the battery combination is correct, following the instructions supplied in the "Tech- nical data" table.

2. The engine stops and the

machine emits an acous- tic signal. Battery is not inserted correctly. Open the hatch and check that the battery is tted in its housing correctly (par. 7.2.3). Low battery. Check the battery status and recharge if nec- essary (par. 7.2.2). The thermal protection has tripped due to overheating of the motor. Wait for at least 5 minutes and restart the machine. Cutting means blocked. Turn the machine o, remove the safety key and wear work gloves. Check and eventually remove any obstructions in the machine lower side (par. 7.3.2) that pre- vent rotation of the cutting means. If the problem continues, contact the Author- ised Service Centre for checks, replacements or repairs (par. 8.1). Machine fault Remove the safety key and contact the Author- ised Service Centre for checks, replacements or repairs.

3. Mowing is dicult. The cutting means is not in good state. Contact the Authorised Service Centre for

the sharpening or replacement of the cutting means.

4. Excessive noise and/or

vibration is experienced whilst working. Cutting means ttings are loose or the cutting means is damaged. Immediately turn o the motor and remove the safety key. Contact the Authorised Service Centre for checks, replacements or repairs (par. 8.1).EN - 12

5. Battery power reserve

is low. Severe working conditions requiring greater current absorption. Optimise operations (par. 7.2.1). Battery is insucient for operating re- quirements. Use a second battery or extended battery (par. 13.2).

6. The battery charger is

not charging the battery. Battery is not correctly inserted in the battery charger. Check it is correctly inserted (par. 7.2.3). Unsuitable environmental conditions. Recharge the battery in places with suitable temperatures (see battery/battery charger in- struction manual). Dirty contacts. Clean the contacts. The battery charger is not energised. Check it is plugged in and the power socket is energised. Faulty battery charger. Replace with an original spare part. If the problem persists, refer to the battery/ battery charger manual.

Finely chops the cut grass and leaves it on the lawn, instead of collecting it in the grass catcher (for machines equipped with it) (Fig.31).

Dierent capacity batteries are available to suit specic operating requirements (Fig. 32). The list of approved batteries for this machine can be found in the "Technical Data" table.

13.3 BATTERY CHARGER

Device used to recharge the battery (Fig.33).ES -1

13.1 KIT PARA "MULCHING"

1.1 KUIDAS KASUTUSJUHENDIT LUGEDA

4. Blaas op de lter of was hem in water (Afb.29.A) om

13.1 KIT VOOR "MULCHING"

2.4 VEDLIKEHOLD, LAGRING

5. Blinker led for fare

13.1 KIT PARA "MULCHING"

tru operator (Fig.21 A).

13.1 KIT PENTRU MULCI

INNEHÅLLSFÖRTECKNING

13.1 SATS FÖR "MULCHING"

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Pedestrian-controlled lawn mower / grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: battery-operated

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

Translation of the original instruction)

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Pedestrian-controlled lawn mower / grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: battery-operated

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Pedestrian-controlled lawn mower / grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: battery-operated

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed

EC Declaration of Conformity (Machine Directive 2006/42/EC, Annex II, part A)

2. Herby declares under its own responsibility

that the machine: Pedestrian-controlled lawn mower / grass cutting a) Type / Base Model b) Month / Year of manufacture c) Serial number d) Motor: battery-operated

3. Conforms to directive specifications:

e) Certifying body f) EC examination of Type

4. Reference to harmonised Standards

g) Sound power level measured h) Sound power level guaranteed
