USER MANUAL SDX10 ALECTO

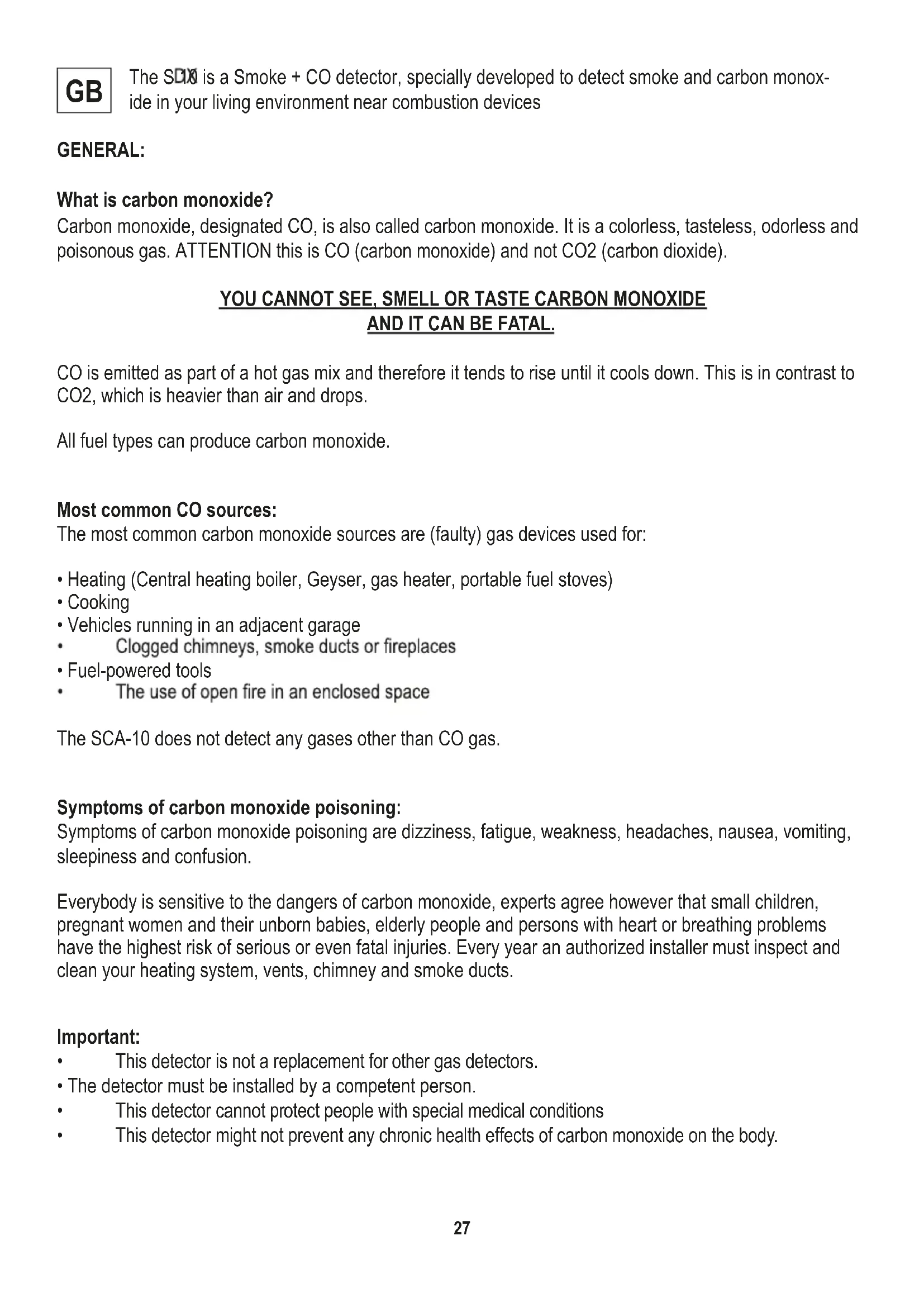

The S 10 is a Smoke + CO detector, specially developed to detect smoke and carbon monox- ide in your living environment near combustion devices GENERAL: What is carbon monoxide? Carbon monoxide, designated CO, is also called carbon monoxide. It is a colorless, tasteless, odorless and poisonous gas. ATTENTION this is CO (carbon monoxide) and not CO2 (carbon dioxide). YOU CANNOT SEE, SMELL OR TASTE CARBON MONOXIDE AND IT CAN BE FATAL. CO is emitted as part of a hot gas mix and therefore it tends to rise until it cools down. This is in contrast to CO2, which is heavier than air and drops. All fuel types can produce carbon monoxide. Most common CO sources: The most common carbon monoxide sources are (faulty) gas devices used for:

• Heating (Central heating boiler, Geyser, gas heater, portable fuel stoves)

• Vehicles running in an adjacent garage

• Fuel-powered tools The SCA-10 does not detect any gases other than CO gas. Symptoms of carbon monoxide poisoning: Symptoms of carbon monoxide poisoning are dizziness, fatigue, weakness, headaches, nausea, vomiting, sleepiness and confusion. Everybody is sensitive to the dangers of carbon monoxide, experts agree however that small children, pregnant women and their unborn babies, elderly people and persons with heart or breathing problems have the highest risk of serious or even fatal injuries. Every year an authorized installer must inspect and clean your heating system, vents, chimney and smoke ducts. Important:

• This detector is not a replacement for other gas detectors.

• The detector must be installed by a competent person.

• This detector cannot protect people with special medical conditions

• This detector might not prevent any chronic health effects of carbon monoxide on the body.28

• This detector is not a replacement for the correct installation, use and periodic maintenance of combustion equipment, nor adequate ventilation of spaces in which these devices are being used.

• We recommend you to weekly test the detector using the “TEST/SILENCE” button on the detector.

• The detector’s CO part only sounds the alarm when carbon monoxide is present at its sensor. Therefore, it’s possible for carbon monoxide to be present elsewhere and the alarm doesn’t sound.

• When the alarm sounds, possible harmful carbon monoxide levels are present! Carbon monoxide can be deadly!

concentration Period of inhaling and symptoms 50PPM The maximum concentration a healthy adult can withstand in 8 hours. 200PPM After 2-3 hours, mild headache, sensations of weakness, dizziness, nausea. 400PPM Within 1-2 hours, ache in forehead; after 3 hours, life-threatening. 800PPM Within 45 mins, dizziness, nausea, convulsions; Loss of consciousness within 2 hours; Fatal within 2-3 hours. 1600PPM Within 20 mins, headache, dizziness, nausea; Fatal within 1 hour. 3200PPM Within 5-10 mins, headache, dizziness, nausea; Fatal within 25-30 mins. 6400PPM Within 1-2 min, headache, dizziness, nausea; Fatal within 10-15 mins. 12800PPM Fatal within 1-3 min. Alarm When the detector sounds the alarm, carbon monoxide (CO) might be present which can be fatal. Therefore, never ignore this alarm. When there’s an active alarm, the red LED will illuminate and beep tones are emitted. When the smoke dissipates or the carbon monoxide concentration drops below 40PPM, the alarm will stop. What to do when the alarm sounds:

1. Open doors and windows and immediately go outside into the fresh air. Check whether

everybody has left the building.

combustion source (gas or oil powered equipment) that could be the cause for the CO alarm.

3. Only enter the building again after the cause has been resolved and the building has been

well ventilated. The alarm sound can be switched off by pressing the TEST/SILENCE button. It will only switch off in case smoke is detected.29 IMPORTANT: For optimal operation, we recommend mounting the smoke detector on the ceiling. See also the installation instructions. If ceiling mounting is not possible, we recommend that you place the smoke detector in the slope. Recommended locations for the installation of the S 10 General

• Install the detector in a location where the alarm can be heard inside bedrooms.

• Install the detector on a spot where the weekly check can be performed easily.

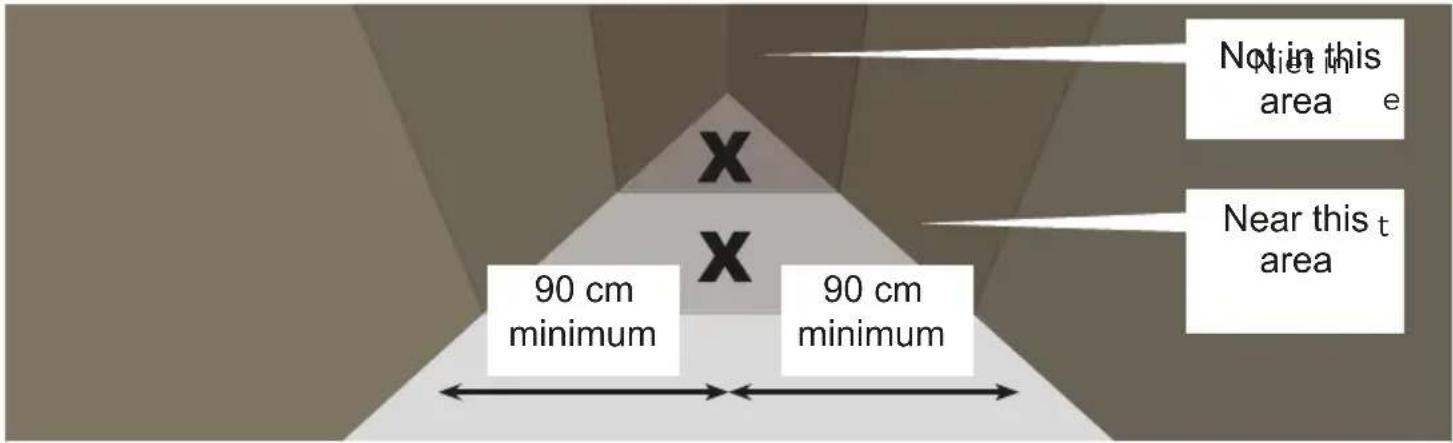

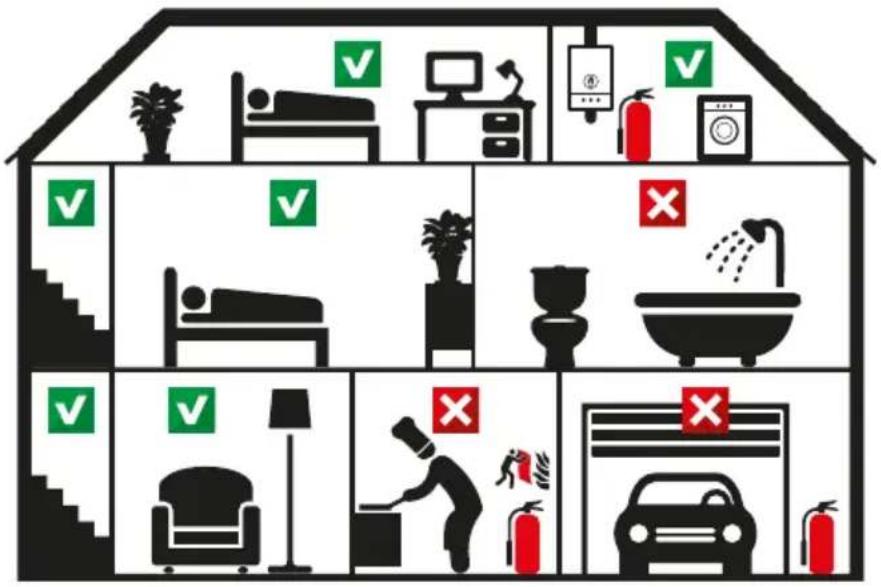

• We recommend using the combi indicator only in areas where a combustion device is present - which would allow CO and smoke to move quickly towards the ceiling and give a quick alert for both. ROOK- & COMELDERS Fire extinguishers Fire blankets Required Do not use ALSO AVAILABLE30 Dode lucht ruimte Niet in deze ruimte In de buurt van deze ruimte 90 cm minimaal 6 cm minimaal 90 cm minimaal In spaces with combustion devices

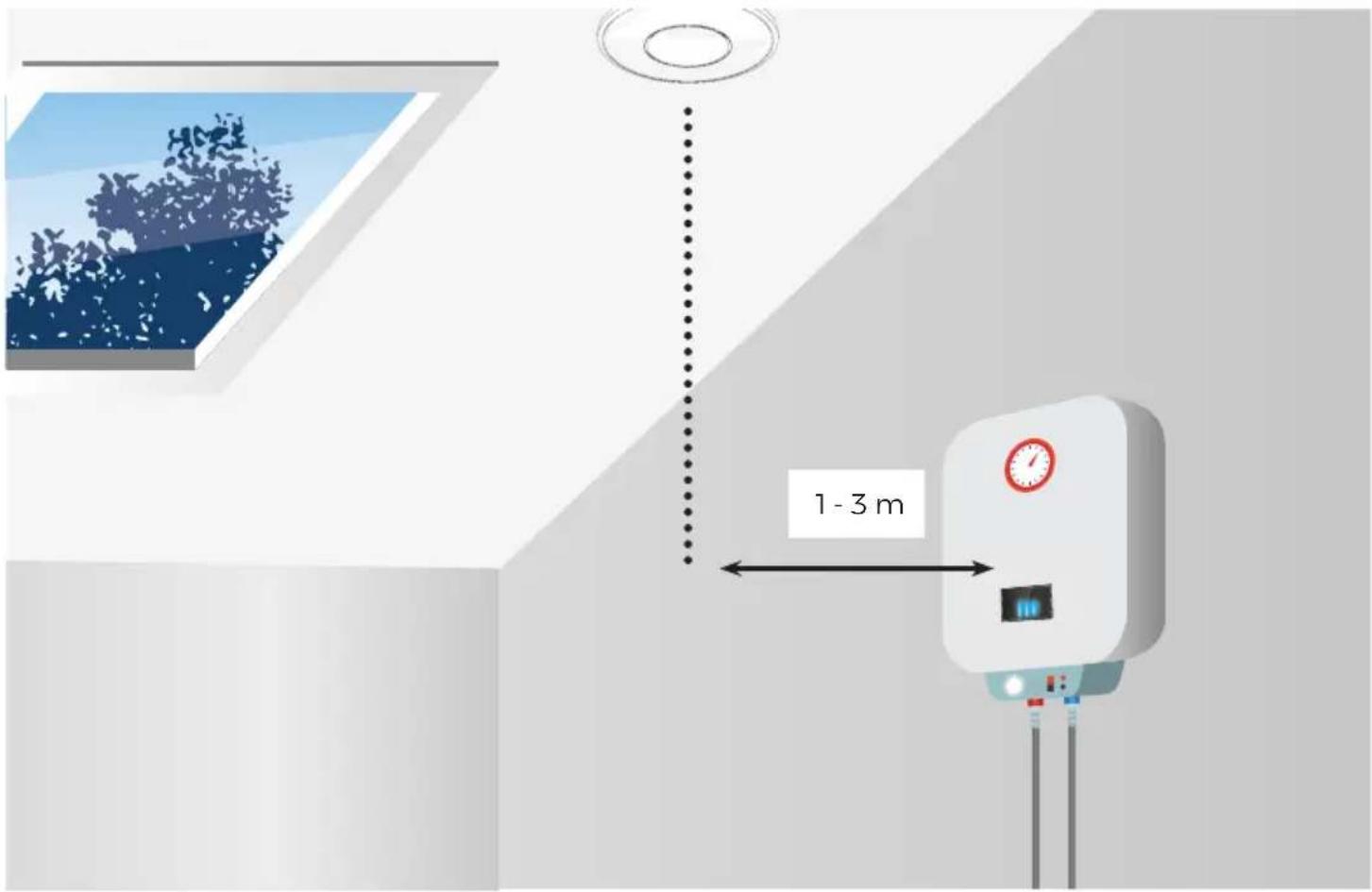

from the combustion device.

• I nstall the detector way from of roof ridges, corners, arched ceilings or front roofs

• In the case of smaller spaces (<4m³), the detector should be installed outside these spaces.

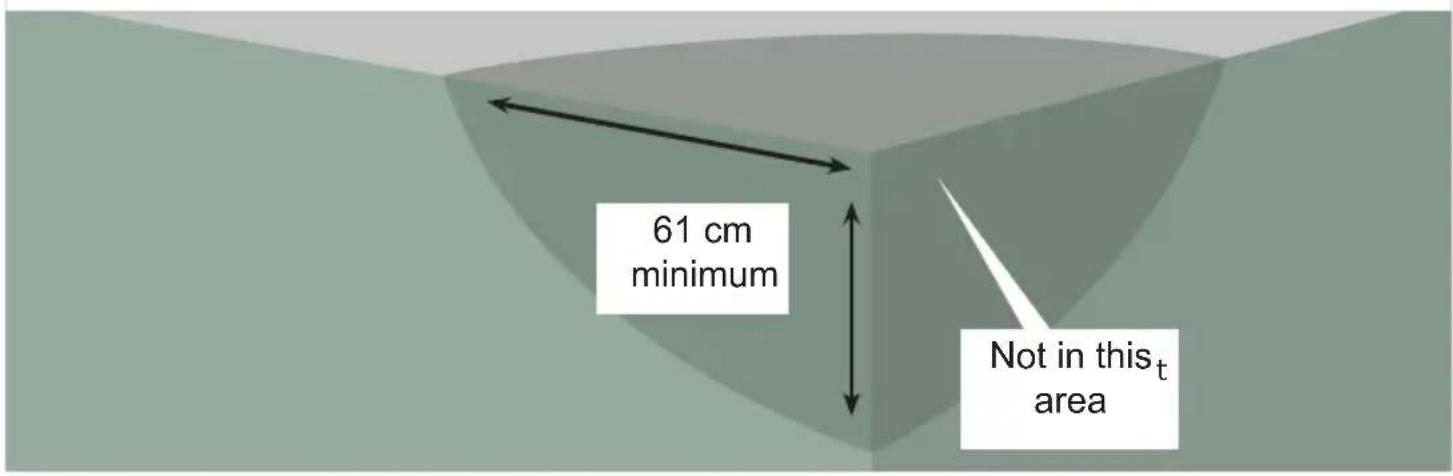

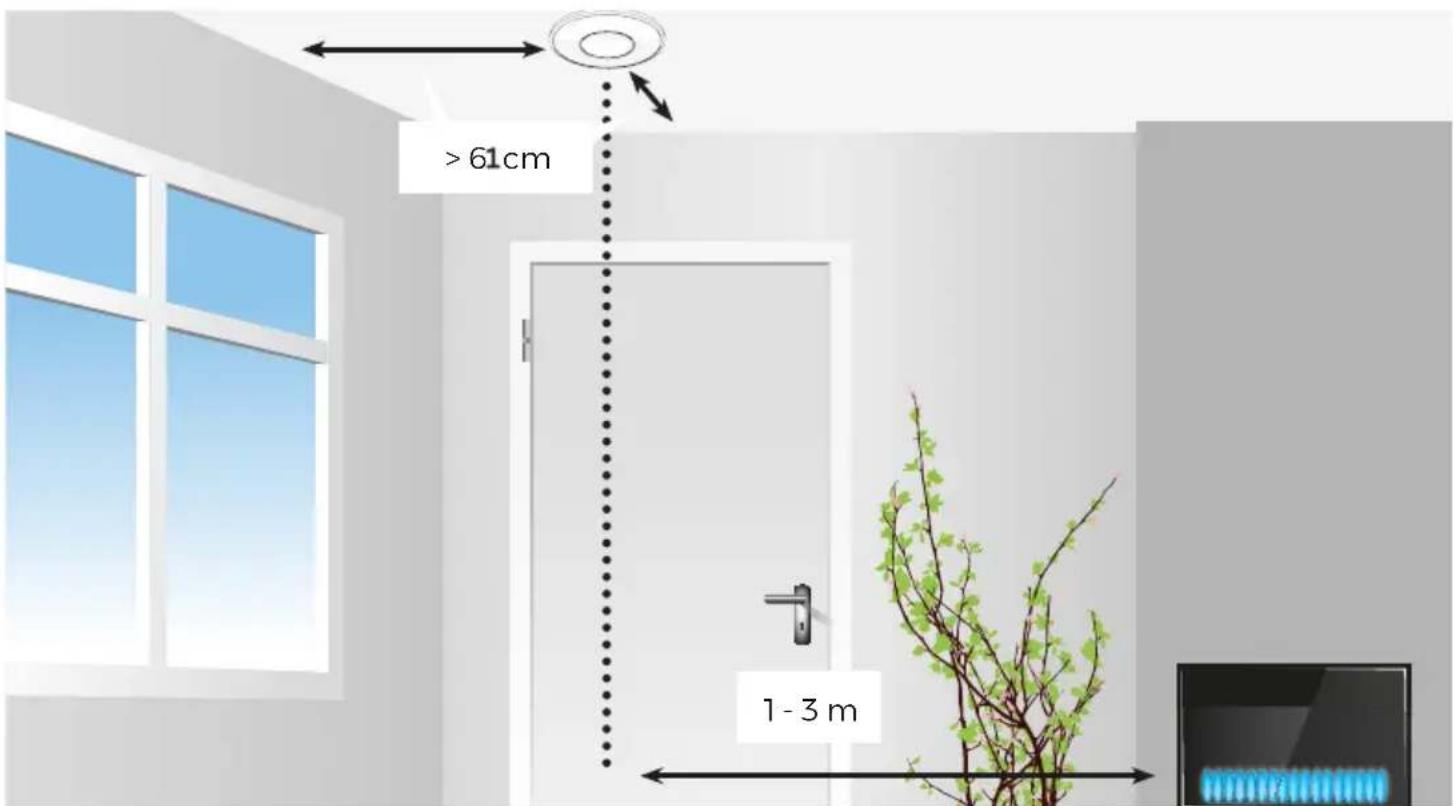

• Install the detector 61 centimeters from surrounding walls and ceilings. It is recommended to install the device on the ceiling of a room with a combustion device.

> 6 cm Not in this area Near this area Not in this area 90 cm minimum 90 cm minimum 61 cm minimum31

• Do not install the detector in the turbulent air created by ceiling fans.

• Do not install the detector near vents with fresh air.

• Do not install the detector near doors and windows leading outdoors.

• Do not install the detector near extremely dusty, dirty or greasy spaces such as heating spaces <4m

pantries. Dust, grease and household chemicals can affect the sensor.

• Install the detector at least 0.5 meters away from gas discharge lamps (halogen) because of electronic interference that can lead to false alarms.

• Do not install the detector in humid and wet spaces, such as the bathroom.

• Never install the detector in spaces with temperatures lower than 0°C or higher than 40°C.

• Never install the detector in spaces with humidity higher than 93%RH.

• Never install the detector behind curtains or furniture. Carbon monoxide and smoke must be able to reach the sensor to ensure the sensor can properly detect carbon monoxide levels or smoke.

• Never install the detector in spaces where spray cans may be used (hairspray, deodorant)32 INSTALLATION:

1. Install the mounting plate on a suitable spot

2. Use the included plugs and screws.

3. Now install the detector onto the mounting place.

6. The detector is now functional.

3. When the alarm sounds, it will turn off within 40 seconds after moving the detector to a space with a

CO concentration below 40PPM and without smoke.

4. The alarm sound can temporarily be turned off by pressing the TEST/SILENCE button (only during

TEST/SILENCING: When the detector is working under normal conditions, the sensor and siren should be tested at least every week. Press the “TEST/SILENCE” button. The device will shortly beep once, then beep three times while the red LED blinks, then beep four times shortly while the red LED blinks. This indicates the device is OK. RESET ALARM: dust. You can press the “TEST/SILENCE” button to silence the alarm for 10 minutes. It is not possible to stop the alarm if CO is detected. If there is still smoke detected after 10 minutes, the alarm will continue.33 LED INDICATION: Red LED 3x every 1,5 seconds with alarm; Smoke detected 4x every 5 seconds with alarm; Carbon monoxide detected Yellow LED Every 40 seconds; Sensor problem. If cleaning with a soft, dry brush will not resolve this, it means the sensor is defective. 2x every 40 seconds with beep: Battery almost empty. The product needs to be replaced soon (Press the “TEST/SILENCE” button during the beep to silence this alert tone for about 9 hours REASON FOR SENSOR FAULT: Faults can be caused by broken circuitry, a faulty sensor or faulty electronic parts. If cleaning the sensor SENSOR FAULT CAUSED BY CHEMICAL GASES: When volatile chemical gases such as alcohol are the cause for error detection, this may be corrected by pulling the detector off the ceiling plate and leave it in fresh air for 24 hours. This may restore the CO sensor. If the error is not cleared after these 24 hours, the detector is faulty and should be replaced. Don’t repair the detector yourself, but have it repaired by the importer. When the alarm is contaminated and damaged by high concentrations of chemical gases, the sensor could be affected. This will lead to a temporary error or permanent damage. When the alarm sounds and you can smell a chemical gas, this could be the reason. Carbon monoxide is a colourless and odourless gas. Chemical gases do have an odour. The following substances and gases can cause false alarms or permanently damage the detector: Methane, propane, iso-butane, ethylene, ethanol, alcohol, iso-propanol, benzene, toluene, acid, ether, hydrogen, hepatic gas, sulphur dioxide, aerosol, propellant, alcohol preparation, paint, thinners, dissolvent, bonding agents, shampoo, aftershave balm, perfume, car exhaust (cold start) and certain cleaning agents. MAINTENANCE: To keep your detector in proper working order, please follow these steps:

• Check whether the alarm is working properly by pressing the test button every week.

• Clean the detector with a soft cloth or brush once every month to remove excess dust.

• Explain to children that they should not play with the detector.

• Never use cleaning agents or other solutions to clean the detector.

• Never use air fresheners, hairspray or other aerosols near the detector.

• Don’t paint the detector. Paint covers the vents preventing the sensor from detecting CO or smoke.

• Never disassemble, repair or modify the product yourself; there’s a high risk that it will no longer function correctly or reliably.34 PLAN AN ESCAPE ROUTE:

• Make a map and mark all locations of doors and windows and a possible escape route. Note that you

• Ensure everyone in the house knows the sound the smoke alarms produce and regularly practice use of the escape route.

• Leave the house immediately according to the plan when hearing the alarm. Every second counts: so respond quickly. If you do not notice smoke or heat, check if everyone in the house is in a secure location.

• Do not open any doors without feeling whether the door is warm or if there is smoke coming from un-

• If there is much smoke, keep low and take shallow breaths, preferably through a moist towel. Call the BATTERY REPLACEMENT The battery has a lifespan of 10 years. After 10 years you should replace the entire product because the battery cannot be replaced. SENSOR REPLACEMENT: The sensor has a lifespan of 10 years. After 10 years you should replace the entire product because the sensor cannot be replaced. If the yellow LED illuminates within these 10 years, please refer to the paragraphs Reason for sensor fault and Sensor fault caused by chemical gases. SPECIFICATIONS: Power supply: 3VDC (EVE CR17450L; PAIRDEER CR17450 INCL., non-replaceable) Sensitivity and time: 30ppm CO, alarm is not activated within 120 minutes 50ppm CO, alarm is activated within 60~90 minutes 100ppm CO, alarm is activated within 10~40 minutes 300ppm CO, alarm is activated within 3 minutes 0.09~0.15 dB/m smoke, alarm is activated immediately standby consumption: <20µA consumption at alarm: <20mA Sound pressure at alarm: >85dB (3m distance) Environmental conditions: 0ºC ~ +40°C, 30~93% humidity Storage conditions: -20ºC ~ +50ºC, 10~95% humidity Dimensions: 135*40mm Weight: 185g Type: Type B (unchecked output) Smoke sensor: Photo-electric CO sensor: Electro-chemical Conforms to: EN14604:2005 + AC:2008 EN50291-1:2018 DEACTIVATE Before disposing of the product at an appropriate collection point, deactivate the product. A plastic deactivation key is located under the top of the product label. Break it off and insert it into the hole at “Warning”.3

• Εάν βρίσκεστε έξω, καλέστε την πυροσβεστική το συντομότερο δυνατό. (1-1-2) ΑΝΤΙΚΑΤΑΣΤΉΣΤΕ ΤΗΝ ΜΠΑΤΑΡΊΑ: Η μπαταρία έχει διάρκεια ζωής 10 ετών. Μετά από 10 χρόνια, αντικαταστήστε ολόκληρο το προϊόν, η μπαταρία δεν μπορεί να αντικατασταθεί. ΑΝΤΙΚΑΤΑΣΤΉΣΤΕ ΤΟΝ ΑΙΣΘΗΤΉΡΑ: Ο αισθητήρας έχει διάρκεια ζωής 10 ετών. Μετά από 10 χρόνια πρέπει να αντικαταστήσετε το πλήρες προϊόν, ο ίδιος ο αισθητήρας δεν είναι ανταλλάξιμος. Εάν η κίτρινη λυχνία LED ανάβει ήδη εντός αυτών των 10 ετών, ανατρέξτε στις ενότητες «Αιτίες μηνύματος σφάλματος» και ''Μήνυμα σφάλματος λόγω χημικών αερίων». ΠΡΟΔΙΑΓΡΑΦΈΣ: Τροφοδοτικό: 3VDC (EVE CR17450L- PAIRDEER CR17450 INCL., δεν αντικαθίσταται). Ευαισθησία και χρόνος: 30ppm, ο συναγερμός δεν ενεργοποιείται εντός 120 λεπτών 50ppm, ο συναγερμός ενεργοποιείται εντός 60~90 λεπτών 100ppm, συναγερμός εντός 10~40 λεπτών 300ppm, δίνει συναγερμό εντός 3 λεπτών 0,09~0,15 dB/m καπνού, ενεργοποιεί συναγερμό αμέσως ρεύμα αναμονής: <20μΑ ρεύμα συναγερμού: <20mA Ηχητική πίεση σε συναγερμό: >85dB (απόσταση 3m) Περιβάλλον λειτουργίας: 0ºC ~ 40ºC, 30~93% υγρασία. Περιβάλλον αποθήκευσης: -20ºC ~ 50ºC, 10~95% υγρασία. Διαστάσεις: 135*40mm Βάρος: 185gr Τύπος CO: Τύπος B (μη ελεγχόμενη έξοδος) Αισθητήρας καπνού: Φωτοηλεκτρικός Αισθητήρας CO: ηλεκτροχημικός Συμμόρφωση: EN14604:2005 + AC:2008 EN50291-1:2018 DEACTIVE Πριν απορρίψετε το προϊόν σε κατάλληλο σημείο συλλογής, απενεργοποιήστε το προϊόν. Κάτω από το πάνω μέρος της ετικέτας του προϊόντος υπάρχει ένα κλειδί απενεργοποίησης. Σπάστε το και τοποθετήστε το στην οπή στο σημείο «Προειδοποίηση»35 Fire detection in buildings
• Nominal activation conditions / sensitivity, response delay (response time) and performance Pass
• Operational reliability: Pass• Tolerance to supply voltage: Pass• Durability of operational reliability and response delay, temperature resistance: Pass• Durability of operational reliability, vibration resistance: Pass• Durability of operational reliability, humidity resistance: Pass• Durability of operational reliability, corrosion resistance: Pass• Durability of operational reliability, electrical stability: Pass

• The service department cannot give you personal information about the installation, placement and assembly of this alarm in your area. Consult a technician or specialist for this.
