Product Type	Smoke Detector
Brand	Alecto
Model	SA-100
Detection Technology	Photoelectric
Diameter	120 mm
Height	35 mm
Weight	150 g
Power Supply	9V battery (included)
Battery Life	1 year (typical)
Alarm Level	85 dB at 3 m
Test Button	Yes
Hush Function	Yes, silences false alarms
Low Battery Warning	Chirping sound every 30-60 seconds
LED Indicator	Red LED for alarm, green for power
Operating Humidity	10% to 90% RH
Operating Temperature	0°C to 40°C
Mounting	Ceiling mount with screws and anchors
Compliance	EN14604, CE
Maintenance	Vacuum clean monthly; test weekly; replace battery annually
Spare Parts	9V battery (standard)
Warranty	1 year

Frequently Asked Questions - SA-100 ALECTO

How do I install the Alecto SA-100 smoke detector?

Choose a ceiling location at least 30 cm away from walls and corners. Use the mounting bracket as a template, drill holes, insert wall plugs, and screw the bracket. Attach the detector by twisting it onto the bracket until it clicks.

How do I test the smoke detector?

Press and hold the test button for a few seconds until the alarm sounds. Release the button. The alarm should stop immediately. Test weekly.

What does it mean when the detector chirps every 30-60 seconds?

This indicates a low battery. Replace the 9V battery immediately with a fresh one. Dispose of old batteries properly.

How do I stop a false alarm?

Press the hush button to silence the alarm for about 10 minutes. The detector will automatically reset. If frequent false alarms occur, relocate the detector away from kitchens or bathrooms.

How do I clean the smoke detector?

Use a vacuum cleaner with a soft brush attachment to gently remove dust from the sensor openings. Do not use water or cleaning chemicals. Clean monthly.

How long does the battery last?

Under normal conditions, the 9V battery lasts approximately 1 year. Replace it at least once a year or sooner if the low battery chirp occurs.

What should I do when the alarm sounds continuously?

Evacuate the building immediately. Call emergency services from outside. Do not re-enter until authorities declare it safe.

Can I install multiple SA-100 detectors and interconnect them?

No, the Alecto SA-100 is a standalone detector. It does not support interconnection with other units. For interconnected alarms, consider other models.

Is the detector suitable for use in kitchens?

It is recommended to install at least 3 meters away from cooking appliances to minimize false alarms. For kitchens, consider a heat alarm instead.

How do I replace the battery?

Twist the detector counterclockwise to detach it from the mounting bracket. Open the battery compartment, remove the old battery, and insert a new 9V battery, observing polarity. Close the compartment and reattach the detector.

USER MANUAL SA-100 ALECTO

MANUAL

Smoke detector for domestic use

Index

English 3

Dutch 7

French 12

German 17

Spanish 22

EN The SA-100 is a smoke detector set for discovery of fire in the first stage. If smoke develops, the SA-100 will give a loud beep of at least 85dB (A). As part of the link function all the smoke alarms within range will sound the alarm. We advice to test the smoke detectors weekly using the test button on the detectors. Save this manual in a safe place or inside of the electricity meter cupboard.

RECOMMENDED INSTALLATION LOCATIONS FOR THE SA-100:

• Install the first smoke detector near the bedroom. Ensure that it is placed so, if it would detect fire, at least one exit route would still be accessible. We recommend to place one alarm near each potential blockade of your exit route, so you are alerted before a fire would block off escape.
• Use multiple detectors to increase safety and ensure alert before the escape route is blocked.
  • Install at least one smoke detector on each floor of your house.
• Install at least one smoke detector in each room where people smoke or where there is equipment that may potentially cause a fire.
• Smoke and heat will first move upwards towards the ceiling; after that the smoke and heat will travel horizontally.

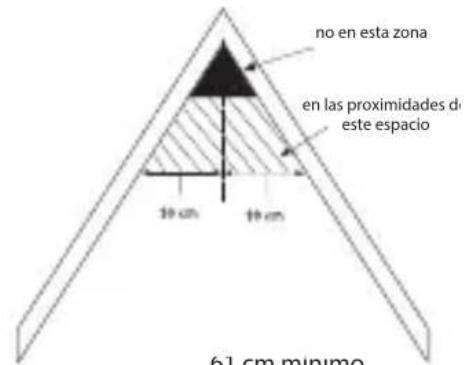

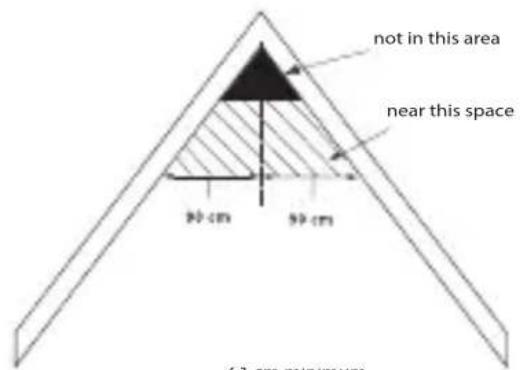

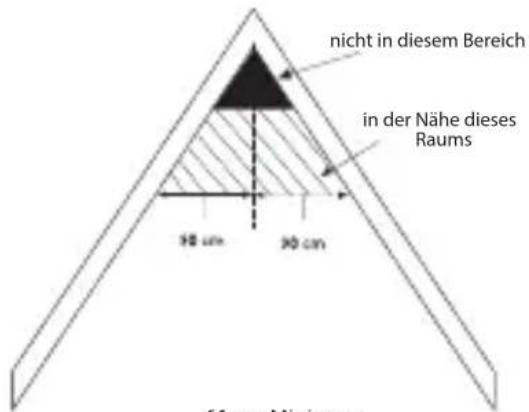

• Install the detector on the ceiling. Except for rooms smaller than 1m, you should stay at least 50 cm away from the wall and 61cm from any corner. Smoke and heat do not gather in such corners, preventing the detector from alerting you on time.

IMPORTANT: For optimal operation, we recommend mounting the smoke detector on the ceiling. See also the installation instructions. If ceiling mounting is not possible, we recommend that you place the smoke detector in the middle of a wall. The installation location must be in the natural airflow of the room and free of side walls or slope.

Required ✗ Do not use

DO NOT INSTALL IN THE FOLLOWING LOCATIONS:

• The kitchen; Steam from cooking might give a false alarm.
• The shower or bathroom; water damp might cause a false alarm and the moist environment might damage the detector.
• The garage: The car exhaust might cause a false alarm.
• In front of a fan or nearby the exhaust of an air conditioner or heater.
  • In a ceiling nook.
• In rooms where the temperature could reach below -10°C or beyond 40°C.
• Do not paint or otherwise cover this smoke detector.

INSTALLATION INFORMATION:

Attach the ceiling plate using the included plugs and screws to the ceiling on a location of choice. Wall mounting is not recommended for smoke detection. Put the batteries in the detector. Then put the detector to the ceiling plate and, twist clockwise to lock it in place. Perform a first test by holding the test key for two seconds. Also see the paragraph: “Testing”.

USING, TESTING AND MAINTENANCE:

Using: The smoke detector works if the 3 x 3V lithium batteries have been placed and/or the red strip is removed and the SA-100 is mounted to the ceiling. The unit can only be mounted to the plate if the batteries have been installed. The LED underneath the test button will now flash ± every 50 seconds. Once smoke is detected, the alarm will sound. Once the smoke disappears, the smoke alarm will stop automatically

Test: Hold the test key for at least 2 seconds. The operation is still correct if you hear two or three signal tones. Check the smoke detectors weekly. In alarm status the smoke detector will generate about 85dB(A). Do not use candles, open fire or cigarettes to test the smoke detector.

ATTENTION:

• If the cause of an alarm is unclear, assume it's caused by fire. Immediately evacuate the building.
• Keep the smoke detectors out of range of children.
• Protect against dust during rennovations. Without protection the smoke detectors will lose their functionality.

Maintenance: The smoke detector is maintenance-free. In very dusty rooms they may be cleaned by vacuum.

PLAN AN ESCAPE ROUTE:

- Make a map and mark all locations of doors and windows and a possible escape route. Note that you

may need an escape ladder on high floors.

• Ensure everyone in the house knows the sound the smoke alarms produce and regularly practice use of the escape route.
• Leave the house immediately according to the plan when hearing the alarm. Every second counts: so respond quickly. If you do not notice smoke or heat, check if everyone in the house is in a secure location. Do not open any doors without feeling wether the door is warm or if there is smoke coming from underneath the doors. If it is, do not open that door. If the door is cold, put your shoulder firmly against the door and open it a small amount to check for any heat or smoke first.
• If there is much smoke, keep low and take shallow breaths, preferably through a moist towel. Call the fire department as soon as you are safe outside.

REPLACING THE BATTERIES:

The detector is supplied using 3 x 3V Lithium batteries.

Only use the recommended type Newsun CR-2450.

Under normal conditions the battery will last at least five years. If it is about to need replacement, the smoke detector will make a chirping sound every 30 to 40 seconds.

Pay attention to the polarity when replacing batteries. Test the detector after every battery replacement. If the smoke detector does not function, please contact your supplier.

ENVIRONMENT:

Do not throw away used batteries, but recycle them using your local chemical depot. Product may not be thrown out as normal waste, but must be recycled as electrical waste.

ATTENTIE:

Recommandé

Ne pas utiliser

INSTALLATION ET INFORMATION:

Empholen

Nicht benutzen

Requerido

No utilice

Mounting type Ceiling
Main power source 3x Batteries, 3V Lithium, included.
Autonomy At least: 5 years
Interconnectible device No
Suitable for installation in a recreational vehicle	No
Individual alarm indicator Yes
Alarm prevention facility No
