USER MANUAL Optiss BC5118 TEFAL

• Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: the manufacturer cannot accept any liability for non compliant appliance use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

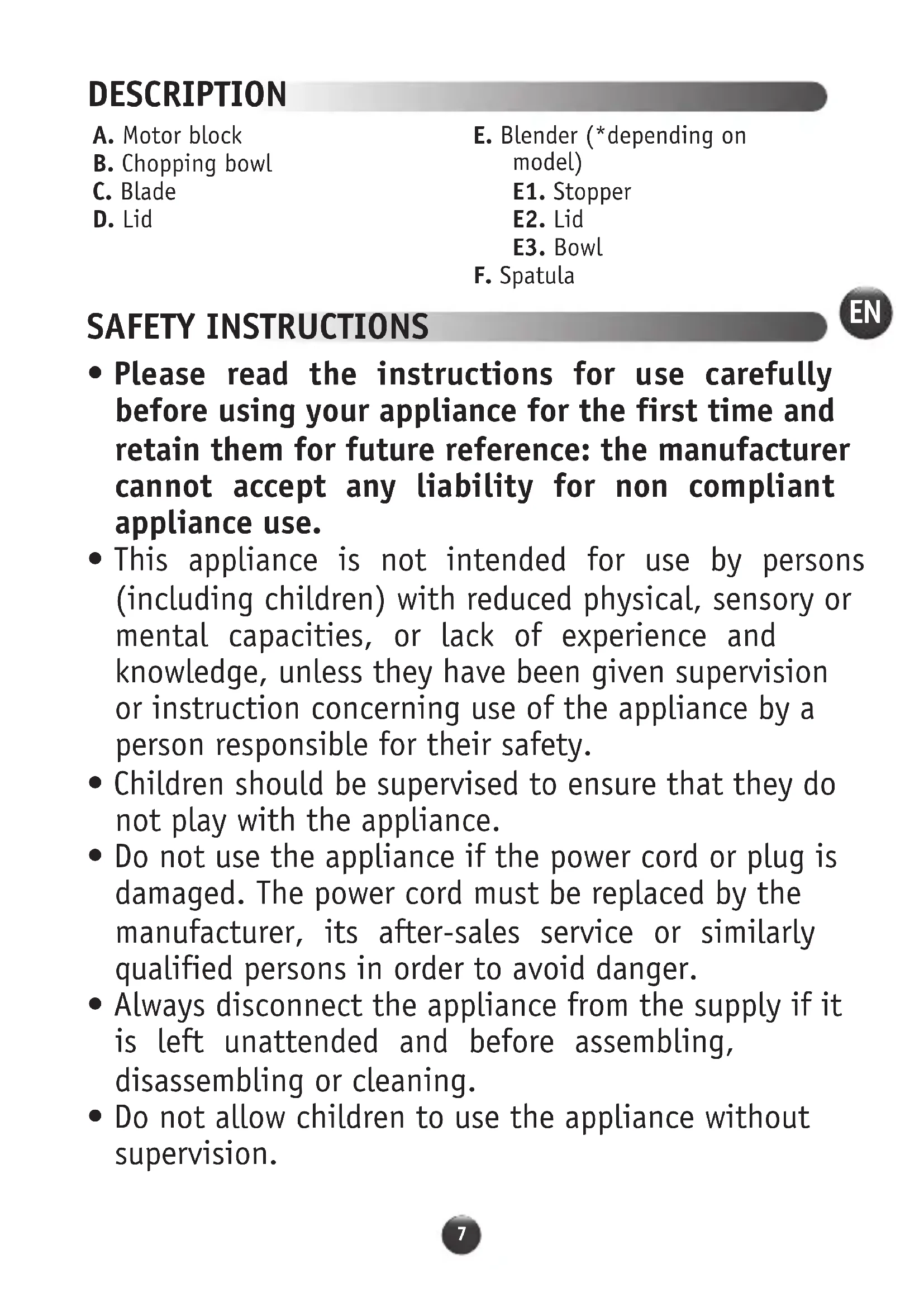

• Do not allow children to use the appliance without supervision. DESCRIPTION A. Motor block B. Chopping bowl C. Blade D. Lid E. Blender (*depending on model) E1. Stopper E2. Lid E3. Bowl F. Spatula SAFETY INSTRUCTIONS

• Handle the chopping blades very carefully when emptying the bowl and during cleaning: they are extremely sharp.

• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

• Never fill the blender jug with boiling liquid.

• It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• Check that the power supply voltage of your appliance is the right one for your electrical installation. Any connection error will cancel the warranty.

• Your appliance is intended for domestic use inside the home only at an altitude below 2000m.

• Do not use the appliance if it is not working correctly or if it has been damaged.

• Any intervention other than cleaning and usual maintenance by the customer must be carried out by an approved service centre (see list in service manual).

• Do not place the motor unit, power cable or plug in water or any other liquid.

• Do not put the accessories in the microwave.

• Do not allow long hair, scarves, ties, etc. to hang over the appliance or accessories while in operation.

• Caution: you may injure yourself if you use the appliance incorrectly.

• Refer to the instructions to obtain the operating time and speed settings for the accessories.

• Refer to the instructions for cleaning and maintenance of your product, in particular the accessories in contact with foodstuff.

• Refer to the instructions for assembly and dismantling of the accessories.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

FOR EUROPEAN MARKETS ONLY

• Keep the appliance and its cord out of reach of children.

• This appliance shall not be used by children.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

• Children shall not play with the appliance.

• Wash the bowl (B), the lid (D), the blade (C) and blender accessory (E*) with soapy water. Rinse and dry.

• Note: the blades are very sharp, handle cutting accessories with caution when using or cleaning your appliance.

• Place the motor block (A) on a flat, stable, heat-resistant work surface.

• Do not plug your appliance in yet.

• Place the chopper bowl (B) on the motor block (A) (fig. 1).

• Place the blade (C) inside the bowl. Place the blade on the central axis by pressing the white button to lock it (fig. 2).

• Place the diced food in the chopper bowl.

• Put the lid (D) on the chopper bowl (B) (fig.3). Now you can plug your appliance in.

• Press on the lid (D) to start the appliance up (fig.4).

• To stop the chopper, stop pressing on the lid: the appliance switches off automatically.

• Do not remove the lid until the blade has completely stopped.

• To remove the blade, press the white button while pulling the blade upwards.

• Do not use this accessory to make semi-liquid or liquid recipes such as fruit purées, tomato-based recipes and so on.

• Do not use this accessory to make icing sugar.

• Work in short bursts to obtain a fine, smooth result. If pieces of food stick to the sides of the bowl (meat, onions, etc.), remove them with the spatula (F), spread them around the bowl and press the lid 2 or 3 additional times.

• If pressing the lid does not make the appliance work, make sure that pieces of food are not stuck on the inside edge of the lid in contact with the bowl.

• After prolonged use, if the blade should become blunt, replace it.

• After use, leave it to cool down for 2 minutes.

• Maximum operating time : 30 seconds.

• Place the bowl (E3) on a flat, stable, heat-resistant work surface. All the operations must be carried out with the bowl (E3) placed on a flat, stable, heat-resistant work surface, never on the motor block (A).

• Put the ingredients to be blended in the bowl (E3) (fig. 5). Pour the liquids in first. Never exceed the maximum level indicated (1.25 L).

• Put the lid (E2) on the bowl (E3) (fig.6).

• Put the stopper (E1) in its slot on the lid and turn it to lock it (fig.7).

• To turn the appliance on: press on the sliding ring on the blender bowl with your hand (fig. 9).

• To stop the appliance, stop pressing the ring.

• The cover and its stop must always be in place properly when the appliance is operating.

• Never place your fingers or any other object in the blender bowl while the appliance is working.

• Do not use this accessory to make icing sugar. Attention: never pour or mix liquids or ingredients with a temperature higher than 80°C (175°F). When you mix hot ingredients, take your hands away from the lid and stopper in order to avoid any risk of burns. Carrot soup with cumin: Ingredients: - 500 g carrots, cut into cubes of 15 mm x 15 mm - 750 ml of water - 1 teaspoon of cumin - Salt and pepper Put the carrot pieces in the jar and add the water. Mix in max speed for 30 seconds. Pour the mixture into a saucepan, add the cumin and cook for about 30 min. You can add water during cooking for a thinner soup. Add salt and pepper according to your taste.

• Always unplug the appliance before cleaning the motor block (A).

• Do not immerse the motor block (A), do not run it under water. Wipe the motor unit (A) down with a damp cloth. Dry it carefully.

• Be careful while handling the blade (C) when you empty the jug or clean the appliance. USING THE BLENDER BOWL (E) (*DEPENDING ON MODEL) RECIPE CLEANING 8080015206_Moulinette_SM_Mise en page 1 02/07/15 10:13 Page1112

• Do not leave the blades (C) to soak with the dishes at the bottom of the sink.

• To make cleaning the blender bowl (E*) easier after use, fill it with a little hot water and a few drops of washing-up liquid. Turn the appliance on for a few seconds. Drain and rinse under the tap. Handle the blades extremely carefully, because they are very sharp.

• The chopper bowl (B), the knife (C), the lid (D) and the blender bowl (E) can be cleaned with a sponge and washing-up liquid or all go in the dishwasher in the basket at the top using the "eco" or "slightly soiled" programme.

• Clean all your accessories before 1st use, and after each use.

• Start by checking the power cord and plug.

• You have carefully followed all these instructions, and yet your appliance still does not work?

• In this case, contact your dealer or an approved service centre (see the list in the service booklet). HELPLINE: If you have any product problems or queries please contact our Customer Relations Team first for expert help and advice: 0845 602 1454 – UK (01) 677 4003 – Ireland or consult our website – www.moulinex.co.uk Environmental protection first!

Your appliance contains valuable materials which can be recovered or recycled. ‹ Leave it at a local civic waste collection point. END OF LIFE ELECTRIC OR ELECTRONIC PRODUCT WHAT DO I DO IF MY APPLIANCE DOESN'T WORK? 8080015206_Moulinette_SM_Mise en page 1 02/07/15 10:13 Page1213
