Slim Force HB8538 - Blender TEFAL - Free user manual and instructions

Brand	Tefal
Model	Slim Force HB8538
Product type	Immersion blender (blender)
Power	700 W (version indicated for mini chopper)
Beaker capacity	0.8 L
Mini chopper capacity	150 ml (depending on model)
Chopper capacity	500 ml (depending on model)
Blending shaft material	Plastic or metal depending on model
Speeds	Speed 1 and Turbo speed
Included accessories	Blending shaft, 0.8 L beaker, 150 ml mini chopper, 500 ml chopper, multi-wire whisk (depending on model)
Number of spare parts	Spare parts available: 150 ml mini chopper, 500 ml chopper, puree shaft, mayonnaise shaft (see manual)
Care and cleaning	Dishwasher-safe accessories; wipe motor unit with a damp cloth
Blade material	Very sharp stainless steel
Safety	Overheating protection, do not use empty, do not immerse motor unit in water
Maximum usage time	Blending shaft: 20 s in turbo; whisk: 3 min in turbo
Warranty	Not specified, refer to after-sales service
Repairability	Authorized service centers (list in service booklet)

Frequently Asked Questions - Slim Force HB8538 TEFAL

How to use the blending shaft?

Screw the blending shaft onto the motor unit, plug in, immerse halfway into the container and press Speed 1 or Turbo. Do not exceed 20 seconds in turbo.

Can I blend hot foods?

Yes, but first remove the container from the heat source. Place the shaft halfway at the center.

How to clean the accessories?

All parts except the motor unit and reducers are dishwasher-safe. Wipe the motor unit with a damp cloth.

What to do if the appliance stops during use?

The appliance is equipped with overheating protection. Let it cool for about 20 minutes before resuming.

How to use the 150 ml mini chopper?

Place the blade on the bowl shaft, add food, close with the inner lid and outer lid, then attach the motor unit. Press a speed.

Can you chop meat with this appliance?

Yes, with the 500 ml chopper: 200 g of beef in 1 cm cubes in 10 seconds in turbo. With the 150 ml mini chopper: 70 g in 3 seconds.

How to assemble the multi-wire whisk?

Assemble the whisk with the reducer, then screw the reducer onto the motor unit until it stops.

Can I use the appliance for ice cubes or coffee?

No, do not use the blender for hard foods like sugar, chocolate, coffee, ice cubes.

Where to find spare accessories?

At your retailer or an authorized service center. Bring the manual or the type code (DD85xxxx or HB85xxxx).

What is the maximum capacity of the beaker to avoid splashes?

Do not fill beyond 50 cl (15 Oz).

USER MANUAL Slim Force HB8538 TEFAL

Line drawing of a handheld electric shaver with a metallic handle and base (no text or symbols)

FR ES
EL NL
FA

B B2 B1 A D

Line drawing of two laboratory glassware items with a central rod labeled 'C' (no text or symbols on the objects themselves)

E E4 E3 E2 E1

F F3 F2 F1 F4

G1 G2 G

1

1 2 2

500 ml 18 fl oz MAX 3

4 3 2 1 4

4 3 2 1 5

1 2 3 6

3

4

E1 Taça
E2 Lâmina
E3 Tampa interior
E4 Tampa

F Picadora 500 ml (consoante o modelo)

BESCHRIJVING (AFB. 1)

A Motorblok

B Bedieningsknoppen

B1 Stand 1

B2 Stand TURBO

WAT KUNT U DOEN ALS UW APPARAAT NIET FUNCTIONEERT?

- Controleer:

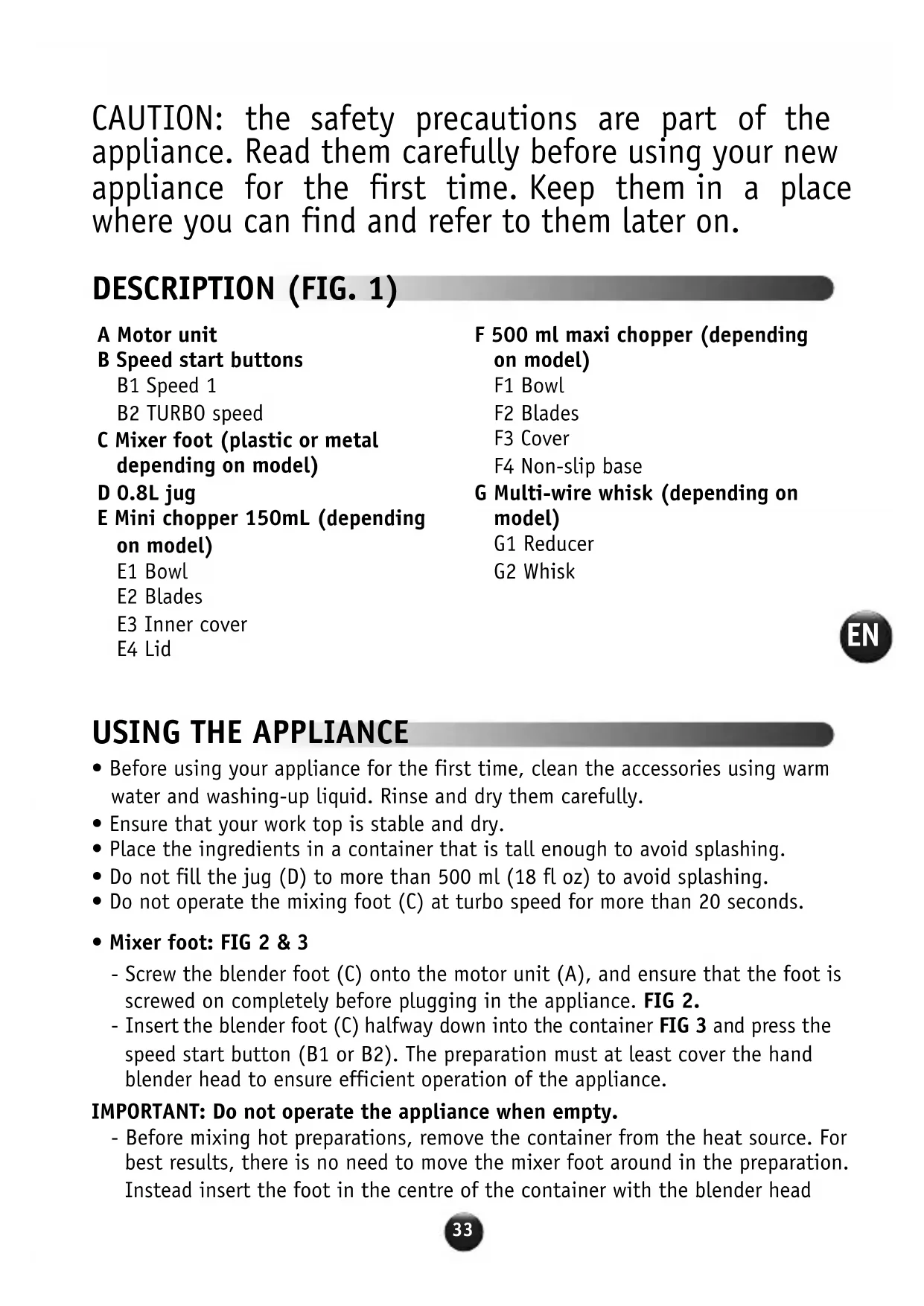

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

DESCRIPTION (FIG. 1)

A Motor unit

B Speed start buttons

B1 Speed 1

B2 TURBO speed

C Mixer foot (plastic or metal depending on model)

D 0.8L jug

E Mini chopper 150mL (depending on model)

E1 Bowl

E2 Blades

E3 Inner cover

E4 Lid

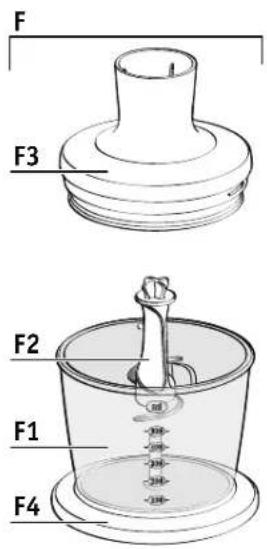

F 500 ml maxi chopper (depending on model)

F1 Bowl

F2 Blades

F3 Cover

F4 Non-slip base

G Multi-wire whisk (depending on model)

G1 Reducer

G2 Whisk

USING THE APPLIANCE

• Before using your appliance for the first time, clean the accessories using warm water and washing-up liquid. Rinse and dry them carefully.
• Ensure that your work top is stable and dry.
• Place the ingredients in a container that is tall enough to avoid splashing.
• Do not fill the jug (D) to more than 500 ml (18 fl oz) to avoid splashing.
• Do not operate the mixing foot (C) at turbo speed for more than 20 seconds.

- Mixer foot: FIG 2 & 3

• Screw the blender foot (C) onto the motor unit (A), and ensure that the foot is screwed on completely before plugging in the appliance. FIG 2.
• Insert the blender foot (C) halfway down into the container FIG 3 and press the speed start button (B1 or B2). The preparation must at least cover the hand blender head to ensure efficient operation of the appliance.

IMPORTANT: Do not operate the appliance when empty.

- Before mixing hot preparations, remove the container from the heat source. For best results, there is no need to move the mixer foot around in the preparation. Instead insert the foot in the centre of the container with the blender head

submerged halfway down in the food.

• For stringy ingredients (leeks, celery, etc.), clean the foot regularly during the preparation, ensuring that you follow the safety instructions for dismantling and cleaning the appliance.
• When making fruit-based preparations, slice the fruit and remove the cores and any stones beforehand.
• Do not operate the appliance to prepare hard ingredients (sugar, chocolate, coffee, ice-cubes).

- Mini chopper 150mL (depending on model): FIG E & 4

• Fit the blades (E2) onto the drive pin of the bowl (E1).
• Place the ingredients in the bowl (E1) then fit the inner cover (E3) then the lid (E4).
• Fit the motor unit (A) onto the lid (E4).
• Plug in the motor unit (A) and press the speed start button (B1 or B2) and process food.
• Remove the motor unit (A) then the lid (E4) then the inner cover (E3).
• Remove the blades (E2), holding it by its plastic part.
• After use, remove the ingredients.
• Do not operate this accessory when empty.

- 500 ml maxi chopper (depending on model): Fig F & 5

• Place the bowl on the non-slip base (F4)
• Fit the blades (F2) onto the drive pin of the bowl (F1).
• Place the ingredients in the bowl (F1) then fit the cover (F3).
• Fit the motor unit (A) onto the cover (F3).
• Plug in the motor unit (A) and press the speed start button (B1 or B2).
• Remove the motor unit (A) then the cover (F3).
• Remove the blades (F2) holding it by its plastic part.
• After use, remove the ingredients.
• Do not operate this accessory when empty.

- Multi-wire whisk (depending on model): Fig G & 6

• Fit the multi-wire whisk (G2) onto the reducer (G1).
• Fit the reducer (G1) onto the motor unit (A).
• Turn until it is locked in place.
• After use, unscrew the reducer (G1) and remove the whisk (G2).
• Do not operate the multi-wire whisk at turbo speed for more than 3 minutes.

CLEANING

• All of the parts and accessories of your mixer can be cleaned in the dishwasher except for the motor unit (A) and the reducers (F3, G1), they can only be cleaned with a damp cloth.
• Unplug the appliance from the electrical power supply before cleaning.
• Do not use abrasive scourers or objects containing metal parts.
• Do not immerse the motor unit (A) in water or any other liquid. Wipe it clean with a dry or slightly damp cloth.
• If your accessories are discoloured by food (carrots, oranges, etc.) rub them with a cloth dipped in cooking oil and then clean them as usual. Some staining may occur over time but this will not affect the performance of the appliance.
• Handle the blades with care; they are extremely sharp.

RECIPES

Mixer foot (parts A, B, C, D)

- Carrot soup with cumin:

PIngredients:

• 200 g carrots, cut into cubes of 15 mm x 15 mm
• 300 ml of water
• 1 teaspoon of cumin
• Salt and pepper

Put the carrot pieces in the glass jar and add the water. Mix in max speed for 20 seconds. Turn off the appliance. Pour the mixture into a saucepan, add the cumin and cook for about 30 min. You can add water during cooking for a thinner soup. Add salt and pepper according to your taste.

Mini chopper 150mL (depending on model) FIG E:

- With this accessory, you can mince or chop:

• Garlic, Fresh Herbs, Onions
• Raw meat:

* For the 700W version

70 g of beef, sinew and gristle removed, cut into 1-cm cubes processed in 3 seconds at TURBO speed.

Multi-wire whisk (depending on model) Fig. G:

Whisked egg whites.

4 egg whites in 3 minutes. TURBO speed.

500 ml maxi chopper (depending on model) FIG F:

- With this accessory, you can mince or chop:

Garlic, Fresh herbs, Onions.

200 g of raw beef, sinew and gristle removed, cut into 1-cm cubes processed in 10 seconds at TURBO speed.

IF YOUR APPLIANCE WILL NOT WORK, WHAT SHOULD YOU DO?

- Check:

That your appliance is plugged in correctly to the mains.

That the power cord is in good condition.

Your appliance is equipped with a device to protect against overheating. If your appliance overheats, it will switch itself off. In this case, leave it to cool down for about 20 minutes then start using it again.

Your appliance will still not work?

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice: See contact list attached.

ACCESSORIES

- You can purchase the following accessories from your dealer or an authorised service centre (see the list in the service booklet):

Mini chopper 150 ml:

* For the 700W version

70 g of beef, sinew and gristle removed, cut into 1-cm cubes processed in 3 seconds at TURBO speed.

500 ml maxi chopper:

With this accessory, you can mince or chop 200g beef in 10 seconds.

Mayonnaise foot allows you to whip up all types of sauces (mayonnaise, tartar, aioli, salad dressings, yoghurt-based sauces, etc.)

Important, if you want to dispose of an attachment, please refer to this instruction leaflet first and contact an approved service centre (see list at the end) giving the product code for your appliance DD85XXXX or HB85XXXX.
