Product Type	Blender
Brand	Tefal
Model	BL3008
Power	400 W
Blender Jug Capacity	1.25 L (thick mixtures), 1 L (liquids)
Speed Control	Variable speed with pulse function
Safety Lock System	Yes, jug or accessory must be correctly locked to operate
Maximum Continuous Operation Time	3 minutes
Blade Material	Stainless steel
Gasket Material	Silicone
Included Accessories	Herb chopper and spice grinder (depending on model)
Blender Jug Material	Glass or plastic (depending on model)
Dishwasher Safe Parts	Glass jug only (upper rack, ECO or LOW SALT program); plastic jug and accessories not dishwasher safe
Cleaning Motor Unit	Wipe with damp cloth; do not immerse
Voltage	220-240 V, 50/60 Hz
Safety Warnings	Blades are sharp; handle with caution; do not operate without lid
Accessory Bowl Material	Plastic (bowl F for herb chopper and spice grinder)
Effective for	Chopping herbs, meat, nuts; grinding spices
Maximum Ingredient Quantity (Herb Chopper)	60 g (onions, almonds) – varies by ingredient
Maximum Ingredient Quantity (Spice Grinder)	40 g (coriander seeds)

Frequently Asked Questions - BL3008 TEFAL

How do I assemble the blender jug?

Moisten the gasket (c2) and place it correctly on the blade unit (c1) so that the 3 folds are visible. Place the blade assembly on the jug base and lock by rotating a quarter turn anticlockwise. Then place the lid and measuring cup.

Why won't my blender start?

Ensure the jug or accessory is correctly positioned and locked on the motor unit. The red lock should be aligned before turning to green. Also check that the plug is properly inserted and the socket is switched on.

What is the maximum capacity of the blender jug?

For thick mixtures, do not exceed 1.25 L. For liquid preparations, do not exceed 1 L.

Can I put the blender jug in the dishwasher?

Only the glass version of the blender jug is dishwasher safe on the upper rack using ECO or LOW SALT program. The plastic jug and accessories (herb chopper, spice grinder) are not dishwasher safe.

How long can I run the blender continuously?

Do not use the blender for more than three minutes at a time. Allow the motor to cool before using again.

What accessories are included with the BL3008?

The blender comes with a herb chopper (D) and a spice grinder (E), depending on the model. Check the label on the packaging for the specific accessories included.

How do I attach the herb chopper or spice grinder?

Place the gasket in the blade unit recess, position the blade unit on the bowl aligning marks, and lock by rotating a quarter turn anticlockwise. Then place the assembly on the motor unit, align red lock, and rotate clockwise to green.

What should I do if the blender leaks from the base?

Check that the jug gasket (c2) is correctly positioned with the 3 folds visible. Also ensure the blade unit is locked properly. For accessories, check the gasket on the blade unit (d2 or e2).

Can I blend hot liquids?

The manual does not specify blending hot liquids. It is generally advisable to let hot liquids cool before blending to avoid pressure buildup and potential leaks.

How do I clean the motor unit?

Unplug the appliance. Use a moist cloth to wipe the motor unit. Never immerse it in water or rinse under running water.

USER MANUAL BL3008 TEFAL

Line drawing of two blender models with no visible text or symbols on the devices themselves

400 W • Biotr otracta crupod wogena • “Biot rječina zavinsna od modela • “Biot naži podic modelu • “Wadorna a modellšio figgola • “Biot de cujete in funje di model • “Crpele bioiu zavinsnja od modelu • “Endi 1 relizili včekos na modela • “Biot sekina uzavnostom od modela • “Biot ostrica prema modelu • “Teračsknja vastavati modelile • “Asneru talska ablikstovi modelim • “Amenaj biolus, peklabsonai nus modela • “YR 1 nozy waleznosti od modelu • “Blade unit depending on model • “Mesterhead afthankelij kan het modu • “Kvblad alt chor model • “Kvbladsnehot, avhengig av modeli • “Skabladsbon zakligt modeli • “Terájsklo za mballionatnen • “Madele greće bask seti • “Carjunta de echillas segui od modelu • ES

censco
CJOK
IR
ES
LJ

ОПИСАНИЕ НА УРЕДА

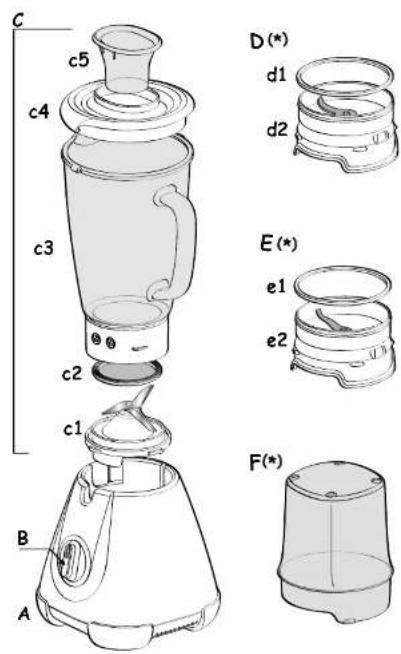

DESCRIPTION OF THE APPLIANCE

A Motor unit
B Speed selector
C Blender unit:

• c1 Blade unit
• c2 Gasket
• c3 Graduated blender jug
• c4 Lid
• c5 Measuring cup

D Herb chopper

(*accessory depending on model)
-d1 Gasket
- d2 Herb chopper blade unit

E Spice grinder

(*accessory depending on model)
- e1 Gasket
- e2 Spice blade unit

F Herb chopper and Spice grinder bowl

The accessories contained in the model you have bought are represented on the label on the top of the packaging.

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

SAFETY LOCKING

The appliance can run only when the jug (C) or accessories (D or E) are

correctly positioned and locked on the motor unit (A).

USING FOR THE FIRST TIME

- Before using your appliance for the first time, clean all the accessories (C, D, E, F) in warm soapy water, except for the motor unit (A).

CAUTION: The blades are extremely sharp; handle them with caution when using or cleaning the appliance.

- Make sure all the packaging has been removed before operating the appliance.

• Important note: Turn the speed selector (B) to "0" before placing the blender jug or accessories on the motor unit.
• The appliance starts only if the jug or accessory is correctly positioned and locked on its body.
• Do not operate the blender if the lid is not in place.

USING YOUR APPLIANCE

- Moisten the gasket (c2) and position it correctly on the blade unit (c1): the 3 folds of the gasket must be visible once it is in place. If it is

positioned in the other direction, you will not be able to lock the blade unit on the jug. (Fig. 1).

- Place the assembly (c1 + c2) on the

base of the jug (c3). Lock it by rotating the blade unit through a quarter turn in the anticlockwise direction. (Fig. 2).

- Introduce the ingredients into the assembled jug without exceeding the maximum level indicated:

* 1.25L for thick mixtures
* 1L for liquid preparations.

• Lock the lid (c4) on the jug. Place the measuring cup (c5) in its recess on the lid.
• Place the blender jug assembly (C) on the motor unit (A). The red lock (open 6 aligned in the slot on the motor unit. (Fig. 3 - position 1))
• Then rotate the blender jug (C) through a quarter turn until the green lock (closed) appears. (Fig. 3 - position 2).

2 jug positions are possible: handle on the right or left of the motor unit.

• Do not use the blender for more than three minutes at a time.
• With the herb chopper (D) you can chop ingredients like onions, garlic, meat (cut into pieces) and dry fruits in a few seconds, make crumbs (rusk).

Do not use the herb chopper for liquid preparations (fruit juices, etc.)

• With the spice grinder (E) you can grind spices in a few seconds: coriander seeds, pepper, etc.
  • These accessories are equipped with a bowl (F) that prevents access to the blades during use.

1- Rotate the bowl (F) and pour the ingredients.
2- Position the gasket (d1) or (e1) in its recess on the blade unit (d2 or e2). (Fig. 4). Position the blade unit on the bowl aligning both the marks on the bowl and the blade unit. Lock the accessory by rotating the blade unit through a quarter turn in the anticlockwise direction. (Fig. 5).

Caution: leaks can occur if the accessory is not locked correctly.

3- Rotate the assembled assembly (D or E) and position it on the motor unit. The red lock (open) aligned in the slot on the motor unit. (Fig 6 - position 1)
4- Then rotate the assembled accessory (D or E) through a quarter turn clockwise until the green lock (closed) appears. (Fig. 6 - position 2).
5- Plug in the appliance and turn the speed selector (B) to the desired position or apply a few pulses. Hold the bowl (F) when the appliance is running. To stop the appliance, turn the speed selector (B) back to position "0".
6- Unlock the accessory by rotating it through a quarter turn in the anticlockwise direction, until the red lock (open) ☐ appears. Remove the assembled accessory (D, E) from the motor unit. Turn it over on the worktop before unlocking the blade unit (d2, e2) from the bowl (F) in the reverse order of the assembly. The blades are very sharp: handle them with caution to avoid injury. You can then collect the preparation in the bowl.

* The colour of the bowl may change after blending certain very hard ingredients: (cloves, cinnamon, etc.).

Ingredients	Quantities (max.)	Operating time Accessory
Apricots / figs 40 g 3 s / speed 2		D
Crumbs 1 rusk 10 seconds per pulse		D
Onions 60 g 6 sec / speed 1		D
Shelled almonds / hazelnuts 60 g 30 seconds per pulse		D
Parsley / fresh coriander 10 g In pulses		D
Coriander seeds 40 g 30 sec / speed 2		E

CLEANING YOUR APPLIANCE

• Unplug the appliance and remove the accessories
• Handle them with caution: the blades on the blender jug and accessories are sharp.
• Remove the jug and rinse it and its lid under running water.
• To clean the motor unit (A), use a moist cloth. Dry it carefully.
• Never immerse the motor unit (A) in running water.
• For easy cleaning, be sure to wash the removable parts in water and a little washing-up liquid immediately after use.

• To clean the blender jug (C) easily, unlock the blade unit (c1) by rotating it through a quarter turn in the anticlockwise direction. Remove the gasket (c2) and clean them under running water or in the dishwasher.

• GLASS BOWL VERSION (depending on model):
  The glass bowl (C) can be cleaned in the dishwasher on the upper rack - use the 'ECO' or 'LOW SALT' programme.
  The accessories (D, E) cannot be cleaned in the dishwasher.

- PLASTIC BOWL VERSION (depending on model): The plastic bowl (C) and the accessories (D, E) cannot be cleaned in the dishwasher.

Problems Causes Solutions
Product does not work.	The plug is not fitted correctly into the socket.	Plug the appliance into a socket and switch on.
	The jug or accessory is not correctly positioned or locked on the motor unit.	Check that the jug or accessories are correctly positioned and locked onto the motor unit as shown in the figure in the manual.
Excessive vibrations.	The product is not placed on a flat, stable, heat-resistant surface.	Place the product on a flat surface.
	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
Leak from the lid.	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
	The lid is not correctly positioned.	Lock the lid correctly on the blender jug.
Leak from the base of the blender jug.	The blender jug gasket (c2) is not positioned correctly or is missing.	Reposition the gasket and lock the blade holder correctly.
Leak from the base of the accessories.	The gasket on the blade unit (d2) or (e2) is not positioned correctly or is missing.	Reposition the gasket on the blade unit (d2) or (e2) and lock it correctly onto the bowl (F).
The blade does not turn easily.	Pieces of food too large or too hard.	Reduce the size or quantity of ingredients processed.Add liquid
Impossible to lock the blade unit with the gasket (c1+c2) on the jug (c3).	The gasket (c2) is not positioned correctly.	Reposition the gasket, the 3 folds should be visible as shown in Fig. 1.

Your blender still does not work?

Contact an approved service centre (see list in service booklet).

You can customise your blender and obtain the following accessories from your usual dealer or from an approved

service centre: Herb chopper accessory (D), Spice grinder accessory (E), or an additional blender jug (C).
