Simply Invents BL523D - Blender TEFAL - Free user manual and instructions

Product type	Blender
Brand	Tefal
Model	Simply Invents BL523D
Bowl capacity	1.2 L
Bowl material	Glass
Control type	Rotary speed selector with Pulse function
Number of speeds	2 (1 and 2) + Pulse
Ice crush function	Yes, dedicated button
Ice-stick accessory	Yes (depending on model) – allows cooling preparations
Blade block	Stainless steel blades, removable
Measuring cap	Integrated into lid, allows adding ingredients while running
Cleaning	Bowl and accessories dishwasher safe; wipe motor unit with a damp cloth
Safety	Very sharp blades: handle with care; do not immerse motor unit; use on a flat surface
Power supply	220-240 V, 50-60 Hz (check local voltage)
Spare parts	Blade block, glass bowl, lid with cap, ice-stick, handle
Warranty	Subject to domestic use and compliance with instructions (see manual)
After-sales service	Contact an approved service center (list in the maintenance booklet)

Frequently Asked Questions - Simply Invents BL523D TEFAL

How to use the ice crush function on the Tefal Simply Invents BL523D?

Place 12 to 15 ice cubes in the glass bowl (without adding water). Press the Ice Crush button (C) in quick succession, without holding it down continuously.

What is the maximum capacity of the blender bowl?

The bowl has a maximum capacity of 1.2 liters. Do not exceed this level to avoid overflow.

How to use the Ice-stick accessory?

Fill the reservoir (E1) with coarse salt up to the indicated level, then add cold water. Screw on the handle (E2) and shake. Place the assembly in the freezer for at least 12 hours. Once frozen, insert it through the lid opening to cool your preparations. You can also use it as a pestle.

Can I blend hot ingredients?

No, never pour liquids or ingredients hotter than 60°C into the bowl. When blending hot ingredients, keep your hands away from the lid to avoid burns.

How to clean the blender?

Unplug the appliance. Clean the motor unit with a damp cloth and dry it thoroughly (never immerse it). The glass bowl, lid, measuring cap, and ice-stick are dishwasher safe. Handle blades with care.

What to do if the blender does not start?

Check that the appliance is correctly positioned on the motor unit, that the speed selector is in a position other than 0, and that the bowl is not too full. If the problem persists, contact an authorized after-sales service.

Are the blades removable?

Yes, the blade block (D3) locks onto the glass bowl with a quarter turn. To clean or replace them, unscrew the block. Caution, the blades are very sharp.

Can I use the blender without the lid?

No, the lid with measuring cap (D1) must always be properly fitted during operation. Use the filler opening to add ingredients while blending.

What type of maintenance does the blender require?

Clean the parts regularly. Use only original accessories. In case of malfunction, have the appliance checked by an approved service center. Any unauthorized repair voids the warranty.

Where can I find spare parts for the Simply Invents BL523D?

Contact an authorized Tefal after-sales service or refer to the maintenance booklet supplied with the appliance. Use only original parts.

USER MANUAL Simply Invents BL523D TEFAL

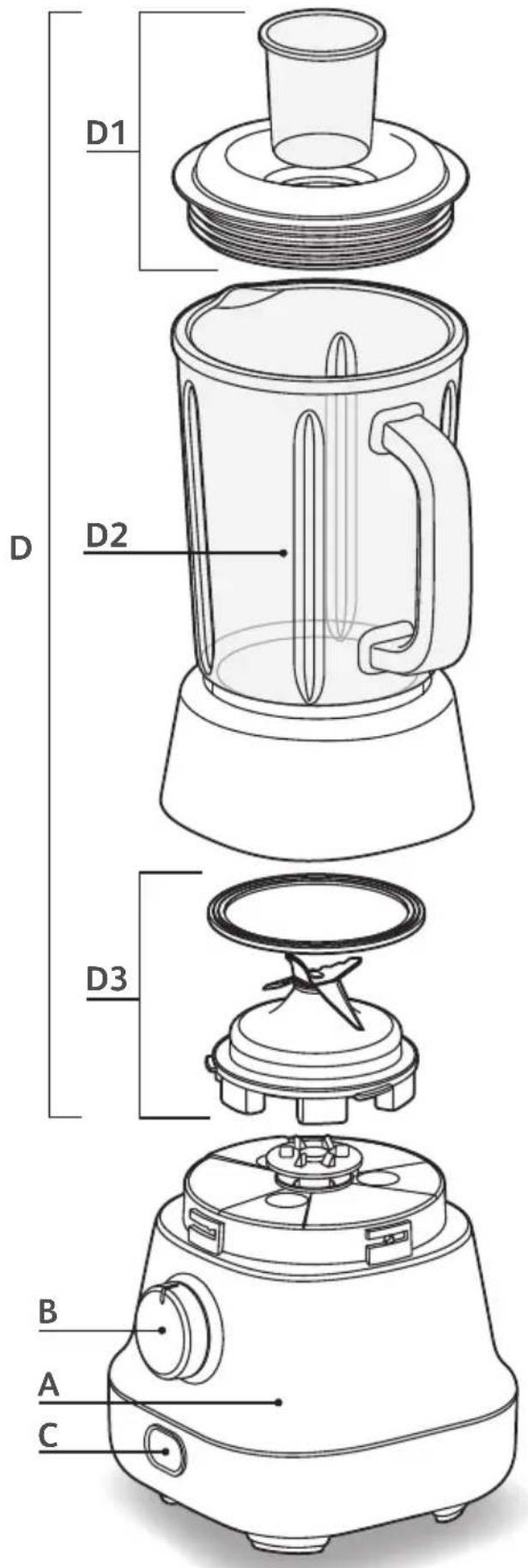

Line drawing of a kitchen blender with handle and blade (no text or symbols)

D1 D D2 D3 B A C

E E2 E1

Diagram of a hand holding a blender with a screwdriver, showing mechanical components and directional arrows (no text or symbols)

fig.1a fig.1c

Unlock Lock

fig.1b

Diagram of a mechanical device with a downward arrow indicating motion or force, enclosed in a circle (no text or symbols)

S 1 maxi

fig.2a

Diagram of a mechanical device with a rotating shaft and fan, showing internal flow direction (no text or symbols)

fig.2b fig.2c

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

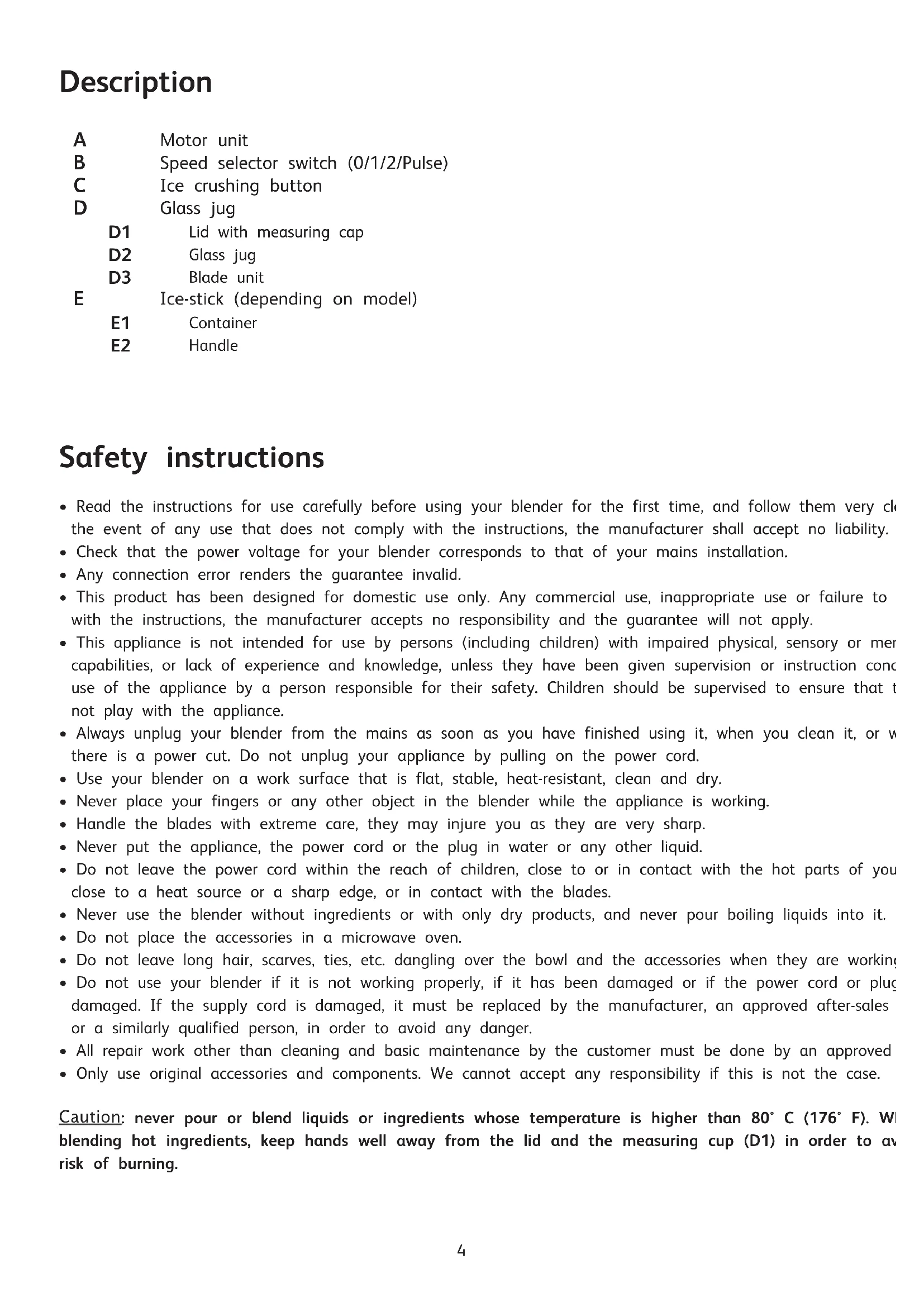

Description

• Read the instructions for use carefully before using your blender for the first time, and follow them very close to the event of any use that does not comply with the instructions, the manufacturer shall accept no liability.
• Check that the power voltage for your blender corresponds to that of your mains installation.
• Any connection error renders the guarantee invalid.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• This appliance is not intended for use by persons (including children) with impaired physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concuse of the appliance by a person responsible for their safety. Children should be supervised to ensure that it not play with the appliance.
• Always unplug your blender from the mains as soon as you have finished using it, when you clean it, or with there is a power cut. Do not unplug your appliance by pulling on the power cord.
• Use your blender on a work surface that is flat, stable, heat-resistant, clean and dry.
• Never place your fingers or any other object in the blender while the appliance is working.
• Handle the blades with extreme care, they may injure you as they are very sharp.
• Never put the appliance, the power cord or the plug in water or any other liquid.
• Do not leave the power cord within the reach of children, close to or in contact with the hot parts of you close to a heat source or a sharp edge, or in contact with the blades.
• Never use the blender without ingredients or with only dry products, and never pour boiling liquids into it.
• Do not place the accessories in a microwave oven.
• Do not leave long hair, scarves, ties, etc. dangling over the bowl and the accessories when they are working
• Do not use your blender if it is not working properly, if it has been damaged or if the power cord or plug damaged. If the supply cord is damaged, it must be replaced by the manufacturer, an approved after-sales or a similarly qualified person, in order to avoid any danger.
• All repair work other than cleaning and basic maintenance by the customer must be done by an approved
• Only use original accessories and components. We cannot accept any responsibility if this is not the case.

Caution: never pour or blend liquids or ingredients whose temperature is higher than 80^ C ( 176^ F). W blending hot ingredients, keep hands well away from the lid and the measuring cup (D1) in order to avoid risk of burning.

Using the blender for the first time

• Before using the blender for the first time, clean all accessories (D & E) in hot soapy water (except for the motor unit (A): see “Cleaning” §). Rinse and dry them carefully. Handle the blades with extreme care.
• Ensure that all packaging has been removed before using the blender.

Using the blender.

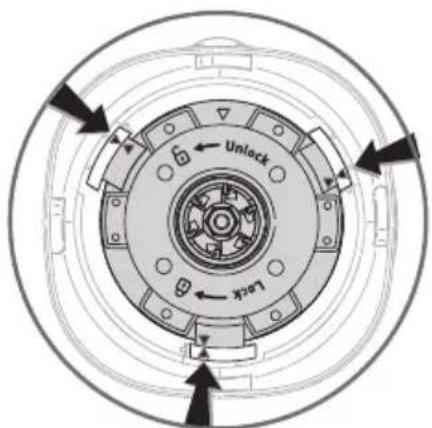

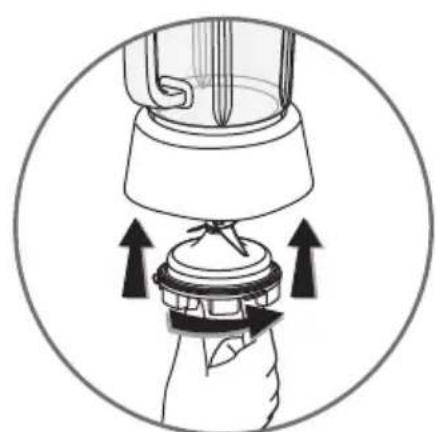

• Lock the blade holder (D3) onto the glass jug (D2) by giving it a quarter turn anti-clockwise (1a, 1b).

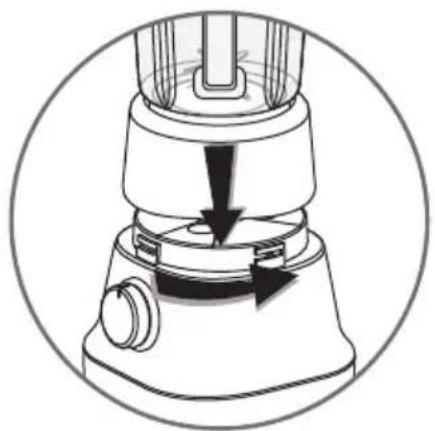

• Place the blender jug (D) onto the motor unit (A) (1c).
• Place the food to be blended into the glass jug (D2), starting with the liquid ingredients first, never exceeding the maximum level (1.2 litre).
• Plug the appliance in, turn it on and choose the speed most suitable for your preparation using the speed switch (B).
• To stop the appliance, turn the speed selector switch (B) to 0.

The lid and its measuring cap (D1) must always be properly fitted when the appliance is working. To add ingredients while the blender is operating, insert them through the feeder hole in the lid.

Ice crushing

• Put some ice cubes into the glass jug (D) (12 to 15 ice cubes). There is no need to add water.
• Press the "Ice Crush" button (C) in quick succession but do not hold the button down.

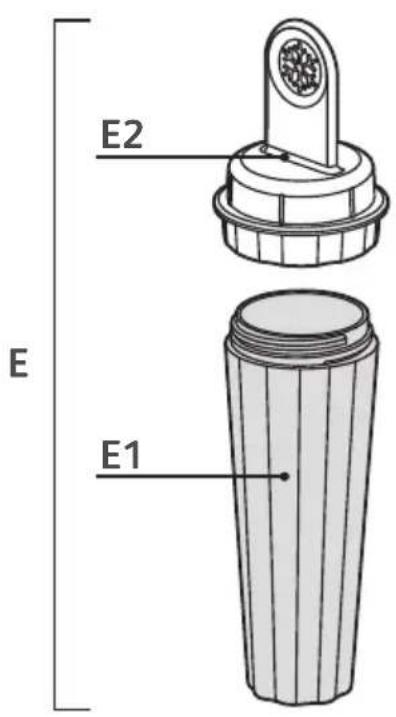

Using the ice stick (E) (depending on model)

This accessory enables you to cool mixtures down, or keep them cool.

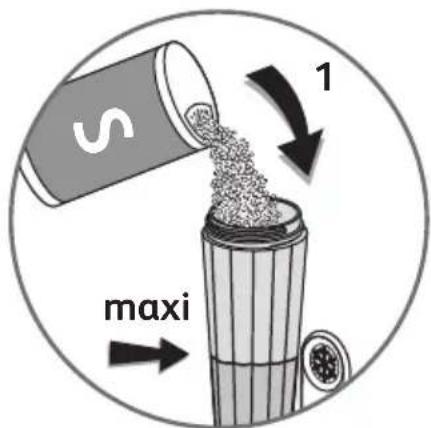

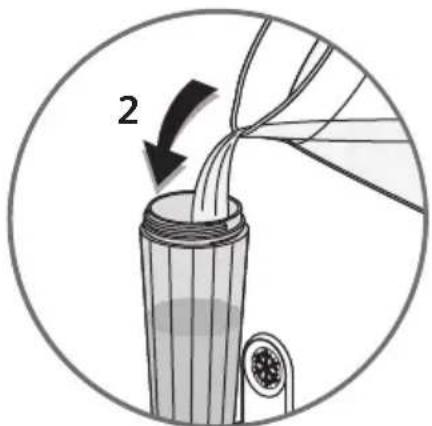

• Fill the container (E1) with coarse salt right up to the level indicated inside (2a). Then fill it with cold water (2b).

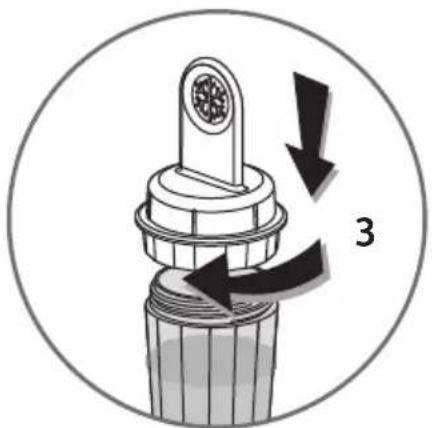

• Screw the handle (E2) of the container on very tightly (2c) and shake until the salt dissolves.
• Place the ice stick (E) in the deep freezer, preferably in an upright position, until the salt water mixture has frozen (12 hours minimum).
• Make your preparation in the blender, and then introduce the frozen ice stick (E) through the feeding hole in the lid. This will keep your mixture cooler.
• You can also use the ice-stick as a mixing stick to help mix up your preparations, by introducing it through the feeder hole in the lid.

Cleaning

• Unplug the blender and remove all the accessories.
• Wipe the motor unit (A) down with a damp cloth. Dry carefully.
• Never plunge the motor unit (A) under water.
• Rinse the glass (D) under running water, along with its accessories.
• Handle the blades with extreme care as they are very sharp.
• All the accessories are dishwasher-safe.

What to do if my blender doesn't work?

Start by checking the power cord and plug, then check:

• that the blender (D) is properly fitted onto the motor unit (A).
• that the speed selector switch (B) is in the right position.
• that the glass jug (D) has not been overfilled above the maximum level (1.2 litre)

Your appliance still does not work?

- Contact an approved service centre (see the list in the service booklet).

Recycling

Environment protection first!

i

Your appliance contains valuable materials which can be recovered or recycled.

①

Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help advice:

0845 602 1454 - UK

[phone] - Ireland

or consult our website - www.tefal.co.uk
