USER MANUAL SPB 5.000 A1 SILVERCREST

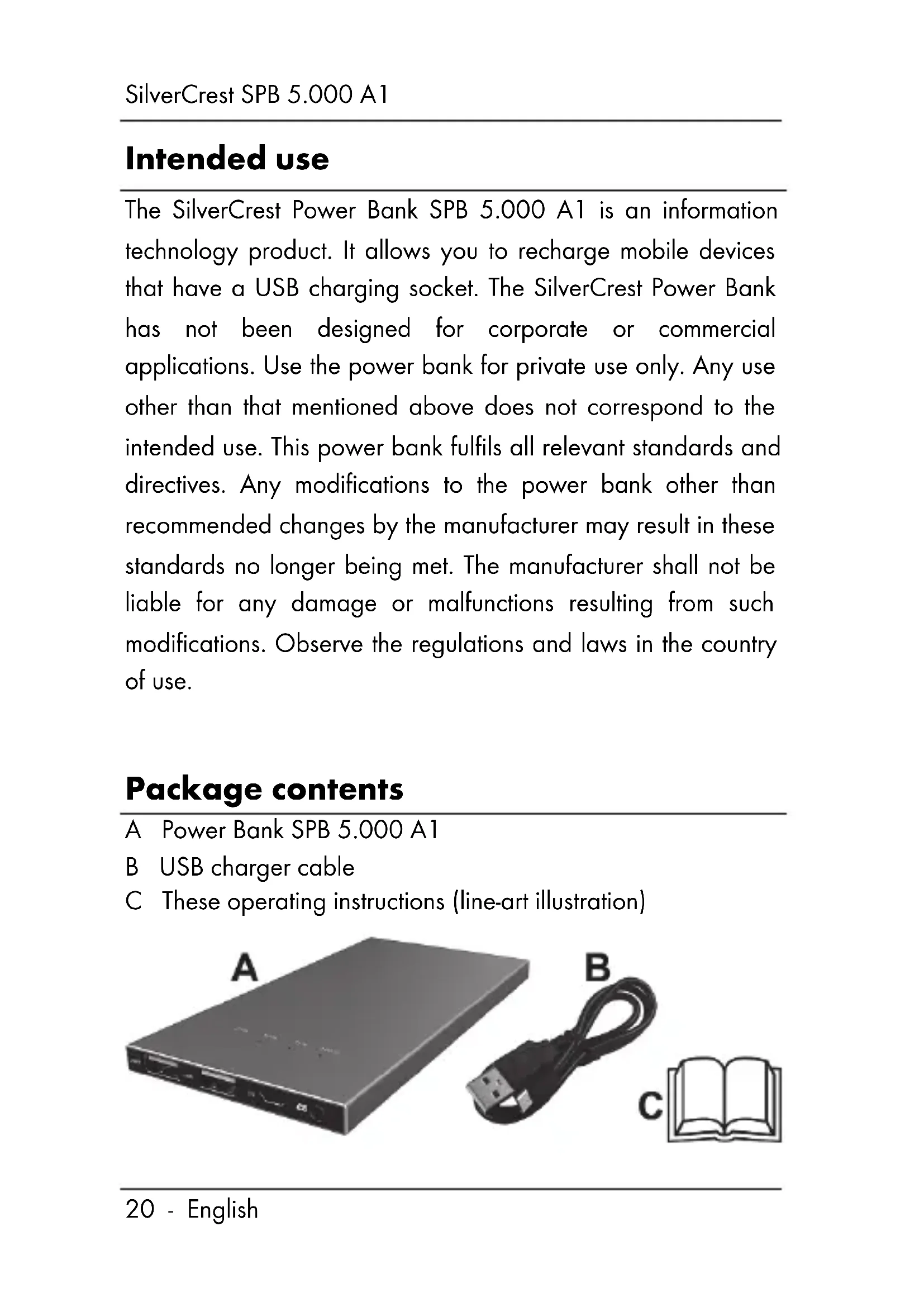

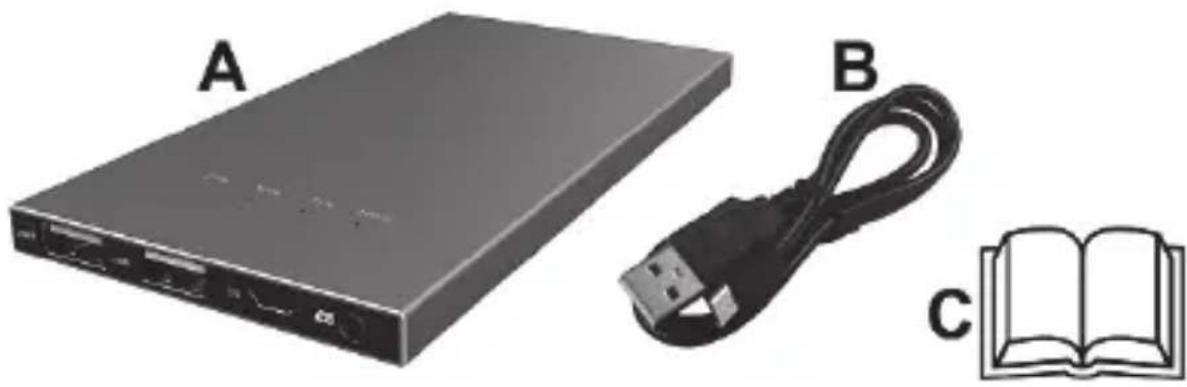

Intended use The SilverCrest Power Bank SPB 5.000 A1 is an information technology product. It allows you to recharge mobile devices that have a USB charging socket. The SilverCrest Power Bank has not been designed for corporate or commercial applications. Use the power bank for private use only. Any use other than that mentioned above does not correspond to the intended use. This power bank fulfils all relevant standards and directives. Any modifications to the power bank other than recommended changes by the manufacturer may result in these standards no longer being met. The manufacturer shall not be liable for any damage or malfunctions resulting from such modifications. Observe the regulations and laws in the country of use. Package contents A Power Bank SPB 5.000 A1 B USB charger cable C These operating instructions (line-art illustration)SilverCrest SPB 5.000 A1 English - 21 Technical specifications Built-in battery 3.7V / 5000mAh Input voltage/current 5V , max. 2.1A Output voltage/current

Output voltage/current

Output voltage/current

Minimum load current consumption approx. 80 mA Dimensions approx. 137 x 70 x 8.5 mm Weight (without charger cable) approx. 147g Operating temperature 5 °C to 45 °C Operating humidity max. 75% rel. humidity (non- condensing) Permissible storage conditions -5 °C to +45 °C, max. 75 % rel. humidity (non-condensing) The technical data and design may be changed without prior notice. Safety instructions Before you use the power bank for the first time, please carefully read the following instructions even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the power bank or pass it on, it is essential that you also hand over this manual, as it is part of the product.SilverCrest SPB 5.000 A1

Explanation of used symbols DANGER! This symbol and the word "Danger" denote a potentially dangerous situation. Ignoring it can lead to severe injury or even death. WARNING! This symbol and the word “Warning” denote important information required for the safe operation of the product and for the safety of its users.

You will find this symbol on the power bank housing.

1. Because of its high input current, never use a

notebook or PC to charge the power bank, only use a suitable power adapter (5V , min. 2.1A, not supplied).

2. The power bank must never be charged and be

used to recharge an external device at the same time. This symbol denotes further information on the topic. Operating environment The device is not designed for use in environments with high humidity (e.g. bathrooms) or excessive levels of dust. Operating temperature and operating humidity: 5°C to +45°C, max. 75 % rel. humidity. Please note that when using the product in a car, especially behind the windscreen, the temperature can significantly increase above +45°C.SilverCrest SPB 5.000 A1 English - 23 DANGER! Always make sure that the device is not exposed to direct heat sources (e.g. radiators); the device is not exposed to strong artificial light; contact with water spray and drops and aggressive fluids is avoided and the device is never operated near water. It must especially never be immersed (do not place any recipients containing liquids such as beverages, vases, etc. onto or next to the device). the device is never placed near magnetic fields (e.g. speakers); no naked flames (e.g. burning candles) are placed on or near the device; no foreign bodies are introduced into the device; the device is not subjected to any major temperature fluctuations as this can cause condensation and short- circuiting. If the device has been exposed to strong temperature fluctuations, wait for it to reach the ambient temperature before switching it on (about 2 hours). the device is not subjected to excessive shocks or vibrations; the device or the optional USB power adapter is not used during thunderstorms and unplug the optional USB power adapter from the mains; when using a USB power adapter the power socket used must be easily accessible at all times and cables should be laid so they do not present a trip hazard; the device is not covered. Heat can accumulate when the device is covered, therefore there is a risk of fire.SilverCrest SPB 5.000 A1

Failure to heed the warnings above may result in damage to the device or injury. DANGER! Risk of explosion! Never throw the device into a fire and do not deform the device or the built-in battery, as this could cause the battery to explode. Please note the usage restrictions and regulations relating to battery-powered devices in dangerous places, such as petrol stations, aircraft, hospitals, etc. DANGER! Children and persons with disabilities Electrical devices are not suitable for children. People with disabilities should only use electrical devices in appropriate circumstances. Never allow children or persons with disabilities to use electrical devices unsupervised. They may not comprehend the potential risks. Batteries and small parts represent potential choking hazards. Keep the packaging away from children and persons with disabilities. There is a risk of suffocation.

WARNING! Cables Unplug all cables by holding the plugs and never pull on the cables themselves. Never place pieces of furniture or otherSilverCrest SPB 5.000 A1 English - 25 heavy objects on the cables and take care that they do not become damaged, especially at the plugs and sockets. Never tie knots in a cable and do not tie them to other cables. All cables must be laid so that nobody can trip over them or be obstructed by them. DANGER! Maintenance/cleaning Repairs are required if this device has been damaged in any way, for example if the device housing is damaged, if liquids or objects have penetrated the device or if the product has been exposed to rain or moisture. Repairs are also necessary if the product is not working properly or has been dropped. If you notice any smoke, unusual noises or strange smells, unplug all cables immediately and disconnect the optional USB power adapter from the power supply. If this occurs, do not continue to use the device and have it checked out by an expert. All repairs must be carried out by qualified service personnel. Never open the housing of the device. Only use a clean, dry cloth for cleaning. Never use aggressive liquids. Do not attempt to open the housing of the device, this will void your warranty. Copyright All the contents of this operating instructions are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing.SilverCrest SPB 5.000 A1

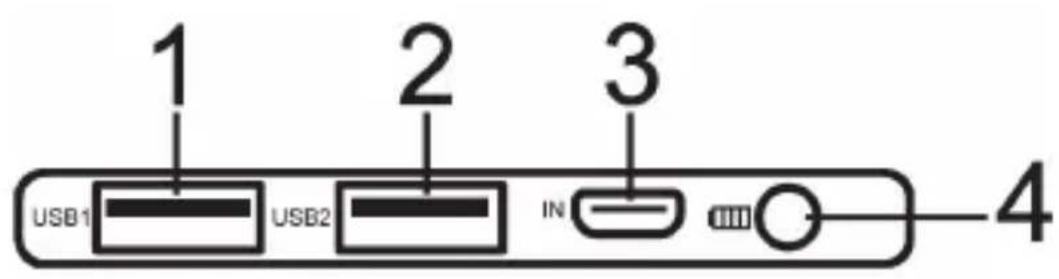

Overview of controls An illustration of the operating controls and their corresponding numbers can be found on the inside page of the fold-out cover of this user manual.

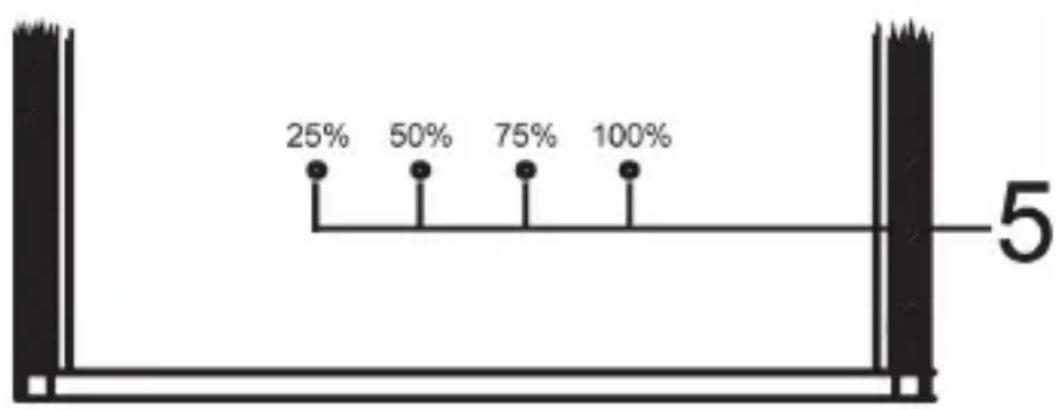

1 USB port 1 (output): Here you connect a device to be charged. 2 USB port 2 (output): Here you connect a device to be charged. 3 Micro USB port: Charging socket (input) 4 State of charge /START pushbutton 5 LEDs (state of charge)SilverCrest SPB 5.000 A1 English - 27 Before you start Remove the power bank and its accessories from the package and remove the plastic films. Getting started The power bank must never be charged and be used to recharge an external device at the same time. Charging the power bank Because of its high input current, never use a notebook or PC to charge the power bank, only use a suitable power adapter (5V , min. 2.1A, not supplied). To charge the built-in battery of your power bank, use the supplied USB charging cable (B) to connect the power bank to a suitable USB power adapter (not supplied). To do so, insert the Micro USB plug of the USB charging cable (B) into the power bank Micro USB port (3) and then connect the USB plug to the USB port of the power adapter. During the charging process, the LEDs (5) inform you about the current state of charge of the power bank.SilverCrest SPB 5.000 A1

LEDs State of charge All LEDs flashing in sequence 0 - 24% One LED on, all other LEDs flashing in sequence

Two LEDs on, all other LEDs flashing in sequence

Three LEDs on, the other LED flashing

Alternatively, you can charge the power bank battery with the USB power adapter of your mobile device if its output meets the following specifications: 5V , min. 2.1A Checking the state of charge You can also check the state of charge of your power bank when it is not being charged or discharged. To do this, press the State of charge / START pushbutton (4) briefly. The LEDs (5) will indicate the state of charge of the power bank for approx. 20 seconds: LEDs State of charge All LEDs on 75-100% Three LEDs on 50 - 74% Two LEDs on 25 - 49% One LED on 1 - 24% All LEDs off 0% Please note that the LED indicator only shows an approximate value of the state of charge of your power bank.SilverCrest SPB 5.000 A1 English - 29 Charging external devices To charge an external device with your power bank, use the supplied USB charging cable (B) to connect the power bank to the external device. To do so, insert the Micro USB plug of the USB charging cable (B) into the Micro USB socket of your external device and then connect the USB plug into any of the two USB ports (1, 2) of your power bank. If the charging process doesn’t start automatically, press the State of charge / START pushbutton (4) briefly to start the charging process. Alternatively you can also use the charging cable of the external device manufacturer (USB connection). If you want to charge another external device at the same time, connect it the same way to the other USB port (1, 2) of the power bank. During the charging process, the LEDs (5) inform you about the state of charge of the power bank. LEDs State of charge All LEDs on 75-100% Three LEDs on 50 - 74% Two LEDs on 25 - 49% One LED on 10 - 24% One LED flashes 1 – 9% All LEDs off 0%SilverCrest SPB 5.000 A1

You can stop the charging process at any time by unplugging the USB charging cable (B) or by keeping pressed (for approx. 2 seconds) the State of charge / START pushbutton (4). Storage when not in use When not using the power bank for a long time, it is recommended to recharge it from time to time. This ensures a longer battery endurance. Store the device in a dry, cool place. Troubleshooting The power bank is not charging. Faulty connection, double-check the connection. The USB power adapter you are using is defective. Use a different power adapter that you are certain is working. Check whether the used power socket is alive. A connected device is not charging. The battery of your power bank is empty; recharge it. No connection to the external device, double-check the connection. Press the State of charge / START pushbutton (4) briefly to start the charging process. Instead of the supplied USB charging cable (B), try the original charging cable of the device you want to charge.SilverCrest SPB 5.000 A1 English - 31 The current consumption of the connected device is too low (< approx. 80 mA). It is not possible to charge it with the power bank. Please check the technical specifications of the connected device. A short-circuit may have happened at the power bank output. There can be different symptoms for this. All 4 LEDs (5) flash at the same time. Proceed as follows to reset the power bank: Unplug the connected USB charging cable from the USB port (1, 2) of the power bank. Wait approx. 10 seconds until the 4 LEDs (5) stop flashing and then press the State of charge / START pushbutton (4) once. The power bank does not work at all. To reset the power bank, briefly connect it to suitable power adapter (5V , min. 2.1A, not supplied). After resetting the power bank, reconnect the device you want to charge. If the error persists, the USB charging cable or the external device may be defective. Try charging a different external device or use another USB charging cable to check if the power bank works properly.SilverCrest SPB 5.000 A1

Environmental regulations and disposal information Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Proper disposal of old devices prevents damage to the environment or your health. For further information about proper disposal, contact your local council, recycling centre or the shop where you bought the device. The built-in rechargeable battery cannot be removed for disposal. Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal. Conformity notes This device complies with the basic and other relevant requirements of EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. In order to receive the complete EU declaration of conformity, please send an e-mail to the following e-mail address: ce@targa.deSilverCrest SPB 5.000 A1 English - 33 Warranty and Service Information Warranty of TARGA GmbH This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty. Your statutory rights towards the seller are not affected or restricted by this warranty.SilverCrest SPB 5.000 A1
