USER MANUAL SPS 5000 A1 SILVERCREST
BATERÍA EXTERNA CON ESPEJO DE MAQUILLAJE SPS 5000 A1
ES
BATERÍA EXTERNA CON ESPEJO DE MAQUILLAJE
Operating instructions
PT
POWERBANK COM ESPELHO DE MAQUILHAGEM
ES
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB / MT Operating instructions Page 37


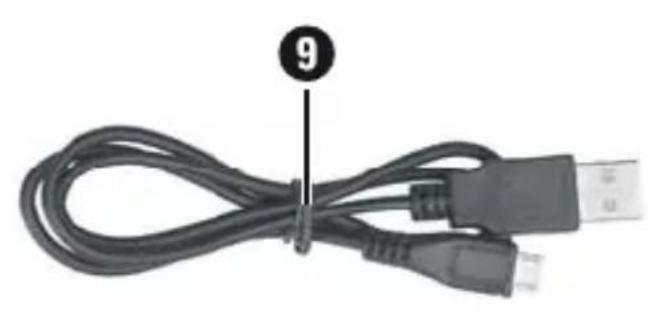

Coiled black cable with USB port and connector, labeled with number 9 (no text or symbols on the cable itself)
Índice
Introducción 2
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Índice
Introdução .... 20
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Contents
Introduction 38
Information about these operating instructions .... 3 8
Copyright 38
Notes on trademarks 38
Proper use 38
Warning symbols used 39
Safety 40
Basic safety instructions 40
Description of components 42
Operation 43
Check package contents 43
Disposal of the packaging 43
Charging the power bank 44
Checking the charge level 45
Handling and use 46
Charging mobile devices with the power bank 46
Using the power bank as a make-up mirror ..... 4 6
Troubleshooting 47
Cleaning.48
Storage when not in use 48
Disposal 49
Disposal of the device 49
Appendix 49
Technical details 49
Notes on the EU Declaration of Conformity ..... 5 0
Information about these operating instructions
Congratulations on the purchase of your new device. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner.
Copyright
This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.
Notes on trademarks
USB ^® is a registered trademark of USB Implementers Forum, Inc.
All other names and products may be trademarks or registered trademarks of their respective owners.
Proper use
This device is an information technology device and is intended exclusively for charging mobile devices that charge via USB port by default. The device can also be used as a make-up mirror. The device is not intended for any other purpose, nor for use beyond the scope described.
The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.
Warning symbols used
The following types of warning are used in these operating instructions:
DANGER
A warning notice at this hazard level indicates an imminently hazardous situation.
Failure to avoid this hazardous situation could result in severe injuries or even death.
▶ Follow the instructions in this warning notice to avoid the risk of serious injuries or death.
CAUTION
A warning notice at this hazard level indicates a risk of material damage.
Failure to avoid this situation could result in material damage.
▶ Follow the instructions in this warning notice to prevent material damage.
NOTE
▶ A note provides additional information which will assist you in using the device.
Safety
This section contains important safety instructions for using the device. This device complies with statutory safety regulations. Improper use may result in personal injury and property damage.
Basic safety instructions
This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not play with the device. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children.
There is a risk of suffocation!
- Check the device for visible external damage before use. Do not operate a device that has been damaged or dropped.
DANGER! The device mirror can break if the device is dropped. There is a risk of cuts from the sharp glass shards!
■ Always place the device on a stable and level surface. It can be damaged if dropped.
■ Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged. - Do not place the product near heat sources such as radiators or other heat-generating devices.
- Keep the device away from open flames (e.g. candles) at all times.
■ The device is not designed for use in rooms with high temperatures or humidity (e.g. bathrooms) or where there is excessive dust.
■ Never expose the device to extreme heat. This particularly applies to storage in a car. Extreme temperatures can occur in car interiors and glove compartments during long periods of immobilisation. Remove electrical and electronic devices from the vehicle.
■ Do not use the device immediately after moving it from a cold room to a warm room. Always allow the device to acclimatise before turning it on.
■ Never open the device housing. None of the components in the device can be serviced or replaced by the user.
■ Do not make any unauthorised modifications or alterations to the device.
All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.
■ Do not expose the device to water spray or dripping water, and do not place liquid-filled objects such as vases or open drink containers on or near the device.
■ Turn the device off immediately and disconnect any connected charging cables from the device if you smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.
If you are using a USB power supply, the socket you use must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation. You should also observe the operating instructions for the USB power supply.
DANGER! Improper use of the batteries can cause fires, explosions, leakages or other hazards! Do not throw the device into a fire, since the integrated battery may explode.
■ Comply with all restrictions or prohibitions on use for battery-powered devices in locations with specific hazard risks, such as petrol stations, aeroplanes, hospitals, etc.
Description of components
(See fold-out page for illustrations)
① Mirror with triple magnification
② Mirror with no magnification
3 Lid
4 microUSB charging port (input)
5 USB port (output)
6 ON/OFF button
⑦ Charge level LEDs
8 LED light
9 Charging cable (USB to microUSB)
10 Operating instructions (symbol)
Operation
Check package contents
(See fold-out page for illustrations)
The product includes the following components:
● Power Bank SPS 5000 A1
- Charging cable
• These operating instructions
◆ Remove all parts of the device from the packaging and remove all packaging materials.
NOTE
▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the service hotline (see section Service).
Disposal of the packaging
aging protects the device from damage during
transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
Charging the power bank
Before using the power bank, the integrated battery must be fully charged.
CAUTION
The power bank must never be charged and used for charging an external device at the same time.
▶ Due to the high battery capacity and bearing in mind the charging time, we recommend charging the power bank using the mains adaptor.
▶ Use only a mains adapter with an output voltage of 5 V and an output current of at least 1 A or a USB 3.0 port on your computer to charge the power bank.
You can recognise the USB 3.0 port due to the blue marking.
When charging via a USB port, ensure that at least one further USB port remains free. This also applies when using USB 3.0 ports.
▶ Not all USB 2.0 ports deliver sufficient power to charge the power bank. If this is the case, use an external power supply or a USB 3.0 port.
- Connect the USB plug on the charging cable to a switched-on PC or a USB power supply (not supplied).
Connect the microUSB plug on the charging cable to the microUSB charging port in the Power Bank. A rough estimate of the charge level is shown during charging by means of the charge level LEDs
| LED display Charge level | |
| One LED is flashing < 20% | |
| One LED is on, the second LED is flashing 20-49% | |
| Two LEDs are on, the third LED is flashing 50-74% | |
| Three LEDs are on, the fourth LED is flashing | 75-97% |
| All LEDs are on 98-100% |
Checking the charge level
You can also check the charge level of the power bank when it is not charged or while it is being used for charging.
◆ Press the ON/OFF butto® briefly. The charge level LEDs show the current charge level of the power bank for about 20 seconds.
| LED display Charge level | |
| All LEDs are on 98–100% | |
| Three LEDs are on 75–97% | |
| Two LEDs are on 50–74% | |
| One LED is on 20–49% | |
| One LED is flashing < 20% | |
| All LEDs off 0% |
Handling and use
Charging mobile devices with the power bank
- Insert the microUSB plug on the charging cable into the microUSB charging port on the mobile device, and insert the USB plug into the USB port in the power bank. The charging process starts automatically.
If charging does not start automatically, press the ON/OFF button 6 briefly to start the charging process.
NOTE
▶ Alternatively, you can also use the original charging cable (USB cable) provided by the respective device manufacturer.
During the charging process, the current charge level of the power bank is shown via the charge level LEDs (see table in the section "Checking the charge level").
◆ To stop charging, disconnect the charging cable ^9 from the mobile device and the power bank. The charging status LEDs ^7 go out after about 20 seconds.
Using the power bank as a make-up mirror
The power bank has a normal mirror ② and a mirror with triple magnification ① There is also an optional LED light.
♦ Flip up the lid ^3 .
◆ Press the ON/OFF button 6. The charge level LEDs 7ght up.
◆ While the charge level LED ^7 are lit, press the ON/OFF button ^6 for about 3 seconds to switch on or off the LED light ^8
◆ Close the lid ^3 .
NOTE
If you close the lid of the power bank while the light is switched on, the light will turn off automatically. It switches back on automatically when you open the lid again.
Troubleshooting
The power bank does not charge
◆ Connection may be faulty. Check the connection.
- Some computers deactivate the power supply to the USB ports when they are turned off. Check that the computer is turned on.
A connected device will not charge
◆ The integrated battery is empty. Charge the battery.
- No connection to the device. Check the connection.
◆ Press the ON/OFF button 6 to start the charging process.
◆ The charging current of the connected device is too low (< 80 mA) or too high (> 2.1 A).
◆ The internal overcurrent protection may have been triggered. Disconnect the attached device and connect the microUSB charging port 4 to a power source for a short while (see section Charging the power bank).
Afterwards, the power bank can be used again.
NOTE
▶ If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see section Service).
Cleaning
CAUTION
Possible damage to the device.
There are no serviceable parts or parts requiring cleaning inside the power bank. Moisture can cause damage to the device.
▶ To avoid irreparable damage to the device, ensure that no moisture penetrates the device during cleaning.
▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device.
- Clean the housing of the device with a lightly moistened cloth and a mild detergent only.
- You can clean the mirror with a glass cleaning fluid.
Storage when not in use
◆ Store the device in a location which is clean, dry, dust-free and not in direct sunlight.
- For long-term storage, the integrated battery should be fully charged to extend its operating life.
Disposal
Disposal of the device
ent symbol of a crossed-out dustbin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in normal household waste at the end of its life-cycle, but must be brought to a specially designated collection point, recycling depot or disposal company.
This disposal is free of charge for the user. Protect the environment and dispose of this device properly.
You can obtain further information from your local disposal company or the city or local authority.
Appendix
Technical details
| Integrated battery 3.7 V/5000 mAh (lithium-ion) | |
| Input 5 V | ——, 1000 mA |
| Output 5 V | ——, 2.1 A |
| Minimum discharge current 80 mA | |
| Operating temperature 5°C to 40°C | |
| Storage temperature 0°C to 45°C | |
| Humidity (no condensation) 10%-70% | |
| Dimensions (∅ x H) approx. 9.1 x 2.1 cm | |
| Weight approx. 180 g | |
Notes on the EU Declaration of Conformity
This device complies with the basic requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive
2011/65/EU.
The complete EU Declaration of Conformity is available from the importer.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
Service Malta
Tel.: 80062230
E-Mail: kompernass@lidl.com.mt
IAN 281557
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
Einführung 54
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND / GERMANY
www.kompernass.com
