USER MANUAL COCSS10245 Sogo

• Always read the instruction book carefully before using.

• This manual can be downloaded from our web page www.sogo.es

• Keep these instructions for future reference. Symbols and Description:

2- Warning against dangerous situations in

terms of life and property

3- Warning against hot surfaces

SAFETY INSTRUCTIONS FOR THE USER

• This product is intended for indoor, non- industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before

• Do not use or store the appliance outdoors.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

• Close supervision is necessary when any appliance is being used by or near children.

• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• Do not place or operate this appliance near water sources.

• Never immerse the appliance or the plug- in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open ames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and ames. Do not wind the cord around the appliance and do not bend it.

• Do not use the appliance if it has fallen on the oor, if there are visible signs of damage or if it has a leak.

• Do not use the appliance if the cable or plug is damaged. In case of the cord be18 español english français portuguese deutsch italiano damaged, it must be replaced only by the manufacturer, its service agent or similarly qualied persons in order to avoid Hazard.

• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualied technicians.

• Never use accessories that are not recommended by the manufacturer.

• The use of accessories not recommended or sold by the appliance manufacturer may result in re, electric shock or injury to persons.

• Always place the appliance on to the at and even surface.

• Do not use the appliance for any other purpose than described in this manual.

• Do not let the appliance operate unattended.

• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

• Make sure your hands are dry before plug or unplugging.

• Do not use the appliance with wet hands, on moist oor or when the ambience is humid.

• The device is not completely disconnected from the power source, even after it has been turned o󰀨. To disconnect it completely, disconnect it from the mains plug.19 español english français portuguese deutsch italiano

• While using the appliance, make sure that the power cord must not be caught or crushed.

• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

• the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

• Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children shall not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• This appliance is intended to be used in household and similar applications such as - Sta󰀨 kitchen areas in shops, o󰀩ces and other working environments;20 español english français portuguese deutsch italiano - Farm houses and by clients in hotels, motels and other residential type environments; - Bed and breakfast type environments; - Catering and similar non-retail applications.

• If the surface is cracked, switch o󰀨 the appliance to avoid the possibility of electric shock.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.

• Please don’t put paper, towels and other ammable items on the heating surface, as it can cause re.

• Please do not use the appliance, if the cooking surface is broken, take it to the authorized service centre for repair.

• Every time you nish, the fan keeps working for a while to dissipate the heat. When the fan stops working, you can unplug the power cord.

• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.

• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.21 español english français portuguese deutsch italiano Things to remember while using the electrical appliances

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used: - The marked electrical rating of the cord must be at least as great as that of the product. - Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally. - Avoid spillage on the connector

CLEANING AND MAINTENANCE

• Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.22 español english français portuguese deutsch italiano Instructions while using Induction hob Do not use this appliance with wall outlet of electrical rating less than 10A, it should always be more (pls use at least 15A if the cooker has two burners and multiple burners). Also, to avoid a circuit overload while using this product, do not operate another high-wattage product on the same electrical circuit. While using make sure to keep it on smooth and horizon- tal surface and on the distance of 10 cm from wall sides. Do not use the induction cooker nearby gas cooker and kerosine cooker. Do no immerse the induction cooker in water directly to clean, wipe it with the soft and damp cloth. Please do not insert the wire items to the wind and air outlet, do not cover it with anything, it can cause electric shock. In order to getting burn or scald from the high tempera- ture, do not place any iron sheet directly on the induction hob. Do not place the sealed cans with food on the induction surface to warm. To avoid explosion, open the can, re- move the food and warm it with the help of any suitable pot. Do not use the induction hob on the top of iron surface, or any surface with metal mat underneath.23 español english français portuguese deutsch italiano Do not place the empty pots or pans on the induction hob surface, it can a󰀨ect the product working performance. Always keep clean the cooking surface and do not let the grease getting accumulate. Do not touch the cooking surface with the hands while in use as it gets warm and can cause scald. Let it cool for a while before cleaning or moving. If the power cord is damaged, do not change it yourself and take it to the authorized service centre or qualied technician to change it. Do not let the children to use the induction hob. In case having pacemaker, contact with your doctor be- fore using appliance. Características del producto: este producto se calienta por la bobina interior y a través del panel para calentar la sartén. ● Environmental friendly: non-toxic, non- pollution, no electromagnetic radiation. ● Heat fast: Based on the principle of electromagnetic induction, the bottom of the pot gets warm directly, which is due to a high thermal efficiency and fast speed. ● This product uses the high hardness and high temperature resistant crystal plate, which is not only easy to clean, but durable also. ● Microcomputer control, the fire temperature control at will. ● Safe use, it has many protection functions, like over-voltage, under voltage, over temperature and fan delay working. Technical parameters Model SS-10245 Rated voltage 220-240V~ Rated frequency 50Hz Rated power 2000W24 español english français portuguese deutsch italiano Unit Parts Description: Applicable cookware: Iron cookware (stainless steel, stainless iron, cast iron), the bottom of the cookware is at, the diameter of the bottom is greater than 12cm and less than 20cm Note: you can use the pots made with di󰀨erent kind of metal (except stainless steel, stainless iron, cast iron) or size, with the help of cast or stainless-steel plate, which need to use as the base. This kind of plate you can buy in any nearby electronic or home cookware store. How to use the Cast iron Plate: Plug in the appliance and place the cast or stainless-steel plate on the top of induction hob surface. Switch on the induction hob and the cast iron plate will gets warm, on the top of this plate you can place any kind of pot or utensils made with any kind of material and start cooking. Manual cooking functions: This Induction Hob has 3 Manual cooking function, which are Fry, Hot Pot and Barbecue respectively. As the name suggests, the functioning values (Power, Time and Temperature) of these cooking functions can be changed as per need and requirement. Note: As the manual name itself indicates, the time, temperature and power can be changed accordingly as per need. This can be changed only in the manual cooking function (Fry, Hot pot and Barbecue). Delayed cooking function is disabled in these functions. Automatic Cooking Function: This Inductions hob has 4 Automatic cooking functions, which are Steam, Soup, Water and Milk. In these cooking functions the functioning values (Time, Temperature Cookware not applicable: Pots made of aluminum, copper, glass, ceramic as materials, pots with a bottom diameter of 10cm or greater than 20cm A cooling fan vent Black crystal panel A cooling fan inlet Stainless Steel kettle Aluminum kettle Iron pot Heat- resistant glass pot Magnetic stainless steel pot Ceramic pot Color iron pot Bottom not smooth Magnetic iron kettle Bottom with feet Iron pan Small diameter of bottom Power line Control panel25 español english français portuguese deutsch italiano Icons Key Key function description: ON/OFF With the help of this button, you can switch on and switch o󰀨 the unit any time, also the same button can be used to bring the unit in standby mode. By pressing this button digital display shows the “ON” and at this time need to select the preset cooking function to run the appliance. In case if within 1 minute we do not select any cooking function, the unit automatically enters into the standby mode. Note: It is necessary to select any cooking function within rst minute after switching on the appliance, to avoid unit enters into standby mode. Function selection key As it has been suggested previously that there are 3 manual functions, which are (Fry, Hot pot; and Barbecue) and 4 automatic functions which are (Steam, Soup, Water and Milk). You can use this function key to select any one of these preset cooking functions mentioned above. To select any preset cooking function, press the function button and Hotpot function indicator light starts blinking as default cooking function and digital display shows the default time and temperature, which can be changed with the help of Timer/Preset and UP/Down buttons. To change with any other cooking function keep pressing function button until desired functions indicator light starts blinking. Timer/Preset Shut down timer: With the help of this button, you can change the cooking time of Fry, Hot pot and BBQ cooking function. To change the cooking time of any function mentioned above, select the function, induction hob starts working and digital display shows the Power/Temperature, to change to the time press the timer/preset button and digital display starts showing the 0:00. With the help of Up and down buttons can change the time in the range of 1 minute to 4Hrs. Start timer: This function consists starting of the cooking with delayed time. This function only works with automatic cooking functions like Steam, Soup, Water and Milk. To preset the time for delayed cooking function, choose any function from above mentioned functions, and press the timer button. Digital display shows the 0:00 and with the help of up and down buttons can x the delayed start cooking time as per requirement in the range of 1 mi- nute to 24hrs. Once delayed cooking time has been selected, within few seconds time gets locked and digital display starts counting reverse. Unit will start cooking automatically when time reaches to 0:00. and power) cannot be changed. Note: As the automatic name itself suggests time, Temperature and Power functions cannot be changed in these cooking functions (Steam, Soup, Water and Milk). The only function can be used is delayed start cooking function, which can be set with the help of Timer/Preset button. Working Panel Operation Instructions: Function description Preparation: Place a suitable pot on the heating unit of the machine, and plug the power cord of the machine into a suitable power socket. The "Bi" sound of the machine indicates that it is powered on. At this time, press the ON/OFF key to start. The display shows "on" after booting, and you can press the corresponding function key to enter the work.26 español english français portuguese deutsch italiano Shutdown Timer: When the machine is working, press the timer/preset key to enter the time setting state of the timer shutdown. The display ashes the timer shutdown time "0:00". At this time, you can press the Up or Down button to set the time, 5 seconds later the time is set. The machine will automatically conrm the time, the time enters the countdown state, and automatically shuts down when the time is up. This applies for functions: Fry, Hotpot and Barbecue. Start Timer: The real meaning of this function is to start the cooking with the delayed time or as per our requi- rement. In the shutdown state or working state, press the timer/preset key to enter the power-on setting state, the display ashes to show the default reservation time is "0:00" (only works with auto- matic functions). At this time, you can press the Up or Down button to set the time, 5 seconds later the time is set. The machine will turn on automatically when the time is up. This applies for functions: Steam, Soup, Water and Milk. Up Use for power, temperature and time adjustment: With the help of this button power and time can be changed accordingly. To change the Power: For the Manual cooking functions power can be changed from 200 to 2000W with 8 di󰀨erent power ranges. Note: can be changed only in Hot pot cooking function. To change the temperature: The temperature can be changed from 80 to 300ºC, with 8 di󰀨erent temperature ranges. Note: can be changed in Fry and Barbecue functions. To change the Power/Temperature, select any cooking function and digi- tal display shows the default power/temperature depending on functions, press the up button and keep pressing until the digital display shows the desired power. Note: Power can’t be change in automatic cooking functions. To change the time: time can be changed with the help of this button as mentioned in Timer/Preset function. Down Use for power, temperature and time adjustment: With the help of this button power and time can be changed accordingly. To change the Power: For the Manual cooking functions power can be changed from 200 to 2000W with 8 di󰀨erent power ranges. Note: can be changed only in Hot pot cooking function. To change the temperature: The temperature can be changed from 80 to 300ºC, with 8 di󰀨erent temperature ranges. Note: can be changed in fry and barbecue functions. To change the power/temperature, select any cooking function and digital display shows the default power/temperature depending on functions, press the down button and keep pressing until the digital display shows the desired power. Note: Power can’t be change in automatic cooking functions. To change the time: time can be changed with the help of this button as mentioned in Timer/Preset function. Lock This appliance has a special function of “Lock”, which helps you to lock any cooking function to avoid that your children can change the cooking settings. How to use lock function: In the working state, press for 3s to lock or unlock the function. Once locked, the display will show LOC. In the child lock state, all other buttons are invalid except “Lock” and “ON/ OFF”.27 español english français portuguese deutsch italiano

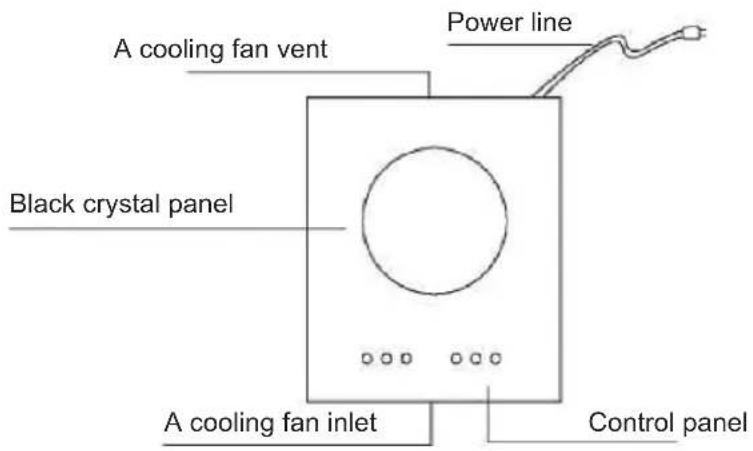

2. Function Description

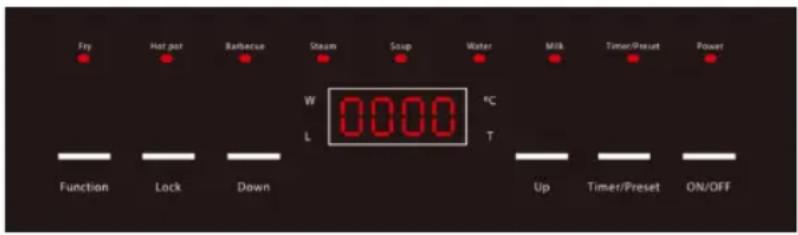

Function Working process Fry (manual function) Press the function button in the standby state (digital display show “ON”) or work to enter the fry function, the display shows the temperature as 240ºC. This function has 8 levels of adjustable temperature, respectively 80-100-120- 160-200-240-260-300ºC, you can press Up or Down to select the appropriate temperature range. You can press the timer key to set the shutdown time. The setting range is "0:01 - 4:00". Hot pot (manual function) Press the Press the function key in standby state (digital display show “ON”) or work to enter the hot pot function, the display shows the power level 1800W. This function has 8 levels of adjustable power, respectively 200-400- 800-1200-1400-1600-1800-2000W, you can press Up or Down to select the appropriate power level. You can press the timer key to set the shutdown time. The setting range is "0:01 - 4:00". Barbecue (manual function) Press the function button in the standby state (digital display show “ON”) or work to enter the Barbecue function, the display shows the temperature as 200ºC. This function has 8 levels of adjustable temperature, respectively 80- 100-120-160-200-240-260-300ºC, you can press Up or Down to select the ap- propriate temperature range. You can press the timer key to set the shutdown time. The setting range is "0:01 - 4:00". Steam (automatic function) Press the function key in the standby state (digital display show “ON”) or work to enter the steam function, the display shows the power level 1600W. This function is an automatic function, the machine will automatically complete the cooking process, rst it will work on 1600W for 20 minutes, then automatically switch to medium 400W for 40 minutes. After the program is completed, it will automatically shut down. The default working time is 60 minutes. The power level & shutdown timer cannot be adjusted. Press the timer/preset button to set the Switch-on time, the setting range is "0:01-24:00". Soup (automatic function) Press the soup key in the standby state (digital display show “ON”) or work to enter the soup function, the display shows the power level 1600W. This function is an automatic function, the machine will automatically complete the cooking process, it starts on 1600W for 20 minutes, then automatically switch to 800W for 100 minutes. After the program is completed, it will automatically shut down. The default working time is 120 minutes (it cannot be changed). The power level cannot be adjusted during work. Press the timer/preset button to set the Switch-on time, the setting range is "0:01-24:00". Water (automa- tic function) The default power is 2000W for water boiling, and the default timer is 20 minutes for automatic shutdown which cannot be changed. Press the timer/preset button to set the Switch-on time, the setting range is "0:01-24:00". Milk (automatic function) The default power is 800W for milk boiling, and the default timer is 20 minutes for automatic shutdown which cannot be changed. Press the timer/preset button to set the Switch-on time, the setting range is "0:01-24:00". High temperatu- re tips After working, when the temperature of the surface is higher than 60ºC, the high temperature indicator light will be on to remind the user that the surface is high temperature, please do not touch it. When the temperature of the sur- face is lower than 60ºC, the high temperature indicator light goes out. Levels 1 2 3 4 5 6 7 8 Power(W) 200 400 800 1200 1400 1600 1800 2000 Temp (ºC) 80 100 120 160 200 240 260 30028 español english français portuguese deutsch italiano Troubleshooting Código de fallo Fault Reason analysis Maintenance method No power on 1. Power cord is loose 2.Check socket and lead wire if they are in good condition

3. Whether Power is on

2. Send to the maintenance station

Cannot boot up after power 1.Water on the plate Dry before using A sudden stop when using

1. The ambient temperature is very high.

2. Suction and outlet is blocked.

4. Continuous use of more than 2 hours

1. Move to the lower temperature to use.

4. Let it cool for some time before reusing

Boot up after power but no heat

1. Damage of circuit board

2. Temperature of plate too high

2. Send to the maintenance station.

Code Meaning E0 No pot or cookware does not meet the requirements E1 Low-voltage protection E2 Over-voltage protection E3 Surface sensor open (no utensil on surface) and short circuit protection E5 Overheating protection E6 Power tube overheating protection E7 Surface sensor failure protection Functions Default Working Time Shutdown Timer Range Default power / temp. Switch on Timer Range Fry 120 minutes 0:01 – 4:00 hrs. 240 ºC N/A Hot pot 120 minutes 0:01 – 4:00 hrs. 1800 W N/A Barbecue 120 minutes 0:01 – 4:00 hrs. 200 ºC N/A Steam 60 minutes N/A 1600 W – 400 W 0:01 – 24:00 Soup 120 minutes N/A 1600 W – 800 W 0:01 – 24:00 Water 20 minutes N/A 2000 W 0:01 – 24:00 Milk 20 minutes N/A 800 W 0:01 – 24:00 Cleaning and Maintenance

1. Turn o󰀨 the appliance by pressing “On/O󰀨” and wait until the light turns o󰀨. Once o󰀨, unplug the

power cord properly.

2. Wait for some time and let the appliance cool down

3. You can use mild detergent or dishwashing liquid with a soft cloth to remove dirt.

4. Do not clean it with running water or immerse it in water as water will get inside and damage the appliance.

5. Always make sure that the top plate and the pan/pot is clean before cooking as the dirt from the

pan/pot will stick to the plate and plate will get discoloured.

6. You may clean the air vent by vacuum cleaner to suck up the dirt or you can use cotton if the dirt is with oil.

7. Toothbrush with little soap can also be used to clean the surface as long as you use it gently on the appliance.

8. Do not use abrasives or strong detergents as it may get chemical reaction.

9. After dirt has been removed, use a dry, soft cloth to wipe dry the appliance.29
