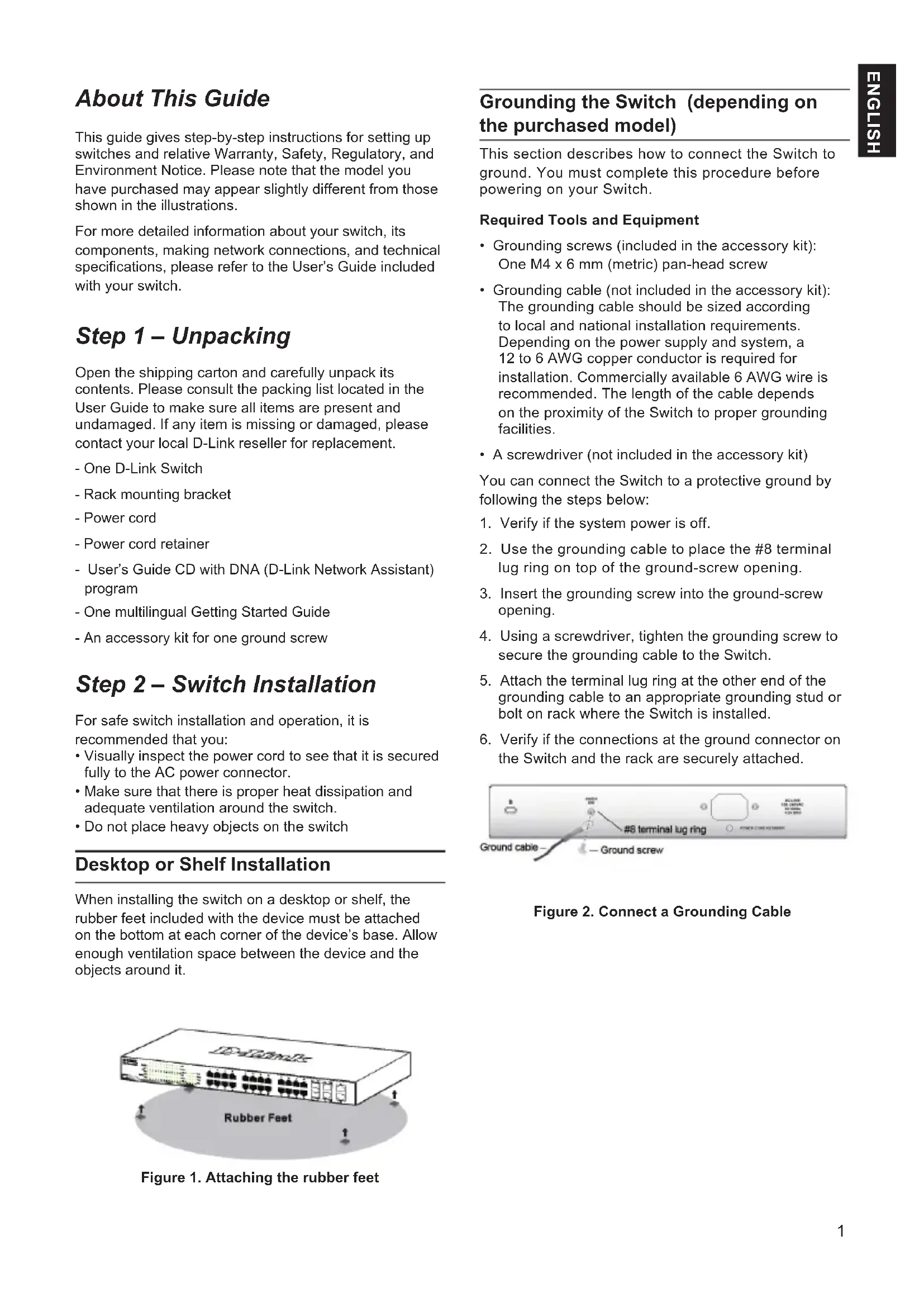

Getting Started Guide1 ENGLISH About This Guide This guide gives step-by-step instructions for setting up switches and relative Warranty, Safety, Regulatory, and Environment Notice. Please note that the model you have purchased may appear slightly different from those shown in the illustrations. For more detailed information about your switch, its components, making network connections, and technical specications, please refer to the User’s Guide included with your switch. Step 1 – Unpacking Open the shipping carton and carefully unpack its contents. Please consult the packing list located in the User Guide to make sure all items are present and undamaged. If any item is missing or damaged, please contact your local D-Link reseller for replacement. - One D-Link Switch - Rack mounting bracket- Power cord- Power cord retainer - User’s Guide CD with DNA (D-Link Network Assistant) program- One multilingual Getting Started Guide- An accessory kit for one ground screw Step 2 – Switch Installation For safe switch installation and operation, it is recommended that you:

• Visually inspect the power cord to see that it is secured fully to the AC power connector.

• Make sure that there is proper heat dissipation and adequate ventilation around the switch.

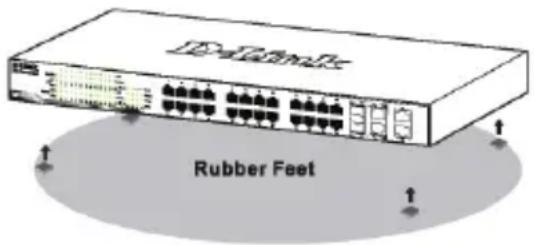

• Do not place heavy objects on the switch Desktop or Shelf Installation When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached on the bottom at each corner of the device’s base. Allow enough ventilation space between the device and the objects around it. Figure 1. Attaching the rubber feet Grounding the Switch (depending on the purchased model) This section describes how to connect the Switch to ground. You must complete this procedure before powering on your Switch. Required Tools and Equipment

• Grounding screws (included in the accessory kit): One M4 x 6 mm (metric) pan-head screw

• Grounding cable (not included in the accessory kit): The grounding cable should be sized according to local and national installation requirements. Depending on the power supply and system, a 12 to 6 AWG copper conductor is required for installation. Commercially available 6 AWG wire is recommended. The length of the cable depends on the proximity of the Switch to proper grounding facilities.

• A screwdriver (not included in the accessory kit) You can connect the Switch to a protective ground by following the steps below:

1. Verify if the system power is off.

2. Use the grounding cable to place the #8 terminal

lug ring on top of the ground-screw opening.

3. Insert the grounding screw into the ground-screw

4. Using a screwdriver, tighten the grounding screw to

secure the grounding cable to the Switch.

5. Attach the terminal lug ring at the other end of the

grounding cable to an appropriate grounding stud or bolt on rack where the Switch is installed.

6. Verify if the connections at the ground connector on

the Switch and the rack are securely attached. Figure 2. Connect a Grounding Cable2 ENGLISH

5. Fasten the tie of the Retainer until the power cord is secured.Figure 3-5. Secure the power cord

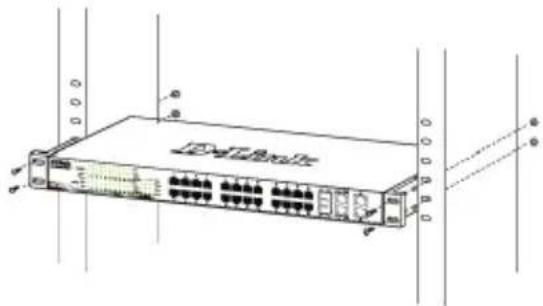

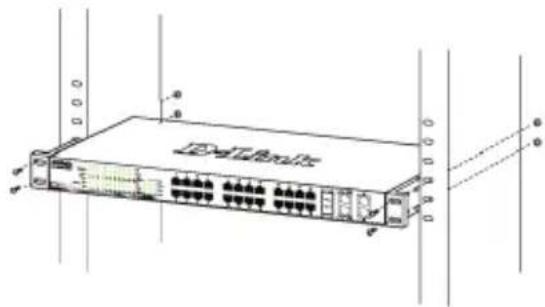

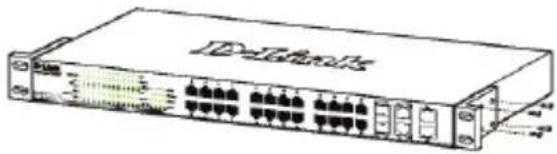

Rack Installation The switch can be mounted in an EIA standard size 19-inch rack, which can be placed in a wiring closet with other equipment. To install, attach the mounting brackets to the switch’s side panels (one on each side) and secure them with the screws provided.Figure 4. Attaching the mounting bracketsThen, use the screws provided with the equipment rack to mount the switch in the rack.Figure 5. Installing the switch in a standard-sized equipment rack Step 3 – Plugging in the AC Power Cord You can now connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded and surge protected).Figure 6. Plugging the switch into an outlet Installing Power Cord Retainer To prevent accidental removal of the AC power cord, it is recommended to install the power cord retainer together with the power cord.1. With the rough side facing down, insert the Tie Wrap into the hole below the power socket.Figure 3-1. Insert Tie Wrap to the Switch2. Plug the AC power cord into the power socket of the Switch.Figure 3-2. Connect the power cord to the Switch3. Slide the Retainer through the Tie Wrap until the end of the cord.Figure 3-3. Slide the Retainer through the Tie Wrap4. Circle the tie of the Retainer around the power cord and into the locker of the Retainer.Figure 3-4. Circle around the power cord3 ENGLISH Step 2 In order to login and congure the switch via an Ethernet connection, the PC must have an IP address in the same range as the switch. For example, if the switch has an IP address of 10.90.90.90, the PC should have an IP address of 10.x.y.z (where x/y is a number between 0 ~ 254 and z is a number between 1 ~254), and a subnet mask of 255.0.0.0. Open your web browser and enter http://10.90.90.90 (the factory-default IP address) in the address box. Then press <Enter>. Figure 8. Enter the IP address 10.90.90.90 in the web browser The web conguration can also be accessed through the DNA. You can click the IP hyper link in the device list in the DNA to open the web GUI of devices. NOTE: The switch’s factory default IP address is 10.90.90.90 with a subnet mask of 255.0.0.0 and a default gateway of 0.0.0.0 Step 3 When the following logon box appears, enter “admin” for the password. Press OK to enter the main conguration window. Figure 9. Enter Network Password window Step 4 Before entering the Web-based Management, the Smart Wizard will guide you to quickly congure some functions, such as Password Settings, SNMP Settings, and System Settings. If you don’t plan to change anything, click Exit to exit the Wizard and enter the Web- based Management. For a detailed look at the Smart Wizard’s functions, please refer to the Smart Wizard introduction in the user manual. Power Failure As a precaution, the switch should be unplugged in case of power failure. When power is resumed, plug the switch back in. Management Options The D-Link Switch can be managed in-band by using Telnet. The user may also choose the Web-based Management, accessible through a web browser or through any PC using the DNA (D-Link Network Assistant). If you want to manage only one D-Link Switch, the Web- Based Management is the better option. Each switch must be assigned its own IP Address, which is used for communication with Web-Based Management or an SNMP network manager and the PC should have an IP address in the same range as the switch. However, if you want to manage multiple D-Link Switches, the DNA (D-Link Network Assistant) is the better option. Using the DNA (D-Link Network Assistant), you don’t need to change the IP address of your PC and it is easy to start the initial setting of multiple Switches. Please refer to the following detailed installation instructions for the Web-Based Management, DNA (D-Link Network Assistant), Telnet Management and SNMP-Based Management. Web-based Management Interface After a successful physical installation, you can congure the switch, monitor the LED panel, and display statistics graphically using a web browser, such as Microsoft

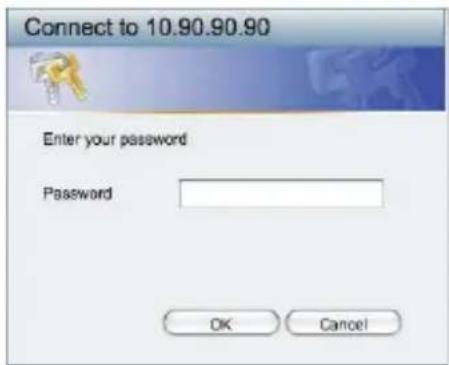

Internet Explorer version 7.0 and higher, Firefox, Chrome or Safari. You need the following equipment to begin the web conguration of your device:

• A PC with a RJ-45 Ethernet connection

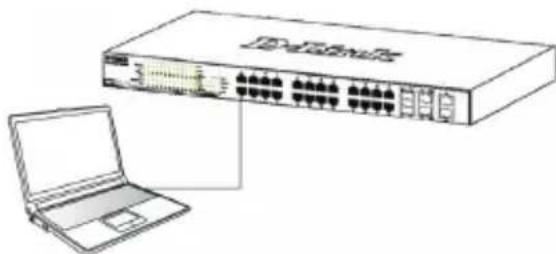

• A standard Ethernet cable Step 1 Connect the Ethernet cable to any of the ports in front panel of the switch and to the Ethernet port on the PC. Figure 7. Connected Ethernet cable4 ENGLISH DNA (D-Link Network Assistant) The DNA (D-Link Network Assistant) included on the installation CD is a program for discovering Switches with the same L2 network segment connected to your PC. This tool can support windows 2000, XP, Vista, and Windows 7. There are two options for the installation of DNA (D-Link Network Assistant), one is through the autorun program on the installation CD and the other is manual installation. Option 1: Follow these steps to install the DNA (D-Link Network Assistant) via the autorun program on the installation CD.

1. Insert the CD into your CD-Rom Drive.

Assistant)” button and an installation wizard will guide you through the process.

4. After successfully installing the DNA, you can nd it

under Start > Programs > D-Link > DNA.

5. Just connect the Switch to the same L2 network

segment of your PC and use the DNA (D-Link Network Assistant) to discover the Switches. Option 2: Follow these steps to install the DNA (D-Link Network Assistant) manually.

1. Insert the Utility CD into your CD-Rom Drive.

the autorun menu, or right click on the Drive to open the folder. Select DNA (D-Link Network Assistant) and double click on the setup.exe le.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Start > Programs > D-Link >

DNA and open the DNA (D-Link Network Assistant).

6. Just connect the Switch to the same L2 network

D-Link保修信息请访问以下网页 http://warranty.dlink.com/45 FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Warnung! Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen. Precaución! Este es un producto de Clase A. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede requerirse al usuario para que adopte las medidas adecuadas. Attention! Ceci est un produit de classe A. Dans un environnement domestique, ce produit pourrait causer des interférences radio, auquel cas l`utilisateur devrait prendre les mesures adéquates. Attenzione! Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati. VCCI Warning この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。この場合には使用者が適切な 対策を講ずるよう要求されることがあります。VCCI-A 這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用者會被要求採取某些適當的對策。 SFP (Mini-GBIC), XENPAK, and XFP Regulatory Compliance Networks pluggable optical modules meet the following regulatory requirements: • Class 1 Laser Product • EN60825-1+A2:2001 or later, European laser standard • FCC 21 CFR Chapter 1, Subchapter J in accordance with FDA & CDRH requirements Warranty Information The D-Link Limited Lifetime Warranty information is available at http://warranty.dlink.com/ SAFETY INSTRUCTIONS Please adhere to the following safety guidelines to help ensure your own personal safety and protect your system from potential damage. Any acts taken that are inconsistent with ordinary use of the product, including improper testing, etc., and those not expressly approved by D-Link may result in the loss of product warranty.Unless expressly approved by an authorized representative of D-Link in writing, you may not and may not permit others to:• Disassemble or reverse engineer the device or attempt to derive source code (underlying ideas, algorithms, or structure) from the device or from any other information provided by D-Link, except to the extent that this restriction is expressly prohibited by local law.• Modify or alter the device.• Remove from the device any product identification or other notices, including copyright notices and patent markings, if any.To reduce the risk of bodily injury, electrical shock, re, and damage to the device and other equipment, observe the following precautions:Power Sources• Observe and follow service markings.• Do not push any objects into the openings of your device unless consistent with the authorized operation of the device. Doing so can cause a re or an electrical shock by shorting out interior components.• The powering of this device must adhere to the power specications indicated for this product. • Do not overload wall outlets and/or extension cords as this will increase the risk of re or electrical shock.• Do not rest anything on the power cord or on the device (unless the device is made and expressly approved as suitable for stacking).• Position system cables and power cables carefully; route cables so that they cannot be stepped on or tripped over. Be sure that nothing rests on any cables.• Operate the device only from the type of external power source indicated on the electrical ratings label.• To help avoid damaging your device, be sure the voltage selection switch (if provided) on the power supply is set to match the power available at your location.• Also be sure that attached devices are electrically rated to operate with the power available in your location.• Use only approved power cable(s). If you have not been provided a power cable for your device or for any AC-powered option intended for your device, purchase a power cable that is approved for use in your country and is suitable for use with your device. The power cable must be rated for the device and for the voltage and current marked on the device’s electrical ratings label. The voltage and current rating of the cable should be greater than the ratings marked on the device.• To help prevent an electrical shock, plug the device and peripheral power cables into properly grounded electrical outlets. These cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from a cable. If you must use an extension cable, use a 3-wire cable with properly grounded plugs.• Observe extension cable and power strip ratings. Ensure that the total ampere rating of all products plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or power strip.• To help protect your device from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS). (depending on the purchased model)• Do not modify power cables or plugs. Consult a licensed electrician or your power company for site modications. Always follow your local/national wiring rules.• When connecting or disconnecting power to hot-pluggable power supplies, if offered with your device, observe the following guidelines:• Install the power supply before connecting the power cable to the power supply.• Unplug the power cable before removing the power supply.• If the system has multiple sources of power, disconnect power from the device by unplugging all power cables from the power supplies. 仅适用于海拔2000米以下地区安全使用46 Servicing/Disassembling

• Do not service any product except as expressly set forth in your system documentation.

• Opening or removing covers that are marked with the triangular symbol with a lightning bolt may expose you to an electrical shock. Only a trained service technician should service components inside these compartments.

• To reduce the risk of electrical shock, never disassemble this device. None of its internal parts are user-replaceable; therefore, there is no reason to access the interior.

• Do not spill food or liquids on your system components, and never operate the device in a wet environment. If the device gets wet, see the appropriate section in your troubleshooting guide or contact your trained service provider.

• Use the device only with approved equipment.

• Move products with care; ensure that all casters and/or stabilizers are firmly connected to the system. Avoid sudden stops and uneven surfaces. Environment

• Do not use this device near water (e.g. near a bathtub, sink, laundry tub, sh tank, in a wet basement or near a swimming pool).

• Do not use this device in areas with high humidity.

• This device must not be subjected to water or condensation.

• Keep your device away from radiators and heat sources. Also, do not block cooling vents. Cleaning

• Always unplug the power before cleaning this device.

• Do not use liquid or aerosol cleaners of any kind. Use only compressed air that is recommended for electronic devices.

• Use a dry cloth for cleaning.

PROTECTING AGAINST ELECTROSTATIC

DISCHARGE Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before you touch any of the electronic components, such as the microprocessor. You can do so by periodically touching an unpainted metal surface on the chassis. You can also take the following steps to help prevent damage from electrostatic discharge (ESD):

1. When unpacking a static-sensitive component from its shipping

carton, do not remove the component from the antistatic packing material until you are ready to install the component in your system. Just before unwrapping the antistatic packaging, be sure to discharge static electricity from your body.

2. When transporting a sensitive component, first place it in an

antistatic container or packaging.

3. Handle all sensitive components in a static-safe area. If possible,

use antistatic floor pads, workbench pads, and an antistatic grounding str

DECLARATION OF CONFORMITY

DISPOSING AND RECYCLING

YOUR PRODUCT ENGLISH

This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed of in the household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to conserve the environment and protect human health. D-Link and the environment At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both products and packaging. D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions. To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com DEUTSCH
