USER MANUAL UT002G MAKITA

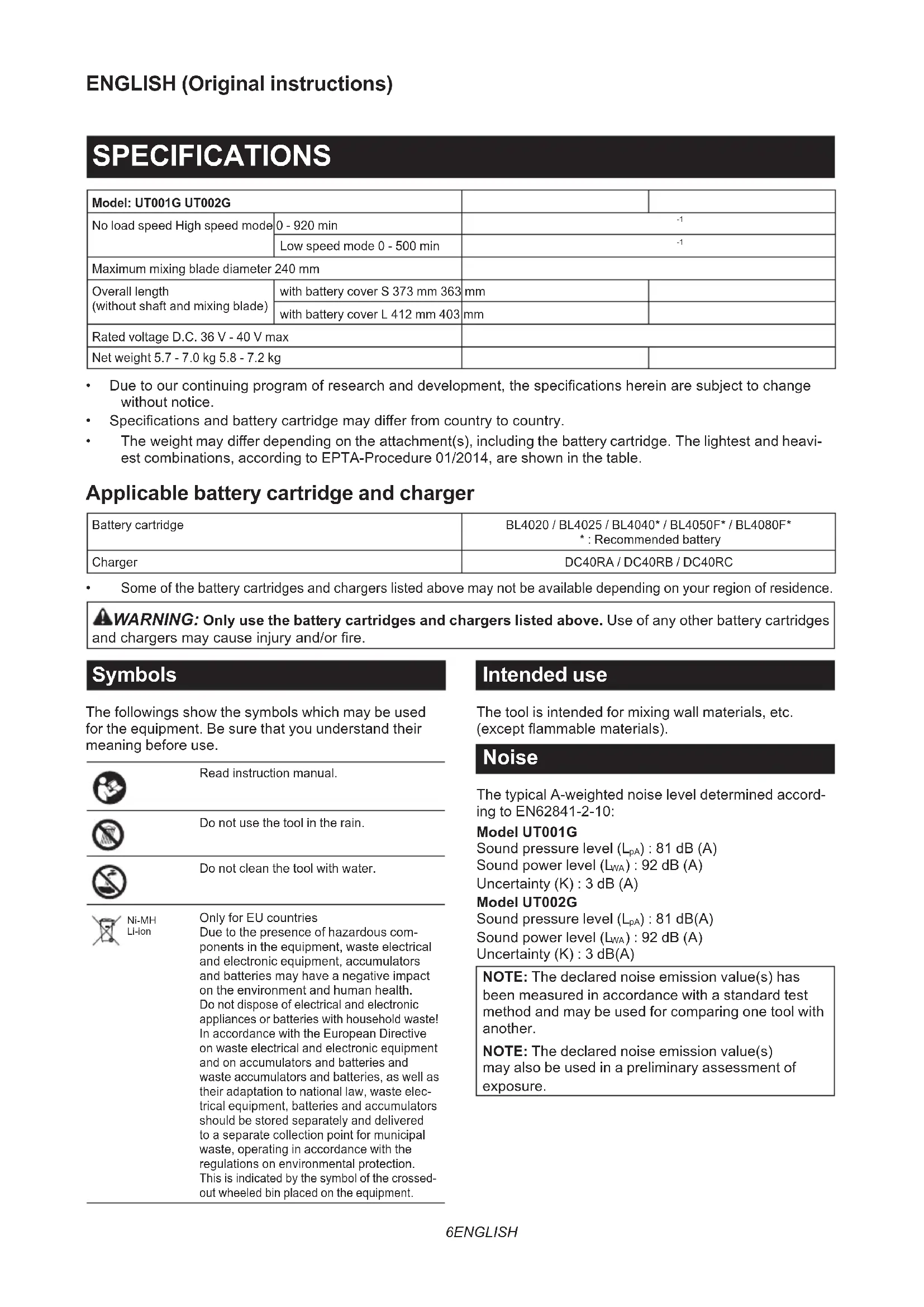

Cordless Mixer INSTRUCTION MANUAL 6

Maximum mixing blade diameter 240 mm Overall length (without shaft and mixing blade) with battery cover S 373 mm 363 mm with battery cover L 412 mm 403 mm Rated voltage D.C. 36 V - 40 V max Net weight 5.7 - 7.0 kg 5.8 - 7.2 kg

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combinations, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL4020 / BL4025 / BL4040* / BL4050F* / BL4080F*

• : Recommended battery Charger DC40RA / DC40RB / DC40RC

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre. Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read instruction manual. Do not use the tool in the rain. Do not clean the tool with water. Ni-MH Li-ion Only for EU countries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste elec- trical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. This is indicated by the symbol of the crossed- out wheeled bin placed on the equipment. Intended use The tool is intended for mixing wall materials, etc. (exceptammablematerials). Noise The typical A-weighted noise level determined accord- ing to EN62841-2-10: Model UT001G Sound pressure level (L

) : 92 dB (A) Uncertainty (K) : 3 dB(A) NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.7 ENGLISH

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN62841-2-10: Model UT001G Work mode: operation without load Vibration emission (a

Model UT002G Work mode: operation without load Vibration emission (a

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless mixer safety warnings

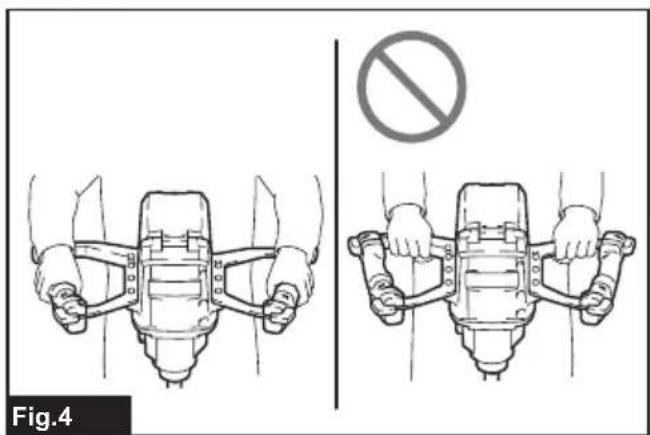

Hold the tool with both hands at the intended handles.Lossofcontrolcancausepersonalinjury.

2. Ensure su󰀩cient ventilation when mixing am-

mable materials to avoid a hazardous atmo- sphere. Developing vapour may be inhaled or be ignited by the sparks the power tool produces.

3. Do not mix food. Power tools and their accesso-

ries are not designed for processing food.

4. Ensure that the mixing container is placed in a

rm and secure position. A container that is not properly secured may move unexpectedly.

5. Follow the instructions and warnings for the

material to be mixed. Material to be mixed may be harmful.

6. Do not reach into the mixing container with

your hands or insert any other objects into it while mixing. Contact with the mixer blade may leadtoseriouspersonalinjury.

7. Start up and run down the tool in the mixing

container only. The mixer blade may bend or spin in an uncontrolled manner.

Ensure that no liquid splashes against the housing of the power tool. Liquid that has pene- trated the power tool can cause damage to the tool.

9. Use auxiliary handles, if supplied with the tool.

Lossofcontrolmaycausepersonalinjury.

10. Hold power tool by insulated gripping sur-

faces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

11. Always be sure you have a rm footing. Be

sure no one is below when using the tool in high locations.

12. Hold the tool rmly.

13. Keep hands away from rotating parts.

14. Do not leave the tool running. Operate the tool

only when you are holding it.

15. Some materials contain chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow safety warnings by supplier of the material.8 ENGLISH

16. When performing the mixing operation, place

the mixing container on a at and stable surface. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tapeormasko󰀨opencontactsandpackupthe battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burst and malfunction of the tool or battery car- tridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near a high-voltage elec- trical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwill also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

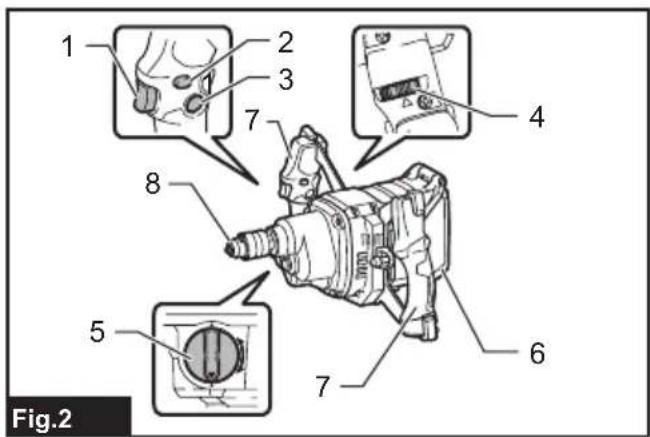

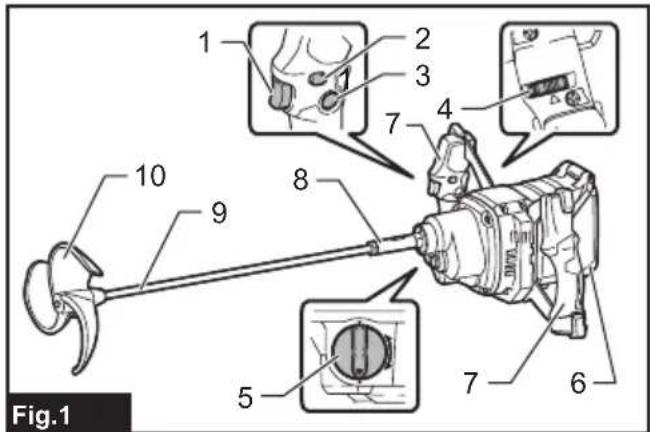

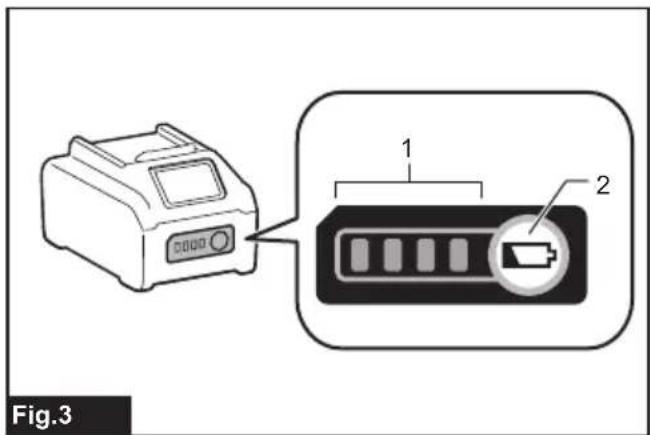

it for a long period (more than six months).9 ENGLISH PARTS DESCRIPTION Model UT001G ►Fig.1 1 Switch trigger 2 Lock-o󰀨button 3 Lock button 4 Speedadjustingdial 5 Speed change knob 6 Battery cover 7 Handle 8 Shaft holder 9 Shaft 10 Mixing blade Model UT002G ►Fig.2 1 Switch trigger 2 Lock-o󰀨button 3 Lock button 4 Speedadjustingdial 5 Speed change knob 6 Battery cover 7 Handle 8 Chuck PREPARATION BEFORE USE Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. ►Fig.3: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly from the actual capacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen the battery protection system works. Things you need to know before use Hold the handle when using or carrying the tool. ►Fig.4 CAUTION: Do not hold the sheet metal part. Sharpareasmaycauseinjury. Tool / battery protection system The tool is equipped with a tool/battery protection sys- tem.Thissystemautomaticallycutso󰀨powertothe motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection When the tool/battery is operated in a manner that causes it to draw an abnormally high current, the tool automaticallystops.Inthissituation,turnthetoolo󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool/battery is overheated, the tool stops automatically. In this situation, let the tool/battery cool before turning the tool on again. Overdischarge protection When the battery capacity becomes low, the tool stops automatically. If the product does not operate even when the switches are operated, remove the batteries from the tool and charge the batteries.

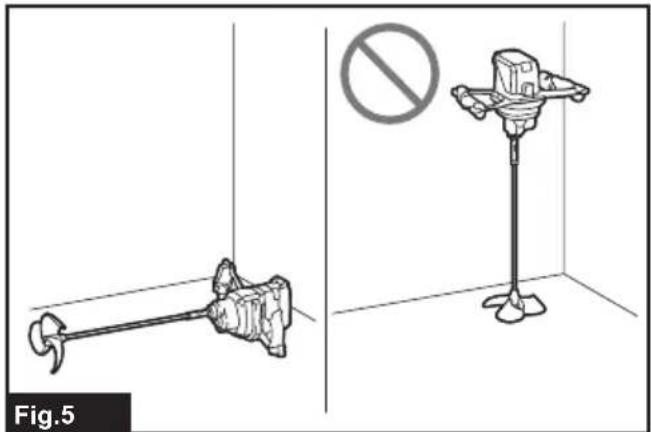

CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. NOTICE: When you are not working, lay the machine down and store it. ►Fig.5 Assembly Installing the shaft Optional accessory For UT001G

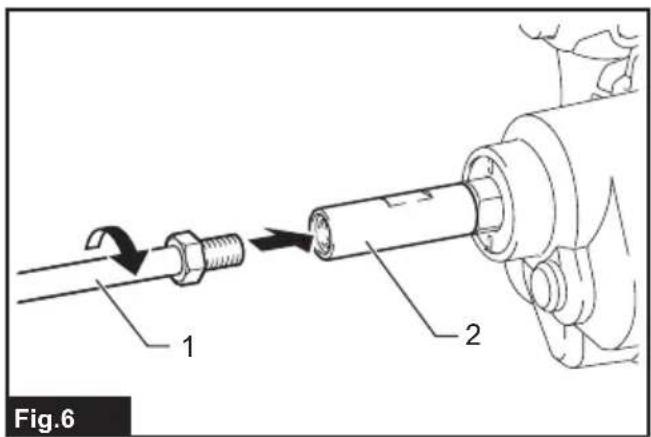

1. Tighten the shaft into the shaft holder.

sothattheshaftholdercannotrevolve.Withtheats held so, tighten the hex nut with another wrench 19 in the direction of arrow. ►Fig.7: 1. Shaft 2. Shaft holder10 ENGLISH For UT002G

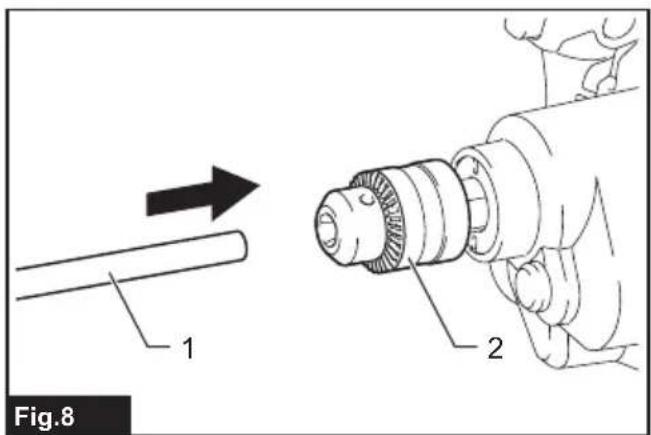

1. Insert the shaft into the chuck as far as it will go.

►Fig.8: 1. Shaft 2. Chuck

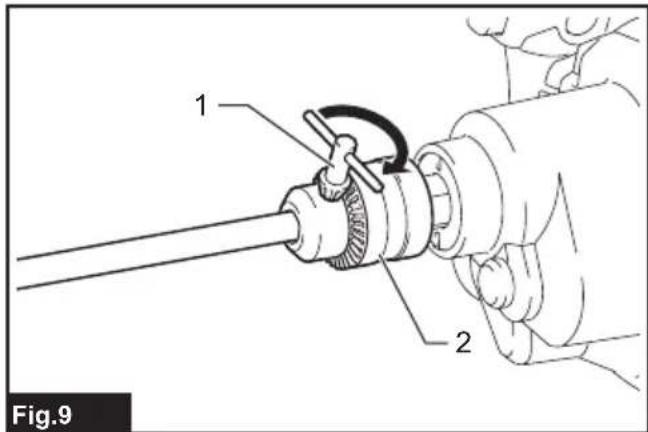

2. Tighten the chuck by hand, and then place the

chuck key in each of three holes and tighten it clock- wise. Be sure to tighten the chuck key at all three holes evenly. ►Fig.9: 1. Chuck key 2. Chuck

3. To remove the shaft, turn the chuck key coun-

terclockwise at one of the holes, and then loosen the chuck by hand.

4. When not in use, store the chuck key as shown in

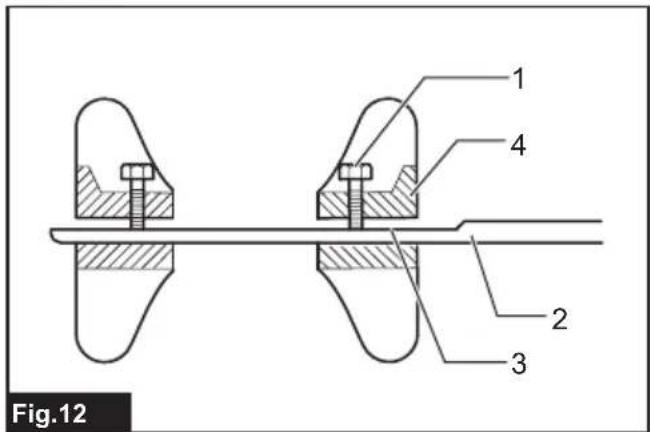

theguretokeepitfrombeinglost. ►Fig.10: 1. Chuck key Installing the mixing blade Optional accessory Insert the mixing blade into the shaft and secure it with the hex bolt. At this time, position it so that the top end ofthehexboltalwayststotheatsurfaceontheshaft and tighten the hex bolt with the provided wrench. ►Fig.11: 1. Hex bolt 2. Shaft 3. Flat surface 4. Mixing blade Wheninstallingthemixingbladesattwodi󰀨erentposi- tions, mount and secure the two mixing blades on the atpartoftheshaftwiththehexboltssothatthesame surface of the mixing blades faces each other as shown inthegure. ►Fig.12: 1. Hex bolt 2. Shaft 3. Flat surface 4. Mixing blade NOTE: Ask your local Makita Service Center about which is mixing blades are allowed. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipo󰀨yourhands and result in damage to the tool and battery cartridge andapersonalinjury. CAUTION: Do not use this tool with the battery adapter. If you connect the battery adapter to the tool, the battery cover cannot be closed, and using the tool with battery cover opened may cause aninjury. CAUTION: Be careful not to pinch your n- gers when opening or closing the battery cover. NOTICE: Install a battery cover that matches the size of the battery. Open the battery cover while pressing the button on the battery cover. ►Fig.13: 1. Button 2. Battery cover To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. ►Fig.14: 1. Red indicator 2. Button 3. Battery cartridge To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as showninthegure,itisnotlockedcompletely. After installing the battery cartridge, close the battery cover securely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Switch action

WARNING: Before installing the battery car-

tridge into the tool, always make sure that the switch trigger actuates properly and returns to the "OFF" position by fully pulling and releasing it.

WARNING: NEVER defeat the lock-o󰀨 button

by taping down or some other means. A switch with anegatedlock-o󰀨buttonmayresultinunintentional operationandseriouspersonalinjury.

WARNING: NEVER use the tool if it runs when

you simply pull the switch trigger without press- ing the lock-o󰀨 button. A switch in need of repair may result in unintentional operation and serious personalinjury.ReturntooltoaMakitaservicecenter for proper repairs BEFORE further usage.

WARNING: Do not install the battery cartridge

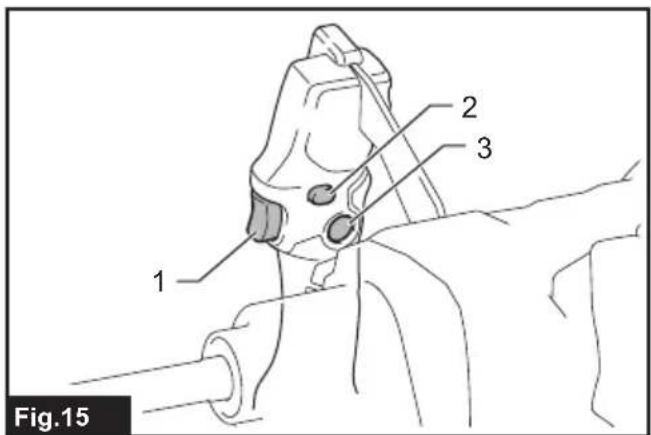

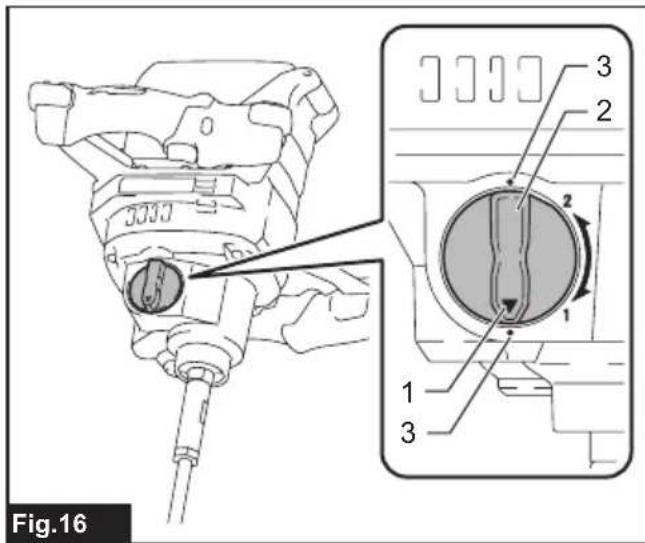

with the lock button engaged. To prevent the switch trigger from being accidentally pulled,alock-o󰀨buttonisprovided.Tostartthetool, depressthelock-o󰀨buttonandpulltheswitchtrigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. For continuous operation, depress the lock button while pulling the switch trigger, and then release the switch trigger. To stop the tool, pull the switch trigger fully, then release it. ►Fig.15: 1. Switch trigger 2.Lock-o󰀨button3. Lock button11 ENGLISH Operation of speed change knob NOTICE: Use the speed change knob only after the tool comes to a complete stop. Changing the tool speed mode before the tool stops may damage the tool. NOTICE: Always set the speed change knob carefully into the correct position. If you operate the tool with the speed change knob positioned half- way between the position 1 and the position 2, the tool may be damaged. NOTICE: If the rotation speed signicantly decreases during operation in the high speed mode, stop the tool and change the mode to the low speed mode. Otherwise, the motor may get overloadedandcauseamalfunctionorre. Two speed ranges can be preselected with the speed change knob. Select the proper speed mode for the material to be mixed. To change the speed mode, turn the speed change knob so that the pointer points to the dot at position 1 for low speed mode or the dot at position 2 for high speed mode. ►Fig.16: 1. Pointer 2. Speed change knob 3. Dot Operation of speed adjusting dial Thetoolspeedcanbeadjustedsteplesslybyturning thespeedadjustingdial.Thenoloadspeedwhenthe switchtriggerisfullypulledcanbeadjusted270min

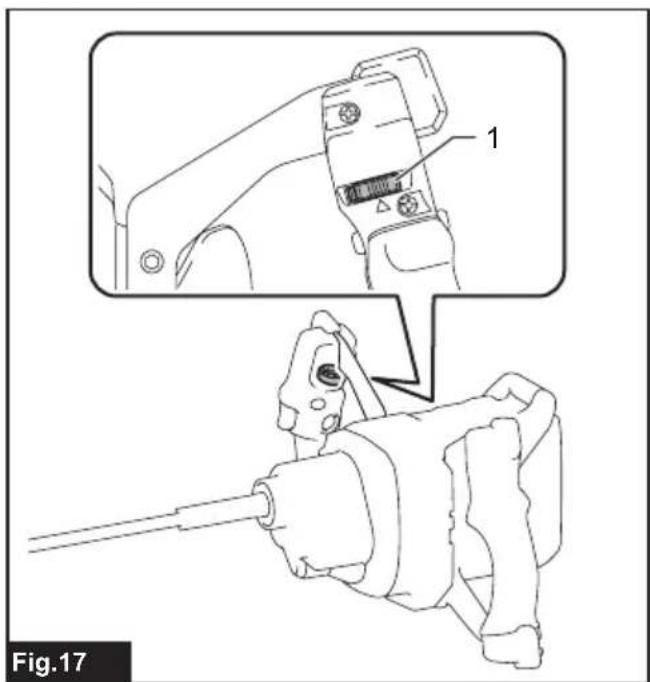

at low speed mode, 500 min

at high speed mode. Higher speed is obtained when the dial is turned in the direction of number 5; lower speed is obtained when it is turned in the direction of number 1. Select the proper speed for the material to be mixed. ►Fig.17: 1.Speedadjustingdial NOTICE: The speed adjusting dial can be turned only as far as 5 and back to 1. Do not force it past 5 or 1. Accidental restart preventive function If you install the battery cartridge while pulling the switch trigger or locking the switch trigger, the tool does not start. To start the tool, release the switch trigger, and then pull the switch trigger. Electronic function The tool is equipped with the following electronic func- tion for easy operation. Soft start The soft-start function minimizes start-up shock, and makes the tool start smoothly. Basic operations CAUTION: Do not mix ammable materials or operate the tool around ammable materials such as paint with thinner used as solvent. Failure to do somaycauseaninjury. CAUTION: Do not mix high viscosity material in the high speed mode. You may lose the control of thetoolandcauseaninjury. CAUTION: Do not rotate the mixing blade outside the stirring vessel. CAUTION: If you hear an abnormal noise during use, turn o󰀨 the switch and stop using the tool. NOTICE: When you mix the material while the mixing blade oating out of the material, be care- ful not to splash the material. NOTICE: Do not use the tool for any purpose other than stirring mortar, concrete, etc.

1. Select high speed mode or low speed mode

according to the material to be mixed.

Holdthetoolrmlywithbothhands.Placethemixing blade under material fully. Check that the material is not solidiedandthesafetyoftheworksite,thenturnonthetool.

3. Move the mixing blade up and down during the

mixing operation so that whole part of material can be mixed.

4. Whennishingmixing,turno󰀨thetool.Makesure

that the mixing blade has come to a complete stop, and then pull it out of the mixing container. Applied operations CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Replacing battery cover Optional accessory Installoneofthebatterycoverstotthesizeofyour battery cartridge. ►Fig.18:

1. Battery cover S 2. Battery cover L 3. Button

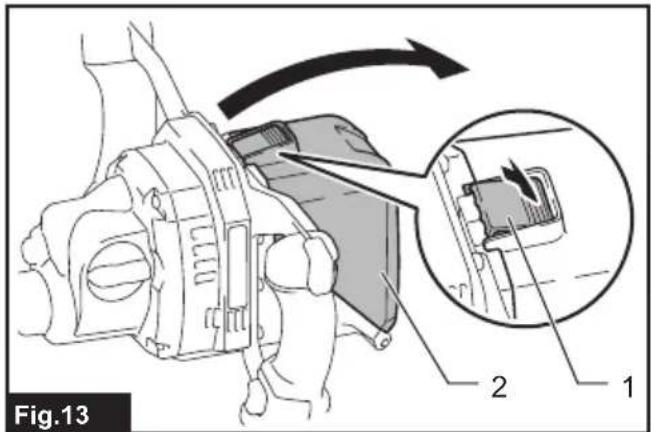

1. Open the standard equipped battery cover while

pressing the button on the battery cover.

2. Loosen the screw securing the standard equipped

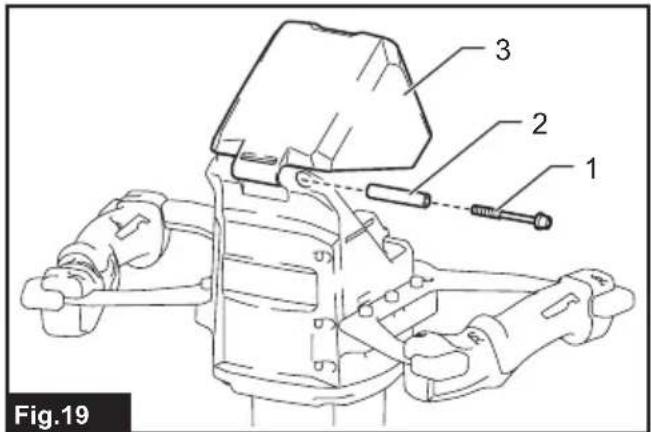

battery cover. Then remove the screw, sleeve and the battery cover. ►Fig.19: 1. Screw 2. Sleeve 3. Battery cover (stan- dard equipped) NOTE: The sleeve may remain in the mounting holes. In that case, pull it out using a screw or the like.

3. Align the mounting hole on the optional battery

cover with the mounting holes on the housing. Insert the sleeve. Then tighten the screws to secure it in place. ►Fig.20:

1. Screw 2. Sleeve 3. Battery cover (optional)

4. Close the battery cover securely.12 ENGLISH

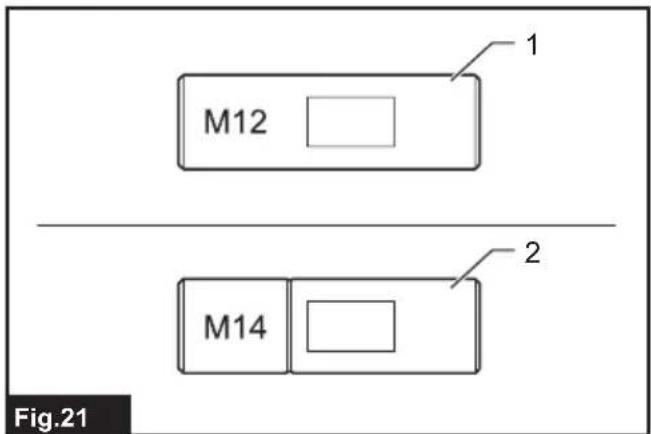

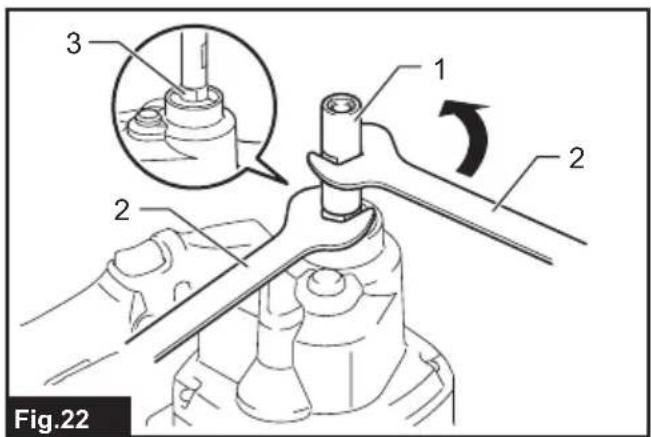

Installing or removing the shaft holder country specic For UT001G Installoneoftheshaftholdersoptionallyavailabletot your screw size of the shaft. ►Fig.21: 1. M12 shaft holder 2. M14 shaft holder While holding the spindle with a wrench, loosen the shaft holder with another wrench. ►Fig.22: 1. Shaft holder 2. Wrench 3. Spindle To install the shaft holder, perform the removal proce- dure in reverse. For UT002G

1. Insert the hex wrench into the chuck, and then

loosen the chuck with the hex wrench while holding the spindle with the wrench. ►Fig.23: 1. Hex wrench 2. Chuck 3. Wrench

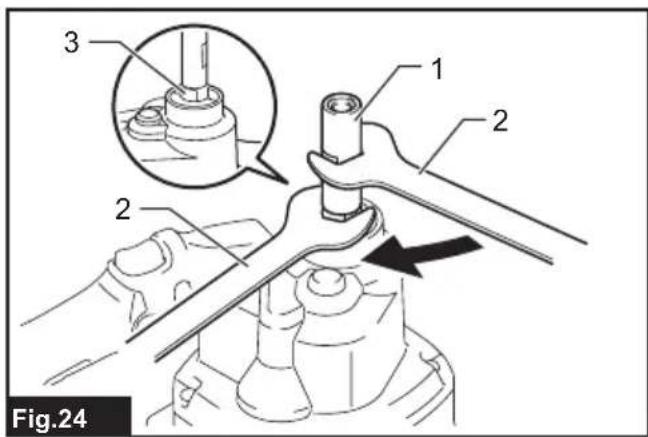

2. Tighten the shaft holder with a wrench while hold-

ing the spindle with another wrench. ►Fig.24: 1. Shaft holder 2. Wrench 3. Spindle Handling after use Useawetclothortheliketocarefullywipeo󰀨themate- rial left on the tool after use. Extra care should be given to thorough cleaning of the vents, switch area, cover openings, etc. NOTICE: Avoid cleaning the tool in water. Water will get into the motor housing and cause motor failure. MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Troubleshooting Before asking for repairs, check the following points.

2. Charge the battery(ies) or replace it/them with

recharged battery(ies).

3. Let the tool and battery(ies) cool down.

If no improvement can be found by restoring protection system, then contact your local Makita Service Center. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger NOTE: Some items in the list may be included in the tool package as standard accessories. They may di󰀨erfromcountrytocountry.13 FRANÇAIS FRANÇAIS (Instructions originales) SPÉCIFICATIONS Modèle : UT001G UT002G Vitesse à vide Mode grande vitesse 0 - 920 min
