USER MANUAL COREpar UV 120 ILS Chauvet

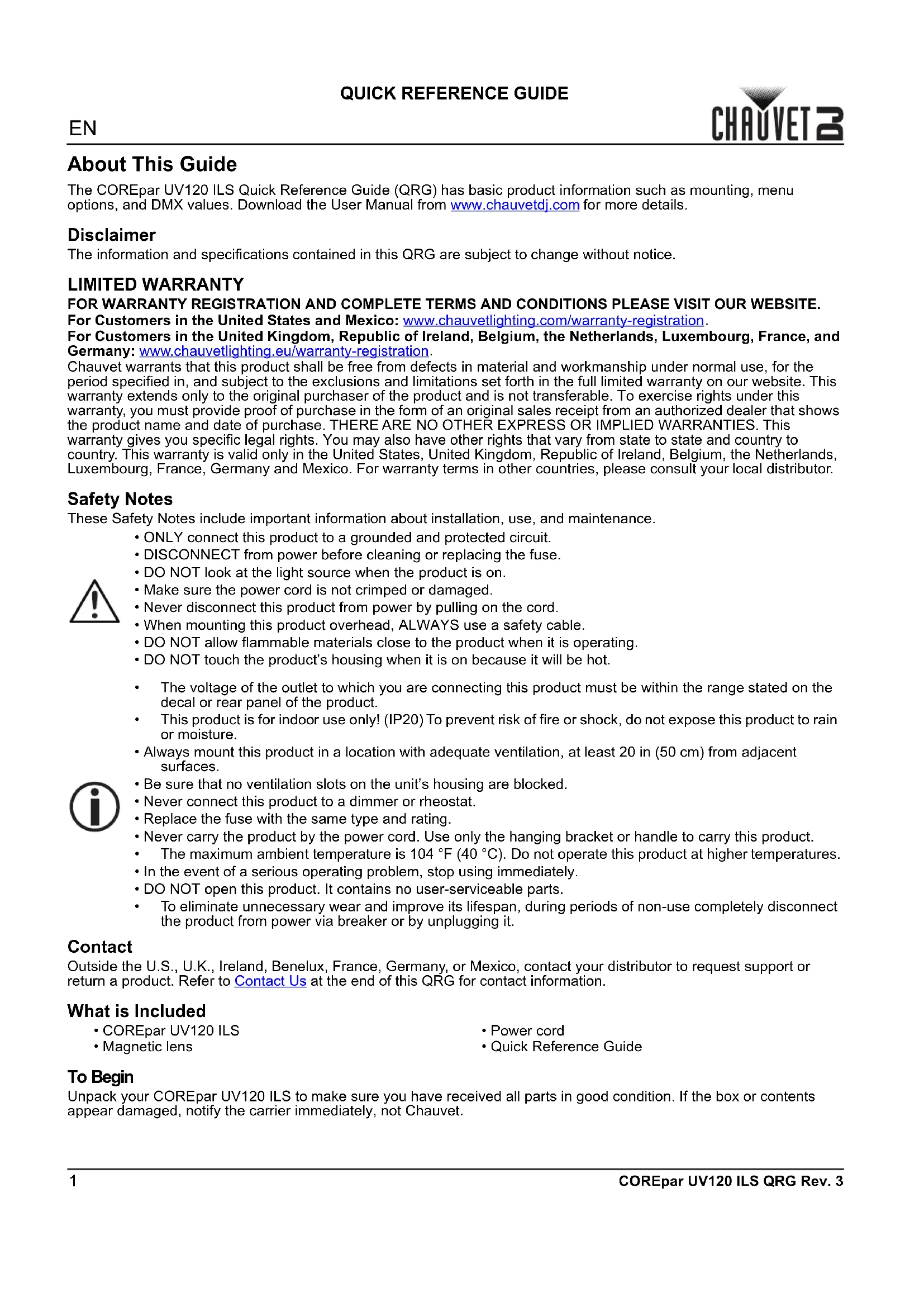

The COREpar UV120 ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
  This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
  The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• COREpar UV120 ILS
  Magnetic lens

Power cord
- Quick Reference Guide

To Begin

Unpack your COREpar UV120 ILS to make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50 / 60Hz

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link up to 5 COREpar UV120 ILS products on 120V or 9 products on 230V . Never exceed this number. Power-linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

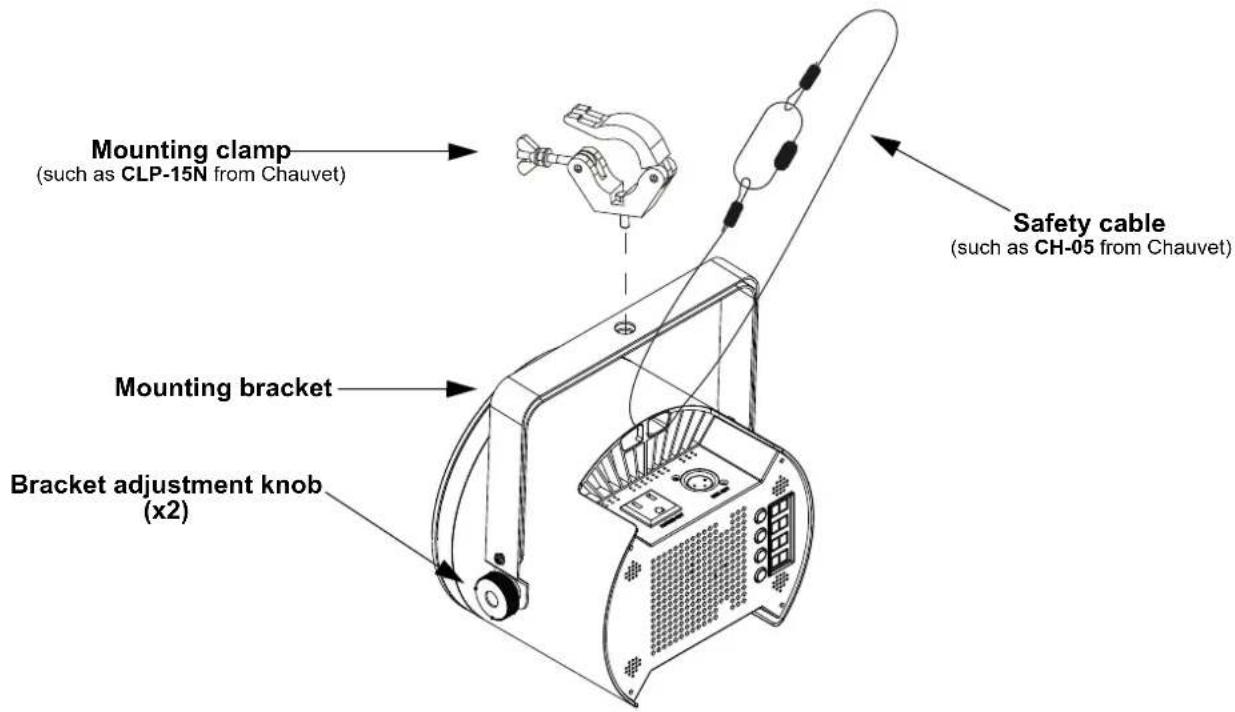

Mounting Diagram

Control Panel Description

Button Function
<MENU> Exits from the current menu or function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the COREpar UV120 ILS product page on www.chauvetdj.com for the latest menu map.

Main Level Programming Levels Description
1-Ch d 1-512 1-channel DMX mode
5-Ch d 1-508 5-channel DMX mode
iLS iLS 1-4 Sets ILS mode
P--(Automatic program)	P 1 Pulse effect 0-100%-0
	P 2 Pulse effect 0-100%
	P 3 Pulse effect 100%-0
S-- S. 1-100 Automatic program speed
Snd(Sound-active)	Snd1	Sets sound active mode
	Snd2
SEnS u 0-100 Sound sensitivity
u--(Dimmer)	d. 0-255 Manual Dimmer
diM(Dimmer speed)	oFF	Sets the dimmer speed
	diM1
	diM2
	diM3
SEt(Infrared)	ir	onEnables/disables infrared control
		off
	rEST	yesReset to factory default
		no
Temp__Shows the temperature

DMX Linking

The COREpar UV120 ILS can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 508.

Master/Slave Connection

The COREpar UV120 ILS uses the DMX data connection and ILS for its Master/Slave mode. Information about configuring the COREpar UV120 ILS for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

ILS Connection

The COREpar UV120 ILS uses the DMX data connection and the D-Fi USB for wireless connection to the Integrated Lighting System (ILS) ecosystem (patent pending). For more information about configuring the COREpar UV120 ILS into ILS mode, please refer to the User Manual available at www.chauvetdj.com.

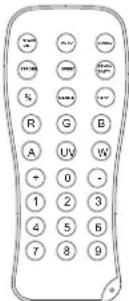

IRC-6

The COREpar UV120 ILS can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the COREpar UV120 ILS User Manual from www.chauvetdj.com.

Button	Function
<BLACKOUT>	Turns LEDs on/off
<AUTO>	Enables pulse modes
<SOUND>	Enables sound active mode
<SPEED>	Increases and decreases speed
<SENSITIVITY>	Adjusts sound sensitivity
<MANUAL>	Adjusts dimmer
<++>	Increases values for controls as described above
<->	Decreases values for controls as described above

D-Fi USB Connectivity

The COREpar UV120 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address. Further instructions for connecting and configuring this product for D-Fi USB operation are in the User Manual.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

Master/Slave Mode (D-Fi USB)

The D-Fi USB allows a single COREpar UV120 ILS product (the "master") to control the actions of one or more COREpar UV120 ILS products (the "slaves") without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.

Configure the products as indicated below.

Slave products:

1. Press repeatedly until 9-Ch shows on the display.
2. Press.
3. Use <UP> or <DOWN> to set the starting address to d 1.
4. Press .
5. Set the D-Fi USB to receive on a specific channel, 1-16.
6. Plug in the D-Fi USB.
7. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode.
2. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.

3. Plug in the D-Fi USB.

4. All products must be set to the same DMX personality, DMX address, and D-Fi channel.

5. Configure all the slave products before configuring the master to transmit.
6. Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode

ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.

This product will synchronize with the par effect on the selected side of the GigBAR MOVE+ILS.

To set the COREpar UV120 ILS to respond to an ILS signal:

1. Press repeatedly until iLS_ shows on the display.
2. Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press

DMX Values

1-Ch 5-Ch Function Value Percent/Setting
1 1 UV 000 ⇌ 255 0-100%
-	2	Strobe(When CH3 is 000-031)	000 ⇌ 015 No function
			016 ⇌ 255	Slow to fast
		Program Speed(When CH3 is 032-223)	000 ⇌ 255	Slow to fast
		Sound Sensitivity(When CH3 is 224-255)	000 ⇌ 010 No function
			011 ⇌ 255	low to high sensitivity
- 3 Programs			000 ⇌ 031 No function
			032 ⇌ 095	Pulse effect 0-100%
			096 ⇌ 159	Pulse effect 100%-0
			160 ⇌ 223	100%-0-100%
			224 ⇌ 240	Sound sensitivity 1
			241 ⇌ 255	Sound sensitivity 2
-	4	Dimmer	000 ⇌ 255	0-100%
- 5 Dimmer Speed			000 ⇌ 051	Dimmer speed set from menu options
			052 ⇌ 101	Dimmer speed mode off
			102 ⇌ 152	Dimmer speed fast
			153 ⇌ 203	Dimmer speed medium
			204 ⇌ 255	Dimmer speed slow

Acerca de esta guía

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Burgel-Str. 11

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice:[phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Lerma, Edo. de Mexico, CP 52000

Voice: [phone]

Email: [e-mail]

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

COREpar UV120 ILS QRG ML6 Rev. 3
