Artica DUO - Earplug NGS - Free user manual and instructions

Brand	NGS
Model	Artica DUO
Product type	Wireless Bluetooth headset (in-ear earphones)
Bluetooth version	5.1
Operating distance	Up to 10 meters
Earphone battery capacity	25 mAh / 3.7 V
Earphone battery life	Approximately 5 hours (at 70% volume)
Earphone charging time	1.5 hours
Charging case battery capacity	320 mAh / 3.7 V
Number of possible charges (case)	Up to 6 full charges
Charging case charging time	3 hours
Charging type	USB Type-C
Main functions	Play/Pause, volume controls, track skip, answer/end call, reject call, voice assistant
Power on	Remove earphones from charging case
Power off	Insert earphones into charging case
LED indicator (case)	Solid red while charging, blinking blue for low case battery
LED indicator (earphones)	Constant blue when charging in case
Warranty	2 years (product), 12 months (battery)
Maintenance	Clean with a soft dry cloth; do not use chemical products
Recycling	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - Artica DUO NGS

How to turn the Artica DUO earphones on and off?

The earphones turn on automatically when you remove them from the charging case. To turn them off, place them back in the case. You can also turn them on/off manually by pressing the touch area for 3 to 4 seconds.

How to pair the earphones with my phone?

Remove the earphones from the case to turn them on. On your phone, enable Bluetooth and search for devices. Select NGS ARTICA DUO A or NGS ARTICA DUO B (depending on which earphone is used as master) to pair them.

How to control volume and playback?

Use the touch areas: tap once to play/pause, twice to increase (right earbud) or decrease (left earbud) volume, hold for 2 seconds to skip to next track (right) or previous track (left).

What to do if one earbud doesn't work?

Make sure the earbuds are charged. If the problem persists, reset them by placing them back in the case for a few seconds, then take them out again. Also, ensure Bluetooth on your device is enabled and there is no interference.

How long does the battery last?

The earbuds battery life is about 5 hours at medium volume (70%). The charging case can recharge the earbuds up to 6 times, providing a total battery life of about 30 hours.

How to know when the charging case is low?

When the case battery drops below 5%, the blue LED blinks to indicate it's time to recharge the case.

Can I use only one earbud at a time?

Yes, you can use a single earbud in mono mode. The earbud removed from the case will turn on and connect as a single device.

How to charge the charging case?

Use the provided USB Type-C cable to connect the case to a USB charger (not included). The red LED blinks during charging and turns solid red when fully charged.

Are the earbuds water resistant?

The manual does not mention any waterproof certification. It is recommended to avoid any contact with water or excessive humidity.

How to clean the earbuds?

Clean the earbuds and case with a soft dry cloth. Do not use chemical or harsh liquids. The silicone ear tips can be removed and washed with warm soapy water, then dried completely before putting them back on.

USER MANUAL Artica DUO NGS

NORSK I SUOMI I SVENSKA I DANSK I LIETUVIU

www.ngs.eu

USER'S MANUAL

Welcome to use these Bluetooth earphones, Artica Duo. Please read this user's manual carefully before using it.

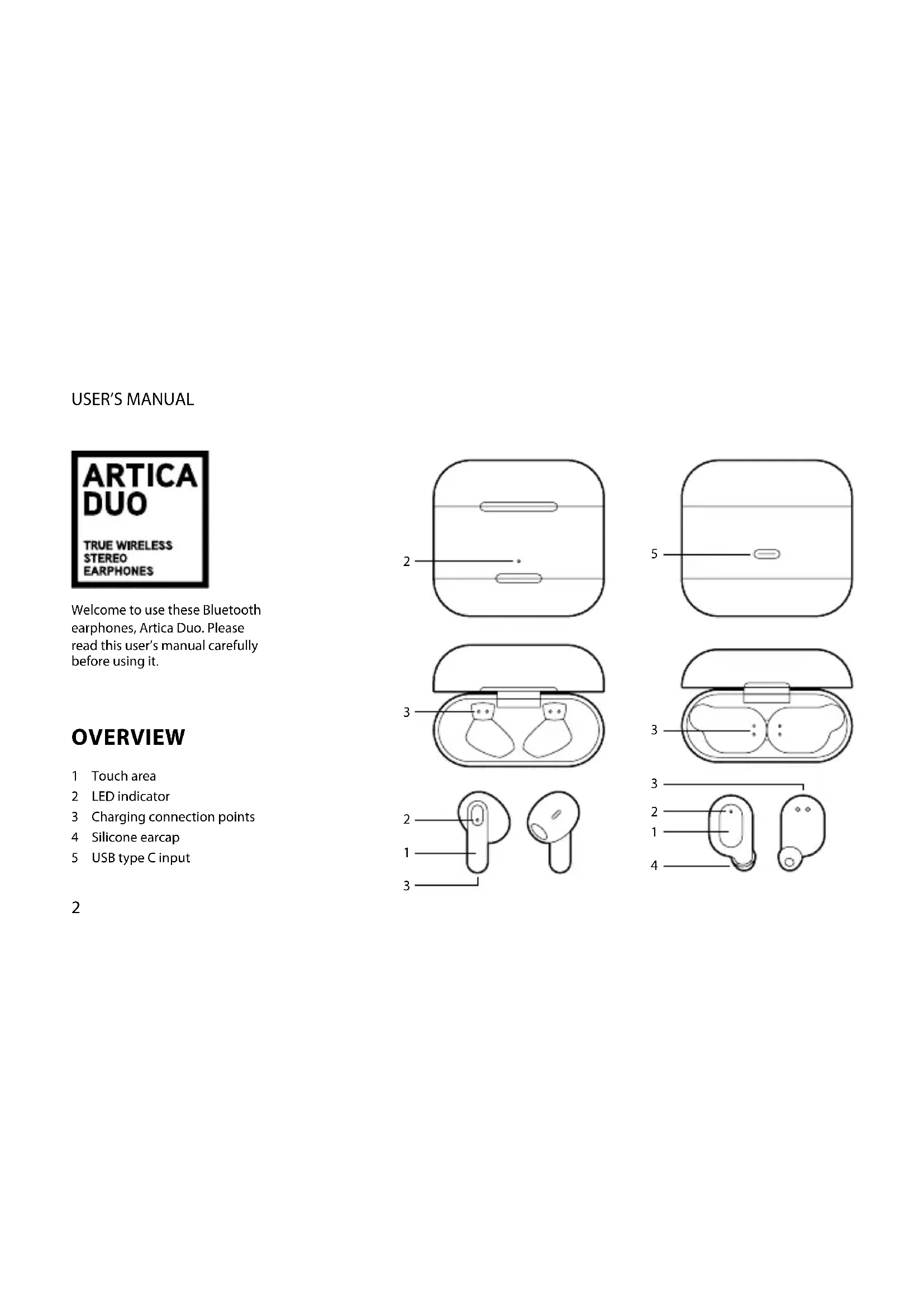

OVERVIEW

1 Touch area
2 LED indicator
3 Charging connection points
4 Silicone earcap
5 USB type C input

ENGLISH

CHARGE STATUS

First time charging

Before you use these Bluetooth earphones, please charge the battery fully.

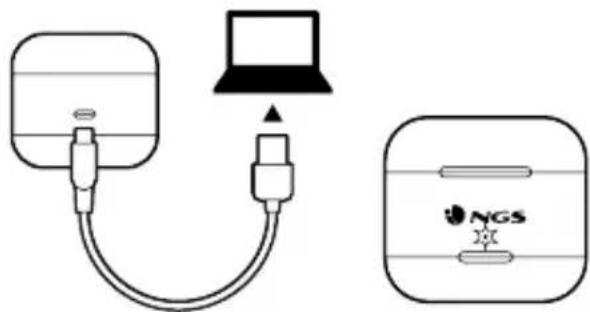

Dock charge status

Charging - red charging LED, base flickers every 2 seconds.
Charged - constant red light LED when charged.
Low battery:

When the charging base battery is below 5% the blue LED will flicker, indicating that it needs to be charged.

Earphones charge status

Constant blue light at base -Charging Base light off -Charged

Warning:

1. The battery is recyclable.
2. Do not dispose of the battery in fire, as it may cause explosion.

USER'S MANUAL

	L	R
Remove the earphones to turn them on.
Insert the earphones into the base and they will turn off automatically
Press for 4 seconds to turn off	4s	4s
Press for 3 seconds to turn them on again	3s	3s

PAIRING EARPHONES WITH BLUETOOTH DEVICES

1	2
Remove the earphones to turn them on	Search your mobile for the Bluetooth options NGS ARTICA DUO A or NGS ARTICA DUO B to pair them

MULTIFUNCTION BUTTON CONTROLS

	LLRR
Press once to play or pause	x1	x1
Keep pressed down for 2 seconds to go back or forward a track	2s	2s
When receiving a call, press once to answer During a call, press once to hang up	x1	x1

Press 2 times to raise or lower the volume	x2	x2
Press for 2 seconds to reject an incoming call	2s	2s
Press 3 times to open the voice assistant	x3	x3

USER'S MANUAL

HOW TO USE SPECIFICATIONS

Compatible with Bluetooth 5.1

Hands free

Earphone battery: 25mAh / 3,7 V

Earphone charging time: 1,5 hours

Working time: 5 hours*

Charging dock: 320mAh / 3,7 V

Charge earphones 6 times

Dock charging time: 3 hours

Working distance: up to 10m

• 6 hours at 50% volume

5 hours at 70% volume

4 hours at 100% volume

ENGLISH

WARRANTY

Limited warranty. NGS warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years, three (3) years or five (5) years from the date of purchase. NGS's limited warranty is non-transferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights, which vary under local laws.

Battery warranty. The battery is a consumer product, and as such it is under warranty for 12 months.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

MANUEL DE L'UTILISATEUR

Ladetid for base: 3 timer

MONITOIMINPAINIKKEEN TOIMINNOT

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

ETSIEN301489-1V2.2.3(2019-11)

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

Y,PORLOTANTO,CUMPLECONLOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

technical support: www.ngs.eu/support

www.ngs.eu
