USER MANUAL Artica Jogger NGS
Welcome to use these Bluetooth earphones, Artica Jogger. Please read this user's manual carefully before using it.

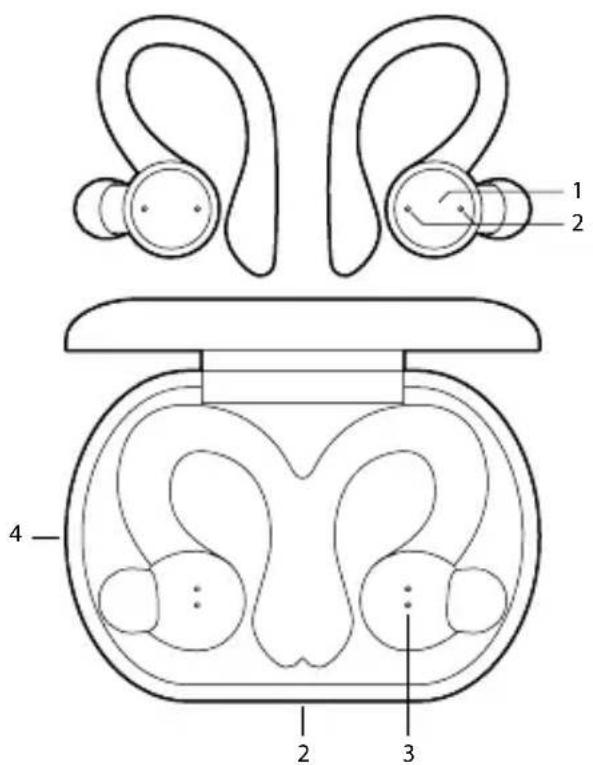

OVERVIEW
1 Function button
2 LED indicator
3 Charging connection points
4 USB type C input


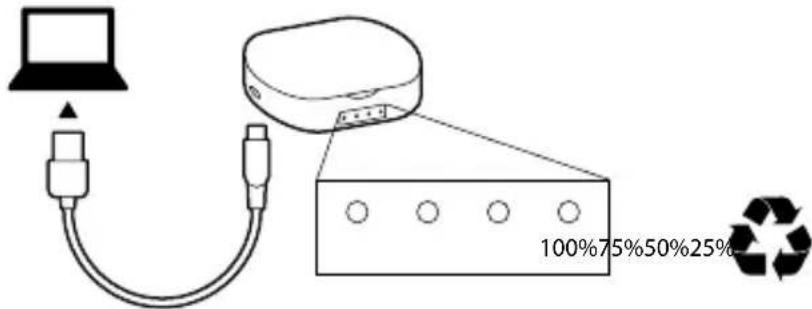

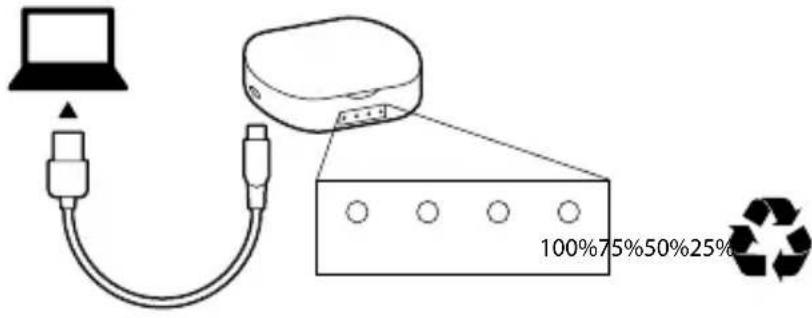

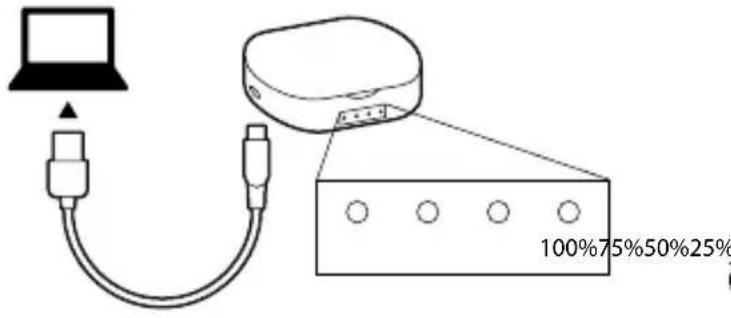

CHARGE STATUS
First time charging
Before you use these Bluetooth earphones, please charge the battery fully.
Earphones charge status
The front base LEDs are steady - Charging The front base LEDs are off - Charged
Dock charge status
Charging - The LEDs on the base blink. Charged - The LEDs are steady.
- The battery is recyclable.
- Do not dispose of the battery in fire, as it may cause explosion.
USER'S MANUAL
L  | R  | |
| Remove the earphones to turn them on. |  | |
| Insert the earphones into the base and they will turn off automatically |  | |
| Press for 4 seconds with music in pause mode to turn off | 4s 4  |  |
| Press for 3 seconds to turn them on again | 3s 3  |  |
PAIRING EARPHONES WITH BLUETOOTH DEVICES
1 Remove the earphones to turn them on | 2 Search your mobile for the Bluetooth options NGS ARTICA JOGGER to pair them |
MULTIFUNCTION BUTTON CONTROLS
 | R  | ||
| ▶▶Press once to play or pause | x1  | x1  | |
| ▶▶Press 2 times to go back or forward a track | x2  | ▶▶ | |
| ×When receiving a call, press once to answer | x1  |  | |
| ×During a call, press once to hang up | |||
 |  | |||
| Hold down to increase or decrease the volume. |  |  | ||
| Press twice to reject an incoming call. | x2: |  |  | |
| Press 3 times to open the voice assistant. | x3: |  |  | |
| Press 5 times. They will disconnect from any device. | x5: |  |  |
USER'S MANUAL

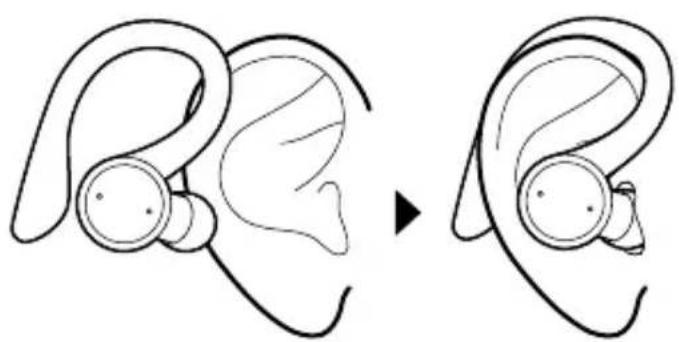

HOW TO USE SPECIFICATIONS
Chipset: JL6973
Hands free
Earphone battery: 50 mAh
Earphones charging time: 1.5 hours
Earphones working time: 10 hours*
Charging base battery: 650 mAh
(earphones x 3 times fully charged)
Base charging time: 4 hours
Working distance: up to 10 meters
USB-C charging port
Working range: 2402MHz\~2480MHz
RF max output power: 6dB
* 10 hours at 100% volume
9 hours at 70% volume
8 hours at 50% volume
** 40 hours with charging base
WARRANTY
Limited warranty. NGS warrants that any hardware products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years, three (3) years or five (5) years from the date of purchase. NGS's limited warranty is non-transferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights, which vary under local laws.
Battery warranty. The battery is a consumer product, and as such it is under warranty for 12 months.
SECURITY
IMPORTANT SAFETY INSTRUCTIONS
For all products:
- Read and follow the instructions.
- Keep the instructions in a safe place.
- Observe the warnings.
- Do not block the ventilation openings. Install according to the instructions.
- Do not install near any heat sources such as radiators, heating vents, stoves, or other appliances (including amplifiers) that generate heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Avoid stepping on or pinching the power cord, especially at plugs, outlets, and the point where it exits the product.
- Use only the accessories and auxiliary products specified in the product.
- Take care when transporting the product to prevent damage.
- Unplug the device during thunderstorms or when not in use for an extended period.
- To completely disconnect the device from the power supply, unplug the power cord plug from the AC receptacle.
- The mains plug of the power cord should remain readily accessible.
-
Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.
-
This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN
The symbol refers to "dangerous voltage" inside the product's cabinet that, when misused and disassembled, may result in electric shock to people.
The symbol refers to "Important instructions" for operation and maintenance (repairs).
WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.
USER'S MANUAL
FOR ALL EUROPEAN UNION COUNTRIES:
For products including audio output
Hearing loss prevention
Caution: Hearing loss may occur if headphones or earphones are used at high volume for extended periods. The products have been tested to verify compliance with the sound pressure level requirements established in the applicable standards NF EN 50332-1:2013 and/or EN 50332-2:2013 required by French Article L.5232-1.
Important: To prevent potential hearing damage, do not listen at high volume for extended periods.
This device complies with the European Union requirements (1999/5/EC) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.
The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20 W/kg over 10 grams of body tissue.
Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).
In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0 cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.
WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.
This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.
ENGLISH
Compliance with RoHS requirements.
This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
For products that include batteries.
EU Directive 2013/56/EU on batteries.
The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.
User instructions for extraction, recycling, and disposal of used batteries.
To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.
In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.
In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.
WARNING: Risk of explosion if the battery is replaced incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries.
The symbol for separate collection of all batteries and accumulators is shown in this section.
Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:
Hg Cd Pb
MANUEL DE L'UTILISATEUR
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Simple line drawing of a battery with two battery icons and starburst symbols inside, no text or labels present.
Chipset: JL6973
Głośnomówiące
Noteer:
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Chipset: JL6973
Handsfree
Batéria slúchadiel: 50 mAh
Čas nabíjania slúchadiel: 1,5 hodiny
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Chipset: JL6973
Baterija slušalk: 50 mAh
Čas polnjenja slušalk: 1,5 ure
- Baterija se može reciklirati.
- Ne bacajte bateriju u vatru, jer može da izazove eksploziju.
UKLJUČIVANJE/ISKLJUČIVANJE SLUŠALICA
L  | R | |
| Izvucite slušalice da ih uključite |  | |
| Ubacite slušalice u bazu i automatski će se isključiti |  | |
| Pritisnite 4 sekunde sa muzikom u režimu pauze da isključite. | 4s 4 |  |
| Držite pritisnuto 3 sekunde da biste ih ponovo uključili | 3s 3 | |
POVEZIVANJE SLUŠALICA SA BLUETOOTH UREĐAJEM
Kompatibilno sa Bluetooth 5.3
Chipset: JL6973
Handsfree
Baterija slušalica: 50 mAh
- Batteriet er resirkulerbart.
- Ikke kast batteriet i brann da det kan forårsake eksplosjon.
BRUKERVEILEDNING
SLÅ AV OG PÅ ∅RETELEFONENE
SAMMENKOBLING AV ∅RETELEFONER MED BLUETOOTH-ENHETER
Chipset: JL6973
Handsfree
Batteri for øretelefoner: 50 mAh
Tid for lading av øretelefoner: 1,5 timer
Arbeidstid for øretelefoner: 10 timer*
Batteri for ladeetui: 650 mAh
(øretelefoner x 3 ganger fulladet)
MONITOIMINPAINIKKEEN TOIMINNOT
Simple line drawing of a battery with an internal circuit and two battery icons (no text or symbols)
Chipset: JL6973
Handsfree
Chipset: JL6973
Handsfree
∅retefonbatteri: 50 mAh
∅retelefontid: 1,5 timer
Chipset: JL6973
Rankos laisvu
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:
HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:
ETSI EN 301 489-1 V2.2.3 (2019-11) IEC 62321-1:2013
ETSI EN 301 489-17 V3.2.5 (2022-08) IEC 62321-2:2021
EN 55032:2015/A11:2020 IEC 62321-3-1:2013
EN 55035:2017/A11:2020 IEC 62321-5:2013
ETSI EN 300 328 V2.2.2 (2019-07) IEC 62321-4:2013+AMD1:2017
EN 62479:2010 IEC 62321-6:2015
EN 50663:2017 IEC 62321-7-1:2015
EN 62368-1:2014+A11+:2017 IEC 62321-7-2:2017
IEC 62321-8:2017
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:
RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
PRODUCT MANAGER
NGS®
technical support: www.ngs.eu/support
www.ngs.eu
FR
