Your new Bushnell® Spectator Sport® is a unique, customizable binocular that allows you to show your support for your favorite team by your choice of color body accent tiles, while giving you a clear view of the entire game, with no need to focus as you follow the action. Spectator Sport binoculars are fully equipped with both an extra wide field of view and Bushnell's exclusive PermaFocus® technology so you'll never miss the big play. Spectator Sport binoculars are water resistant so rain delays won't be a problem, and the optics are multi-coated for a bright image even during night games.

The new Spectator Sport binoculars feature:

• PermaFocus Technology - no focusing required, ideal for fast moving action and sharing amongst family or friends
• Extra Wide Field of View - see the entire play without moving the binocular around
• Top Quality Glass and Coatings - deliver a sharp, bright image
  Water Resistance - moisture protection
• Personalization - interchangeable black, white, red or blue color accent tiles

Thank you for purchasing your new Bushnell® Spectator Sport® binoculars.

This manual will help you optimize your viewing experience by explaining how to set up and use the binocular, and how to care for it. Read the instructions carefully before using your binocular.

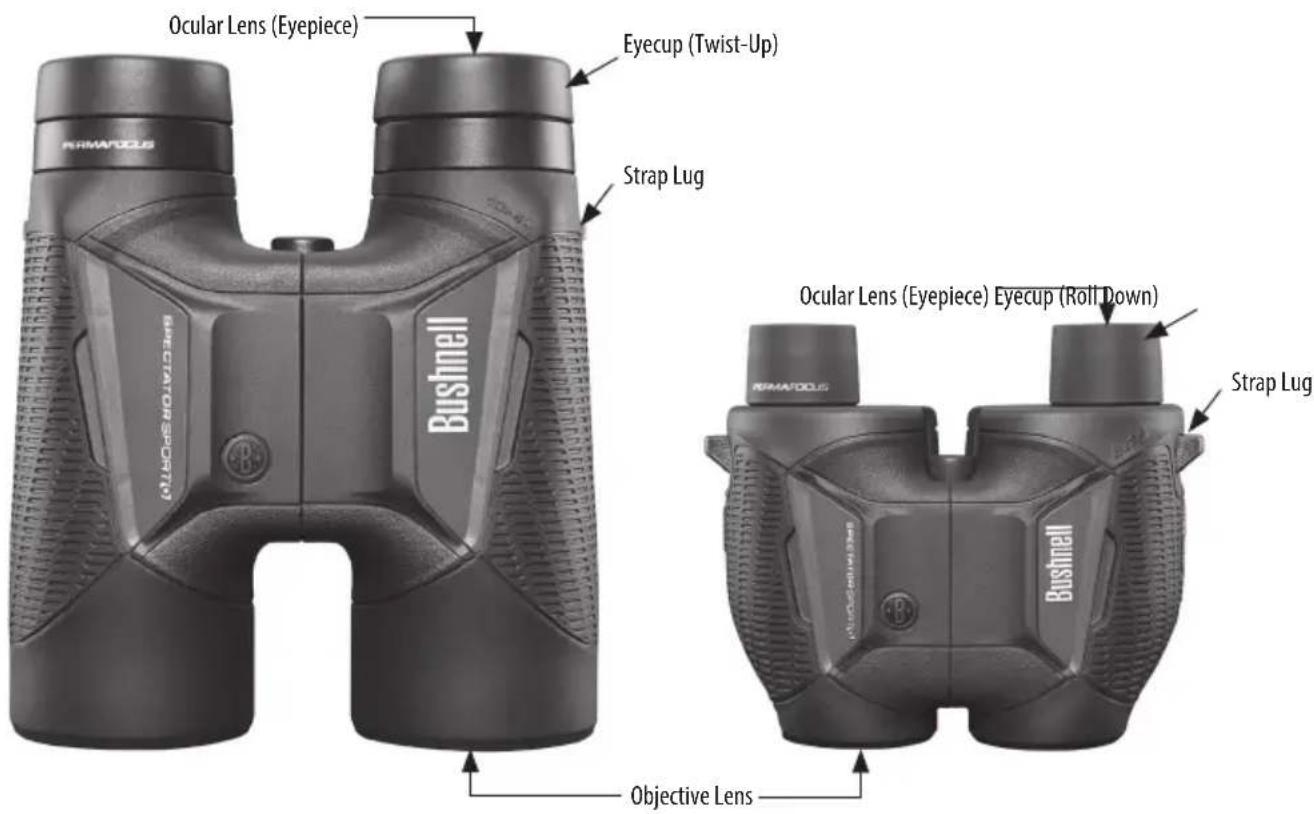

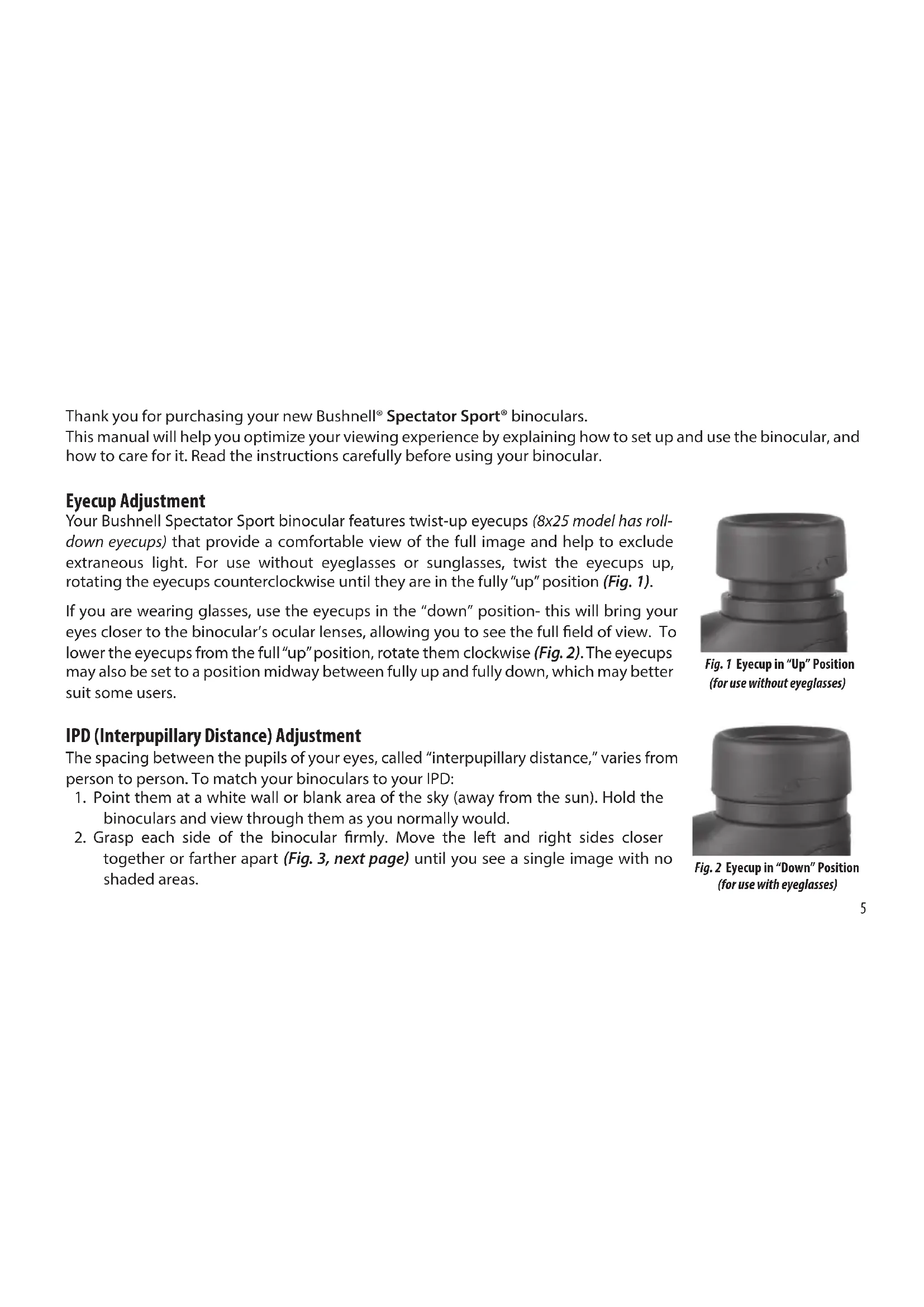

Eyecup Adjustment

Your Bushnell Spectator Sport binocular features twist-up eyecups (8x25 model has roll-down eyecups) that provide a comfortable view of the full image and help to exclude extraneous light. For use without eyeglasses or sunglasses, twist the eyecups up, rotating the eyecups counterclockwise until they are in the fully "up" position (Fig. 1).

If you are wearing glasses, use the eyecups in the "down" position- this will bring your eyes closer to the binocular's ocular lenses, allowing you to see the full field of view. To lower the eyecups from the full "up" position, rotate them clockwise (Fig. 2). The eyecups may also be set to a position midway between fully up and fully down, which may better suit some users.

IPD (Interpupillary Distance) Adjustment

The spacing between the pupils of your eyes, called "interpupillary distance," varies from person to person. To match your binoculars to your IPD:

1. Point them at a white wall or blank area of the sky (away from the sun). Hold the binoculars and view through them as you normally would.

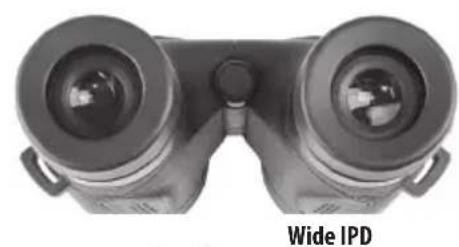

2. Grasp each side of the binocular firmly. Move the left and right sides closer together or farther apart (Fig. 3, next page) until you see a single image with no shaded areas.

Fig. 1 Eyecup in "Up" Position (for use without eyeglasses)

Fig.2 Eyecup in "Down" Position (for use with eyeglasses)

Fig.3 Interpupillary Distance Adjustment

Narrow IPD

Fig. 4 Strap Attachment

Fig. 5 Tripod Socket w/ Cap

Focus Free

Your Spectator Sport binocular is specifically designed for viewing subjects at long distances, even when they are fast moving. They are ideal for all stadium sports, hunting game and distant wildlife observation. No focusing or diopter adjustment is necessary-the optics are preset and optimized for distances of about 150 feet or greater (varies with model/magnification). Your eyes will automatically adjust to provide the "fine tuning" for greater distances. If your distant vision requires correction via eyeglasses or contact lenses, you should wear them when using your binocular. The Spectator Sport line of optics is not intended or suitable for viewing subjects at close range such as birds at a backyard feeder. The close focus limit will vary depending on the model and the user's eyesight.

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR BINOCULAR, AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

Neckstrap Attachment

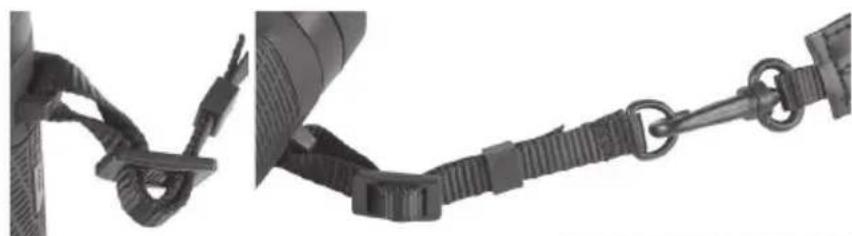

To attach the neckstrap, thread the ends of the neckstrap through the strap lug (Fig. 4) on each side of the binocular (start at the bottom of the channel and push the strap up through the top), then back through the plastic buckle on the strap. Adjust the position of the binoculars on your chest as they hang around your neck to your preference, by changing the length of the strap section which passes through the strap channel and buckle by an equal amount on each side. If you prefer to use an aftermarket strap that has metal O-rings, attach them to the "D-ring" at the end of the short strap section rather than installing them directly on the lug, to avoid damaging the finish on the binocular by contact with the rings.

Tripod Mounting (50mm porro prism models only-see tech specs table)

To attach the binocular to a tripod or monopod, unscrew (counter-clockwise) the "B" logo cap which covers the threaded socket at the far end of the center hinge (Fig. 5), and set it aside in a safe place. Use a compatible binocular tripod adapter accessory, such as the Bushnell model #161001CM, to attach your Spectator Sport binocular to any standard tripod in a horizontal

position to provide a stable image during prolonged viewing.

Water Resistant

Your Bushnell Spectator Sport binocular has been designed for water resistance to protect it from light rain or accidental splashes. It is not fully waterproof or "purged" and should not be submerged in water to avoid damage. Note: BS1430 is not water resistant.

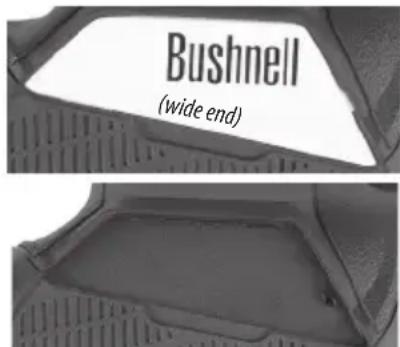

Changing the Color Tiles (Fig. 6)

To personalize your binocular, pry off the black tiles (use a fingernail, key or sm. screwdriver) and replace them with red, white or blue tiles. Insert the wide end

Fig.6 Color Tile

first, then gently pull up the rubber above the narrow end to insert it.

WARNING: CHOKING HAZARD-SMALL PARTS. TO BE ASSEMBLED BY AN ADULT. NOT FOR CHILDREN UNDER 3 YEARS OF AGE.

Care of the Optics

Your Bushnell Spectator Sport binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument.

1. Avoid sharp impacts. Set the binocular down gently on hard surfaces.
2. Tug on the strap after attaching it to make sure it is securely fastened to the binocular before placing it around your neck.
3. Store your binocular in a cool, dry place whenever possible.

Cleaning

1. First, blow or brush away any dust or debris on the lens (using "canned air" or a soft lens brush).
2. To remove dirt or finger prints, clean with the supplied soft storage bag (made of washable micro-fiber cloth), rubbing in a circular motion. Use of a coarse cloth (including paper towels) or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included storage bag/micro-fiber cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the micro-fiber cloth.
3. For a more thorough cleaning, photographic lens tissue and photographic lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.
4. To prevent potential damage to the optical coatings on the binocular's lens surfaces, never use household window cleaning liquids, and avoid using facial tissue or clothing that may have fibers which can be abrasive and hold oils or dirt.

Technical Specifications

SKU	Magnification	Objective Diameter	Prism System	Prism Glass	Lens Coating	Field of view ft@1000yds/m@1000m	Exit Pupil (mm)	Eye Relief (mm)	Weight (oz/g)	Length (in/cm)	IPD Range (mm)
BS1430 4x	30 mm	n/a n/a AR 9	300 / 300.6	10 17.0	481 4.2 / 10.6 58-70
BS1735 7x	35 mm	Porro BK-7 Multi	488 /	63 5.0 15	25.6 / 726	4.9 / 12.5 56-73
BS1825 8x	25 mm	Roof BK-7 Multi	335 / 112	3.1 12	0.7 / 304	3.9 / 10.0 56-78
BS1832 8x	32 mm	Roof BK-7 Multi	382 / 127	4.0 13	5.2 / 430	4.75 / 12.1 56-73
BS11040 10x	40 mm	Roof BK-7 Multi	305 / 102	4.0 14 19.8	563 5.75 / 14	6 56-73
BS11050 10x	50 mm	Porro BK-7 Multi	341 / 113	5.0 15 31.3	887 6.5 / 16	5 56-73
BS11250	12x	50 mm	Porro	BK-7	Multi	265 / 88	4.2	11	30.9 / 876	6.3 / 16	56-73
