USER MANUAL Elite Tactical LMSS2 BUSHNELL

natural_image Exterior view of a beige optical optical device with black tab and purple lens (no text or symbols visible)

ELITE TACTICAL

B

LMSS2

SPOTTING SCOPE OWNER'S GUIDE

ENGLISH

Thank you for purchasing your new Bushnell® Elite Tactical LMSS2 Spotting Scope. The LMSS2 (lightweight modular spotting scope) is a low profile 60mm spotting scope with an extended 5:1 magnification ratio (8 to 40 power) with a choice of two reticles designed by Horus Vision®. Other signifi cant features include:

  • ED (Extra Low Dispersion) Prime Glass providing dramatic improvement in color correction with superior contrast and resolution, even in low-light conditions.
  • O-ring sealed, waterproof/fogproof, lightweight but rugged aluminum chassis, constructed of the finest materials and assembled to the highest quality standards.
  • User configurable accessory mounting rail (Picatinny/Weaver standard).

This manual will help you optimize your viewing experience by explaining how to utilize the scope's controls and features, and how to care for it. Read the instructions carefully before using your scope.

DANGER

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR SPOTTING SCOPE, AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

BUSHNELL Elite Tactical LMSS2 - NEVER LOOK DIRECTLY AT THE SUN WITH YOUR SPOTTING SCOPE, AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES - 1

text_image ELITE TACTICAL H F E D C B A G ETB84080T 50/0001 Made in Japan I

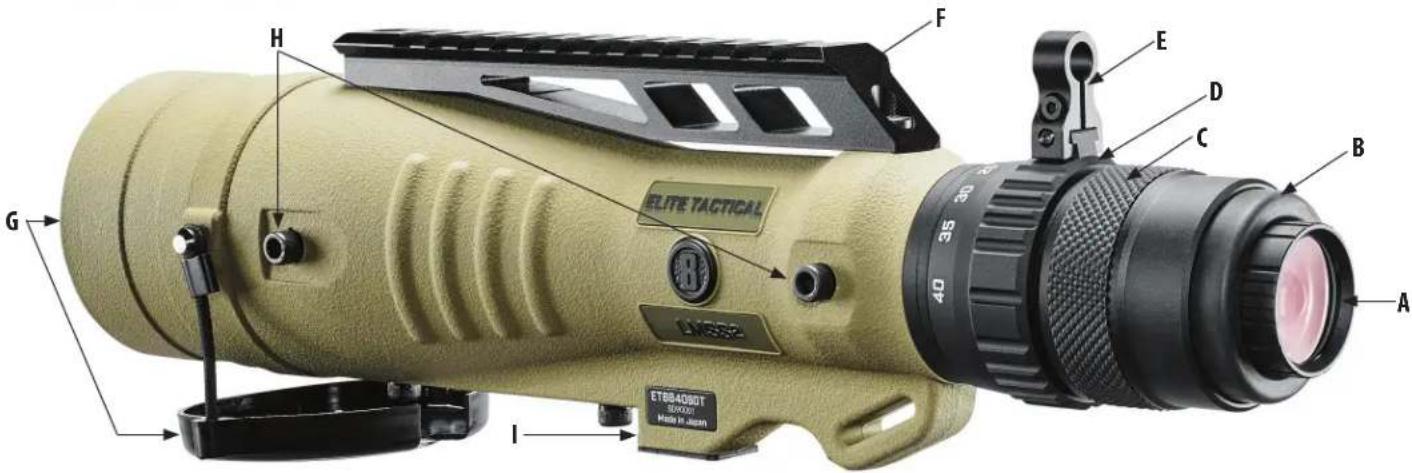

PARTS GUIDE

Diopter Adjustment AAccessory Mounting Rail F
Twist-Up Eyecup B Objective Lens w/Cover G
Focus RingCOptional Acc. Rail LocationH
Zoom RingD Tripod Mounting Base
Throw LeverE

TRIPOD MOUNTING

Your Elite Tactical LMSS2 spotting scope should be mounted on a high quality, stable tripod (not included) to ensure safe operation and a vibration-free viewing experience. Attach the scope's mounting base (I) (1/4"-20 thread) to the screw on the tripod's platform, so that the scope is held securely in place and provides a level view (adjust tripod as needed).

USING THE ZOOM EYEPIECE AND FOCUSING

Turn the focus ring (C) in either direction until your subject appears as sharp as possible. To reduce the need to readjust focus when zooming, set the zoom to its highest power and focus on your subject. When you zoom back down to lower powers, it will minimize the need for additional focus adjustment.

Rotate the zoom ring (D) on the eyepiece to change magnifying power from low to high. The throw lever (E) provides faster operation when rapid changes in magnification are needed (it can be removed if necessary). Lower power settings will provide a brighter image with a wider field of view; higher powers allow observing smaller details on more distant subjects. Note: the eyepiece section of the scope is not interchangeable. Do not attempt to remove the eyepiece from the scope.

USING THE TWIST-UP EYECUP AND DIOPTER ADJUSTMENT

  1. Twist the rubber eyecup (B) clockwise to retract it into the scope, allowing access to the diopter ring (A).
  2. If the reticle appears blurry, rotate the diopter adjustment ring (A) with the scope aimed at a blank wall or empty sky to ensure the reticle is sharp for your eyesight.
  3. Twist the eyecup out (counter-clockwise) to adjust it for a comfortable view, ensuring that you can see the entire image (full fi eld of view). If you wear eyeglasses, you may prefer to retract it back down.

Once set, the eyepiece diopter should not need further adjustment, and the eyecup can be extended again if desired. Do not use the eyepiece diopter to focus on your subject, only to focus the reticle. Use the main focus ring if the subject is not sharp.

ACCESSORY MOUNTING RAIL

The LMSS2 includes a Picatinny/Weaver mounting rail (F) for accessories (red dot sights, lasers, night vision, illumination, etc.). This rail can be positioned to the user's preference on the scope's top, left side or right side. Simply remove the two short screws from the preferred position, then attach the rail using the provided pair of long screws. Torque to 12-15 lbf*in.

HORUS VISION® TACTICAL RETICLES

Model# ET884060H has a Horus H322™ reticle, model# ET884060T has a Horus T4 (Tremor4™) reticle. The H322 reticle is an ideal parallel reference when working with a shooter using a riflescope with the Horus H58™ or H59™ reticle. The T4 reticle provides a calibrated reference for riflescopes with Horus Tremor2™ or Tremor3™ reticles. Images of each reticle are shown on the next page.

Full technical specifications and key features/facts for each reticle can be found on the Horus Vision website:

https://horusvision.com.

WATERPROOF / FOGPROOF

Getting caught in a heavy downpour of rain with your spotter won't be a problem. Elite Tactical LMSS2 spotting scopes are manufactured and tested to withstand water exposure to IPX7 standards. Fogproof protection is achieved from dry argon gas purging that displaces all internal air, which can retain moisture.

All exterior lens surfaces have our new EXO Barrier™ coating (in addition to full multi-coating). EXO Barrier, quite simply, is the best protective lens coating technology Bushnell has ever developed. Added at the end of the coating process, EXO Barrier molecularly bonds to the lens and fills the microscopic pores in the glass. The result is an ultra-slick coating that repels water, oil, fog, dust and debris - rain, snow, fingerprints and dirt will not stick. EXO Barrier is built to last: the bonded coating will not fade with the passage of time or normal wear and tear.

CLEANING AND GENERAL CARE

The lenses of your Bushnell Elite Tactical LMSS2 spotting scope are fully multi-coated for highest light transmission. As with any multi-coated optics, special care must be taken in cleaning the lenses. Follow these tips for proper lens cleaning:

- Blow away any dust or debris on the lens (or use a soft lens brush).

- To remove dirt or finger prints, clean with the supplied micro-fiber cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth.

- For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.

Never disassemble your spotting scope. Irreparable damage can result from unauthorized service attempts, which also void the warranty.

H322 and Tremor4 are trademarks of Horus Vision Reticle Technologies

Technical Specifications

SKUMagnification RangeObjective DiameterReticleField of view ft@100yds / m@100mExit Pupil (mm) @Lo x/Hi xEye Relief (mm)Close Focus (ft)Length (in/mm)Weight (oz/g)
ET884060H 8-40x 60 MM H322 250 ft /83m @8x50 ft/17m @40x5.0/1.5 3030 12.7/323 37.1 / 1053
ET884060T 8-40x 60 MMTremor4250 ft/83m @8x50 ft/17m @40x5.0/1.5 3030 12.7/323 37.1 / 1053

Both Models: ED Prime objective lens, Fully multi-coated optics, with EXO Barrier ^™ on exterior lens surfaces.

BUSHNELL Elite Tactical LMSS2 - CLEANING AND GENERAL CARE - 1

radar | Longitude | Latitude | | --------- | -------- | | -17 | -5 | | -16 | -4.5 | | -15 | -4 | | -14 | -3.5 | | -13 | -3 | | -12 | -2.5 | | -11 | -2 | | -10 | -1.5 | | -9 | -1 | | -8 | -0.5 | | -7 | 0 | | -6 | 0.5 | | -5 | 1 | | -4 | 1.5 | | -3 | 2 | | -2 | 2.5 | | -1 | 3 | | 0 | 3.5 | | 1 | 4 | | 2 | 4.5 | | 3 | 5 | | 4 | 5 | | 5 | 5 | | 6 | 5 | | 7 | 5 | | 8 | 5 | | 9 | 5 | | 10 | 5 | | 11 | 5 | | 12 | 5 | | 13 | 5 | | 14 | 5 | | 15 | 5 | | 16 | 5 | | 17 | 5 |

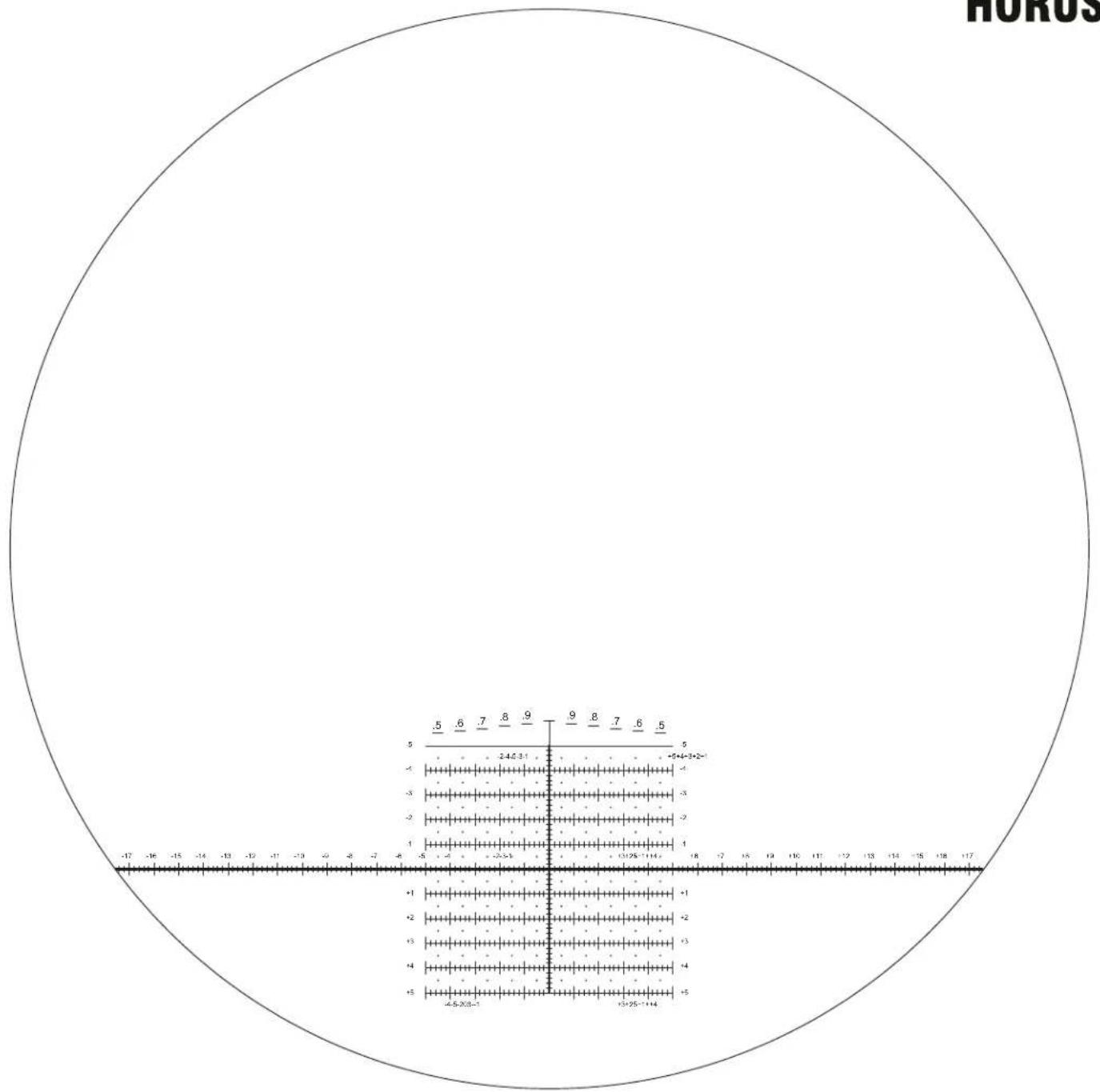

The H322™ reticle features a square HORUS Grid and HORUS Rapid Range Bars.
Designed for use with the H59 and H58 riflescope reticles. Mil radian calibration.

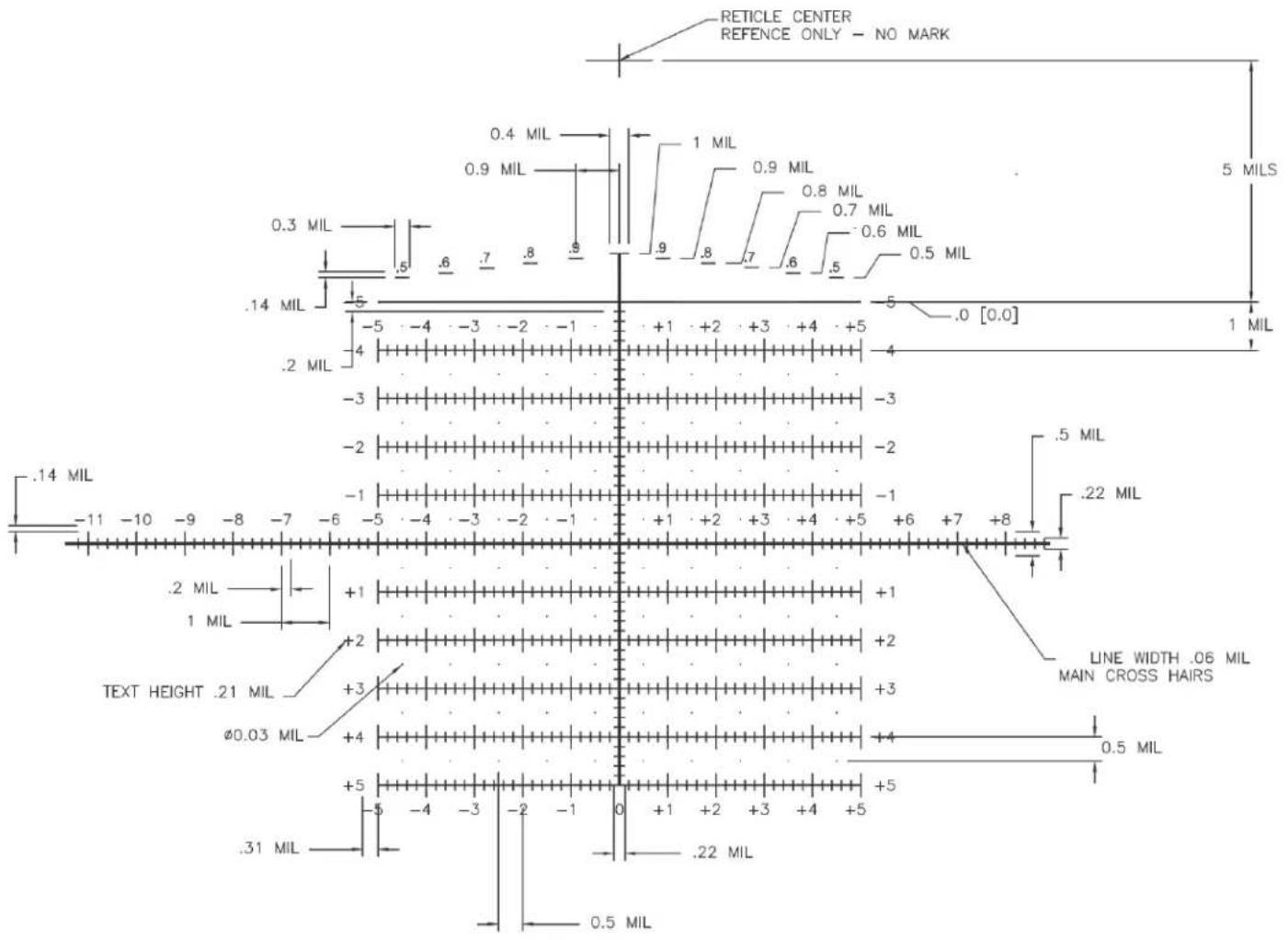

Horus H322™ Spotting Reticle SPECIFICATIONS

BUSHNELL Elite Tactical LMSS2 - Horus H322™ Spotting Reticle SPECIFICATIONS - 1

other | Segment Length | Main Cross Hairs | | -------------- | ---------------- | | 0.4 MIL | +1 to +3 | | 0.9 MIL | +1 to +3 | | 1 MIL | +1 to +3 | | 0.8 MIL | +1 to +3 | | 0.7 MIL | +1 to +3 | | 0.6 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | -5 | +1 to +3 | | -4 | +1 to +3 | | -3 | +1 to +3 | | -2 | +1 to +3 | | -1 | +1 to +3 | | -14 | +1 to +3 | | -11 | +1 to +3 | | -10 | +1 to +3 | | -9 | +1 to +3 | | -8 | +1 to +3 | | -7 | +1 to +3 | | -6 | +1 to +3 | | -5 | +1 to +3 | | -4 | +1 to +3 | | -3 | +1 to +3 | | -2 | +1 to +3 | | -1 | +1 to +3 | | 0 | +1 to +3 | | 5 | +1 to +3 | | 4 | +1 to +3 | | 3 | +1 to +3 | | 2 | +1 to +3 | | 1 | +1 to +3 | | 0.4 MIL | 5 MILs | | 0.9 MIL | 5 MILs | | 1 MIL | 5 MILs | | 0.8 MIL | 5 MILs | | 0.7 MIL | 5 MILs | | 0.6 MIL | 5 MILs | | 0.5 MIL | 5 MILs | | .0 | [0.0] | | .22 MIL | 5 MILs | | .5 MIL | 5 MILs | | .14 MIL | 5 MILs | | .22 MIL | 5 MILs | | .5 MIL | 5 MILs | | .06 MIL | 5 MILs | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | LINE WIDTH | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | LINE CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | LINE CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | LINE CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .06 MILL | LINE CROSS HAIRS | | .06 MILL | MAIN CROSS HAIRS | | .02 MILL | 5 MILs | | .22 MILL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 MILs | | .5 MIL | 5 NILS | | .22 MILL | 5 MILs | | .22 MILL | 5 MILs | | .22 MILL | 5 MILs | | .22 MILL | 5 MILs | | .22 MILL | 5 MILs | | .22 MILL | 5 MILs | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | 5 MILS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | LINE CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .22 MILL | Line CROSS HAIRS | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | 5 MILs | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .21 MILL | LineROSS HAIRS | | .0.03 MILL | 5 MILs | | .0.03 MILL | 5 MILs | | .0.03 MILL | 5 MILs | | .0.03 MILL | 5 MILs | | .0.03 MILL | 5 MILs | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | .0.03 MILL | LineROSS HAIRS | | -3 | 5 MILs | | -3 | 5 MILs | | -3 | 5 MILs | | -3 | 5 MILs | | -3 | 5 MILs | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS | | -3 | LineROSS HAIRS (Line Width)| | -3 | 5.0 (L) | | -3 | 4.0 (L) | | -3 | 4.0 (L) | | -3 | 4.0 (L) | | -3 | 4.0 (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) (Line Width)| | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | -3 | LIME (L) | | | -3 | LIME (L) | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |\text{TEXT HEIGHT}|\nφ0.03\n+4\n+5\n-4\n-3\n-2\n-1\n0\n+1\n+2\n+3\n+4\n+5\n-4\n-3\n-2\n-1\n-1\n-1\n+1\n+2\n+3\n+4\n+5\n-4\n-4\n-3\n-2\n-1\n-1\n-1\n+1\n+2\n+3\n+4\n+5\n-4\n-4\n-3\n-2\n-1\n-1\n-1\n+1\n+2\n+3\n+4\n+5\n-4\n-4\n-3\n-2\n-1\n-1\n-1\n+1\n+2\n+3\n+4\n+5\n-4\LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR LineROSS HAIR< img src="line_formula.png">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img src="line_0">< img here> Line Chart: Vertical axis labeled 'LINE WIDTH' with 'MAIN CROSS HAIRS' label at top right.

KEY FEATURES

  • The H322 reticle is designed to be used with the H58 or H59 riflescope reticle, allowing the shooter and spotter to view a target with the same common frame of reference.
  • Patented Horus Rapid Range Bars, for quickly estimating range to targets of known size. Numbers indicate distance in mils of specific range bar from the horizontal line beneath it.
  • Spotting reticle for observational measurement.
  • Mil line across the center of the reticle grid is to facilitate target measurement, target speed estimation, Second Shot Correction, and to help with target location.
    • The H322 is not currently available with illumination.
  • Secondary horizontal lines allow precise elevation holds. The standard spacing between the secondary horizontal lines is exactly 1 mil.
  • To compensate for wind, drift, speed of target, etc.: each secondary horizontal stadia line is calibrated with "large hash marks" spaced exactly 1 mil apart; between each of the large hash marks, there are smaller evenly spaced hash marks that are exactly 0.2 mils apart.
    • The Horus Grid allows you to quickly and accurately make a Second Shot Correction if your first shot misses.

KEY FACTS

  • The H322 spotting scope reticle is located below the central viewing area.
    • Central targeting grid calibrated in USMC mils (6283 mils/circle) (1 mil = 3.60 inches at 100 yards) (10cm at 100 meters).
  • Precise calibration of measurements to within less than 0.5% .

BUSHNELL Elite Tactical LMSS2 - KEY FACTS - 1

radar | Category | Value | | -------- | ----- | | 0 | -5 | | 1 | -4 | | 2 | -3 | | 3 | -2 | | 4 | -1 | | 6 | 0 | | 7 | 1 | | 8 | 2 | | 9 | 3 | | 10 | 4 | | +1 | 5 | | +2 | 4 | | +3 | 3 | | +4 | 2 | | +5 | 1 | | +6 | 0 | | +7 | -1 | | +8 | -2 | | +9 | -3 | | +10 | -4 | | +11 | -5 | | +12 | -4 | | +13 | -3 |

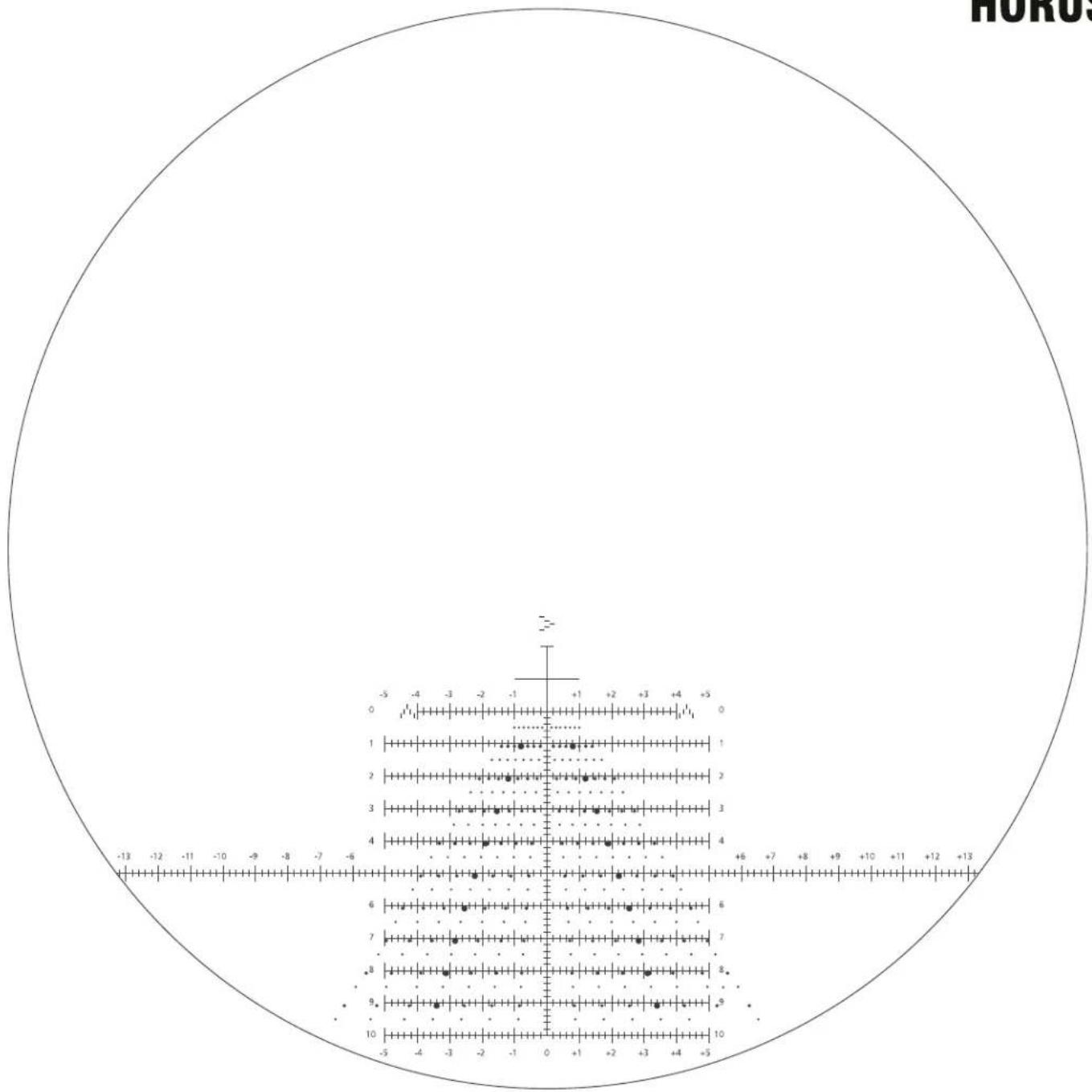

The Tremor4™ reticle combines a square HORUS Grid with patented Wind Dots and refined milling "chevrons" found in the Tremor family of reticles.

Designed for use with the Tremor3 and Tremor2 riflescope reticles. Mil radian calibration.

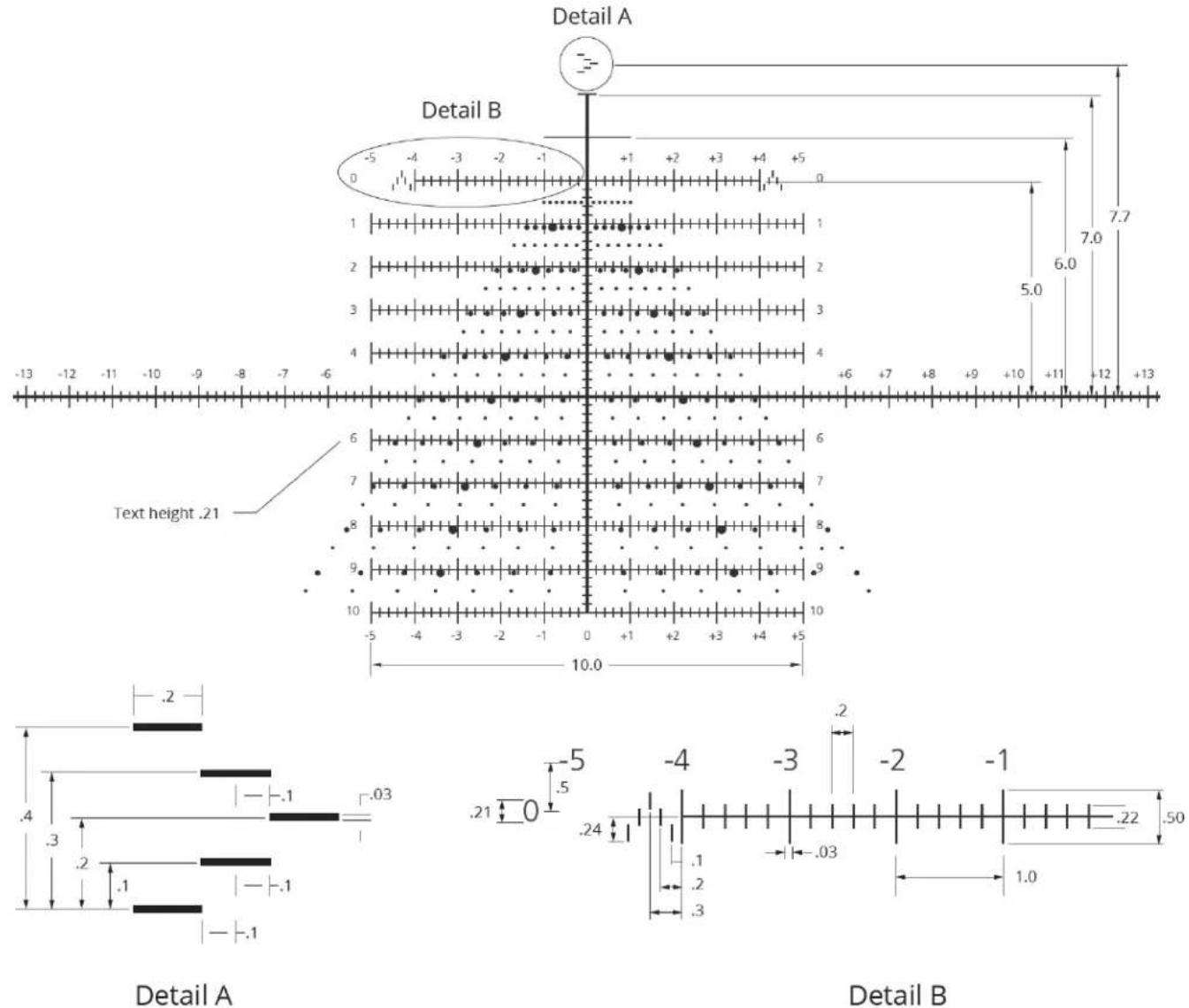

Horus Tremor4™ (T4) Spotting Reticle SPECIFICATIONS

Measurements are in mils

BUSHNELL Elite Tactical LMSS2 - Horus Tremor4™ (T4) Spotting Reticle SPECIFICATIONS - 1

KEY FEATURES

  • The Tremor4 reticle is designed to be used with the Tremor3™ or Tremor2™ riflescope reticle, allowing the shooter and spotter to view a target with the same common frame of reference.
  • Very fine reticle to aid in precise aiming at high power and distant ranges. Refined "chevron" mil markers subtend to 0.1 mils.
  • Patented Wind Dots allow for fast and accurate wind holds.
  • Spotting reticle for observational measurement.
  • Mil line across the center of the reticle grid is to facilitate target measurement, target speed estimation, Second Shot Correction, and to help with target location.
    • Secondary horizontal lines allow precise elevation holds. The standard spacing between the secondary horizontal lines is exactly 1 mil.
  • To compensate for wind, drift, speed of target, etc.: each secondary horizontal stadia line is calibrated with "large hash marks" spaced exactly 1 mil apart; between each of the large hash marks, there are smaller evenly spaced hash marks that are exactly 0.2 mils apart.
    • The Horus Grid allows you to quickly and accurately make a Second Shot Correction if your first shot misses.
    • Not available with illumination.

KEY FACTS

  • Ability to perfectly calibrate wind dots to ballistics of your choice.
    • Excellent milling capability with 0.1 mil resolution milling chevrons, allowing extremely fine mil estimation.
  • The Tremor4 spotting scope reticle pattern is located below the central viewing area, allowing clear observation, while maintaining measurement capability.
    • Central targeting grid calibrated in USMC mils (6283 mils/circle) (1 mil = 3.60 inches at 100 yards) (10cm at 100 meters).
  • Precise calibration of measurements to within less than 0.5% .

BUSHNELL Elite Tactical LMSS2 - KEY FACTS - 1

text_image Bushnell® IRONCLAD WARRANTY ENGINEERED TO LAST

Products manufactured on or after April 2017 are covered by the Bushnell Ironclad Warranty. The Ironclad Warranty is a full lifetime warranty that covers the lifetime of this Product. Each Product has a defined lifetime; lifetimes can range from 1 to 30 years. This Product's lifetime can be found at the website listed below and/or on the Bushnell webpage specific to this Product.

We warrant that this Product is free from defects in materials and workmanship and will meet all represented performance standards for the lifetime of this Product. If this Product isn't working properly due to a covered defect, we will, at our option, either repair or replace it and ship it back to you at no charge. This warranty is fully transferable and does not require a receipt, warranty card, or product registration. This warranty does not cover the following: electronic components; batteries; cosmetic damage; damage caused by failing to properly maintain the product; loss; theft; damage as a result of unauthorized repair, modification, or disassembly; intentional damage, misuse, or abuse; and ordinary wear and tear. This Warranty will be void if the date stamp or other serialization codes have been removed from the Product.

To view the full warranty and find details on how to request service under the warranty, go to our website at www.bushnell.com/warranty. Alternatively, you can request a copy of the warranty by calling us at 1-800-423-3537 or writing to us at one of the following addresses:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

This warranty gives you specific legal rights. You may have other rights which vary from country to country.

©2020 Bushnell Outdoor Products

other | Segment Length | Main Cross Hairs | | -------------- | ---------------- | | 0.4 MIL | +1 to +3 | | 0.9 MIL | +1 to +3 | | 1 MIL | +1 to +3 | | 0.8 MIL | +1 to +3 | | 0.7 MIL | +1 to +3 | | 0.6 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | .0 [0.0] | +1 to +3 | | .14 MIL | +1 to +3 | | .2 MIL | +1 to +3 | | -1 | +1 to +3 | | -2 | +1 to +3 | | -3 | +1 to +3 | | -4 | +1 to +3 | | -5 | +1 to +3 | | -6 | +1 to +3 | | -7 | +1 to +3 | | -8 | +1 to +3 | | -9 | +1 to +3 | | -10 | +1 to +3 | | -11 | +1 to +3 | | -14 | +1 to +3 | | .22 MIL | +1 to +3 | | .5 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | +1 to +3 | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | .06 MIL | 0.5 MIL | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | +1 to +3 | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | 0.5 MIL | <0.5% | | <0.5% | <0.5% | | <1% | <0.5% | | <2% | <0.5% | | <3% | <0.5% | | <4% | <0.5% | | <5% | <0.5% | | <6% | <0.5% | | <7% | <0.5% | | <8% | <0.5% | | <9% | <0.5% | | <10% | <0.5% | | <11% | <0.5% | | <12% | <0.5% | | <13% | <0.5% | | <14% | <0.5% | | <15% | <0.5% | | <16% | <0.5% | | <17% | <0.5% | | <18% | <0.5% | | <19% | <0.5% | | <20% | <0.5% | | <21% | <0.5% | | <22% | <0.5% | | <23% | <0.5% | | <24% | <0.5% | | <25% | <0.5% | | <26% | <0.5% | | <27% | <0.5% | | <28% | <0.5% | | <29% | <0.5% | | <30% | <0.5% | | <31% | <0.5% | | <32% | <0.5% | | <33% | <0.5% | | <34% | <0.5% | | <35% | <0.5% | | <36% | <0.5% | | <37% | <0.5% | | <38% | <0.5% | | <39% | <0.5% | | <40% | <0.5% | | <41% | <0.5% | | <42% | <0.5% | | <43% | <0.5% | | <44% | <0.5% | | <45% | <0.5% | | <46% | <0.5% | | <47% | <0.5% | | <48% | <0.5% | | <49% | <0.5% | | <50% | <0.5% | | | >5 | 22 |

PRINCIPALES CARACTÉRISTIQUES

Copyright 2019 © Horus Vision Reticle Technologies

BUSHNELL Elite Tactical LMSS2 - PRINCIPALES CARACTÉRISTIQUES - 1

text_image Bushnell® IRONCLAD WARRANTY ENGINEERED TO LAST

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2020 Bushnell Outdoor Products

ESPAÑOL

other | Segment | Value | |---------|-----------| | Line Width | 0.6 MIL | | Main Cross Hairs | 0.5 MIL | | Text Height | 21 MIL | | Text Height | 0.03 MIL | | Text Height | 1 MIL | | Text Height | .2 MIL | | Text Height | .31 MIL | | Text Height | .5 MIL | | Text Height | .22 MIL | | Line Width | 0.6 MIL | | Main Cross Hairs | 0.5 MIL | | Text Height | 21 MIL | | Text Height | 0.03 MIL | | Text Height | .22 MIL | | Text Height | .31 MIL | | Line Width | 0.6 MIL | | Main Cross Hairs | 0.5 MIL | | Text Height | 21 MIL | | Text Height | 0.03 MIL | | Text Height | .22 MIL | | Text Height | .31 MIL | | Line Width | 0.6 MIL | | Main Cross Hairs | 0.5 MIL | | Text Height | 21 MIL |

CARACTERÍSTICAS PRINCIPALES

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

© 2020 Bushnell Outdoor Products

text_image ELITE TACTICAL G F E D C B A I ET80-ACOOT SOMATO Made in Japan

BAUTEILÜBERSICHT

other | Position | Value | |--------|-----------| | Top Left | 0.4 MIL | | Top Right | 0.9 MIL | | Bottom Left | 0.3 MIL | | Bottom Right | 0.2 MIL | | Bottom Right | -1 | | Bottom Right | -2 | | Bottom Right | -1 | | Bottom Right | +1 | | Bottom Right | +2 | | Bottom Right | +3 | | Bottom Right | +4 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Bottom Right | +5 | | Top Center | 0.4 MIL | | Top Center | 0.9 MIL | | Top Center | 0.8 MIL | | Top Center | 0.7 MIL | | Top Center | 0.6 MIL | | Top Center | 0.5 MIL | | Top Center | 0.0 [0.0] | | Top Center | 1 MIL | | Top Center | .14 MIL | | Top Center | .22 MIL | | Text Height | 0.14 MIL | | Text Height | 0.22 MIL | | Text Height | 0.5 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .31 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .32 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .33 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .34 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .35 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .36 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .37 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .38 MIL | | Text Height | .39 MIL | | Text Height | .39 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .40 MIL | | Text Height | .41 MIL | | Text Height | .41 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .42 MIL | | Text Height | .43 MIL | | Text Height | .43 MIL | | Text Height | .44 MIL | | Text Height | .44 MIL | | Text Height | .45 MIL | | Text Height | .46 MIL | | Text Height | .47 MIL | | Text Height | .48 MIL | | Text Height | .49 MIL | | Text Height | .50 MIL | | Text Height | .51 MILL | | Line Width: .06 MILL MAIN CROSS HAIRS Line Width: .05 MILL

HAUPTMERKMALE

Copyright 2019 © Horus Vision Reticle Technologies

BUSHNELL Elite Tactical LMSS2 - HAUPTMERKMALE - 1

text_image Bushnell® IRONCLAD WARRANTY ENGINEERED TO LAST

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2020 Bushnell Outdoor Products

ITALIANO

other | Position | Value | |--------|-----------| | 0.4 MIL | 0.9 MIL | | 1 MIL | 0.8 MIL | | 0.9 MIL | 0.7 MIL | | 0.8 MIL | 0.6 MIL | | 0.7 MIL | 0.5 MIL | | 0.6 MIL | 0.5 MIL | | 0.5 MIL | 0.5 MIL | | -5 MIL | -4 MIL | | -3 MIL | -3 MIL | | -2 MIL | -2 MIL | | -1 MIL | -1 MIL | | +1 MIL | +2 MIL | | +3 MIL | +3 MIL | | +5 MIL | +5 MIL | | +7 MIL | +7 MIL | | +8 MIL | +8 MIL | | .0 [0.0] | 1 MIL | | .14 MIL | .14 MIL | | .22 MIL | .22 MIL | | .5 MIL | .5 MIL | | .1 MIL | .2 MIL | | .2 MIL | .2 MIL | | .31 MIL | .31 MIL | | .4 MIL | .4 MIL | | .5 MIL | .5 MIL | | .6 MIL | .6 MIL | | .7 MIL | .7 MIL | | .8 MIL | .8 MIL | | .9 MIL | .9 MIL | | .10 MIL | .10 MIL | | .11 MIL | .11 MIL | | .12 MIL | .12 MIL | | .13 MIL | .13 MIL | | .14 MIL | .14 MIL | | .15 MIL | .15 MIL | | .16 MIL | .16 MIL | | .17 MIL | .17 MIL | | .18 MIL | .18 MIL | | .19 MIL | .19 MIL | | .20 MIL | .20 MIL | | .21 MIL | .21 MIL | | .22 MIL | .22 MIL | | .23 MIL | .23 MIL | | .24 MIL | .24 MIL | | .25 MIL | .25 MIL | | .26 MIL | .26 MIL | | .27 MIL | .27 MIL | | .28 MIL | .28 MIL | | .29 MIL | .29 MIL | | .30 MIL | .30 MIL | | .31 MIL | .31 MIL | | .32 MIL | .32 MIL | | .33 MIL | .33 MIL | | .34 MIL | .34 MIL | | .35 MIL | .35 MIL | | .36 MIL | .36 MIL | | .37 MIL | .37 MIL | | .38 MIL | .38 MIL | | .39 MIL | .39 MIL | | .40 MIL | .40 MIL | | .41 MIL | .41 MIL | | .42 MIL | .42 MIL | | .43 MIL | .43 MIL | | .44 MIL | .44 MIL | | .45 MIL | .45 MIL | | .46 MIL | .46 MIL | | .47 MIL | .47 MIL | | .48 MIL | .48 MIL | | .49 MIL | .49 MIL | | .50 MIL | .50 MIL | | +5+ | +5+ | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +5- | +5- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4- | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ | | +4- | +4+ |

CARATTERISTICHE PRINCIPALI

Copyright 2019 © Horus Vision Reticle Technologies

BUSHNELL Elite Tactical LMSS2 - CARATTERISTICHE PRINCIPALI - 1

text_image Bushnell® IRONCLAD WARRANTY ENGINEERED TO LAST

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2020 Bushnell Outdoor Products

Bushnell®

©2020 Bushnell Outdoor Products

Bushnell, ^™ , ^® , denote trademarks of Bushnell Outdoor Products
