Thank you for purchasing your new Elite e^2^TM . This precision instrument combines superb optical materials, craftsmanship, and technology to create one of the world's finest binoculars. In addition to Bushnell's exclusive Rainguard ^10 hydrophobic lens coating, the Elite e^2 features XTR Coating Technology. XTR is a system of lens and prism coatings that achieve the highest possible light transmission and color fidelity. An internal aspherical lens featuring our Advanced Fusion Hybrid construction provides consistent sharpness across the full field of view. The Elite e^2 chassis is constructed with magnesium for reduced weight (up to 20% lighter than other premium quality binoculars), without compromising strength.

This manual will help you optimize performance by explaining how you can adjust the binocular to your eyes, and how to care for this instrument. Read the instructions carefully before using your binocular.

EYE ADJUSTMENTS

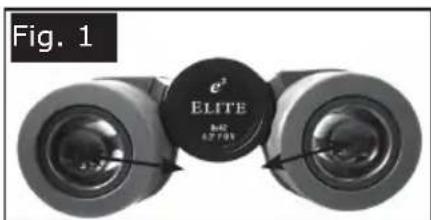

How to Adjust for Distance Between Your Eyes

The distance between the eyes, called “interpupillary distance,” varies from person to person. To achieve perfect alignment of lens to eyes, follow these simple steps.

1. Hold your binocular in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart (Fig. 1) until you see a single circular field.
   Always re-set your binocular to this position before using it.

Close-up of two binoculars with a central e³ ELITE lens (no visible text or symbols on the devices themselves)

Interpupillary Distance Adjustment

How to Adjust for Individual Eye Strength

As individual eyesight varies from one person to another, your Bushnell Elite2 binocular has a diopter setting feature which allows you to fine-tune the binocular to your vision. Follow the focusing instructions on the next page.

FOCUSING

1. Adjust the interpupillary distance (Fig. 1) until you see a single circular image.
2. The diopter adjustment ring is located directly below the center focus knob. To unlock the diopter adjustment, pull the ring straight up (Fig. 2).
3. Make sure the diopter adjustment is set to “zero” (center tab of diopter ring is lined up with index mark). Keep both eyes open at all times.
4. Using the attached lens cap or your hand, cover the objective (front) lens on the right side of the binocular as you look into the eyepieces.
5. Using the center focus knob, focus on a distant object with fine detail (e.g., brick wall, tree branches, etc) until it appears as sharp as possible on the left side.
6. Uncover the objective lens on the right side, and cover the left objective lens while continuing to view the same object.
7. Rotate the unlocked diopter adjustment ring to bring the object into focus in the right side of the binocular. Avoid over-turning or forcing the diopter mechanism. If you are unable to bring the object into focus in the right side by adjusting the diopter ring, make sure the left side is still focused and that the center focus knob was not moved from its original setting. The diopter adjustment only affects the right side.
8. Once the diopter ring is set for your eyesight, push the adjustment ring back down to lock it in place (Fig. 3).
9. Your binocular should now be adjusted for your eyes. Focusing for any distance can now be done simply by turning the center focus knob. Make a note of the diopter setting you made (dot on the +/- scale of the diopter ring lined up with the index mark) for future reference.
10. The Elite e^2 also features a special focus lock feature. With the diopter adjustment ring fully down and locked, push the focus knob down so the green band is not visible (Fig 4). This is useful when you will be observing a subject at a consistent distance for an extended time period, to make sure you don't accidentally shift or bump the focus setting unintentionally, or when you want to pass the binoculars around in a group that is viewing the same subject.

Close-up of a metallic cylindrical component with internal slots, labeled 'Fig. 2' (no other text or symbols visible)

Diopter Adjustment Ring Unlocked

Close-up of a mechanical component with a cylindrical housing and flanges, labeled 'Fig. 3' (no other text or symbols visible)

Diopter Adjustment Ring Locked

Close-up of a metallic cylindrical component with internal slots, labeled 'Fig. 4' (no other text or symbols)

Center Focus Locked

EYECUP ADJUSTMENT: (Fig. 5 and 6)

Your Bushnell Elite e^2 binocular is fitted with twist-up eyecups designed for your comfort and to exclude extraneous light. For users without eyeglasses, twist the eyecups up, rotating the eyecups counter-clockwise until they lock into the fully “up” position (fig. 5). If you wear glasses, make sure the eyecups are in the down position- this will bring your eyes closer to the binocular lens, allowing you to see the full field of view. To lower the eyecups from the full “up” position, rotate them clockwise while pushing down slightly (fig. 6). The eyecups may also be left at positions “in between” fully up and fully down, which may suit some individuals better.

Close-up of a mechanical component with layered structure (no visible text or symbols)

Eyecup in "Up" Position

Close-up of a cylindrical object with textured surface, labeled 'Fig. 6' (no other text or symbols visible)

Eyecup in "Down" Position

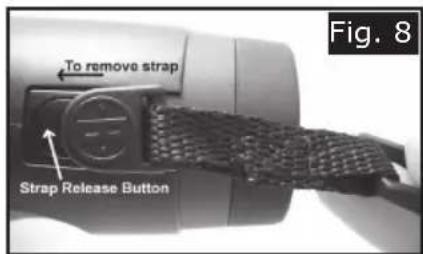

NECKSTRAP ATTACHMENT : (Fig. 7 and 8)

To attach the short strap adapter, first align the strap with the plastic post positioned as shown in Fig. 7. Push the post straight down onto the release button (white arrow), then slide it up towards the eyepiece (black arrow) as shown in Fig. 7, until it clicks into place. Make sure the release button pops back up. The long neckstrap may be looped through the lugs on the short straps either before or after this procedure. To remove the strap, press the release button, and slide the post back out of the socket (Fig. 8).

Close-up of a mechanical component with a U-shaped cutout (no visible text or symbols)

Strap Attachment Socket

Close-up of a hand pressing a button on a device (no visible text or symbols)

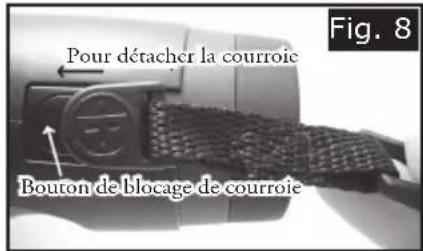

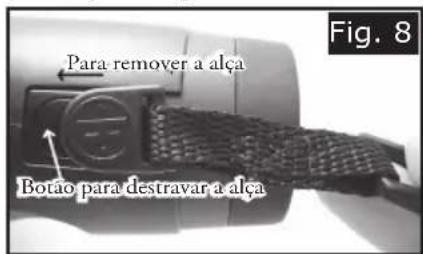

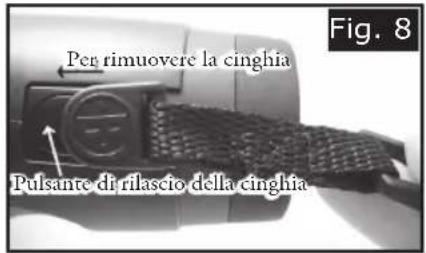

To remove strap Strap Release Button Fig. 8

TRIPOD SOCKET : (Fig. 9)

To attach the Elite e^2 to a tripod or monopod, unscrew (counter-clockwise) the “B” logo cap which covers the threaded socket inside the center hinge, and set it aside in a safe place. Use a compatible binocular tripod adapter, such as the Bushnell model #161001CM, (a accessory bracket, shown below, which goes between the binocular and tripod) to attach your Elite e^2 to any standard tripod in a horizontal position to provide a stable image during prolonged

viewing.

Close-up of a car's front wheel with a circular emblem bearing 'B' and text 'Fig. 9' (no other visible text or symbols)

Binocular Tripod Adapter (optional) (Bushnell#161001CM)

WATERPROOF / FOGPROOF

Your Bushnell Elite e^2 binocular has been designed and built utilizing the latest waterproof and fogproof technology. Elite binoculars are O-ring sealed for complete moisture protection. Fogproof protection is achieved from dry nitrogen purging that removes all internal moisture.

INSTRUCTIONS FOR CARE

Your Bushnell Elite e^2 binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument.

1. Avoid sharp impacts. Set the binocular down gently on hard surfaces.
2. Tug on the strap after attaching it to make sure it is securely fastened to the binocular before placing it around your neck.
3. Store your binocular in a cool, dry place whenever possible.

CLEANING

1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included, washable "microfiber" cleaning cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth.
3. For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth – never directly on the lens.

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR BINOCULAR AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

WARRANTY/REPAIR

ELITE LIFETIME LIMITED WARRANTY

We are so proud of our Bushnell Elite e^2 Binoculars that their materials and workmanship are warranted to be free of defects for the life of the binocular. The warranty is available to any owner of the Elite e^2 Binocular. No receipt or warranty card is required. This warranty does not cover damages caused by misuse or improper handling, installation or maintenance of the riflescope.

At our option, we will repair or replace any defective Elite e^2 binocular, which shall be your sole remedy under this warranty. In no event shall we be liable for transportation costs to us, costs of removal or reinstallation of the binocular, or incidental or consequential damages. Some states do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Any return in the U.S. or Canada made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of \$10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Purchase
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN U.S.A. Send To:

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

8500 Marshall Drive 25A East Pearce Street, Unit 1

Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9

IN CANADA Send To:

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at: BUSHNELL Performance Optics GmbH

European Service Centre

MORSESTRASSE 4

D- 50769 KÖLN

GERMANY

Tél: [phone]

Fax: [phone]

This warranty gives you specific legal rights. You may have other rights which vary from country to country.

©2007 Bushnell Outdoor Products
