USER MANUAL QC330 HUSQVARNA

EN Operator's manual 2-10

AR J2J11-18

BG PbkoBoDCTBO 3a eKcNIOaTaunr 19-29

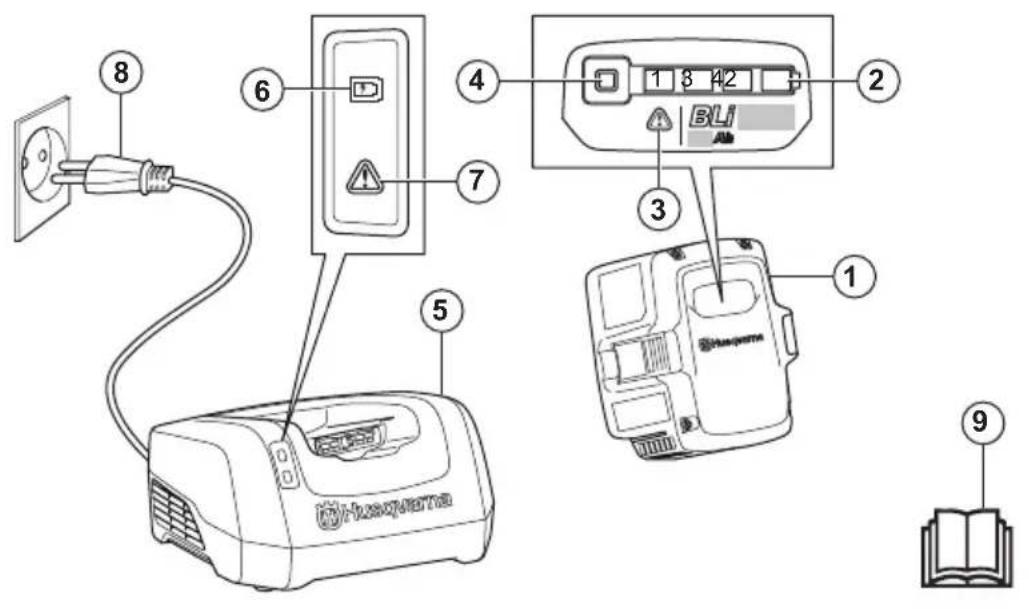

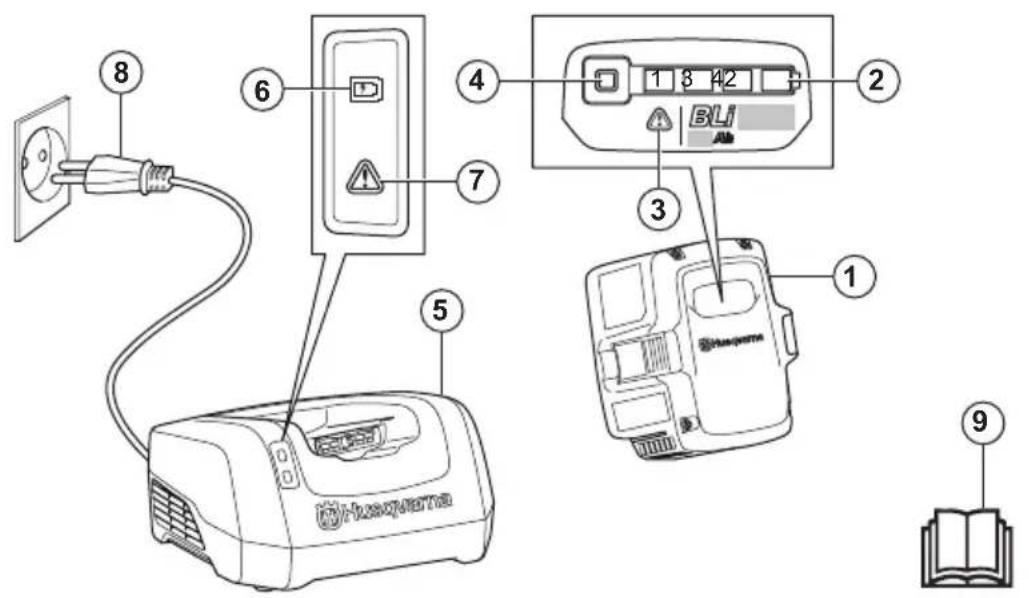

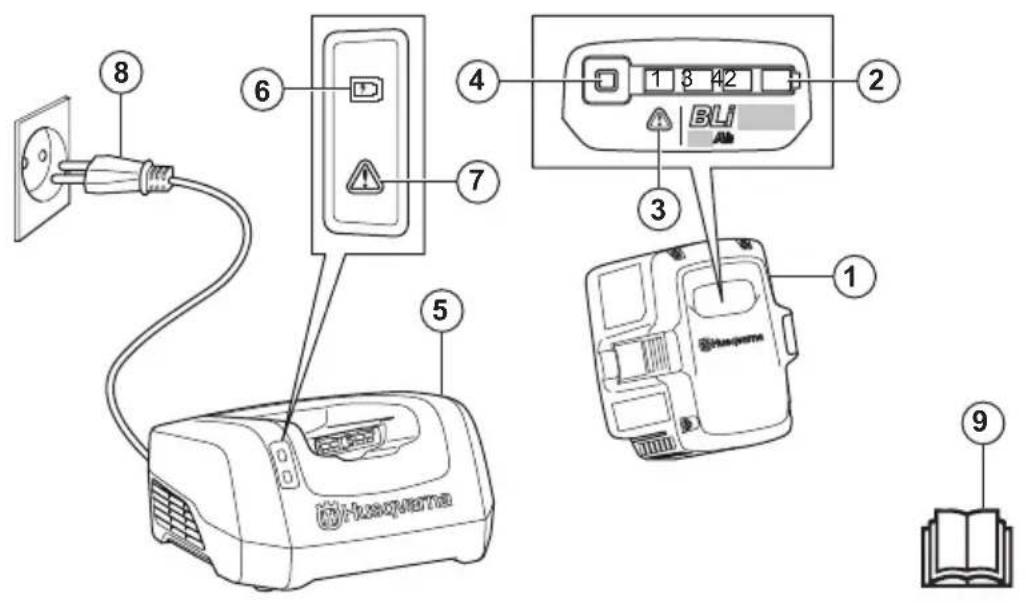

1. Battery 2. LED indicator for the state of charge

1. Warning LED
2. Battery indicator button
3. Battery charger
4. Charging LED
5. Error LED
6. Power plug
7. Operator's manual

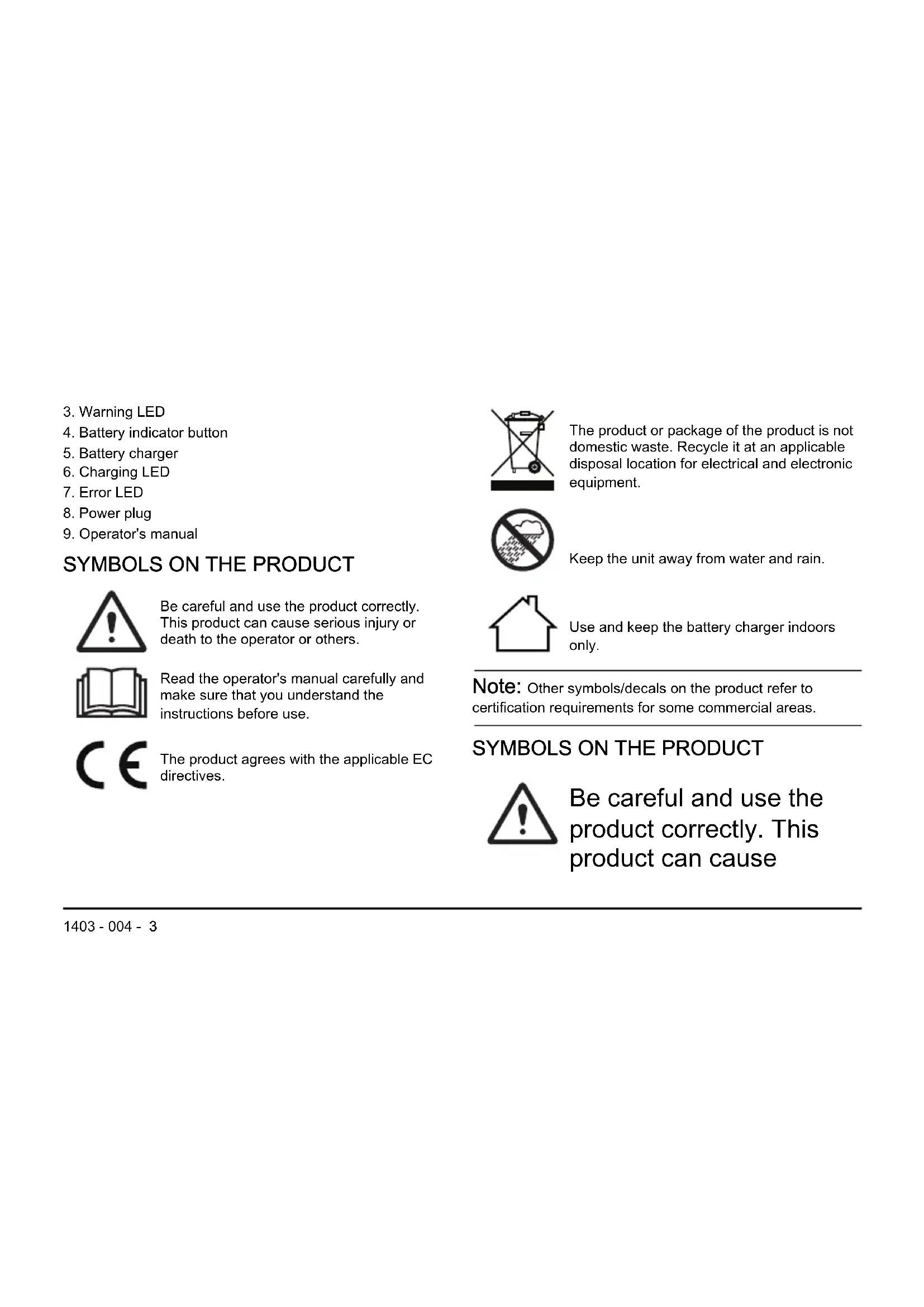

SYMBOLS ON THE PRODUCT

Be careful and use the product correctly. This product can cause serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

The product agrees with the applicable EC directives.

The product or package of the product is not domestic waste. Recycle it at an applicable disposal location for electrical and electronic equipment.

Keep the unit away from water and rain.

Use and keep the battery charger indoors only.

Note: Other symbols/decals on the product refer to certification requirements for some commercial areas.

SYMBOLS ON THE PRODUCT

Be careful and use the product correctly. This product can cause

serious injury or death to the operator or others.

Read the operator's manual carefully and make sure that you understand the instructions before use.

Keep the unit away from water and rain.

Use and keep the battery charger indoors only.

Note: Other symbols/decals on the product refer to certification requirements for some commercial areas.

SAFETY DEFINITIONS

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and all instructions. Failure to obey the warnings and instructions may result in electrical shock, fire and/or serious injury.

• Only use the battery chargers, QC330 or QC500 to charge Husqvarna original batteries.

The batteries are software encrypted.

• Do not use non-rechargeable batteries.
• Do not try to disassemble or repair the battery charger.
• Do not connect the battery charger terminals to metal objects.
• The charger is using a C17 standard sheet cord set.
• Use an approved grounded mains socket that is not damaged.
• Regularly examine that the power cord is not damaged.

Immediately disconnect the battery charger if the power cord is damaged.

• If the power cord is damaged, let an approved service agent replace the power cord.
• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the power plug. Do not pull the power cord.
• Keep all cables and extension leads away from water, oil and sharp edges. Make sure that the power cord is not caught

between doors, fences or equivalent.

• Do not clean the battery or the battery charger with water.
• Keep the battery charger away from children.
• Do not use a defective or damaged battery charger or battery.
• Do not use the battery charger when there is a risk of lightning.

• Only use the battery charger indoors in an environment with good airflow and the correct temperature.

• Keep the battery charger away from sunlight. Do not use the battery charger outdoors or in wet conditions.

• Do not operate the battery charger with wet hands.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Pull out the power plug to the battery charger if there is smoke or fire.

• Do not put a cover on the battery charger during operation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

OPERATION

• Use the battery charger only when the ambient temperature is between 5^ (41^) and 40^ (104^) .

OPERATION

• Always use Husqvarna BLi100, BLi200, BLi300, BLi200X, BLi550X or BLi950X batteries.
• Use the battery charger only when the ambient temperature is between 5^ (41^) and 40^ (104^) .

To charge the battery

CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet. The charging LED flashes 1 time.

CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

1. Connect the battery to the battery charger. The charging LED comes on.

2. Remove the battery from the battery charger when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.

3. Pull the power plug to disconnect the battery charger from the power outlet. Do not pull the power cord.

TROUBLESHOOTING

Condition Possible faults	Possible procedure
The charging LED flash-es green.	Temperature deviation, the battery is too cold or too hot to use or charge.	Let the battery cool down or warm it up. When the battery has the correct temperature, it can be used or charged again. Use the battery charger in ambient temperatures between 5 °C (41 °F) and 40 °C (104 °F).
The charging LED is red.	Permanent battery charger error.	Speak to your dealer.
The charging LED flash-es red.	Defective battery. Speak to	your dealer.

TRANSPORTATION AND STORAGE

• Safely attach the product during transportation to prevent damage and accidents.

• Keep the product in a locked area to prevent access for children or persons that are not approved.

• Put the product in a dry, frost-free and clean space with correct temperature.

• Put the product in storage where the temperature is between 5^ (41^) and 25^ (77^) . Keep the product away from sunlight.

• Keep the battery away from the battery charger during storage.

DISPOSAL

Husqvarna products are not domestic waste and must only be discarded as given in this manual.

• Obey the local disposal requirements and applicable regulations.
  Recycle the battery charger and package at an applicable disposal location.
• Speak to your local Husqvarna dealer for more information on how to recycle and discard the battery.

TECHNICAL DATA

For technical data, refer to the rating plate of the battery charger.
