USER MANUAL FM 200 BEURER

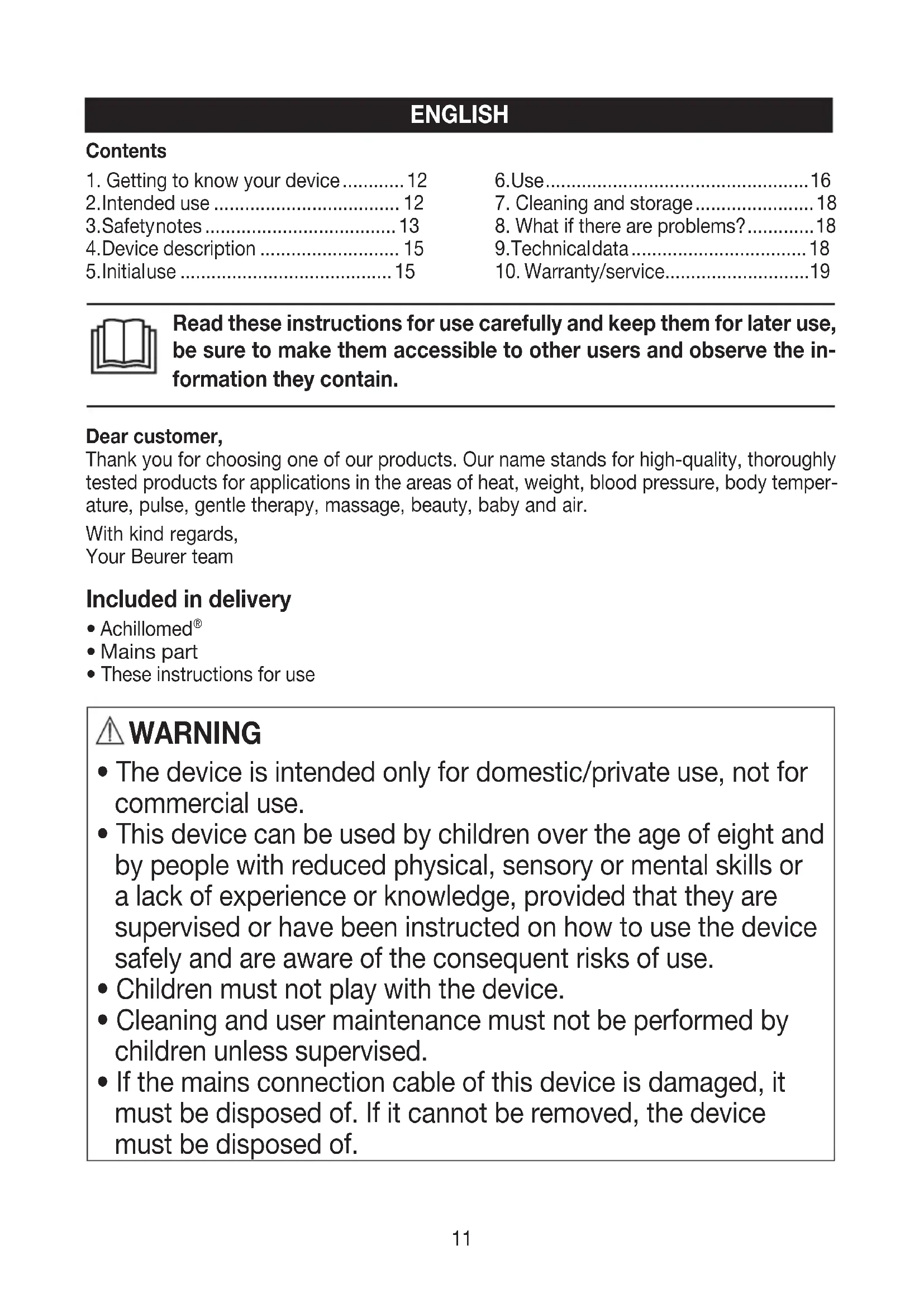

These instructions for use WARNING

• The device is intended only for domestic/private use, not for commercial use.

• This device can be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely and are aware of the consequent risks of use.

• Children must not play with the device.

• Cleaning and user maintenance must not be performed by children unless supervised.

• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of. Contents

1. Getting to know your device ............ 12

8. What if there are problems? ............. 18

ENGLISH12 Signs and symbols The following symbols appear in the instructions for use and on the type plate: WARNING Warning notice indicating a risk of injury or damage to health. IMPORTANT Safety note indicating possible damage to the device/accessory. Note Note on important information. The unit is double-protected and thus corresponds to protection class 2. Only use indoors.

1. Getting to know your device

The Achilles tendon is the strongest tendon in the human body. It is subjected to particularly high stresses when running/walking. Especially among athletes, such as runners, sustained overstressing and incorrect stressing may result in painful inflammation of the Achilles tendon. FM 200 Achillomed

has been specially developed to relieve Achilles tendinitis. The Achil- lomed

has six rotating massage heads that can alleviate Achilles tendon problems with a soothing massage. The Achillomed

also offers you the following benefits:

• Illuminated LED display

• Removable massage heads for easy and hygienic cleaning

• Footrest with height and width adjustment for comfortable use

This device is exclusively intended to massage the human Achilles tendon. The device is only suitable for private use, and not for medical or commercial purposes. It cannot replace medical treatment. Do not use the device if one or several of the following warnings applies to you. If you are unsure whether the device is suitable for you, please consult your doctor. The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.13

Read these instructions for use carefully! Non-observance of the following information may result in personal injury or material damage. Store these instructions for use and make them accessible to other users. Make sure you include these instructions for use when handing over the device to third parties. WARNING Do not use the device

If you suffer from a medical abnormality or injury of the Achilles tendon (e.g. open wounds)

If you have a pacemaker

On the face (eyes), on the larynx or any other particularly sensitive body parts

After the consumption of medicines or alcohol (reduced cognition!)

In vehicles You should consult your doctor before using the device, especially

If you suffer from a severe illness or have recently had surgery on your Achilles tendon

If you have a pacemaker, implants or other aids

If you suffer from thrombosis, diabetes or unexplained pain WARNING Keep packaging material away from children. There is the risk of suffocation. Electric shock WARNING As with every electrical device, use the Achillomed

carefully and cautiously in order to avoid hazards due to electric shock. Therefore, observe the following instructions for use:

Only use the device with the mains part provided and at the mains voltage specified on the mains part

Never use the device if it or its accessories show visible signs of damage

Do not use the device during a thunderstorm In the event of defects or operational faults, switch the device off immediately and disconnect it from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains part from the socket. Never hold or carry the device by the mains cable. Keep the mains cable away from hot surfaces. Do not crush, bend or twist the mains cable. Do not insert needles or other sharp objects into the device. Ensure that the device, the mains part and the mains cable do not come into contact with water, steam or other liquids. Only use the device in dry rooms (e.g. never in the bath, sauna). Never reach for a device that has been submerged in water. Unplug the mains part from the socket immediately. Do not use the device if it or its accessories are visibly damaged. Do not drop the device or subject it to any impacts.14 Repairs WARNING

Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger. For repairs, please contact Customer Services or an authorised retailer. Risk of fire WARNING There is a risk of fire if the device is used improperly or these instructions for use are ignored. Therefore, observe the following instructions for use:

Never use the massager underneath a cover, such as a blanket, pillow, etc.

Never use the device near petrol or other highly flammable substances. Handling IMPORTANT The device must be switched off and disconnected from the mains after every use and before cleaning.

Do not place any objects between the rotating massage heads. Ensure that the moving parts can move freely at all times.

Do not sit, lie or stand with your full weight on the moving parts of the device.

Do not place any objects on top of the device.

Do not expose the device to high temperatures. Disposal IMPORTANT For environmental reasons, do not dispose of the device in the household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.15

button Press once = low massage setting Press twice = high massage setting Press 3 times = switch off device

(2 massage directions)

7. Footrest with height and width

Remove the packaging.

Check the device, mains part and mains cable for damage.

Insert the mains cable connector plug into the mains part socket on the device.

Ensure that the mains cable does not pose a trip hazard.16

for longer than 15 minutes a day. Longer massages can lead to over-stimulation of the Achilles tendon, creating tension instead of aiding relaxation.

features an automatic switch-off function, which is set to the maxi- mum operating duration of 15 minutes. If you change the massage speed or direction during the application, the automatic switch-off timer starts again from the beginning (15 minutes).

You can use the Achillomed

with bare feet or with socks on. To ensure an optimal massage effect, we recommend that you use the Achillomed

with bare feet. To start the application with the Achillomed

, proceed as follows:

Plug the mains part into a suitable sock- et. Ensure that the mains cable does not pose a trip hazard.

on a raised sur- face. Ensure that the Achillomed

is po- sitioned roughly at the height of your seat (e.g. chair or sofa).

Sit down on the chair (or any kind of seat) in front of the positioned Achillomed

The massage heads start to rotate. WARNING Danger of crushing! Do not force or jam your hands, fingers or hair between the rotating massage heads.17

Position your leg carefully with the Achil- les tendon to be treated on the Achillo- med

. Ensure that your Achilles tendon is in the centre between the rotating massage heads. The massage should feel pleasant and relaxing at all times. If the massage is painful or uncomfortable, stop the mas- sage or change the position of your foot. You can individually adjust the position of your foot using the footrest with height and width adjustment. You can place your other leg on top of the leg being treated. This way, you can also regulate the massage intensity.

6. To change the massage direction, press

the button. Depending on the mas- sage direction, the left or right LED of the button lights up. If you press and hold the button for half a second, the Achillomed

switch- es to a massage programme. The left and right LEDs of the button light up. The massage direction is now con- trolled automatically. Press the but- ton to switch the automatic massage programme off again.

off. Note We recommend that you start with the lower massage speed so that you get used to the Achillomed

7. Cleaning and storage

Always unplug the mains part from the socket and disconnect it from the device before carrying out any cleaning.

Clean the device using only the methods specified. Under no circumstances may liquid enter the device or the accessories.

Small marks can be removed using a cloth or damp sponge, and some liquid delicate laundry detergent where necessary. Do not use any solvent-based cleaning products.

For hygienic cleaning, you can also remove the massage heads individually. To do this, press the triangle on the massage head and pull it up and off. Clean the massage heads with a damp cloth and some liquid delicate laundry detergent where necessary. Do not use any solvent-based cleaning products. Do not put the cleaned massage heads back on the Achillomed

until they are completely dry.

Do not use the device again until it is completely dry. Storage If you do not plan to use the device for a long period of time, we recommend that you store it in the original packing in a dry environment, ensuring it is not weighed down by additional items. Do not place any objects on top of the massage heads.

8. What if there are problems?

Problem Cause Solution Massage heads rotating too slowly. The load on the massage heads is too great. Free up massage heads. Massage heads do not move. The device is not connected to mains power supply. Plug in the mains part and switch on the device ( button).

10. Warranty/service

In case of a claim under the warranty please contact your local dealer or the local repre- sentation which is mentioned in the list “service international”. In case of returning the unit please add a copy of your receipt and a short report of the defect. The following warranty terms shall apply:

1. The warranty period for BEURER products is either 3 years or- if longer- the country

specific warranty period from date of Purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Repairs (complete unit or parts of the unit) do not extend the warranty period.

3. The warranty shall not be valid for damages because of

a. improper treatment, e.g. nonobservance of the user instructions. b. repairs or tampering by the customer or unauthorised third parties. c. transport from the manufacturer to the consumer or during transport to the service centre. d. The warranty shall not be valid for accessories which are subject to normal wear and tear (cuff, batteries etc.).

4. Liability for direct or indirect consequential losses caused by the unit are excluded even
