USER MANUAL EM 32 BEURER

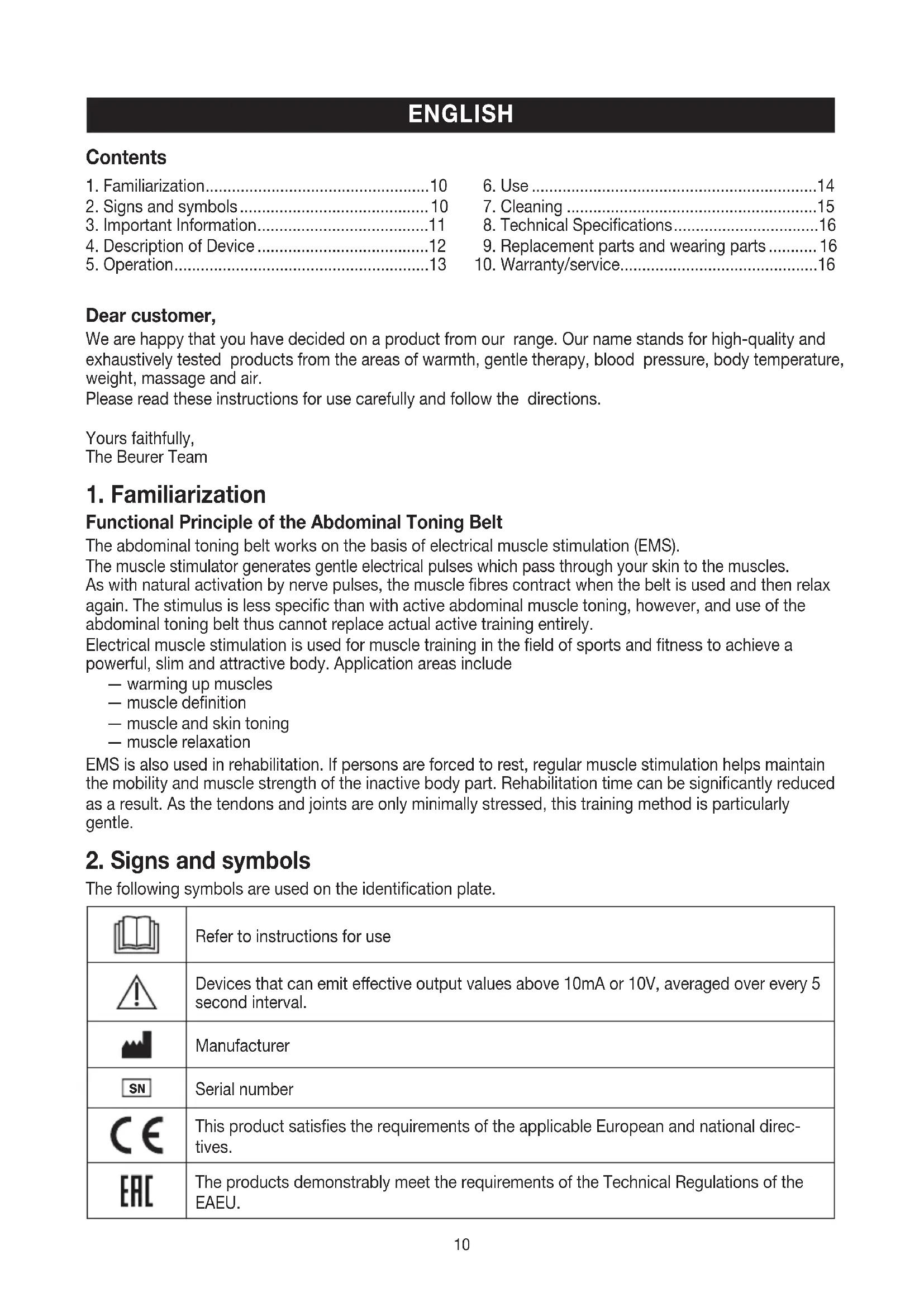

Functional Principle of the Abdominal Toning Belt The abdominal toning belt works on the basis of electrical muscle stimulation (EMS). The muscle stimulator generates gentle electrical pulses which pass through your skin to the muscles. As with natural activation by nerve pulses, the muscle fibres contract when the belt is used and then relax again. The stimulus is less specific than with active abdominal muscle toning, however, and use of the abdominal toning belt thus cannot replace actual active training entirely. Electrical muscle stimulation is used for muscle training in the field of sports and fitness to achieve a powerful, slim and attractive body. Application areas include ― warming up muscles ― muscle definition ― muscle and skin toning ― muscle relaxation EMS is also used in rehabilitation. If persons are forced to rest, regular muscle stimulation helps maintain the mobility and muscle strength of the inactive body part. Rehabilitation time can be significantly reduced as a result. As the tendons and joints are only minimally stressed, this training method is particularly gentle.

2. Signs and symbols

The following symbols are used on the identification plate. Refer to instructions for use Devices that can emit eective output values above 10mA or 10V, averaged over every 5 second interval. Manufacturer

Serial number This product satisfies the requirements of the applicable European and national direc- tives. The products demonstrably meet the requirements of the Technical Regulations of the EAEU. ENGLISH Contents

9. Replacement parts and wearing parts ........... 16

ATTENTION: Proper use ― Only use this device for the purpose for which it was developed and in the manner specified in the In- structions for Use. Any improper use can be hazardous. ― If you wear jewellery or piercings (e.g. navel piercing) make sure that you take it of before using the de

vice. Otherwise it may cause punctual burnings. ― Do not use this device simultaneously with other devices which give electrical pulses to your body (e.g. TENS devices). ― The device is only for private use and is not intended for medical or commercial purposes. ― The manufacturer assumes no liability for damages caused through improper or wrong use. ― If you are in any doubt, do not use and contact your dealer or a specified customer service address. ― Only use the device with the accessory parts supplied. Note: In rare instances skin irritation in the region of the electrodes may occur. Improper use ― The device must not be used: ― On the head: here it can cause seizures. ― On the neck / carotid artery: here it can cause cardiac arrest. ― On the pharynx and larynx: here it can cause muscle spasms, which lead to suffocation. ― Near the ribcage: Here it can increase the risk of ventricular fibrillation and lead to car

diac arrest. ― Keep the device away from children to prevent any hazards. ― This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use. Children must not play with the device. Cleaning and user maintenance must not be performed by children un

less supervised. ― Keep the device away from heat sources. ― Do not use the device near (less than 1 m away from) shortwave or microwave devices (such as mobile phones) as these could influence the effect. ― Never use the device while you bathe or shower. Do not store or keep the device in places from which it can fall into a bathtub or washbasin. ― Never submerge the device in water or other liquids. Damage ― Check the device at regular intervals for signs of wear or damage. If you find such signs or if the device was used improperly, you must bring it to the manufacturer or dealer before it is used again. ― Switch off the device immediately if it is defective or if it malfunctions. ― Only have repairs carried out by the customer service department or an authorized dealer. ― Do not, under any circumstances, attempt to repair the device by yourself! Caution - For your safety ! The device is only designed for use by healthy adults. The device should never be used in the following cases. ― users with medical implants (e.g. cardiac pacemaker) ― if there are any metal implants ― Cardiac arrhythmias ― Acute illness ― Epilepsy ― In malignant diseases ― In the region of skin injuries and cuts ― Pregnancy ― When there is an increased tendency to bleed, e.g. after an acute injury or a fracture. The stimulation current can trigger or exacerbate bleeding. ― After operations when muscle contractions could impair the healing process12 ― When a high frequency surgical device is connected at the same time ― In case of low or high blood pressure ― High fever ― Psychosis ― In swollen or inflamed regions ― For acute or chronic diseases of the gastrointestinal tract If in doubt, consult your doctor. Notes on handling batteries ― If your skin or eyes come into contact with battery fluid, flush out the affected areas with water and seek medical assistance.

Choking hazard! Small children may swallow and choke on batteries. Store the batteries out of the reach of small children. ― Observe the plus (+) and minus (-) polarity signs. ― If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth. ― Protect the batteries from excessive heat.

Risk of explosion! Never throw batteries into a fire. ― Do not charge or short-circuit batteries. ― If the device is not to be used for a long period, take the batteries out of the battery compartment. ― Use identical or equivalent battery types only. ― Always replace all batteries at the same time. ― Do not use rechargeable batteries. ― Do not disassemble, split or crush the batteries.

4. Description of Device

3. Program and lock key

4. Selection key - Increase intensity

5. Selection key - Reduce intensity

8. Battery compartment lid

9. Surface electrodes

10. Covers for electrode connection

Never attach the belt with bare metal electrodes. Use of the belt without electrode covers can cause injury.

Description of the display symbolsA Key key lock is activated

E F B C B Pause symbol flashes if pause is activatedC Battery status displayflashes if the battery is flatD Intensity set intensity levels 0 - 40E Program selected program with the number of training cycles already com pletedF Timer remaining time for the program started

Inserting batteriesIf the battery symbol in the display flashes, the batteries are flat and must be replaced. The operating unit must be removed from the holder on the belt to insert or replace bat teries. ― Pull the device upwards out of the holder. ― Remove the battery compartment lid. ― Insert the batteries observing the markings in the battery compartment. Ensure correct battery polarity.Note: ― Rechargeable batteries cannot be used for this device. ― If the device is not in use, we recommend keeping the device separate from the belt. ― If the device is not needed for a long period, we recommend first removing the batteries. ― The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the batteries. ― The codes below are printed on batteries containing harmful substances: Pb = Battery contains lead, Cd = Battery contains cadmium, Hg = Battery contains mercury. ― For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the de vice in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.Attaching the belt Before each training session you should ensure that your skin is clean and free of creams or oils. Only then can the device work optimally. ― Lay the belt down with the electrodes facing towards you. ― Moisten both electrodes and your stomach with water. Make sure the electrode surfaces are evenly moistened to avoid high voltage points on your skin during subsequent training. ― Place the belt around your waist so that the electrodes are positioned on your stomach. Then close the Velcro fastener. The belt is made of an elastic material and fits a wide range of waist sizes. Take care that it is tight enough for good contact between the electrode and skin, but does not constrict you.14 Where must the belt only be used: Only attach the belt around the stomach. The navel should be covered at the center. Automatic deactivation If the device is not used after it is switched on, it switches o automatically after 5 minutes.

General advice on training with the abdominal toning belt In the first week you should not use the abdominal toning belt more than once a day to allow your muscles to acclimatise slowly to the device. From then onwards you can train more frequently. Note: To allow your muscles to recover, you should rest for at least 5 hours between training sessions. The intensity of training can be matched to your personal fitness level in this way. It is nonetheless recom- mended to proceed through a program one step at a time. The programs A to E are coordinated so that your muscles are given sucient time to adapt to more intensive training with each application. Programs A to E dier in their frequency, period of the training pulses, pause between the training pulses. The device is set with a training plan so it works through the programs A to E and repeats each program a dierent number of times. You can select the program yourself however. How to train correctly What you feel when training At the beginning of the training session you will feel a slight tingling sensation. With increasing intensity you will feel muscle contractions in the surrounding area and directly under the electrodes. Each contraction starts with a slow rise in voltage; this is held for several seconds at the set intensity. The muscle then relaxes again gently. Switching on the device Press the On/O switch. A short signal sounds and the LCD lights up. Program A is activated the first time the device is started. Selecting the program The abdominal toning belt has five coordinated programmes, which you can work through over the course of several weeks. You start the first week with program A at a low level and raise the level of your training with increasing muscle strengthening. The abdominal toning belt is set so that after a certain number of training cycles the next programme level is set automatically. You can also select the program by yourself according to your well-being and fitness level. Observing the training cycle Each training session consists of three phases: ― a warm up phase (30 Hz) of two minutes duration, which prepares the muscles for training ― a training phase (at a different frequency depending on the training program) ― a relaxation phase (30 Hz) of two minutes during which the muscles can relax again Program Running time [min] Repetitions Training frequency [Hz] A 22 4 45 / 60 B 22 4 60 / 80 C 22 8 45 navel15 Program Running time [min] Repetitions Training frequency [Hz] D 31 16 60 E 31 continuous 80 Setting the intensity level Note: The intensity can only be set if the electrodes have skin contact. You have to set the intensity level at the beginning of each training session. Press the intensity selection key

to increase the intensity and intensity selection key

. to reduce the intensity. Depending on the intensity, you will firstly feel tingling and later a muscle contraction. Only set the inten

sity as high as it still feels pleasant for you. Stopping pulses that are too strong You can reduce the intensity at any time or switch o the device again by pressing the On/O key (~2seconds). If you pull the belt away from your stomach so the skin contact in the electrode region is interrupted, the intensity level automatically returns to zero. If contact is reestablished with the skin no more voltage is applied. Avoiding unwanted pulse changes To avoid inadvertently increasing the intensity of a training session, simply switch on the key lock. Press the program selection key for around 3 seconds for this purpose. An acoustic signal sounds and the “ ” symbol appears on the display. To deactivate the key lock press the key once more. Reacting to unpleasant sensations If you feel prickling or itching on your skin even if, at this stage, you only notice a tingling and not muscle contraction, you should switch o the device and proceed as follows: ― Check whether the electrodes are OK or if they are defective. ― Check whether the round cover over the electrode connections is still in place. ― Take the belt off and completely moisten it again. ― Ensure good skin contact and good moistening the next time the belt is applied. Taking a break during the training session If you wish to take a break during a program, briefly press the Pause key. An acoustic signal sounds and the pause symbol “II” symbol appears on the display. By pressing the key again you can continue the program. Reading o the number of training sessions You can read o the number of your training sessions on the display. The numbers after the program denote how often you have already fully completed a program. These numbers are stored until there is a battery change. With the accessory set (not included in delivery), you can attach two additional adhesive electrodes to the control unit for flexible muscle stimulation. You can obtain the accessory set from our customer services using the item number 647.05. To use the flexible muscle stimulation, proceed as follows:

1. Remove the connection cable and the adhesive electrodes from the accessory set.

2. Connect the connection cable to the adhesive electrodes.

3. Insert the plug for the connection cable into the side socket on the control unit.

Please observe the instructions for use included with the accessory set.

― Remove the batteries from the device each time you clean it. ― Clean the device with a slightly moistened cloth. In case of more extreme soiling you can also moisten the cloth with mild soapy water. ― Never drop the device.16 ― Ensure that no water penetrates into the device. If this should ever happen then only use the device once it is completely dry. ― Do not use any chemical cleaners or abrasive agents for cleaning. ― Once you have removed the device (operating unit), you can wash the belt in luke warm water. Use mild soapy water or a liquid detergent for this purpose. Do not use bleaches. ― The belt is unsuitable for machine washing.

8. Technical Specifications

Model: EM 32 Power supply: 3 x 1.5 V AAA (type LR 03) Electrode size: approx. 11 x 10 cm Parameter (500 Ohm load): – Output voltage max. 70V p-p – Output current: max. 140mA p-p – Output frequency: 30 – 80Hz Pulse duration: 200µs per phase Waveform: symmetrical, dual-phase square wave Weight: ~ 240 g (without batteries) Belt size for waist measurement from 70 to approx. 140 cm. (28 – 55 Inch) Maximum permissible operating conditions: 10 °C to +40 °C, 20-65% relative humidity Maximum permissible storage conditions: 0 °C to +55 °C, 10-90% relative humidity Changes to the technical specifications introduced for reasons of updating without notice are reserved.

9. Replacement parts and wearing parts

Replacement parts and wearing parts are available from the corresponding listed service address under the stated material number. Designation Item number and/or order number Accessory set 647.05

10. Warranty/service

Beurer GmbH,Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Beurer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows. The warranty conditions below shall not aect the seller’s statutory warranty obligations which ensue from the sales agreement with the buyer. The warranty shall apply without prejudice to any mandatory statutory provisions on liability. Beurer guarantees the perfect functionality and completeness of this product. The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller. The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use. German law shall apply. During the warranty period, should this product prove to be incomplete or defective in functionality in accor

dance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.17 Subject to errors and changes If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses. The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required. A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with – a copy of the invoice/purchase receipt, and – the original product. The following are explicitly excluded from this warranty: – deterioration due to normal use or consumption of the product; – accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cus, seals, electrodes, light sources, attachments and nebuliser accessories); – products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer; – damage that arises during transport between manufacturer and customer, or between service centre and customer; – products purchased as seconds or as used goods; – consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions). Repairs or an exchange in full do not extend the warranty period under any circumstances.18 FRANÇAIS Sommaire
