USER MANUAL RT58K7105SL SAMSUNG

English User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. TMF_RT7000_User-servicing-manual.indb 1 2020-12-14 2:50:28English The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

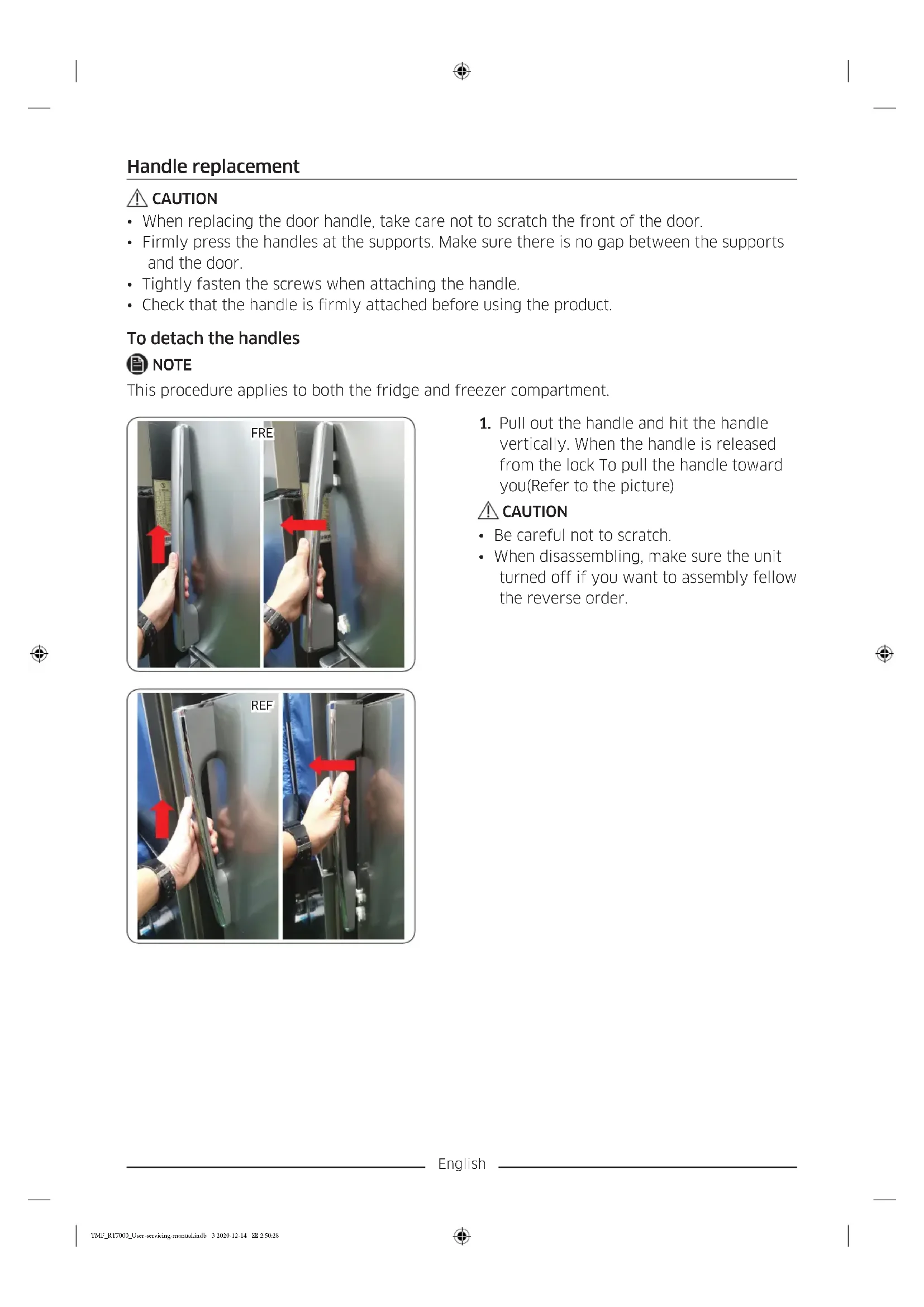

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product. To detach the handles NOTE This procedure applies to both the fridge and freezer compartment. FRE

1. Pull out the handle and hit the handle

vertically. When the handle is released from the lock To pull the handle toward you(Refer to the picture) CAUTION

• Be careful not to scratch.

• When disassembling, make sure the unit turned off if you want to assembly fellow the reverse order. REF TMF_RT7000_User-servicing-manual.indb 3 2020-12-14 2:50:28English Gasket replacement CAUTION Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak. To remove the gasket

1. Pull the 4 corners of gasket Fre & Ref.

2. Pull the center of gasket.

To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the new gasket and the door. TMF_RT7000_User-servicing-manual.indb 4 2020-12-14 2:50:28English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the drawer

1. Remove the drawer by pulling the roller

part and lifting it up. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps. Hinge replacement To replace the hinges, you must remove the doors rst. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. TMF_RT7000_User-servicing-manual.indb 5 2020-12-14 2:50:28English Tools required (not provided) Phillips screwdriver Flat-head screwdriver 11 mm spanner 10 mm socket wrench Allen wrench (5 mm) 10 mm spanner Reversing the door Hinge Up

1. Remove cap cover hinge.

2. Remove screw 1 ea Cover hinge with the

(+) screwdriver and Open.

3. Pull the hooks and lift Cover hinge.

4. Disconnect the wire connector on the

hinge up. CAUTION Be sure to unplug the power cord before performing the operation above.

5. Remove the 2 hex bolts that hold the

hinge on the top of the refrigerator with the 10mm socket wrench.

CAUTION Must working more than 2 people. One person grab the door to prevent falling door. TMF_RT7000_User-servicing-manual.indb 7 2020-12-14 2:50:28English Hinge Mid

1. Remove the 2 hex bolts screw by

2. Remove the screw 1 ea the hinge With

3. Diassembly hinge mid from door ref up.

• Must working more than 2 people.

• Be sure to unplug the power cord before performing the operation above. TMF_RT7000_User-servicing-manual.indb 8 2020-12-14 2:50:29English Hinge Low

1. Lay down product (Refer picture).

• Must to a pad underneath to protect the back of the product from being damaged.

• Must working more than 2 people.

• Be sure to unplug the power cord before performing the operation above.

2. Remove the 3 hex bolts that hold the

hinge with the 8 mm socket Wrench or using (+) screwdriver.

3. Remove Hinge Low.

4. Reassemble in the opposite order of

disassembly after replacing the top, middle, and/or bottom hinge. CAUTION

• Make sure the wire connectors are connected properly.
