USER MANUAL IAN 277483 AURIOL

Battery compartment cover

Hundredths of a Second

Timer 3 Technical data Operating voltage: 3 V (direct current) Battery type: 2 x 1.5 V, button cells, type LR44 Countdown area: 99 h: 59 M: 59 s – 1 s Count up area: 1 s – 99 h: 59 M: 59 s8 GB/IE/NI

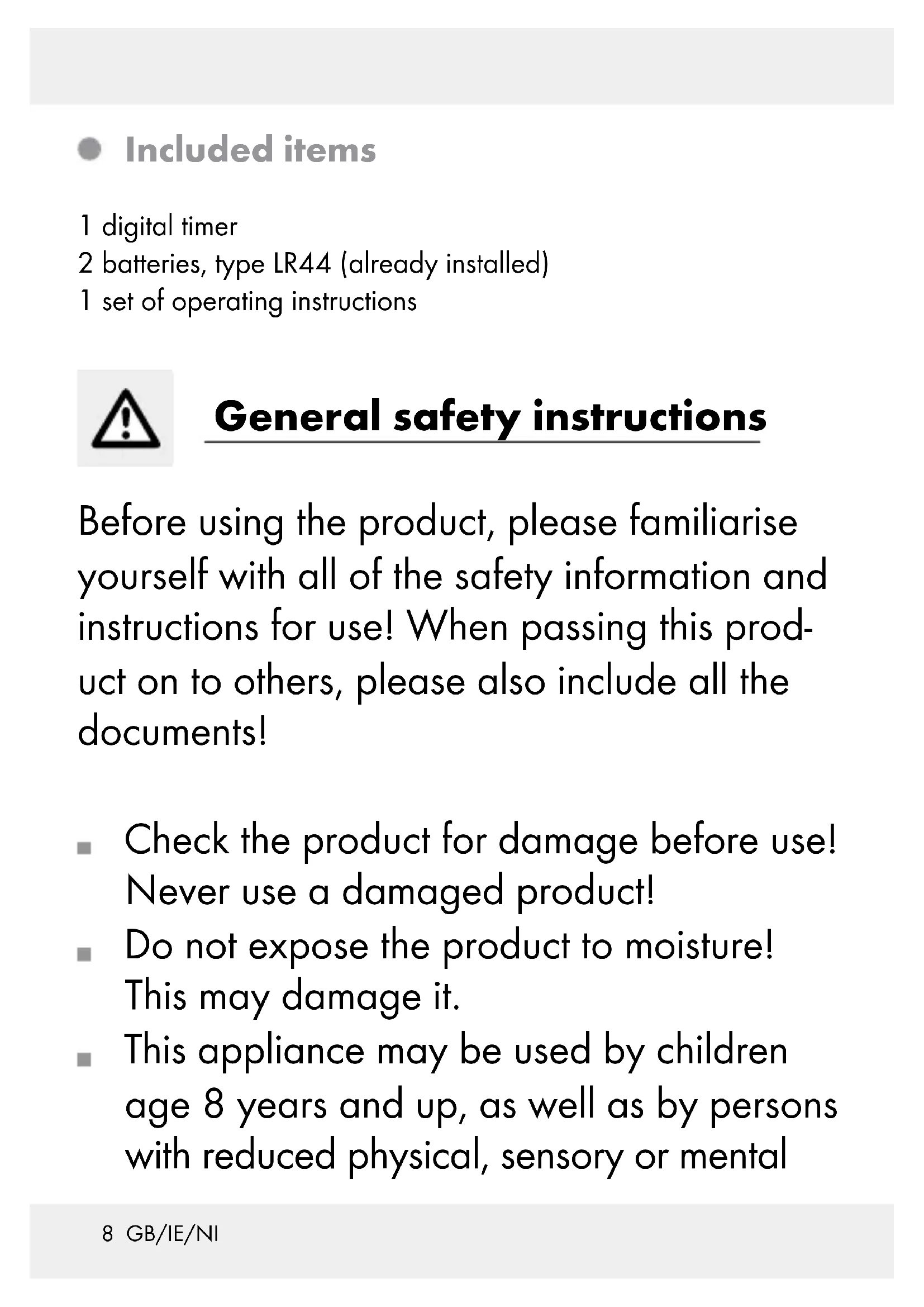

Included items 1 digital timer 2 batteries, type LR44 (already installed) 1 set of operating instructions General safety instructions Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this prod- uct on to others, please also include all the documents! Check the product for damage before use! Never use a damaged product! Do not expose the product to moisture! This may damage it. This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental9 GB/IE/NI capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appli- ance and understand the associated risks. Children should not be allowed to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision. Safety instructions for batteries DANGER TO LIFE! Batteries are not intended for children. If accidentally swallowed seek immediate medical attention! EXPLOSION HAZARD! Never recharge non-rechargeable batteries, short-circuit and / or open batteries! Never throw batteries into fire or water! Do not exert mechanical loads to batteries!10 GB/IE/NI Risk of battery leakage In the event of a battery leak, immediately remove it from the device to prevent damage! Avoid contact with the skin, eyes and mu- cous membranes! In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention! Only use the same type of batteries! Do not mix used and new batteries! Avoid extreme conditions and tempera- tures which may impact batteries, e.g. on radiators! Remove the batteries from the device if they have not been used for a long period!11 GB/IE/NI Risk of equipment damage Only use the specified battery type! When inserting the battery ensure the cor- rect polarity! This is shown on the battery compartment! If necessary, clean the battery and device contacts before inserting the battery! Promptly remove drained batteries from the product!

An insulating strip protrudes from beneath the battery com- partment lid

Open the battery compartment cover by pushing it down- wards. Remove the insulation strip. Close the battery compartment cover again. Your digital timer is now ready for operation.12 GB/IE/NI Setting up the device You can set up the device on horizontal, flat surfaces, by folding the stand

downwards (see Fig. B). Alternatively, you can use the magnet

to fasten the device to magnetic surfaces.

Operation Modes of the device The digital time has two modes, which are displayed at the top of the display

to switch back and forth between the Clock and Timer modes. Clock mode In Clock mode, the time is shown in the top field of the display

for 3 Seconds. The top field of the display

to change the displayed values for Seconds (S), Minutes (M) or hours (H) in steps. TIP: Press and hold the key to make the numbers change more quickly. Press the CLOCK (TIMER) key briefly, in order to confirm the set time. The time does not flash. Press M (12/24 HR) key

The stopwatch begins in the bottom Section of the display

and shows the expired Seconds, Minutes and hours. The hun- dredths of a Second are counted in the middle Section of the display. Press the START / STOP (MEMORY) key to halt the stopwatch or to reactivate counting. When you have halted the stopwatch, you can reset it to 0 by pressing the CLEAR key

Timer mode In Timer mode, 3 time fields appear. A timer is provided in each of the three fields (Fig. D).14 GB/IE/NI Setting the desired time Press and hold the T1 key

for 3 Seconds. The field next to the key flashes, thus signalling that a time can be set. Press the S key

to change the displayed values for Seconds (S), Minutes (M) or hours (H) in steps. TIP: Press and hold the key to make the numbers change more quickly. Press the T1 key briefly to confirm your setting. The display of Timer 1 stops flashing and shows the set time. Set the timers next to the T2

in the same way. Activating set timers The timer is in Timer mode and the selected timer displays the selected time. Press the T1 key

again to activate the topmost timer. The counter now begins counting down to 0. When the set time has elapsed, a signal tone will sound for the period of one Minute. The timer display flashes, the message „TIME‘S UP“ flashes in the top left-hand corner above the timer and the timer begins counting up. Press the T1 key or the START / STOP (MEMORY) key

stop the timer‘s counting operation and the acoustic signal. Press the CLEAR key

to reset the counter to 0.15 GB/IE/NI Set the timers next to the T2

in the same way. Interrupting the sequence of a timer Press the key next to the appropriate timer (T1, T2 or T3 key) to stop the time sequence of the appropriate counter at any time, and also to reactivate it.

Memory function Memory function of individual timers Each timer saves the most recently selected time. Pressing the T1, T2 or T3 key

in Timer mode opens the most recently selected time for the appropriate timer in the display

Press the appropriate T1, T2 or T3 key again to activate the timer belonging to this key. Press the appropriate T1, T2 or T3 key to stop the acoustic signal. Memory function for all timers Press the START / STOP (MEMORY) key

to open the most recently selected times for all three timers.16 GB/IE/NI Press the START / STOP (MEMORY) key again to start all 3 times simultaneously. The acoustic signal can now be inter- rupted using the appropriate T key (T1, T2, T3) or the START / STOP (MEMORY) key. After all 3 times have elapsed, press the CLEAR key

reset the countdowns 1 to 3 to 0, one after another.

decreases due to dimin- ishing contrast, then the inserted batteries are discharged and must be replaced. Open the battery compartment cover

on the rear side of the device by pushing it downwards. Remove the old batteries. Use a thin, pointed object to lever the batteries out of the battery compartment. Note: Make sure you insert the batteries the right way round (polarity). This is shown above the battery compartment. Close the battery compartment cover again, so that it engages audibly.

Troubleshooting The device contains delicate electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment17 GB/IE/NI in the immediate vicinity. If the display

indicates a problem, move such objects away from it. Electrostatic discharges can lead to malfunctions. In such cases, insert a thin, pointed object (e.g. the wire of a paperclip) into the RESET hole

and push it in gently. The device will briefly activate all the displays and will reset itself.

Cleaning and care The device should only be cleaned on the outside with a soft dry cloth.
