USER MANUAL HIF1993BT ROADSTAR

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

75 ohm FM ant socket 24 25

TOP

27 30 29 31 28 26

EN - Unscrew the TRANSIT SCREW in anti clockwise sense before using the turntable.

Simple curved line with a cross and arrow, no text or symbols present

Diagram showing a mechanical device with rotating components and a circular symbol, likely illustrating a mechanical or electrical system.

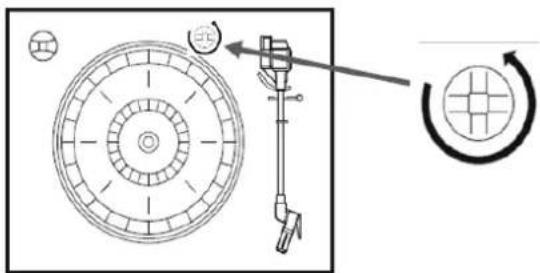

ENGLISH (turntable adjustment)

To make sure the turntable can play completely records with different standard, a hole with "SERVICE" (27) plate is located at the TOP of the unit to adjust the screw inside the turntable.

If the auto-return function is activated before the end of the record, please use a screw driver to turn the screw inside the hole about 45 degrees in unscrew clockwise direction. If the record is still not played completely, stop play and turn the screw 45 degrees in clockwise direction again. Repeat until the turntable fully plays the disc and then the tonearm returns to the initial position.

If the turntable doesn't stop and auto-return, but keep turning after playing the record completely, please use a screw driver to turn the screw inside the hole about 45 degrees in counter-clockwise direction. If the turntable is still not stopping and auto-returning, stop play and turn the screw 45 degree in counter-clockwise direction again. Repeat this until the turntable fully plays the disc and then the tonearm auto-returns to the initial position.

SERVICE (27)

LOCATION OF CONTROLS

1. USB PORT
2. POWER ON/OFF BUTTON (On the remote press POWER for ON/OFF)
3. VOLUME KNOB
4. FUNCTION BUTTON
5. RECORD BUTTON
6. LCD DISPLAY
7. BLUETOOTH SOURCE BUTTON
8. FM RADIO SOURCE BUTTON
9. CD / USB SOURCE BUTTON
10. TAPE SOURCE BUTTON
11. PHONO/AUX-IN
12. CD DOOR
13. PLAY / PAUSE: Press to play. When it plays, press to stop playback temporarily and press again to resume playback.
14. STOP: Press when you want to finish playback.
15. SKIP - / REWIND: Press to go to the previous track, press & hold to go back fast.
16. SKIP + / FAST FORWARD: press to go to the next track, press & hold to fast forward.
17. PLAY-MODE: press repeatedly to choose the play-mode (REPEAT, RANDOM)
18. CD DOOR OPEN/CLOSE BUTTON
19. TUNING KNOB
20. SPEAKERS
21. CASSETTE FFD/EJ
22. CASSETTE MECHANISM
23. ANTENNA SOCKET
24. POWER CORD
25. RCA AUX IN AND HEADPHONES OUT

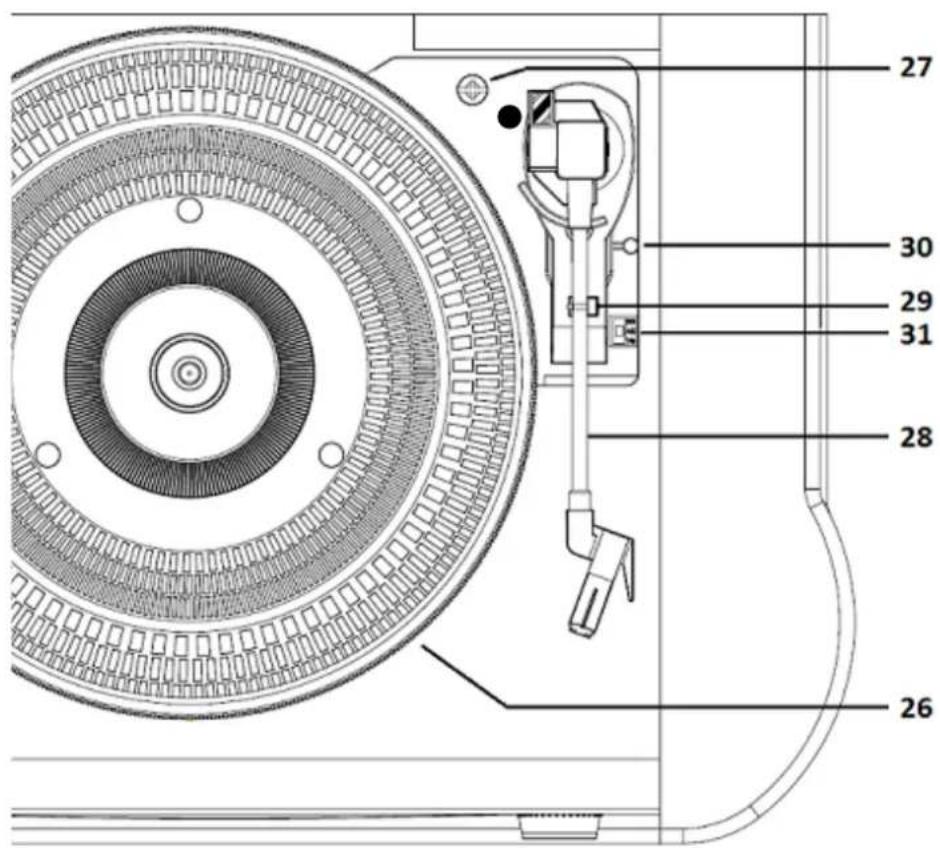

26. TURNTABLE PLATE
27. SERVICE HOLE
28. TONE ARM
29. TONE ARM LOCK
30. LIFT LEVER
31. 33/45/78 RPM SPEED SELECTOR

REMOTE CONTROL

1. • / + 10 TRACK
2. PROGRAM BUTTON
3. DELETE BUTTON
4. RANDOM BUTTON
5. REPEAT BUTTON

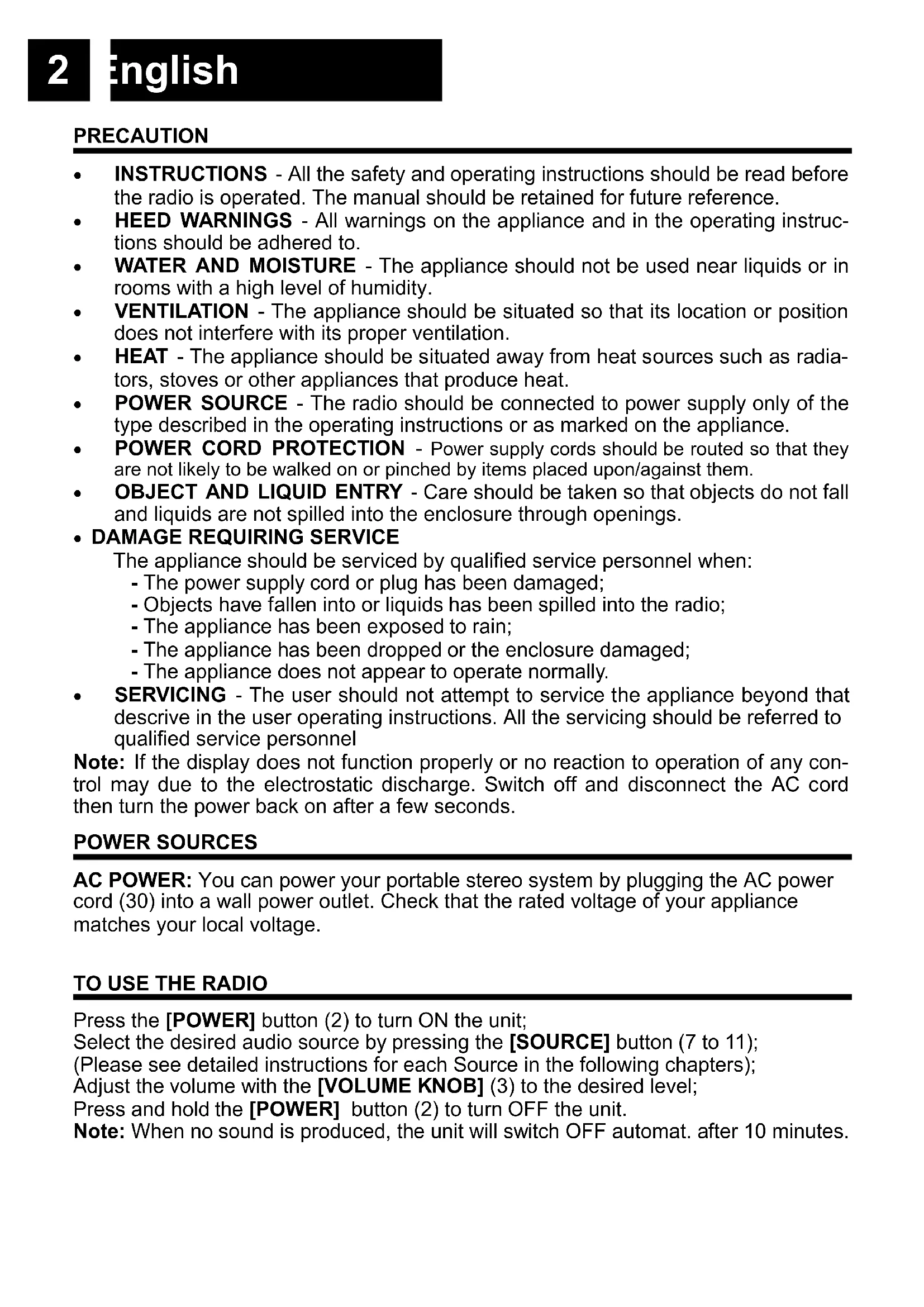

PRECAUTION

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

• DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;
• The appliance does not appear to operate normally.

- SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC power cord (30) into a wall power outlet. Check that the rated voltage of your appliance matches your local voltage.

TO USE THE RADIO

Press the [POWER] button (2) to turn ON the unit;

Select the desired audio source by pressing the [SOURCE] button (7 to 11);

(Please see detailed instructions for each Source in the following chapters);

Adjust the volume with the [VOLUME KNOB] (3) to the desired level;

Press and hold the [POWER] button (2) to turn OFF the unit.

Note: When no sound is produced, the unit will switch OFF automat. after 10 minutes.

RADIO OPERATION

Press the [FM] button (8);

Adjust radio frequency to your desired station by turning the [TUNING KNOB] (19).

Note: For a better reception move the wired antenna (23) around.

TURNTABLE OPERATION

Note: When using the turntable for the first time, unscrew in clockwise sense the [TRANSPORT SCREW] (27) located on the upper right side of the turntable.

Press the [PHONO] button (11);

Place a record on the turntable. Place the EP adapter over the central spindle when playing 45 rpm records;

Set the [SPEED SELECTOR] (31) to 33, 45 or 78 rpm according to the record;

Release the [TONEARM CLAMP] (29), and remove the stylus protector;

Lift up the [TONEARM] (28) with the [LIFT LEVER] (30);

Move the [TONEARM] (28) to the beginning of the record;

Lift down the [TONEARM] (28) with the [LIFT LEVER] (30);

When the record is finished the [TONEARM] (28) will automatically return to the rest support and the [PLATE] (26) will stop turning. To stop manually, lift up the tonearm from the record and return it to the rest support.

Note: Do not stop or turn the [PLATE] (26) manually.

When the unit is moved or transported:

Lock the [TONEARM] (28) with the [TONEARM CLAMP] (29);

Place the protective cap on the stylus (even when not in use);

Screw the [TRANSPORT SCREW] (27) counterclockwise until you feel resistance (do not screw it completely).

CD-MP3 OPERATION

Press the [CD] button (9);

Press [OPEN/CLOSE] (18) to open the [CD DOOR] (12) and place a CD with the label up in the CD compartment.

Close the [CD DOOR] (12). Focus search is performed and playback will start automatically from the first track.

PROGRAMMING

Up to 99 tracks (MP3, 20 in CD) can be programmed and play in any order.

Stop the playback by pressing [STOP] (14);

Press [PLAY MODE] (17), the display (6) will show "P01" and flash;

Select desired track by using [SKIP -/+] buttons (15/16);

Press [PLAY MODE] (17) again to confirm desired track into the program memory;

Repeat step 3 and 4 to enter additional tracks into the program memory.

When all the desired tracks have been programmed, press [PLAY] (13) to play the disc in the order you have programmed.

On remote control press [PROG] (33) button.

Note: Press [STOP] (14) twice to terminate programmed play.

USB OPERATION

1. Press the [CD/USB] button (9);
2. Plug an USB stick into the [USB PORT] (1);
3. Press the [FUNCTION] button (4) to select USB mode;
4. Playback will start automatically from the first track.

PROGRAMMING

The PROGRAMMING operation is the same as that of CD-MP3.

Notes:

• Some mp3 player may not be able to play via the usb socket. this is not a maul-function of the system.
  • To avoid damage to USB memory, remove it only when the radio is turned off.
  • The USB port is not designed for charging smartphones or other devices.

TAPE OPERATION

1. Press the [TAPE] source button (10);
2. Insert a cassette TAPE into the [CASETTE MECHANISM] (22);
3. The system will start playback automatically;
4. Press [TAPE FORWARD/EJECT] button (21) half way during playback to start rapid tape winding in forward direction.
5. Slightly press the [TAPE FORWARD/EJECT] button (21) again to resume play-back.
6. Press the [TAPE FORWARD/EJECT] button (21) completely inwards and the cassette tape will be ejected.

BLUETOOTH OPERATION

1. Press the [BT] button (7), the BT indicator will light up;
2. Connect your Bluetooth portable device to the ID Bluetooth tagged as "HIF-1993BT";
3. You can now transfer the music to the HIF-1993BT.

Note: Music control (play, pause, etc) must be done from your ext. device.

AUX-IN OPERATION

1. Press the [PHONO/AUX] button (11);
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (25);
3. Music control (play, pause, etc) must be done from your external device.

DIRECT USB ENCODING

Remark:

• No song title will be recorded during encoding mode.
  • To avoid damage to USB memory, remove it only when the radio is turned off.

ENCODE FROM BLUETOOTH, PHONO, CASSETTE AND AUX:

1. Plug the USB stick into the [USB PORT] (1);
2. Perform normal playback of the source you want to encode & record;

3. Press and hold the [RECORD] button (5) twice to start encoding. On the display will flash "REC";

4. Once the record is finished, press the [STOP] button (14) to stop recording.

ENCODE FROM CD:

Plug the USB stick into the [USB PORT] (1);

Perform normal playback of the track you want to encode & record;

Press & hold [RECORD] button (5) during the playback of the desired track.

Press I<< or >>I button to select ONE/DLR(FOLDER)/ALL.

Press [RECORD] button again. The playback will stop and restart automatically and on the top of the display (6) "USB" will flash. Encoding is performing now.

Press the [STOP] button (14) to finish recoreding the track.

DELETE TRACKS FROM USB

Perform normal playback of the track you want to delete.

During playback of the track you want to delete, press the [DELETE] button (34) on the remote.

Press I<< or >>I button to select ONE/FOLDE/ALL.

Press [RECORD] button again. The track(s) will be deleted.

SPLIT TRACK FUNCTION FOR USB ENCORDING FROM SOURCES

1. Manual Split: During USB encoding, USB icon will flash on display. If a new track is required, press & hold [PLAY.MODE] button on unit or [PROG] button on remote, display will show "TS". Then the unit will stop recording momentarily and resume again. A new file will have been created.
2. Auto Split: Before encoding, select audio source (except for CD), then press & hold [PLAY.MODE] button on unit or [PROG] button on remote to set T-N(ON)/F(OFF).
   When TS is set to ON and then start USB encoding, unit will automatically detect silent part between each track, and create a new file to move on to start encoding next track. During encoding, REC and T-N will be interchangeably displayed.
   NOTE Auto split: several seconds of the beginning of the next track may not be reordered, as the unit may take a few seconds to create a new file on the USB/SD: and it can additionally be the case that some music producers intentionally add silent sections within one track. As a result, this will very likely make the unit consider this silent part the break between tracks and create a new track on the recording.

NOTE for auto split: during USB/SD recording from Turntable/cassette, when the unithas detected any particular silent part, the Turntable/cassette player will stop momentarily. The turntable/cassette player will resume operation once the USB/SD device has begun creating a new file to be recorded.

TECNICAL SPECIFICATIONS

Power

Power Supply: AC 230V \~ 50Hz.

Power consumption in standby mode: 0,7W

Stand by time 15 min

Radio Frequency Coverage

FM: 87.5 - 108 MHz.

Speaker

Output Power: 2 x 2.5 Wrms.

General

Aux-In: RCA

Headphone: 3.5mm Jack

BT Maximum radiated Power: 2.5 mW (4 dBm)

USB: USB 2.0 / 64Gb max

Specifications and design are subject to possible modifications without notice due to improvement.

.WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
