Product type	Turntable with FM radio, Bluetooth, USB, Aux input
Brand	Roadstar
Model	TTR9645EBT
Power supply	12V DC 1A power adapter (DC 17 jack)
Speeds	33, 45, 78 RPM
Radio	FM 87.5 - 108 MHz with telescopic antenna
Bluetooth	Version 2.1+EDR, range approx. 10 m, ID "TTR-9645EBT"
USB port	USB 3.0, compatible up to 32 GB, MP3 playback
Auxiliary input	3.5 mm jack
Audio outputs	RCA (L+R) output, 3.5 mm headphone jack
Speakers	2 x 1.2 Watts RMS
Direct USB recording	Yes, from turntable or Aux input
Dimensions (approx.)	420 x 350 x 120 mm (W x D x H)
Weight (approx.)	3.5 kg
Chassis material	Plastic and metal
Included accessories	EP adapter (45 RPM), RCA cable, user manual
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety instructions	Do not expose to moisture, rain, or heat sources. Disconnect when not in use for extended periods.
Repairability	All repairs should be carried out by a qualified technician. No user-serviceable parts.
Power consumption	12V DC, 1A (max 12W)

Frequently Asked Questions - TTR9645EBT ROADSTAR

How do I connect my smartphone via Bluetooth?

Select BT mode with the MODE button (2). Enable Bluetooth on your smartphone and search for devices. Select 'TTR-9645EBT' from the list of available devices. The connection is established and you can stream your music.

How do I record a vinyl to a USB flash drive?

Insert a USB flash drive into the USB port (7). Start playing the record (PHONO mode). Press the RECORD button (13) twice to start encoding. The source indicator flashes. To stop, press RECORD again.

Can I connect headphones?

Yes, use the headphone jack (3.5 mm) located on the front or back of the device. The headphone output automatically mutes the speakers.

What is the speaker power?

The turntable is equipped with two speakers rated at 1.2 Watt RMS each, for a total of 2.4 Watts RMS.

How do I clean the stylus?

Use an anti-static brush or special stylus cleaning fluid. Gently clean in the direction of the stylus. Avoid touching with fingers.

What if the record spins but no sound comes out?

Check that PHONO mode is selected, the tonearm is correctly positioned, and the volume is adjusted. Also ensure the turntable is not in mute mode and the RCA cable is properly connected.

How do I use the repeat function?

In USB mode, press the REPEAT button (13): once to repeat the current track (USB indicator flashes slowly), a second time to repeat all tracks (indicator flashes faster).
Press a third time to cancel.

The device does not turn on, what should I do?

Check that the power adapter is properly connected to the device and to a working wall outlet. Try another outlet. If the problem persists, it may be due to electrostatic discharge: disconnect the adapter, remove batteries if any, wait 10 seconds, and reconnect.

What is the maximum USB flash drive capacity?

The USB port accepts flash drives formatted in FAT32 up to 32 GB. exFAT or NTFS formats may not be recognized.

Can I play 45 RPM records on this device?

Yes, the device is compatible with 45 RPM records. Use the included EP adapter for 17 cm (45 RPM) records. Select the 45 RPM speed with the speed selector (21).

USER MANUAL TTR9645EBT ROADSTAR

Stand Alone Turntable with radio, USB and Bluetooth

User manual

Bedienungsanleitung

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
• DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;

• Objects have fallen into or liquids has been spilled into the radio;

• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;

• The appliance does not appear to operate normally.

• SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power stereo system by plugging the AC/DC adaptor into the DC plug (17) at the back of the unit and into a wall AC power outlet.

Check that the rated voltage of your appliance matches your local voltage.

TO USE THE RADIO

1. Press the [POWER] button (1) to power on the unit;
2. Select the desired audio source by pressing the [MODE] button (2) repeatedly;
3. (Please see detailed instructions for each Source in the following chapters);
4. Adjust the volume with the [VOLUME KNOB] (3) to the desired level;
5. Press the [POWER] button (1) to turn OFF the unit.

Note: When no sound is produced, the unit will switch OFF automatically after 10 minutes.

TURNTABLE OPERATION

1. Select "PHONO" mode by pressing the [MODE] button (2) repeatedly;
2. Place a record on the turntable. Place the EP adapter over the central spindle when playing 45 rpm records;
3. Set the [SPEED SELECTOR] (21) to 33, 45 or 78 rpm according to the record;
4. Release the tonearm clamp, and remove the stylus protector;
5. Lift up the [TONEARM] (22) with the [LIFT LEVER] (19);
6. Move the [TONEARM] (22) to the beginning of the record;
7. Lift down the [TONEARM] (22) with the [LIFT LEVER] (19);
8. When the record is finished the plate will automatically stop turning. To stop manually, lift up the tonearm from the record and return it to the rest support;

Note: Do not stop or turn the plate manually.

When the unit is moved or transported:

• Lock the [TONEARM] (22) with the tonearm clamp.
• Place the protective cap on the stylus (even when not in use).

RADIO OPERATION

1. Select "TUNER" mode by pressing the [MODE] button (2) repeatedly;
2. Adjust the frequency to your desired station by using the [TUNING KNOB] (5).

Note: For a better reception, reorient the antenna (16).

AUX IN OPERATION

1. Select "AUX" mode by pressing the [MODE] button (2) repeatedly;
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the [AUX-IN SOCKET] (6).

Note: Music control (play, pause, etc) must be done from your external device.

USB OPERATION

1. Select "USB" mode by pressing the [MODE] button (2) repeatedly;
2. Plug an USB stick into the [USB_PORT] (7);
3. Playback will start automatically from the first track.

Note: Some mp3 player may not be able to play via the usb socket. this is not a malfunction of the system.

Note: To avoid damage to USB memory, remove it only when the radio is OFF.

REPEAT

Press [REPEAT] button (13) to repeat the current track (the USB LED will blink), press again to repeat all the track (the USB LED will blink faster).

BLUETOOTH OPERATION

1. Select "BT" mode by pressing the [MODE] button (2) repeatedly;
2. Connect your Bluetooth portable device to the ID Bluetooth tagged as "TTR-9645EBT";
3. You can now transfer the music to the TTR-9645EBT.

Note: Music control (play, pause, etc) must be done from your external device.

DIRECT USB ENCODING

The unit can encode from Turntable or AUX-In.

1. Plug the USB stick into the [USB PORT] (7);
2. Perform normal playback of the source you want to encode & record;
3. Press the [RECORD] button (13) to start encoding (the source's LED will blink);
4. Once the record is finished, press the [RECORD] button (13) to stop recording.

TECNICAL SPECIFICATIONS

Power Supply: DC 12V = 1A.

Radio Frequency Coverage

FM: 87.5 - 108 MHz.

Speaker

Output Power: 2 × 1.2 Watt RMS.

General

Headphones Out: 3.5mm jack plug.

BT Maximum radiated Power: < 4 dBm (2.5 mW).

USB Port Version: USB 3.0, max 32GB.

Specifications and design are subject to possible modifications without notice due to improvement.

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

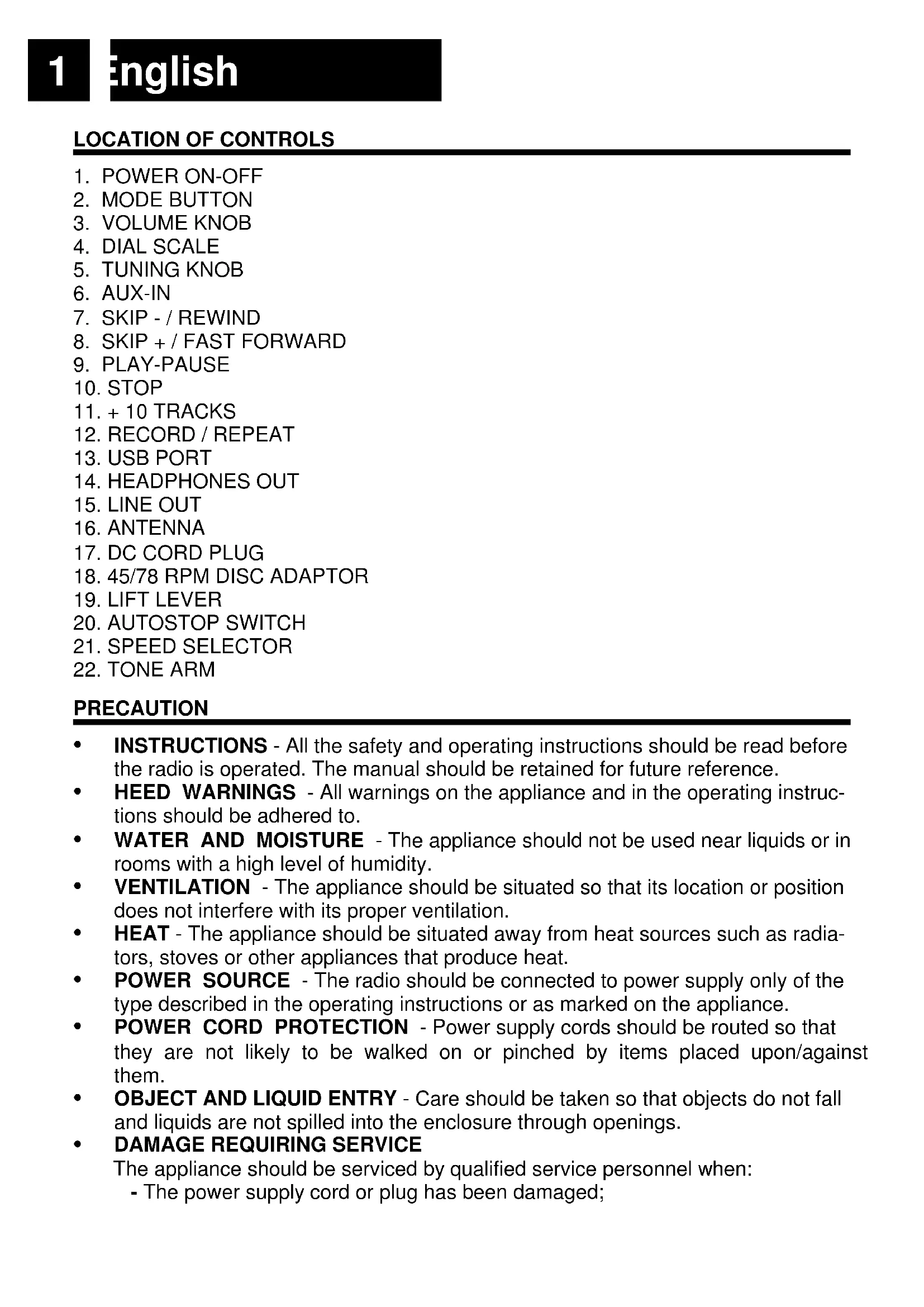

ORT DER BEDIENELEMENTE

1. POWER ON-OFF (POWER EIN-AUS)
2. MODE BUTTON (MODUS)
3. VOLUME KNOB (LAUTSTÄRKEREGLER)
4. DIAL SCALE
5. TUNING KNOB (ABSTIMMUNG)
6. AUX-IN (AUX BUCHSE)
7. SKIP - /REWIND
8. SKIP + / FAST FORWARD
9. PLAY-PAUSE
10. STOP
11. • 10 TRACKS (+ 10 TITEL)
12. RECORD / REPEAT (AUFNAHME / WIEDERHOLEN)
13. USB PORT (USB BUCHSE)
14. HEADPHONES OUT (KOPFHÖRER AUSGANG)
15. LINE OUT
16. ANTENNA (ANTENNE)
17. DC CORD PLUG (DC BUCHSE)
18. 45/78 RPM DISC ADAPTOR
19. LIFT LEVER (LIFTHEBEL)
20. AUTOSTOP SWITCH (AUTOSTOP SCHALTER)
21. SPEED SELECTOR (GESCHWINDIGKEITSWAHLSCHALTER)
22. TONE ARM (TON ARM)

SICHERHEITSHINWEISE

BT Maximum radiated Power: < 4 dBm (2.5 mW).

FONCTIONNEMENT AUX-IN

Nota: Whenever you are in the area, you will have to wait for a few minutes.

GIRADISCHI

ELIMINACAO CORRECTA DESTE PRODUCTO

Hereby, Roadstar Management SA declares that the radio equipment type TTR-9645EBT is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://roadstar.com/images/ce/TTR-9645EBT.pdf

or by scanning the following QR Code.

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

http://roadstar.com/images/ce/TTR-9645EBT.pdf

Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
