Brand	Roadstar
Model	TTR635WD
Product type	Turntable with FM radio and AUX input
Power supply	AC 230V ~ 50Hz
Radio frequencies	FM 87.5 - 108 MHz
Speeds	33, 45, 78 RPM
Function selector	FM, PHONO, AUX
Volume control	Rotary knob
Auto stop	After 10 minutes without sound
Tonearm	With lift lever and automatic return at end of record
EP adapter	For 17 cm records
AUX input	3.5 mm jack socket
FM antenna	Adjustable telescopic antenna
Speakers	Built-in
Transport security screw	Present, unscrew before first use
Stylus protection	Removable cap
Safety instructions	Do not open the casing, avoid humidity, keep away from heat sources
Maintenance	Clean with a dry cloth, do not use liquid products
Repairability	Entrust any repair to a qualified technician
Disposal	Do not dispose of with household waste, recycle according to local regulations

Frequently Asked Questions - TTR635WD ROADSTAR

How to connect the device to the mains?

Plug the AC power cord (1) into a 230V~50Hz wall outlet. Check that the rated voltage matches the local voltage.

How to turn on the FM radio?

Press [POWER] (2), set the function selector (5) to FM, then tune to the desired station with [TUNING +/-] (9). For better reception, orient the antenna (3).

How to use the turntable for the first time?

Unscrew the transport security screw (6) located on the top side of the turntable. Set the selector (5) to 'PHONO'. Place a record on the platter. Select the speed (33, 45 or 78 RPM) with the selector (8). Release the tonearm, remove the stylus cap, lift the tonearm with the lever (7) and place it at the beginning of the record. Gently lower the tonearm to start playback.

How to stop playback of a record?

Lift the tonearm using the lift lever (7) and return it to its rest. Do not turn the record manually.

Can I connect an MP3 player to the device?

Yes, set the function selector (5) to 'AUX'. Use a male-to-male 3.5mm jack cable (not supplied) to connect your device to the AUX-IN socket (4). Playback is controlled from the external device.

What to do if the device produces no sound?

The device automatically turns off after 10 minutes without audio signal. Check the selected source and volume. If the problem persists, contact a technician.

How to maintain the stylus?

Always put the protective cap back on when the device is not in use. Clean the stylus carefully if necessary. Avoid touching the stylus with your fingers.

Can I repair the device myself?

No, the device contains no user-serviceable parts. Entrust any repair to a qualified technician. Do not open the casing.

Where to place the device for safe use?

Place the device on a stable surface, away from heat sources, humidity and direct sunlight. Ensure adequate ventilation; do not place on curtains, carpets or in a closed bookcase.

How to dispose of the device at end of life?

Do not throw it away with household waste. Take it to a collection point for waste electrical and electronic equipment or contact your local council for recycling instructions.

USER MANUAL TTR635WD ROADSTAR

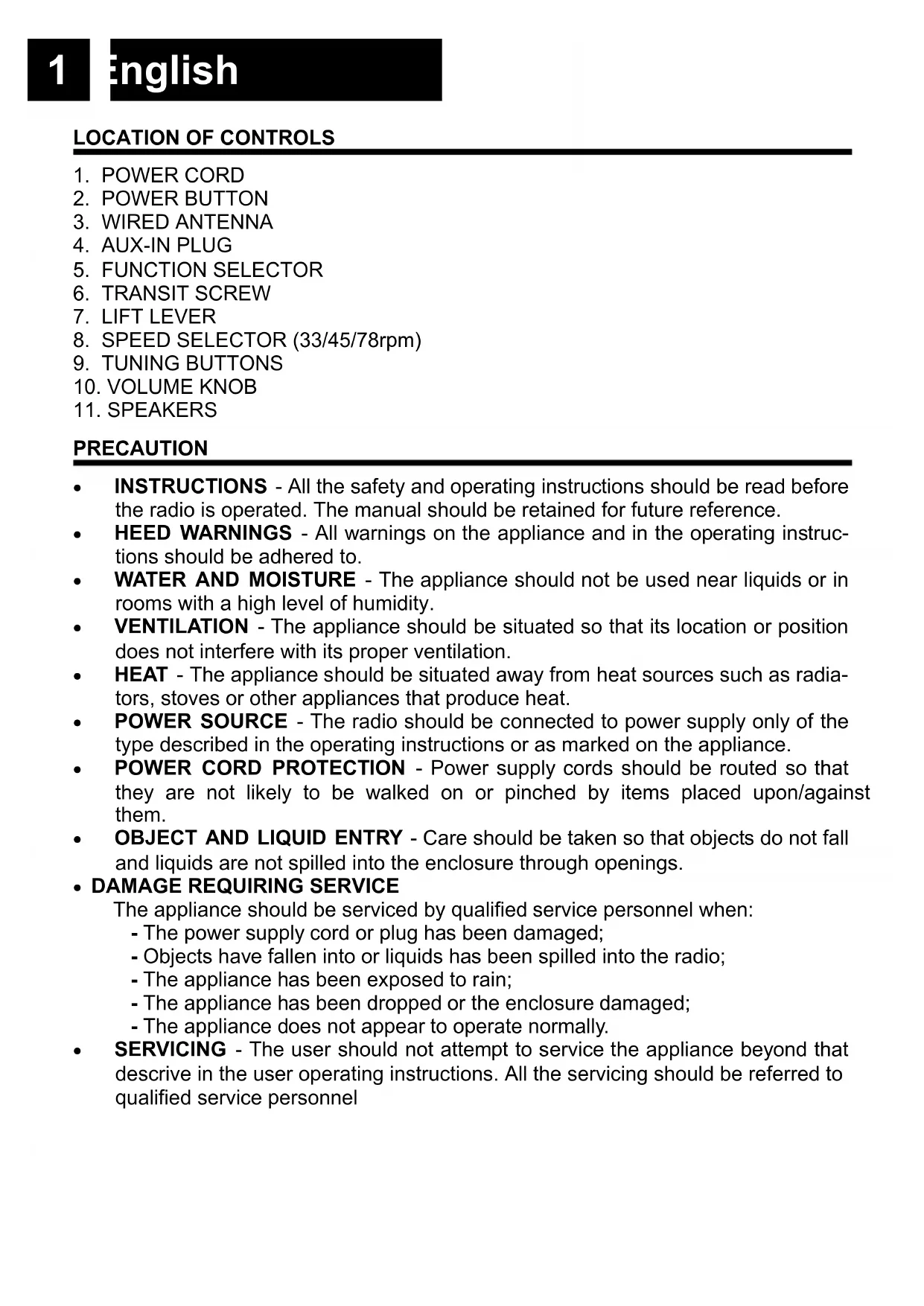

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

- DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;

• The appliance does not appear to operate normally.

• SERVICING - The user should not attempt to service the appliance beyond that describe in the user operating instructions. All the servicing should be referred to qualified service personnel

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC power cord (1) into a wall power outlet.

Check that the rated voltage of your appliance matches your local voltage.

TO USE THE RADIO

1. Press the [POWER] button (2) to turn ON the unit;
2. Select the desired audio source with the [FUNCTION SELECTOR] (5);
3. (Please see detailed instructions for each Source in the following chapters);
4. Adjust the volume with the [VOLUME KNOB] (10) to the desired level;
5. Press and hold the [POWER] button (2) to turn OFF the unit.

Note: When no sound is produced, the unit will switch OFF automat. after 10 minutes.

FM RADIO OPERATION

1. Set the [FUNCTION SELECTOR] (5) to "FM" mode;
2. Adjust radio frequency to your desired station by pressing the [TUNE +/-] (9).

Note: For a better reception move the wired antenna (3) around.

TURNTABLE OPERATION

Note: When using the turntable for the first time, unscrew the transport screw (6) located on the upper right side of the turntable.

1. Set the [FUNCTION SELECTOR] (5) to "PHONO" mode;
2. Place a record on the turntable. Place the EP adapter over the central spindle when playing 45 rpm records;
3. Set the Speed Selector (8) to 33, 45 or 78 rpm according to the record;
4. Release the Tonearm Clamp, and remove the stylus protector;
5. Lift up the Tonearm with the Lift Lever (7);
6. Move the tonearm to the beginning of the record;
7. Lift down the Tonearm with the Lift Lever (7);
8. When the record is finished the tonearm will automatically return to the rest support and the plate will stop turning. To stop manually, lift up the tonearm from the record and return it to the rest support.

Note: Do not stop or turn the platter manually. Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm. Put the protective cap on the stylus when not in use.

AUX-IN OPERATION

1. Set the [FUNCTION SELECTOR] (5) to "AUX" mode;
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (4);

Note: Music control (play, pause, etc) must be done from your external device.

TECNICAL SPECIFICATIONS

Power

Power Supply:	AC 230V ~ 50Hz.
Radio Frequency Coverage
FM:	87.5 - 108 MHz.
Speaker
Output Power:	2 x 2 Wrms.
General
Aux-In:	3.5mm jack plug.

Specifications and design are subject to possible modifications without notice due to improvement.

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

LAGE DER BEDIENUNGSELEMENTE

Puisance: 2 × 2 Wrms

Général

Conector 3.5mm jack.

Hereby, Roadstar Management SA declares that the radio equipment type TTR-635WD is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://roadstar.com/images/ce/TTR-635WD.pdf

or by scanning the following QR Code.

http://roadstar.com/images/ce/TTR-635WD.pdf

http://roadstar.com/images/ce/TTR-635WD.pdf

http://roadstar.com/images/ce/TTR-635WD.pdf

http://roadstar.com/images/ce/TTR-635WD.pdf

http://roadstar.com/images/ce/TTR-635WD.pdf

http://roadstar.com/images/ce/TTR-635WD.pdf

Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
