RCR777UD+ - Turntable ROADSTAR - Free user manual and instructions

Product type	Portable stereo system with CD player, cassette, DAB+/FM radio, USB
Brand	Roadstar
Model	RCR777UD+
Mains power	AC 230 V ~ 50 Hz
Battery power	6 LR14 batteries (9 V DC)
Speaker power	2 × 2 W RMS
DAB+ radio reception	Band III 174.928 - 239.200 MHz
FM radio reception	87.5 - 108 MHz
Number of radio presets	Up to 30 stations
Supported audio formats	Audio CD, MP3 (on CD or USB)
Cassette	Audio tape playback (normal)
Auxiliary input	3.5 mm jack socket
Headphone output	3.5 mm jack socket
Display	LCD with backlight
Clock and alarm	Dual alarm with wake-up via buzzer, FM, DAB, CD or USB
Playback functions	Repeat, random play, programming (20 tracks CD, 20 tracks USB)
Maintenance	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not open the casing. Do not expose to moisture. Disconnect from mains if not used for a long time.
Compatible USB devices	USB flash drives and MP3 players (some models may not be recognized)

Frequently Asked Questions - RCR777UD+ ROADSTAR

How to set the clock?

In standby mode, press and hold CLOCK/ENTER (3) until '12/24 Hr' blinks. Use SKIP -/+ (5/6) to select the format, then confirm with CLOCK/ENTER. Then set the hours and minutes in the same way.

How to set the alarm?

In standby mode, press and hold ALARME 1 (7). The hours blink: set with SKIP -/+ (5/6) and confirm with ALARME 1. Do the same for the minutes, then choose the alarm mode (buzzer, FM, DAB, CD or USB) and the volume. Repeat with ALARME 2 (8) for the second alarm.

How to disable the alarm?

Press the ALARME 1 button (7) to stop the alarm (the setting is retained). To completely delete the alarm, in standby mode, press ALARME 1 several times until 'Alarm off' appears.

How to listen to DAB radio?

Select DAB mode with the FUNCTION button (2). On first use, the radio automatically scans stations. For a new scan, press and hold AMS (11). Use SKIP -/+ (5/6) to navigate between stations.

How to store a radio station?

Select the desired station, then press AMS/MODE (11). 'Preset Store' appears. Use SKIP -/+ (5/6) to choose a preset number and confirm with ENTER (3). To recall a preset, press PRESET (9).

How to play a CD or MP3?

Select CD mode with FUNCTION (2). Open the CD door (14), place a disc (label facing up), close the door. Playback starts automatically. Use PLAY/PAUSE (3), STOP (4), SKIP -/+ (5/6).

How to program tracks for playback?

In CD or USB mode, stop playback with STOP (4). Press AMS/MODE (11): 'P01' blinks. Select the track with SKIP -/+ (5/6), then confirm with AMS/MODE. Repeat for up to 20 tracks. Start programmed playback with PLAY (3).

How to use the cassette?

Select TAPE mode with FUNCTION (2). Press STOP/EJECT (15.2) to open the cassette door (12), insert the cassette, close the door. Use PLAY (15.5) to play, PAUSE (15.1) to pause, F.FWD (15.3) or REW (15.4) for fast forward/rewind, STOP/EJECT to stop.

What are the possible power sources?

The device can be powered by mains (AC 230 V ~ 50 Hz via the supplied power cord) or by 6 LR14 batteries (9 V DC) inserted into the battery compartment (20). Disconnect the mains if using batteries.

What to do if the device stops responding?

This may be due to electrostatic discharge. Turn off the device, disconnect the mains power cord and remove the batteries, wait a few seconds, then power it back on. If the problem persists, contact a qualified technician.

USER MANUAL RCR777UD+ ROADSTAR

1. LCD DISPLAY
2. POWER / FUNCTION BUTTON
3. PLAY-PAUSE / CLOCK / ENTER: Press to play. When it plays, press to stop playback temporarily and press again to resume playback.
4. STOP: Press when you want to finish playback.
5. BACK/TUNE-: Press to go to the previous track, press & hold to go back fast.
6. NEXT/TUNE ^+ press to go to the next track, press & hold to go fast forward.
7. VOLUME -/ALARM 1
8. VOLUME +/ALARM 2
9. PRESET / FOLDER
10. INFO/SNOOZE
11. AUTOMATIC SEARCH / MODE
12. CASSETTE DOOR
13. ANTENNA
14. CD DOOR

15. CASSETTE CONTROLS (FROM LEFT TO RIGHT)

16. PAUSE

17. STOP / EJECT
18. FAST FORWARD
19. REWIND

20. PLAY

21. USB SOCKET

22. AUX-IN SOCKET
23. HEADPHONES OUT
    19.AC PLUG
24. BATTERY COMPARTMENT

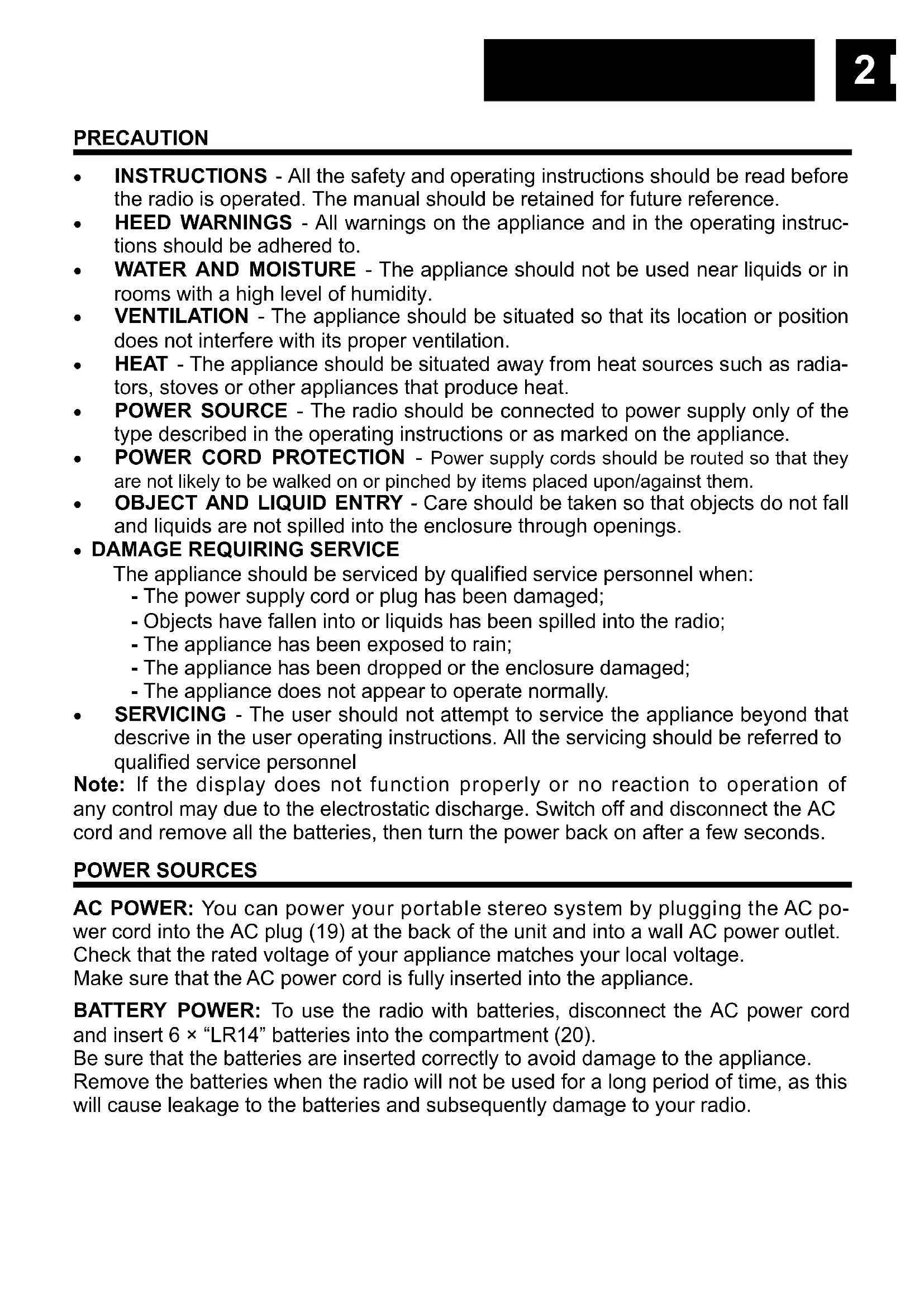

PRECAUTION

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

- DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;

• The appliance does not appear to operate normally.

• SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC power cord into the AC plug (19) at the back of the unit and into a wall AC power outlet.

Check that the rated voltage of your appliance matches your local voltage.

Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER: To use the radio with batteries, disconnect the AC power cord and insert 6 × "LR14" batteries into the compartment (20).

Be sure that the batteries are inserted correctly to avoid damage to the appliance.

Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.

CLOCK AND DATE SETTING

In stand-by mode:

1. Press and hold the [CLOCK/ENTER] button (3) until the display shows "12/24 Hr";
2. Press the [SKIP -/+] buttons (5/6) to choose 12 or 24 hour format;
3. Confirm with the [CLOCK/ENTER] button (3);
4. Press the [SKIP -/+] buttons (5/6) to adjust the hour;
5. Confirm with the [CLOCK/ENTER] button (3);
6. Press the [SKIP -/+] buttons (5/6) to adjust the minutes;
7. Confirm with the [CLOCK/ENTER] button (3);
8. Repeat steps 2 and 3 to set the date.

ALARM SETTING

In stand-by mode:

1. Press and hold the [ALARM 1] button (7) to enter into the Alarm setting.
2. Press the [SKIP -/+] buttons (5/6) to adjust the hour;
3. Confirm with the [ALARM 1] button (7);
4. Press the [SKIP -/+] buttons (5/6) to adjust the minutes;
5. Confirm with the [ALARM 1] button (7);
6. Press the [SKIP -/+] buttons (5/6) to choose the alarm mode (Buzzer, FM, DAB, CD or USB);
7. Confirm with the [ALARM 1] button (7);
8. Press the [SKIP -/+] buttons (5/6) to adjust the volume;
9. Confirm with the [ALARM 1] button (7).

To set the second Alarm, repeat all the steps with [ALARM 2] (8) instead of [ALARM 1].

Note: To deactivate the Alarm, press the [ALARM 1] button (7) (the alarm will stop, but the setting will remain). To remove the settings, in stand-by mode, press repeatedly the [ALARM 1] button (7) until you see "Alarm off".

TO USE THE RADIO

1. Press the [POWER] button (2) to power on the unit;
2. Select the desired audio source;
3. (Please see detailed instructions for each Source in the following chapters);
4. Adjust the volume with the [VOLUME -/+] buttons (7/8) to the desired level;
5. Press & hold the [POWER] button (2) to turn OFF the unit.

DAB RADIO OPERATION

1. Select "DAB" mode by pressing the [FUNCTION] button (2);
2. (The first time you select this function, the radio will scan the DAB radio stations automatically. It will display and play the first station after the scan is done);
3. In case the display shows "No DAB Service", press & hold the [AMS] button (11) to start automatic scan;
4. To select the desired radio station press repeatedly the [SKIP -/+] buttons (5/6).

PRESET

You can program a maximum of 30 preset radio stations.

1. Select your favourite station as explained before;
2. Press [AMS/MODE] button (11). "Preset Store" will appear on display;
3. Press [SKIP -/+] (5/6) to select the preset number;
4. Press [ENTER] (3) to confirm.

To recall a preset station press repeatedly the [PRESET] button (9).

FM RADIO OPERATION

1. Select "FM" mode by pressing the [FUNCTION] button (2);
2. Adjust radio frequency to your desired station as follows:

MANUAL SCAN: Use the [SKIP -/+] buttons (5/6) to fine tune your desired station in a step of 0.05 MHz or press and hold the [SKIP -/+] buttons (5/6) to scan the next/ previous available station.

AUTO SCAN: Press & Hold [AMS] button (11) to start automatic scan.

PRESET

The PROGRAMMING operation is the same as that of DAB Preset.

Note: For a better reception, reorient the antenna (13).

TAPE OPERATION

1. Select "TAPE" mode by pressing the [FUNCTION] button (2);
2. Press [STOP/EJECT] (15.2) to open the cassette door (12) and insert your tape;
3. Close the cassette door (12);
4. Press PLAY to start playing tape.
5. Press PAUSE (15.1) when you want to stop playing tape operation temporarily, press again to resume tape operation.
6. Press STOP/EJECT (15.2) when finished, press again to open the cassette door.
7. Press F.FWD (15.3) or RWD (15.4) to start rapid tape winding either forward or reverse direction.

CD-MP3 OPERATION

1. Select "CD" mode by pressing the [FUNCTION] button (2);
2. Open the CD door (14) and place a CD-MP3 disc with the label up in the CD compartment.
3. Close the CD door (14). Focus search is performed and playback will start automatically from the first track.

PROGRAMMING

Up to 20 tracks can be programmed for disc play in any order.

1. Stop the playback by pressing [STOP] (4);
2. Press [AMS/MODE] (11), the display (1) will show "P01" and flash;
3. Select desired track by using [SKIP -/+] buttons (5/6);
4. Press [AMS/MODE] (11) again to confirm desired track into the program memory;
5. Repeat step 3 and 4 to enter additional tracks into the program memory;

6. When all the desired tracks have been programmed, press [PLAY] (3) to play the disc in the order you have programmed;

7. Press [STOP] (4) twice to terminate programmed play.

USB OPERATION

1. Select "CD" mode by pressing the [FUNCTION] button (2);
2. Plug an USB device into the USB socket (16);
3. Playback will start automatically from the first track.

PROGRAMMING

The PROGRAMMING operation is the same as that of CD-MP3.

Note: Some mp3 player may not be able to play via the usb socket. this is not a maul-function of the system.

Note: To avoid damage to USB memory, remove it only when the radio is turned off.

REPEAT - RANDOM

Press repeatedly [AMS/MODE] button (11) to select the desired playback mode (only for CD and USB mode).

AUX IN OPERATION

1. Select "AUX" mode by pressing the [FUNCTION] button (2);
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (17).
   Note: Music control (play, pause, etc) must be done from your external device.

TECNICAL SPECIFICATIONS

Power Supply: AC 230V ~ 50Hz.

DC 9V = (6 x "LR14" Batteries).

Radio Frequency Coverage

DAB+/DAB: BAND III 174.928 - 239.200 MHz.

FM: 87.5 - 108 MHz.

Speaker

Output Power: 2 × 2 Wrms.

General

Headphones Out: 3.5mm jack plug.

Specifications and design are subject to possible modifications without notice due to improvement.

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
