Product Type	Intelligent Battery Charger
Brand	Ansmann
Model	Comfort Multi
Power Supply	USB 5 V (min. 1 A, recommended 2.1 A for fast charging, max. 2.4 A)
Number of Slots	4 for round cells (AAA/AA/C/D) + 1 for 9 V block
Charging Current (round cells)	800 mA for C/D/AA, 400 mA for AAA
Charging Current (9 V block)	15 mA
Trickle Charge Current	13 mA (C/D/AA), 6.5 mA (AAA), 1.3 mA (9 V)
Compatible Battery Types	Rechargeable NiMH: AAA, AA, C, D, 9 V block
Max Capacity per Type	11000 mAh (D), 6000 mAh (C), 3000 mAh (AA), 1100 mAh (AAA), 300 mAh (9 V)
Charging Time (examples)	AAA 1000 mAh ~ 3 h, AA 2650 mAh ~ 4 h, C 4500 mAh ~ 6.75 h, D 10000 mAh ~ 15 h, 9 V 300 mAh ~ 24 h
Smart Functions	Quick capacity test, soft pre-charge, condition analysis, fast charge, IQ cut-off, top-off charge, trickle charge
Status Display	Tricolor LED (red, orange, green) per slot
LED Meaning	Red: charge <25%, Orange: 25-75%, Green: >75%; orange flashing: pause/error; steady green: fully charged
Protection	Independent monitoring of each slot, overcharge protection, polarity reversal protection
Maintenance	Clean with a soft dry cloth; do not use solvents
Safety	Do not open the device, use on a flat heat-resistant surface, do not cover ventilation slots
USB Compatibility	Works with mains adapter, PC, power bank (min. 2.1 A recommended)
Cable Included	Yes, USB cable
Warranty	3 years (excluding damage due to misuse)
Disposal	Do not dispose with household waste; return to collection point
Intended Use	Private household, not for commercial use
Dimensions	Not specified in the manual; estimated dimensions approx. 12 x 8 x 4 cm
Weight	Not specified; estimated approx. 150 g (without batteries)

Frequently Asked Questions - Comfort Multi ANSMANN

What types of batteries can I charge with the Ansmann Comfort Multi?

You can charge rechargeable NiMH batteries of type Micro AAA, Mignon AA, Baby C, Mono D and 9 V blocks. Batteries of different capacities can be mixed in the slots.

How do I know when charging is complete?

Each slot has a tricolor LED. When the battery is fully charged, the LED becomes green steady. The charger then automatically switches to trickle charge mode.

What should I do if the LED flashes orange?

An orange flashing indicates that the slot is on pause. This happens when the USB source does not provide enough current (less than 2.1 A). Use a USB power supply of at least 2.1 A to avoid these pauses.

Can I charge non-rechargeable batteries?

No, this charger is designed only for rechargeable NiMH batteries. Charging non-rechargeable batteries can cause overheating, leakage, or explosion.

How do I clean the charger?

Before cleaning, unplug the charger and remove the batteries. Use a soft dry or slightly damp cloth (with a little mild dish soap). Never use abrasive products or solvents.

Why does charging seem slow?

Charging speed depends on the USB source. If you use a source below 2.1 A, the charger may pause certain slots to manage power, which extends charging time. Use a USB mains adapter of at least 2.1 A for fast charging.

Is the charger compatible with lithium batteries?

No, the Ansmann Comfort Multi is specifically designed for NiMH batteries. Do not charge other chemistries like lithium-ion, as this may damage the charger and batteries.

Can I charge a single battery in the charger?

Yes, the charger works with any number of batteries, from 1 to 4 for AAA/AA/C/D sizes, plus the 9 V block. Each slot is monitored independently.

What should I do if the LED does not light up?

Check that the USB cable is properly connected to the charger and the power source. Try another USB source (e.g., mains adapter, PC). If the problem persists, the charger or cable may be defective.

Is there a risk of overcharging?

No, the charger uses an IQ Cut-off function that continuously monitors the voltage of each battery. Once fully charged, it automatically switches to pulse trickle charge mode, preventing overcharging.

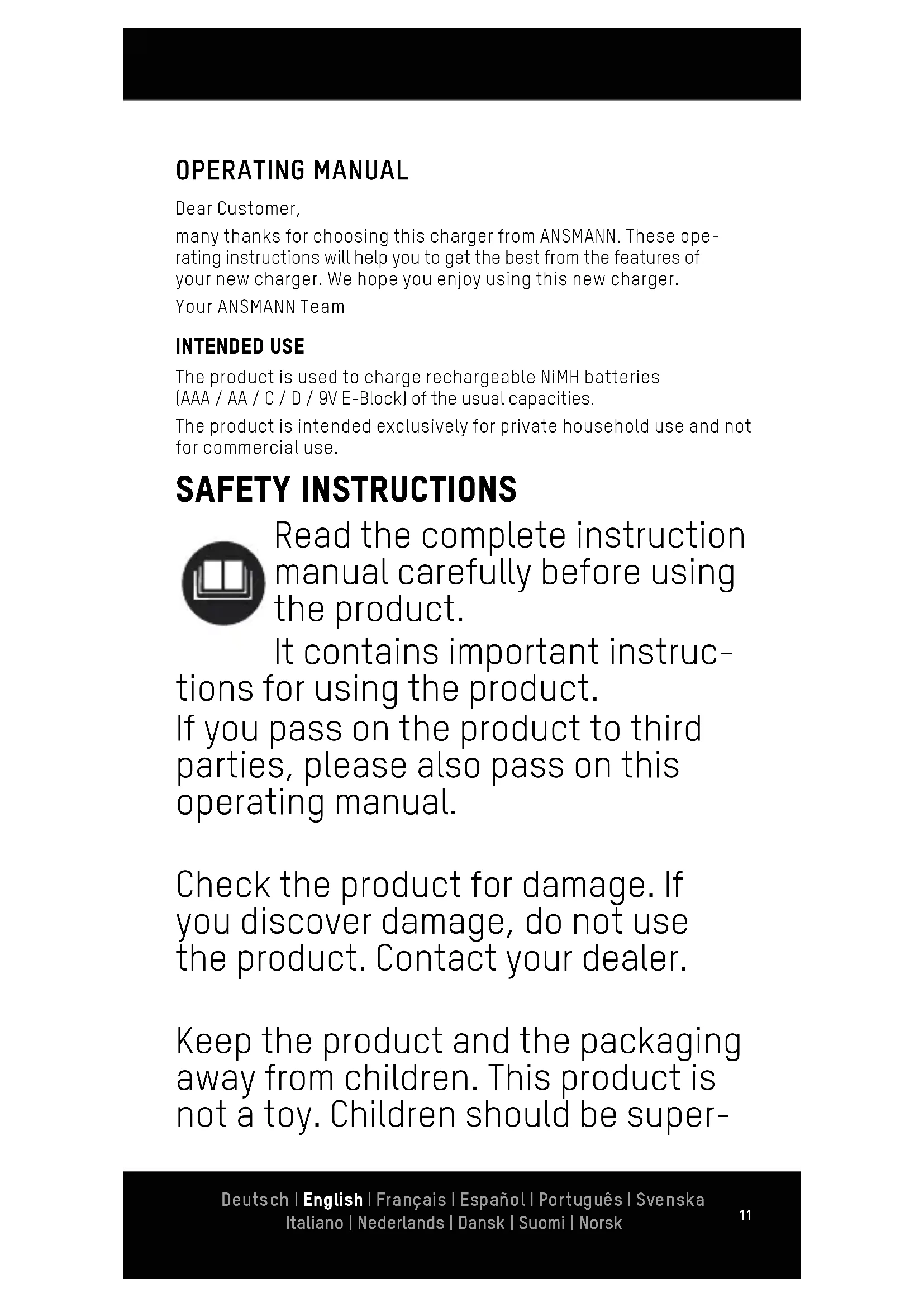

USER MANUAL Comfort Multi ANSMANN

many thanks for choosing this charger from ANSMANN. These operating instructions will help you to get the best from the features of your new charger. We hope you enjoy using this new charger.

Your ANSMANN Team

INTENDED USE

The product is used to charge rechargeable NiMH batteries (AAA / AA / C / D / 9V E-Block) of the usual capacities.

The product is intended exclusively for private household use and not for commercial use.

SAFETY INSTRUCTIONS

Read the complete instruction manual carefully before using the product.

It contains important instructions for using the product. If you pass on the product to third parties, please also pass on this operating manual.

Check the product for damage. If you discover damage, do not use the product. Contact your dealer.

Keep the product and the packaging away from children. This product is not a toy. Children should be super-

vised in order to ensure that they do not play with the product.

This product may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, only if they are supervised or instructed in the safe use of the product and are aware of the hazards. Children are not allowed to play with the device. Cleaning and care must not be carried out by children without supervision.

■ Do not attempt to open the charger!
■ Before using the charger, read all instructions and safety instructions on the charger and the battery.
■ Please also read the operating instructions of all other devices connected to the product.
■ Always insert rechargeable batteries with the correct polarity (+ and -) as shown in the charge slot.

■ Do not attempt to charge non-re-chargeable batteries.
■ Always place the product on a flat, stable and heat-resistant surface.
■ Do not use the product near flammable liquids or gases.
■ Make sure that the ventilation slots on the bottom housing of the charger are not covered.
■ Do not leave the product unattended during use.

Only use the product in dry indoor areas and protect it from sture.

PRODUCT DESCRIPTION (SEE PAGE 2)

A: Charging compartment
B: 9V E-Block charging compartment
C: Multi-colored LED display (red, orange, green)
D: USB power supply connector

OVERVIEW OF FUNCTIONS

Quick charger with USB input for 1-4 NiMH batteries of the sizes Micro AAA / Mignon AA / Baby C / Mono D and one 9V E-Block

Incl. USB cable

Microprocessor controlled charging with single cell monitoring

Automatic start of charging and charging current adjustment after insertion of the batteries with correct polarity

Status indication via 3-colour LED per charging slot

For round cells:

Intelligent "PERFECT 7 CHARGING" function (SEE PAGE 2):

1. Capacity quick test: Residual capacity is determined before charging begins and displayed for 5 seconds
2. Gentle pre-charging: Weak or deeply discharged battery is pre-charged with lower current if necessary
3. Battery analysis: Battery behavior is analyzed and evaluated to determine whether it is still reliably usable or defective
4. Quick charge: Battery is charged at maximum current
5. IQ switch-off: Intelligent monitoring of the battery for reliable charging and multiple protection against overcharging
6. Top-off charge: Ensures that the battery is gently charged to 100% capacity
7. Trickle charge: Battery is kept in a fully charged state by means of charging pulses

For 9V E-Block:

Capacity quick test, defective battery detection, Time-controlled charging

OPERATION

• Connect the charger with the included USB cable.
• Connect the USB cable to any suitable USB port (e.g. power supply, PC, Power bank...).
• Insert the battery into the charging slot with the correct polarity (see engraving in the charging slot).
• The product displays the charge status of the battery for 5 seconds and then automatically starts the charging process.
• As soon as a battery is fully charged, the charger switch to trickle charge.
• You can now remove the fully charged battery.
  ■ After all batteries have been removed, disconnect the product from the power supply

LED INDICATION

	Red Orange Green
Capacity indication (for the first 5s after insertion)	<25% 25-75% >75%
Charging On
Error Flashing
Full / trickle charge On

Pause (*1) Flashing

(*1) If the connected USB device does not supply enough current (recommended min. 2.1A), the device will pause a charging slot. You can still charge your batteries without any problems, but the charging process takes longer due to this pause.

TROUBLESHOOTING

Problem Possible cause Resolution

No LED indication - No connection toUSB power source- USB power supply defective		- Check the connection- Use a different USB power supply
Battery is not recognized	- Battery inserted with reverse polarity	- Insert the battery with the correct polarity
LED is flashing orange - Battery slot pauses, as the current of the USB power source is too low to charge all batteries at the same time		- Use USB power source with a minimum of 2.1A output current- Or accept the longer charging time

CARE AND MAINTENANCE

Cleaning

Disconnect the power supply to the product and remove all batteries before cleaning.

Only use a soft, dry or slightly damp cloth for cleaning (if necessary, add a little mild washing-up liquid). Never use abrasives or solvents for cleaning.

TECHNICAL DATA

Power source USB 5V, min. 1A, 2.1A for fastest charging, max. 2.4A

Charging slots 4x round cells, 1x 9V E-Block

Charge current D/C/AA: 800mA / AAA: 400mA

9V E-Block: 15mA

Trickle charge current D/C/AA: 13mA / AAA: 6.5mA

9V E-Block: 1.3mA

Suitable battery types

(different types or capacities can be combined)

Number of cells Batterie size (NiMH) Max. chargeable capacity

1-4	Mono D 11000 mAh
	Baby C 6000 mAh
	Mignon AA 3000 mAh
	Micro AAA 1100 mAh

19V E-Block 300mAh

When charging a 9V E-block, only Micro AAA / Mignon AA can be charged in the middle two round cell charging compartments.

9V E-Block Bis 300mAh 24h 15 mA
Charging times

Typ	Kapazität	Ladezeit ca.	Ladestrom
Micro AAA	1000 mAh	3 h	400 mA
	800 mAh	2,4 h
Mignon AA	2650 mAh	4 h	800 mA
	2500 mAh	3,75 h
	2100 mAh	3 h
	1300 mAh	2 h
Baby C	4500 mAh	6,75 h	800 mA
	2500 mAh	3,75 h
	10000 mAh	15 h
Mono D	8500 mAh	12,75 h	800 mA
	5000 mAh	7,5 h

DISPOSAL

Dispose of the product in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the retailer from whom you purchased the product.

Batteries and rechargeable batteries are special waste and shall not be disposed of in the normal household waste. Always hand used batteries and rechargeable batteries in to the collection point intended for this. In this way you will fulfil your legal obligations and contribute to environmental protection.

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY NOTICE

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this. You can find our warranty conditions online at: www.ansmann.de

Subject to technical changes. We assume no liability for printing errors.

CE The product complies with the requirements from the relevant EU directives.
