Product type	Battery charger
Brand	Ansmann
Model	Comfort Smart
Compatible batteries	Rechargeable NiMH: Micro AAA (up to 1100 mAh), Mignon AA (up to 3000 mAh), 9V block (up to 300 mAh)
Number of compartments	4 for AAA/AA batteries + 1 for 9V block
Charging current (AA)	650 mA
Charging current (AAA)	350 mA
Charging current (9V block)	15 mA
Maintenance charging current (AA)	10 mA
Maintenance charging current (AAA)	5 mA
Maintenance charging current (9V block)	1.3 mA
Power supply	100-240 V AC, 50/60 Hz
Display	LCD screen with 4 segments per compartment
Functions	Fast charging, optional discharge (for button cells), maintenance charging, defective battery detection, initial capacity test
Protection	Protection class II, double insulation, overcharge protection (IQ cutoff)
Typical charging time (AA 2500 mAh)	Approximately 5.5 hours
Typical charging time (AAA 1000 mAh)	Approximately 4 hours
Typical charging time (9V block 300 mAh)	Approximately 24 hours
Cleaning	Unplug and remove batteries. Clean with a soft, dry or slightly damp cloth. No abrasive products or solvents.
Warranty	3 years
Weight	Approximately 150 g (estimate)
Dimensions (L x W x H)	Approximately 12 x 8 x 4 cm (estimate)

Frequently Asked Questions - Comfort Smart ANSMANN

What types of batteries can I charge with this charger?

This charger is designed for rechargeable NiMH batteries of types Micro AAA (up to 1100 mAh), Mignon AA (up to 3000 mAh) and 9V block (up to 300 mAh). Do not recharge non-rechargeable batteries.

How long does it take to charge a 2500 mAh AA battery?

The typical charging time for a 2500 mAh AA battery is approximately 5.5 hours with a charging current of 650 mA. Times vary depending on battery capacity and condition.

How does the discharge function work?

The discharge function is optional and only for button cells. Press the Discharge button before charging. The inserted batteries are fully discharged, then charging starts automatically.

Can I charge different types of batteries at the same time?

Yes, you can combine different types (AAA, AA) and different capacities, except when charging a 9V block: the two middle compartments for button cells must remain empty.

What should I do if the LCD screen does not light up?

Check that the charger is properly connected to a working outlet. If the problem persists, test another outlet. Also ensure that the batteries are inserted with the correct polarity.

How to clean the charger?

Before cleaning, unplug the charger and remove all batteries. Use a soft, dry or slightly damp cloth (possibly with a little mild dish soap). Never use abrasive products or solvents.

What does the error message on the screen mean?

The Error display may indicate a defective battery, reversed polarity, or a non-rechargeable battery. Check the polarity and replace the battery if necessary. The charger automatically detects defective batteries.

Can I use the charger while traveling?

Yes, the charger operates on a wide voltage range (100-240 V AC), making it compatible with most outlets worldwide. Do not use the device permanently with a travel adapter.

Can I leave the batteries in the charger after charging?

Yes, once charging is complete, the charger automatically switches to maintenance charging to keep the batteries at full capacity without overcharging. You can leave them in place safely.

What is the warranty of this charger?

Ansmann offers a 3-year warranty on the device, provided the product is used in accordance with the instruction manual. The warranty does not cover damage caused by improper use.

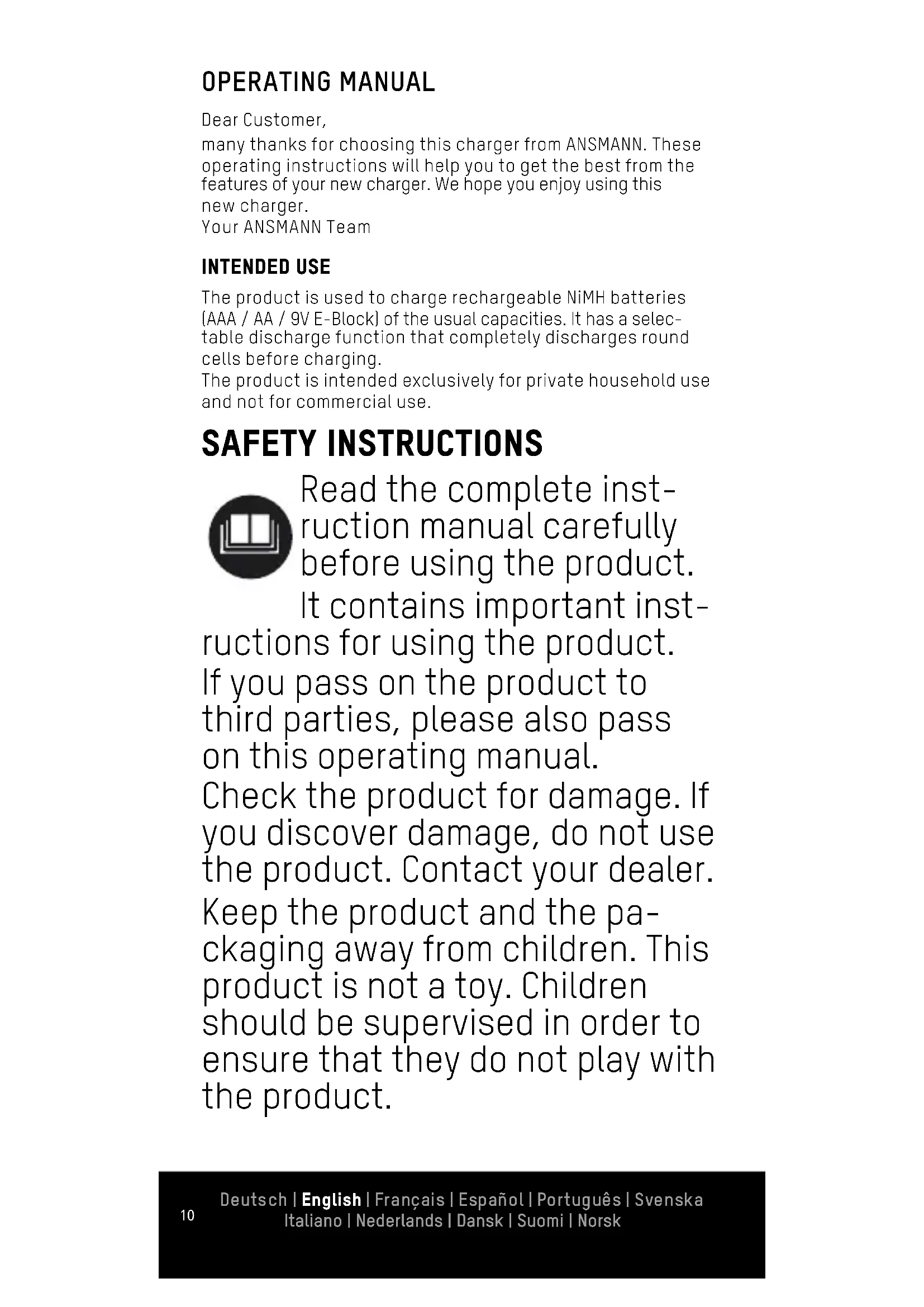

USER MANUAL Comfort Smart ANSMANN

many thanks for choosing this charger from ANSMANN. These operating instructions will help you to get the best from the features of your new charger. We hope you enjoy using this new charger.

Your ANSMANN Team

INTENDED USE

The product is used to charge rechargeable NiMH batteries (AAA / AA / 9V E-Block) of the usual capacities. It has a selectable discharge function that completely discharges round cells before charging.

The product is intended exclusively for private household use and not for commercial use.

SAFETY INSTRUCTIONS

Read the complete instruction manual carefully before using the product.

It contains important inst-

ructions for using the product.

If you pass on the product to third parties, please also pass on this operating manual.

Check the product for damage. If you discover damage, do not use the product. Contact your dealer.

Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.

This product may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, only if they are supervised or instructed in the safe use of the product and are aware of the hazards. Children are not allowed to play with the device. Cleaning and care must not be carried out by children without supervision.

• Do not attempt to open the charger!
• Before using the charger, read all instructions and safety instructions on the charger and the battery.
• Always insert rechargeable batteries with the correct polarity (+ and -) as shown in the charge slot.
• Do not attempt to charge non-rechargeable batteries.
• Do not use the product near flammable liquids or gases.
• Do not leave the product unattended during use.
• The product must not be used

permanently in conjunction with a travel adapter.

Only use the product in dry indoor areas and protect it moisture.

product complies with protection class II. It fears reinforced insulation and it requires no protective funding.

PRODUCT DESCRIPTION (SEE PAGE 2)

A: AA/AAA charging compartments

B: 9V charging compartment

C:Discharge button

D: LC display

OVERVIEW OF FUNCTIONS

Quick charger for 1- 4 NiMH batteries of the sizes Micro AAA /

Mignon AA or 1-2x AAA/AA and one 9VE-Block NiMH

Microprocessor controlled charging with single cell monitoring

Automatic start of charging and charging current adjustment after insertion of the batteries with correct polarity

Status display by a 4-segment LCD symbol per charging bay

Defective battery detection

Worldwide usable (100-240V AC)

For round cells:

Discharge function selectable

Intelligent "PERFECT 7 CHARGING" function (SEE PAGE 2):

1. Capacity quick test: Residual capacity is determined before charging begins and displayed for 5 seconds
2. Gentle pre-charging: Weak or deeply discharged battery is pre-charged with lower current if necessary
3. Battery analysis: Battery behavior is analyzed and evaluated to determine whether it is still reliably usable or defective
4. Quick charge: Battery is charged at maximum current

5. IQ switch-off: Intelligent monitoring of the battery for reliable charging and multiple protection against overcharging

6. Top-off charge: Ensures that the battery is gently charged to 100% capacity

7. Trickle charge: Battery is kept in a fully charged state by means of charging pulses

For 9V E-Block:

Capacity quick test, Charging, Time-controlled cut-off, trickle charging

OPERATION

NORMAL CHARGING PROCESS CHARGING PROCESS WITH PRE-DISCHARGE *1
Connect the charger to an electrical outlet.
Insert the battery into the charging slot with the correct polarity (see engraving in the charging slot).
The product displays the charge status of the battery for 5 seconds and then automatically starts the charging process.
	Press the Discharge button.
	Pre-discharge starts for all inserted round cells
	After all round cells have been discharged, the charging process starts automatically.
As soon as a battery is fully charged, the charger switches to trickle charge.
You can now remove the fully charged battery.
After all batteries have been removed, disconnect the product from the power supply.

*1 Discharge function only for round cells

NOTE: It is not necessary to discharge batteries before each charge. We recommend pre-discharging after approx. 10 charging processes to prevent the lazy-battery effect, which reduces the discharge voltage of batteries. This effect occurs if NiMH batteries are often only partially discharged and then recharged.

LCD INDICATION

Insertion capacity measurement	<25%
	25% to 50%
	51% to 75%
	>75%
Charging	<25%
	25% to 50%
	51% to 75%
	>75%
Fully charged
Discharging
Error

TROUBLESHOOTING

Problem Possible cause Resolution

No LED indication Mains socket not functional / out of order		Use a functional mains socket
Battery is not recognized	Battery inserted with reverse polarity	Insert the battery with the correct polarity

CARE AND MAINTENANCE

Cleaning

Disconnect the power supply to the product and remove all batteries before cleaning.

Only use a soft, dry or slightly damp cloth for cleaning (if necessary, add a little mild washing-up liquid). Never use abrasives or solvents for cleaning.

TECHNICAL DATA

Power source 100-240V AC

Charging slots 4x round cells, 1x 9V E-Block

Charge current AA: 650mA / AAA: 350mA /

9VE-Block:15mA

Trickle charge current AA: 10mA / AAA: 5mA /

9VE-Block:1.3mA

Suitable battery types

(different types or capacities can be combined)

Number of cells Battery size
Max. chargeable capacity

1-4	Mignon AA 3000mAh
	Micro AAA 1100mAh

19VE-Block300mAh

When charging a 9V E-block, no batteries can be charged in the middle two round cell charging compartments.

Charging times

Type Capacity Charge time		approx.	Charge current
Micro AAA	1000 mAh	4 h	350mA
	800 mAh	3,25 h
Mignon AA	2650 mAh	5,75 h	650mA
	2500 mAh	5,5 h
	2100 mAh	4,75 h
	1300 mAh	3 h
9V E-Block	up to 300mAh	24h 15 mA

DISPOSAL

Dispose of the product in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the retailer from whom you purchased the product.

Batteries and rechargeable batteries are special waste and shall not be disposed of in the normal household waste. Always hand used batteries and rechargeable batteries in to the collection point intended for this. In this way you will fulfil your legal obligations and contribute to environmental protection.

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY NOTICE

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this. You can find our warranty conditions online at: www.ansmann.de

Subject to technical changes. We assume no liability for printing errors.

The product complies with the requirements from the relevant EU directives.
