RK250UCD - Hi-Fi System THOMSON - Free user manual and instructions

Product type	Hi-Fi System
Brand	Thomson
Model	RK250UCD
Dimensions	222 x 290 x 132 mm
Weight	Approximately 2.5 kg
Power supply	AC 230 V, 50 Hz
Power consumption	0.48 W (standby) / 10 W (on)
Speakers	2 x 3", 8 Ω, 1 W RMS each
Frequency response	80 Hz – 20 kHz
Signal-to-noise ratio	78 dB
CD player	CD, CD-R, CD-RW, MP3
Radio	FM stereo/mono, 30 presets
Cassette player	Yes, 1 deck
USB port	Yes, MP3 playback
Auxiliary input	3.5 mm jack socket
Headphone output	3.5 mm jack socket
Playback functions	Repeat, random, program
Clock	12/24 h display, adjustable
Cleaning	Soft dry cloth, disconnect before cleaning
Safety instructions	Do not expose to moisture, use on a stable surface
Repairability	Refer to a qualified repair technician

Frequently Asked Questions - RK250UCD THOMSON

How to set the clock on the Thomson RK250UCD Hi-Fi system?

Put the device in standby. Press and hold the PLAY/PAUSE/CLOCK button for 2 seconds. Use NEXT+/TUNER+ and PREV-/TUNER- to choose the 12/24h format, then confirm. Set the hours and minutes in the same way.

How to search and store FM radio stations?

Select the RADIO mode. For automatic search, press AMS/MODE for about 3 seconds: the device scans the FM band and stores found stations. For manual search, briefly press NEXT+/TUNER+ or PREV-/TUNER-. Stored stations can be accessed via PRESET+ / FOLDER+ and PRESET-/FOLDER- buttons.

Can I clean the device with a liquid product?

No, never immerse the device in water. Disconnect it before cleaning. Use a slightly damp cloth without additives. For the display, use a dry microfiber cloth.

How to connect an external MP3 player?

Use a 3.5 mm stereo jack cable to connect your player to the AUX-IN input on the back of the system. Select AUX-IN mode with the STANDBY/FUNCTION button. Control the volume with the VOLUME+ and VOLUME- buttons.

How to program the playback order of tracks on CD?

Press STOP, then AMS/MODE. The display shows P01. Select the track with NEXT+/TUNER+ or PREV-/TUNER- and confirm with AMS/MODE. Repeat for each track. Start playback with PLAY/PAUSE/CLOCK. To clear the program, press STOP twice.

How to play an audio cassette?

Select the CASSETTE mode with STANDBY/FUNCTION. Press STOP/EJECT to open the compartment. Insert the cassette (tape facing up, full reel on the right) and close. Press PLAY. Use the F.FWD and RWD buttons to fast forward or rewind. Always press STOP/EJECT before changing direction.

What to do if no sound comes from the speakers?

Check that the device is powered on and the volume is not at minimum. Make sure a source is selected (CD, Radio, USB, etc.) and that it is producing sound. If headphones are plugged in, the speakers are muted. Test another source. If nothing works, unplug and plug the device back in.

How to use headphones on this system?

Plug your headphones (3.5 mm jack) into the HEADPHONE socket on the back of the device. The speakers will be automatically muted. Set the volume to a moderate level before putting on headphones to avoid hearing damage.

How to reset the device to factory settings?

This system does not have a dedicated reset function. You can unplug the power cord for about 30 seconds, then plug it back in. Radio presets and the clock will be lost. For a persistent issue, contact technical support.

How to clean the CD player lens?

Use a commercially available CD lens cleaning disc. Follow the product instructions. Never use liquids or cloths directly on the lens. If the problem persists, call a repair technician.

USER MANUAL RK250UCD THOMSON

Waterloo Office Park/Batiment H

Dreve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

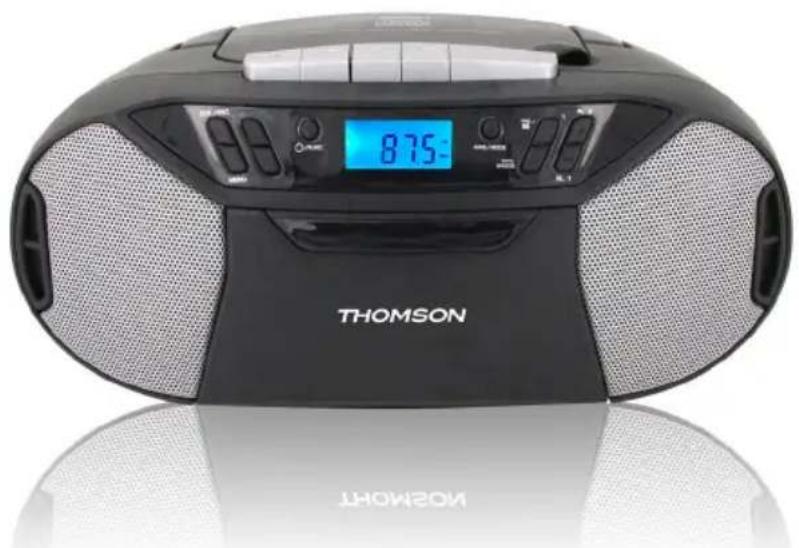

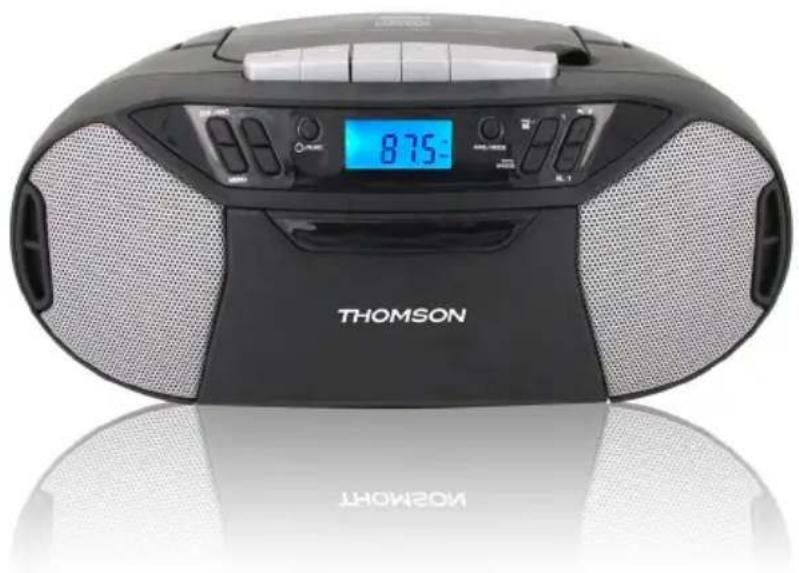

Portable Boombox

USB / MP3 / CD / PLL FM RADIO / CASSETTE

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE

OPERATING THIS UNIT AND RETAIN FOR

FUTURE REFERENCE

WARNING AND PRECAUTIONS

The lightning bolt with an arrowhead within a triangle indicates the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons

The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

Important safety instructions

• Read these instructions.
• Keep these instructions.
  Heed all warnings.
• Follow all instructions.
  Refer all servicing to qualified service personnel.
• Do not expose the unit to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on it.
  Class I appliances must be connected to the mains socket outlet with a protective-earth connection.
• The mains plug connects the device and should remain operable during use.
• To disconnect the unit from the mains, the plug should be fully disconnected from the mains socket outlet. The mains plug should not be obstructed and should be easily accessible during use.
• When a power indicator light is on, it indicates the unit is connected to the mains supply. When the light is off, it indicates the unit is fully disconnected from the mains supply.
• Don't sleep with the product.

The product must be at a minimum distance of 20cm from human body when working.

INFORMATION ABOUT BATTERIES (applicable only if batteries included)

• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not expose the battery to excessive heat such as sunshine or fire
• Remove the batteries when they have not been used for a long time.
• If the liquid contained in the batteries comes in contact with eyes or skin, immediately and carefully wash the affected area with clear water and consult a doctor.
• The product/remote control may contain a coin/button type battery:

WARNING :

This product has not been manufactured to be used by people (including children) whom physical or mental capacities are reduced, or people without experience except if they are under the responsibility of somebody who is able to read and follow the instructions properly. Children must use this product under the supervision of an adult.

WARNING CONCERNING BATTERIES :

Don't swallow batteries. Risk of chemical burning. This product contains one or several batteries. If a battery is swallowed, it can cause within less than 2 hours severe internal damages and death. Keep new and old batteries away from children and vulnerable people. If the compartment of batteries can't be closed correctly, please don't use the product any longer. If a battery is swallowed, please go and see a doctor immediately.

IMPORTANT REMARKS :

Risk of explosion if the battery/ies is/are not replaced correctly or if the product is not used for a long time with batteries left inside.

Replace old batteries by an identical or similar models.

double insulation
direct current
alternating current	~
symbol indoor use

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Compliance

This product complies with the radio interference requirements of the Europe Community.

This apparatus includes this label.

Battery power

• Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.
• Use batteries of the same type. Never use different types of batteries together.
• Do not throw the battery into the fire, or exposed to sunshine or the like
• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

When AC power supply...

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

What's in the box

Main unit
Powercord
- Instruction manual

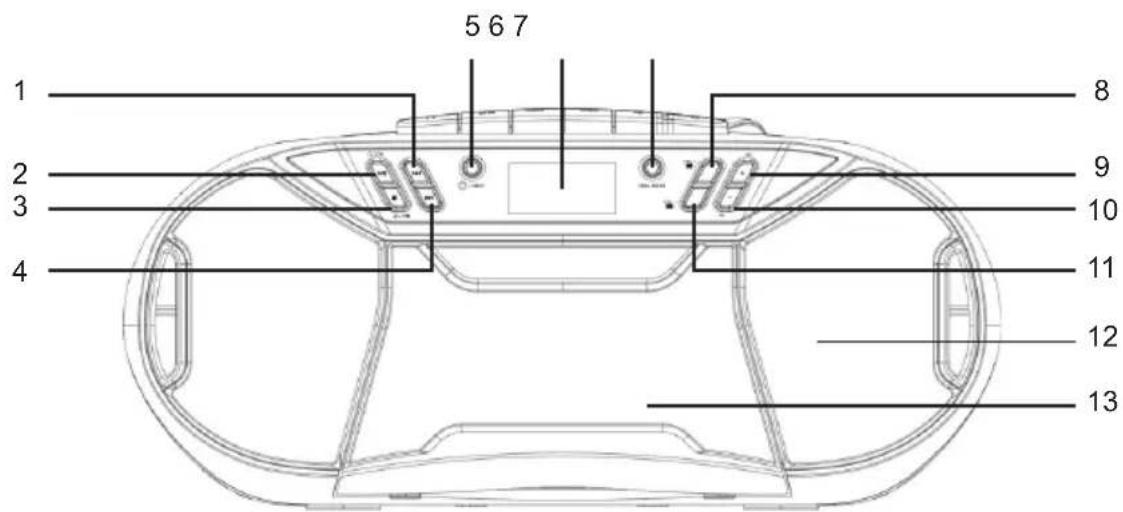

Overview of the Components

1. SKIP+ / TUNING+ button 2. PLAY / PAUSE / CLOCK button

2. STOP / FM ST.(MONO) button

3. SKIP-/TUNING- button 5. STANDBY / FUNCTION button

4. DISPLAY

5. AMS / MODE button 8. PRE.+ / FOLDER+ button 9. VOLUME+ button

6. VOLUME- button

7. PRE.-/ FOLDER- button

8. SPEAKER

9. CASSETTE DOOR

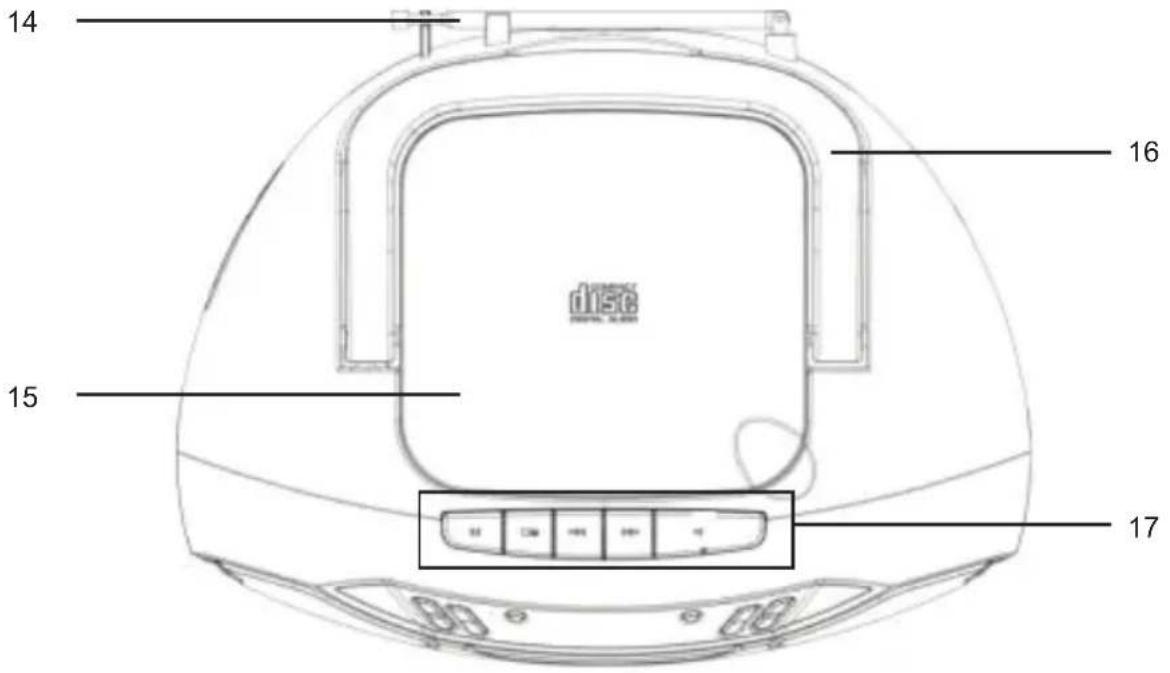

14.ANTENNA 15.CD DOOR
16. HANDLE 17. TAPE BUTTONS

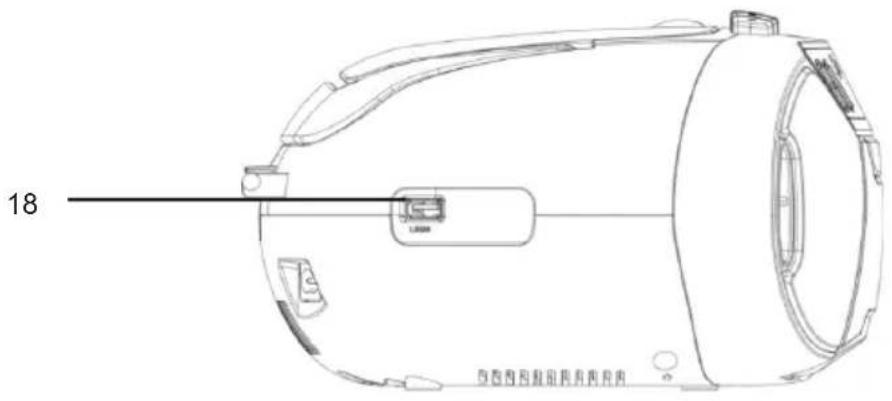

1. USB JACK

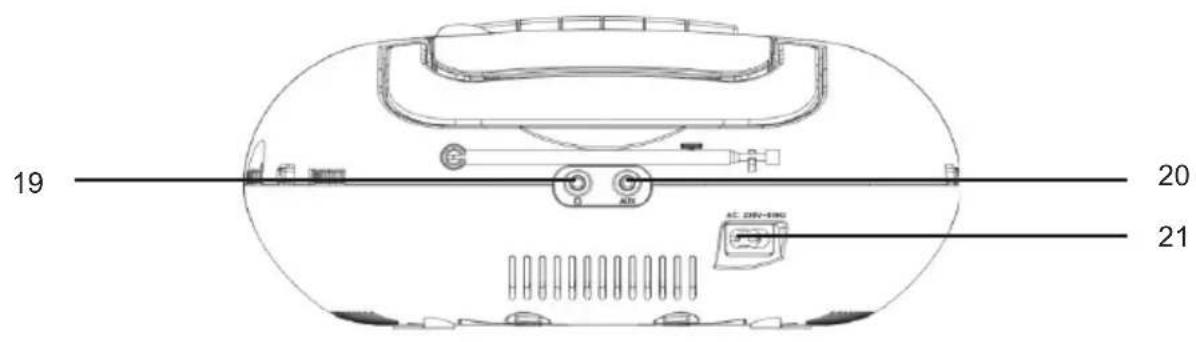

1. HEADPHONE JACK 20. AUX-IN JACK
2. AC SOCKET

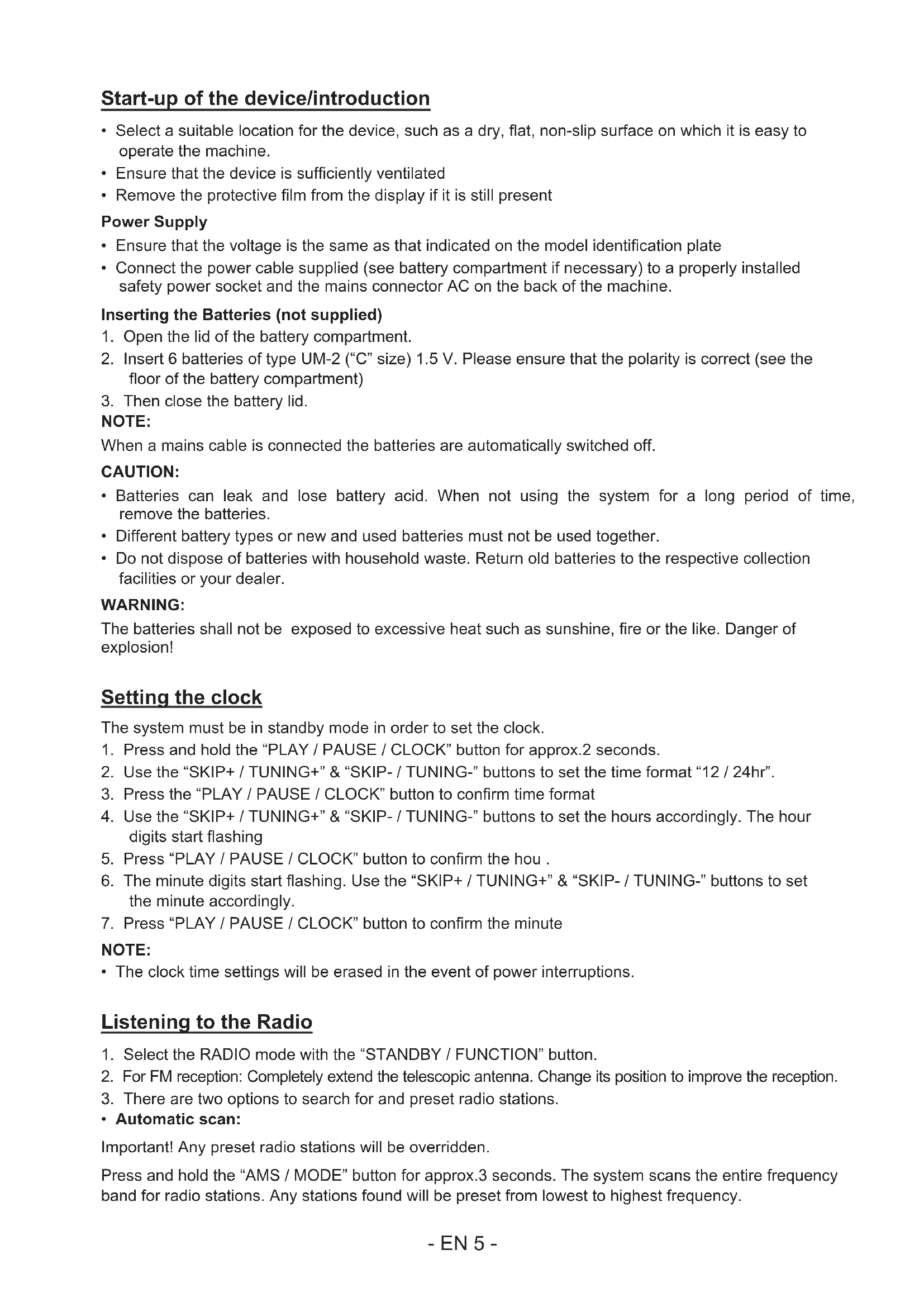

Start-up of the device/introduction

• Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
• Ensure that the device is sufficiently ventilated
• Remove the protective film from the display if it is still present

Power Supply

• Ensure that the voltage is the same as that indicated on the model identification plate.
• Connect the power cable supplied (see battery compartment if necessary) to a properly installed safety power socket and the mains connector AC on the back of the machine.

Inserting the Batteries (not supplied)

1. Open the lid of the battery compartment.
2. Insert 6 batteries of type UM-2 ("C" size) 1.5V . Please ensure that the polarity is correct (see the floor of the battery compartment)
3. Then close the battery lid.

NOTE:

When a mains cable is connected the batteries are automatically switched off.

CAUTION:

• Batteries can leak and lose battery acid. When not using the system for a long period of time, remove the batteries.
• Different battery types or new and used batteries must not be used together.
• Do not dispose of batteries with household waste. Return old batteries to the respective collection facilities or your dealer.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Danger of explosion!

Setting the clock

The system must be in standby mode in order to set the clock.

1. Press and hold the "PLAY / PAUSE / CLOCK" button for approx.2 seconds.
2. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to set the time format "12 / 24hr".
3. Press the "PLAY / PAUSE / CLOCK" button to confirm time format
4. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to set the hours accordingly. The hour digits start flashing
5. Press "PLAY / PAUSE / CLOCK" button to confirm the hou .
6. The minute digits start flashing. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to set the minute accordingly.
7. Press "PLAY / PAUSE / CLOCK" button to confirm the minute

NOTE:

• The clock time settings will be erased in the event of power interruptions.

Listening to the Radio

1. Select the RADIO mode with the "STANDBY / FUNCTION" button.
2. For FM reception: Completely extend the telescopic antenna. Change its position to improve the reception.
3. There are two options to search for and preset radio stations.

Automatic scan:

Important! Any preset radio stations will be overridden.

Press and hold the "AMS / MODE" button for approx.3 seconds. The system scans the entire frequency band for radio stations. Any stations found will be preset from lowest to highest frequency.

- Manual scan for audio stations:

Briefly press the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons, until you have found the radio station which you are looking for. If you keep one of the buttons pressed down, the device will search to the previous, respectively next radio station.

- Preset station:

1. Press and hold the "AMS / MODE" button on unit for about 2-3 seconds to start the automatic preset process.
2. Display will show the memory sequence number and radio stations will be automatically preset into the sequence number (Note: Each sequence number means 1 preset station while during automatic preset process.)
3. Once all the stations were automatic preset, press the "PRE.+ / FOLDER+" or "PRE.-/ FOLDER- " buttons to choose preset stations.

FM/FM-Stereo reception

Select the MONO or STEREO mode for FM reception with the "STOP / FM ST.(MONO)" button.

Cassette Operation

Playing Cassettes

1. Select the CASSETTE mode with the "STANDBY / FUNCTION" button.
2. Press the STOP/EJECT button to open the cassette compartment.
3. Insert a recorded audio cassette into the compartment with the tape opening facing upwards and the side you wish to listen to facing the front (full spool to the right). Then close the cassette compartment again.
4. Press the PLAY key to listen to the tape.
5. With the STOP/EJECT key you can stop play-back.
6. Wind the tape forwards or backwards if necessary in the direction of the arrow keys. F.FWD = forwards, RWD = reverse.
7. Always press the STOP/EJECT key when changing the direction or stopping the tape. This prevents damage to the machine and the tape.
8. If the STOP/EJECT button is pressed again the flap of the cassette compartment opens
9. In order to interrupt playback brief, press the PAUSE button. Pressing again continues playback.

Playing CD / MP3

1. Select the CD mode with the "STANDBY / FUNCTION" button.
2. Open the CD compartment by pulling the lid upwards by the tab.
3. Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
4. After a few seconds the total number of songs/tracks is shown in the display.

NOTE:

In the case of CDs in MP3 format the number of folders is briefly displayed at firs

1. The CD will play from the first title
2. In order to remove a CD, please press the STOP button, open the CD compartment and lift the CD out carefully.

Always keep the CD deck closed.

NOTE:

• If a disc is inserted the wrong way around, respectively if no disc is inserted, then the message "NO" appears on the display.
• Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.

Playing music via USB

This device has been developed in line with the latest technical advances in the USB field. The wide range of different USB storage devices of all types which are currently on the market, unfortunately do not allow us to guarantee full compatibility with all USB storage devices. For this reason, in rare cases there may be problems in playing back files from USB storage devices. This is not a malfunction of the device.

1. Select the USB mode with the "STANDBY / FUNCTION" button.
2. Connect a USB storage device directly into the port. The display briefly shows the number of folders and then the total number of tracks. Playback will automatically start after a few seconds.

For operation, please refer to the section "Description of the control buttons".

NOTE:

• Always directly connect a USB storage medium to the USB port to prevent any malfunctions.
• The USB port is not designed for charging external devices.

CAUTION:

Switch the device to a different operating mode before you remove the USB storage device.

Description of the control buttons

NOTE:

Not all the functions may be supported depending on the playback device.

PLAY/PAUSE/CLOCK

• You can briefly interrupt and resume playback using this button. The display shows the elapsed playback time flashing. Pressing again continues playback
• Press and hold this button during operation to briefly display the current time

SKIP+ & SKIP-

With SKIP + you can jump to the next track.
- If the button is kept pressed down, the machine starts to search through the tracks.

The SKIP - button can be used as follows:

Press once = This starts the current track again from the beginning.

Press twice = This jumps back to the previous track.

STOP

The playback is stopped.

AMS/MODE

• In stop mode for programming any order of tracks (see the section on "Programmed Play").

During the playback of an audio CD:

Press once = the current track is repeated continuously. The symbol "REP" appears in the display.

Press twice = the whole CD is played continuously. The symbol “REP ALL” appears in the display.

Press three times = all tracks will be played in random order. The symbol "RAND" appears in the display.

Press four times = all functions are cancelled. The normal play mode is resumed.

During playback of MP3 music:

Press once = the current track is repeated continuously. The symbol "REP" appears in the display.

Press twice = the selected folder is repeated continuously. The symbol "REP ALBUM" appears in the display.

Press three times = all music titles are repeated continuously. The symbol “REP ALL” appears in the display.

Press four times = all tracks will be played in random order. The symbol “RAND” appears in the display.

Press five times = all the functions are deactivated. Playback is continued normal.

PRE-/FOLDER- / PRE+/FOLDER+

Use the "PRE.+ / FOLDER+" or "PRE.- / FOLDER- " buttons to select another folder. The music in the selected folder is played back.

Programmed Play

This can be used to program any desired sequence of tracks.

1. Press the "STOP" button.

2. Press the "AMS / MODE" button. "P01" (Storage space) and the notification "PROG" will appear in the display.

Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to select the desired track and then press the "AMS / MODE" button again.

The display changes to memory slot P02.

1. Select the next track with the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons and press the

"AMS / MODE" button again. Repeat the procedure until all the desired tracks are selected.

NOTE:

Once the storage capacity of the tracks to be programmed has been reached "FUL" flashes in the display.

1. Press the "PLAY / PAUSE / CLOCK" button. The playback starts.

The notification "PROG" will appear additionally in the displa.

1. Press once the button to stop the playback while retaining the program.
2. To play the programmed back again, press the "PLAY / PAUSE / CLOCK" button.
3. To delete the program, press the "STOP" button twice. The notification "PROG" will disappear.

Playing back Music in MP3 Format

With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types:

CD, CD-RW, CD-R.

This machine of is able to play MP3 CDs. Up to 99 track scan be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under "Playing CDs/MP3". Tracks can be programmed as described under "Programmed Play".

AUX IN socket

Via this socket you can also hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeakers.

1. Please connect the external device with a 3.5mm stereo jack plug to the AUX-IN socket.
2. Select the AUX IN mode with the "STANDBY / FUNCTION" button.
3. You will hear the sound playback from the external device through the loudspeakers. You may adjust the volume with "VOLUME+ & "VOLUME- buttons. The CD buttons are not functional.
4. For the remaining procedure please see the operating instructions of the external sound source.

NOTE:

Adjust the volume of the external device to a comfortable level.

Headphone socket

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect to the headphones socket on the back of the system. The speakers will then be muted.

NOTE:

Adjust the volume of the external device to a comfortable level.

WARNING! Risk of hearing impairment

• Set a low volume on the playback device before connecting the headphones to the sound source.
• Avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

Cleaning and Maintenance

WARNING:

Do not immerse the device in water.

• Always remove the mains plug before cleaning the machine.
• Any marks on the surface can be wiped off with a slightly damp cloth without any additives.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

DECLARATION OF CONFORMITY The undersigned, Bigben Interactive declares that the radio equipment of the RK250UCD type complies with the 2014/53/EU directive. The complete text is available at https://www/bigbeninteractive.co.uk/support/

Type	Specifications	Type	Specifications
Speaker	3" (3W)	Charging Time	N/A
Peak Speaker	N/A	Playing Time	N/A
RMS Power	1W x 2	Bluetooth Version	N/A
Power Consumptions	0.48W (Standby)/10W (Operation)	Bluetooth Frequency	N/A
Power Input	N/A	Speaker Frequency	80 Hz-20 kHz
Speaker Impedance	8Ω	Input	AC 230V
S/N Ratio	78dB	Driver	3" 8Ohms speaker
Battery Capacity	N/A	Transmission Distance	N/A
Output (V,A)	N/A	Dimension	222 x 290 x 132 mm

Waterloo Office Park/Batiment H

Dreve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

Waterloo Office Park/Batiment H

Dréve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

Stereo portable

USB / MP3 / CD / RADIO PLL FM / MUSICASSETTE

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

Waterloo Office Park/Batiment H

Dréve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

Waterloo Office Park/Batiment H

Dreve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

Tragbare Boombox

USB / MP3 / CD / PLL FM RADIO / KASSETTE

BEDIENUNGSANLEITUNG

Waterloo Office Park / Batiment H

Dréve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

THOMSON

Draagbare boombox

USB / MP3 / CD / PLL FM-RADIO / CASSETTE

HANDLEIDING

LEES DEZE GEBRUKSAANWIJZING VOLLEDIG DOOR ALVORENS DEZE EENHEID TE BEDIENEN, EN BEWAAR DIT BOEKJE VOOR UW ADMINISTRATIE.

WAARSCHUWINGEN OVER BATTERIJEN

- Handmatig scanners:

www/bigbeninteractive.com/support/

Type	Specifications	Type	Specifications
Luidspreker	3" (3W)	Tempo de carregamento	N/A
Piek luidspreker	N/A	Tempo de reprodução	N/A
RMS-vermogen	1W x 2	Versão do Bluetooth	N/A
Stroomverbruik	0.48W (verlichting ult)/10W (verlichting aan)	Frequência do Bluetooth	N/A
Voedingsingang	N/A	Frequência da coluna de som	80 Hz-20 kHz
Luidsprekerimpedantie	8Ω	Entrada	AC 230V
S/R-verhouding	78dB	Controlador	3* 8Ohms luidspreker
Type batterij	N/A	Distância de transmissão	N/A
Uitgang (V,A)	N/A	Dimensões	222 x 290 x 132 mm

Waterloo Office Park/Batiment H

Dreve Richelle 161 bte 15 1410 Waterloo, Belgium

Bigben Interactive NEDERLAND b.v.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu
