USER MANUAL MPKDVF2 SONY

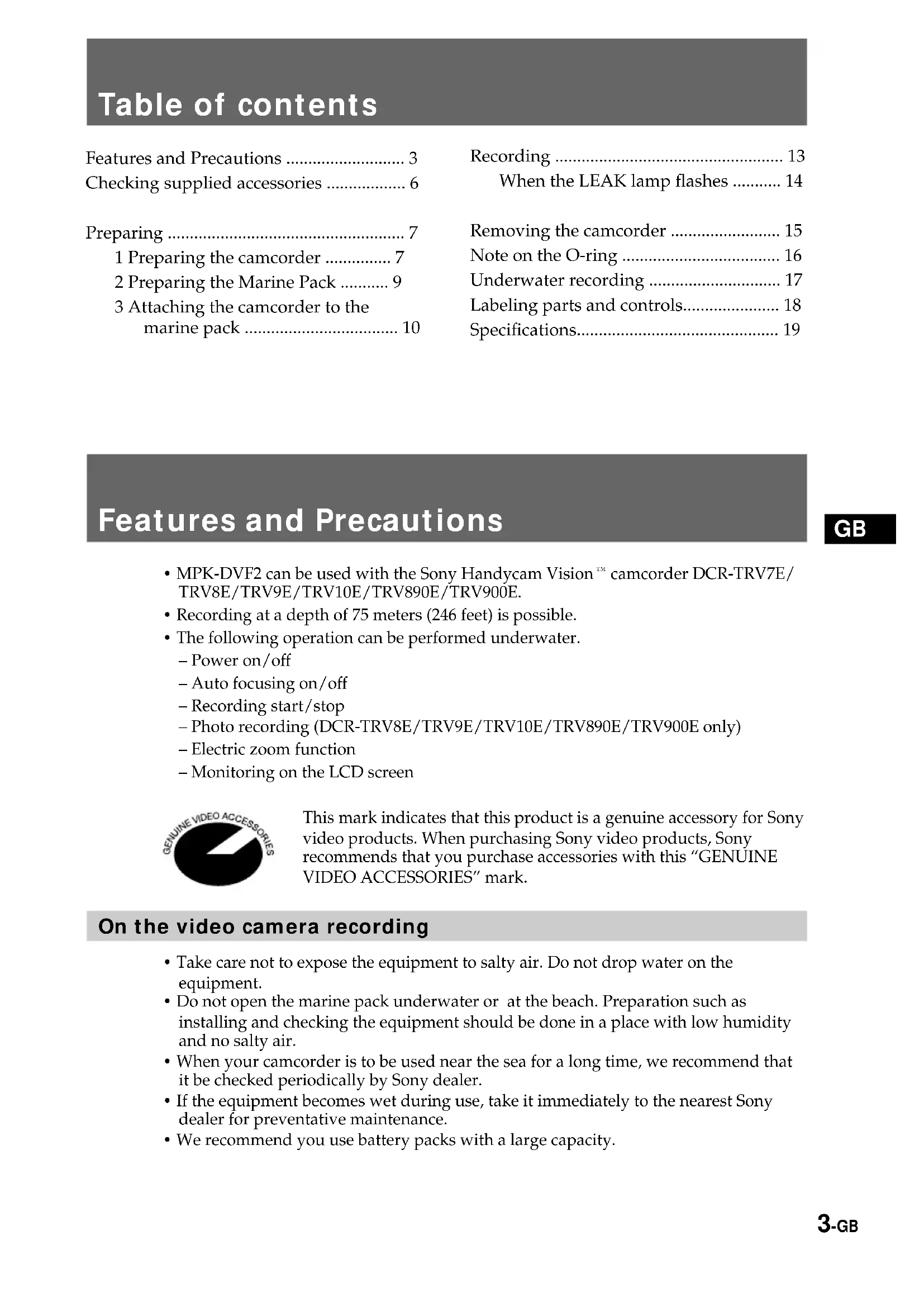

• MPK-DVF2 can be used with the Sony Handycam Vision camcorder DCR-TRV7E/TRV8E/TRV9E/TRV10E/TRV890E/TRV900E.• Recording at a depth of 75 meters (246 feet) is possible.• The following operation can be performed underwater.– Power on/off– Auto focusing on/off– Recording start/stop– Photo recording (DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E only)– Electric zoom function– Monitoring on the LCD screenThis mark indicates that this product is a genuine accessory for Sonyvideo products. When purchasing Sony video products, Sonyrecommends that you purchase accessories with this “GENUINEVIDEO ACCESSORIES” mark. On the video camera recording
• Take care not to expose the equipment to salty air. Do not drop water on theequipment.• Do not open the marine pack underwater or at the beach. Preparation such asinstalling and checking the equipment should be done in a place with low humidityand no salty air.• When your camcorder is to be used near the sea for a long time, we recommend thatit be checked periodically by Sony dealer.• If the equipment becomes wet during use, take it immediately to the nearest Sonydealer for preventative maintenance.• We recommend you use battery packs with a large capacity. Table of contents Features and Precautions MPK-DVF Table of contents 3 Features and Precautions ........................... 3 Checking supplied accessories .................. 6 Preparing ...................................................... 7 1 Preparing the camcorder ............... 7 2 Preparing the Marine Pack ........... 9 3 Attaching the camcorder to the marine pack ................................... 10 Recording .................................................... 13 When the LEAK lamp flashes ........... 14 Removing the camcorder ......................... 15 Note on the O-ring .................................... 16 Underwater recording .............................. 17 Labeling parts and controls...................... 18 Specifications.............................................. 194-GB Features and Precautions On the marine pack

• If you open and join the front and rear shells in a place with high temperature and high humidity, moisture condensation may occur when you put the marine pack in the water, causing the front glass to fog. The waterproof integrity of the marine pack is maintained by the O-ring, and the groove and surface where it touches. Be especially careful not to damage or deform that area. For details, see “Note on the O-ring” (page 16).

• Do not leave the marine pack under direct sunlight for a long period of time, otherwise the temperature in the marine pack may rise and the equipment inside may be damaged. If you can not avoid leaving the marine pack under direct sunlight, be sure to cover the marine pack with a towel or other protection.

• Do not throw the marine pack into the water. Lower it gently into the water. On recording underwater

• Checking that the equipment operates correctly and that there is no water leakage at a depth of about one meter (3 feet) before you dive deeper.

• Be sure to follow the safety rules for diving, such as diving period and depth.

• Remove the bubbles from the outside of the front glass before recording. Sony dose not accept liability for damage to the video camera recorder, battery, etc. in the marine pack or for the loss of prerecorded material if a water leakage caused by incorrect operation occurs. On maintenance The metal parts will rust and the movement of the operation switches will be impaired if you leave salt water on the marine pack. If sea water enters through scratches in the coating, the salt can corrode the metal parts of the marine pack unit and cause the coating to peel off. After recording in the sea, submerge the marine pack in tap water or fresh water for about 30 minutes before undoing the buckles to completely remove any salt from the marine pack unit, filter and wide-conversion lens. After washing, wipe the water from the inside of the marine pack and the loaded video camcorder with a soft dry cloth. Always carry out the above when you use the marine pack. Do not use any type of solvent such as thinner, benzine or alcohol for cleaning, as this might damage the surface finish. When you store the marine pack

• Coat the O-ring slightly with the supplied grease, and put it in the groove correctly. Join the front and rear shells then put in a cool and dry place without fastening the buckles.

• Prevent dust from collecting on the O-ring.

• Avoid storing the marine pack in a very hot, cold or humid place, or together with naphthalene or camphor, as these conditions might damage the unit. After using the marine pack

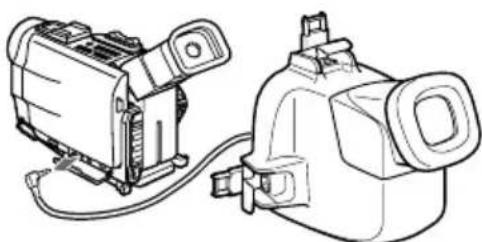

• Insert the A/V connecting cable plug to the plug holder of the camera mounting shoe B.

• Insert the remote and microphone plugs to the plug holder inside of the front shell.5-GB

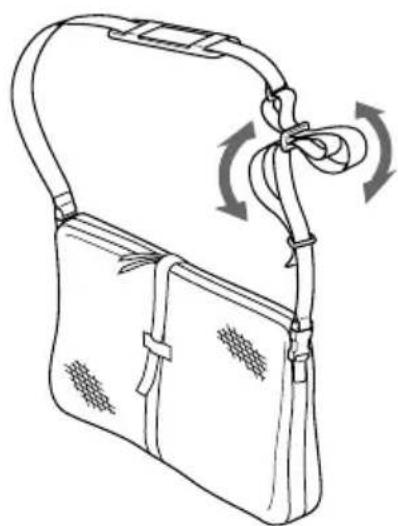

Features and Precautions Using the supplied carrying bag Attach the supplied carrying belt and adjust the length of the belt. On transportation

• When transporting the marine pack, be sure to remove your camcorder from it.

• Avoid rough handling or a shock. We recommend to cover the marine pack with a towel or other protection.6-GB Check that the following accessories are supplied with your sports pack. Checking supplied accessories

1 Camera mounting shoe A (1) for DCR-TRV7E 2 Camera mounting shoe B (1) for DCR-TRV8E/TRV9E/TRV10E/

3 Spacer for camera mounting shoe B (1) for DCR-TRV8E/TRV10E 4 Screw plate for camera mounting shoe B (1) 5 Screw driver part (1) The screw driver part is installed in the camera mounting shoe B. 6 Battery cushion (1) 7 O-ring (1) 8 Grease (1) 9 NP-F330 battery pack for the LCD monitor (1) 0 R6 (size AA) battery (2) qa Sunshade (1) qs Colour filter (VF-MK2) (1) qd Reflex prevention ring (2) Large: ø 37 mm (1) Small: ø 30 mm (1) qf Underwater wide–conversion lens (VCL-MK2) (1) qg Carrying bag (1) Carrying belt (1) qh Strap (3)7-GB

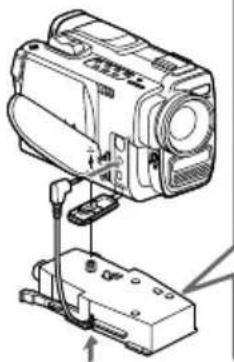

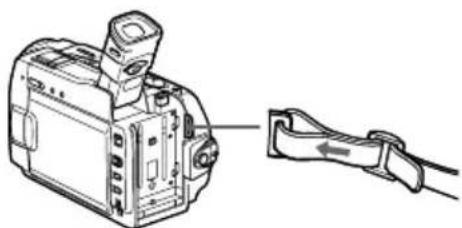

Preparing 1 Preparing the camcorder The DCR-TRV9E is the model used for illustration purposes. Otherwise, the modelname is indicated in the illustrations. Any differences in operation are clearly indicatedin the text, for example, “DCR-TRV9E only”.For details, please refer to the operating instructions supplied with your camcorder. (1) Remove the lens cap, shoulder strap, conversion lens or filter from the camcorder. (2) Attach a charged battery pack. (3) Insert a cassette tape. (4) Attach the reflex prevention ring to the tip of the lens. for DCR-TRV7E/TRV9E : ø 37 mm (large) for DCR-TRV8E/TRV10E : ø 30 mm (small) for DCR-TRV890E/TRV900E : disuse (5) Attach the camera mounting shoe A (for DCR-TRV7E) or the camera mounting shoe B* (for DCR-TRV8E**/TRV9E/TRV10E**/TRV890E/TRV900E). Remove the metal part from the camera mounting shoe B and firmly attach the screw plate until the catch on the reverse side of the camera mounting shoe B clicks into place. For DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E only, connect the A/V connecting cable of the camera mounting shoe B to the camcorder’s AUDIO/ VIDEO jack. (6) Adjust the camcorder. Cancel the following functions: BACK LIGHT, NightShot, PROGRAM AE and picture effect.

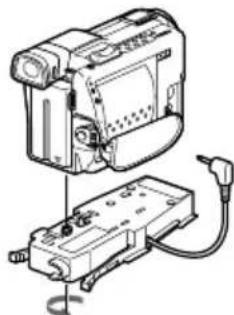

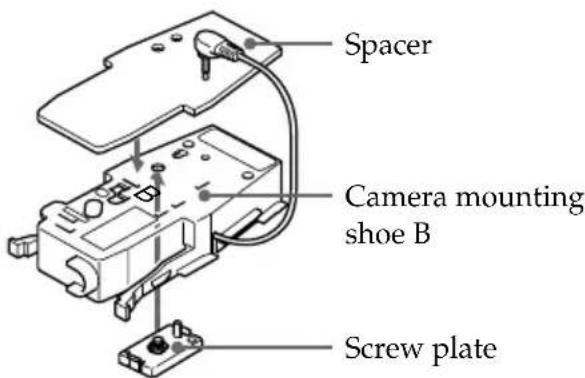

Installing position of the screw plate**Use the spacer supplied when you attach the camera mounting shoe B. SpacerCamera mountingshoe BScrew plate DCR-TRV7E1 DCR-TRV9E2 DCR-TRV890E/TRV900E3 DCR-TRV8E/TRV10ECameramountingshoe ACameramountingshoe BInstalling position of the screw plate* To attach the camera mounting shoe BAttach the screw plate to the cameramounting shoe B.8-GB Preparing

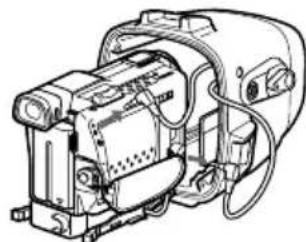

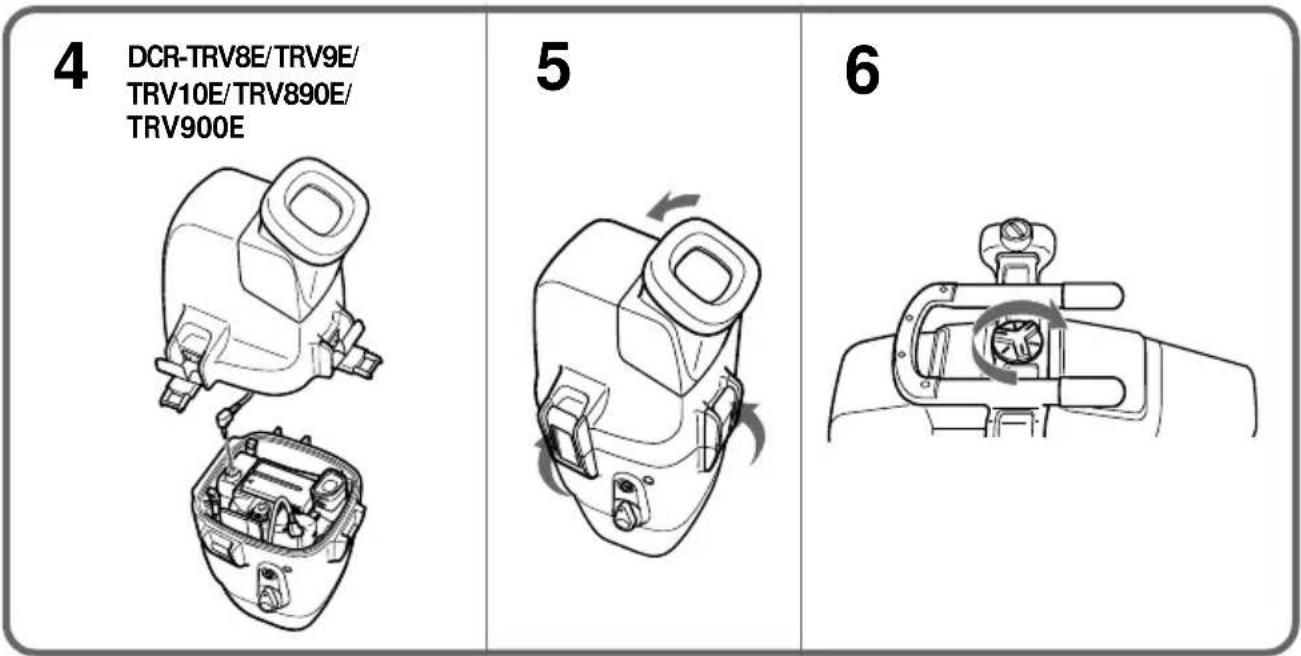

1 Set the POWER switch to CAMERA. Remove the metal part. Fasten the screw. 2 Select COMMANDER to ON in the menu system. 3 Slide the AUTO LOCK switch up. DCR-TRV7E DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E 1 Set the POWER switch to CAMERA. 2 Select COMMANDER to ON in the menu system. 3 Slide FOCUS switch up to AUTO. 4 Select V-OUT/LCD in the DISPLAY menu, and press the DISPLAY button on your camcorder before attaching it to the marine pack. 4 Select V-OUT/LCD in the DISPLAY menu, and press the DISPLAY button on your camcorder before attaching it to the marine pack.9-GB

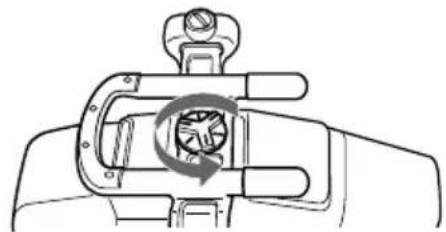

1 Remove the screwwith something likea coin.2 Insert the dry batteries withthe polarity positionedcorrectly as indicated onthe grip.

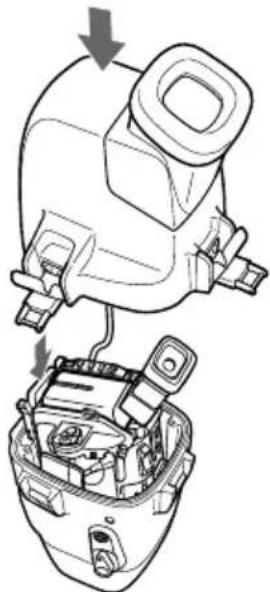

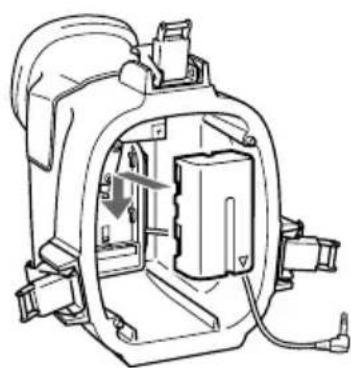

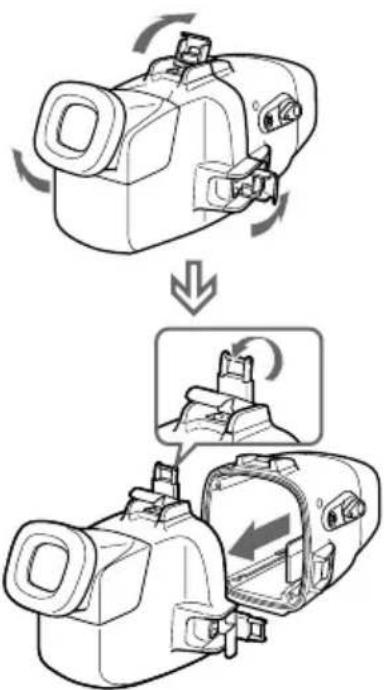

2 Preparing the Marine Pack (1)Remove the grip. (2)Insert the dry batteries into the grip. (3)Unfasten the 3 buckles and open the marine pack. If you lift the metal fitting in the direction of the finder when the buckles are open, the buckles will stop. (4)Attach the supplied battery pack NP-F330 for the LCD monitor to the rear shell. Be sure to charge the battery pack fully before attaching. Preparing 3 Fasten the screw tightly.The battery pack maycome loose if droppedor subjected to impactsso insert the suppliedbattery cushion.10-GB Preparing 3 Attaching the camcorder to the marine pack The cords are placed in the plug holders of the marine pack at the factory. Pull the plugs out of the holders when in use. (1) For DCR-TRV7E only, connect the monitor plug to AUDIO VIDEO jack. (2) Connect the remote plug to LANC control (2) jack, and the microphone plug to MIC jack (plug in power) (1). (3) Attach the camcorder. Insert the camera mounting shoe until it clicks. (4) For DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E , connect the monitor cord to the jack of camera mounting shoe B. (5) Attach the front shell to the rear shell. Hold the both shells firmly and fasten 3 buckles securely. Take care not to pinch the remote, microphone, and monitor cords. If this happens water may leak in. (6) Attach the grip. Note To prevent the cords from twisting or slacking, make sure that these plugs are inserted as the correct direction as the illusration.11-GB

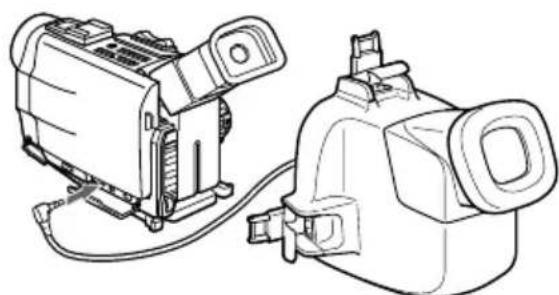

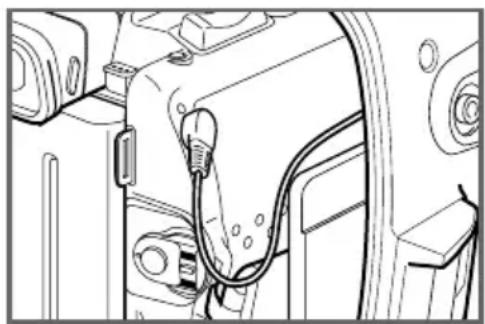

to AUDIO VIDEO jack.

Preparing Remove the monitor cord hook. DCR-TRV7E only DCR-TRV7E DCR-TRV7E

Once slide up, then pull.

Now you ready for underwater recording. Be sure to check that there is no water leakage before you dive. Tips for the LCD monitor

• The image does not appear on the LCD screen with only attaching the battery pack to the rear shell. The LCD screen is linked with the power of your camcorder.

• Remaining battery time displayed on the LCD screen refers to the time how many minutes the battery of camcorder lasts. It is not the remaining battery time of the LCD monitor. Tips for the battery pack for the LCD monitor The recording time is approximately 6 hours when you record continuously using the fully charged NP-F330. The actual recording time might be less than 6 hours since the potential recording time depends on the conditions of use. Tips for the supplied battery pack NP-F330

• Use a separately purchased AC adapter/charger that can charge the NP-F330 battery pack supplied (the same AC adapter/charger that can be used to charge the NP-F550).

• The LCD monitor of the marine pack does not correspond with the “InfoLITHIUM” battery.

• What is the “InfoLITHIUM” battery pack. The “InfoLITHIUM” battery pack is a lithium battery pack which can exchange data with compatible video equipment about its battery consumption. When you use this battery pack with video equipment having the mark, the video equipment will indicate the remaining battery time in minutes.* However, if you use it with video equipment not having this mark, the remaining battery capacity will not indicated in minutes.

• The indication may not be accurate depending on the condition and environment which the equipment is used under. Note on dry batteries

• With normal operation, dry batteries will last for about 6 months.

• If the marine pack is not used for long period of time, remove the batteries to avoid possible damage from the battery leakage.

• Do not try to recharge dry batteries.

• If a battery leak should develop, carefully and thoroughly wipe away battery fluid from the battery compartment before inserting new ones. Preparing

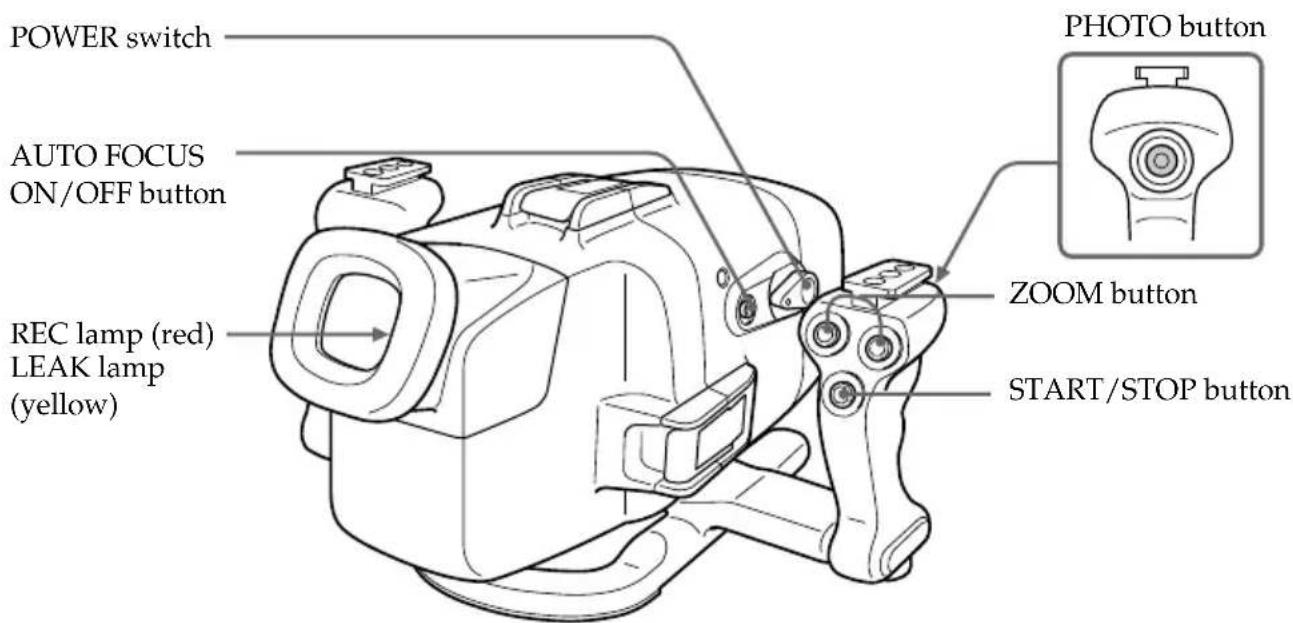

TRV900EGB 13-GB (1) Set POWER switch to ON. (2) Press START/STOP button to start recording. REC lamp (red) lights up during recording. To stop recording Press START/STOP button. To zoom Press ZOOM button.Press T for telephoto (subject appears closer) and W for wide-angle (subject appearsfarther away).You cannot change the zooming speed of the camcorder.Note on Photo recording (DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E only)If you press PHOTO button when a still picture appears on the LCD screen or in theviewfinder, the camcorder will record that still picture.You cannot check the recorded picture by pressing PHOTO button lightly.For details, please refer to the operating instructions supplied with your camcorderWhen you use DCR-TRV8E/TRV10E/TRV890E/TRV900E, the memory photo functiondoes not work when your camcorder is placed in MPK-DVF2. To keep a subject in focus After you focus on a subject, press AUTO FOCUS ON/OFF button to set the camcorderto manual focus mode.Even if fish swim between the camcorder and the subject, you can still keep the subjectin focus.Press AUTO FOCUS ON/OFF button again to set the camcorder to auto focus mode. Note on before recording Check that the equipment operates correctly and that there is no water leakage at adepth of about one meter (3 feet) before you dive deeper. Note on recording Do not cover the control emitter or detector with your finger because the remote controlsignal for operations is transmitted from the grip to the marine pack. Recording START/STOP buttonREC lamp (red)LEAK lamp(yellow)ZOOM buttonPHOTO buttonAUTO FOCUSON/OFF buttonPOWER switch14-GB To attach the supplied wide-conversion lens Attach the wide-conversion lens until it fits firmly. You can attach the wide-conversion lens both on land and underwater. Note This wide-conversion lens is to be used only underwater. When using the supplied colour filter, attach it on top of the wide-conversion lens. Using the supplied sunshade The supplied sunshade for the LCD monitor reduces glare from the LCD monitor. Attach the sunshade as shown in the illustration. You can attach the wide-conversion lens, sunshade, and colour filter underwater If the image on the LCD screen is not clear because of the air remains between these accessories and the marine pack, reattach them underwater. Note Attach the supplied straps not to lose these accessories when removing them underwater. After attaching the straps to these accessories, hook the loops of the straps to the grip of your marine pack. When the LEAK lamp flashes If water happen to leak in , the LEAK lamp (yellow) flashes. In such a case, remove the marine pack from the water as soon as possible, keeping it horizontal. Be sure to surface following the safety rules for diving. Dry the marine pack with a soft cloth and then open it. To switch off the lamp, disconnect the remote control cable. Check the cause of the leak. If the camcorder is wet, take it to the nearest Sony dealer immediately. LEAK lamp (yellow) Attach the sunshade until it fits firmly. Recording To attach the strap Colour filter Wide- conversion lens SunshadeGB 15-GB Removing the camcorder Before opening the marine pack, rinse it with fresh water and dry with a soft cloth. Note

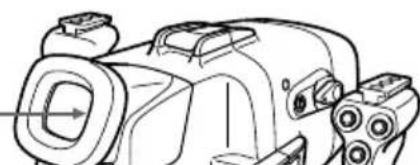

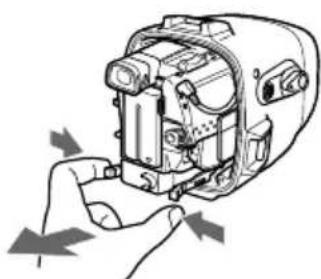

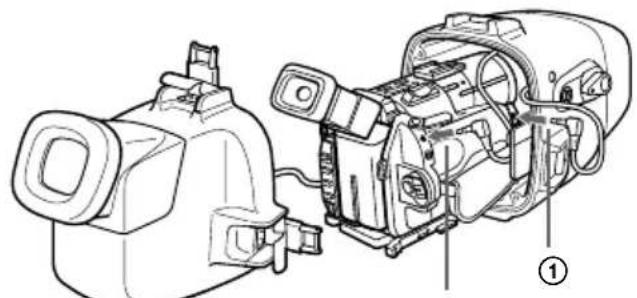

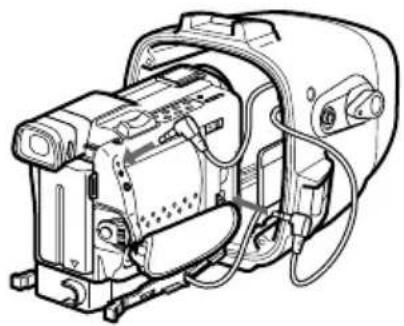

• When you open the marine pack, make sure you are dry. And take care that no waterdrips from your wet suit.• When you open the marine pack, do not pull the monitor plug cord by force. (1) Remove the grip. (2) Unfasten 3 buckles and open the marine pack. For DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E, disconnect the monitor cord from the camera mounting shoe B. (3) Take the camcorder out of the front shell. Holding the camera mounting shoe by the knobs and extract the camcorder. (4) Disconnect the remote plug and the microphone plug. (5) Disconnect the monitor plug (for DCR-TRV7E), the A/V connecting cable of camera mounting shoe B (for DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E) from AUDIO/VIDEO jack. When you take the camcorder out of the shell, be careful not to pull the remote cord, microphone cord or A/V connecting cable. (6) Remove the camera mounting shoe. (7) Remove the battery pack for the LCD monitor.

• Insert the A/V connecting cable plug to the plug holder of the camera mounting shoe

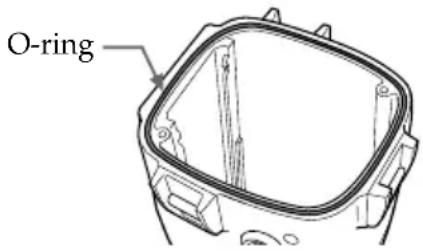

• Insert the remote and microphone plugs to the plug holder inside of the front shell. Removing the camcorder The O-ring assures the waterproof function of the marine pack. To maintain waterproof integrity, use it correctly. Incorrect handling may cause water to leak in. Check the O-ring Check that there are no scratches or cracks on the O-ring as they may allow water to leak in. If there are scratches or cracks, replace the damaged O-ring with a new one. Do not remove the O-ring from the groove with a metal tool or a tool with a sharp point. Remove any dust, sand or hair from the O-ring. Make sure there is no dust, sand or hair on the O-ring, in the groove, or on the surface of the marine pack where the O-ring touches. If there is, clean them completely, or the O-ring and the surface of the marine pack may be damaged and water may leak in. Grease the O-ring Check that there are no cracks or dust on the O-ring, then coat it slightly with the supplied grease using your finger. They will prevent wear. While applying the grease, recheck for cracks or dust. Never use cloth or paper to apply grease because the fibers may cling. Do not use any type of grease other than the supplied one, or it may damage the O-ring. If you run out of silicone grease (2-115-921-01) you can purchase it from your nearest Sony Service Center. Do not twist the O-ring Put the O-ring in the groove evenly. Never twist it. Do not pinch the O-ring with the marine pack When jointing the front and rear shells, take care not to pinch the O-ring between the front and rear shells. If this happens, not only will the O-ring be damaged, but water may leak in. Useful life of the O-ring Depending upon the maintenance and the length of use, we recommend changing the O-ring every one or two years. The O-ring (3-977-362-01) can be replaced at your nearest Sony Service Center. O-ring Note on the O-ringGB 17-GB Underwater recording Recording underwater is different from recording on land because it is affected by the clarity, depth of the water and the light condition. The following are hints for good recording underwater. Colour characteristic underwater Water absorbs light, especially red light, so that objects in deep water are seen bluish. The colour of objects is affected by the clarity of the water. To record in natural colour, use the supplied colour filter. Best time for recording The best recording time is from 10:00 a.m. to 2:00 p.m. When the sun its highest, optimum results can be obtained. Subject size underwater Since the refractive index underwater is higher than that in air, an object appears 1/4 more closer, and therefore larger. This phenomenon affects the lens on the camcorder as well as human eye. Using the supplied wide-conversion lens is recommended. Camera work on slow and stable motion When recording, keep your body stable. An unstable shot will be magnified on the TV screen. Move the camcorder as slow as possible. As most of the object underwater move, you can record a good program without moving the camcorder. Underwater video light In deep water or under locks where direct sunlight does not reach, recording with an underwater video lights is recommended. To record at night, use a powerful underwater video light. Note on recording underwater

• Be sure to follow the safety rules for diving, such as diving period and depth.

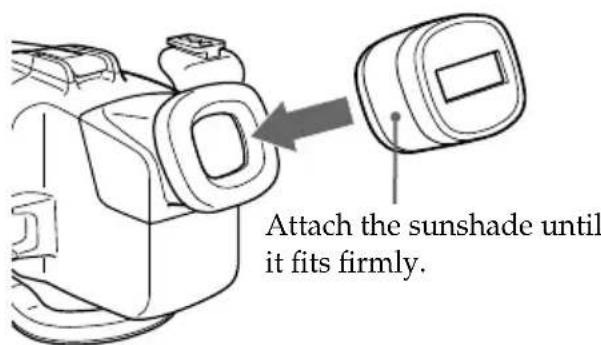

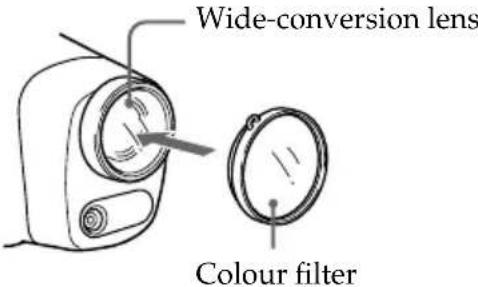

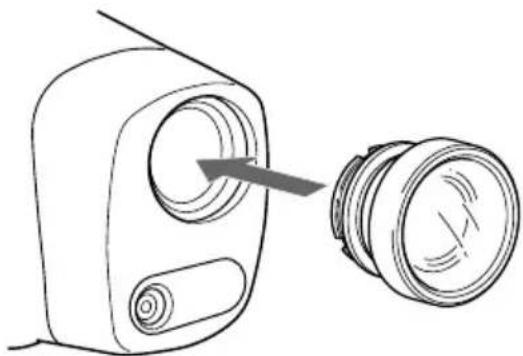

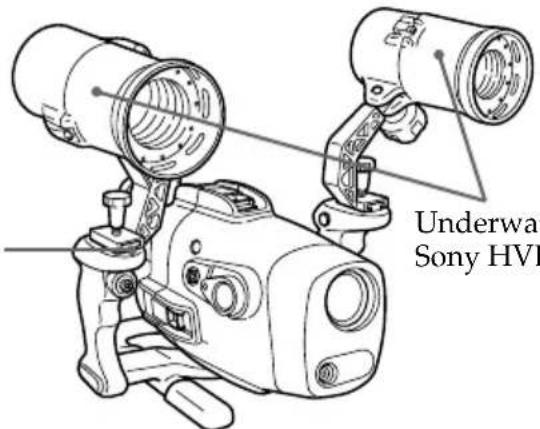

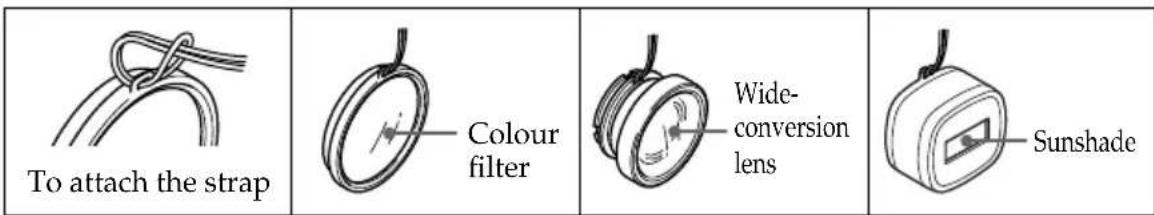

• Remove the bubbles from the outside of the front glass before recording. Attachable to the both sides of video light shoe. Underwater video light such as Sony HVL-ML20 (not supplied) Wide-conversion lens Colour filter18-GB

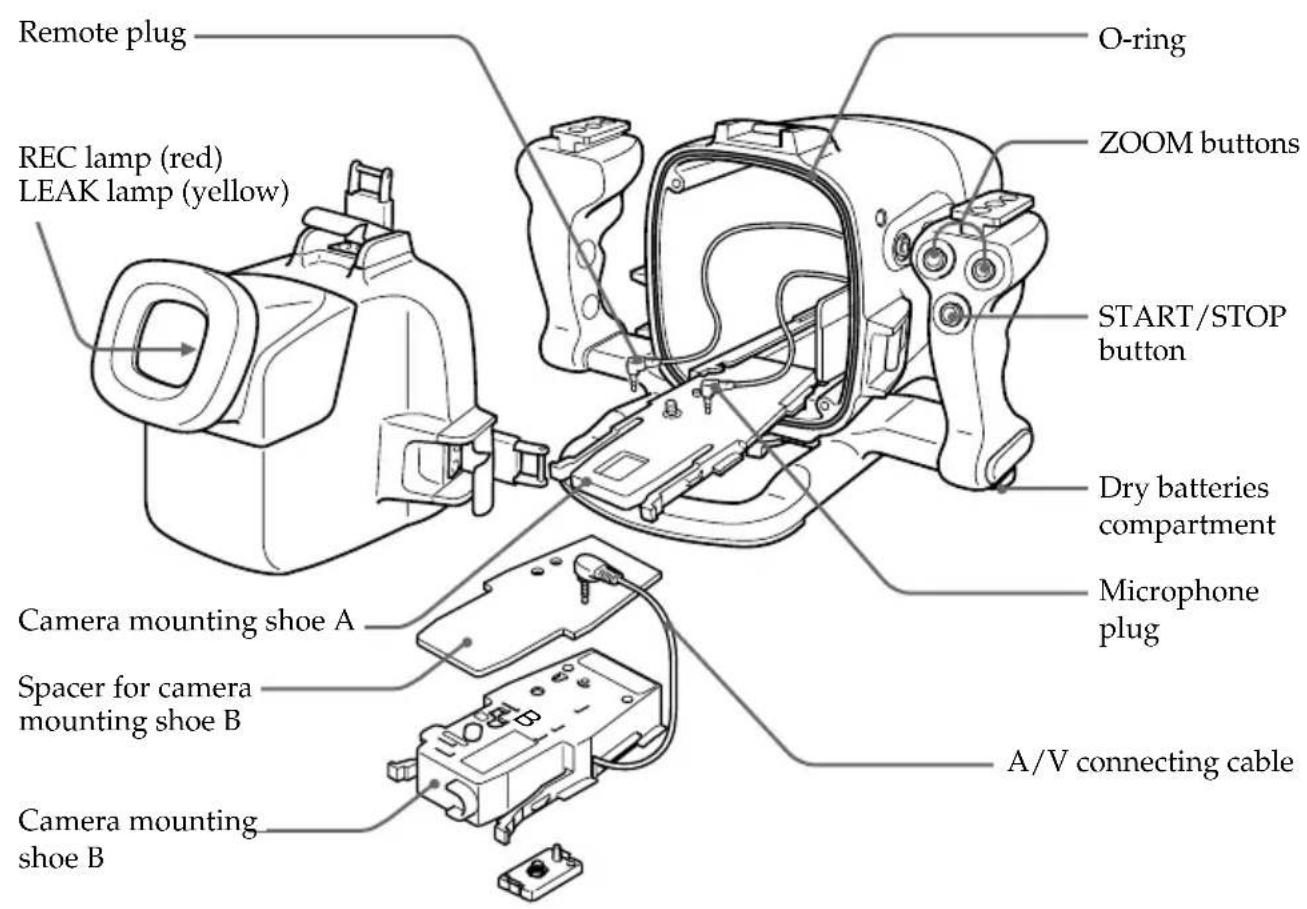

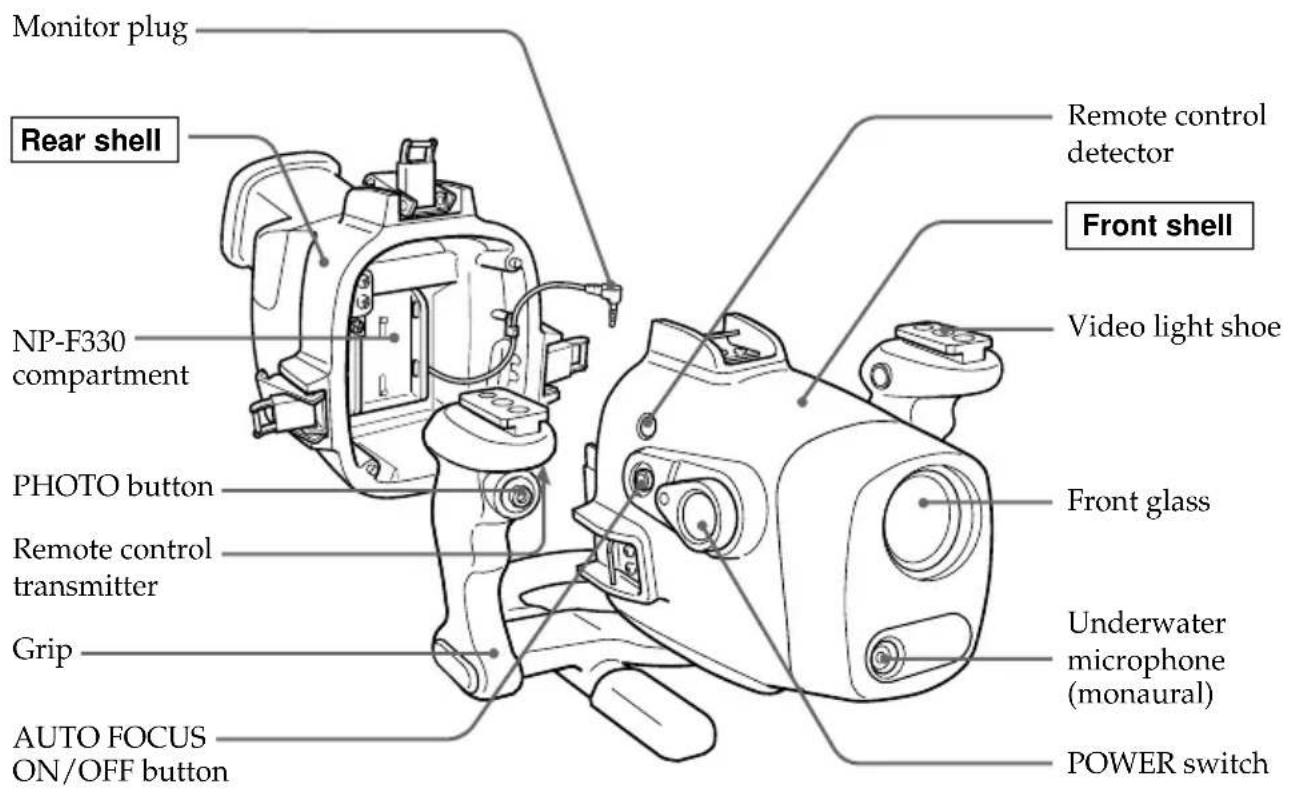

Labeling parts and controls Front shell Front glass Video light shoe ZOOM buttons START/STOP button POWER switch Underwater microphone (monaural) O-ring Remote plug Dry batteries compartment Microphone plug Remote control detector REC lamp (red) LEAK lamp (yellow) Camera mounting shoe A Rear shell Grip AUTO FOCUS ON/OFF button NP-F330 compartment Remote control transmitter Monitor plug PHOTO button Camera mounting shoe B A/V connecting cable Spacer for camera mounting shoe BGB 19-GB Specifications Material Aluminum alloy, glass, plastic Waterproofing O-ring, 3 buckles Usable depth Up to 75 meters (246 feet) Underwater microphone Condenser microphone (monaural) Controllable function Power on/off, recording start/stop, auto focus on/off, power zooming, photo recording (DCR-TRV8E/TRV9E/TRV10E/TRV890E/TRV900E only) Dimensions Approx. 297 x 212 x 318 mm (w/h/d) (11 3/4 x 8 3/8 x 12 5/8 in.) Mass Approx. 4.2 kg (9 lb 5 oz) Supplied accessories Camera mounting shoe A (1) Camera mounting shoe B (1) Spacer for camera mounting shoe B (1) Screw plate (1) Screw driver part (1) Battery cushion (1) O-ring (1) Grease (1) NP-F330 battery pack for the monitor (1) R6 (size AA) battery (2) Sunshade (1) Colour filter (1) Reflex prevention ring (2) Underwater wide-conversion lens (1) Carrying bag (1) Carrying belt (1) Operating instructions (1) Strap (3) Recommended accessory Underwater video light HVL-ML20 Design and specifications are subject to change without notice.2-FR3-FR
