USER MANUAL SDMN80 SONY

TFTLCD Color Computer Display

Operating Instructions GB

Mode d'emploi FR

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. __ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

INFORMATION

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

This notice is applicable for USA/Canada only.

If shipped to USA/Canada, install only a UL LISTED/CSA

LABELLED power supply cord meeting the following specifications:

SPECIFICATIONS

Plug Type Nema-Plug 5-15p

Cord Type SVT or SJT, minimum 3-18 AWG

Length Maximum 15 feet

Rating Minimum 10 A, 125 V

NOTICE

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This monitor complies with the TCO'99 guidelines.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669)

or write to:

Sony Customer Information Center

1 Sony Drive, Mail Drop #T1-11, Park Ridge, NJ 07656

Declaration of Conformity

Trade Name:

SONY

Model No.

SDM-N80

Responsible Party:

Sony Electronics Inc.

Address:

680 Kinderkamack Road, Oradell, NJ

07649 USA

Telephone No.:

201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Table of Contents

Precautions. 4

Identifying parts and controls.

Setup. 7

Step 1: Connect the media engine to your computer. 7

Step 2: Check the digital/analog selects switch.

Step 3: Connect the display and media engine 8

Step 4: Connect the audio cord 8

Step 5: Connect the power cord. 8

Step 6: Turn on the monitor and computer 8

Connecting Universal Serial Bus (USB) compliant peripherals .9

Using the stereospeakers 10

Selecting the input signal 10

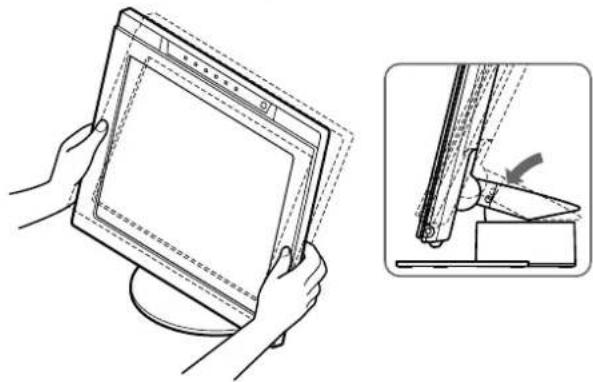

Adjusting the tilt and height. 11

Customizing Your Monitor.

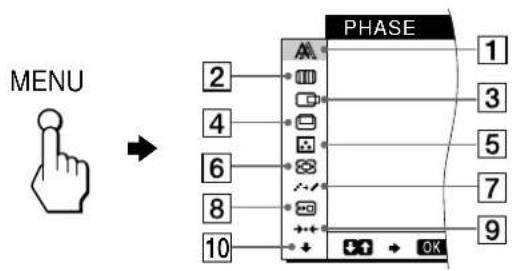

Navigatingthemenu. 12

Adjusting the contrast (CONTRAST)

Adjusting the black level of an image (BRIGHTNESS). 14

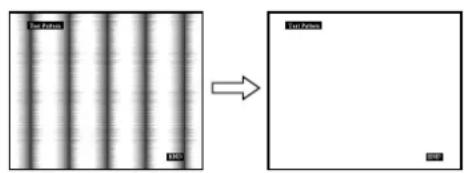

Eliminating flicker or blurring (PHASE/PITCH)

(Analog RGB signals only). 14

Adjusting the picture position (H CENTER/V CENTER)

(Analog RGB signals only). 15

Adjusting the color temperature (COLOR) 15

Changing the picture size according to the signal (ZOOM) 16

Smoothing the picture (SMOOTHING) 16

Changing the menu's position (MENU POSITION) 16

Resetting the adjustments (RESET). 17

Additional settings. 17

TechnicalFeatures 1

Power saving function (user sensor/power saving mode) 19

If the user sensor does not seem to function properly 19

Automatic brightness adjustment function (lightsensor

Automatic picture quality adjustment function

(Analog RGB signals only). 21

Troubleshooting 22

On-screen messages 22

Troublesymptomsandremedies. 23

Self-diagnosis function 26

Specifications 26

Appendix.

1. Presetmodetimingtable

TCO'99 Eco-document

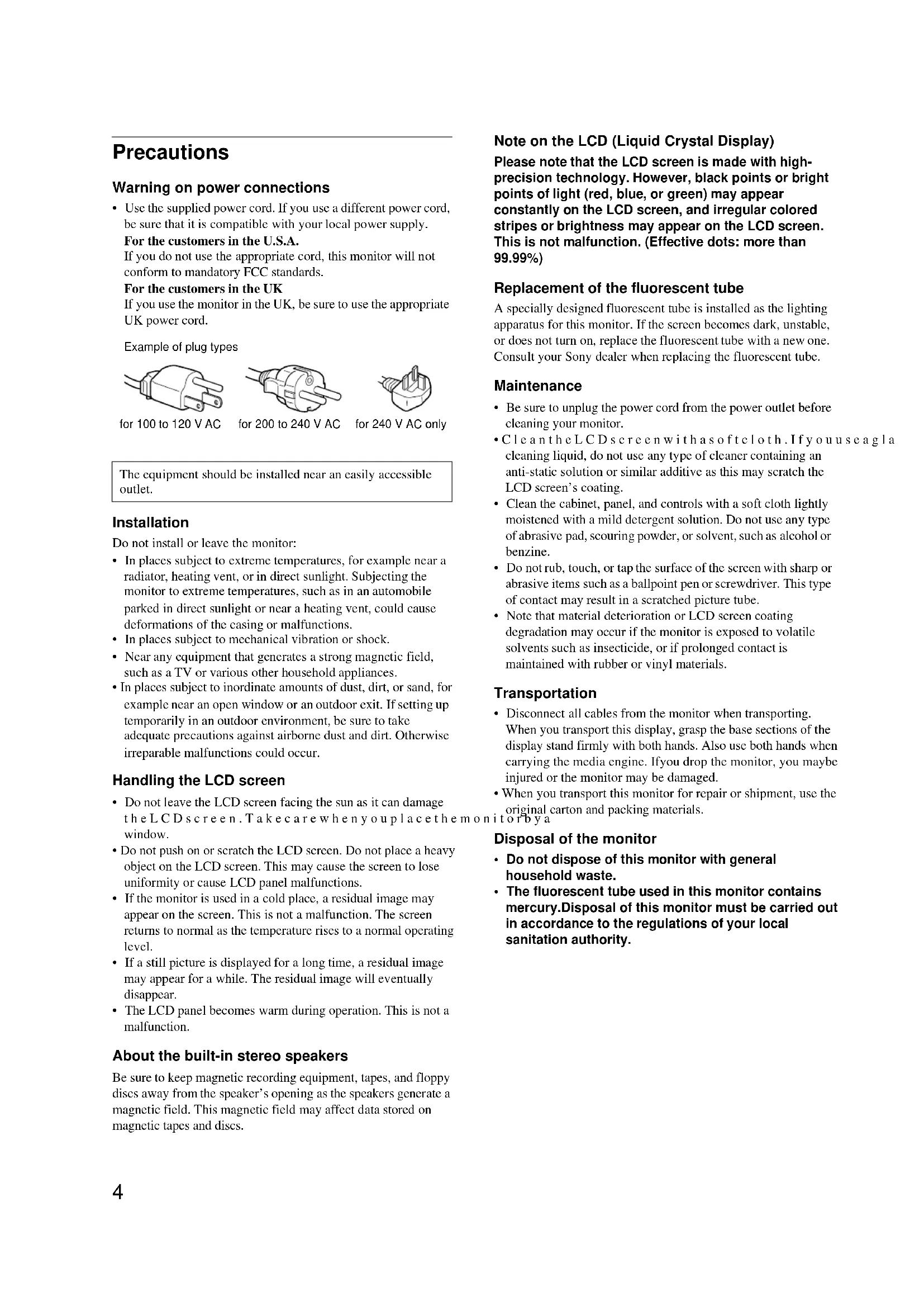

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

for 100 to 120 V AC

for 200 to 240 V AC

for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.
• In places subject to mechanical vibration or shock.
• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.
• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you replace the window.
• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.
• If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.
• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.
• The LCD panel becomes warm during operation. This is not a malfunction.

About the built-in stereo speakers

Be sure to keep magnetic recording equipment, tapes, and floppy discs away from the speaker's opening as the speakers generate a magnetic field. This magnetic field may affect data stored on magnetic tapes and discs.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with high-precision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction. (Effective dots: more than 99.99% )

Replacement of the fluorescent tube

A specially designed fluorescent tube is installed as the lighting apparatus for this monitor. If the screen becomes dark, unstable, or does not turn on, replace the fluorescent tube with a new one. Consult your Sony dealer when replacing the fluorescent tube.

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your monitor.
• Clean the LCD screen with a soft cloth. If you use a clean cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen's coating.
• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all cables from the monitor when transporting. When you transport this display, grasp the base sections of the display stand firmly with both hands. Also use both hands when carrying the media engine. If you drop the monitor, you may be injured or the monitor may be damaged.
• When you transport this monitor for repair or shipment, use the original carton and packing materials.
  i t o r b y a

Disposal of the monitor

• Do not dispose of this monitor with general household waste.
• The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance to the regulations of your local sanitation authority.

Identifying parts and controls

See the pages in parentheses for further details.

LCD display

You can operate the monitor by lightly touching the keys.

Characters and icons that indicate functions of the keys light up for about 10 seconds after the monitor is turned on. If you do not touch any key during this period, all of them will go off. If you touch any one of the keys during this period, only the characters or icons that are related to that key's operation will stay on. Even if all of them go off, if you touch any one of the 4-8 keys, they will light up again.

Front
Rear

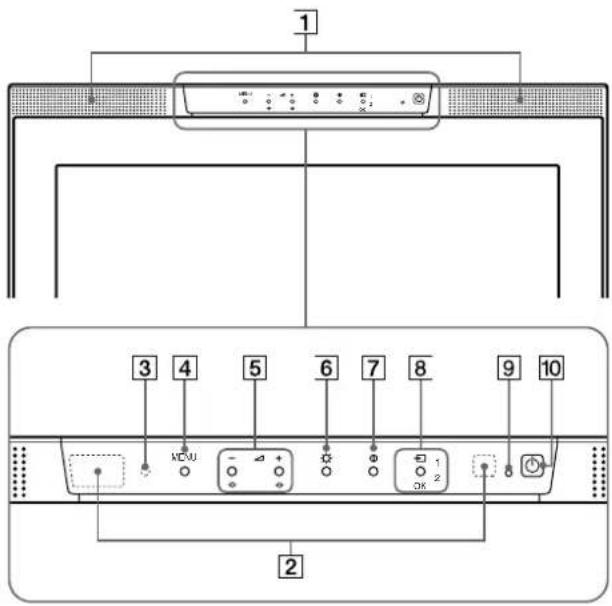

1 Stereo speakers (page 10)

These output the audio signals as sound.

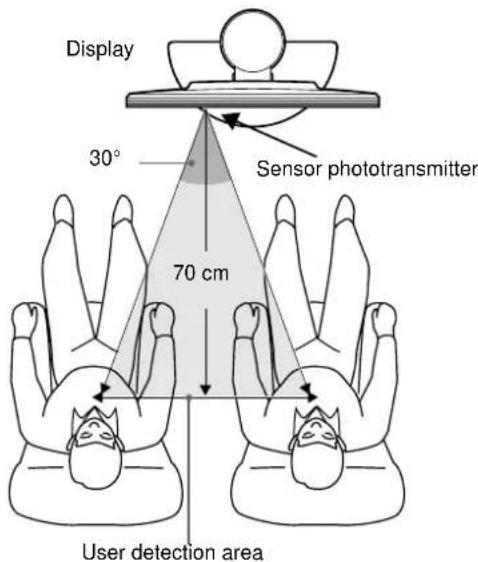

2 User sensors (page 19)

These sensors detect when a user is present in front of the screen. Be sure not to cover it with papers, etc.

3 Light sensor (pages 18, 21)

This sensor measures the brightness of the surrounding area. Be sure not to cover it with papers, etc.

4 MENU key (page 13)

This key displays the main menu.

5 (volume) + / - and (+) / (-) keys (pages 10, 13)

These keys display the VOLUME menu and function as the (+) / (-) keys when selecting the menu items and making adjustments.

6 (brightness) key (page 14)

This key displays the BRIGHTNESS menu.

7 (contrast) key (page 13)

This key displays the CONTRAST menu.

8 INPUT and OK key, and indicator (pages 10, 13)

This key selects the INPUT1 (HD15 (analog RGB) connector) or INPUT2 (DVI-I (digital/analog RGB) connector) video input signal. The input signal and corresponding input indicator change each time youtouch this key. This key also functions as the OK key when displaying the menu on the screen.

9 (Power) indicator (pages 8, 19, 26)

This indicator lights up in green when the monitor is turned on. The indicator flashes in green and orange when the monitor is in low power consumption mode, and lights up in orange when the monitor is in power saving mode.

10 (Power) switch (pages 8, 26)

This switch turns the display on and off.

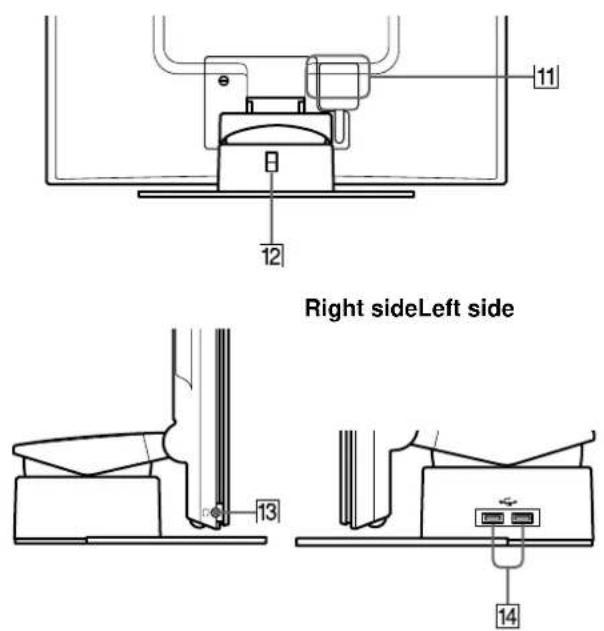

11 SYSTEM CONNECTOR (page 8)

This connector inputs signals from the media engine when the display and the media engine are connected with a system connecting cable.

12Security Lock Hole

The security lock hole should be applied with the Kensington Micro Saver Security System.

Micro Saver Security System is a trademark of Kensington.

13Headphones jack (page 10)

This jack outputs audio signals to the headphones.

14USB (Universal Serial Bus) downstream connectors (page 9)

These connectors are used to connect the monitor to USB peripheral devices.

Media engine

Rear Front

15 AC IN connector (page 8)

This connector provides AC power to the monitor.

16 HD15 (analog RGB) input connector (INPUT1) (page 7)

Thisconnectorinputs analogRGBvideosignals(0.700 Vp-p, positive) and SYNC signals.

17DVI-I (digital/analog RGB) input connector (INPUT2) (page 7)

Thisconnectorinputs analogRGBvideosignals(0.700 Vp-p, positive) with sync signals or digital RGB video signals that comply with DVI Rev. 1.0. You can switch between digital RGB signals and analog RGB signals with the digital/analog select switch [21].

18 SYSTEM CONNECTOR (TO DISPLAY) (page 8)

This connectoroutputs signals to the display when the display and the media engine are connected with a system connecting cable.

19 AUDIO IN jacks (pages 8, 18)

These jacks input audio signals when connected to the audio output jack of the computer or other audio equipment.

20 USB (Universal Serial Bus) upstream connectors (pages 9, 17)

These connectors are used to connect the monitor to USB compliant computers.

21 Digital/analog select switch (page 7)

WhenconnectingtheDVI-inputconnector[17]to a computer equipped with an HD15(analog RGB) output connector using the DVI-HD15 (analog RGB) video signal cable (supplied), set this switch to ANALOG.

When connecting it to a computer equipped with a DVI (digital RGB) output connector using a DVI-DVI (digital RGB) video signal cable (not supplied), set this switch to DIGITAL.

The switch is set to ANALOG as the default setting.

22 AC power switch (page 8)

This switch turns the monitor on and off.

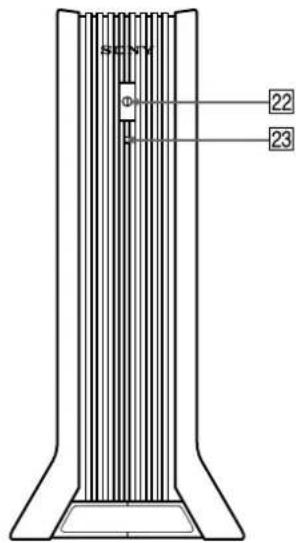

23 AC power indicator (page 19)

This indicator lights up in green when the media engine is turned on. The indicator lights up in red when the display is turned off with the media engineon. The indicator lights up in orange when the monitor is in the power saving mode.

• This connector is used by service personnel only. Do not connect anything to this outlet.

Setup

Before using your monitor, check that the following items are included in your carton:

LCD display
Media engine
Power cord
- System connecting cable (2m)
- DVI-HD15 (analog RGB) video signal cable
- Audio cord (stereo miniplug)
- USB cable
- Macintosh adapter
- Windows Monitor Information/Windows Utility/Macintosh Utility Disk
Warranty card
Notes for Macintosh users
- This instruction manual

Step 1:Connect the media engine to your computer

Turn off the media engine and computer before connecting. When connecting the monitor to a computer equipped with a DVI (digital RGB) output connector that complies with DVI Rev.1.0, use a DVI-DVI (digital RGB) video signal cable (not supplied).

Note

Do not touch the pins of the video signal cable connector as this might bend the pins.

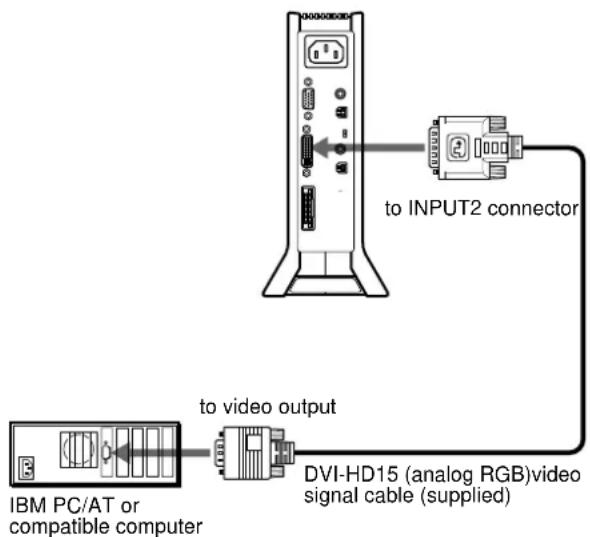

- Connecting to an IBM PC/AT or compatible computer

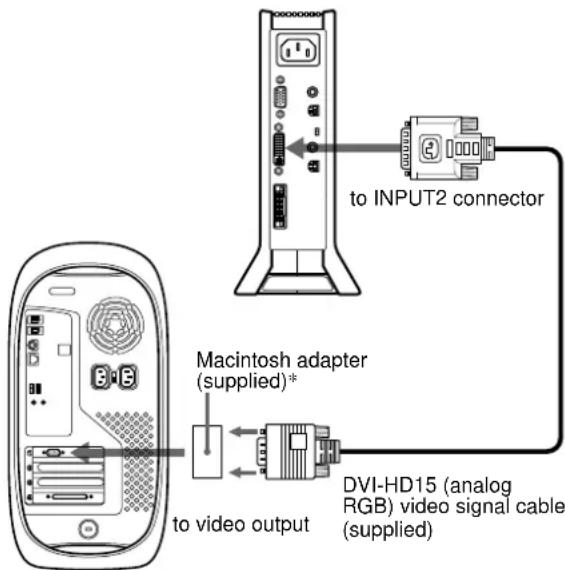

Connecting to a Macintosh

Use the supplied Macintosh adapter.

Macintosh

• Refer to the supplied "Notes for Macintosh users" for further details.

Step 2:Check the digital/analog select switch

Before turning on the monitor or the computer, be sure to check the switch setting. When connecting the DVI-I input connector on the monitor to a computer equipped with an HD15 (analog RGB) output connector using the DVI-HD15 (analog RGB) video signal cable (supplied), set the switch to ANALOG.

When connecting it to a computer equipped with a DVI (digital RGB) output connector using a DVI-DVI (digital RGB) video signal cable (not supplied), set the switch to DIGITAL.

The switch is set to ANALOG as the default setting.

Note

Before turning on the monitor or the computer, be sure to check the switch setting.

(continued)

Step 3:Connect the display and media engine

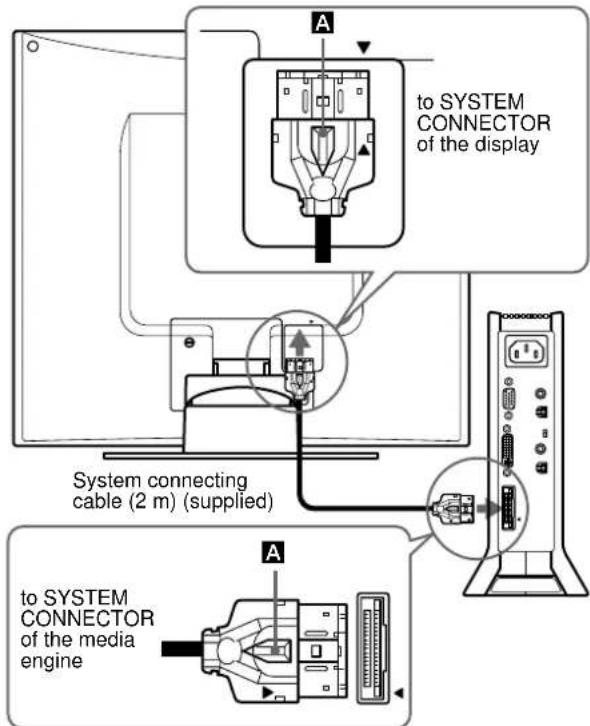

Turn off the display and media engine before connecting them. To connect the system connecting cable to the display easily, set the display in an upright position.

Align the on the plugs with the on the display and the media engine.

Caution

Be sure to install the media engine vertically as shown above. Installing the media engine lying flat may block ventilation, and may cause a malfunction.

Note

When connecting the cable, grasp the plug and insert it firmly into the connector until you hear it click. When disconnecting the cable, pull out the plug while holding down locking lever A.

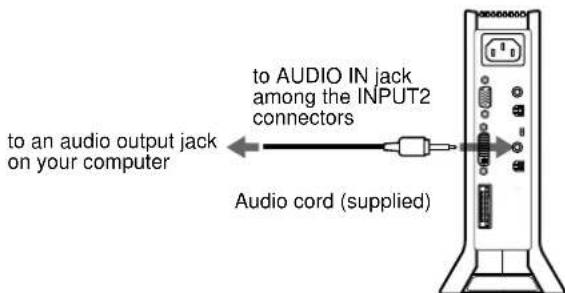

Step 4: Connect the audio cord

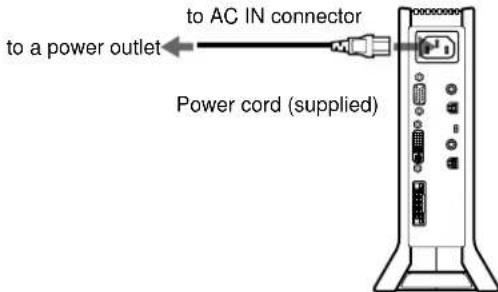

Step 5:Connect the power cord

With the media engine, display, and computer switched off, first connect the power cord to the media engine, then connect it to a power outlet.

Step 6:Turn on the monitor and computer

1 Turn on the media engine.

The display automatically turns on. The indicators of the media engine and display light up in green.

2 Turn on the computer.

Note

If you turn off the media engine and turn it on again while the display is off, the display will not turn on automatically. In this case, press the (power) switch on the display to turn it on.

The installation of the monitor is complete. If necessary, use the monitor's controls to adjust the picture.

If no picture appears on your screen

• Check that the monitor is correctly connected to the computer.
• Check that the media engine is on.

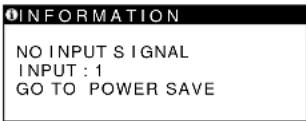

• If NO INPUT SIGNAL appears on the screen:

• The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse.

• Check that the input select setting is correct.

• Check that the digital/analog select switch setting is correct.

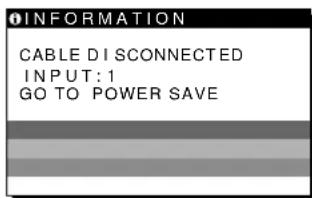

• If CABLE DISCONNECTED appears on the screen:

• Check that the video signal cable is properly connected.

• Check that the input select setting is correct.

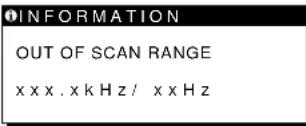

• If OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the settings of the computer's graphics board so that the horizontal frequency is between 28 - 92 kHz and the vertical frequency is between 48 - 85 Hz.

For more information about on-screen messages, see "Trouble symptoms and remedies" on page 23.

No need for specific drivers

The monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer.

The first time you turn on your computer after connecting the monitor, the setup Wizard may appear on the screen. In this case, follow the on-screen instructions. The Plug & Play monitor is automatically selected so that you can use this monitor.

The vertical frequency turns to 60Hz

Since flickers are unobtrusive on the monitor, you can use it as it is. You do not need to set the vertical frequency to any particular high value.

If your computer or graphics board has difficulty communicating with this monitor, install the information file for this monitor using the Windows Monitor Information Disk. For details on installing, refer to the ReadMe file on the disk.

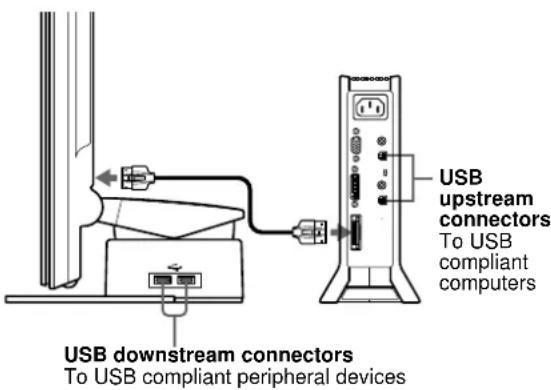

Connecting Universal Serial Bus (USB) compliant peripherals

The monitor has two upstream and two downstream USB connectors. They provide a fast and easy way to connect USB compliant peripheral devices (such as keyboards, mice, printers and scanners) to your computer using a standardized USB cable. To use the monitor as a hub for your peripheral devices, connect the USB devices as illustrated below.

1 Turn on the monitor and computer(s).
2 Connect your computer(s) to the upstream connectors on the media engine using the supplied USB cable.

For customers using Windows

Ifmessage appearsonyourscreen, followtheon-screeninstructions and select a generic USB hub driver.

3 Connect your USB compliant peripheral devices to the downstream connectors on the display stand.

For customers using Macintosh computer

When you connect a Macintosh keyboard to the USB downstream connector, the power button on the keyboard does not function. To turn your Macintosh computer on, use the power button on the computer or connect the keyboard to the computer directly and turn the computer on, then connect the keyboard to the monitor.

Notes

• Not all computers and/or operating systems support USB configurations. Check your computer's instruction manual to see if you can connect USB devices.
• In most cases, USB driver software needs to be installed on the host computer. Refer to the peripheral device's instruction manual for further details.
• When you connect a computer whose power is connected to the USB upstream connector on the monitor, the monitor will not enter the power saving mode.
• When the monitor is in the power saving mode, USB peripheral devices will not function. To resume the use of USB peripheral devices, cancel the mode by pressing the (power) switch.
  If the peripheral devices do not function properly, confirm that the upstream input setting in (USB SELECT) is correct (page 17).
• If you connect a keyboard or mouse to the USB connectors and then boot your computer for the first time, the peripheral devices may not function. First connect the keyboard and mouse directly to the computer and set up the USB compliant devices. Then connect them to this monitor.
• When you connect peripheral devices to the downstream connectors, be sure not to lean on the display. Otherwise, the display may incline and catch your fingers.
• The number of USB hubs that can be connected together is defined as up to six tiers by USB specifications. Two tiers of a USB hub are built into the monitor. Therefore, you are allowed to connect four more tiers of a USB hub together.

Using the stereo speakers

You can listen to music, sound, and other audio files using the stereospeaker of your monitor.

Adjusting the volume

Volume adjustments are made using a separate VOLUME menu, different from the main menu (page 12).

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the + / - keys.

The VOLUME menu appears on the screen.

3 Touch the + / - keys to adjust the volume.

The menu automatically disappears after about 3 seconds.

Using the headphones jack

You can listen to the audio signals from your computer or other audio equipment using headphones. Connect your headphones to the headphones jack. The speakers turn off when headphones are connected to the headphones jack. Adjust the volume of the headphones using the VOLUME menu.

Notes

• You cannot adjust the volume when displaying the main menu on the screen.
• When your monitor is in low power consumption mode or power saving mode, no sound comes from the speakers or the headphones.

Selecting the input signal

You can connect two computers to this monitor using the INPUT1 and INPUT2 connectors. To select one of the two computers, use the INPUT key.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the INPUT key.

The input signal and corresponding input indicator change each time you touch this key.

• 1: Input via the HD15 (analog RGB) input connector
• 2: Input via the DVI-I (digital/analog RGB) input connector

Notes

• You cannot select the input signal when displaying the main menu on the screen.
• For USB upstream input and audio input, you can choose whether or not to allow them to be switched using the INPUT key. To set the USB upstream input, use the (USB SELECT) menu (page 17); to set the audio input, use the (AUDIO SELECT) menu (page 18). Both of them are set to be switched with the INPUT key in the default setting.

Adjusting the tilt and height

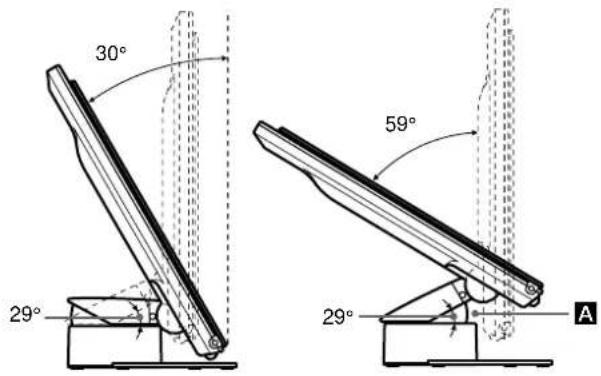

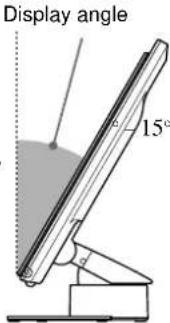

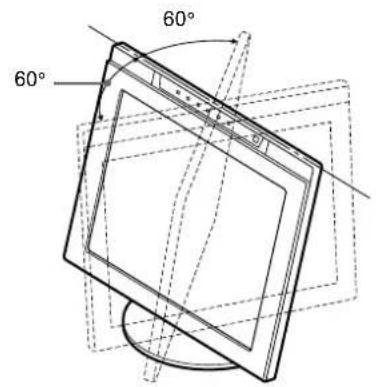

This display can be adjusted within the angles shown below.

Notes

• When you connect cables to the USB downstream connectors, the right side rotation angle may be narrower than 60 degrees.
• Be careful not to get your fingers caught between the arm and the base of the stand - A on the illustration above.

To adjust the angles, follow the procedure below.

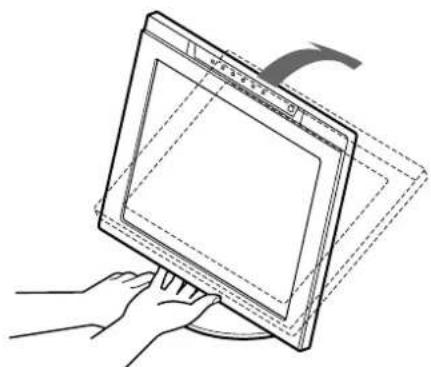

1 Grasp the middle part of the bottom of the display while holding the display stand, then, tilt the LCD panel sufficiently backward.

Note

Do not grasp the portion around the protrusion on the center of the bottom of the display. Otherwise, the display may catch your fingers.

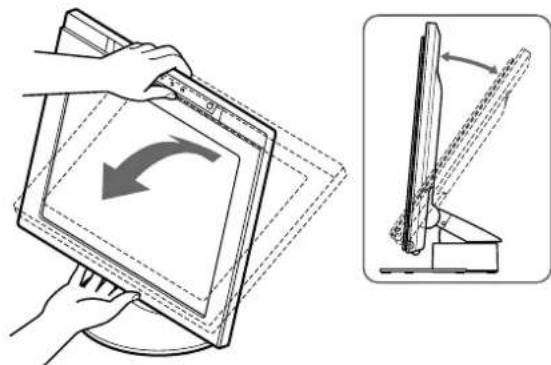

2 Grasp the lower sides of the LCD panel, then pull down the panel to adjust screen height.

3 Grasp the middle part of the top and bottom of the LCD panel, then adjust screen tilt.

GB

Note

When adjusting the screen tilt and height, proceed slowly and carefully, being sure not to hit the LCD panel against the desk or the base of the display stand.

To use the display comfortably

This display is designed so that you can set it up at a comfortable viewing angle. Adjust the viewing angle of your display according to the height of the desk and chair, and so that it not reflected from the screen to your eyes.

Customizing Your Monitor

Before making adjustments

Connect the monitor and the computer, and turn them on.

Wait for at least 30 minutes before making adjustments for the best results.

You can make numerous adjustments to your monitor using the on-screen menu.

Navigating the menu

4V CENTER (Analog RGB signals only) (page 15)

Select the V CENTER menu toadjustthepicture'svertical centering.

5COLOR (page 15)

Select the COLOR menu to adjust the color temperature of the picture. This adjusts the tone of the screen.

TouchthemENUkeytodisplaythemainmenuourscreen.

For more information on using the MENU key, see "Using the

MENU, (+) / (-) , and OK keys" on page 13.

Use the (+) / (-) and OK keys to select one of the following menus. For more information on using the (+) / (-) and OK keys, see "Using the MENU, (+) / (-) , and OK keys" on page 13.

6ZOOM (page 16)

Select the ZOOM menu to adjust the picture's size according to the input signal's aspect ratio or resolution.

7SMOOTHING (page 16)

Select the SMOOTHING menu to adjust the picture's sharpness according to the type of an object displayed on the screen.

PHASE (Analog RGB signals only) (page 1

Select the PHASE menu to adjust the phase when the characters or pictures appear fuzzy throughout the entire screen. Adjust the phase after adjusting the pitch.

2PITCH (Analog RGB signals only) (page 14)

Select the PITCH menu to adjust the pitch when the characters or pictures are unclear in some areas of the screen.

3HCENTER(AnalogRGB signals only) (page 15)

Select the H CENTER menu to adjust the picture's horizontal centering.

8 MENU POSITION (page 16)

Select the MENU POSITION menu to change the on-screen menu position.

RESET (page 17)

Select the RESET menu to reset the adjustments.

10 Other menus (page 17)

Select the to adjust other settings listed below:

USB SELECT
AUDIO SELECT
- BACKLIGHT
LIGHT SENSOR
- USER SENSOR
- POWER SAVE
LANGUAGE
- MENU LOCK

Using the MENU, (+) / (-) , and OK keys

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

Adjusting the contrast (CONTRAST)

Contrast adjustment is made using a separate CONTRAST menu, differentfrom the main menu(page 12). The setting is then stored in memory for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

2 Display the main menu.

Touh the MEnukeytodisplaythemainmenuonlyoight up the characters and icons to indicate the screen. functions of the keys.

MENU

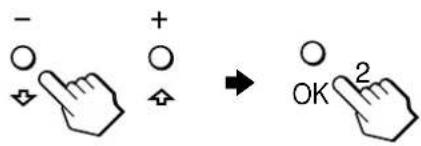

3 Select the menu you want to adjust.

Touch the (+) / (-) keys to display the desired menu. Touch the OK key to select the menu item.

4 Adjust the menu.

Touch the (+) / (-) keys to make the adjustment, then touch the OK key.

When you touch the OK key, the settings are stored, then the display returns to the previous menu.

5 Close the menu.

Touch the MENU key once to return to normal viewing. If no keys are touched, the menu closes automatically after about 30 seconds.

MENU

Resetting the adjustments

You can reset the adjustments using the RESET menu. For more information on resetting the adjustments, see "Resetting the adjustments (RESET)" on page 17.

2 Touch the (contrast) key.

The CONTRAST menu appears on the screen.

Horizontal frequency of the current input signal

Vertical frequency of the current input signal

Displaying the current input signal

The horizontal and vertical frequencies of the current input signal are displayed in the CONTRAST and BRIGHTNESS menus.

3 Touch the (+) / (-) keys to adjust the contrast.

The menu automatically disappears after about 3 seconds.

Note

You can adjust neither contrast nor brightness when the main menu is displayed on the screen.

Adjusting the black level of an image (BRIGHTNESS)

Brightness adjustment is made using a separate BRIGHTNESS menu, different from the main menu (page 12). The setting is then stored in memory for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the (brightness) key.

The BRIGHTNESS menu appears on the screen.

Horizontal frequency of the current input signal
Vertical frequency of the current input signal

Displaying the current input signal

The horizontal and vertical frequencies of the current input signal are displayed in the CONTRAST and BRIGHTNESS menus.

3 Touch the (+) / (-) keys to adjust the brightness.

The menu automatically disappears after about 3 seconds.

If the screen is too bright

Adjust the backlight. For more information about adjusting the backlight, see "Adjusting the backlight" on page 18.

Note

You can adjust neither contrast nor brightness when the main menu is displayed on the screen.

Eliminating flicker or blurring (PHASE/PITCH) (Analog RGB signals only)

When the monitor receives an input signal, the automatic picture quality adjustment function of this monitor automatically adjusts the picture position, phase, and pitch, and ensures that a clear picture appears on the screen. For more information about this function, see "Automatic picture quality adjustment function (Analog RGB signals only)" on page 21.

For some input signals, this function may not completely adjust the picture position, phase, and pitch. In this case, you can manually set these adjustments according the following instructions. If you manually set these adjustments, they are stored in memory and automatically recalled whenever the monitor receives the same input signals.

These settings may have to be repeated if you change the input signal after reconnecting your computer.

1 Set the resolution to 1280·1024 on the computer.

2 Load the Utility Disk.

3 Start the Utility Disk and display the test pattern. For Windows

Click [Utility] [Windows]/[Win Utility.exe]. For Macintosh

Click | Utility| [Mac] / [Mac Utility].

4 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

5 Touch the MENU key.

The main menu appears on the screen.

6 Touch the (+) / (-) keys to select (PITCH) and touch the OK key.

The PITCH menu appears on the screen.

7 Touch the (+) / (-) keys until the vertical stripes disappear.

Adjust so that the vertical stripes disappear.

8 Touch the OK key.

The main menu appears on the screen.

If horizontal stripes are observed over the entire screen, adjust the phase as the next step.

9 Touch the (+) / (-) keys to select A (PHASE) and touch the OK key.

The PHASE menu appears on the screen.

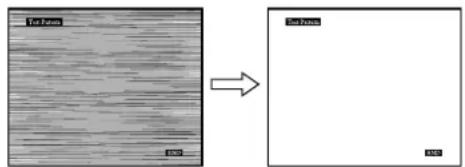

10 Touch the (+) / (-) keys until the horizontal stripes are at a minimum.

Adjust so that the horizontal stripes are at a minimum.

11 Click END on the screen to turn off the test pattern.

To reset the automatic picture quality adjustment

Select SCREEN RESET and activate it using the RESET menu. For more information on using the RESET menu, see "Resetting the adjustments (RESET)" on page 17.

Note

When using digital RGB signals, you do not need to set the PHASE or PITCH.

Adjusting the picture position (H CENTER/V CENTER) (Analog RGB signals only)

If the picture is not in the center of the screen, adjust the picture's centering as follows.

The settings may have to be repeated if you change the input. You can set the color temperatures for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

1 Start the Utility Disk and display the test pattern.

Repeat steps 2 to 4 of "Eliminating flicker or blurring (PHASE/PITCH) (Analog RGB signals only).

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+) / (-) keys to select (H CENTER) or (V CENTER) and touch the OK key.

The H CENTER or V CENTER menu appears on the screen.

4 Move the picture up, down, left, or right until the frame at the perimeter of the test pattern disappears.

Touch the (+) / (-) keys to adjust the picture's centering using the H CENTER menu for horizontal adjustment, or the V CENTER menu for vertical adjustment.

5 Click END on the screen to turn off the test pattern.

Note

When using digital RGB signals, you do not need to set the H CENTER or V CENTER.

Adjusting the color temperature (COLOR)

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high.

You can set the color temperature to 5000K, 6500K, 9300K or user adjustment.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+)/ (-) keys to select (COLOR) and touch the OK key.

The COLOR menu appears on the screen.

4 Touch the (+) / (-) keys to select the desired color temperature and touch the OK key.

The presetcolor temperatures are 5000K, 6500K, and 9300K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is

low btdto6500Kand5000K.

You can set the color temperatures for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

5 If necessary, fine tune the color temperature.

First touch the (+) / (-) keys to select ADJUST and touch the OK key. Next touch the (+) / (-) keys to select R (Red) or B (Blue) and touch the OK key. Then touch the (+) / (-) keys to adjust the color temperature and touch the OK key. Since this adjustment changes the color temperature by increasing or decreasing the R and B components with respect to G (green), the G component is fixed.

70

If you fine tune the color temperature, the new color setting is stored in memory for USER ADJUSTMENT and automatically recalled whenever USER is selected.

You can set the USER ADJUSTMENT for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

Changing the picture size according to the signal (ZOOM)

The monitor is set to display the picture on the screen in full, irrespective of the picture's mode or resolution in the default setting. You can also view the picture at its actual aspect ratio or resolution. Note that an input signal whose resolution is higher than or equal to 1280 · 1024 (SXGA) fills the entire screen and the ZOOM function is not activated.

The setting is then stored in memory for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+) / (-) keys to select (ZOOM) and touch the OK key.

The ZOOM menu appears on the screen.

4 Touch the (+) / (-) keys to select the desired mode.

• FULL2: The input signal is displayed on the irrespective of the picture's mode or resolution.
• FULL1: The input signal is displayed on the screen at its actual aspect ratio. Therefore, black bands may appear at the top and bottom of the picture depending on the signal.
• REAL: The input signal is displayed on the screen at its actual resolution. Signals whose resolution is lower than 1280 - 1024 are displayed at the center of the screen surrounded by a black frame.

To restore the default setting (displayed on the screen in full)

Select "FULL2" in step 4.

Note

If you input a picture whose horizontal resolution is 1280 dots or one whose vertical resolution is 1024 lines, the picture size in the FULL1 mode and the one in the REAL mode are the same size.

Smoothing the picture (SMOOTHING)

If the picture displayed at the FULL2 or FULL1 mode of ZOOM is not smooth, use the picture smoothing function. Note that 1280

1024 (SXGA) resolution signals are shown only in REAL mode and the SMOOTHING function is not activated.

The setting is then stored in memory for INPUT1, INPUT2 (analog RGB), and INPUT2 (digital RGB), respectively.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+) / (-) keys to select (SMOOTHING), and touch the OK key.

The SMOOTHING menu appears on the screen.

4 Touch the (+)/ (-) keys to select the desired mode.

The smoothing effect becomes stronger in the order of TEXT STANDARD GRAPHICS.

• TEXT: To make the characters appear clear (This mode is in full, suited for text-based applications.)

STANDARD: Standard smoothing effect (factory preset smoothing effect)
- GRAPHICS: To make the pictures appear clean (This mode is suited for CD-ROM software such as photoimages or illustrations.)

Note

When you set the ZOOM menu to REAL, the SMOOTHING menu is not available.

Changing the menu's position (MENU POSITION)

You can change the menu position if it is blocking an image on the screen.

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+)/ (-) keys to select (MENU POSITION) and touch the OK key.

The MENU POSITION menu appears on the screen.

4 Touch the (+) / (-) keys to select the desired position.

There are three positions each for the top, center and bottom of the screen.

Resetting the adjustments (RESET)

1 Light up the characters and icons to indicate the functions of the keys.

Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.

2 Touch the MENU key.

The main menu appears on the screen.

3 Touch the (+) / (-) keys to select (RESET) and touch the OK key.

The RESET menu appears on the screen.

Reset the settings according to the following instructions.

Resetting the adjustment data most appropriately for the current input signal (Analog RGB signals only)

Touch the (+) / (-) keys to select SCREEN RESET and touch the OK key.

The automatic picture quality adjustment function of this monitor automatically adjusts the picture position, phase, and pitch to the most appropriate value.

The RESET menu disappears after the adjustment data is reset.

Resetting all of the adjustment data for all input signals

Touch the (+) / (-) keys to select ALL RESET and touch the OK key.

The setting of the LANGUAGE is retained.

The RESET menu disappears after the adjustment data is reset.

To cancel resetting

Touch the (+) / (-) keys to select and touch the OK key.

The RESET menu returns to the main menu without resetting the adjustment data.

Additional settings

You can adjust the following menus:

• USB SELECT
• AUDIO SELECT
• BACKLIGHT
• LIGHT SENSOR
• USER SENSOR
• POWER SAVE
  LANGUAGE
  -MENU LOCK

1 Light up the characters and icons to indicate the functions of the keys.
Touch any one of the MENU, (+) / (-) , (brightness), (contrast), or INPUT keys to light up the characters and icons indicating the functions of the keys.
2 Touch the MENU key.
The main menu appears on the screen.
3 Touch the (+) / (-) keys to select
Other menu icons appear on the menu screen.
4 Touch the (+) / (-) keys to select the desired menu and touch the OK key.

Adjust the selected menu according to the following instructions.

Setting the USB upstream input

This monitor is equipped with two USBupstream connectors. The effective upstream input switches depending on this menu setting. Touch the (+) / (-) keys to select (USB SELECT) and touch the OK key. Then touch the (+) / (-) keys to select the desired mode.

• AUTO: To select upstream input via either connector by switching with the INPUT key
• INPUT1: To select upstream input via the USB connector among the INPUT1 connectors
• INPUT2: To select upstream input via the USB connector among the INPUT2 connectors

Notes

• When you set this menu to INPUT1 or INPUT2, the upstream input does not switch even if the video input is switched with the INPUT key. If you want to link the upstream input to switching with the INPUT key, set the menu to AUTO.
• When you connect devices that require prolonged data communication with the computer, such as a printer or a scanner, to a downstream connector on this monitor, set this menu to INPUT1 or INPUT2. Otherwise, the data communication with the computer may be interrupted each time you touch the INPUT key and a failure of the printing or scanning may occur.

Setting the audio input

This monitor is equipped with two audio input jacks. The effective audio input switches depending on this menu setting. Touch the (+) / (-) keys to select (AUDIO SELECT) and touch the OK key. Then touch the (+) / (-) keys to select the desired mode.

• AUTO: To select either audio input by switching with the INPUT key
• INPUT1: To select audio input via the AUDIO IN jack among the INPUT1 connectors
• INPUT2: To select audio input via the AUDIO IN jack among the INPUT2 connectors

Note

When you set this menu to INPUT1 or INPUT2, the audio input does not switchevenifthe videoinputsis switchedwith the INPUT key. If you want to link the audio input to switching with the INPUT key, set the menu to AUTO.

Adjusting the backlight

If the screen is too bright, adjust the backlight.
First touch the (+)/ (-) keys to select 20 (BACKLIGHT) and touch the OK key. Then touch the (+)/ (-) keys to adjust the desired light level.

Automatically adjusting the screen brightness (light sensor)

This monitor is provided with a sensor to detect the brightness of the surrounding area (light sensor). This sensor is used to automatically adjust the brightness of the screen.

First touch the (+) / (-) keys to select (LIGHT SENSOR) and touch the OK key. Then touch the (+) / (-) keys to select either ON or OFF.

When you select ON, the monitor automatically adjusts the screen brightness according to the brightness of the surroundings. For more information about this function, see "Automatic brightness adjustment function (light sensor)" on page 21.

Note

If this function is set to ON, the value of the BACKLIGHT menu does not change. If the screen brightness is still not appropriate after the automatic adjustment, you can manually adjust the backlight. After the backlight adjustment is made, the monitor automatically adjusts the screen brightness in accordance with the new backlight value.

Using the user sensor

The user sensor function enables the monitor to enter the low power consumption mode when no one is present in front of the monitor.

First touch the (+) / (-) keys to select (USER SENSOR) and touch the OK key. Then touch the (+) / (-) keys to select the desired mode.

3: To make the sensitivity of the sensor high
2: Standard sensitivity
1: To make the sensitivity of the sensor low
- OFF: The sensor is not activated.

For more information about the low power consumption mode and the user sensor, see "Power saving function (user sensor/ power saving mode)" on page 19 and "If the user sensor does not seem to function properly" on page 19.

Setting up the power saving mode

This monitor has a function which enables it to enter the power saving mode automatically according to the power saving settings of the computer. You can prevent the monitor from entering the power saving mode by setting the following option to OFF. First touch the (+) / (-) keys to select (POWER SAVE) and touch the OK key. Then touch the (+) / (-) keys to select either ON or OFF.

Selecting the on-screen menu language

English, German, French, Spanish, Italian and Japanese versions of the on-screen menus are available. The default setting is English.

First touch the (+) / (-) keys to select (LANGUAGE) and touch the OK key. Then touch the (+) / (-) keys to select a language.

• ENGLISH

• DEUTSCH: German
  FRANCAIS: French

• ESPANOL: Spanish
  ITALIANO:Italian
  ：中本蕴csc

Locking the menus and controls

First touch the (+) / (-) keys to select ON (MENU LOCK) and touch the OK key. Then touch the (+) / (-) keys and select ON.

Only the (power) switch, and (MENU LOCK) menu will operate. If any other items are selected, the mark appears on the screen.

To cancel the menu lock

Repeat the procedure above and set Om (MENULOCK) to OFF.

Technical Features

Power saving function (user sensor/power saving mode)

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If the monitor is connected to a computer or video graphics board that is DPMS (Display Power Management Signaling) compliant, the monitor will automatically enter the power saving mode. It automatically enters the low power consumption mode when the user sensor detects the absence of a user.

Power consumption state	Power consumption	AC power indicator	( power) indicator
normal operation	≤ 67 W	green	green
1 low power consumption mode	≤ 8.5 W*	green	green and orange alternate
2 power saving mode	≤ 1.3 W*	orange	orange
( power): off	≤ 1 W	red	off
AC power: off	0 W	off	off

• Figures reflect power consumption when the computer connected to the USB upstream connector on the monitor is turned off.

1 Low power consumption mode (user sensor)

When the user sensor in the monitor detects the absence of a user, the monitor enters low power consumption mode after about 20 seconds. The icon of user sensor appears and flashes on the screen before the monitor enters this mode. In low power consumption mode, the monitor is in a power saving state and shuts off power to all circuitry (except for that of the sensors) regardless of the setting of the computer.

The monitor returns to normal operation mode when the presence of a user is detected by the user sensor.

When the monitor enters the power saving mode (as set according to the computer's settings), the power saving mode takes precedence over the low power consumption mode. In this case, the monitor stays in the power saving mode regardless of the presence or absence of a user.

To return the monitor to normal operation mode, reset the computer's power saving mode.

If the user sensor does not seem to function properly, refer to the instructions on the next page.

2 Power saving mode

DPMS defines the active off state according to the state of the sync signals supplied from the computer. This monitor's power consumption is input at approximately 1.3W or less in this state if the power saving function is set to ON.

When your computer enters the power saving mode, the input signal is cut and NO INPUT SIGNAL appears on the screen. After a few seconds, the monitor enters power saving mode.

Power saving state	Sync signal state
active off (deep sleep)*	horizontal: off / vertical: off

• "Deep sleep" is a power saving mode defined by the Environmental Protection Agency.

Notes

• The power saving function may not work normally depending on the pattern of supplied sync signals. In such a case, set the power saving function to OFF.
• When you connect a computer whose power is connected to the USB upstream connector on the monitor, the monitor will not enter the power saving mode.

If the user sensor does not seem to function properly

Are you within the user detection area?

The user sensor, as shown below, detects the presence/absence of a user—the center of the body—up to a distance of approximately 70cm and at an angle of 30 degrees horizontal/vertical from the sensor phototransmitter.

As seen from above

As seen from the side

If the user is seated to the right of the center of the display, or if the display is tilted too far upwards, the user may be out of range of the user sensor. If so, readjust the placement and angle of the display, or the user's seat position.

Also, the sensitivity of the user sensor is adjustable. For details on the user sensor adjustment, see "Using the user sensor" on page 18.

There is a choice of three levels of sensitivity: 1, 2, and 3. To make the sensitivity high, select the larger number. Keep in mind, the settings are intended to optimize the sensitivity according to the angle of the display.

Refer to the table below and adjust the angle of the display or sensitivity of the sensor.

Choice Display angle
3	15° - 20°
2	1
1	0

Are there any photoreflective objects, such as a wall or a chair, close to the sensor phototransmitter?

Leave a space of more than 10cm at the right and left side of the display and of more than 60~cm at the top.

The sensor's infrared rays reflected from the wall may be misunderstood as the presence of a user and the low power consumption mode may not function.

Similarly, a chair that has a tall back - approximately 80~cm or over - may cause a misreading and the low power consumption mode may not function.

Is there any interference from the room illumination?

Adjust the placement - distance from the illumination - and anglofothedisplaysothatthe lightfromthe illuminationdoes not shine directly onto the sensor.

The low power consumption mode may not function properly or the user sensor may not work properly if the light from the room illumination or a desktop lamp shines directly onto the sensor's phototransmitter.

Is the sensor attracted by direct sunlight?

To keep direct sunlight away from the sensor, adjust the lighting condition of the room using a curtain or a blind, or place the face of the display away from the window.

If the room is too bright in broad daylight or the display is facing the window, the strong infrared rays of the sunlight may cause a malfunction of the user sensor.

In addition, the user detection distance and angle may vary depending on the brightness of the surrounding area or the fabric of the user's clothes - particularly with black or dark colors.

If these instructions do not resolve user detection problems, set the user sensor to OFF.

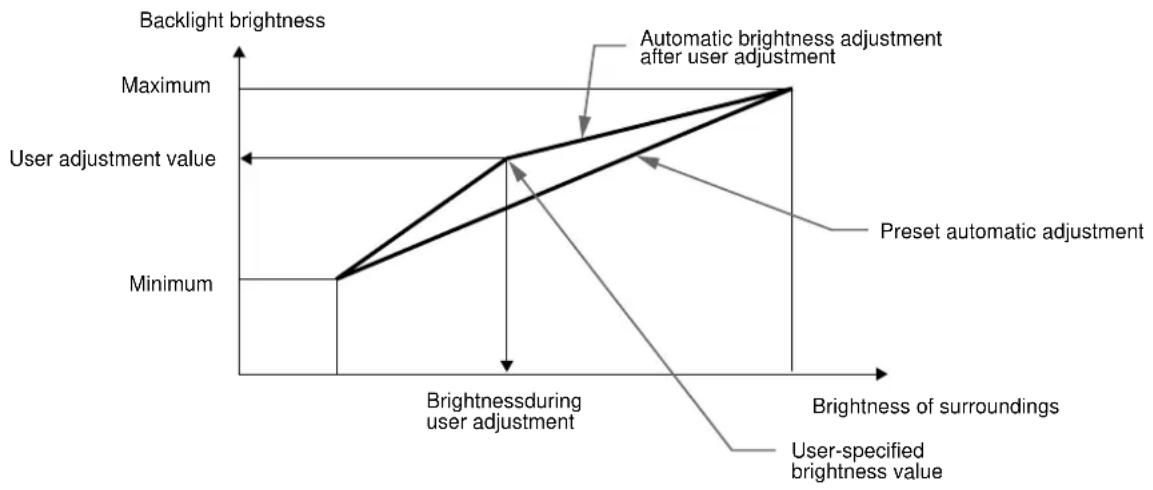

Automatic brightness adjustment function (light sensor)

This monitor is provided with a feature to automatically adjust the screen brightness according to the brightness of the surroundings. The brightness of the backlight is set to the most appropriate level by setting the light sensor to ON. The default setting of the brightness of the backlight is set to its maximum. When the light

sensor setting is set to ON, the monitor adjusts the brightness of the backlight linearly from its lower- to upper-limit values. When the user adjusts the backlight, the backlight brightness is automatically adjusted between the user adjustment value and the upper- and lower-limit values.

GB

Automatic picture quality adjustment function (Analog RGB signals only)

When the monitor receives an input signal, the automatic picture quality adjustment function of this monitor adjusts the picture position, phase, and pitch to provide a high quality picture at the center of the screen.

Additionally, several factory preset modes are stored in the monitor's memory as recommended adjustment data. (See the Appendix for a list of the factory preset modes.)

Even when a signal that matches one of the factory preset modes is input, if it is input for the first time, the automatic picture quality adjustment function works to optimize the picture quality according to the type of devices connected.

Also, when a signal that does not match any of the preset modes is input for the first time, the function works and ensures that a clear picture appears on the screen for any timing within the monitor's frequency range (horizontal: 28 - 92kHz , vertical: 48 - 85Hz ).

Notes

• The automatic picture quality adjustment function may not work properly depending on the type of signal input.
• For any signal input for the first time, the automatic picture quality adjustment function works and the monitor will take a longer time than normal for displaying the picture.
• While the automatic picture quality adjustment function is activated, only the (power) switch will operate.
• While the automatic picture quality adjustment function is activated, AUTO ADJUSTING appears on the screen.

Troubleshooting

Before contacting technical support, refer to this section.

On-screen messages

If there is something wrong with the input signal, one of the following messages appears on the screen. To solve the problem, see "Trouble symptoms and remedies" on page 23.

If OUT OF SCAN RANGE appears on the screen

This indicates that the input signal is not supported by the monitor's specifications. Check the following items.

If "xxx.x kHz / xx Hz" is displayed

This indicates that either the horizontal or vertical frequency is not supported by the monitor's specifications.

The figures indicate the horizontal and vertical frequencies of the current input signal.

If “RESOLUTION > UXGA” is displayed

This indicates that the resolution is not supported by the monitor's specifications.

If NO INPUT SIGNAL appears on the screen

This indicates that no signal is being input from the currently selected connector.

INPUT:

This indicates the currently selected connector (INPUT: 1 or INPUT: 2).

If "GOTOPowerSAVE" is displayed

When the POWER SAVE menu is set to ON, the monitor enters the power saving mode after about 4 seconds from the time the message is displayed.

If "USB CONNECTED" is displayed

This indicates that a computer whose power is on is connected to the USB upstream connector on the monitor. For that reason, the monitor will not enter the power savingmode even if the POWER SAVE menu is set to ON.

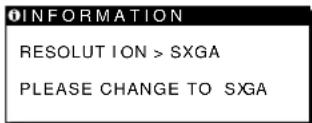

If PLEASE CHANGE TO SXGA appears on the screen

This indicates that the resolution of the input signal exceeds 1280 · 1024 (SXGA). Set your computer to output a signal 1280 · 1024.

If CABLE DISCONNECTED appears on the screen

This indicates that the video signal cable has been disconnected from the currently selected connector.

INPUT:

This indicates the currently selected connector (INPUT: 1 or INPUT: 2).

If "GOTOPowerSAVE" is displayed

When the POWER SAVE menu is set to ON, the monitor enters the power saving mode after about 4 seconds from the time the message is displayed.

If "USB CONNECTED" is displayed

This indicates that a computer whose power is on is connected to the USB upstream connector on the monitor. For that reason, the monitor will not enter the power saving mode even if the POWER SAVE menu is set to ON.

Trouble symptoms and remedies

If a problem is caused by the connected computer or other equipment, please refer to the connected equipment's instruction manual. Use the self-diagnosis function (page 26) if the following recommendations do not resolve the problem.

Symptom Check these items

No picture
If the AC power indicator is not lit	·Check that the power cord is properly connected.
If the AC power indicator is red	·Check that the display's power is "on."
If the AC power indicator is flashing red	·Check that the system connecting cable is properly connected and all plugs are firmly seated in their sockets (page 8). ·Press the AC power switch twice to turn the monitor off and then on.
If the (power) indicator is not lit, or if the (power) indicator will not light up when the (power) switch is pressed	·Check that the display's power is "on." ·Check that the media engine's power is "on." ·Check that the system connecting cable is properly connected and all plugs are firmly seated in their sockets (page 8).

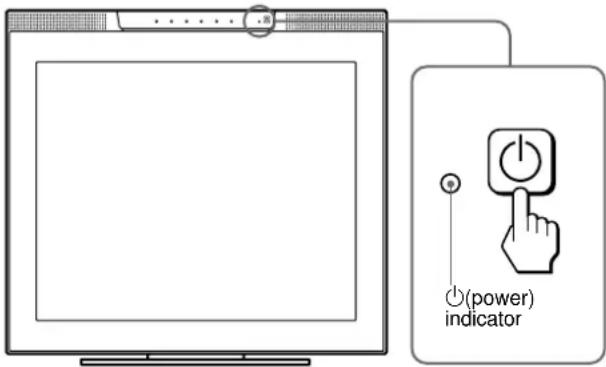

If the (power) indicator is green or flashing orange	·Use the self-diagnosis function (page 26).
If the (power) indicator is alternating between green and orange	·The monitor cannot return from low power consumption mode because the user sensor fails to detect the presence of a user. Press the (power) switch twice to turn the monitor off and then on. If you set the user sensor to OFF, the monitor does not enter low power consumption mode (page 18).
If inputting a signal to the DVI-I (digital/analog RGB) input connector	·Check that the digital/analog select switch setting matches the type of the input signal. Set the switch to an appropriate position according to the type of signal. Then turn off and on the media engine. If inputting a digital RGB signal, reboot your computer also (pages 7, 8).
If CABLE DISCONNECTED appears on the screen	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 7). ·Check that the video input connector's pins are not bent or pushed in. ·Check that the input select setting is correct (page 10). ·A non-supplied video signal cable is connected. If you connect a non-supplied video signal cable, CABLE DISCONNECTED appears on the screen before entering the power saving mode. This is not a malfunction.
If NO INPUT SIGNAL appears on the screen, or the (power) indicator is orange	·Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 7). ·Check that the video input connector's pins are not bent or pushed in. ·Check that the input select setting is correct (page 10). ·Check that the digital/analog select switch setting matches the type of an input signal. Set the digital/analog select switch to an appropriate position according to the type of signal input via the DVI-I (digital/analog RGB) input connector. Then turn off and on the media engine (pages 7, 8). ■Problems caused by the connected computer or other equipment ·The computer is in the power saving mode. Try pressing any key on the keyboard or moving the mouse. ·Check that your graphics board is attached to the computer properly. ·Check that the computer's power is "on."
If OUT OF SCAN RANGE appears on the screen	■Problems caused by the connected computer or other equipment ·Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following: Horizontal frequency: 28 - 92 kHz, Vertical frequency: 48 - 85 Hz
If PLEASE CHANGE TO SXGA appears on the screen	·The resolution of the input signal exceeds 1280 · 1024 (SXGA). Set your computer to output a signal 1280 · 1024.
Symptom	Check these items
If using Windows	·If you replaced an old monitor with this monitor, reconnect the old monitor and do the following. Select "SONY" from the "Manufactures" list and select "SDM-N80" from the "Models" list in the Windows device selection screen. If "SDM-N80" does not appear in the "Models" list, try "Plug & Play" or install the information file for this monitor using the Windows Monitor Information Disk (page 9).
If using a Macintosh system	·When you connect a Macintosh keyboard to the USB downstream connector on the monitor, the power button on the keyboard does not function. To turn your Macintosh computer on, use the power button on the computer or connect the keyboard to the computer directly and turn the computer on, then connect the keyboard to the monitor. ·Check and refer to the supplied "Notes for Macintosh users."
NO INPUT SIGNAL appears on the picture	·The digital/analog select switch setting has been changed while the monitor was operating normally. Set the switch to an appropriate position according to the type of signal input via the DVI-I (digital/analog RGB) input connector. Then turn off and on the media engine (pages 7, 8).
Picture flickers, bounces, oscillates, or is scrambled	·Adjust the pitch and phase (Analog RGB signals only) (page 14). ·Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, electric fans, fluorescent lighting, or televisions. ·Move the monitor away from power lines or place a magnetic shield near the monitor. ·Try plugging the monitor into a different AC outlet, preferably on a different circuit. ·Change the orientation of the display. ■Problems caused by the connected computer or other equipment ·Check your graphics board manual for the proper monitor setting. ·Confirm that the graphics mode (VESA, Macintosh 19" Color, etc.) and the frequency of the input signal are supported by this monitor (Appendix). Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly. ·Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy	·Adjust the brightness and contrast (pages 13, 14). ·Adjust the pitch and phase (Analog RGB signals only) (page 14). ■Problems caused by the connected computer or other equipment ·Set the resolution to SXGA (1280·1024) on your computer.
Picture is ghosting	·Eliminate the use of video cable extensions and/or video switch boxes. ·Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly	·Adjust the pitch and phase (Analog RGB signals only) (page 14). ·Adjust the picture position (Analog RGB signals only) (page 15). Note that some video modes do not fill the screen to the edges.
Picture is too small	·Set the zoom setting to FULL2 (page 16). ■Problems caused by the connected computer or other equipment ·Set the computer's resolution to the screen's resolution.
Picture is dark	·Adjust the brightness (page 14). ·Adjust the backlight (page 18). ·It takes a few minutes for the display to become bright after turning on the monitor.
Wavy or elliptical pattern (moire) is visible	·Adjust the pitch and phase (Analog RGB signals only) (page 14).
Color is not uniform	·Adjust the pitch and phase (Analog RGB signals only) (page 14).
White does not look white	·Adjust the color temperature (page 15).
Monitor keys do not operate (On appears on the screen)	·If t h e m e n u l o c k i s s e t t o O N , s e t i t t o O F F (p a g e 1 8) .
The monitor turns off after a while	·Set the power saving function to OFF (page 18). ·Set the user sensor to OFF (page 18). ■Problems caused by the connected computer or other equipment ·Set the computer's power saving setting to off.

Symptom Check these items

USB peripherals do not function

• Check that the (USB SELECT) menu is set appropriately according to the connection between your computer and the monitor (page 17).
• Check that the plugs of the USB cables (supplied) are firmly seated in their sockets (page 9).
• Check that the display's and the media engine's power is "on."

Problems caused by the connected computer or other equipment

• Check that the power of any self-powered USB compliant peripheral devices is "on."
• Install the latest version of the device driver on your computer. Contact your device's manufacturer for information about the appropriate device driver.
• If your USB compliant keyboard or mouse does not function, connect them directly to your computer, reboot your computer, and make any necessary adjustments to the USB settings. Then reconnect the keyboard or mouse to the monitor. If you connect a keyboard or mouse to the USB connectors and then boot your computer for the first time, the peripheral devices may not function.

Displaying this monitor's name, serial number, and date of manufacture

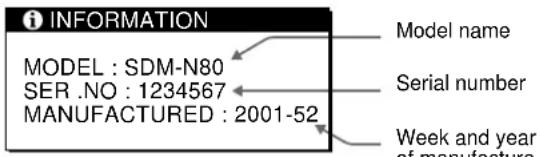

While the monitor is receivinga video signal, touch and hold the MENU key for more than 5 seconds.

The monitor's information box appears.

MENU

Example

If any problem persists, call your authorized Sony dealer and give the following information:

• Model name: SDM-N80
• Serial number
• Name and specifications of your computer and graphics board
• Type of input signals (analog RGB/digital RGB)

Self-diagnosis function

This monitorisequipped with a self-diagnosis function. If there is a problem with your monitor or computer(s), the screen will go blank and the (power) indicator will either light up green or flash orange. If the (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.

If the (power) indicator is green

1 Turn off the AC power switch and disconnect the video signal cables from the INPUT1 and INPUT2 connectors of the media engine.
2 Press the AC power switch twice to turn the monitor off and then on.

If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer(s).

If the color bars do not appear, there is a potential monitor failure. Inform your authorized Sony dealer of the monitor's condition.

If the (power) indicator is flashing orange

Press the (power) switch twice to turn the display off and then on.

If the () (power) indicator lights up green, the monitor is working properly.

If the (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the (power) indicator and inform your authorized Sony dealer of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and graphics board.

Specifications

LCD panel Panel type: a-Si TFT Active Matrix Picture size: 18.1 inch (46 cm)

Input signal format RGB operating frequency*

Horizontal: 28 - 92kHz^**

Vertical: 48 - 85Hz^**

Resolution** Horizontal: Max.1280 dots

Vertical: Max.1024 lines

Video input connector

Analog RGB: HD15

Digital/analog RGB: DVI-I 29 pins

Input signal levels Analog RGB video signal

0.700 Vp-p, 75 Ω, positive

SYNC signal

TTL level, 2k

positive or negative

(Separate horizontal and vertical, or composite sync)

0.3 Vp-p, 75 Ω, negative

(Sync on green)

Digital RGB (DVI) video signal

TMDS (Single link)

Audio output 1W·2

Headphones jack Stereo minijack

Accepts impedance of 16-48Ω

AUDIO IN jacks Stereo minijack 2

Accepts impedance of 47k

Accepts level 0.5 Vrms

Power requirements 100 - 240 V, 50 - 60 Hz, 0.7 - 0.4 A

Power consumption Max. 67 W

Operating temperature 5-35°C

Dimensions (w/h/d) Display (upright and in the lowest position):

Approx. 432· 400· 195mm

(17^1 / 8· 15^3 / 4· 7^3 / 4 inches)

Media engine:

Approx. 94·212·204 mm

(3 ^3 /4·8 ^3 /8·8 ^1 /8 inches)

Mass Display:

play:

Approx. 6.5kg (14 lb 5 oz)

Media engine:

Approx. 1.5kg 3 lb 5 oz)

Plug & Play DDC2B

Accessories See page 7.

• Recommended horizontal and vertical timing condition

Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8~ s whichever is larger.
Horizontal blanking width should be more than 2.5 sec
Vertical blanking width should be more than 450 msec.

**A 1600·1200 resolution signal is displayed provisionally as long as its horizontal and vertical frequencies are lower than the following values.

• Analog RGB signal: Horizontal 107kHz , Vertical 85Hz
  Digital RGB signal: Horizontal 75kHz Vertical 60Hz

Design and specifications are subject to change without notice.

Table des matieres

Précautions. 4

Uniformisation image (SMoothing)

Changement de la position du menu (POSITION MENU) 16

Specifications techniques

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organicallyboundbromineorchlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

• Bio-accumulative is defined as substances which accumulate within living organisms.
  ** Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
