Product Type	4K LCD TV
Brand	Sony
Model	Bravia KD65X9005A
Screen Size (diagonal)	163.9 cm (65 inches)
Display Resolution	3840 × 2160 pixels (4K)
Sound Power	12.5 W + 12.5 W + 20 W + 20 W
Dimensions with stand	168.2 × 90.3 × 40.5 cm
Dimensions without stand	168.2 × 87.5 × 10.0 cm
Weight with stand	46.4 kg
Weight without stand	Approximately 41.5 kg
Power Supply	220-240 V AC, 50 Hz
Power Consumption (Standard Mode)	193 W
Power Consumption (Standby)	0.40 W
Connectivity	4 HDMI inputs (including one MHL), 2 USB, 1 Scart, 1 Component, 1 Optical, 1 Ethernet
Main Features	Smart TV, 3D, Built-in Wi-Fi, Bluetooth, Miracast, DLNA
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 80% (without condensation)
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture. Unplug before cleaning. Use a grounded outlet.
Spare Parts and Repairability	Consult a Sony authorized service center for spare parts. Repairability index not provided.
Included Accessories	Remote control, batteries, tabletop stand, quick start guide, power cord
Optional Accessories	Microphone camera CMU-BR200/100, Wi-Fi adapter UWA-BR100, 3D glasses TDG-500P/SV5P

Frequently Asked Questions - Bravia KD65X9005A SONY

What to do if the screen remains black and there is no sound?

First check the antenna connections and power cable. Make sure the TV is on by pressing the 1 button on the TV or remote control.

How to fix a reception problem for certain channels?

Check the antenna or satellite dish connections. If using satellite, make sure the cable is not damaged. You can also restart the automatic channel search in the settings.

The remote control does not work, what to do?

Replace the remote control batteries. If the TV is in SYNC mode, press SYNC MENU, select 'TV Control' then 'Home (Menu)' or 'Options'.

I forgot the parental lock PIN code, how to reset it?

Enter the code 9999. This backup code is always accepted to unlock parental settings.

The TV heats up abnormally, is this normal?

Yes, it is normal for the TV to heat up after prolonged use. The temperature may rise around the device. This does not affect its operation.

The image or sound freezes, the screen becomes blank, how to reset?

Unplug the power cord for about two minutes, then plug it back in. This will reset the TV.

How to clean the TV screen and cabinet?

Use a soft, dry cloth to clean the screen and cabinet. Never use abrasive products or solvents. Unplug the device before cleaning.

The LED indicator blinks red, what does it mean?

Count the number of blinks (at three-second intervals). Note this number and contact your dealer or Sony after-sales service to diagnose the problem.

Can I use an external hard drive with this TV?

Yes, there is a dedicated USB port for hard disk recording (marked 'HDD Rec'). Use a compatible USB hard drive formatted in FAT32 or NTFS.

How to enable or disable the LED indicator?

Press HOME, then select 'Settings' > 'System Settings' > 'General Setting' > 'LED Display'. Choose 'Off' to turn off the indicator.

USER MANUAL Bravia KD65X9005A SONY

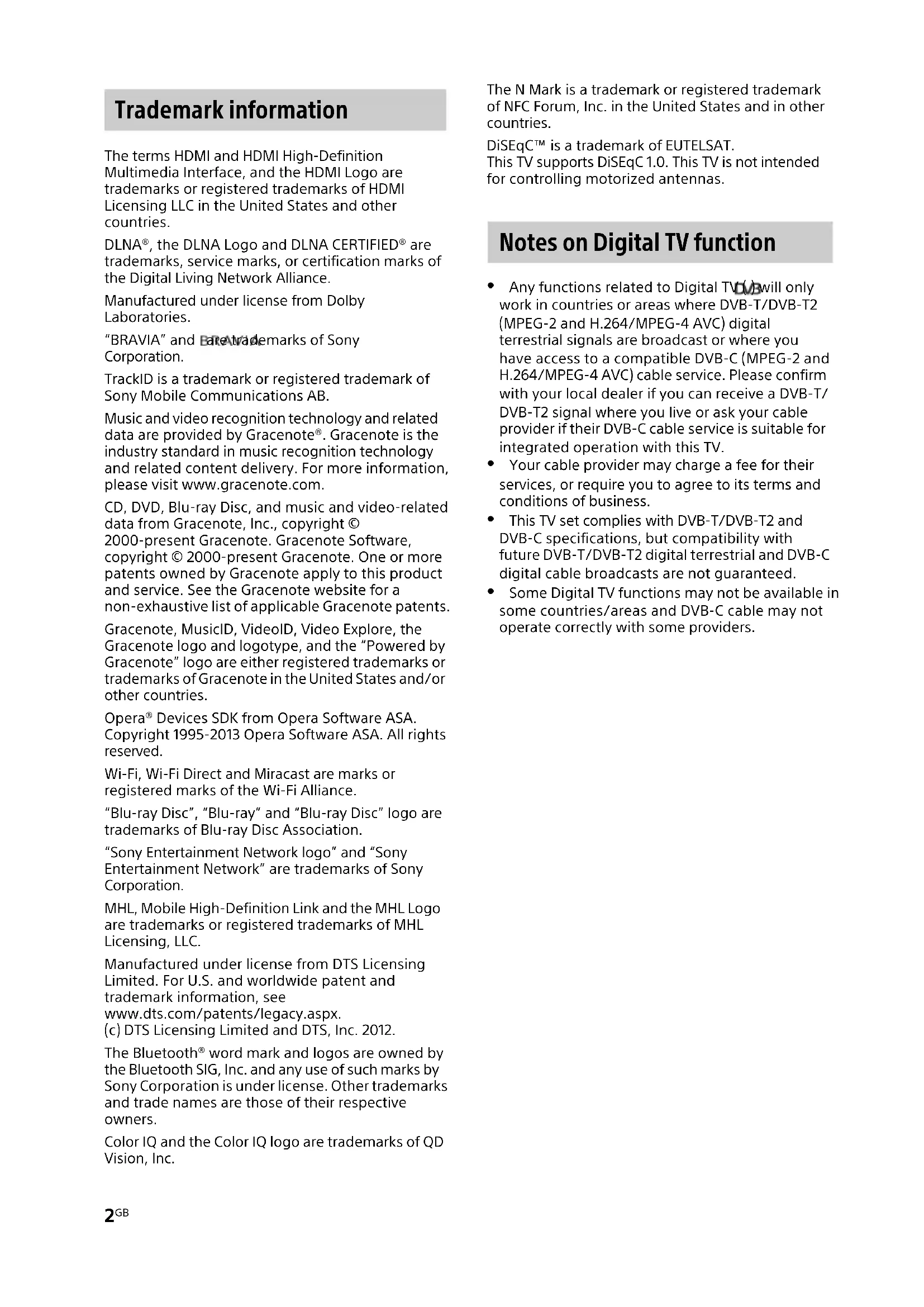

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Manufactured under license from Dolby Laboratories.

"BRAVIA" and are trademarks of Sony Corporation.

TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

Music and video recognition technology and related data are provided by Gracenote. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright ©

2000-present Gracenote. Gracenote Software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents.

Gracenote, MusicID, VideoID, Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are marks or registered marks of the Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.

"Sony Entertainment Network logo" and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. For U.S. and worldwide patent and trademark information, see www.dts.com/patents/legacy.aspx.

(c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Color IQ and the Color IQ logo are trademarks of QD Vision, Inc.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

DiSeqTM is a trademark of EUTELSAT.

This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

Notes on Digital TV function

• Any functions related to Digital TV will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.
• Your cable provider may charge a fee for their services, or require you to agree to its terms and conditions of business.
• This TV set complies with DVB-T/DVB-T2 and DVB-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.
• Some Digital TV functions may not be available in some countries/areas and DVB-C cable may not operate correctly with some providers.

Troubleshooting

When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds).

Press I/O on the TV to turn it off, disconnect the AC power cord (mains lead), and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When the illumination LED is not flashing, check the items in the tables as follows.

Also refer to "Troubleshooting" in the i-Manual. If the problem persists, have your TV serviced by qualified service personnel.

There is no picture (screen is dark) and no sound.

• Check the antenna (aerial)/cable connection.
• Connect the TV to the AC power (mains), and press I/O on the TV or remote.

Some programmes cannot be tuned.

• Check the antenna (aerial) or dish.
• The satellite cable might be short-circuited or there might be connection problems of the cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again. The frequency that you entered is out of range. Consult the received satellite broadcasting company.

There is no Cable TV services (programmes) found.

• Check the cable connection or tuning configuration.
• Attempt the "Digital Auto Tuning" by selecting "Antenna" instead of "Cable".

The remote does not function.

• Replace the batteries.
• Your TV may be in SYNC mode. Press SYNC MENU, select "TV Control" and then select "Home (Menu)" or "Options" to control the TV.

The "Parental Lock" password has been forgotten.

• Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV surrounds become warm.

• When the TV is used for an extended period, the TV surrounds become warm.

You may feel hot when touching there by the hand.

Frozen audio or video, a blank screen, or the TV does not respond to TV or remote buttons.

• Perform a simple reset of the TV by unplugging the AC power cord for two minutes, then plug it in again.

The CH +/-, VOL +/-, arrow keys, and HOME buttons cannot be located on the TV.

See below illustration for location of the buttons on the TV.

The illumination LED is turned on.

If you do not wish to light up the illumination LED, you can turn it off.

Press HOME, then select "Settings" -> "System Settings" -> "General Set-up" -> "Illumination LED" -> "Off". You can also press OPTIONS, then select "Illumination LED" -> "Off".

When viewing photo files in 4K resolution:

• The menu screen, operation guide, or messages may not appear when displaying photos.
• To finish playback of photos, press RETURN, or switch the input by pressing

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel

TV system

Analogue: Depending on your country/area selection: B/G/H, D/K, L, I, M

Digital: DVB-T/DVB-T2/DVB-C

Satellite: DVB-S/DVB-S2

Colour/video system

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the i-Manual.

Channel coverage

Analogue: UHF/VHF/Cable, Depending on your country/area selection.

Digital: UHF/VHF/Cable, depending on your country/area selection.

Satellite: IF frequency 950-2150 MHz

Sound output

12.5 W + 12.5 W + 20 W + 20 W

Input/Output jacks

Antenna (aerial) cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F-Type connector IEC169-24, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone,

Single Cable Distribution EN50494.

/AV1

21-pin scart connector (CENELEC standard) including audio/video input, RGB input and TV audio/video output.

/COMPONENT IN

YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (phono jacks)

AV2

Video input (common phono pin with Y input)

HDMI IN 1, 2, 3, 4 (support 4k resolution)

Video (2D): 4096 × 2160p (24 Hz), 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC Formats

Video (3D):

Frame Packing 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side-by-Side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (HDMI IN 1 only)

MHL (Common with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side-by-Side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM, Dolby Digital)

AUDIO OUT/

Audio output (stereo minijack)

Headphones jack

HDD Rec), 2,

USB HDD device port (1 only), USB port

M (Conditional Access Module) slot

AN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.)

Others

Supplied accessories

Refer to "What's in the box" in Quick Start Guide.

Optional accessories

Camera and Microphone Unit: CMU-BR200/CMUBR100

USB Wireless LAN Adapter: UWA-BR100

Passive 3D Glasses: TDG-500P

SimulViewTM Passive Glasses: TDG-SV5P

Operating temperature

0°C - 40°C

Operating humidity

10% - 80% RH (non-condensing)

Power and others

Power requirements

220V-240VAC, 50Hz

Energy Efficiency Class

KD-65X9005A: B

KD-55X9005A: B

Screen size (measured diagonally) (Approx.)

KD-65X9005A: 163.9 cm / 65 inches

KD-55X9005A: 138.8 cm / 55 inches

Power consumption

in "Home"/"Standard" mode

KD-65X9005A: 193 W

KD-55X9005A: 155 W

in "Shop"/"Vivid" mode

KD-65X9005A: 349 W

KD-55X9005A: 279 W

Average annual energy consumption*1

KD-65X9005A: 268 kWh

KD-55X9005A: 215 kWh

Standby power consumption*2

0.40 W (16 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-65X9005A: 168.2 × 90.3 × 40.5 cm

KD-55X9005A: 146.3 × 77.8 × 40.5 cm

without Table-Top Stand

KD-65X9005A: 168.2 × 87.5 × 10.0 cm

KD-55X9005A: 146.3 × 74.9 × 10.0 cm

Mass (Approx.)

with Table-Top Stand

KD-65X9005A: 46.4 kg

KD-55X9005A: 34.5 kg

without Table-Top Stand

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

*1 Energy consumption per year, based on the power consumption of the television operating

4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*2 Specified standby power is reached after the TV finishes necessary internal processes.

• Do not remove the dummy card from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Satellite: DVB-S/DVB-S2

Color/Video Standard

Analogue: PAL, SECAM, NTSC3.58, NTSC4.43

ARC (Audio Return Channel) (HDMI IN 1 uniquely)

DIGITAL AUDIO OUT (OPTICAL)

10% - 80% RH (without condensation)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and the "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.

The "Sony Entertainment Network" logo and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

TV system

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (two-channel linear PCM, Dolby Digital)

AUDIO OUT/0

Audio output (stereo mini jack)

Headphone jack

(HDD Rec), 2, 3

10% - 80% RH (without condensation)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

DIGITAL AUDIO OUT (OPTICAL)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

DIGITAL AUDIO OUT (OPTICAL)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

(c) DTS Licensing Limited and DTS, Inc. 2012.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the i-Manual.

Channel coverage

Side-by-side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top-and-bottom 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM 2 channels: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1)

MHL (standard with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side-by-side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top-and-bottom 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM 2 channels: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Optical digital jack (Linear PCM 2 channels, Dolby Digital)

G AUDIO OUT/

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Side by side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top and bottom 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM 2ch: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1)

MHL (Shared with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side by side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top and bottom 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM 2ch: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Dimensions (approximate) (W x H x D)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

12.5 W + 12.5 W + 20 W + 20 W

Input/Output terminals

Antenna cable

75 ohm external connection for VHF/UHF

Satellite antenna

F-type female connector IEC169-24, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone,

Distributed via single cable TV EN50494.

A

V 1

Over-under 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-under 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: See manuals.

Channel coverage

1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1)

1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (two-channel linear PCM, Dolby Digital)

AUDIO OUT/

Audio output (stereo minijack)

Headphone jack

HDD Rec), 2,

USB HDD port (only), USB port

AM slot (Conditional Access Module)

BASE-T/100BASE-TX jack

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

television audio/video output.

/COMPONENT IN

YPBPR (component video): 1080p (50, 60 Hz),

1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, PC formats

Video (3D):

Frame Packing mode 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz),

720/24p

Side-by-Side mode 1080p (50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Over-Under mode 1080p (30, 50, 60 Hz), 1080/24p

1080i (50, 60 Hz), 720p (50, 60 Hz)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side-by-Side mode 1080/24p, 1080i (50, 60 Hz),

720p (50, 60 Hz)

Over-Under mode 1080p (30 Hz), 1080/24p, 1080i

(50, 60 Hz), 720p (50, 60 Hz)

DIGITAL AUDIO OUT (OPTICAL)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Audio input (phono jacks)

AV2

1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1)

1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (two-channel linear PCM, Dolby Digital)

AUDIO OUT/Ω

Audio output (stereo mini jack)

Headphones jack

HDD Rec), 2,

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of the Wi-Fi Alliance.

The "Blu-ray Disc" logo, "Blu-ray" and "Blu-ray Disc" are trademarks of the Blu-ray Disc Association.

The "Sony Entertainment Network" logo and the name "Sony Entertainment Network" are trademarks of Sony Corporation.

(c) DTS Licensing Limited and DTS, Inc. 2012.

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

(c) DTS Licensing Limited and DTS, Inc. 2012.

Top/bottom 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 2-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1 model)

MHL (shared with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Side-by-side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top/bottom 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: 2-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of the Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and the "Blu-ray Disc" logo are trademarks of the Blu-ray Disc Association.

"Sony Entertainment Network" logo and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. For patent and trademark information in the U.S. and other countries, visit www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012.

DIGITAL AUDIO OUT (OPTICAL)

In "Store"/"Live" mode

KD-65X9005A: 349W

KD-55X9005A: 279W

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

DIGITAL AUDIO OUT (OPTICAL)

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and the "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.

The "Sony Entertainment Network logo" and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link, and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to the i-Manual.

Channel coverage

Analog: UHF/VHF/Cable, depending on the country/region selected.

Digital: UHF/VHF/Cable, depending on the country/region selected.

Satellite: IF frequency 950 - 2150 MHz

Audio output

12.5 W + 12.5 W + 20 W + 20 W

Input/Output jacks

Antenna cable (external)

Side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM 2-channel: 32, 44.1, and 48 kHz, 16, 20, and 24 bits, Dolby Digital

Alaturate 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Suprapuse 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM liniar pe doua canale: 32, 44,1 s i 48 kHz, 16, 20 s i 24 biti, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Mufa optica digitala (PCM liniar pe doua canale, Dolby Digital)

AUDIO OUT / Ω

lesire audio (mini mufa stereo)

Mufacsti

HDD Rec), 2,

in modul "Acas" / "Standard"

KD-65X9005A:193W

KD-55X9005A:155W

KD-65X9005A: 45,0 kg

KD-55X9005A: 33,1 kg

Pon3BeNo no NiuEnHa Dolby Laboratories.

"BRAVIA" and the BRAVIA logo are trademarks or registered trademarks of Sony Corporation.

TrackID and the TrackID logo are trademarks or registered trademarks of Sony Mobile Communications AB.

Gracenote, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

CD and music-related data from Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote software, copyright © 2000-present Gracenote. This product and service may use one or more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773; #6,161,132; #6,230,192; #6,230,207; #6,240,459; #6,330,593; and other patents issued or pending. Some services may not be available in certain countries or regions. For a non-exhaustive list of Gracenote patents, see the Gracenote website.

Gracenote, MusicID, VideoID, Video Explore, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

The "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logos are trademarks of Blu-ray Disc Association.

The "Sony Entertainment Network" logo and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. For patents and trademark information in the U.S. and worldwide, see www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Color IQ and the Color IQ logos are trademarks of QD Vision, Inc.

The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and other countries.

DiSEqC is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

Insert the digital function of the TV

• Insert the function related to digital television (depending on the region, DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) digital terrestrial signals are offered, which should be compatible with DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Check with your provider whether the channels you want can be received via DVB-T/DVB-T2 signals, or ask your cable TV provider if their DVB-C cable service is suitable for compatible operation with this TV. It is possible that your cable provider may charge a fee for their services or ask you to agree to their rules and conditions. Although this TV complies with DVB-T/DVB-T2 and DVB-C specifications, its compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts is not guaranteed. It is possible that some functions of the TV may not work in certain countries/regions, and the DVB-C cable service may not work correctly with some providers.

Troubleshooting.

When the LED lights up in red, wait for the intervals (three seconds).

Press the I/ on the TV to turn it off, unplug the power cable, and inform your Sony dealer or Sony service center about the indicator (number of blinks).

When the LED does not light up, check the items in the table as follows.

See "Troubleshooting" in the i-Manual. If the problem persists, the TV must be examined by qualified service personnel.

No picture (screen is dark) and no sound.

• Check the antenna/cable connection. Connect the TV to a power outlet and press the I/ on the TV or the remote control.

Some programs cannot be tuned.

• Check the antenna or satellite dish connection.
• The satellite cable may be loose or have a connection problem. Check the cable connection or unplug the TV from the power outlet, then plug it back in. The displayed frequency is out of range. Contact the company that provides satellite services.

No cable TV service (programs).

• Check the cable connection or the tuning configuration.
• Perform "Auto Digital Tuning" by selecting "Antenna" instead of "Cable".

The remote control does not work.

Replace the batteries. The remote control may be out of sync. Press SYNC MENU, select "TV Control", then select "Home (Menu)" or "On" to control the TV.

The PIN for "Parental Control" has been forgotten.

Enter 9999 for the PIN code. (PIN code 9999 is always accepted.)

The TV frame is warm.

When the TV is used for a long time, its frame may become warm. You may feel the heat when touching it.

Frozen audio or video, blank screen, or the TV does not respond to commands from the TV buttons or the remote control.

• Perform a normal reset of the TV by unplugging it from the AC outlet for 2 minutes and then plugging it back in.

The buttons CH+/-, +/-, // //+, -, or HOME cannot be found on the TV.

See the illustrated guide for the placement of the buttons on the TV.

Side of the TV

The LED lighting is on.

• If you do not want the LED lighting to be on, you can turn it off. Press HOME, then select "Settings" → "System Settings" → "General Settings" → "LED Lighting" → "Off". You can also press OPTIONS, then select "LED Lighting" → "Off".

#

When watching 4K resolution content:

The manual and the instructions for operation may not be reproduced when images are shown. To reproduce the images, press RETURN or press the input button.

Specifications

System

System of the panel

LCD (Liquid Crystal Display) panel

Television system

Analog: Depending on your choice of country/region: B/G/H, D/K, L, I, M

Digital: DVB-T/DVB-T2/DVB-C

Satellite: DVB-S/DVB-S2

Color system / Video system

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: See i-Manual.

12.5 W + 12.5 W + 20 W + 20 W

Input/Output jacks

Antenna cable

75 Ohm antenna input for VHF/UHF

Satellite antenna

Connector type F, IEC169-24, 75 Ohm. DiSEqC 1.0, LNB 13 V/18 V & 22 KHz tone, distribution over 1 cable EN50494.

AV1

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input and TV audio/video output.

COMPONENT

YPbPr (component video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (RCA jacks)

AV2

Video input (shared with Y input)

HDMI IN 1,2,3,4 (supports 4K resolution)

Video (2D): 4096 x 2160p (24 Hz), 3840 x 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i, PC formats

Video (3D):

Frame Packing 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side by side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

HDMI IN 1 (HDD Rec), 2, 3

Audio: Linear PCM: 32, 44.1, 48 kHz, 16, 20, 24 bits, Dolby Digital

ARC (Audio Return Channel) (via HDMI IN)

MHL (via HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Frame packing 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Frame packing 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Linear PCM: 32, 44.1, 48 kHz, 16, 20, 24 bits, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Optical output jack (2-channel linear PCM, Dolby Digital)

G AUDIO OUT/

Audio output (stereo mini jack)

Jack for headphones

1(HDD Rec), 2, 3

USB HDD device (self-powered), USB port

Relative humidity 10% - 80% (without condensation)

Power requirements

Power requirements: 220V-240V AC, 50Hz

Energy class KD-65X9005A: B KD-55X9005A: B

Screen size (measured diagonally) (approx.) KD-65X9005A: 163.9 cm / 65 inches KD-55X9005A: 138.8 cm / 55 inches

Power consumption in "Home" / "Standard" mode KD-65X9005A: 193W KD-55X9005A: 155W In "Shop" / "Vivid" mode KD-65X9005A: 349W KD-55X9005A: 279W

Average annual energy consumption*1 KD-65X9005A: 268 kWh KD-55X9005A: 215 kWh

Power consumption in standby mode*2 0.40 W (16 W in software update / EPG mode)

Display resolution 3840 dots (horizontal) × 2160 lines (vertical)

Dimensions (approx.) (W × H × D)

With stand KD-65X9005A: 168.2 × 90.3 × 40.5 cm KD-55X9005A: 146.3 × 77.8 × 40.5 cm

Without stand KD-65X9005A: 168.2 × 87.5 × 10.0 cm KD-55X9005A: 146.3 × 74.9 × 10.0 cm

Weight (approx.)

With stand KD-65X9005A: 46.4 kg KD-55X9005A: 34.5 kg

Weight of the TV with stand: KD-65X9005A: 45.0 kg, KD-55X9005A: 33.1 kg

*1 Energy consumption is based on the TV operating 4 hours per day, 365 days. Actual energy consumption depends on how the TV is used.

*2 The energy consumption in standby mode is achieved after the TV has been connected to the necessary internal process.

Do not insert a pseudo-card into the TV CAM (Conditional Access Module) slot, except to install the small card when it is for CAM. - The availability of optional accessories depends on the country/region/model of the TV and its availability. - The design and specifications are subject to change without notice.

Trademark information

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

(24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p,

576p, 576i, 480p, 480i, Mode with one logo only

Video (3D):

Frame Packing 1080p (30 Hz), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz),

720/24p

1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: PCM duo channel: 32, 44.1 kHz

48 kHz, 16, 20 kΩ 24 bit, Dolby Digital

ARC (Audio Return Channel) (only for HDMI IN 1)

MHL (connected with HDMI 2)

Video (2D): 1080p (30 Hz), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

Video (3D):

DIGITAL AUDIO OUT (OPTICAL)

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: Refer to i-Manual.

Channel coverage

12.5 W + 12.5 W + 20 W + 20 W

Input/Output Jacks

Antenna cable

75-ohm external terminal for VHF/UHF

Satellite antenna

Square Packing 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p

Side by Side 1080p (50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top and Bottom 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

ARC (Audio Return Channel) (only HDMI IN 1)

Side by Side 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Top and Bottom 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (two-channel linear PCM, Dolby Digital)

AUDIO OUT/Ω

Audio output (stereo mini jack)

Headphone jack

HDD Rec), 2,

USB HDD device port (only 1), USB port

M (module) slot

LAN

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct and Miracast are trademarks or registered trademarks of the Wi-Fi Alliance.

"Blu-ray Disc", "Blu-ray" and the "Blu-ray Disc" logo are trademarks of the Blu-ray Disc Association.

"Sony Entertainment Network" and "Sony Entertainment Network" are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. Information about patents and trademarks in the USA and worldwide can be found at www.dts.com/patents/legacy.aspx. (c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and used by Sony Corporation under license. Other trademarks and trade names are the property of their respective owners.

Color IQ and the Color IQ logo are trademarks of QD Vision, Inc.

The mark is a trademark or registered trademark of NFC Forum, Inc. in the USA and other countries.

DiSEqC is a trademark of EUTELSAT. This TV supports the DiSEqC 1.0 communication protocol. This TV is not intended for controlling motorized antennas.

Regarding digital TV

All functions related to digital TV (D3) will only work in countries or regions where digital terrestrial broadcasting DVB-T/DVB-T2 (MPEG-2 or H.264/MPEG-4 AVC) is broadcast, and access to compatible digital cable broadcasting DVB-C (MPEG-2 or H.264/MPEG-4 AVC) is provided. Please check with your operator whether you can receive DVB-T/DVB-T2 signal where you live, or ask your cable TV provider whether the DVB-C digital cable service is available for your TV. - Your cable TV provider may charge an additional fee for such service and require your consent to their terms. Although this TV meets the DVB-T/DVB-T2 and DVB-C specifications, we cannot guarantee its compatibility with future digital terrestrial broadcasting in DVB-T/DVB-T2 format and digital cable broadcasting in DVB-C format. - Some functions of digital TV may be unavailable in some countries/regions, and proper reception of DVB-C standard signal may not be ensured for all cable TV providers.

Does not work with remote control.

Replace the batteries. - Possibly the TV is in SYNC mode.

Press the SYNC MENU button, select "TV Control", then select "Home (Menu)" or "Options" to control the TV.

Forgot the password for the "Child Lock" function.

Enter 9999 as the PIN code. (PIN code 9999 is always accepted.)

The surface of the TV heats up.

• During prolonged use, the surface of the TV heats up. This can be felt when touching it. No sound, frozen video, blank screen, or the TV does not respond to button presses on the body or the remote control.
• Perform a simple restart of the TV by unplugging the power cord for two minutes, then plugging it back in.

Cannot find the buttons CH+/-, +/-, //, /, /, /, HOME on the TV.

The location of the buttons on the TV is shown in the figure below.

TV stand

LED backlight is off.

• If it is not necessary for the LED backlight to be on, you can turn it off.

Press the HOME button, then select

"Settings" → "System settings"

"General settings" → "LED backlight"

"Off". You can also press OPTIONS, then select "LED backlight" → "Off".

#

Viewing photos in 4K resolution:

The on-screen menu, user manual, and messages may not be displayed correctly when viewing photos. To confirm photo playback, press the RETURN button, or switch the input using the button.

Technical specifications

System

System menu

DiSEqC, according to EN50494.

AV1

21-pin SCART connector (standard)

CENELEC), BKNIOyAayNO-/BUNDeOBXoD, BXoD

RGB n TeIeBn3nOHnHb ayuNO-/BnDeOBbIXoD.

C O M P O N E N T

YPPR (KOMnOHeHTHoe BnIeO): 1080p (50, 60 T),

1080i (50, 60 Γι), 720p (50, 60 Γι), 576p, 576i,

480p, 480i

AynOBXoI（rHe3aTnna“TIOJIbNaH"

AV2

Bndeobxod (o6u npa3bem Tuna "TIOJbnaH" C

Y-06pa3HbIM BxoIOM)

HDMI IN 1,2,3,4 (noДержka paЗршени 4k)

Bvneo (2D): 4096 × 2160p (24 Γι), 3840 × 2160p

(24, 25, 30 Γι), 1080p (30, 50, 60 Γι), 1080/24p,

1080i (50, 60 Γu), 720p (30, 50, 60 Γu), 720/24p,

576p, 576i, 480p, 480i, ΦopMaTbI NK

Video (3D):

Input signals 1080p (30p), 1080/24p,

1080i (50, 60 Hz), 720p (30, 50, 60 Hz),

720/24p

Output 1080p (50, 60 Hz), 1080/24p,

Technology ARC (Audio Return Channel) (only

HDMI IN 1)

MHL (shared with HDMI 2)

Video (2D): 1080p (30p), 1080/24p, 1080i (50,

60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p,

576i, 480p, 480i

Video (3D):

Output 1080/24p, 1080i (50, 60 Hz), 720p (50,

60 Hz)

Input signals 1080p (30p), 1080/24p,

1080i (50, 60 Hz), 720p (50, 60 Hz)

Audio: Digital Linear PCM: 32, 44.1

and 48 kHz, 16, 20 and 24 bit, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Digital optical connector (2-channel

Linear PCM, Dolby Digital)

AUDIO OUT/

Audio output (stereo minijack)

Headphone jack

1 (HDD Rec), 2, 3

Hard disk drive connector USB (only 1),

USB port

Connector for CAM (conditional access

module)

LAN

10BASE-T/100BASE-TX interface (speed

of connection depends on the network

environment. Speed and quality of data transmission

1

of the 10BASE-T/100BASE-TX interface for

this TV are not guaranteed.)

More

Package contents

See the "Package contents" section of the quick guide.

Additional accessories

Microphone camera for Skype™: CMU-BR200/CMU-BR100

USB adapter for wireless LAN network: UWA-BR100

3D glasses: TDG-500P

SimulView™ glasses: TDG-SV5P

Operating temperature 0°C - 40°C

Power consumption in "Home" / "Standard" mode: KD-65X9005A: 193 W, KD-55X9005A: 155 W

In "Store" / "Bright" mode: KD-65X9005A: 349 W, KD-55X9005A: 279 W

Average annual energy consumption*1: KD-65X9005A: 268 kWh, KD-55X9005A: 215 kWh

Power consumption in standby mode*2: 0.40 W (16 W during software and EPG data updates)

Screen resolution

3840 dots (horizontal) × 2160 lines (vertical)

Dimensions (approx.) (width × height × depth)

With table-top stand

KD-65X9005A: 168.2 × 90.3 × 40.5 cm

KD-55X9005A: 146.3 × 77.8 × 40.5 cm

Without table-top stand

KD-65X9005A: 168.2 × 87.5 × 10.0 cm

KD-55X9005A: 146.3 × 74.9 × 10.0 cm

Macca (npn6JI.)

C HAcTOnbHOI NOCTaBKOJ

KD-65X9005A:46,4K

KD-55X9005A:34,5 kT

6e3 HAcToJIbHOI NOCTaBKN

KD-65X9005A:45,0Kr

KD-55X9005A:33,1K

¹ 3a notpe6lenhe əJIeKtpo3HepnB B roD npinra notpe6IemaM MOUHOCTb TeLEBu3opa,pa6oTaOuero 4 aca B DeHb B TeueHne 365 dHe.ΦakTuueckoe notpe6lenhe 3JIeKtpo3HepnB 6ydt HaPryMyIO 3aBNCeTb OT cnocoba nCnoJb3OBaHnRA TeLEBu3opa.

^*2 HOMHaJIbHЯ BeJIuHnHa MOUHOCTn IOTpe6JIeHnB pexmE OxuaHn IocTnraeTcI NOcIe TORo, KaK TeJIeBu3Op BblONHIT HeO6XODMbIe BHyTpEHnI npoueCcbI.

• Maket Kaptbyc cneIyET n3BLeKaTb n3 rHe3da TV CAM (MoIyIb orpaHnueHHoro Doctyna) ToIbKO B TOM Clyuae, ecnn yctaHaBnBaETCra CmapT-KapTa, noXoJaAaJ da pa3bema CAM.
• Haneluhe doonHnTeBbix npHaJnxKHOCTe 3aBncnt OT cTpaH/pernoHOB/MoJeN TeBeBu3Opa/3anacOB.
• KoHCTpyKUngn TexHnueckne xapaKTepeNCTnKn MOyT 6bITb n3MeHehbl 6e3 npedBapntJbHoro yBeDomJIeHn.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLNA®, the DLNA logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of Digital Living Network Alliance.

Manufactured under license from Dolby Laboratories.

“BRAVIA” and its associated marks are trademarks of Sony Corporation.

TrackID is a trademark or registered trademark of Sony Mobile Communications AB.

Music and video recognition technology and related data are provided by Gracenote. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video data are provided by Gracenote, Inc., copyright © 2000-present Gracenote. Gracenote software, copyright © 2000-present Gracenote. One or more patents owned by Gracenote may apply to this product and service. Visit the Gracenote website to obtain a list of applicable Gracenote patents.

Gracenote, MusicID, VideoID, Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are trademarks or registered trademarks of Gracenote in the United States and/or other countries.

Opera Devices SDK from Opera Software ASA. Copyright 1995-2013 Opera Software ASA. All rights reserved.

Wi-Fi, Wi-Fi Direct, and Miracast are trademarks or registered trademarks of Wi-Fi Alliance.

“Blu-ray Disc”, “Blu-ray”, and the “Blu-ray Disc” logo are trademarks of Blu-ray Disc Association.

The “Sony Entertainment Network” logo and “Sony Entertainment Network” are trademarks of Sony Corporation.

MHL, Mobile High-Definition Link, and the MHL logo are trademarks or registered trademarks of MHL Licensing, LLC.

Manufactured under license from DTS Licensing Limited. For patent and trademark information for the U.S. and worldwide, see www.dts.com/patents/legacy.aspx.

(c) DTS Licensing Limited and DTS, Inc. 2012.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

Color IQ and the Color IQ logo are trademarks of QD Vision, Inc.

The N mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and other countries.

DiSEqC is a trademark of EUTSAT. The DiSEqC 1.0 interface is used for controlling motorized antennas.

Notes on digital TV functions

• All functions related to digital TV (DVB) will work only in countries or regions where digital terrestrial signals DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4 AVC) are broadcast or where digital cable input DVB-C (MPEG-2 and H.264/MPEG-4 AVC) is available. Check with your local broadcaster to see if you can receive DVB-T/DVB-T2 signals in your area, or ask your cable TV provider if your cable service DVB-C is compatible with your TV. Your cable TV provider may charge a fee for their services or require your consent to their terms and conditions.
• The TV is compliant with DVB-T/DVB-T2 and DVB-C standards, but future digital terrestrial broadcasts DVB-T/DVB-T2 and digital cable broadcasts DVB-C are not guaranteed.
• Some digital TV functions may be unavailable in certain countries or regions, and DVB-C may not work properly with some providers.

Troubleshooting

If the standby indicator flashes red, count the number of flashes (the interval is three seconds).

Press the power button on the TV to turn it off, then disconnect the power cord and inform the dealer or Sony service center about the number of flashes of the indicator.

If the standby indicator flashes, check the following possibilities.

Also, see the "Troubleshooting" section in the i-Manual. If the problem persists, have the TV serviced by qualified personnel.

Cannot tune certain channels.

• Check the antenna or satellite dish. The satellite cable may be shorted or have connectors with loose connections. Check the cable connections, then turn off the TV with the power button and turn it on again. The selected frequency is out of range. Contact the satellite TV company.

Unable to receive digital service (channel) from cable TV.

• Check the antenna connection and setup parameters. Try using the auto-tuning function, selecting "Antenna" instead of "Cable".

The remote control does not work.

Replace the batteries. - Possibly, the TV was in SYNC mode.

Press SYNC MENU, select "TV Control", then "Home (Menu)" or "Options" to control the TV.

You forgot the password for the "Parental Lock" function.

Enter the PIN code 9999. (PIN code 9999 is the default.)

The area around the TV heats up.

• If the TV is used for a long time, the area around it heats up.

You can smell burning.

The picture and sound freeze, the screen goes blank, and the TV does not respond to button presses on the TV or the remote control.

• To perform a simple reset of the TV, unplug the power cord from the outlet, and after 2 minutes plug it back in.

Cannot find the CH+/-, +/-, //, →, and HOME buttons on the TV.

• The buttons on the TV are described on the next page.

LED backlight.

• If not needed, the LED backlight can be turned off. Press HOME, then select "Settings" → "System Settings" → "General Settings" → "LED Backlight" → "Off". You can also press OPTIONS and then select "LED Backlight" → "Off".

Take photos with a 4K screen resolution:

During photo capture, the menu, user instructions, and notifications may not appear. - To finish creating a photo, press the RETURN button or switch the input source by pressing the button.

Technical

Specifications

System

System panel

Remote control (liquid crystal display)

TV system

Analog: depending on the selected country or

region: B/G/H, D/K, L, I, M

Digital: DVB-T/DVB-T2/DVB-C

Tuner: DVB-S/DVB-S2

Color system/Video

Analog: PAL, SECAM, NTSC3.58, NTSC4.43

Digital: See Wi-Manual.

Coverage

Analog: UHF/VHF/cable, depending on the selected country or region.

UHF/VHF/cable, depending on the selected country or region.

Satellite: Input frequency 950-2150 MHz

Audio output

12.5 W + 12.5 W + 20 W + 20 W

Wireless technology

Protocol IEEE802.11 b/g/n

Bluetooth technology

Bluetooth 3.0

Input/Output interfaces

Antenna cable

External connector with 75 Ohm impedance for VHF/UHF

Satellite antenna

F-type connector (IEC169-24), 75 Ohm.

DiSEqC 1.0, LNB 13 V/18 V, 22 kHz tone

Loop-through cable EN50494

AV1

21-pin Scart connector (CENELEC standard),

including video input, RGB input, and

YPPR (component video input): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i

Audio input (RCA connector)

AV2

Video input (composite RCA connector with Y input)

HDMI IN 1,2,3,4 (supports 4K resolution)

Video (2D): 4096 × 2160p (24 Hz), 3840 × 2160p

(24, 25, 30 fps), 1080p (30, 50, 60 fps), 1080/24p, 1080i (50, 60 fps), 720p (30, 50, 60 fps), 720/24p, 576p, 576i, 480p, 480i, Computer formats

Video (3D):

Input: 1080p (30 fps), 1080/24p, 1080i (50, 60 fps), 720p (30, 50, 60 fps), 720/24p

Port: 1080p (50, 60 fps), 1080/24p, 1080i (50, 60 fps), 720p (50, 60 fps)

One and one: 1080p (30, 50, 60 fps), 1080/24p, 1080i (50, 60 fps), 720p (50, 60 fps)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

ARC (Audio Return Channel) (via HDMI IN 1)

MHL (via HDMI2)

Video (2D): 1080p (30 fps), 1080/24p, 1080i (50, 60 fps), 720p (30, 50, 60 fps), 720/24p, 576p, 576i, 480p, 480i

Video (3D):

Port: 1080/24p, 1080i (50, 60 fps), 720p (50, 60 fps)

One and one: 1080p (30 fps), 1080/24p, 1080i (50, 60 fps), 720p (50, 60 fps)

Audio: Two-channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bit, Dolby Digital

DIGITAL AUDIO OUT (OPTICAL)

Additional digital output (two-channel linear PCM, Dolby Digital)

AUDIO OUT/

Audio out (stereo mini jack)

HDD Rec

1 (HDD Rec), 2, 3

For connecting a USB HDD (only 1), USB port

CAM slot (Conditional Access Module)

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, the connection speed may differ. The speed and quality of data transmission of 10BASE-T/100BASE-TX are not guaranteed for this TV.)

Hw

Power consumption

KD-55X9005A: 215 W

Standby power consumption*2

0.40 W (16 W in software update / electronic program guide mode)

Display resolution

3840 dots (horizontal) × 2160 lines (vertical)

Approximate dimensions (approx.)

(W × H × D)

With stand

KD-65X9005A: 168.2 × 90.3 × 40.5 cm

KD-55X9005A: 146.3 × 77.8 × 40.5 cm

Without stand

KD-65X9005A: 168.2 × 87.5 × 10.0 cm

KD-55X9005A: 146.3 × 74.9 × 10.0 cm

Weight (approx.)

With stand

KD-65X9005A: 46.4 kg

KD-55X9005A: 34.5 kg

Without stand

KD-65X9005A: 45.0 kg

KD-55X9005A: 33.1 kg

Power consumption in TV standby mode is 4 hours a day, 365 days a year. The actual level of power consumption depends on the TV usage mode.

The specified power consumption in standby mode is until the TV completes all internal processes.

Carefully insert the CAM (Conditional Access Module) card into the slot on the TV only after inserting the Smart Card into this slot.

• Accessory availability depends on the country, region, model, and stock.

The external appearance and technical characteristics may be changed without prior notice.

For useful information about Sony products

Useful information about Sony products can be found on the following website

http://support.sony-europe.com/

http://www.sony.net/
