USER MANUAL 533 Vornado

READ AND SAVE THESE IMPORTANT INSTRUCTIONS

Whole Room Air Circulator Owner's Guide

Designed and engineered in Andover, Kansas U.S.A.

Whole Room Circulation....4

Important Instructions 5

Before Initial Use....10

Set Up 12

Cleaning and Maintenance 13

Disposal....13

Troubleshooting 14

Additional Product Information....15

Warranty 14

Deutsch p. 7 Nederland o. 46 Portugues p. 76 Czech p. 16 Slovak p. 135 Furigues p. 81 Lahres p. 61 Bapeleu p. 90 Bozniček p. 20

English

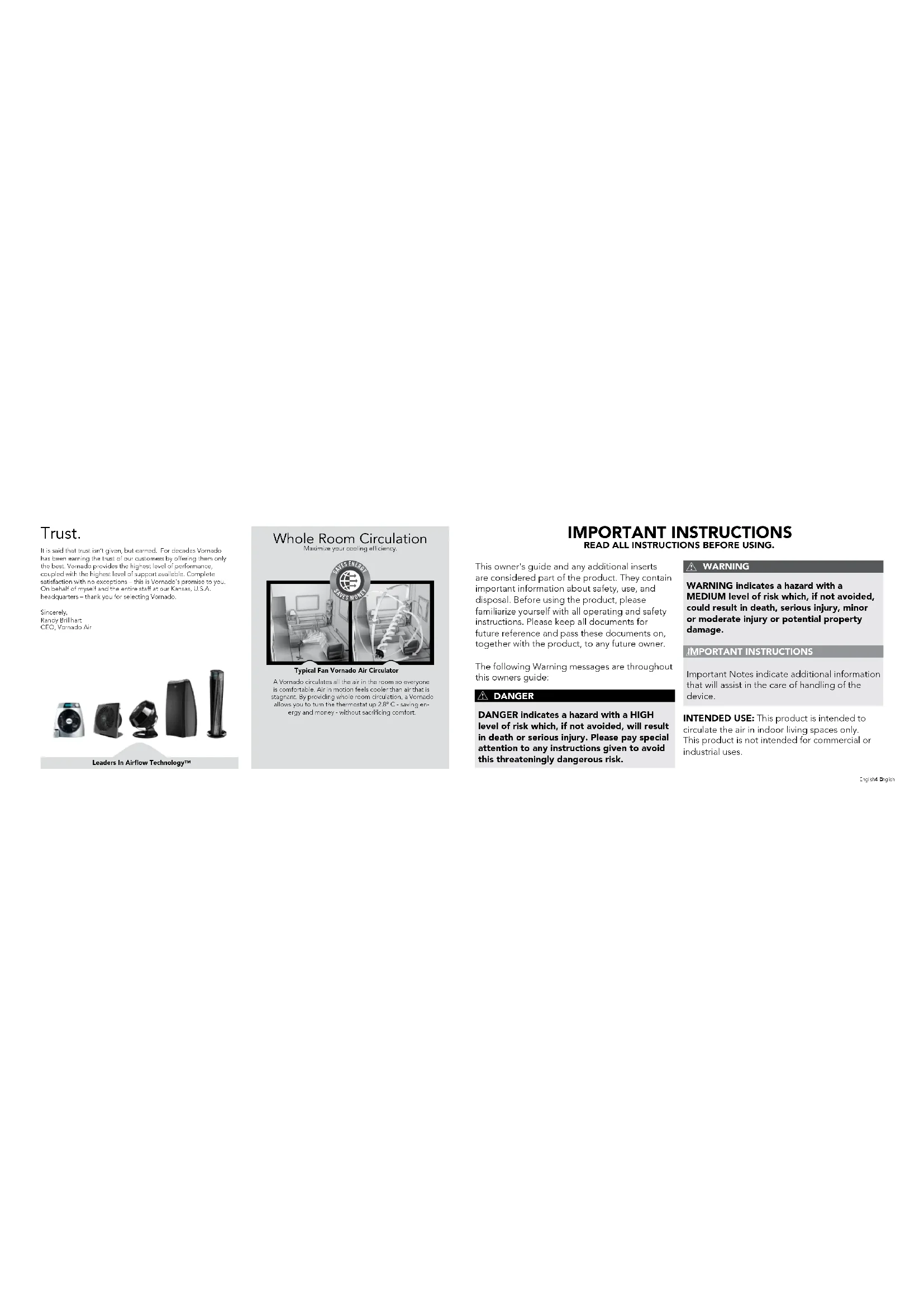

Trust.

It is said that trust isn't given, but earned. For decades Vornado has been parning the trust of our customers by offering them only the best. Vornado provides the highest level of performance, coupled with the highest level of support available. Complete satisfaction with no exceptions - this is Vornado's promise to you. On behalf of myself and the entire staff at our Kansas, U.S.A. headquarters - thank you for selecting Vornado.

Sincereely

Brevie Brillbar

CEO, Vornado Air

Product lineup of five different electronic devices including a fan, speaker, tower, and speaker tower (no visible text or labels)

Leaders In Airflow Technology™

Whole Room Circulation

Maximize your cooling efficiency.

Interior view of a hospital room with beds, a spiral staircase, and a globe logo (no readable text or symbols)

Typical Fan Vornado Air Circulator

A Vornado circulates a the air in the room so everyone is comfortable. Air in motion feels cooler than air that is stagnant. By providing whole room circulation, a Vornado allows you to turn the thermostat up 2.8°C - saving energy and money - without sacrificing comfort.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner.

The following Warning messages are throughout this owners guide:

DANGER

DANGER indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

WARNING indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Important Notes indicate additional information that will assist in the care of handling of the device.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only. This product is not intended for commercial or industrial uses.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING – When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING:

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

Do Not use this product outdoors or directly exposed to weather.

Do Not use this device in tropical humid climates. If the product is brought in from the

cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature, before using it.

Do Not use this product on wet surfaces. Do not use this product in a bathtub, shower or locate product where it may fall into a bathtub, laundry, swimming pool or other water container.
Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to draperies or other loose fabrics as they may be drawn into the product, cutting off airflow and damaging the motor.
Do Not carry this product by the cord, or use the cord as a handle as it can damage internal wiring. Do not unplug product by pulling on

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

cord or place the cord under strain. To unplug, grasp the plug, not the power cord.

Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.

ELECTRICAL CONNECTION: Only a proper 230V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

Do Not touch the product with wet or damp hands.

Do Not operate any product with a damaged cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for examination and/or repair in order to avoid a hazard.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Do Not stretch the power cord or put the cord under strain.
Do not insert or allow foreign objects to enter any input or output opening as they may cause risk of electric shock or fire, or damage the product.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

Tum off all controls before unplugging. Unplug from wall outlet if not in use for extended periods of time.
Do Not open appliance housing. To avoid risk of shock, all service and/ore repairs must be done by a Vornado Authorized Service Center. Only original replacement parts may be used.
For safety reasons, always unplug the unit in the event of a thunderstorm.

WARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

Ensure that wall power outlet is easily accessible so unit can be disconnected during an emergency.

To reduce the risk of fire or electrical shock, do not use this product with any external (solid state) speed control device. To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

Cleaning and user maintenance shall not be made by children without supervision.
This product and its packaging material are not toys and should be kept out of reach of children.

Restriction of Chemicals (REACH) The complete Declaration of Conformity is registered and can be obtained from the importer.

CE

Information Regarding the EC Declaration of Conformity

This product conforms with all relevant and necessary EC directives, including:

• Low Voltage Directive (LVD)
• Electromagnetic Compatibility Directive (EMC)
• Energy Related Product Directive (ErP)
• Restriction of Hazardous Substances Directive (RoHS)
• Registration, Evaluation, Authorisation, and

SAVE THESE INSTRUCTIONS

Please keep all documents for future reference and pass these documents on, together with the product, to any future owner.

Before Initial Use

Preparing the product for use

For best performance and safety, position product so airflow is not accounted.
Before use, check appliances for visible damage. Do not operate appliance if there is evidence of damage to device or the device has been dropped.

IMPORTANT INSTRUCTIONS

As a result of a chemical reaction, it is possible for product feet to leave a visible rescue on the furniture. The product should therefore not be placed on furniture surfaces without suitable protection.

Installing Protective Feet

Use the feet to protect floors when using your air circulator on uncarpeted surfaces such as hardwood, vinyl, or tile. The feet are simple to install and will help maintain the whisper-quiet operation.

Cushion Ring Feet

(Mode: 783 only)

The cushion ring feet are packaged separately in the box. To install, roll or clip all feet onto the base and space evenly. For balanced support it is recommended to use 4 ring feet.

Cushion Pads

(Model 733/735 only)

Use guide marks on base bottom for location.

1. Place 4 pads over the 4 edge bends.

2. Place 3 pads except of the edges.

3. Place 2 pads on each of the cured ends.

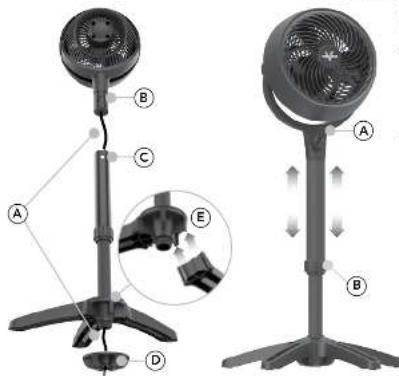

STAND ASSEMBLY (Model 683)

1. Your circulator's power cord is already threaded through the tubes and base assembly. Be careful to ensure the cord is not interfering or binding.
2. Push the Circulator Head into the Pole. Push until the Lock Release Button (B) snaps through the Hole (C).
3. Remove the Fastening Nut (D) secured on the underside of the base. Rotate Fastening Nut counter-clockwise to remove.
4. Assemole Legs onto the base of Pole by pushing each Leg onto the grooves (E). Replace Fastening Nut (D) by rotating clockwise to secure all the Legs in place.

Before Initial Use

Diagram of a desktop fan with labeled parts and internal diagram showing cable insertion mechanism

HEIGHT ADJUSTMENT (31 - 38 INCHES)

1. Support the Circulator Head (A) with one hand. Use your other hand to loosen the Adjustment Coller (B) by gently rotating it counter clockwise.

2. Slowy raise or lower the Pole to the desired height and secure into position by rotating the Adjustment Collar clockwise until tight.

Note: Before adjusting the height or rotating the head, check that the power cord is not tangled and able to move freely.

After adjusting height, ensure that the Adjustment Collar is fully tightened and engaged to ensure Circulator Head does not rotate and bind power cord

English 1018 English

Set Up

When To Use - Saves Energy Year-Round

Summer: Use your Air Circulator with your homes air conditioning system to create brisk, comforting air movement. This breeze will eliminate stagnant air and remove body heat to make you feel cooler.

Withornado Air Circulators, you can save money on energy bills by raising your thermostat several degrees and still maintaining the same comfort level.

Uas wir esentin

or non-

-

Fuch:celai

10.597

Spring & Fall: Your Air Circulator can make the indoors as fresh and pleasant as the outdoors. Place the Air Circulator near an open window, sliding door or French door to take full advantage of mild temperatures and seasonal breeches

Circulate fresh

(2) 求 10%

Live room

(3) 2017年1月1日

Winter: Position your Air Circulator in a place with clembs rolled upward air movement. Run it only as fast as necessary to lower the hosted air from the ceiling – but not fast enough to create a shelf. Or, use your Air Circulator with other available heat sources (clembs varies, wood stoves or baseboard heated) to circulate their warmtn, taking full advantage of all available heat in the room. De not print the Air Circulator at open flames.

Increase the

witheroynt

1.2.3.02.95.4.2

replace cold

floor at with

Where to Use

Air Circulator

Ideal Rooms

500 series

Kitchen, Smaller Bedroom, Dorm Room, Office

Cubic

VFAN and

Den, Home Office, Hearth Room, Dining Room.

600 series

Average Bedroom

660 and 700

Living Room, Master Bedroom, Family Room, Reo-

series

reaction Room Workshop/Hobby Room, Sunroom

How To Use

1. Position your Air Circulator so the beam of air has an unobstructed path from one side of the room to the other.

2. Set speed to medium and allow a few minutes for an airflow pattern to be established. (Different airflow patterns can be established by changing the location, angle and speed of the Air Circulator.)

3. Adjust the speed accordingly until a desired comfort level is achieved. You will quickly determine the precise amount of circulation required to maintain your personal comfort in a given room for the prevailing temperature and humidity conditions. Once you discover the audio comfort of air circulation, you will use your Vornado Air Circulator season after season.

Note: With initial use, for a brief period, a light odor accumulation can occur. This is normal and completely harmless.

Cleaning and Maintenance

Because your product moves a substantial amount of air, it will need regular cleaning to remove lint, dust and grime. Never clean the product in any manner other than instructed in this owner's guide

WARNING

Observe the following safety information to avoid risks and property damage.

Do unping your product before cleaning.
Do Not use gasoline, thinners, solvents, ammonia or other chemicals for cleaning.
Do Not attempt to repair or replace parts.

Refer to back page for your Authorized Service Center.

The motor is permanently lubricated and requires no oiling.

To clean motor cap and inlet ribs: Use a common household vacuum. Do not use water to clean these parts of the Air Circulator.

To clean base: Wipe with a damp cloth.

Disposal

IMPORTANT NOTES

PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

Dispose of all packaging materials in an environmentally responsible manner.

WEEE Recycling

Waste Electrical and Electronic Equipment Disposal: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse at material resources. To return your use device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental sale-ecycling.

Troubleshooting Additional Product Information

Problem	Possible Cause and Solution
Unit fails to power on.	Unit is not plugged in. Plug Power Cord into electrical outlet.
	Ensure unit for speed setting is selected.
	Unit is damaged or in need of repair. Cause usage and unplug. Contact Consumer Service for assistance.
	The outlet is warm or damaged. Try another outlet or contact a qualified electrician.
Airflow is weak or slow.	Unit set to a low speed setting. Adjust to a higher speed setting.
	Airflow is blocked. Remove obstruction.
	Adjust direction of airflow towards the user.
GFCI has tripped.	Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interruptor) outlet to trip when the user is changing speeds on a Varnado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet.

Model(s)			500-633	12173-2452	2550-368	515.9				7275-132	185-217	144.5
Descspector	Symbol	Unit	Value	Value	Value	Value	Value	Value	Value	Value	Value	Value
Input Voltage		V	220 240	220 240	220 240	220 240	220 240	220 240	220 240	220 240	220 240	230
Mains Voltage Frequency		Hz	50	50	50	50	50	50	50	50	50	50
Protection Class		Class	II/III	II/IV	II/IV	II/IV	II/IV	II/IV	I/II	II/III	I/II	I/II
Dimensions		W×13.0×10-4	4.6×23.5	17.5×24.4	23.4×26.2	22.7×30.5	2.8×30.5	34.5×39.4	45.8×55.9	35.0×38.1	43.2×16.7	33.5×34.8
			≥29.6	≥29.6	≥30.3	≥34.5	≥34.5	≥29.5	≥45.6	≥40.6	≥40.6	≥72.1
Weight		Apoise (g)	1810	1810	1730	1630	1630	3300	2960	3740	4930	3370
Fair Power Input	P	Watts (W)	46.8	48.1	58.1	55.1	60.9	69.4	60.7	66.0	96.0	56.9
Maximum Fair Foxy Rate	F	mPa/hr	13.53	13.13	12.19	26.30	18.78	29.80	18.78	42.99	42.99	25.78
Service Value	SV	μF/miW/W	0.31	0.37	0.37	0.48	0.31	0.60	0.31	0.45	0.43	0.70
Standby Power Consumption	Pa	Watts (W)	0.0	0.0	0.0	0.0	0.0	0.23	0.0	0.0	0.0	0.0
Limited Sound Level	Lss	dJ/dJ	60.5	65.9	62.2	62.8	64.5	65.2	64.5	68.2	68.2	60.3
Maximum Air Velocity	c	m/sat	2.17	3.91	3.60	3.09	4.37	4.84	4.37	5.12	5.12	3.63
Measurement Standard for Service Value	IEC 60879-1986 cer(1992)GAVT 13383-2007
Contact Details for Obtaining More Information on	Vomade Air LLC415 Flex 13th Street Andover, 13 6/6/2 USA

Whole Room Circulator • 5 Year Limited Warranty

Warranty and repair terms and conditions

You will receive a voluntary five-year manufacturer's warranty from date of purchase on materials and workmanship of the product.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, rapar or service of the Product by anyone other than Vomaco or an Authorized Service Center, mishending, improper maintenance, commercial use of the Product, damages which occur in shipment or are attributed to acts of God.

Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties.

Exclusions are damages through inappropriate use or use of the product not according to the manual. For example, but not limited to: If the product is exposed to wetness, extreme temperatures, environmental conditions, corrosion, oxidation, if liquids are rolled over the device, if chemical substances impact the product or through other incidents that are not within the reasonable range of influence of the manufacturer.

Prerequisite for processing in the service department is the submission of a receipt or an invoice.

All technical information, data and instructions for the installation, connection and operation contained in these instructions for use correspond to the latest available information at time of printing.

The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

All company names and product names are trademarks of their respective owners. © All rights reserved.

© 2015 Vornado Air LLC Andover, KS 67002

5 specifications subject to change without notice.

Vomso® is a trademark owned by vomso Air LLC.

Refer to Warranty Certificate and back page for Importer Information and your Authorized Service Center.

Inhalt

Product lineup of five electronic devices including a fan, speaker, tower, and speaker tower (no visible text or labels)

Leaders In Airflow Technology™

Interior view of a space station with solar panels and equipment, featuring a 'SANS ENERGY' logo on the left (no readable text or symbols in the main scene)

Diagram of a desktop fan with labeled parts and directional arrows indicating motion or movement.

The following table is in English:

© 2015 Vorrado Air LLC Anover, CS 6/002

Product lineup of five household appliances including a fan, speaker, lamp, and tower (no visible text or labels)

Leaders In Airflow Technology™

32 François

Simple curved line diagram with three labeled points (I, I, I) and no text or symbols

Diagram of a desktop fan with labeled parts including stand, fan base, and cable connector

1. Tousque de dioussue
   catal

96.60 KPM
(五) 2017年

the future of the placement
the future of the placement
the future of the placement

1. It circular bar
3. It circular bar
4. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. I felt circular hair from pressure delivered. Maintent and temperature concepts
                                                                                                                                                      I felt circular hair from pressure delivered. Maintent and temperature concepts
                                                                                                                                                      I felt circular hair from pressure delivered. Maintent and temperature concepts
                                                                                                                                                      I felt circular hair from pressure delivered. Maintent and temperature concepts
                                                                                                                                                      I felt circular hair from pressure delivered. Maintent and temperature concepts

Product lineup of five different electronic devices including a fan, speaker, microphone, tower, and speaker tower (no text or labels visible)

Leaders In Airflow Technology™

Hele Kamer Circulatie
Maximaliseer uw koelcapacite t.

Interior view of a hospital room with medical equipment and a globe logo (no readable text or symbols)

Typische Ventilator Vornado Lucht Circulator

Diagram of a desktop fan with labeled parts A, B, C, D and an inset showing internal components E.

HOOGTE INSTELLEN

(77 - 95 cm)

central conditioning of airconduring 25, 200, 320

Cureloude Luce

500 were Keuken, Kleiner slappamer, Samer in studentenhuis, Weikhouske

Product lineup of five different household appliances including a fan, speaker, keyboard, and tower (no text or labels visible)

Leaders In Airflow Technology™

Black-and-white photo of a hospital room with medical equipment and a circular logo featuring 'TAWNS ENERGY' (no readable text or symbols in the scene)

Evaluation, Authorisation, and Restriction of

Chemicals (REACH)

Diagram of a desktop fan with labeled parts including stand, fan base, and cable insertion mechanism

© 2015 Vornado Air LLC Andover, KS 6/322

Product lineup of five different electronic devices including a fan, speaker, tower, and speaker tower (no text or labels visible)

Leaders In Airflow Technology™

Interior view of a room with a large 'TAWA ENERGY' logo and a spiral staircase (no readable text or symbols)

Diagram of a desktop fan with labeled parts and internal components, showing front and side views with arrows indicating motion.

© 2015 Vorrado Av LLC Anover, KS 6/002

Product lineup of five electronic devices including a fan, speaker, tower, and speaker tower (no visible text or labels)

Leaders In Airflow Technology™

Interior view of a hospital room with beds, a laptop, and a spiral apparatus (no visible text or symbols)

Diagram of a desktop fan with labeled parts including a top-mounted fan, stand, and base, showing internal components and directional arrows.

AJUSTE DE ALTURA (31 - 38 PULGADAS)

Product lineup of five electronic devices including a fan, speaker, lamp, tower, and speaker tower (no visible text or labels)

Leaders In Airflow Technology™

Interior of a hospital room with medical equipment and a DNA helix (no visible text or symbols)

USCHOVEJTE TYTO POKYNY.

Diagram of a desktop fan with labeled parts including stand, lamp, and cable assembly

Product lineup of five different household air conditioners including a fan, speaker, microphone, tower, and speaker tower (no text or labels visible)

Leaders In Airflow Technology™

Interior view of a modern office or lab space with computer monitors and a globe logo (no readable text or symbols)

Diagram of a desktop fan with labeled parts and internal components, showing front and side views with arrows indicating motion or movement.

JUSTERING AV HÖJD (31 - 38 TUM)

Knills are Isre lift up to far happan

Product lineup of five different household air conditioners or speakers, including a fan, tower, speaker, and speaker tower (no visible text or labels)

Leaders In Airflow Technology™

Interior view of a hospital room with medical equipment and a globe logo (no readable text or symbols)

Typicky ventilator
Vzduchový ventilátor
Vornado

Diagram of a desktop fan with labeled parts including stand, fan base, and connector pin

NASTAVENIE VÝSKY (78 – 96 cm)
1. Jednou rukou pridržte hlavicu ventilátora (A). Druhou rukou uvolin te pretenec nastavenia (B) opatmým otáčaním proti smoru pohybu hodinových ručiček.
2. Pomaly vysuńte alebo zasuńte pilier do pořacovanej výšky a upevnite ho v tejo polohe otačanim pratancom nastavenia v smere pohybu hodinowych ručiciek, až kym nie je napevno zatahrnutý.
Poznámka: skór než hudeta nastavovat výšku alebo rotáciu hlavice, skontrolujte, či nie je sietovy kábel za motany a či sa nim dá volne hýbat.
Po nastavari výšky skontrolujta, či je prstenec nasavenia clákladne zatiannutý a nasadeny, aby sa zabezpečilo, že hlavica ventilátora sa nabuda otáčeť a krútiť sietový kábel.

Andover, Kansas U.S.A.

This manual has the most recent content as of November 2015. Diese Gebrauchsanweisung wurde zuletzt im November 2015 aktualisiert. Le présent mode d'emploi contient des informations à jour en date de Novembre 2015. Deze handleiding bevat de meest recente inhoud in November 2015. Il contenuto di questo manuale è aggiornato al mese di Novembre 2015. Este manual tem o conteúdo mais recente a partir de Novembro de 2015. Este manual contiene información actualizada a Noviembre de 2015. Tento návod je aktualní k listopadu 2015. Den här bruksanwisningen innehåller den senaste informationen från November 2015. Obsah tohto návodu je aktualny k Novembu 2015.

CL3-0191 RF

CL7-0191 RF, V00
