| Product type | Pneumatic chipping hammer |
| Brand | Metabo |
| Model | MHS 5050 SET |
| Intended use | Chiseling, scaling in masonry and stone, sheet metal splitting, extraction of rivets, screws or fixed nuts |
| Power source | Compressed air |
| Maximum working pressure | 6.2 bar |
| Air consumption | 370 l/min |
| Chisel shank | Hexagonal 10 mm |
| Impact rate | 2000 min⁻¹ |
| Stroke | 89 mm |
| Recommended hose inner diameter | 10 mm |
| Compressed air connection | 1/4" |
| Sound power level (LWA) | 112.8 dB(A) |
| Sound pressure level (LPA) | 101.8 dB(A) |
| Vibration (weighted RMS value) | 5.75 m/s² (uncertainty K < 2.5 m/s²) |
| Device dimensions (L x W x H) | 270 x 57 x 175 mm |
| Device weight (without packaging) | 1.94 kg |
| Included accessories | Quick-change chuck, chisels (3 pieces), 1/4" bits, carrying case, safety glasses, user manual |
| Available accessories | Pneumatic oil (ref. 090 100 8540), lubricator (ref. 090 105 4584), rotary swivel DKG 1/4" (ref. 090 106 0991) |
| Maintenance | Manual lubrication every 15 minutes of continuous operation with 3 to 5 drops of pneumatic oil |
| Safety instructions | Wear hearing protection, safety glasses, gloves, dust mask; safety shoes and helmet for scaling |
| Repairs | Entrust exclusively to a specialized electrician; contact Metabo customer service |
| Environmental protection | 100% recyclable packaging; used machine and accessories to be recycled |
Frequently Asked Questions - MHS 5050 SET METABO
User questions about MHS 5050 SET METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual MHS 5050 SET - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MHS 5050 SET by METABO.
USER MANUAL MHS 5050 SET METABO
ENG Original operating instructions ..... 7
KONFORMITÄTSERKLÄRUNGVDECLARATION OF CONFORMITY
We herewith declare in our sole responsibility that this product complies with the following standards* in accordance with the regulations of the undermentioned Directives**
MHS 5000 SET/ MHS 5050 SET
EN ISO 12100-1+A1:2009, EN ISO 12100-2+A1:2009, EN ISO 14121-1:2007, EN 792-4+A1:2008 EN ISO 15744:2008, EN 28662-2+A2:2001
** 2006/42/EC
Volker Siegle
Director Innovation, Research and Development
Dokumentationsbevollmächtigter/ responsible person for documentation/ Chargé de la documentation
Metabowerke GmbH
Metabo-Allee 1
D - 72622 Nürtingen


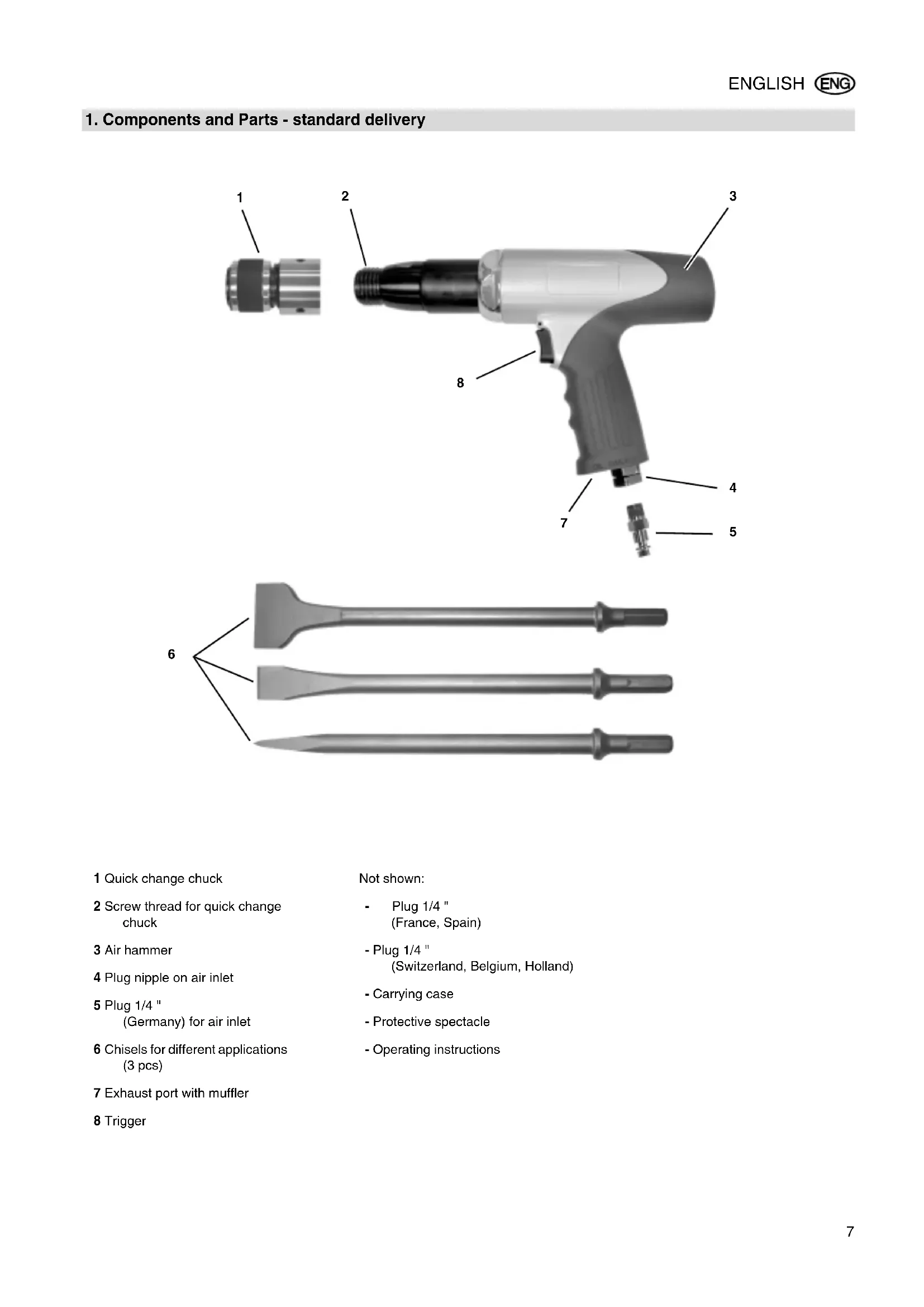

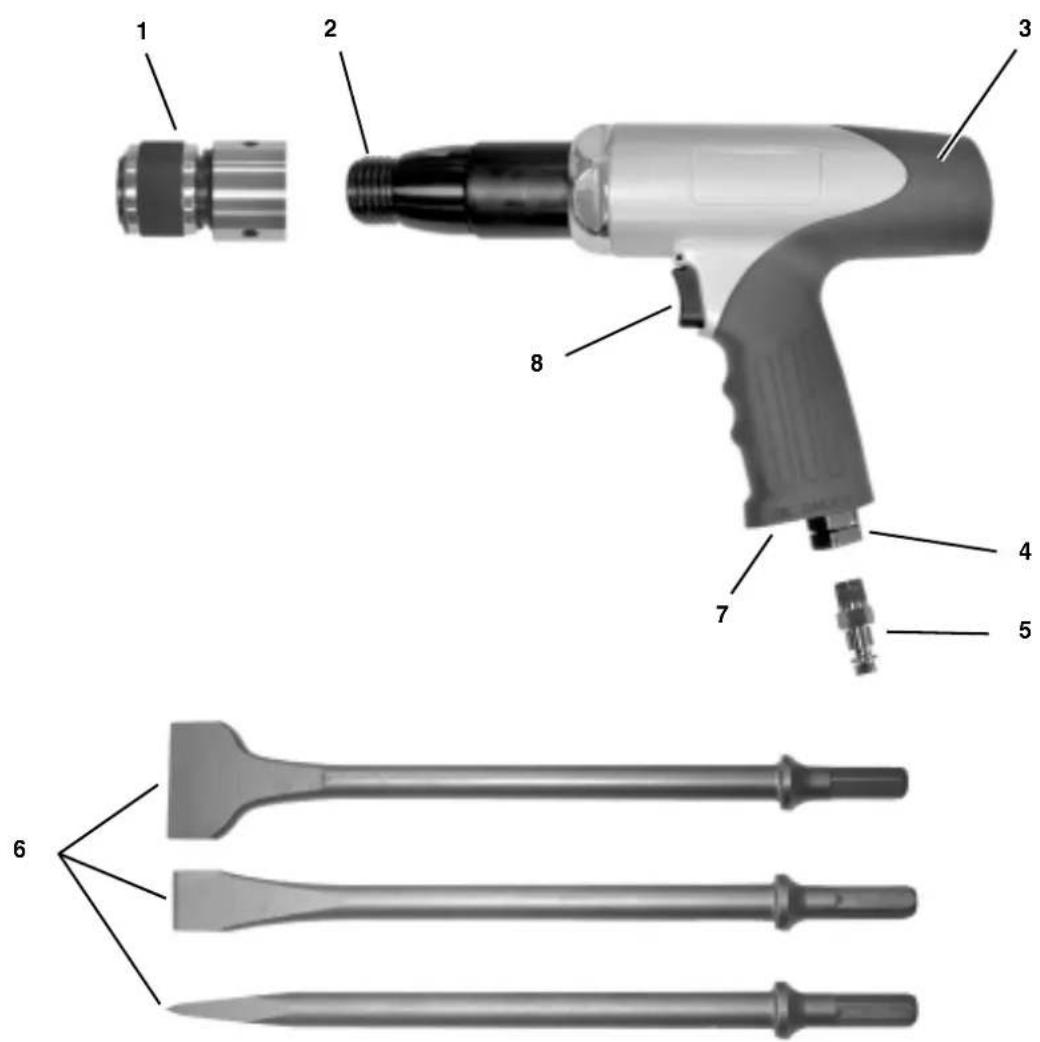

2 Screw thread for quick change chuck
3 Air hammer
4 Plug nipple on air inlet
5 Plug 1/4 "
(Germany) for air inlet
6 Chisels for different applications (3 pcs)
7 Exhaust port with muffler
8 Trigger
Not shown:
- Plug 1/4 "(France, Spain)
- Plug 1/4 " (Switzerland, Belgium, Holland)
- Carrying case
- Protective spectacle
- Operating instructions
Table of Contents
- Components and Parts - standard delivery ....7
- Please read first! 8
- Safety 8
3.1 Specified Conditions of Use......8
3.2 General safety instructions......8
3.3 Symbols Used 9 - Operation ......9
4.1 Before initial operation .....9
4.2 Inserting a chisel .....9
4.3 Compressed air supply .....9
4.4 Chiselling....9 - Care and maintenance.....9
- Available Accessories .....9
- Repairs......9
- Environmental protection......9
- Technical specifications.....10
2. Please read first!
These instructions are written in a way to let you work with the tool quickly and safely. Here is how to use the instructions:
- Read these instructions fully before operating the tool. Pay special attention to the safety information.
- If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the tool!
- These instructions are intended for individuals having a basic technical knowledge in the handling of tools like the one described herein. If you have no experience whatsoever with such tool, we strongly recommend to seek the advise of experienced individuals.
- Keep all documents supplied with this tool for future reference. Also, retain proof of purchase in case of a warranty claim.
- This tool must not be sold or lent to someone else without being accompanied by these operating instructions and all other documents supplied with the tool.
The manufacturer is not liable for any damage arising from neglect of these operating instructions.
Information in these instructions is denoted as under:
Danger! Risk of personal injury or environmental damage.
Caution!
Risk of material damage.
Note:
Additional information.
– Numbers in illustrations (1, 2, 3, ...)
- indicate component parts;
- are consecutively numbered;
– Instructions to be carried out in a certain sequence are numbered.
- Instructions which can be carried out in any order are indicated by a bullet point (•).
- Listings are indicated by a dash (-).
3. Safety
3.1 Specified Conditions of Use
This air tool is intended for the following applications: chiselling in masonry and stone, cutting sheet metal, striking off seized rivets or bolts, bursting seized nuts, starting bolts.
This air tool shall only be used with chisels suitable for use in air tools (see Technical specifications for shank diameter).
This air tool shall only be driven by an air compressor. The max. permissible working pressure stated in the Technical Specifications must not be exceeded. This air tool must not be operated using explosive, combustible gases or gases detrimental to health.
Any other use is not as specified. Use not as specified, alteration of the device, or use of parts not approved by the equipment manufacturer can cause unforeseeable damage!
3.2 General safety instructions
- When using this air tool follow the safety instructions given below, to exclude the risk of personal injury or material damage.
- Please also observe the special safety instructions in the respective chapters.
- Observe the statutory accident insurance institution regulations and regulations for the prevention of accidents pertaining to the operation of air compressors and air tools, where applicable.
- This air tool shall only be used by persons having read and understood these instructions, and who are aware of the dangers associated with the use of such tool. Persons
under the age of 18 shall use this air tool only in the course of their vocational training, under supervision of an instructor.
General hazards!
- Keep your work area tidy – a messy work area invites accidents.
- Be alert. Do not operate this tool while under the influence of drugs, alcohol or medication.
- Keep children and bystanders away from the work area.
- Store air tools out of the reach of children.
- Always use a quick coupler to connect this air tool to a compressor.
- Do not work materials detrimental to health.
- Working with this tool may generate sparks. Do not use the tool near flammable materials, liquids or gases.
- Do not touch the chisel while the tool is operating.
- Disconnect this tool from air supply before
– changing chisels,
- servicingor
- whentool is left unattended.
Hazard generated by insufficient personal protection gear!
- Wear personal protection gear:
- ear protection
- protective spectacle,
- protective gloves,
- dust respirator (when work generates dust).
- When chiselling, wear also safety boots and hard hat.
Hazard generated by tool defects!
- Do not attempt to repair the tool yourself! Only trained specialists are permitted to service or repair compressors, pressure vessels and air tools.
Danger by vibration!
- Vibrations are transmitted to the entire body, particularly to arms and hands. Very heavy vitrations may cause nerve and vascular disorder.
Caution!
- Protect the tool, air inlet and operating elements in particular, from dust and dirt.
-
Make sure that the max. permissible working pressure stated in the Technical Specifications is not exceeded. The working pressure must be adjusted by a pressure regulator.
-
Do not overload tool – use it only within the performance range it was designed for (see Technical Specifications).
- Let tool run idle for a short time only.
3.3 Symbols Used
Danger!
Neglect of the following warnings may cause serious injury or material damage.
Read instructions.
Wear hearing protection.
Wear safety goggles.
4. Operation
4.1 Before initial operation
• Install the plug nipple.
4.2 Inserting a chisel
- Choose a suitable chisel (9).
- Insert chisel into the quick change chuck.
Removing a chisel
- Pull the clamping ring of the quick change chuck (10) back and pull the chisel out.
4.3 Compressed air supply
Caution!
To the service life of this tool it must be supplied with a sufficient amount of pneumatic oil. This can be achieved:
- By means of a service unit at the compressor.
- By means of a line oiler, fitted in the air line or directly to the air tool.
-
By giving 3 - 5 drops of pneumatic oil manually per 15 minutes of operation (continuous duty) into the air inlet.
-
Set the working pressure at the compressor (refer to the technical
specifications for max. permissible working pressure).
- Connect air hose (quick coupler) to the compressor.
4.4 Chiselling
Hazard generated by insufficient personal protection gear!
- Wear personal protection gear:
- ear protection,
- protective spectade,
- protective gloves,
- dust respirator (when work generates dust).
-
When chiselling, wear also safety boots and hard hat.
-
Set the chisel.
- To start: pull the trigger.
To stop: release the trigger.
5. Care and maintenance
Danger!
Always disconnect from air supply before servicing.
Repair and maintenance work other than described in this section must be carried out by qualified specialists only.
- Check all screwed connections for tightness, tighten if necessary.
- When the tool is not lubricated by a service unit or line oiler, manually add 3 - 5 drops of pneumatic oil for every 15 minutes of operation (continuous operation) into the air inlet.
- Do not store tool unprotected outdoors or in humid environment.
6. Available Accessories
- Pneumatic oil 0.5 litre Special lubricant for air tools, service units and line oilers. Stock-no. 090 100 8540
- Line oiler R1/4" female For fitting directly to air tools. Oil level can always be checked through sight glass. Stock-no. 090 105 4584
- Swivel-type air inlet DKG 1/4" For fitting directly to air tools. Improves tool manoeuvrability. Stock-no. 090 106 0991
7. Repairs
Danger!
Repairs to air tools must be carried out by qualified specialist ONLY!
Air tools in need of repair can be send to the service centre in your country. See Spare Parts List for address.
Please attach a description of the fault to the power tool.
8. Environmental protection
The tool's packaging can be 100 % recycled.
Worn out machines and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.
These instructions are printed on paper produced with elemental chlorine free bleaching process.
- Technical specifications
| MHS 5000 Set M | HS 5050 Set | ||
| Max. permissible working pressure | bar | 6,2 | 6,2 |
| Air consumption l/min 330 370 | |||
| Chisel receiver (hexagonal) mm 10 10 | |||
| Impact rate min | -1 2900 2000 | ||
| Stroke mm 67 89 | |||
| Recommend air hose diameter (inner) mm 10 10 | |||
| Air inlet | " | 1/4 | 1/4 |
| Vibration (effective value of weighted acceleration) | m/s2 | 4,84 | 5,75 |
| Uncertainty K | m/s2 | <2,5 | <2,5 |
| EN ISO 15744 | |||
| Sound power level LWA | dB (A) | 107,3 | 112,8 |
| Sound pressure level LPA | dB (A) | 96,3 | 101,8 |
| Uncertainty K | dB (A) | 4 | 4 |
| Dimensions (length x width x height) | |||
| Tool | mm | 220 x 57 x 175 | 270 x 57 x 175 |
| Case | mm | 440 x 85 x 300 | 440 x 85 x 300 |
| Weight: Tool without packaging | kg | 1,73 | 1,94 |
| Tool with packaging | kg | 4,1 | 4,4 |
Warning symbol with exclamation mark, gear icon, and lowercase 'i' inside a circleDanger!
Diagram of a handheld device with labeled parts, showing various types of accessories and parts in a 3D layout.text_image
Diagram of a handheld device with labeled parts, showing various types of accessories and parts in a 3D layout.text_image
Technical diagram of a handheld device with numbered parts, showing exploded and assembled viewstext_image
Technical diagram of a handheld device with numbered parts, showing exploded and assembled viewstext_image
Technical diagram of a handheld device with labeled parts, showing various exploded and assembled views.text_image
Technical diagram of a handheld device with labeled parts, showing exploded and assembled views4.2 Sette inn meisel
