USER MANUAL SR1250 K METABO

KONFORMITÄTSERKLÄRUNGVEDECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards in accordance with the regulations of the undermentioned Directives*

1/2" SR 2850 K - 3/8" SR 1250 K

EN ISO 12100-1+A1:2009, EN ISO 12100-2+A1:2009, EN ISO 14121-1:2007, EN 792-6+A1:2008

EN ISO 15744:2008, EN ISO 8662-7:1997

2006/42/EC

Volker Siegle

Director Innovation, Research and Development

Dokumentationsbevollmachtigter/ responsible person for documentation/ Chargé de la documentation

Metabowerke GmbH

Metabo-Allee 1

D-72622Nurtingen

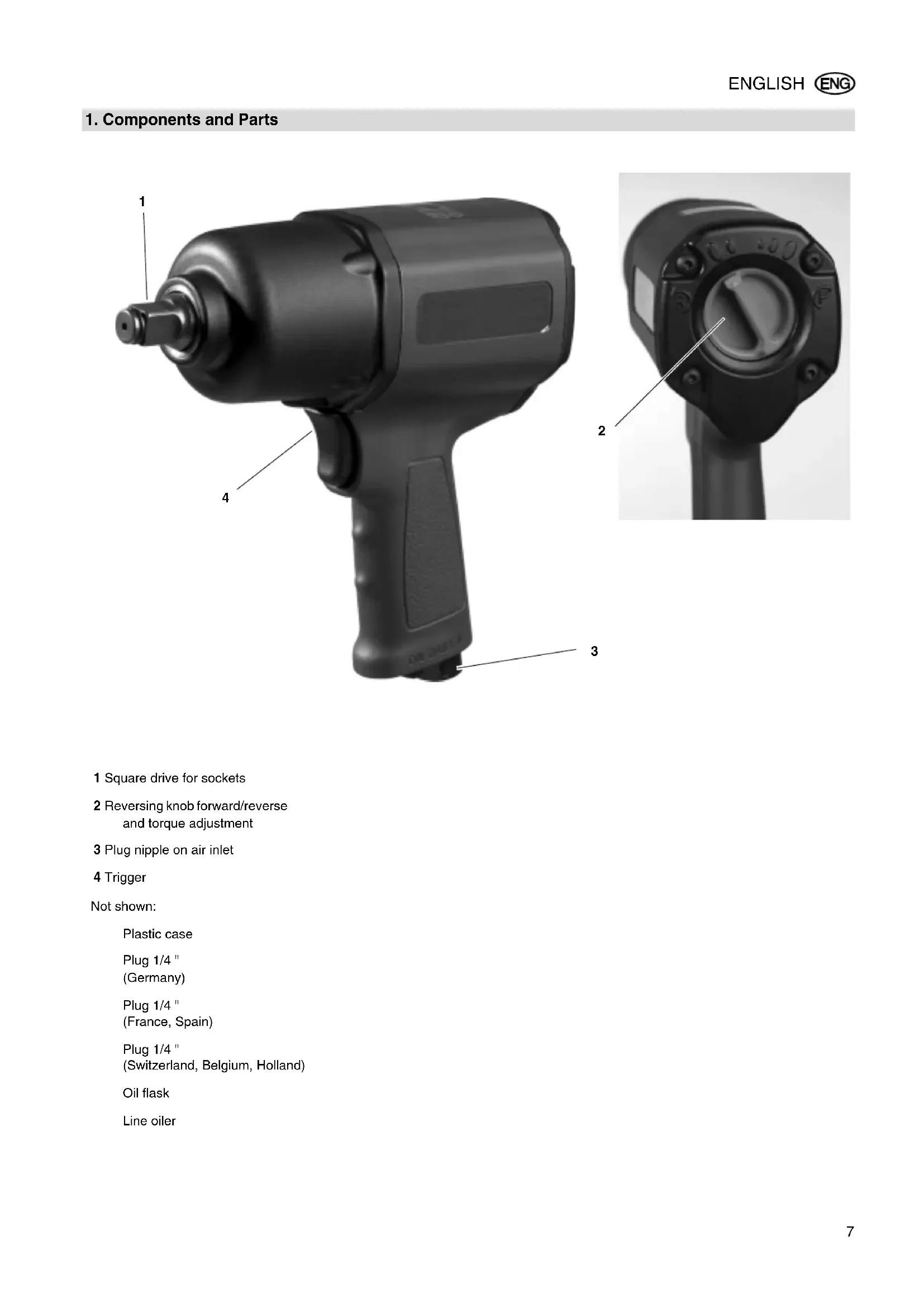

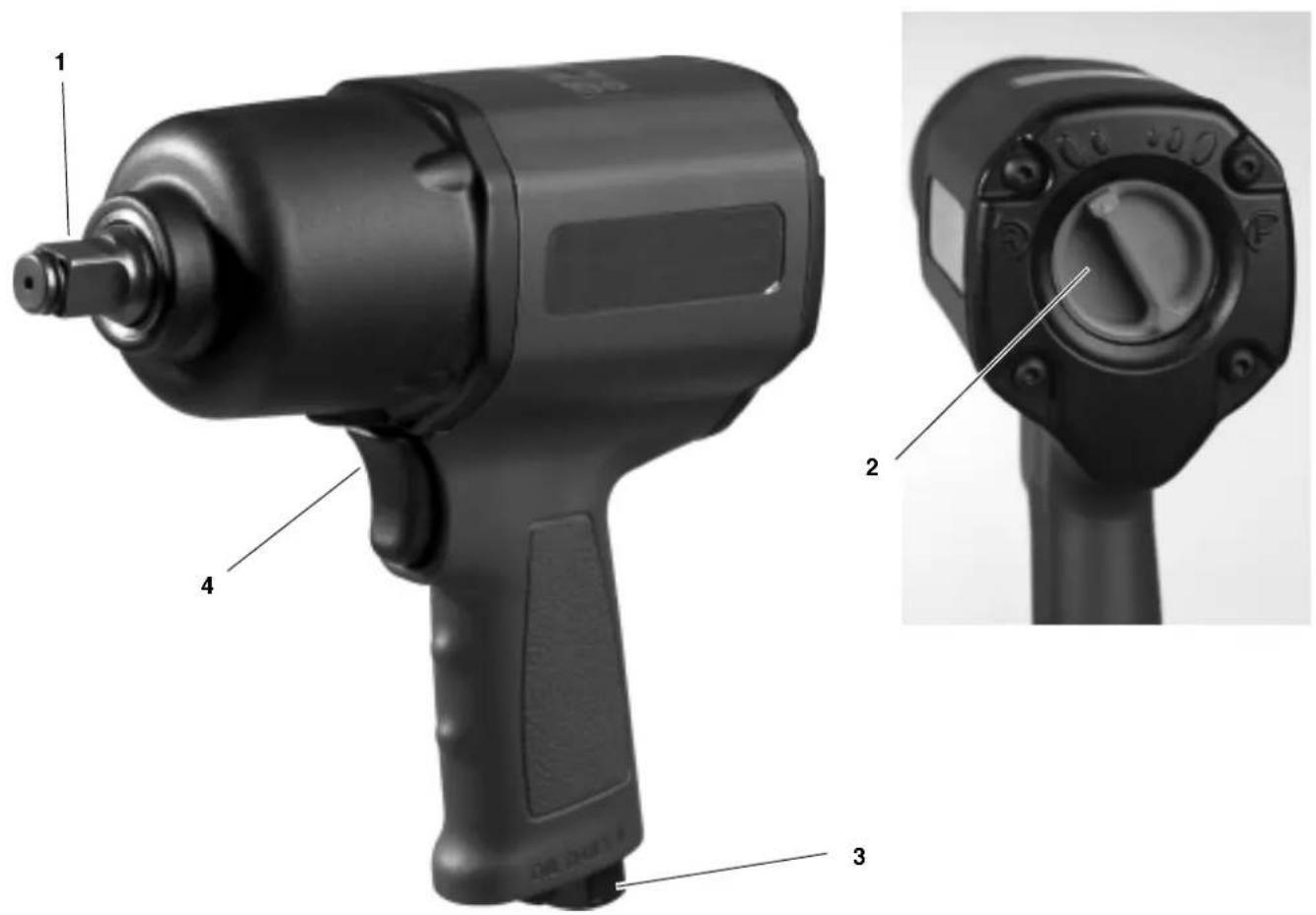

1. Components and Parts

1 Square drive for sockets
2 Reversing knob forward/reverse and torque adjustment
3 Plug nipple on air inlet
4 Trigger

Not shown:

Plastic case

Plug 1/4"

(Germany)

Plug 1/4"

(France, Spain)

Plug 1/4"

(Switzerland, Belgium, Holland)

Oil flask

Line oiler

Table of Contents

1. Components and Parts..7
2. Please Read First! 8
3. Safety 8
   3.1 Specified Conditions of Use....8
   3.2 General Safety Instructions..8
   3.3 Symbols Used 8
4. Operation 8
   4.1 Before Initial Operation 8
   4.2 Using the Tool 8
5. Care and Maintenance..9
6. Available Accessories 9
7. Repairs.. 9
8. Environmental Protection .9
9. Technical Specifications 9

2. Please Read First!

These instructions are written in a way to let you work with the tool quickly and safely. Here is how to use the instructions:

• Read these instructions fully before operating the tool. Pay special attention to the safety information.
  If you notice transport damage while unpacking, notify your supplier immediately. Do not operate the tool!
• These operating instructions are intended for people with basic technical knowledge regarding the operation of a tool like this or similar air tools. Inexperienced persons are strongly advised to seek competent advise and guidance from an experienced person before operating this tool.
• Keep all documents supplied with this tool for future reference. Also, retain proof of purchase in case of a warranty claim.
• This tool must not be sold or lent to someone else without being accompanied by these operating instructions and all other documents supplied with the tool.

The manufacturer is not liable for any damage caused by the non-observance of these operating instructions.

Information in these instructions is denoted as under:

Danger!

Risk of personal injury or environmental damage.

Caution!

Risk of material damage.

• At times numbers are used in illustrations (1, 2, 3, ...). These numbers:
  indicate component parts;
  are consecutively numbered;
  Numbered steps must be carried out in sequence.
• Instructions which can be carried out in any order are indicated by a bullet point () .
• Listings are indicated by a dash (-).

3. Safety

3.1 Specified Conditions of Use

This tool is used for running, driving and removing nuts and bolts.

This tool shall only be powered by an air compressor. The max. permissible working pressure stated in the Technical Specifications must not be exceeded. This tool must not be operated with gases that are explosive, combustible or detrimental to health.

Any other use is not as specified. Use not as specified, modification of the tool or use of parts not approved by the manufacturer can cause unforeseeable damage!

3.2 General Safety Instructions

• When using this air tool observe the following safety instructions to minimize the risk of personal injury or material damage.
• Please also observe the special safety instructions in the respective chapters.
• Ob serve the statutory accident insurance institution regulations and regulations for the prevention of accidents pertaining to the operation of air compressors and air tools, where applicable.

General danger!

• Keep your work area tidy - a messy work area invites accidents.
• Be alert. Do not operate this tool while under the influence of drugs, alcohol or medication.
• Keep the tool from jamming - ensure firm footing when using the tool.
  Always use a quick coupler to connect this air tool to a compressor.
  Make sure that the max. permissible working pressure stated in the Technical Specifications is not exceeded.

• Do not overload tool - use it only within the performance range it was designed for (see Technical Specifications).

• Do not touch any rotating parts.

• Disconnect tool from air supply before changing sockets or if left unattended.

Hazard generated by insufficient personal protection gear!

• Wear hearing protection.
• Wear safety glasses.

Hazard generated by tools!

• Do not attempt to repair the tool yourself! Only trained specialists are permitted to service or repair compressors, pressure vessels and air tools.

Caution!

Protect the tool, air inlet, square drive and operating elements in particular, from dust and dirt.

3.3 Symbols Used

Danger!

Neglect of the following warnings may cause serious injury or material damage.

Read instructions.

Wear hearing protection.

Wear safety goggles.

4. Operation

4.1 Before Initial Operation

Install the plug nipple.

4.2 Using the Tool

Caution!

To ensure a long service life of this tool, it needs to be supplied with sufficient quantities of pneumatic oil. This can be achieved by:

• a service unit with oiler at the compressor.
• a lubricator, installed directly on the air tool or in the air line.

• adding approx. 3-5 drops of pneumatic oil by hand every 15 minutes of operation (continuous operation) to the air inlet.

• Put socket on the drive.

• Set direction of rotation with the reversing knob:

• reversing knob set to the right: forward/driving
  reversing knob set to the left: reverse/removing

• To set the torque with the reversing knob:

reversing knob set fully to the right (or left) = maximum torque.
reversing knob gradually to the left (or right) = torque is reduced.

1. Adjust working pressure at the compressor (see Technical Specifications for max. permissible working pressure).
2. Connect quick coupler to the air supply.
3. Pull trigger to start.

5. Care and Maintenance

Danger!

Always disconnect from air supply before servicing.

Repair and maintenance work other than described in this section must be carried out by qualified specialists only.

• Check all screwed connections for tightness, tighten if necessary.
• When the tool is not lubricated by a service unit or line oiler, manually add 3 - 5 drops of pneumatic oil for every 15 minutes of operation (continuous operation) into the air inlet.
• Never store the tool outdoors, in unprotected areas or in damp locations.

6. Available Accessories

Pneumatic oil 0.5 litre Special lubricant for air tools, service units and line oilers. Stock-no.0901008540
Line oiler R1/4" female For fitting directly to air tools. Oil level can always be checked through sight glass. Stock-no.090 105 4584
- Line oiler R3/8" female For fitting directly to air tools. Oil level can always be checked through sight glass. Stock-no. 090 105 4592
- Swivel-type air inlet
DKG 1/4"
For fitting directly to air tools. Improves tool manoeuvrability.
Stock-no. 090 106 0991

• Socket set 1/2" consisting of 10 sockets (10, 11, 12, 13, 15, 17, 19, 21, 22, 24 mm)
  Stock-no. 090 101 0021
• Socket set 3/8" consisting of 8 sockets (10, 11, 12, 13, 14, 15, 17, 19 mm)
  Stock-no. 090 xxx xxxx

7. Repairs

Danger!

Repairs to air tools must be carried out by qualified specialists ONLY!

Air tools in need of repair can be send to the service centre in your country. See Spare Parts List for address.

Please attach a description of the fault to the air tool.

8. Environmental Protection

The tool's packaging materials are 100% recyclable.

Worn out machines and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.

These instructions are printed on paper produced with elemental chlorine free bleaching process.

9. Technical Specifications

Model SR 1250 K SR 2850 K
Air consumption l/min 300 400
Max. permissible working pressure bar 6,2 6,2
Speed min	-1 10000	7700
Square drive	"	3/8	1/2
Maximum bolt size		M16 M16
Impact mechanism		jumbo hammer	twin hammer
Maximum torque (forward)	Nm	250	690
Maximum torque (reverse)	Nm	250	690
Minimum hose size (inner)	mm	10	10
Vibration (effective value of weighted acceleration)	m/s2	2.99	4.31
Uncertainty K	m/s2	1.5	2.51
EN ISO 15744:2008 (ISO 15744:2002)
Sound power level LWA	dB (A)	110.0	110.8
Sound pressure level LPA	dB (A)	97.7	98.5
Uncertainty K	dB (A)	4.0	4.0
Dimensions: length x width x height	mm	160 x 55 x 170	185 x 70 x 195
Weight	kg	1.08	1.94
