USER MANUAL ICM 3764 CLATRONIC

Thank you for choosing our product. We hope you will enjoy using the appliance.

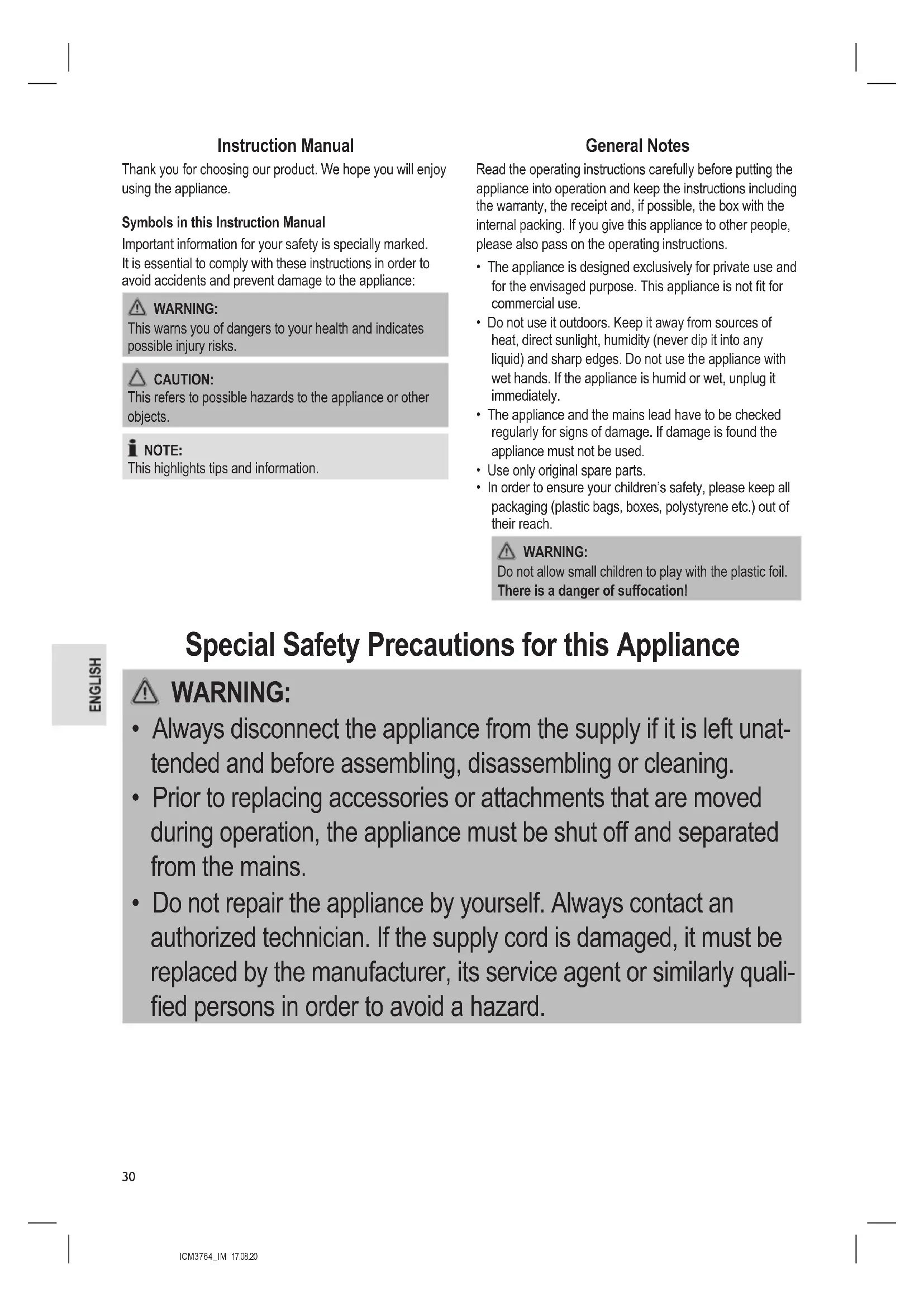

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

WARNING:

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Prior to replacing accessories or attachments that are moved during operation, the appliance must be shut off and separated from the mains.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING:

• This appliance is suitable for use by children aged 8 years and above, if they have been given supervision or instructions regarding the safe use of the appliance and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children, unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Follow the instructions that we provide in the chapter "Cleaning".

• Do not touch any moving parts of the appliance and always wait for it to stop.
• Do not remove the lid during operation.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material such as plastic film, filler material, cable ties and box packaging.
3. Check that all parts are in the box.
4. If the packaging content should be incomplete or if damages should be noticeable, do not operate the appliance. Return it to the distributor immediately.

NOTE:

There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Lid with filler hole
2 On/off switch
3 Motor housing
4 Drive axle
5 Stirring attachment
6 Bowl

Preparations

1. Check the bowl for any damage. Do not use the bowl if leaking. Leaking cooling agent is not poisonous, but a leaking bowl will affect the result of the ice cream making process.
2. Put the bowl into the freezer for at least 12 hours. The freezer or freezer compartment should maintain a temperature of at least -18^ .

NOTE:

• The bowl must be dry.

• Make sure the bowl stands upright. The cooling agent inside the bowl must settle evenly.

• Prepare an ice cream mixture (maximum amount: 800 ml).

• Sugar must have dissolved completely.

• When making ice cream with fruits, only use soft, seedless fruits that are mashed (pureed). You may also add fruit juice.
• If you wish to add pieces of fruits, nuts, brittle or alcohol, only add these ingredients to the finished ice cream. Let the stirring tool stir a few more times.

NOTE:

Alcohol impairs the freezing process.

• Put the ice cream mixture into the fridge until starting the ice cream making process. Having a temperature of less than +10^ will shorten the time of the ice cream making.

Notes for Use

• The appliance must be assembled completely and switched on before filling the ice cream mixture into the bowl. That prevents the ice cream mixture from freezing to the inner walls of the bowl.
• Do not overfill the bowl! Maximum amount: 800ml . The volume of the ice cream will increase during the freezing process.
• Do not insert any objects such as fingers, spoons or similar into the filler hole while the appliance is operating.

• Preparation time varies, depending on

• the recipe,

• the ambient temperature,
• the temperature of the ice cream mixture,

• the desired consistency.

• Do not leave the appliance unattended during operation. Check the consistency of the ice cream permanently.

• The ice cream must not be too hard.

IMPORTANT: Turn off the appliance immediately if

• the stirring attachment slows down or does not turn any more,
  hearing loud motor noise.

In these cases, proceed as described under "Using the Appliance" "End of Operation".

Using the Appliance

WARNING: Risk of Burning from Cold!

Only touch the ice-cold container with gloves or a cloth.

1. Remove the chilled bowl from the freezer.
2. Connect the lid to the motor housing.
3. Place the drive axle into the motor housing from below.
4. Attach the stirring tool to the drive axle.
5. Place the assembled lid on the container. At the same time, pay attention to the latches. Tighten the lid.

6. Connection to the mains:

• Before plugging in the appliance, check if the mains voltage matches. Refer to the rating label for the specifications of the appliance.

• Connect the appliance to a certified wall socket only.

• Turn the appliance on using the on/off switch (I position).

• Fill the chilled ice cream mixture through the filler hole into the bowl.

End of Operation

If you want to stop the stirring process, switch off the appliance using the on / off switch (O position).

1. Pull the mains plug from the receptacle.

2. Unscrew the lid. At the same time, pay attention to the latches. Remove the lid with the motor housing.

3. Pull the stirring tool out of the ice cream so that it does not freeze.

4. Remove the ice cream from the bowl using a silicone or wooden spoon.

CAUTION:

Do not use a metal spoon, as this may scratch the coating of the containers.

After Use

• Store ready-made ice cream that you want to eat later in the freezer.
• Do not freeze ice cream once thawed.
• Clean the appliance after each use as described under "Cleaning".

Recipes

• When making the ice cream mixture, please refer to chapter "Preparations - point 3".
• Quantities provided in the recipes are for reference only. Adjust individual mixtures as desired.
  Refer to other recipe books or the internet for more recipes.

Vanilla Ice Cream

Vanilla extracts 10g

Milk 350ml

Whipped cream 150 ml

Sugar 50g

Strawberry Ice Cream

Strawberries (fresh and pureed) 200 g

Milk 190ml

Whipped cream 120ml

Sugar 40g

Banana Ice Cream

Banana (ripe and mashed) 90 g

Milk 250ml

Whipped cream 160 ml

Sugar 50g

Lemon Ice Cream

Lemon juice 50ml

Milk 200ml

Whipped cream 150 ml

Sugar 80g

Cleaning

WARNING:

• Before cleaning always disconnect from mains power supply.
• Never immerse the motor housing in water for cleaning. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• None of the parts are dishwasher-safe.

Motor Housing

• Remove the motor housing from the lid. In order to do so, simultaneously press the two clips located on the bottom of the motor housing.
• Wipe the motor housing with a moist cloth only.

Accessories

• Clean all other parts by hand in soapy water.
• Wait for all parts to be dry before reassembling the appliance!

Storage

• Clean the appliance as described. Let the accessories dry completely.
  We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  Always store the appliance at a well ventilated and dry place outside the reach of children.

Technical Data

Model: ICM 3764

Power supply: 220-240V\~,50Hz

Power consumption: 12W

Protection class: II

Net weight: approx. 2.3kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
