(triax vector sum) and uncertainty K determined according to EN 60745-2-1. Drilling into metal: a

Screwdriving without impact: a

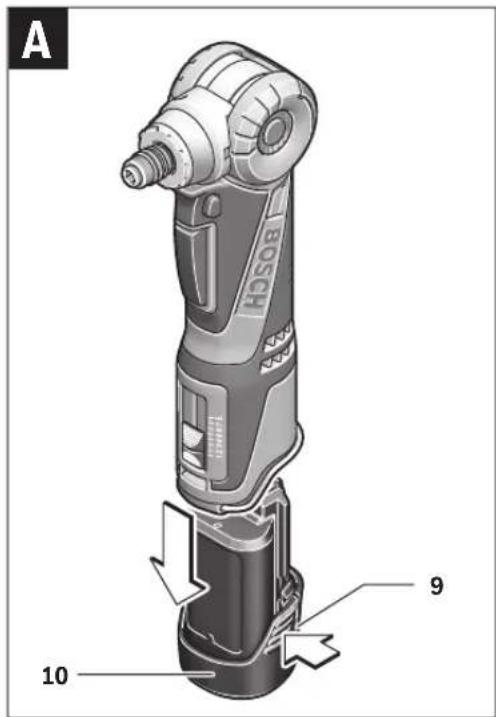

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Assembly Battery Charging (see figure A) Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lith- ium-ion battery of your power tool. Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates. Do not continue to press the On/Off switch after the machine has been automatically switched off. The bat- tery can be damaged. To remove the battery 10 press the unlocking buttons 9 and pull out the battery downwards. Do not exert any force. Observe the notes for disposal. Changing the Tool (see figure B) Before any work on the power tool, remove the battery. Inserting Pull the locking sleeve 1 toward the front and then push the in- sert tool to the stop into the tool holder 2. The insert tool is au- tomatically locked. Removing Pull the locking sleeve 1 forward and remove the insert tool. Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered car- cinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials con- taining asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Prevent dust accumulation at the workplace. Dust can easily ignite. Operation Starting Operation Inserting the battery Note: Use of batteries not suitable for the machine can lead to malfunctions of or cause damage to the power tool. Cordless angle drill/driver GWI 12V-5 Article number 3 601 C60 U.. Rated voltage V= 12 No-load speed min

0–585 Max. torque for hard/soft screwdriv ing application according to ISO 5393 Nm 13/5 Torque adjustment range Nm 2.6 – 5.2 Max. screw dia. mm 5 Max. drilling dia. – Steel – Wood

Weight according to EPTA-Procedure 01:2014 kg 1.1 – 1.4* Permitted ambient temperature – during charging – during operation** and during storage
