USER MANUAL GBH 220 DRE Professional BOSCH

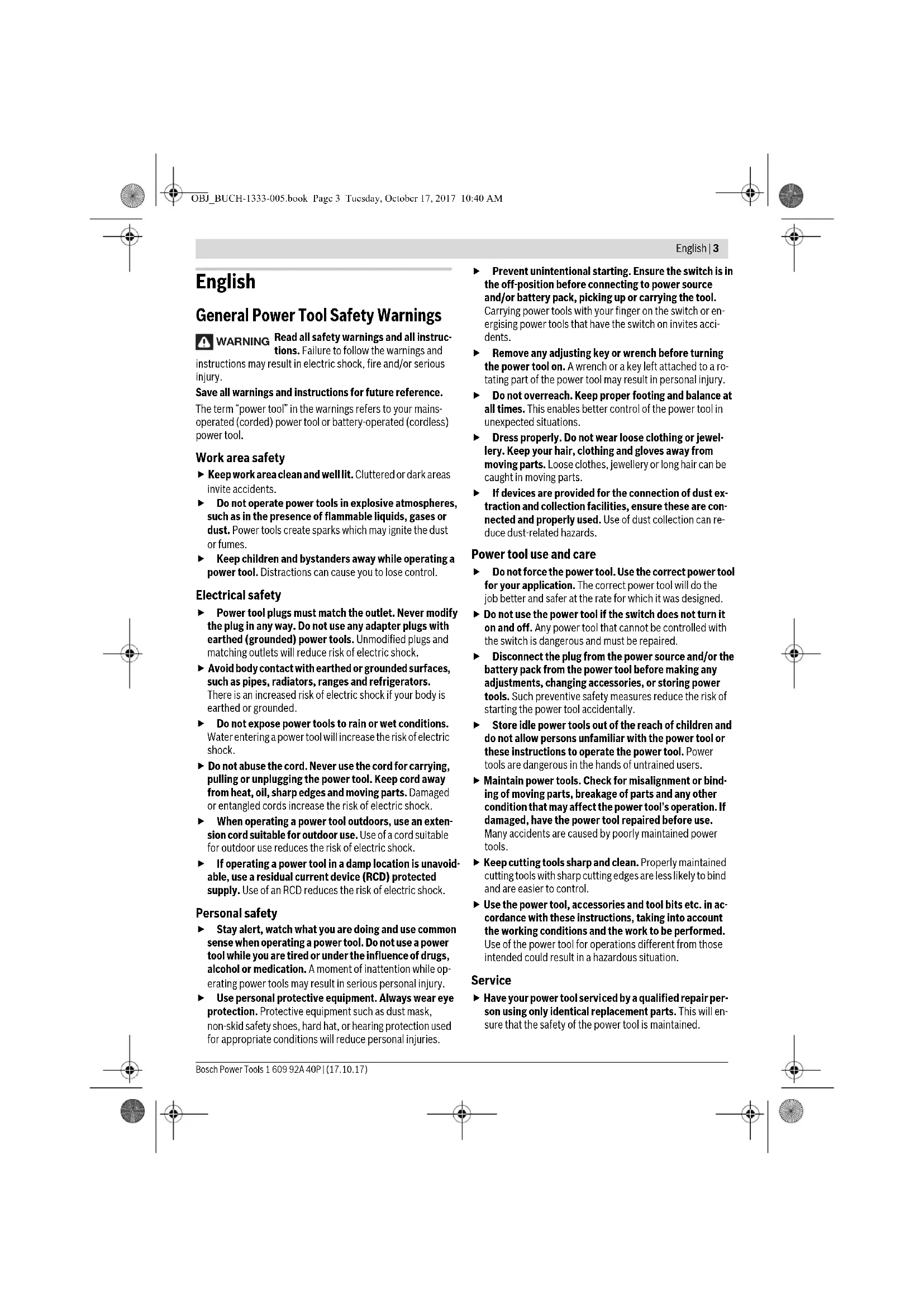

OBJ_BUCH-1333-005.book Page 2 Tuesday, October 17, 2017 10:40 AMEnglish | 3 Bosch Power Tools 1 609 92A 40P | (17.10.17) English General Power Tool Safety Warnings Read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. Work area safety Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoid- able, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while op- erating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a ro- tating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewel- lery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service Have your power tool serviced by a qualified repair per- son using only identical replacement parts. This will en- sure that the safety of the power tool is maintained. WARNING OBJ_BUCH-1333-005.book Page 3 Tuesday, October 17, 2017 10:40 AM4 | English 1 609 92A 40P | (17.10.17) Bosch Power Tools Hammer Safety Warnings Wear ear protectors. Exposure to noise can cause hear- ing loss. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Hold the tool by the insulated gripping surfaces when performing operations where the application tool or the screw could contact hidden wiring or its own power cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator. Additional Safety and Working In- structions Observe correct mains voltage! The voltage of the pow- er source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V. Products sold in AUS and NZ only: Use a residual current de- vice (RCD) with a rated residual current of 30 mA or less. Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility com- pany for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property dam- age. Firmly tighten the auxiliary handle, hold the machine firmly with both hands while working and keep proper footing and balance at all times. The power tool is guided more secure with both hands. Secure the workpiece. A workpiece clamped with clamp- ing devices or in a vice is held more secure than by hand. For drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving, tools without SDS-plus are used (e.g., drill bits with cylindrical shank). For these tools, a keyless chuck or a key type drill chuck are re- quired. The quick change chuck is automatically locked. Check the locking effect by pulling the quick change chuck. Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off. Inserting SDS-plus Drilling Tools: Check the latching by pulling the tool. To save energy, only switch the power tool on when using it. Replace a damaged dust protection cap immediately. The dust protection cap largely prevents the penetration of drilling dust into the tool holder during operation. When in- serting the tool, pay attention that the dust protection cap is not damaged. Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health and cause allergic reactions, lead to res- piratory infections and/or cancer. Materials containing asbestos may only be worked by specialists. – As far as possible, use a dust extraction system suitable for the material. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Prevent dust accumulation at the workplace. Dust can easily ignite. If the application tool should become blocked, switch the machine off. Loosen the application tool. Before switching on the power tool, make sure that the application tool moves freely. When switching on with a blocked drilling tool, high torque reaction can occur. Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an author- ised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains sock- et elsewhere. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner. Symbol Meaning

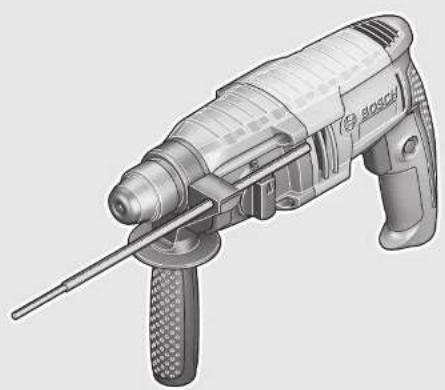

GBH 2-20 DRE: Rotary Hammer Grey-marked area: Handle (insulated gripping surface) Article number Read all safety warnings and all instruc- tions Before any work on the machine itself, pull the mains plug from the socket out- let Wear protective gloves OBJ_BUCH-1333-005.book Page 4 Tuesday, October 17, 2017 10:40 AMEnglish | 5 Bosch Power Tools 1 609 92A 40P | (17.10.17) Delivery Scope Rotary hammer, auxiliary handle and depth stop. Application tools and other accessories shown or described are not part of the standard delivery scope. A complete overview of accessories can be found in our ac- cessories program. Intended Use The machine is intended for hammer drilling in concrete, bricks and masonry. It is also suitable for drilling without im- pact in wood, metal, ceramics and plastic, as well as for screwdriving. GBH 2-20 DRE: The machine is also suitable for light chisel- ling work. Technical Data The technical data of the machine are listed in the table on page 64. The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Always wear ear protection. Wear safety glasses/goggles Movement direction Reaction direction Next step of action Drilling without impact Hammer Drilling Chiselling Screwdriving Right/left rotation Vario-Lock Switching On Switching Off On/Off switch lock-on Releasing the On/Off switch Low speed/impact rate High speed/impact rate Extraction Tool holder

Rated power input E Impact energy per stroke according to EPTA-Procedure 05/2009

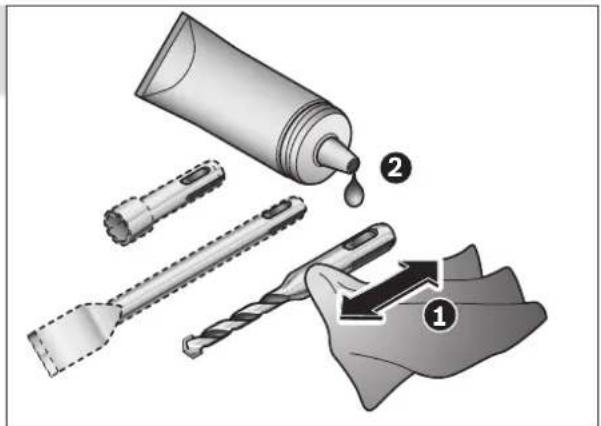

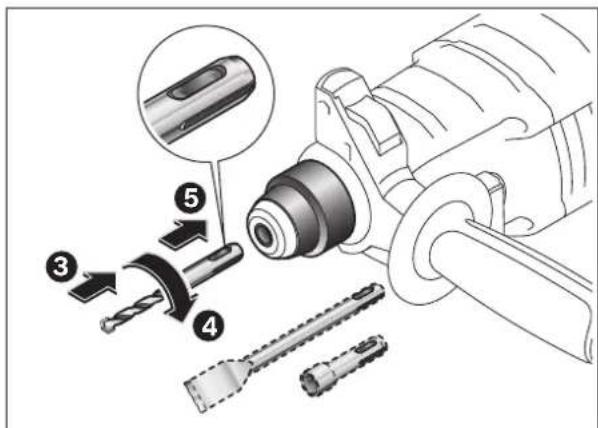

No-load speed Symbol Meaning Ø Drilling diameter, max. Concrete Steel Wood Brickwork Core bit Weight according to EPTA-Procedure 01:2014 Protection class Symbol Meaning OBJ_BUCH-1333-005.book Page 5 Tuesday, October 17, 2017 10:40 AM6 | English 1 609 92A 40P | (17.10.17) Bosch Power Tools Mounting and Operation The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the safety instructions. Action Figure Please observe Page Inserting SDS-plus Drilling Tools

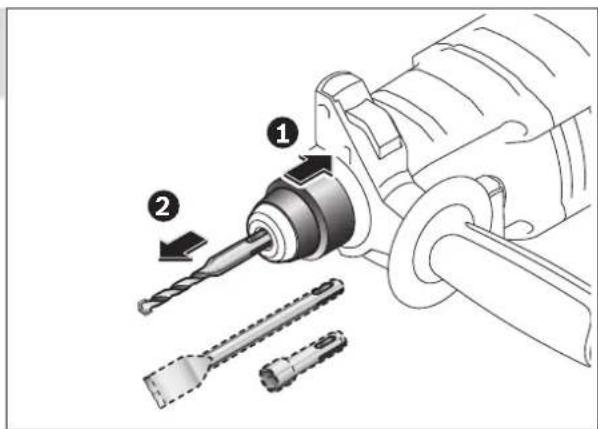

Removing SDS-plus Drilling Tools

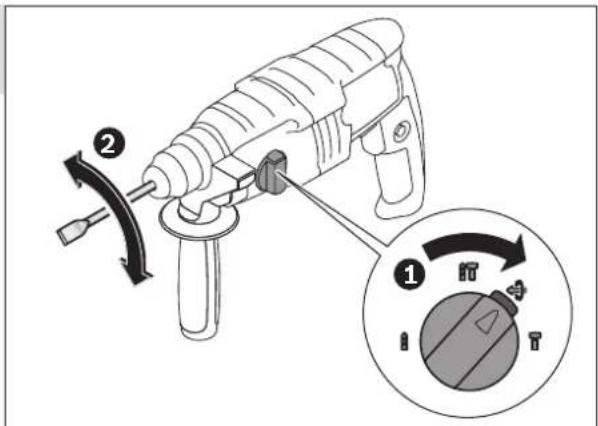

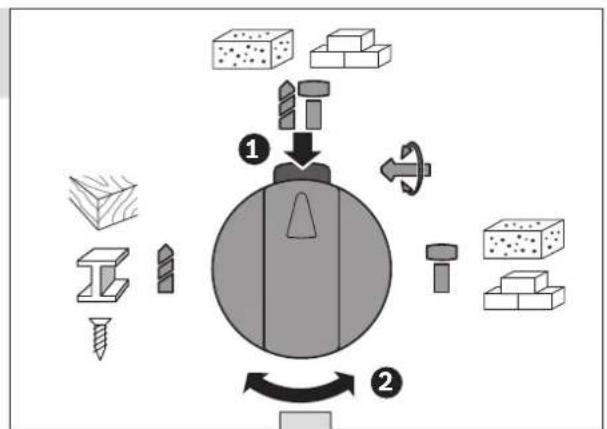

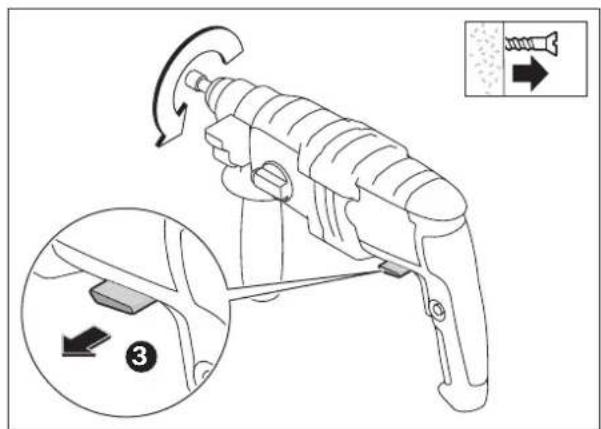

Selecting the operating mode and rotation direction 3 66–67 Changing the chisel position (Vario-Lock)

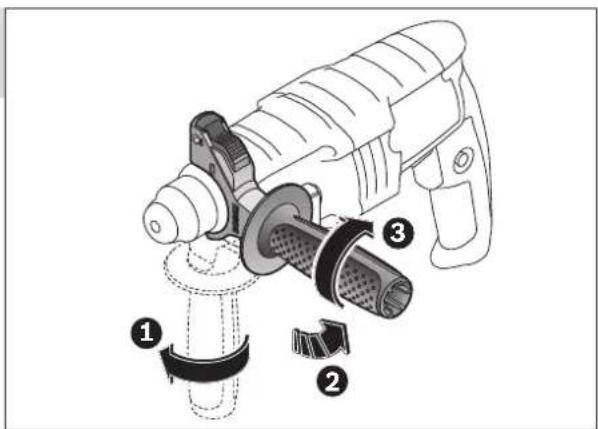

Changing the position of the auxiliary handle

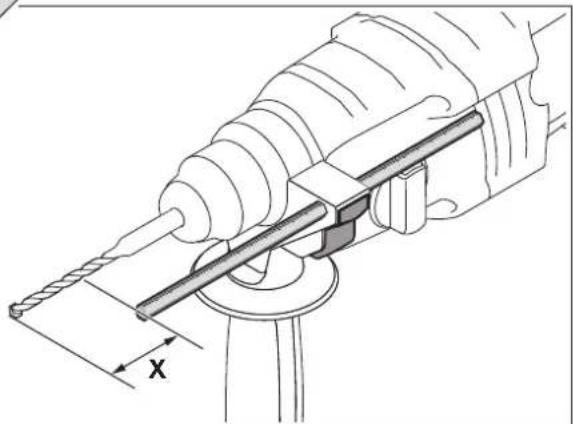

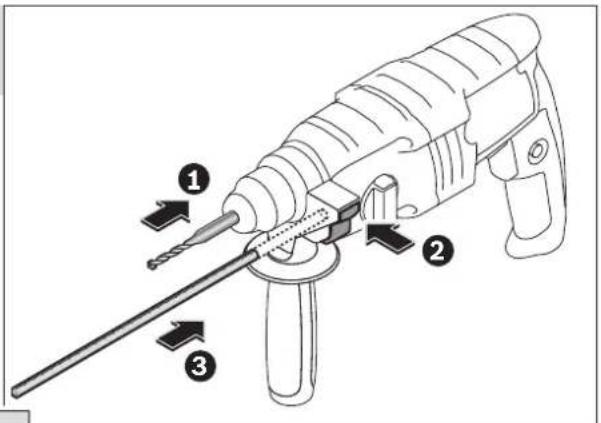

Adjusting the drilling depth X

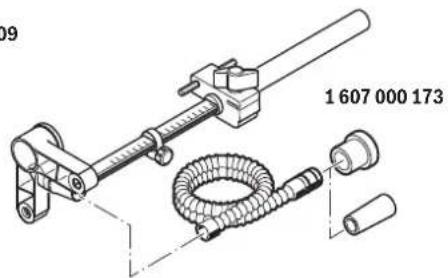

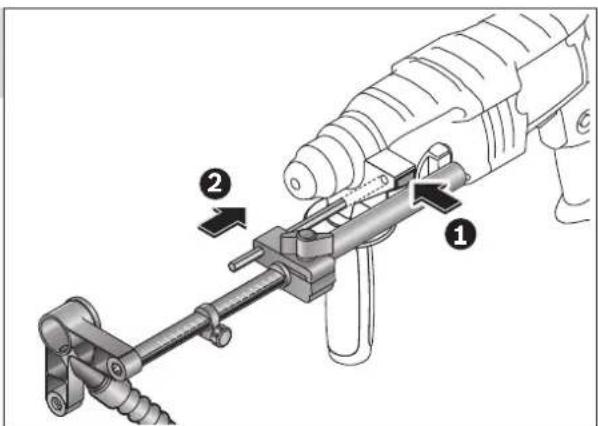

Mounting the extraction system (Saugfix)

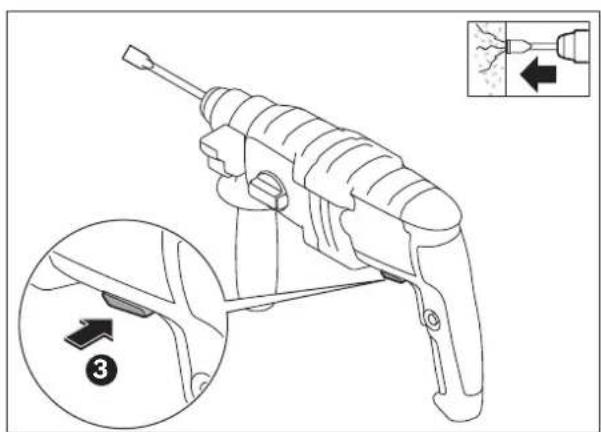

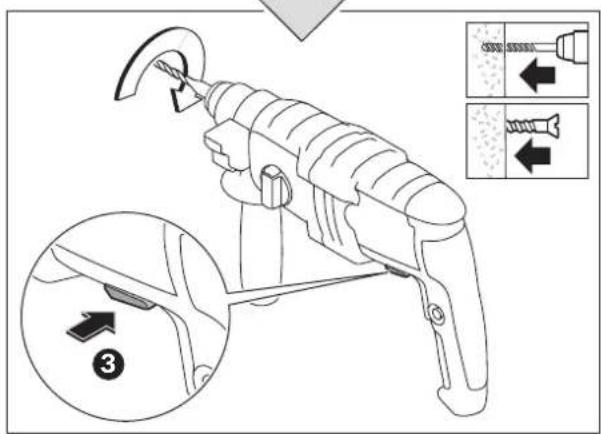

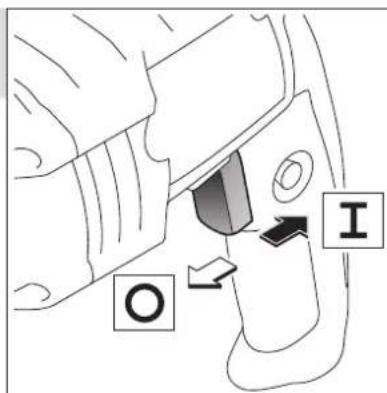

Switching on and off and setting the speed

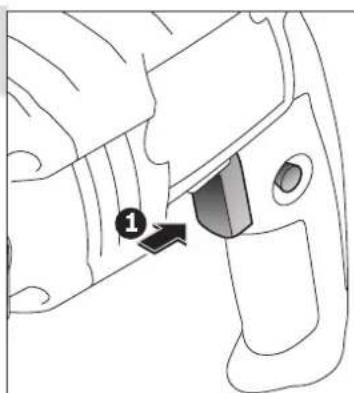

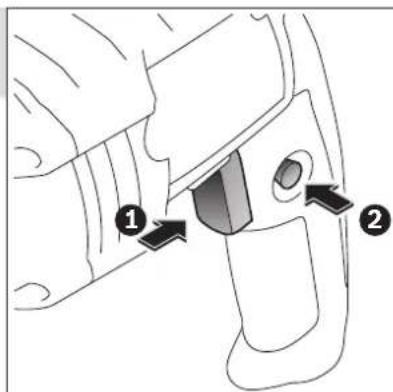

Releasing the On/Off switch

Selecting Accessories – 70

OBJ_BUCH-1333-005.book Page 6 Tuesday, October 17, 2017 10:40 AMEnglish | 7 Bosch Power Tools 1 609 92A 40P | (17.10.17) Maintenance and Cleaning For safe and proper working, always keep the machine and ventilation slots clean. If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in or- der to avoid a safety hazard. After-sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can al- so be found under: www.bosch-pt.com Bosch’s application service team will gladly answer questions concerning our products and their accessories. In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product. Cambodia Robert Bosch (Cambodia) Co., Ltd Unit 8BC, GT Tower, 08th Floor, Street 169, Czechoslovakia Blvd, Sangkat Veal Vong Khan 7 Makara, Phnom Penh VAT TIN: 100 169 511 Tel.: +855 23 900 685 Tel.: +855 23 900 660 www.bosch.com.kh People’s Republic of China China Mainland Bosch Power Tools (China) Co., Ltd. 567, Bin Kang Road Bin Jiang District 310052 Hangzhou, P.R.China Tel.: 4008268484 Fax: (0571) 87774502 E-Mail: contact.ptcn@cn.bosch.com www.bosch-pt.com.cn HK and Macau Special Administrative Regions Robert Bosch Co. Ltd. 21st Floor, 625 King’s Road North Point, Hong Kong Customer Service Hotline: +852 2101 0235 Fax: +852 2590 9762 E-Mail: info@hk.bosch.com www.bosch-pt.com.hk India Bosch Service Center 69, Habibullah Road, (Next to PSBB School), T. Nagar Chennai–600077 Phone: (044) 64561816 Bosch Service Center Rishyamook 85A, Panchkuin Road New Delhi–110001 Phone: (011) 43166190 Bosch Service Center 79, Crystal Bldg., Dr. Annie Besant Road, Worli Mumbai–400018 Phone: (022) 39569936 / (022 )39569959 / (022) 39569967 / (022) 24952071 Indonesia PT Robert Bosch Palma Tower 10

OOOOOO OOOOOO OOOOOO外殼 ( 塑料 )OOOOOOOBJ_BUCH-1333-005.book Page 37 Thursday, October 19, 2017 8:27 AM38 | 1 609 92A 40P | (17.10.17) Bosch Power Tools

OBJ_BUCH-1333-005.book Page 38 Tuesday, October 17, 2017 10:40 AM | 39 Bosch Power Tools 1 609 92A 40P | (17.10.17)

OBJ_BUCH-1333-005.book Page 39 Tuesday, October 17, 2017 10:40 AM40 | 1 609 92A 40P | (17.10.17) Bosch Power Tools

OBJ_BUCH-1333-005.book Page 40 Tuesday, October 17, 2017 10:40 AM | 41 Bosch Power Tools 1 609 92A 40P | (17.10.17)

Central Motors & Equipment LLC 1984 :

EPTA‑Procedure 01:2014

GBH 2-20 DRE GBH 2-20 RE

OBJ_BUCH-1333-005.book Page 65 Tuesday, October 17, 2017 10:54 AM1 609 92A 40P | (17.10.17) Bosch Power Tools 66 |

OBJ_BUCH-1333-005.book Page 66 Tuesday, October 17, 2017 10:54 AM| 67 Bosch Power Tools 1 609 92A 40P | (17.10.17)

OBJ_BUCH-1333-005.book Page 67 Tuesday, October 17, 2017 10:54 AM1 609 92A 40P | (17.10.17) Bosch Power Tools 68 |

OBJ_BUCH-1333-005.book Page 68 Tuesday, October 17, 2017 10:54 AM| 69 Bosch Power Tools 1 609 92A 40P | (17.10.17)

OBJ_BUCH-1333-005.book Page 69 Tuesday, October 17, 2017 10:54 AM1 609 92A 40P | (17.10.17) Bosch Power Tools 70 |
