USER MANUAL RMO-S561 SONY

RMO-S561 © 2000 Sony Corporation Safety Regulations Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. RMO-S561 Serial No._________________________ Information For the customer in the U.S.A. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. This device requires shielded interface cables to comply with FCC emission limits.

If you have any questions about this product, you may call: Sony Customer Information Center 1800-352-SONY(7669) or write to: Sony Customer Information Center 3300 Zanker Road, San Jose, CA 95134. Declaration of Conformity Trade Name: Model No.: Responsible Party: Address: Telephone No.: SONY RMO-S561 Sony Electronics Inc. 16530 Via Esprillo, San Diego, CA 92127 U.S.A. 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING CAUTION As the laser beam used in the RMO-S561 is harmful to the eyes, do not attempt to disassemble the unit. Refer servicing to qualified personnel only. The use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This label is affixed inside the unit. CAUTION ATTENTION VORSICHT ADVARSEL ADVARSEL VARNING VARO! This MO disk unit is classified as a CLASS 1 LASER PRODUCT. The CLASS 1 LASER PRODUCT label is located on the bottom exterior. CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. NOTICE Use the power cord set approved by the appropriate testing organization for the specific countries where this unit is to be used. CAUTION The mains plug on this equipment must be used to disconnect mains power. Please ensure that the socket outlet is installed near the equipment and shall be easily accessible. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. According to the EU Directives related to product safety, EMC and R&TTE the manufacturer of this product is Sony Corporation, 6-7-35 Kitashinagawa Shinagawa-ku Tokyo, 141-0001 Japan. The Authorised Representative is Sony Deutschland GmbH, Hedelfinger Strasse 61,70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Table of Contents Using this Guide ........................................ 5

Chapter 2 Getting Started

Component and Accessory Check List 10 Connecting the Disk Unit ....................... 11 Setting the SCSI ID .................................. 11 Setting the Disk Unit’s Functions .......... 12

Chapter 3 Using the Disk Unit

Inserting a Disk Cartridge ...................... 13 Ejecting a Disk Cartridge ........................ 14

Chapter 4 Precautions

• On the Disk Unit p. 15
• Safety Considerations p. 15
• Damage Prevention p. 15
• On the Disk Cartridges p. 16
• Other Points Requiring Attention p. 16
• Protecting Your Data p. 17
• Cleaning p. 17
• Cleaning a Disk Using this Guide This guide covers the use and operation of the RMO-S561 Magneto-Optical Disk Unit (called the “disk unit” thereafter). Do not attempt to use the disk unit without first carefully reading this guide. When finished, keep it handy for future reference. The guide is divided into the following sections. p. 17

Chapter 1 Introduction

This chapter contains a general overview of the RMO-S561 disk unit, touching upon its features, system configuration, and the location and function of its parts. Notes

• The manufacturer disclaims all responsibility for any losses incurred through malfunction or use of this product.
• The manufacturer does not warrant the security of data stored using this product. To guard accidental data loss, frequent backup of important data is highly recommended.
• Reproduction of the contents of this manual, in whole or in part, is prohibited.
• Macintosh is a registered trademark of Apple Computer, Inc.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.

Chapter 2 Getting Started

This chapter explains how to connect the disk unit to the host computer and other SCSI peripheral devices. It also explains how to set the disk unit’s functions and the SCSI ID. Refer to this chapter when setting up the disk unit.

Chapter 3 Using the Disk Unit

In this chapter, you learn how to turn on the disk unit, and how to insert and eject a disk cartridge. Refer to this chapter when you are ready to actually begin using the disk unit.

Chapter 4 Precautions

This chapter contains precautions regarding the use and operation of the disk unit and magnetooptical disk cartridges. It also discusses cleaning of disks. Be sure to refer to this chapter before using the disk unit. Appendix The Appendix contains an explanation of the disk unit’s main specifications.

Chapter 1 Introduction

Overview Features The RMO-S561 Magneto-Optical Disk Unit has the following features:

• Magneto-optical technology enables repeated writing and erasing of data on the disk.
• The disk unit automatically senses the type of disk being inserted, enabling the free use of both 650 Mbytes (594 Mbytes), 1.3 Gbytes (1.2 Gbytes), 2.6 Gbytes (2.3 Gbytes), 5.2 Gbytes (4.8 Gbytes, 4.1 Gbytes), and 9.1 Gbytes (8.6 Gbytes) disks indifferently.
• A maximum of 9.1 Gbytes (4,096 bytes/sector),

8.6 Gbytes (2,048 bytes/sector), 9.1 Gbytes

(1,024 bytes/sector), or 9.1 Gbytes (512 bytes/ sector) of data can be written on the two sides of a 5.25-inch magneto-optical disk. This is equivalent to about 6100–6500 times the capacity of a conventional 3.5-inch floppy disk (2HD).

• Any disk conforming to the internationally accepted CCS (continuous/composite servo) or CCW (continuous composite write-once) format can be used in this disk unit.

Chapter 1 Introduction

• This disk unit employs SCSI-2 (Small Computer System Interface-2).
• The 3,000 min-1 (rpm) high-speed spindle motor enables data transfer rates of

3.07 – 6.14 Mbytes/s (4,096 bytes/sector),

2.87 – 5.84 Mbytes/s (2,048 bytes/sector),

3.07 – 6.14 Mbytes/s (1,024 bytes/sector), or

3.07 – 6.14 Mbytes/s (512 bytes/sector).

• With disk capacities under 5.2 Gbytes (4.8 Gbytes, 4.1 Gbytes), the spindle motor rotates at 3300 min-1 (rpm).
• With disk capacities under 2.6 Gbytes (2.3 Gbytes), the spindle motor rotates at 3600 min-1 (rpm).
• The low-profile, light-weight optical pick-up yields average seek times of 25ms.
• Use of a highly reliable error correction code (ECC) system keeps the error rate as low as 10-12.
• Optimum operation environment is provided through use of a large, 8MB buffer and optimized cache control algorithm. (Write cache can be enabled or disabled. For details, see “Setting the Disk Unit’s Functions” on page 12.) Compatible Disks The RMO-S561 can use the following Sony 5.25-inch MO Disks: Standard Sector format Type* Capacity ISO/IEC 15286 ISO/IEC 15286 Sony equivalent 2048 bytes/sector R/W About 5.2 G bytes EDM-5200B 1024 bytes/sector R/W About 4.8 G bytes EDM-4800B ISO/IEC 15286 512 bytes/sector R/W About 4.1 G bytes EDM-4100B ISO/IEC 14517 1024 bytes/sector R/W About 2.6 G bytes EDM-2600B ISO/IEC 14517 512 bytes/sector R/W About 2.3 G bytes EDM-2300B ISO/IEC 13549 1024 bytes/sector

About 1.3 G bytes EDM-1300B ISO/IEC 13549 512 bytes/sector

About 1.2 G bytes EDM-1200B ISO/IEC 10089 1024 bytes/sector

About 650 M bytes EDM-650B ISO/IEC 10089 512 bytes/sector

About 600 M bytes EDM-600B ISO/IEC 15286 2048 bytes/sector

About 5.2 G bytes CWO-5200B ISO/IEC 15286 1024 bytes/sector

About 4.8 G bytes CWO-4800B ISO/IEC 15286 512 bytes/sector

About 4.1 G bytes CWO-4100B ISO/IEC 14517 1024 bytes/sector

About 2.6 G bytes CWO-2600B ISO/IEC 14517 512 bytes/sector

About 2.3 G bytes CWO-2300B ISO/IEC 13549 1024 bytes/sector

About 1.3 G bytes CWO-1300B ISO/IEC 13549 512 bytes/sector

About 1.2 G bytes CWO-1200B ISO/IEC 11560 1024 bytes/sector

About 650 M bytes CWO-650B ISO/IEC 11560 512 bytes/sector

About 600 M bytes CWO-600B ISO/IEC 22092 4096 bytes/sector R/W About 9.1 G bytes EDM-9100B ISO/IEC 22092 2048 bytes/sector R/W About 8.6 G bytes EDM-8600B ISO/IEC 22092 1024 bytes/sector R/W About 9.1 G bytes EM1-9100B ISO/IEC 22092 512 bytes/sector R/W About 9.1 G bytes EM5-9100B ISO/IEC 22092 4096 bytes/sector

About 9.1 G bytes CWO-9100B ISO/IEC 22092 2048 bytes/sector

About 8.6 G bytes CWO-8600B *R/W:Rewritable, R/W:Rewritable(MO), WO:Write Once, R:Read Only

Chapter 1 Introduction

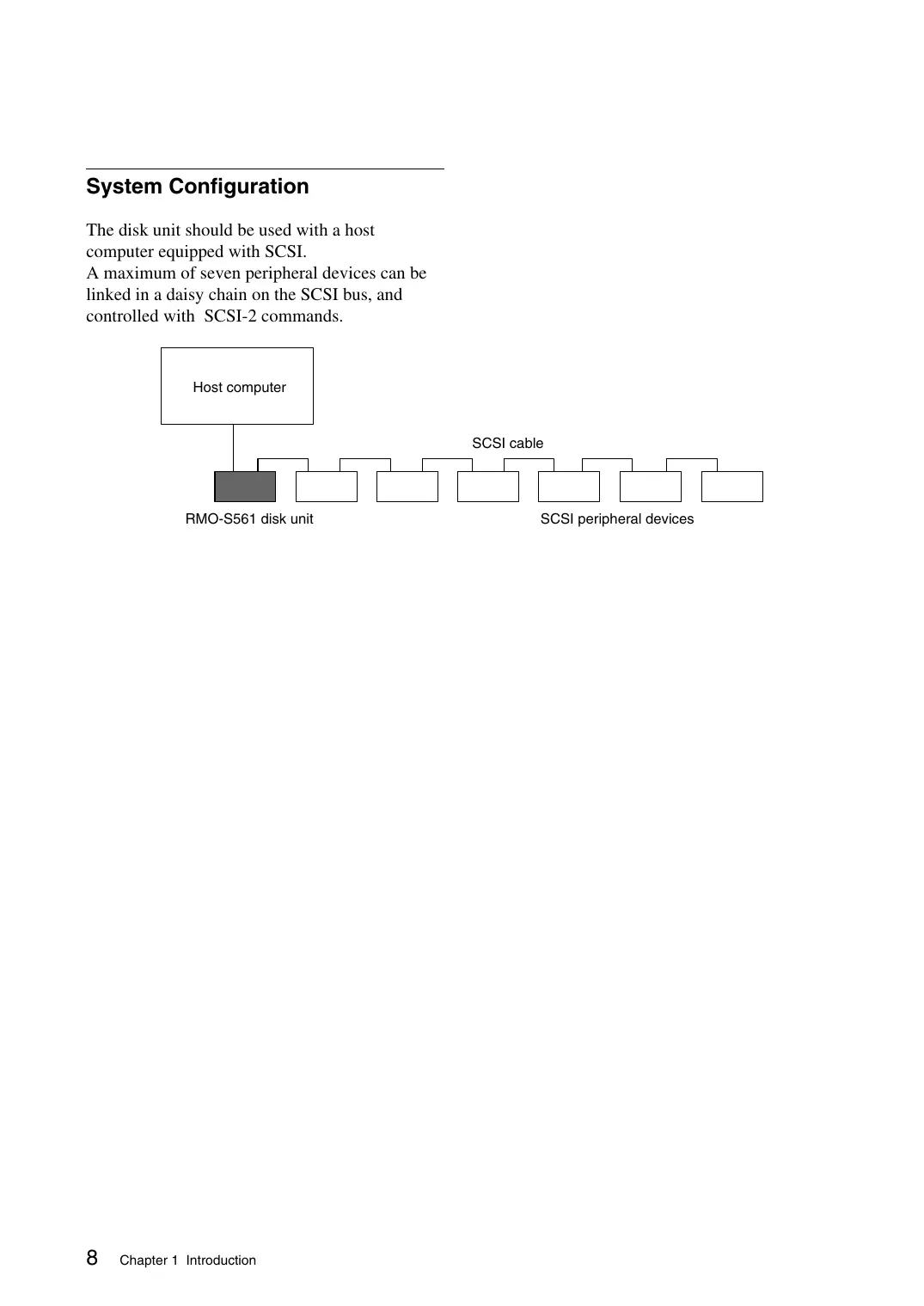

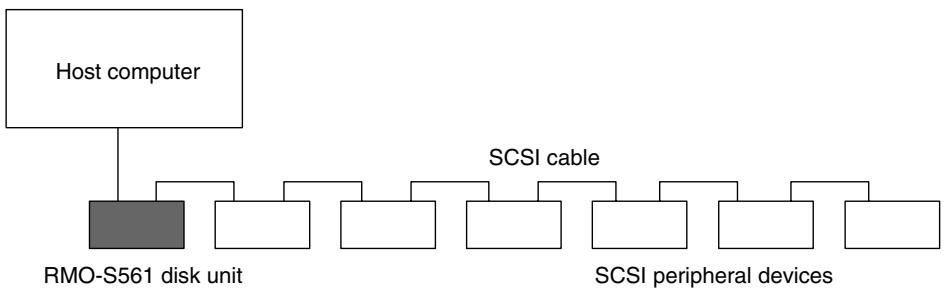

System Configuration The disk unit should be used with a host computer equipped with SCSI. A maximum of seven peripheral devices can be linked in a daisy chain on the SCSI bus, and controlled with SCSI-2 commands. Host computer SCSI cable RMO-S561 disk unit

Chapter 1 Introduction

SCSI peripheral devices Location and Function of Parts Front Panel Rear Panel

A B C D E F G H AC IN SCSI ID BUSY

POWER SCSI CONNECTOR F.GND EJECT

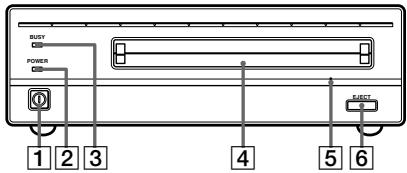

1 POWER switch Push the button to turn the power on and off. The power is on when the button is in the depressed position, and off when fully protruding. 2 POWER indicator The green lamp lights up when the power is turned on. 3 BUSY indicator As this disk is inserted and the drive becomes ready for read/write operation, the BUSY indicator turns green. The orange lamp lights up when the disk unit is accessing or writing data. This lamp flashes on and off at about 2second intervals when the unit overheats, regardless of whether or not a disk is being accessed. 4 Disk insertion slot Insert the disk cartridge into this slot. Refer to the section “Inserting a Disk Cartridge” on page 13 for more information. 5 Emergency eject hole If the disk cartridge cannot be ejected using the EJECT button 6, turn off the power and insert the supplied emergency eject tool into this hole to trip the emergency eject mechanism. Refer to the section “What to do if the disk does not eject” on page 14 for further details. 6 EJECT button Press this button to eject the disk cartridge from the disk unit. The EJECT button is disabled with the function switch or software settings prohibit ejection. When the write cache is enabled, it may take a few moments (up to 45 seconds) for the disk to eject because data in the cache must first be written to the disk.

1 Function switches Use this switches to set the disk unit’s functions in accordance with the host computer and software being used. Refer to the section“Setting the Disk Unit’s Functions” on page 12 for more information. 2 SCSI ID switch Use these switches to set the SCSI ID. Push the “–” button to lower the ID number; push the “+” button to raise the ID number. Refer to the section“Setting the SCSI ID”on page 11 for more information. 3 SCSI connectors Plug SCSI cables (sold separately) linking the host computer and other SCSI peripherals into these connectors. Note If the disk unit is the last device on the SCSI chain, set function switch F to “1” to turn on the internal terminator. When it is not the last device, make sure that the terminator is off (switch F is set to “0”). 4 Air duct The air for cooling the disk unit flows through this duct, so be careful not to block its surface or impede the outflow. 5 F.GND (frame ground) terminal Connect the ground terminals of other devices to the disk unit’s frame ground. 6 AC IN (AC power) connector Connect the supplied AC power cord to this connector.

Chapter 1 Introduction

Chapter 2 Getting Started

Before setting up your RMO-S561 MagnetoOptical Disk Unit, check to see that you have all the required components and accessories. Then, connect the disk unit to the host computer and any other SCSI peripherals you may be using. After checking to see that all the connections have been properly made, set the SCSI ID using the SCSI ID switch and the disk unit’s functions using the function switches. Component and Accessory Check List Upon opening the carton, check to see that you have all of the components and accessories listed below. Contact your dealer immediately if you find any missing or damaged items.

• RMO-S561 Magneto-Optical Disk Unit
• Emergency eject tool
• Guide to Safe Use (Safety Precautions)
• 1 Blank MO disk RMO-S561 Magneto-Optical Disk Unit

Chapter 2 Getting Started

Note Please refer to the installation manual included in the device driver’s package for instructions when using this device with a Macintosh® computer or a computer running under Windows® system. For questions concerning the device drivers, please contact the device driver manufacturer as indicated in the device driver package. Emergency eject tool AC Power cord Connecting the Disk Unit You can hook up a maximum of seven SCSI peripheral devices to a single host computer through its SCSI bus. Use the following Sony SCSI cable (sold separately) to connect the disk unit. Notes

• Before connecting the disk unit, be sure to turn off the disk unit and all other devices on the SCSI chain.

• If the disk unit is the last device on the SCSI chain, set the function switch F on the rear panel to “1” to turn on the internal terminator. When it is not the last device, make sure that the terminator is off (function switch F is set to “0”).
• The total length of the SCSI cables connected to a SCSI chain must not exceed six meters (19 feet 8 1/4 inches). RMO-S561 Magneto-Optical Disk Unit

A B C D E F G H AC IN SCSI ID

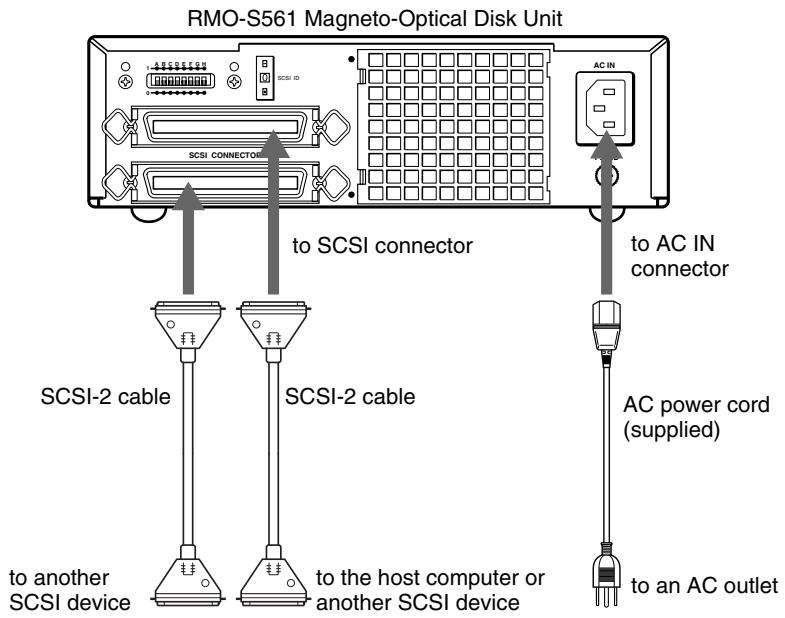

SCSI CONNECTOR F.GND to SCSI connector SCSI-2 cable to another SCSI device SCSI-2 cable to the host computer or another SCSI device to AC IN connector AC power cord (supplied) to an AC outlet Setting the SCSI ID The factory default setting for the SCSI ID is “0.” If necessary, this ID number can be changed using the SCSI ID switch on the rear panel. Be sure to turn off the power before making any changes. Pushing the “+” button raises the ID number; pushing the “–” button lowers the ID number.

• Make sure to select a SCSI ID that has not been assigned to another SCSI device.

• The disk unit will not operate properly unless the SCSI ID has been set correctly.

Chapter 2 Getting Started

Setting the Disk Unit’s Functions Use function switches (A – H) on the rear panel to select the disk unit’s functions in accordance with the host computer and software you are using. Be sure to turn off the power before setting the switches.

■ Write Cache Precautions This disk unit is equipped with a write cache function. When the write cache is enabled, never turn off the disk unit power without making sure that all data has been written to the disk from the cache memory. Data will be lost if you turn off the power before all data in cache memory has been written to the disk. Before turning off the disk unit power, be sure to eject the disk, as this writes data from cache memory to the disk. Further, even though the drive will periodically flush data from cache memory periodically to the disk, data may be lost in the case of a power failure. ■ Ultra SCSI Precautions Using the Ultra SCSI function requires that an Ultra SCSI cable be used to connect the disk unit and the host system. It is recommended that the cumulative cable length be minimized, and that the cable length be kept under 3 m in length when connecting up to four SCSI peripheral devices. In all other cases, the total length of the cable should not exceed 1.5 m. Further, the SCSI bus termination should be well maintained. ■ Precautions for Handling the 1024 and 512 bytes/sector Note that this drive uses a sector size of 4096 bytes/sector. If you insert a disk with a sector size of 1024 or 512 bytes/sector, the drive internally converts the sector size of software to emulate a sector size of 4096 bytes/sector. Further, data already written to the disk may be lost if the power is accidentally turned off while data is being written to the disk. Be careful when operating the power switch. Function Switch Settings Switch Function

Parity check SCSI parity check is disabled. SCSI parity check is enabled.

Device type Peripheral device type 00H (Direct Access Device) Peripheral device type 07H (Optical Memory Device)

Write cache control Enable write cache.

Ultra SCSI control All write operations are verfied. (with a verify pass) All write operations are normal operations. (without a verify pass)

Terminator The internal terminator is on. The internal terminator is off.

Auto spin up Inserting a disk does not causes Inserting a disk causes the spindle motor to rotate. the spindle motor to rotate.

Manual eject Disk catridge cannot be ejected Disk cartridge can be by pressing the EJECT button. ejected by pressing the EJECT button : Factory setting

Chapter 2 Getting Started

Chapter 3 Using the Disk Unit

Inserting a Disk Cartridge Use the following Sony 5.25-inch MO disks in your RMO-S561 disk unit.

• EDM-9100B (4,096 bytes/sector, 9.1 Gbytes)
• EDM-8600B (2,048 bytes/sector, 8.6 Gbytes)
• EM1-9100B (1,024 bytes/sector, 9.1 Gbytes)
• EM5-9100B (512 bytes/sector, 9.1 Gbytes)
• EDM-5200B (2,048 bytes/sector, 5.2 Gbytes)
• EDM-4800B (1,024 bytes/sector, 4.8 Gbytes)
• EDM-4100B (512 bytes/sector, 4.1 Gbytes)
• EDM-2600B (1,024 bytes/sector, 2.6 Gbytes)
• EDM-2300B (512 bytes/sector, 2.3 Gbytes)
• CWO-9100B (4,096 bytes/sector, 9.1 Gbytes )
• CWO-8600B (2,048 bytes/sector, 8.6 Gbytes)
• CWO-5200B (2,048 bytes/sector, 5.2 Gbytes )
• CWO-4800B (1,024 bytes/sector, 4.8 Gbytes)
• CWO-4100B (512 bytes/sector, 4.1 Gbytes)
• CWO-2600B (1,024 bytes/sector, 2.6 Gbytes )
• CWO-2300B (512 bytes/sector, 2.3 Gbytes) 2 Start up the host computer. Refer to the manual supplied with the host computer for the start up procedure. 3 Insert a disk cartridge with the side you want to use facing upwards. To use Side A, insert the disk with “A” facing upward. 1 Press the POWER switch located on the left side of the front panel. This turns on the disk unit and causes the POWER indicator to light up. 4 Access or write data on the disk using software commands on the host computer. The BUSY indicator lights up while the unit is accessing the disk. ■ What to do if the disk unit stops operating When the temperature in the disk unit exceeds the preset level, the BUSY indicator starts flashing on and off at about 2-seconds intervals, regardless of whether or not a disk is being accessed, and the disk unit stops operating. If this happens, you should improve the ventilation of a setting area. If the disk unit still refuses to operate, unplug the unit and contact your dealer.

Chapter 3 Using the Disk Unit

Ejecting a Disk Cartridge Eject the disk cartridge either by using software commands or by pressing the EJECT button. When you cannot eject the disk cartridge using the EJECT button or software commands, remove it as follows. 1 Turn off the disk unit if the power is still on. 2 Insert the emergency eject tool (or a paper clip) straight into the emergency eject hole to trip the manual ejection mechanism. EJECT button Note Do not attempt to eject a disk cartridge while the BUSY indicator is lit orange (except when it is flashing at about 2-second intervals due to overheating). Ejecting the disk while it is being accessed may cause data write errors or may result in loss of data. Also, it may take a few moments (up to 45 seconds) for the disk to eject when the write cache is enabled, because data in the cache must first be written to the disk. ■ What to do if the disk does not eject The disk cartridge may not come out, even when you press the EJECT button or use a software command, under the following conditions:

• The eject function has been disabled using the function switch or a software command;
• The host computer is not functioning properly;
• The disk unit has been turned off (due to a power failure, etc.); or
• Something is wrong with your disk unit itself.

Chapter 3 Using the Disk Unit

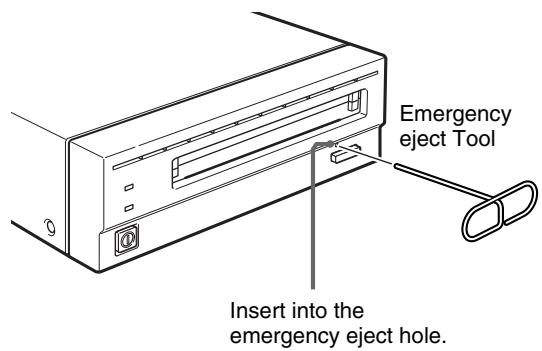

Emergency eject Tool Insert into the emergency eject hole. This should cause the disk cartridge to eject. Caution The tip of the emergency eject tool is sharp. When handling the tool, please be careful to avoid injury.

Chapter 4 Precautions

On the Disk Unit Safety Considerations ■ Power supply

• Be sure to use 100 - 240V AC.
• Do not share the AC outlet with any other power-consuming equipment such as copying machines or shredders. ■ AC power cord
• Be careful not to place or drop heavy object on the power cord, or subject it to anything that may damage it.
• When unplugging the cord from an AC outlet, be sure to grasp the plug itself. Pulling on the cord may cause damage to the internal wiring.
• Unplug the unit when not using it for long period of time. ■ Handling the emergency eject tool The tip of the emergency eject tool is sharp. When handling the tool, please be careful to avoid injury. Do not use the tool for any purpose other than ejecting disks. Damage Prevention ■ Do not subject the disk unit to shock or vibration Dropping the unit or subjecting it to strong impact may damage the disk unit. ■ Setting position ■ Location requirements Careful consideration should be given to the following in selecting a site to install or store your disk unit. Avoid the following conditions:
• Wide temperature fluctuations ■ Ventilation Care should be exercised to prevent the internal mechanisms of the disk unit from overheating. Be careful not to clog or block the vent, or place the unit in an area with poor ventilation. The disk unit may stop operating altogether if the internal temperature becomes too high. ■ Condensation Avoid subjecting the disk unit to extremes in temperature. If, for example, the disk unit is moved suddenly from a very cold location to a warm one, moisture from condensation may form within the unit due to the quick rise in ambient temperature. If a sudden change in the temperature cannot be avoided, wait for an hour or more before using the disk unit. Inserting a disk cartridge into the mechanism when moisture is present may cause damage to both the disk and the disk unit. Remove the disk cartridge immediately if you suspect any condensation problems. The moisture should evaporate quickly if the disk unit is left on without a disk inserted. The disk unit is designed to be used in the horizontal position. Do not position it at an angle.

Chapter 4 Precautions

■ Moving the disk unit Be sure to remove the disk cartridge when the disk unit is not being used. Also never move or transport the unit with the disk cartridge still inserted. While in operation, the disk rotates at a high speed. Moving the disk unit at such a time may disturb the spinning disk and cause it to be damaged. Always remove the disk cartridge before moving your disk unit. ■ If problems occur If any problems occur, turn off the power and unplug the disk unit, contact your dealer. Other Points Requiring Attention ■ Electrical noise The high-frequency signal generated by the disk unit may cause interference or static on other electrical appliances such as radios, televisions and audio tuners. If this should occur, move the disk unit a little farther away from the affected appliance. ■ Maintenance Clean the cabinet with a dry soft cloth, or with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine, which may damage the finish. On the Disk Cartridges

• Do not drop the disk cartridge or subject it to any violent shocks or vibration.
• Do not disassemble the disk cartridge. It is a precision component and has been carefully adjusted at the factory prior to shipment.
• Do not open the disk cartridge’s shutter manually or touch the disk inside. The shutter is designed to open automatically when the cartridge is inserted into the disk unit.
• Do not use the cartridge under ambient conditions of high humidity or wide temperature fluctuations. Moisture from condensation may make it impossible to read or write data.
• Avoid inserting and ejecting the disk cartridge more than is necessary.
• Always eject and remove the disk cartridge from the disk unit after using it.

Chapter 4 Precautions

■ Storing disk cartridges

• Store the disk cartridges in their cases.
• Do not leave the cartridges exposed to direct sunlight or excessive heat, like on the dashboard or in the glove compartment of an automobile. Do not store the disk cartridges under the following conditions. – Excessive dust and debris – Exposure to direct sunlight – Near a heat source – High humidity Protecting Your Data The magneto-optical disk cartridges are equipped with a DATA PROTECT switch (red tab) to prevent accidental erasure of data on the disk or inadvertent writing of unwanted data. Slide this switch in the direction of the arrow as illustrated below to enable the write protect function. You can still read the data contained on the disk, but will not be allowed to write on or erase the disk. Return the switch to its original position to disable the write protect. Make it a practice to leave the write protection enabled when you do not foresee the need to write on the disk. Cleaning Cleaning a Disk Dust and stains may accumulate on MO disks when they are used for a long period of time. To avoid resultant data read/write errors, use an optional disk cleaner. To maintain the high performance and prolong the useful life of your MO disk, cleaning at least once every three months is recommended. Attention In the disk unit, preventive measures are taken to guard against dust. It is unnecessary to clean the optical lens of your disk unit. Using a lens cleaning cartridge may damage the disk unit. ■ Disk cleaning accessories Use the following Sony disk cleaning kit or disk cleaner (sold separately).
• MOA-D51 Disk Cleaning Kit Do not use any other type of disk cleaner as it may cause data read/write errors due to the differences in disk surface characteristics. For cleaning instructions, refer to the manual supplied with each cleaning accessory.

Chapter 4 Precautions

Appendix Specifications Disk Unit ■ Performance Capacity Per disk

9.1 Gbytes (ZCAV 4,096 bytes/sector)

8.6 Gbytes (ZCAV 2,048 bytes/sector)

9.1 Gbytes (ZCAV 1,024 bytes/sector)

9.1 Gbytes (ZCAV 512 bytes/sector)

5.2 Gbytes (ZCAV 2,048 bytes/sector)

4.8 Gbytes (ZCAV 1,024 bytes/sector)

4.1 Gbytes (ZCAV 512 bytes/sector)

2.6 Gbytes (ZCAV 1,024 bytes/sector)

2.3 Gbytes (ZCAV 512 bytes/sector)

Rotation speed 3,000 min–1 (3,000 rpm) 3,300 min–1 (3,300 rpm) 3,600 min–1 (3,600 rpm) Seek times (average) 25 ms (typical) User data transfer rate Continuous transfer rate

3.07 – 6.14 Mbytes/s

(4,096 bytes/sector)

2.87 – 5.84 Mbytes/s

(2,048 bytes/sector)

3.07 – 6.14 Mbytes/s

(1,024 bytes/sector)

3.07 – 6.14 Mbytes/s

(512 bytes/sector) Burst transfer rate 20 Mbytes/s (using Ultra SCSI) Host interface SCSI-2 (Small Computer System Interface-2) ANSI X3.131–1994 ■ Operating environment Installation Horizontal (±5°) Temperature Operating 5 °C to 40 °C (41 °F to 104 °F) (gradient 10° C/h or 18 °F/h) Non-operating – 30 °C to 60 °C (– 22 °F to 140 °F) Relative humidity Operating 10 % to 85 % (no condensation) Non-operating 10 % to 90 % ■ Laser Type Semiconductor AlGaInP laser Wavelength 661 nm ± 6 nm Maximum output 40 mW CW 60 mW Pulse ■ Power supply and others Power supply 100 – 240 V AC ±10%, 50/60 Hz ±5% Current drain

0.60 – 0.35 A max

Maximum external dimensions (excluding protruding parts and air duct) 211 × 70 × 293 mm (W/H/D) (8 3/8 × 2 7/8 × 11 5/8 inches) Weight

4.9 kg (10.9 lb.)

Accessories AC power cord (1) Emergency eject tool (1) User’s Guide (1) MO Disk (1) Formatting Utility (1) Design and specifications are subject to change without notice.
