Product Type	Internal AIT magnetic tape drive
Brand	Sony
Model	AITi390
Interface	Ultra 160 SCSI LVD/SE
Supported Formats	AIT-1 (read only), AIT-2 (read only), AIT-3, AIT-3 Ex
Native Capacity	150 GB (SDX3X-150C cartridge)
Compressed Capacity	390 GB (2.6:1 ratio)
Error Correction	Second level for AIT-3 Ex, third level for other formats
Data Compression	Automatic, enabled via DIP switch
Dimensions (3.5-inch)	41.2 x 101.6 x 155.0 mm (H x W x D)
Dimensions (5.25-inch)	41.2 x 146.0 x 155.0 mm (H x W x D)
Weight (3.5-inch)	780 g
Weight (5.25-inch)	1010 g
Power Supply	5 V DC ±5%, 1.5 A typ, 2.5 A max; 12 V DC ±10%, 0.75 A typ, 3.0 A max
Operating Temperature	5 °C to 40 °C
Operating Humidity	20 % to 80 % RH non-condensing
Operating Altitude	0 to 3048 m
Acoustic Noise	< 35 dB(A) write/read, < 60 dB(A) insert/eject
Display	3 LEDs (TAPE MOTION, CLEANING REQUEST, REPLACE TAPE) and EJECT button
Cleaning	Use SDX3X-CL cleaning cartridge; cleaning recommended every 100 hours
Safety	Avoid moisture, shocks, and sudden temperature changes; disconnect before cleaning
Spare Parts and Repairability	Emergency tape extraction procedure; return to Sony for repair
General Information	Limited warranty; contact Sony for support

Frequently Asked Questions - AITI390 SONY

How to clean the AITi390 drive?

Use a SDX3X-CL cleaning cartridge specially designed for this model. Insert it into the drive; cleaning starts automatically and lasts from a few seconds to one minute. The cartridge is ejected automatically at the end. Do not reuse a used cleaning cartridge.

Which cartridges are compatible with the AITi390?

The drive supports writing and reading on AIT-3 and AIT-3 Ex cartridges, and read-only on AIT-1 and AIT-2 cartridges. Only use cartridges bearing the AIT logo. 8 mm video cassettes are not compatible.

How to set the SCSI ID of the drive?

The SCSI ID is configured using jumpers located on the drive. SCSI ID pins 0 to 3 allow selecting an ID from 0 to 15. Refer to the jumper table in the manual. Ensure the ID does not conflict with other devices.

What does the CLEANING REQUEST indicator mean?

The CLEANING REQUEST LED lights up after approximately 100 hours of use to indicate that cleaning is needed. Use a cleaning cartridge immediately to maintain drive performance. This LED can be enabled or disabled via DIP switch 6.

Can I use AIT-1 cartridges in the AITi390?

Yes, the AITi390 can read AIT-1 cartridges, but it cannot write to them. For writing, use AIT-3 or AIT-3 Ex cartridges.

How to activate Disaster Recovery (DR) mode?

DR mode is activated via DIP switch 1 (ON position). In DR mode, insert a write-protected cartridge: the drive enters DR standby after 15 seconds, all LEDs blink. A restart then makes it appear as a CD-ROM device. Refer to your backup software manual for details.

What to do if a cartridge gets stuck?

Perform emergency extraction: remove the drive from the enclosure, open the top cover, then turn the loading motor shaft clockwise with a precision screwdriver to return the mechanism to its initial position. Remove the slack of the tape by turning the gear counterclockwise. Continue turning until the cartridge is ejected. Send the drive to Sony for repair after this procedure.

Is data compression automatic?

Yes, compression is enabled by default (DIP switch 7 ON). It can be disabled via DIP 8. The typical compression ratio is 2.6:1, but it varies depending on the data type.

What is the maximum capacity of the AITi390?

In native capacity, the drive offers 150 GB on an SDX3X-150C cartridge. With compression (2.6:1 ratio), capacity reaches 390 GB. Actual capacity depends on data type.

How to install the AITi390 in a 3.5-inch enclosure?

The drive is shipped in 5.25-inch format with side rails. To convert to 3.5-inch format, remove the two screws from each rail, then remove the rails. Then mount the drive directly in the 3.5-inch bay using appropriate screws.

USER MANUAL AITI390 SONY

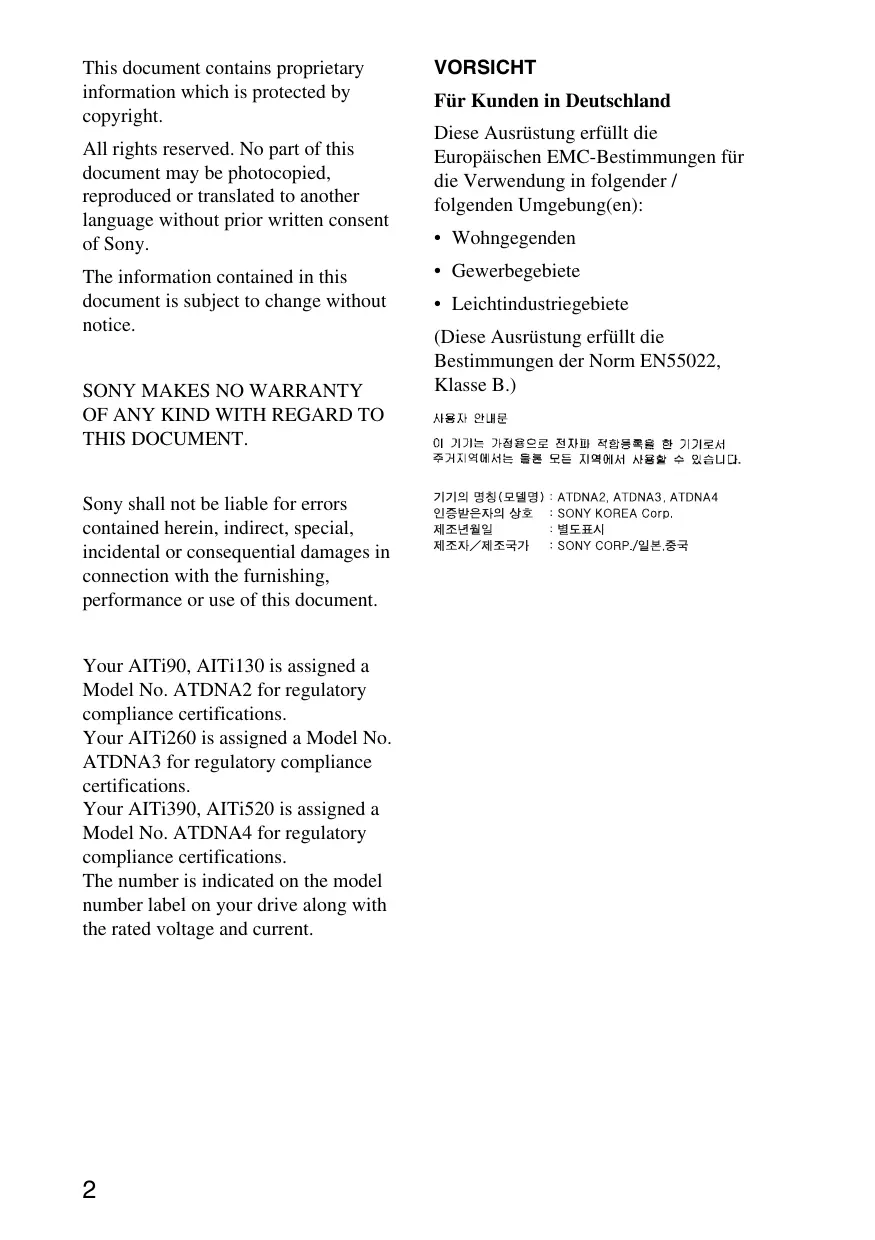

This document contains proprietary information which is protected by copyright.

All rights reserved. No part of this document may be photocopied, reproduced or translated to another language without prior written consent of Sony.

The information contained in this document is subject to change without notice.

SONY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS DOCUMENT.

Sony shall not be liable for errors contained herein, indirect, special, incidental or consequential damages in connection with the furnishing, performance or use of this document.

Your AITi90, AITi130 is assigned a Model No. ATDNA2 for regulatory compliance certifications.

Your AITi260 is assigned a Model No. ATDNA3 for regulatory compliance certifications.

Your AITi390, AITi520 is assigned a Model No. ATDNA4 for regulatory compliance certifications.

The number is indicated on the model number label on your drive along with the rated voltage and current.

VORSICHT

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.

Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

USE

Power Sources – This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power, consult your dealer or local power company.

For the unit with a three-wire grounding type ac plug:

If you are unable to insert the plug into the outlet, contact your electrician to have a suitable plug installed. Do not defeat the safety purpose of the grounding plug.

AC Power cord: (for AC mains operating unit only)

The AC power cord should have appropriate safety approvals or marking for the country in which the equipment will be used. Consult your dealer or local power company.

Cleaning – Unplug the unit from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners.

Use a cloth lightly dampened with water for cleaning the exterior of the unit.

Object and Liquid Entry – Never push objects of any kind into the unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

INSTALLATION

Water and Moisture – Do not use power-line operated units near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection – Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories – Do not place the unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or an adult, and serious damage to the unit. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

Ventilation – The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the unit, and to protect it from overheating, these slots and openings must never be blocked or covered.

• Never cover the slots and openings with a cloth or other materials.
• Never block the slots and openings by placing the unit on a bed, sofa, rug or other similar surface.
• Never place the unit in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

SERVICE

Damage Requiring Service – Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into the unit.
• If the unit has been exposed to rain or water.
• If the unit has been subject to excessive shock by being dropped, or the cabinet has been damaged.
• If the unit does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.
• When the unit exhibits a distinct change in performance - this indicates a need for service.

Servicing – Do not attempt to service the unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer to all servicing to qualified service personnel.

Contents

Overview 6

Introduction 7

About AIT Drives ....7

Precautions 10

Installation 12

SCSI Connection/Setting the SCSI ID 12

Option Switches (DIP Switch) 13

Mounting Holes 17

Reconfiguring from 5.25" Model to 3.5" Model....19

Orientation....20

Attaching and Removing the Dust Cover 21

Attaching the Dust Cover 21

Removing the Dust Cover 23

Operation 24

Location of 3 LEDs 24

Drive Operation....25

Emergency Tape Removal Procedure 28

WORM Function 30

Interface Implementation 32

Supported SCSI Messages 32

Supported SCSI Commands 32

Specifications 33

Product Specifications 33

Sony Contacts 35

- Sony cannot accept liability for data written to cartridges lost as a result of using this product.

- Sony bears no responsibility for any financial damages, lost profits, or claims made by third parties arising from the use of this product.

Overview

The Sony AITi520, AITi390, AITi260, AITi130 and AITi90 drives are high capacity data storage devices using Advanced Intelligent Tape (AIT) technology. The AITi260, AITi130 and AITi90 drives achieve high data reliability through third-level Error Correction Code (second-level Error Correction Code for the AITi520 and AITi390).

The Sony AITi520, AITi390, AITi260, AITi130 and AITi90 drives store data on tape using standard formats called AIT (Advanced Intelligent Tape) and ALDC formats.

Introduction

About AIT Drives

The AITi520 is an internal AIT drive unit that uses data cartridges conforming to the AIT-4 format. The AITi390 is an internal AIT drive unit that uses data cartridges conforming to the AIT-3 Ex format. The AITi260 is an internal AIT drive unit that uses data cartridges conforming to the AIT-3 format. The AITi130 is an internal AIT drive unit that uses data cartridges conforming to the AIT-2 format. The AITi90 is an internal AIT drive unit that uses data cartridges conforming to the AIT-1 format. The AITi520 supports AIT-4 format. The AITi390 supports AIT-1 (Read only), AIT-2 (Read only), AIT-3 and AIT-3 Ex formats. The AITi260 supports AIT-1, AIT-2 and AIT-3 formats. The AITi130 supports AIT-1 and AIT-2 formats. The AITi90 supports only AIT-1 format.

Features

The AIT Drive Unit AITi520 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-4 format.
• The second-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-4 format.
• Data compression provides 520 gigabytes of storage on SDX4-200C. ^*1 The native capacity is 200 gigabytes of storage on SDX4-200C.
• Stored data are automatically checked for compression.
• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITi390 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-3 and AIT-3 Ex formats.
• Supports reading from data cartridges conforming to the AIT-1 and AIT-2 formats.
• The second-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-3 Ex format.
• The third-level error correction code guarantees high data reliability writing to data cartridges conforming to the AIT-1, AIT-2 and AIT-3 formats.
• Data compression provides 390 gigabytes of storage on SDX3X-150C. ^*1 The native capacity is 150 gigabytes of storage on SDX3X-150C.
• Stored data are automatically checked for compression.
• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITi260 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1, AIT-2 and AIT-3 formats.
• The third-level error correction code guarantees high data reliability.
• Data compression provides 260 gigabytes of storage on SDX3-100C. ^*1 The native capacity is 100 gigabytes of storage on SDX3-100C.
• Stored data are automatically checked for compression.
• Ultra 160 SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITi130 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1 and AIT-2 formats.
• The third-level error correction code guarantees high data reliability.
• Data compression provides 130 gigabytes of storage on SDX2-50C. ^*1 The native capacity is 50 gigabytes of storage on SDX2-50C.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer access.

The AIT Drive Unit AITi90 has the following features:

• Supports reading and writing to data cartridges conforming to the AIT-1 format.
• The third-level error correction code guarantees high data reliability.
• Data compression provides 91 gigabytes of storage on SDX1-35C. ^*1 The native capacity is 35 gigabytes of storage on SDX1-35C.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer access.

*1 This is assuming 2.6:1 compression ratio.

The degree of data compression attained while recording data varies according to system environment and data type.

Precautions

Installation

Avoid placing the drive in a location subject to:

– high humidity

– high temperature

- mechanical shock and vibration

- direct sunlight

* For details, see “Specifications” on page 33.

Operation

- Do not move the drives while they are operating. It may cause malfunctions.

- Avoid exposing the drives to sudden changes from low to high temperatures. This may cause condensation to collect inside the drives. If the ambient temperature should suddenly rise while the drives are turned on, turn them off and wait at least one hour before turning them back on. If you attempt to operate the drives immediately after a sudden increase in temperature, malfunctions may occur.

- Turning off the power to the drives while they are writing to tape may cause the tape to become unreadable. All previously negotiated parameters will be lost, whenever power to the drives is cycled.

Transportation

- Keep the original packing materials to facilitate safe transportation of the drive.

- Always remove the tape/media cartridge before moving the drive. After removing the drive from the computer, repack the drive into its original packing.

Backup Application

Make sure to use a backup application that is confirmed to operate with an ISV.

Usable Cartridges

The AITi520 can be used with data cartridges marked with the AIT-4 logo.

The AITi390 can be used with data cartridges marked with the AIT-1 (read only), AIT-2 (read only), AIT-3 or AIT-3 Ex logo.

The AITi260 can be used with data cartridges marked with the AIT-1, AIT-2 or AIT-3 logo.

The AITi130 can be used with data cartridges marked with the AIT-1 or AIT-2 logo.

The AITi90 can be used with data cartridges marked with the AIT-1 logo.

Advanced Intelligent Tape 2 Advanced Intelligent Tape 3 Advanced Intelligent Tape 3 Ex Advanced Intelligent Tape 4 Advanced Intelligent Tape

Note

• Be sure to use only the cartridges designed specifically for AIT.
• Do not use anything but AIT cartridges with this system, as doing so can damage the AIT drive. Although commercially available 8mm videotapes resemble AIT cartridges in appearance, they have entirely different specifications and cannot be used.

SCSI Termination

The AITi520, AITi390, AITi260, AITi130 and AITi90 conform to the Microsoft PC97 standard, which requires the internal (naked) drive to be terminated with an external terminator.

Microsoft PC97 SCSI requirements

SCSI peripherals must not terminate the bus. Both internal and external cable ends are instead terminated by plug-in connectors.

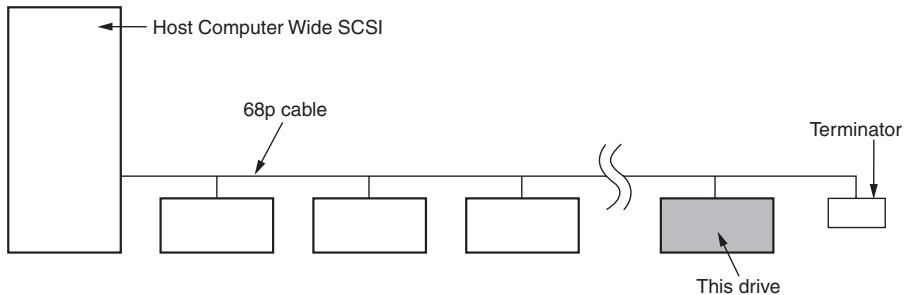


Example of SCSI setup

Installation

SCSI Connection/Setting the SCSI ID

The following figures apply to the AITi520 model.

SCSI ID

SCSI ID	P.D.N.C.3210
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

SCSI 68pin Connector Jumpers Power Connector Parity Disable No Connection SCSI ID 3 SCSI ID 2 SCSI ID 1 SCSI ID 0 5 V GND GND 12 V

Parity

Disable
Enable

Note : ☐ = CLOSED/Jumper

■ = OPEN/Jumper not installed

= Don't care

Parity Disable Jumper

Parity check function can be disabled by Jumper. Parity check is disabled while left end jumper is installed. Parity generate function is always enabled.

DIP Switch

DIP Switch Positions

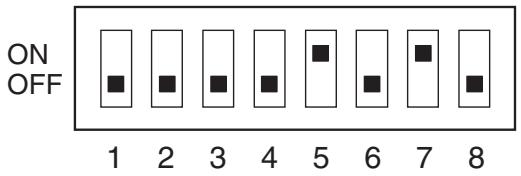

Default (AlTi90, AlTi130, AlTi260)

ON OFF 1 2 3 4 5 6 7 8

1 Drive Mode (OFF)
2 Drive Mode (OFF)
3 Drive Mode (OFF)
4 Drive Mode (OFF)
5 Terminator Power (ON)
6 Periodic Cleaning Req (OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)

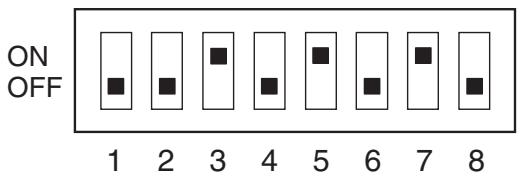

Default (AlTi390, AlTi520)

ON OFF 1 2 3 4 5 6 7 8

1 DR (Disaster Recovery) Mode (OFF)
2 Emulation Mode (OFF)
3 AIT Library Interface Mode (ON)
4 Reserved (OFF)
5 Terminator Power (ON)
6 Periodic Cleaning Req (OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)

DR (Disaster Recovery*) Mode

ON OFF 1 2 3 4 5 6 7 8

AlTi90, AlTi130, AlTi260

1	Drive Mode (ON)	1	DR (Disaster Recovery) Mode (ON)
2	Drive Mode	2	Emulation Mode
3	Drive Mode	3	AIT Library Interface Mode
4	Drive Mode	4	Reserved
5	Terminator Power	5	Terminator Power
6	Periodic Cleaning Req	6	Periodic Cleaning Req
7	DC Control (1)	7	DC Control (1)
8	DC Control (2)	8	DC Control (2)

AITi390, AITi520

* In Disaster Recovery (DR) Mode, the drive enters the DR Standby Mode 15 seconds after you insert a write-protected tape into the drive, and all the drive LEDs blink. If you restart the drive while the LEDs are blinking, it starts as a CD-ROM device.

For details about the Disaster Recovery Mode, refer to the instruction manual that came with the application software you are using.

Emulation Mode* (AlTi90, AlTi130, AlTi260)

ON OFF 1 2 3 4 5 6 7 8

1 Drive Mode (ON)
2 Drive Mode (ON)
3 Drive Mode (ON)
4 Drive Mode (ON)
5 Terminator Power
6 Periodic Cleaning Req
7 DC Control (1)
8 DC Control (2)

* Emulation Mode returns the following in the Product Identification field of Inquiry of the AITi260.

SDX-700C

* Emulation Mode returns the following in the Product Identification field of Inquiry of the AITi130.

SDX-500C

* Emulation Mode returns the following in the Product Identification field of Inquiry of the AITi90.

SDX-400C

Emulation Mode\* (AITi390, AITi520)

ON OFF 1 2 3 4 5 6 7 8

1 DR (Disaster Recovery) Mode
2 Emulation Mode (ON)
3 AIT Library Interface Mode
4 Reserved
5 Terminator Power
6 Periodic Cleaning Req
7 DC Control (1)
8 DC Control (2)

* Emulation Mode returns the following in the Product Identification field of Inquiry of the AITi520.

SDX-700C

* Emulation Mode returns the following in the Product Identification field of Inquiry of the AITi390.

SDX-700C

Cleaning Request Mode

Periodic cleaning requests can be enabled by a DIP switch.

ON OFF 1 2 3 4 5 6 7 8

AlTi90, AlTi130, AlTi260

1	Drive Mode
2	Drive Mode
3	Drive Mode
4	Drive Mode
5	Terminator Power
6	Periodic Cleaning Req (ON)
7	DC Control (1)
8	DC Control (2)

AITi390, AITi520

1	DR (Disaster Recovery) Mode
2	Emulation Mode
3	AIT Library Interface Mode
4	Reserved
5	Terminator Power
6	Periodic Cleaning Req (ON)
7	DC Control (1)
8	DC Control (2)

When switch 6 is ON, cleaning requests are enabled. When enabled, the “CLEANING REQUEST” LED on the front panel lights after every 100 hours of operation.

When this LED lights, clean the drive with a cleaning cartridge.

Note

To maintain the drive in optimum condition in environments affected by dust and other contaminants, we recommend keeping cleaning requests enabled.

Terminator Power Control DIP switch

This DIP switch determines whether terminator power is supplied to the SCSI bus. To enable terminator power, set position 5 [Terminator Power] switch to ON.

Data Compression Control DIP switch

Data compression can be selected by DIP switches. Data compression is enabled when position 7 [DC Control (1)] is ON. Control by host can be disabled when position 8 [DC Control (2)] is ON.

Mounting Holes

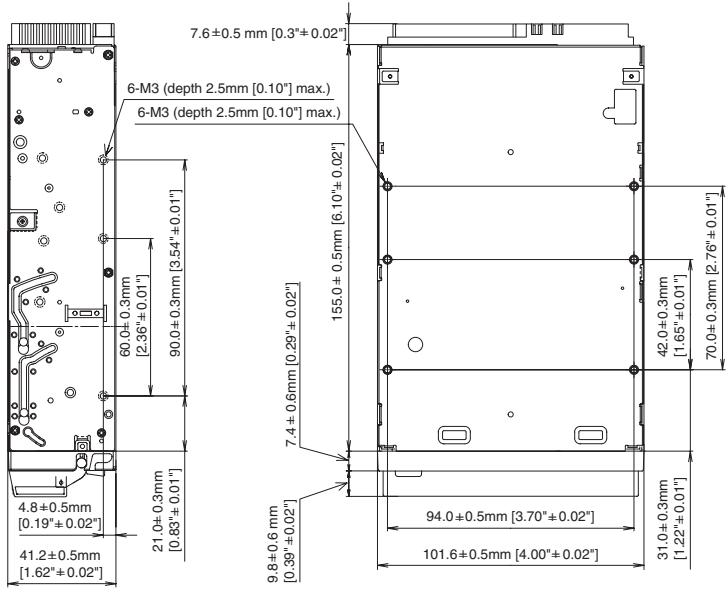

The following figures apply to the AITi520 models. However, the locations of the mounting holes for the other models are the same.

For 3.5" Standard Height

7.6±0.5 mm [0.3"±0.02"] 6-M3 (depth 2.5mm [0.10"] max.) 6-M3 (depth 2.5mm [0.10"] max.) 90.0±0.3mm [3.54"±0.01"] 60.0±0.3mm [2.36"±0.01"] 90.0±0.3mm [3.54"±0.01"] 155.0±0.5mm [6.10"±0.02"] 7.4±0.6mm [0.29"±0.02"] 42.0±0.3mm [1.65"±0.01"] 70.0±0.3mm [2.76"±0.01"] 4.8±0.5mm [0.19"±0.02"] 41.2±0.5mm [1.62"±0.02"] 9.8±0.6 mm [0.39"±0.02"] 94.0±0.5mm [3.70"±0.02"] 101.6±0.5mm [4.00"±0.02"] 31.0±0.3mm [1.22"±0.01"]

For 5.25" Half Height

21.8±0.5mm [0.86"±0.02"] 9.9±0.5mm [0.39"±0.02"] 79.2±0.3mm [3.12"±0.01"] 7.0mm [0.28"] 41.2±0.5mm [1.62"±0.02"] 47.5±0.3mm [1.87"±0.01"] 79.2±0.3mm [3.12"±0.01"] 6-M3 7.4±0.6mm [0.29"±0.02"] 155.0±0.5mm [6.10"±0.02"] 9.8±0.6 mm [0.39"±0.02"] 70.0±0.3mm [2.76"±0.01"] 42.0±0.3mm [1.65"±0.01"] 7.6±0.5 mm [0.3"±0.02"] 31.0±0.3mm [1.22"±0.01"] 94.0±0.5mm [3.70"±0.02"] 146.0±0.5mm [5.50"±0.02"] 149.0±0.5mm [5.87"±0.02"] 47.5±0.3mm [1.87"±0.01"] 79.2±0.3mm [3.12"±0.01"] 4-M3

Reconfiguring from 5.25" Model to 3.5" Model

You can reconfigure the 5.25" model to the 3.5" model yourself.

1 Remove the 2 screws for each side rail.
2 Take the side rail off.

Side Rail (L) Side Rail (R)

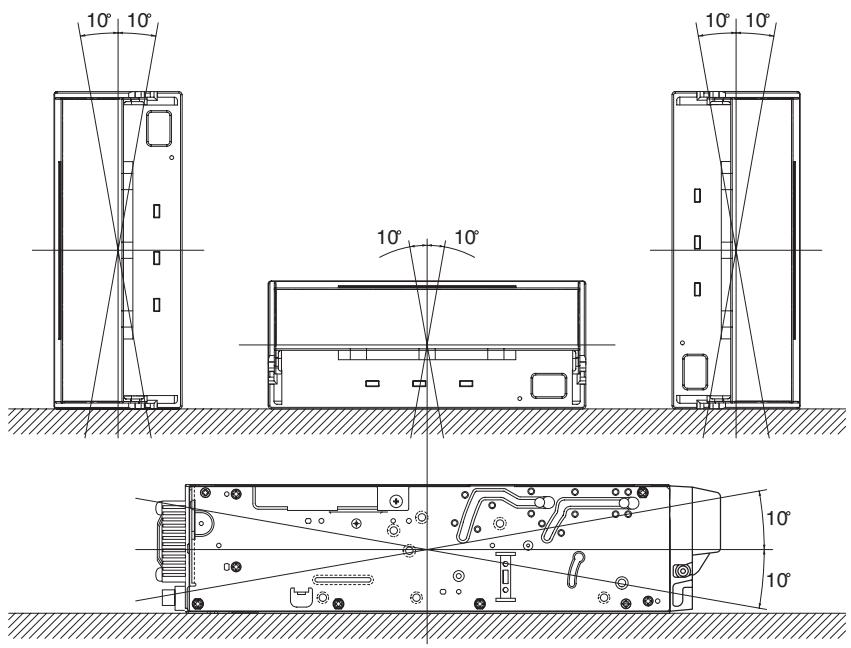

Orientation

Attaching and Removing the Dust Cover

Attaching the Dust Cover

1 Align the dust cover's hinge clips (one on each side) with the pins of the drive bezel.

• The dust cover should be positioned so that the magnets* on the cover's back face the drive bezel.
  * This magnet does not affect the tape of the cartridge.
• Holding the dust cover at an angle as shown in the figure below, set the hinge clips on top of the bezel pins, positioning them so that they bracket the pins.

Diagram of a computer drive with a close-up view showing internal components (no text or symbols)

2 Press down at an angle on each side in turn until you hear the hinge clips click into place.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating process steps.

Caution

Do not press the dust cover in horizontally from the front. Doing so could cause the dust cover to break.

3 Close the dust cover.

This completes attachment of the dust cover.

Removing the Dust Cover

1 Open the dust cover.

2 Holding the dust cover at both corners, carefully raise the dust cover.

The dust cover hinge clips and drive bezel pins uncouple.

Technical diagram showing assembly steps of a computer drive with labeled components and directional arrows indicating motion.

Note

We recommend that you use the drive with the dust cover.

Operation

Location of 3 LEDs

There are three LED indicators (TAPE MOTION LED, CLEANING REQUEST LED, REPLACE TAPE LED) and an EJECT button on the front panel of the unit.

Front Panel (for 3.5" Standard Height)

TAPE MOTION CLEANING REQUEST REPLACE TAPE LED EJECT button

LED Indication for Drive Status

The LED indicators are defined as follows.

LED
TAPE MOTION	CLEANING REQUEST	REPLACE TAPE	Sense
	Independent	Independent	Tape Loaded
	Independent	Independent	Tape Access in Progress (write/read)
	Independent	Independent	Tape Access in Progress (others)
Independent		Independent	Cleaning is requested
Independent		Independent	Cleaning is Not Completed
Independent	Independent		Media Error Occurred
			H/W Error Occurred

on

Slow

1 pulse (0.9 sec on/0.3 sec off)

Fast

1 pulse (0.3 sec on/0.3 sec off)

Drive Operation

Loading a Cartridge

Note

While setting the data cartridge, do not turn off the host computer. This may cause a malfunction or damage data.

1 Turn on the host computer. Check that the drive's TAPE MOTION LED, CLEANING REQUEST LED and REPLACE TAPE LED go off.
2 Open the dust cover.

Line drawing of a hand inserting a CD into a memory unit (no text or symbols)

3 Set the AIT data cartridge orientation as shown here and insert it into the data cartridge slot.

Line drawing of a printer inside a cabinet or storage unit, showing internal components and no text or symbols.

By inserting the data cartridge to the extent, it is automatically set in the drive and the TAPE MOTION LED lights.

Unloading a Cartridge

The cartridge can be removed from the AITi520, AITi390, AITi260, AITi130 and AITi90 either in response to a SCSI Unload Command, or by pressing the EJECT bottom.

By pressing EJECT button, the tape is rewound and the cartridge ejected from the slot.

Write-protecting a Cartridge

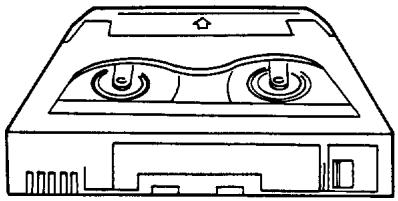

Cartridges can be write-protected by sliding the tab on the back of the cartridge. In this state, data can be read from the tape but not written onto it.

Line drawing of a CD-ROM drive casing with two buttons and ventilation slots (no text or symbols)

AIT-1

AIT-2

AIT-3

AIT-3 Ex

AIT-4

Using your fingernail, push the switch in the direction of the arrow to protect the tape from writing or accidental erasure.

Return the switch to its original position to re-enable writing.

Using a Cleaning Cartridge

To keep the AIT drive in top condition, clean the drive unit as needed using a cleaning cartridge with the AIT logo. When the drive unit needs cleaning, the CLEANING REQUEST indicator lights. (For the AITi390 and the AITi520, use the AITi390 and the AITi520 cleaning cartridge respectively.)

Use the cleaning cartridge made exclusively for each model.

	Cleaning cartridge to use
AITi520	SDX4-CL
AITi390	SDX3X-CL
AITi260, AITi130, AITi90	SDX1-CL

How to Clean

1 Load the cleaning cartridge into the AIT drive. Cleaning starts automatically.

2 Cleaning takes about 15 seconds and the cartridge is automatically ejected when finished (AITi90, AITi130, AITi260). Cleaning takes from a few seconds to a minute for the AITi390 and the AITi520, * and the cartridge is automatically ejected when finished.

* The cleaning time varies depending on the condition of the drive (AITi390, AITi520).

Caution

Do not rewind the cleaning cartridge and reuse it. When you reach the end of the cartridge, dispose it and buy a new cleaning cartridge with the AIT logo.

Storage Precautions

• Keep cartridges in their cases when not in the drives.
• Avoid storing cartridges in dusty locations, in direct sunlight, near heaters or air conditioners, or in humid locations.
• Do not place cartridges on dashboards or in car storage trays.

Emergency Tape Removal Procedure

1 Remove the drive from the chassis or enclosure to allow access to the bottom of the drive.
2 Remove the drive's top cover.
3 Locate the small opening in the bottom of the drive and insert the tip of a precision screwdriver so that the Loading motor shaft can be rotated.
4 Rotate the motor shaft clockwise to bring the threading mechanism back to the initial position.

Reel motor Loading motor

Emergency Tape Removal Procedure

Caution

Stop rotating the motor shaft immediately, when Guide B gets to the area below the line C-C (This line is defined by 2 circular tape guide surfaces of the cartridge). Otherwise, the gear of the drive can be damaged.

A Tape guide surface Tape guide surface C C Detail A Guide B Cartridge

The Initial Position of the Threading Mechanism

5 Before the manual ejection procedure, tape slack must be removed in order to prevent tape damage. Rotate the gear mechanism located on the bottom of the drive counterclockwise to tighten the tape.
6 After the tape slack has been removed, continue to turn the Loading motor shaft located on the bottom of the drive clockwise with a precision screwdriver until the tape cartridge is lifted out of the drive mechanism and is ejected.
7 Return the drive to Sony for repair.

WORM Function

The AITi520, AITi260 and AITi130 support the WORM function. This section explains the WORM function.

What is "WORM"?

“WORM” is an acronym for “Write Once Read Many”, a function that allows data to be written to the same place on a tape only once, but permits that data to be read from the tape for any number of times. The AITi520, AITi260 and AITi130 support WORM cartridges. When a WORM cartridge is used with an application that supports the WORM function, data that has been written to a tape can not be accidentally deleted or overwritten.

A WORM drive operates in the same manner as a non-WORM drive when used with a non-WORM cartridge (henceforth referred to as “regular cartridge”).

The operation of a WORM drive and a non-WORM drive differs according to the type of cartridge that is being used.

Tape Drive	Cartridge
	Regular Cartridge (without WORM logo)	WORM Cartridge (with WORM logo)
Non-WORM drive	Read/Write Enabled	Waiting for Eject
WORM drive	Read/Write Enabled	Read/Append-Write Enabled

WORM Cartridges

WORM cartridges can be distinguished from regular cartridges by their WORM logo and red shutters.

Red WORM logo

AIT-2 WORM cartridge: SDX2-50W
AIT-3 WORM cartridge: SDX3-100W
AIT-4 WORM cartridge: SDX4-200W

How to Write Data onto a WORM Cartridge

As with a regular cartridge, there is no limit on how many times data can be read from a WORM cartridge. When writing data to a WORM cartridge, the data can not be written to a portion of the tape that has already been written.

When writing data onto a WORM cartridge, it is appended after data that has already been written onto the cartridge. Accordingly, move to the EOD area before writing data onto the cartridge.

SCSI Commands Supported by the WORM Drive

The WORM drives support the same SCSI commands that are supported by non-WORM drives. However, if an attempt is made to write to a portion of a tape where data has already been written, the following error information is returned:

“Sense Key = 07, ASC = 27h, ASCQ = 00: Persistent Write Protect” or “Sense Key=03, ASC=27h, ASCQ=04: Write Position Error.”

AIT WORM-compliant Software

To find out whether your backup application is AIT WORM compliant, contact the manufacturer of the software.

Notes

• Sony cannot accept liability for data written onto a WORM cartridge that is lost as a result of using this unit.
• Sony accepts no responsibility for any financial damages, lost profits, or claims made by third parties arising from the use of this product.

Interface Implementation

Supported SCSI Messages

Abort	Identify ( w/&w/o Disconnect )
Bus Device Reset	Ignore Wide Residue
Command Complete	Initiator Defected Error
Disconnects	Message Parity Error
Extended Message	Message Reject
– Synchronous Data Transfer Request	No OperationRestore Pointer
– Wide Data Transfer Request	Save Data Pointer
– Parallel Protocol Request (AITi260, AITi390, AITi520)

Supported SCSI Commands

Erase	Report Density Support
Inquiry	Report Device Identifier (AITi390, AITi520)
Load/Unload
Locate	Report Luns
Log Sense	Request Sense
Log Select	Reserve Unit (AITi90, AITi130, AITi260)
Mode Select	Reserved (6) (AITi390, AITi520)
Mode Sense	Reserved (10) (AITi390, AITi520)
Persistent Reserved IN	Rewind
Persistent Reserved OUT	Seek Block (AITi90, AITi130, AITi260)
Prevent Allow Medium Removal
Read	Send Diagnostic
Read Attribute (AITi390, AITi520)	Set Device Identifier (AITi390, AITi520) Space
Read Block Limits	Test Unit Ready
Read Buffer	Verify (AITi90, AITi130, AITi260)
Read Position
Receive Diagnostic Result	Write
Release Unit (AITi90, AITi130, AITi260)	Write Attribute (AITi390, AITi520) Write Buffer
Release (6) (AITi390, AITi520)	Write Filemarks
Release (10) (AITi390, AITi520)

Specifications

Product Specifications

Dimensions (not including bezel and protruding parts)

	3.5"	5.25"
Height	41.2 mm (1.62 in)	41.2 mm (1.62 in)
Width	101.6 mm (4.0 in)	146.0 mm (5.75 in)
Depth	155.0 mm (6.1 in)	155.0 mm (6.1 in)

Altitude

Operating

0 to 3048 m (0 to 10,000 ft.)

Acoustic Noise
(A) curve weight

Streaming Write/Read	less than 35 dB (A)
Insert/Eject	less than 60 dB (A)

Note

The sound-meter on (A) scale is located 1m (3.3 ft.) in front of the center of the drive front panel.

Mass

	AITi390, AITi520	AITi260	AITi130	AITi90
3.5"	780 g (27.5 oz.)	780 g (27.5 oz.)	740 g (26.1 oz.)	740 g (26.1 oz.)
5.25"	1010 g (35.6 oz.)	1050 g (37.0 oz.)	970 g (34.2 oz.)	970 g (34.2 oz.)

Temperature and Humidity Range

Temperature

Operating	5 °C to 40 °C (ΔT<10 °C/h)(41 °F to 104 °F (ΔT<18 °F/h))
Non-Operating (mech.)	-40 °C to 70 °C (ΔT<20 °C/h)(-40 °F to 158 °F (ΔT<36 °F/h))
Non-Operating (tape)	-40 °C to 45 °C (ΔT<20 °C/h)(-40 °F to 113 °F (ΔT<36 °F/h))

Humidity

Operating	20 to 80% RH, non-condensingMaximum wet bulb temperature :26 °C (78.8 °F)
Non-Operating (mech.)	5 to 95% RH ( RH<30%/h)Maximum wet bulb temperature :45 °C (113 °F)
Non-Operating (tape)	20 to 80% RH ( RH<30%/h)

Air-cooling Requirement

Surrounding temperature

< 40 °C (104 °F)

Clean air flow is recommended to minimize the possibility of data loss.

Power Requirements
AlTi390, AlTi520

Voltage	Max Ripple	Current
		Typical	Maximum
5 V +/- 5 %	100 mVp-p	1.5 A	2.5 A
12 V +/- 10 %	150 mVp-p	0.75 A	3.0 A

AlTi260

Voltage	Max Ripple	Current
		Typical	Maximum
5 V +/- 5 %	100 mVp-p	1.6 A	1.9 A
12 V +/- 10 %	150 mVp-p	0.5 A	1.2 A

AlTi130

Voltage	Max Ripple	Current
		Typical	Maximum
5 V +/- 5 %	100 mVp-p	1.1 A	1.4 A
12 V +/- 10 %	150 mVp-p	0.4 A	1.2 A

AITi90

Voltage	Max Ripple	Current
		Typical	Maximum
5 V +/- 5 %	100 mVp-p	1.1 A	1.4 A
12 V +/- 10 %	150 mVp-p	0.4 A	1.2 A

Sony Contacts

For further information, please contact:

Sony Electronics Inc., Tape Storage Solutions (USA)

URL: http://www.storagebysony.com

Sony of Canada Ltd., AV/IT Marketing Group

Computer Peripherals Product Marketing

115 Gordon Baker Road Toronto, Ontario, M2H 3R6 Canada

TEL: [phone] or (1) 800-961-7669

FAX: [phone]

Sony Business Europe

URL: http://www.sonyisstorage.com/

Electronics Devices Marketing (Singapore)

(A division company of Sony Electronics (S) Pte. Ltd.)

Enterprise Storage Solutions Dept.

2 International Business Park, #01-10 Tower One, The Strategy,

Singapore 609930

TEL: [phone] FAX: [phone]

Sony Corporation of Hong Kong Ltd.

Computer Peripheral Sales & Marketing Division

Electronic Devices Marketing Hong Kong

45/F, The Lee Gardens, 33 Hysan Avenue, Causeway Bay, Hong Kong

TEL: [phone] FAX: [phone]

Sony Corporation of Hong Kong Ltd. Beijing Rep. Office

Computer Peripheral Div.

Full Link Plaza Tower A 11/F., No.18 Chaoyangmenwai Ave., Beijing

100020 P.R.C.

TEL: [phone] FAX: [phone]

URL: http://www.sony.com.cn/ed/cp/ait/

Sony Corporation of Hong Kong Ltd.,

Electronic Devices Marketing Hong Kong

Computer Peripherals Sales & Marketing Div.

8/F, One Corporate Avenue, 222 Hu Bin Road. Luwan District,

Shanghai. P.R.C. Postcode 200021

TEL: [phone]

URL: http://www.sony.com.cn/ed/cp/ait/

Sony Brasil Ltda.

Rua Inocéncio Tobias, 125, Barra Funda

São Paulo-SP, Brasil 01144-000

TEL: [phone] FAX: [phone]

Sony Australia Limited

33-39 Talavera Rd.

NORTH RYDE, NSW 2113

TEL: [phone] FAX: [phone]

e-mail: [e-mail]

Sony New Zealand

Akoranga Business Park

NORTH SHORE, AUCKLAND

TEL: [phone] FAX: [phone]

e-mail: [e-mail]

Sony Chile Ltda

Av. Kennedy 8017, Las Condes, Santiago, Chile

TEL: [phone] FAX: [phone]

Sony Taiwan Limited

Optical Devices Storage Dept. Data Storage Section

5F, 145 Changchun Road, Taipei 104, Taiwan

TEL: [phone] FAX: [phone]

Sony Korea Corporation EDMK CP Sales & Marketing Team

34F, ASEM Tower, World Trade Center, 159-1, Samsung-Dong,

Kangnam-Ku, Seoul, 135-798, Korea

TEL: [phone] FAX: [phone]

URL: http://www.sony.co.kr/cp/

Sony Gulf FZE Computer Display & Peripheral Div.

P.O.BOX 16871, Jebel Ali, Dubai, U.A.E.

TEL: [phone] or 8816912 FAX: [phone] or 8816259

Sony Marketing of Japan

Business Solution Dept. Server Solution Marketing Section

URL: http://www.sony.co.jp/STORAGE
