RADIO NUMÉRIQUE

GB/IE Operation and safety notes Page 23

Warning remarks and symbols used.. Page 24

Introduction 25

Intended use.. Page 25
Scope of delivery . Page 26
Description of parts.. Page 26
Technical data.. 26

Safety instructions.. Page 27

Safety instructions for batteries / rechargeable batteries......Page 29

Before use.. Page 31

Unpacking.. Page 31
Inserting / Replacing the batteries.. Page 31

Basic operation 31

Language setting 32
Mode selection.. Page 32
Volume adjustment.. Page 32
Connecting headphones.. Page 32
Automatic time setting.. Page 32
System settings.. Page 32

FM operation.. Page 34

Searching stations . Page 34
Search functions . Page 34
Audio settings.. Page 34
FM display modes.. Page 35

DAB operation 35

Full scan.. Page 35
Manual tuning.. Page 35
Deleting unavailable stations.. Page 36
DAB display modes.. Page 36

Presetting currently active station.. Page 37

Recalling a preset station.. Page 37

Sleep timer Page 38

Cleaning and care.. Page 38

Storage.. Page 38

Troubleshooting Page 39

Disposal 39

Simplified EU declaration of conformity. Page 40

Warranty.. Page 40

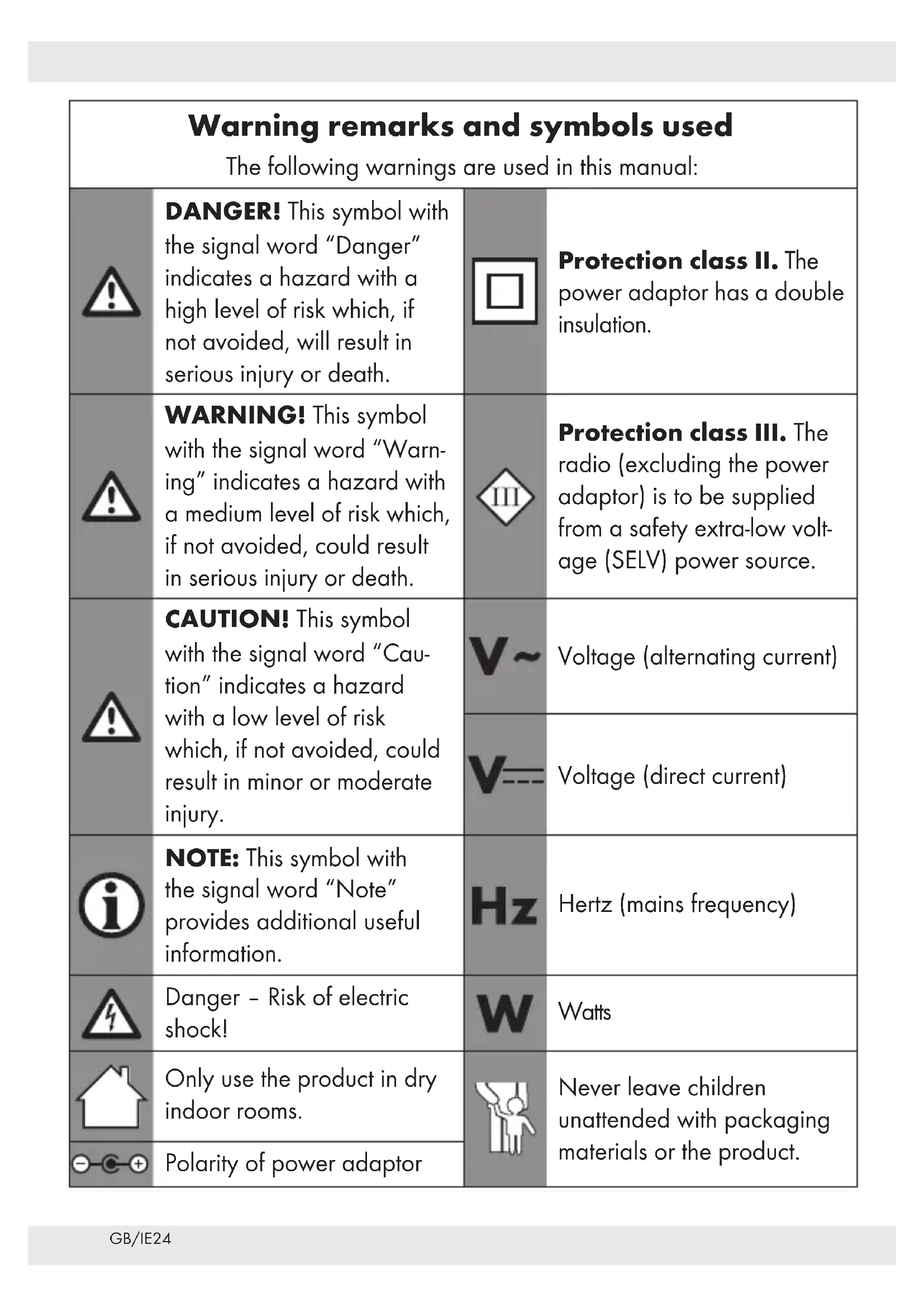

Warning remarks and symbols used The following warnings are used in this manual:
	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.		Protection class II. The power adaptor has a double insulation.
	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.		Protection class III. The radio (excluding the power adaptor) is to be supplied from a safety extra-low voltage (SELV) power source.
	CAUTION! This symbol with the signal word "Cau-tion" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.	V~	Voltage (alternating current)
		V---	Voltage (direct current)
	NOTE: This symbol with the signal word "Note" provides additional useful information.	Hz	Hertz (mains frequency)
	Danger - Risk of electric shock!	W	Watts
	Only use the product in dry indoor rooms.		Never leave children unattended with packaging materials or the product.
	Polarity of power adaptor

CAUTION! EXPLOSION

HAZARD! A warning with this symbol and word "CAUTION! EXPLOSION HAZARD" indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!

This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!

Listening at high-volume for prolonged periods of time can damage your hearing. Before using the product, set the volume to lowest level.

DIGITAL RADIO

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is a consumer electronics device. It is used for the reception and playback of analogue and digital radio programs. This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorized modification of the product will be considered un-warranted. Any such use is at your own risk.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Digital radio
1 Power adaptor
1 Instruction manual

Description of parts

1

Standby button

2

Display

3

PRESET

Saving/Recalling stations

4

SELECT

Select/Confirm button

5

Back/Previous

6

Forward/Next button

7

VOLUME

Volume control

8

SLEEP

Sleep button

9

MENU/INFO

Menu/Info button

10

MODE

Mode button

11

Telescopic antenna

12

Battery compartment

13

Headphones socket (3.5 mm jack plug port)

14

DC IN

Port for power adaptor

15

Power adaptor

Technical data

Power supply Battery:

$$ 4 \times 1. 5 \mathrm {V}, \mathrm {A A} / $$

or

Power adaptor:

6 V / 0.5 A

Reception range:

FM 87.5-108 MHz
DAB 174-240 MHz
Speaker output
power 1.0 W RMS
Dimensions	150 x 82 x
(W x H x D)	49.5 mm
Operating conditions	10 °C to 35 °C
	40 % to 85 % (rel. humidity)
Storage temperature	-20 °C to +60 °C

Weight 0.23kg

Power adaptor:

Input voltage 100-240 V

Frequency 50/60 Hz

Current 0.2 A Max.

Output voltage /

current 6 V = = = 0.5A

Polarity of barrel

connector at output

Protection class II/

Type / Model DYS605-

060050W-3

Manufacturer Dongguan

Dongsong

Electronic

Co., Ltd.

Max. headache

output voltage approx. 75mV

Safety instructions

Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted! Inspect all products for visible damage before use. Never use a damaged product.

The frequency ranges specified in the technical data chapter represent the technical possibilities of the product. Please note that different regulations may exist for freely available frequencies in different countries. Receiving and / or using of the information may be illegal and possibly punishable.

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.

Risk of electric shock!

DANGER! Never open the housing of the product or of the power adaptor. In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! Protect the product and the power adaptor from dripping and splashing water. Do not place containers filled with liquids (such as vases or drinks) on or near the product or the power adaptor. Do not immerse any product components in liquids. Never hold the product under running water.

To avoid fire, do not place burning candles on or near the product.

D A N G E R! Do not touch the power adaptor with wet hands.
CAUTION! Never use a damaged product. If you notice any damage, disconnect the power adaptor immediately from the mains network. Remove the batteries from the product. Contact your retailer if the product is damaged.

Always turn the product off before disconnecting it from the power supply.
Only use this product with the supplied power adaptor or one of identical construction. The product should only be supplied with a SELV (Safety Extra Low Voltage) corresponding to the marking on the product or on the power adaptor. Contact your retailer if the power adaptor is damaged.
Only use the radio with batteries (AA) and / or the supplied or an identical power adaptor. Refer to the technical data of the radio.
The radio is classified as protection class III and therefore operates with a completely safe voltage range.

The power adaptor is classified as protection class II.

To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well.

Lay out the cord in such a way that no unintentional pulling or tripping over is possible. Keep the power adaptor and its cord out of reach of children.

When disconnecting the power adaptor from the electrical outlet, do not pull by the connection cord but by the power adaptor.

Do not wrap the connection cord around the product.

Connect the power adaptor to an electrical outlet that is always easily reachable so that in case of an emergency the product can be unplugged immediately.

Pull the power adaptor out of the power supply to completely disconnect the product from the mains network.

The power adaptor continues to draw a small amount of electricity, even without the radio being operated, as long as the power adaptor is connected to the power supply. To completely switch off the power adaptor, it must be disconnected from the mains network.

Do not subject the product to physical shock or strong vibrations.
If smoke or unusual sounds are observed, immediately unplug the power adaptor from the power supply. Remove the batteries from

the product.

The power adaptor shall not be covered.
- Disconnect the power adaptor from the power supply and remove the battery / batteries from the product when not in use and before cleaning.
Let the product dry completely before connecting it to the mains supply and before storage. Allow the product to cool down completely before storage.

Safety instructions for batteries / rechargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin.

Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.

NOTE: This product is equipped with rubber feet to protect delicate surfaces. It cannot be ruled out that furniture care agents will attack or damage the rubber feet.

Before use

Unpacking

Remove all packaging materials (including foils). Check if all parts are present.

Operation by batteries

Power

Insert 4 batteries (AA).

supply

The product remains in off mode.

Turning on Press

Inserting / Replacing

the batteries

NOTE: The product can be used with batteries or via the power adaptor [15]. The batteries should be removed when the product is powered via the power adaptor.

Open the battery compartment
Insert 4 batteries (type: 1.5V

AA) into the battery compartment according to the polarity marks.

Close the battery compartment

Basic operation

Place the product on a flat, stable ground.

NOTES:

If the product is used for the first time, it will automatically enter into the DAB mode and perform a complete scan. During the scan Scanning... appears in the display 2

For a better signal reception always expand the telescopic antenna [1]. For optimal reception, the telescopic antenna can be rotated and swivelled.

Operation by power adaptor

Power Connect the power supply adaptor to a suitable wall outlet. The product enters standby mode.

Turning on

Press

Turning to Press Time and standby date are permanently displayed.

Language setting

NOTE: The product's display shows a variety of information needed to operate the product. Upon delivery, this information will be displayed in English. This instruction manual provides all displayed information in English language.

Changing the language settings: "System settings" "LANGUAGE".

Mode selection

The product features FM and DAB (Digital Audio Broadcasting) reception.

Press MODE to toggle between FM and DAB.

Volume adjustment

Turn and hold VOLUME 7 to the right to increase the volume. Turn and hold VOLUME 7 to the left to decrease the volume.

Connecting headphones

Connect the 3.5mm plug of your headphones (not supplied) with the headphones socket [13]. The speaker is muted as long as the headphones are connected.

CAUTION! Remember

that excessive sound pressure or volumes can lead to damage to the hearing. Always adjust the volume to a pleasant, not too loud level. If you have adjusted the volume of the product to be too high and use that for an extended period, it can damage the listener's hearing.

Automatic time setting

The product updates the time automatically if it can receive DAB/ FM signal.
In order to synchronise to the current local time, the product needs to receive signals from the DAB/ FM station for a period of time.

System settings

Press and hold MENU/Info to display the menu.
Pres 5/6 to select .Press SELECT 4 to confirm.
Preys 5/6 to select from:

System settings

1. Time

Set Time/Date

Set time
Set date

Set date format

DD-MM-YYYY ("Day-Month-Year")
MM-DD-YYYY ("Month-Day-Year")

Set 12/24 hour (12 or 24 hour display)

Set 24 hour (24 hour display)
Set 12 hour (12 hour display)

Auto-Update (automatic time update)

Update from Any (automatic time update from FM or DAB)
No Update (no automatic time update)
Update from FM (automatic time update from FM)
Update from DAB (automatic time update from DAB)

2. Language

English, Turkish, Spanish, Portuguese, Swedish, Polish, Norwegian, Finnish, Dutch, Danish, Italian, German, French.
① NOTE: An asterisk (*) is shown next to the selected language.

3. Factory Reset

Factory Reset? (reset to factory settings)

No: (no reset to factory settings)
Yes: (reset to factory settings)

① NOTE: All the previously saved stations will be lost after factory reset.

4. SW version

View the software version.

/ 5 / 6 = amend values | SELECT 4 = confirm value or selection | MENU/INFO 9 = 1 level up

FM operation

To toggle between DAB/FM modes, press MODE 10 1x.

- Searching stations

Press and hold MENU/Info for 2 seconds.
Pres/s5/6to select

. Press

SELECT 4 to confirm.

Ples/s5/6 to set:

Setting Function

Sets the product to search station> for stations with strong signal only.

for all stations.

Press SELECT to confirm.

Search functions

Choose from 2 scanning functions to select a radio station.

Setting Function

Auto Press and hold or scan 5/6 for more than 2 seconds to start scanning in the desired direction.

Setting Function

Manual Press ▼or ▲5/6

scan

briefly to search for FM stations manually (each press changes the frequency by 0.05 MHz.

Audio settings

Press MENU/INPOshortly to display the menu.
Pres/s5/6to select

SELECT 4 to confirm.

Pres5/6to set:

Setting Function

and Stereo stations. Audio out: Combine Stereo.

and Stereo stations. Audio out: Mono.

FM display modes

Press MENU/INFO 9 briefly to choose from:

Display Function

Radio text	Sets a scrolling message giving real-time information, e.g song title, news headlines, etc.
Programme type	Shows the genre of the programme that is being broadcasted.
Name	Displays the frequency of the currently set station.
Audio info	Shows if the station be- ing received is in mono or stereo mode.
Power used	Displays the power source (power adaptor or batteries). When us- ing batteries, the battery load (in %) is displayed as well.
Time	Displays the current time provided automatically by the broadcaster.
Date	Displays the current date provided automatically by the broadcaster.

Each time MENU/INFO is pressed, the next item is displayed.

DAB operation

Switching to DAB mode: Press MODE 10 briefly.

Full scan

Perform a complete station search in the DAB frequency range III:

Press MENU/INFO
Pres56to select

.

Press SELECT to confirm.
All the found stations will be stored automatically.
To choose from the stations press

V/▲5/6 Press SELECT 4

to confirm.

Manual tuning

The signal strength will be displayed. You will not hear anything while in manual tune. The newly tuned station can be found in the Station list.

- Deleting unavailable stations

Press and hold MENU/INFO Press 5/6 to select .
Press SELECT to confirm.
Pres56to select

.

Press SELECT to confirm.

NOTE: Unavailable stations can only be detected after another complete search (e.g. at a different location). In this case, the affected station will be preceded by a question mark. After the "Delete" function has been performed, the correspondingly marked stations are no longer available in the station list.

DAB display modes

Press MENU/INFO 9 briefly to choose from:

Setting Function

Scrolling text

Sets a scrolling message giving real-time information, e.g song title, news headlines, etc.

Signal strength

Shows a bar indicating the signal strength.

Setting Function

Programmetype

Shows the genre of the programme that is being broadcasted.

Displays the name of the multiplex containing the station you are listening to.

Ensemble

NOTE: A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local multiplexes contain regional stations that are specific to that area

Frequency

Displays the frequency of the currently set station.

Signal error

Displays the number presenting the error rate.

• the signal received is error free.

Setting Function

■ Higher number - If the error rate is high, it is recommended to re-orient the aerial or/and re-position the product.
Signal error

Bitrate and Codec

Displays the radio mode and the received audio bit rate.

Power used

Displays the power source (power adaptor or batteries). When using batteries, the battery load (in %) is displayed as well.

Time	Displays the cur- rent time provided automatically by the broadcaster.

Date Displays the current date provided automatically by the broadcaster.

Each time MENU/INFO is pressed, the next item is displayed.

- Presetting currently active station

You can store up to 20 stations (10 FM and 10 DAB).

Press and hold PRESET
Preset store<#:Empty) appears on the display 2.
Pres 5/6 to select a desired station number.
Press SELECT to confirm.
The station is stored. Preset # stored appears on the display 2

NOTE: Station numbers under which stations are already stored will be overwritten.

Recalling a preset station

You can recall a previously saved station by pressing PRESET 3.
Pres56to select the desired preset station number.
Press SELECT to confirm.

NOTE: Preset Empty is displayed if the preset number is unoccupied.

Sleep timer

In operation mode:

Press SLEePrepeatedly to choose the sleep time: Sleep off/ 10/20/30/60/70/80/90
minutes.
Press SELECT to confirm.
After the selected time has elapsed the product will switch into standby mode.
Checking the remaining sleep time: Press SLEEP 8. The interval remaining will be shown in the display.
Cancelling the sleep timer: Press SLEEP 8 repeatedly until Sleep off appears in the display. Press SELECT 4 to confirm.

Cleaning and care

Before cleaning: Unplug the product from the power supply and remove the batteries.

WARNING! Never immerse the product nor the power adaptor in water or other liquids for cleaning purposes. Never immerse any of the product's components under running water.

Clean the product with a slightly moistened cloth.
Do not allow any water or other liquids enter the product's interior.
- Do not use solvent-based cleaning agents, abrasives, harsh cleaning solutions or hard brushes for cleaning.
Let all parts dry afterwards.

Storage

Before storing the product: Remove the batteries. Store the product in its original packaging.
Store the product in a dry, secure location away from children.

Troubleshooting

Cause
Solution

The product will not turn

Check if the power adaptor is properly plugged into the socket.
Battery operation: Check if the batteries have been inserted.
Battery operation: Check if the batteries are discharged.

No sound
Adjust the volume.
Static sound
Signal reception is too low. Adjust the aerial or move the unit to a stronger signal location.
FM station not found
Weak signal. Search manually.
DAB station not found
No DAB coverage in your area poor reception. Adjust the position of the aerial.
The display is blank
This may occur if the broadcaster changes the label of a service or removes a label while tuned.

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device

is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

Batteries:

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product (Digital radio, HG03593A, HG03593B) is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery.

In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Compartment des piles

Prise pour casque

(prise jack de 3,5 mm)

DC IN

Update from Any
No Update
Update from FM
Update from DAB

NOSTE OCHRANNÉ RUKAVICE!

Update from Any
No Update
Update from FM
Update from DAB

(automaticky aktualizovatČas/datum)

Update from Any
No Update
Update from FM
Update from DAB

Model No.: HG03593A, HG03593B

Version: 12/2017
