USER MANUAL SKM 40 C1 SILVERCREST

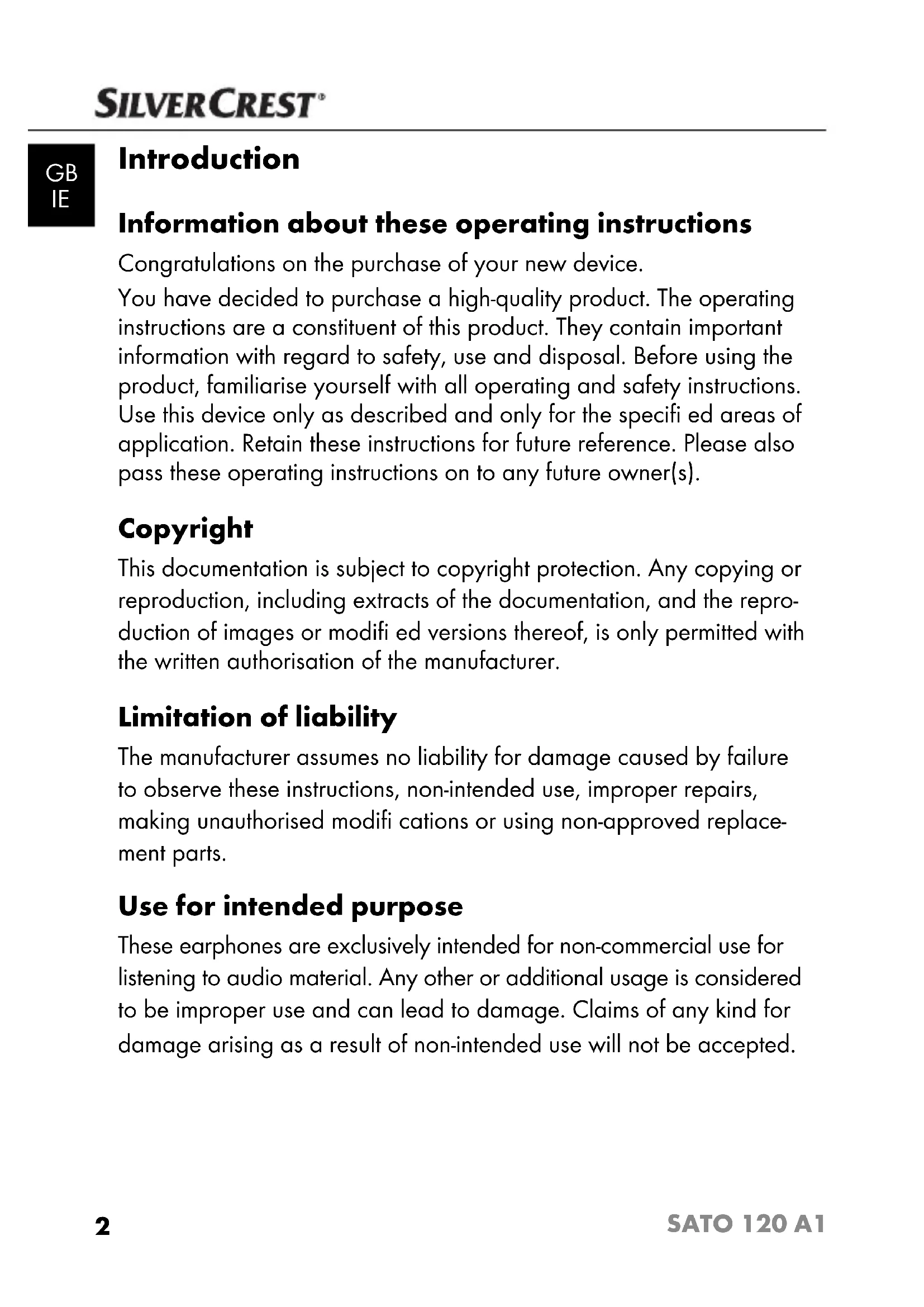

SATO 120 A1 Introduction Information about these operating instructions Congratulations on the purchase of your new device. You have decided to purchase a high-quality product. The operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this device only as described and only for the specifi ed areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s). Copyright This documentation is subject to copyright protection. Any copying or reproduction, including extracts of the documentation, and the repro- duction of images or modifi ed versions thereof, is only permitted with the written authorisation of the manufacturer. Limitation of liability The manufacturer assumes no liability for damage caused by failure to observe these instructions, non-intended use, improper repairs, making unauthorised modifi cations or using non-approved replace- ment parts. Use for intended purpose These earphones are exclusively intended for non-commercial use for listening to audio material. Any other or additional usage is considered to be improper use and can lead to damage. Claims of any kind for damage arising as a result of non-intended use will not be accepted. IB_42782_SATO120A1_LB3.indb 2IB_42782_SATO120A1_LB3.indb 2 09.10.13 11:1709.10.13 11:173 SATO 120 A1

Warnings The following warnings are used in these operating instructions: WARNING A warning at this risk level indicates a potentially hazardous situation. Failure to avoid this hazardous situation could result in physical injury. ► Follow the instructions in this warning to prevent physical injury. CAUTION A warning at this risk level indicates potential damage to property. Failure to avoid this situation could result in damage to property. ► Follow the instructions in this warning to prevent damage to property. NOTE

SATO 120 A1 Safety instructions For safe handling of the device, follow the safety information below: ■ Check the earphones for external signs of damage before use. Do not operate damaged earphones or earphones that have been dropped. ■ If the cables or connections are damaged, have them replaced by an authorised specialist or customer service. ■ Persons who are incapable of operating the earphones safely due to their physical, intellectual or motor abilities must only use them under the supervision or direction of a responsible adult. ■ Children may only be permitted to use the earphones if they are under supervision. ■ Repairs to the earphones should only be carried out by author- ised specialist personnel or by the customer service department. Failure to make proper repairs can put the user at risk. This will also invalidate warranty claims. ■ Repairs to the earphones during the warranty period may only be carried out by a customer service department that has been authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damage. ■ Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety require- ments are being complied with if using original replacement parts are used. ■ No unauthorised design changes or modifi cations must be made to the earphones. ■ Protect the earphones from penetration by moisture and liquids. ■ Do not use the earphones in the vicinity of naked fl ames. IB_42782_SATO120A1_LB3.indb 4IB_42782_SATO120A1_LB3.indb 4 09.10.13 11:1709.10.13 11:175 SATO 120 A1

Risk of hearing damage WARNING Risks as a result of extremely high sound levels! Loud music can lead to hearing damage. ► Avoid extreme sound levels, especially over long periods of time, when you are using these earphones. Risk of accidents WARNING Danger as a result of aff ected perception! ► Acoustic warning and indication signals and ambient noise may be perceived diff erently when earphones are being worn. It is important to be aware of how these signals can diff er so that you can recognise them in the relevant situations. ► Do not use the earphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the earphones. IB_42782_SATO120A1_LB3.indb 5IB_42782_SATO120A1_LB3.indb 5 09.10.13 11:1709.10.13 11:17GB

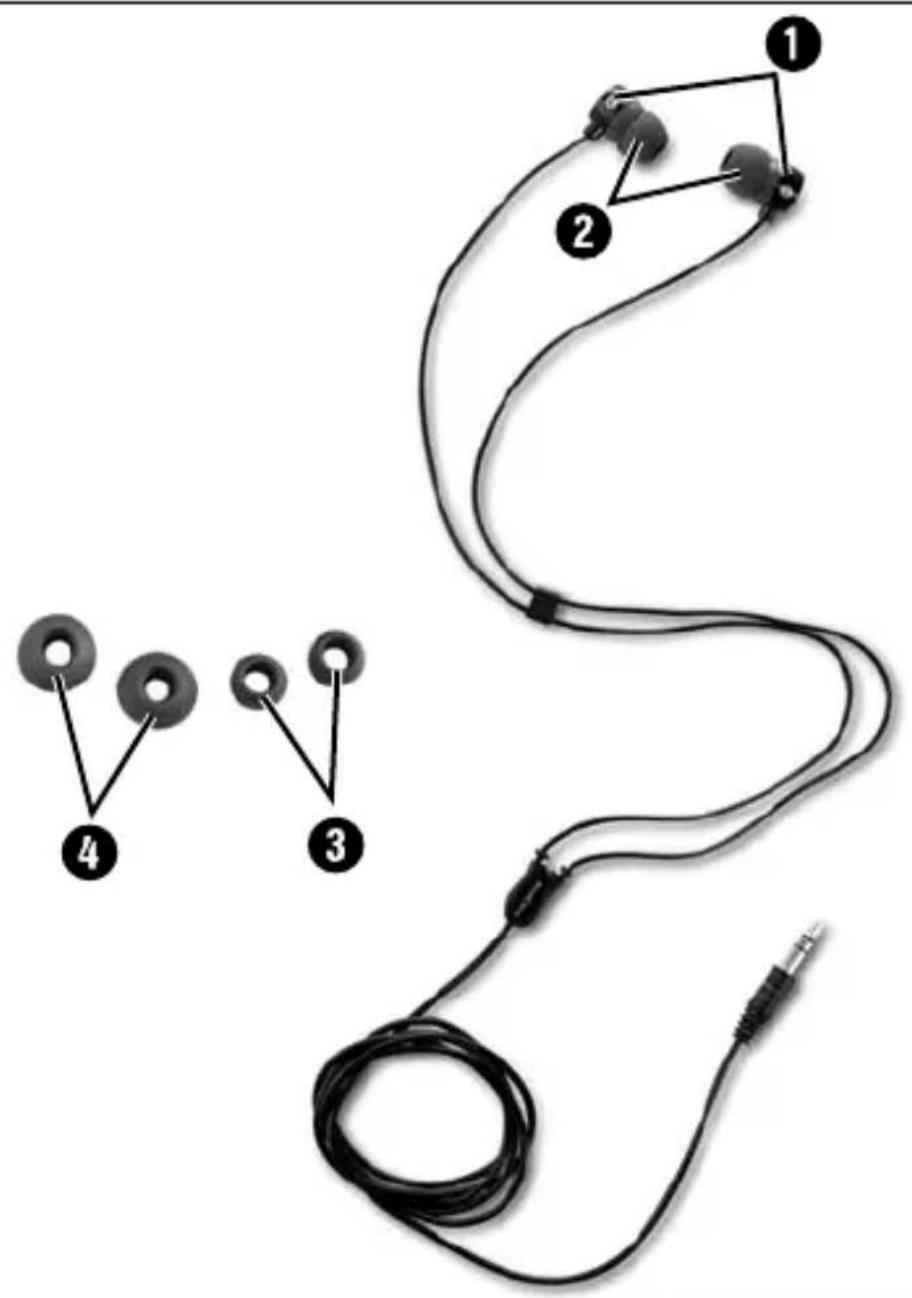

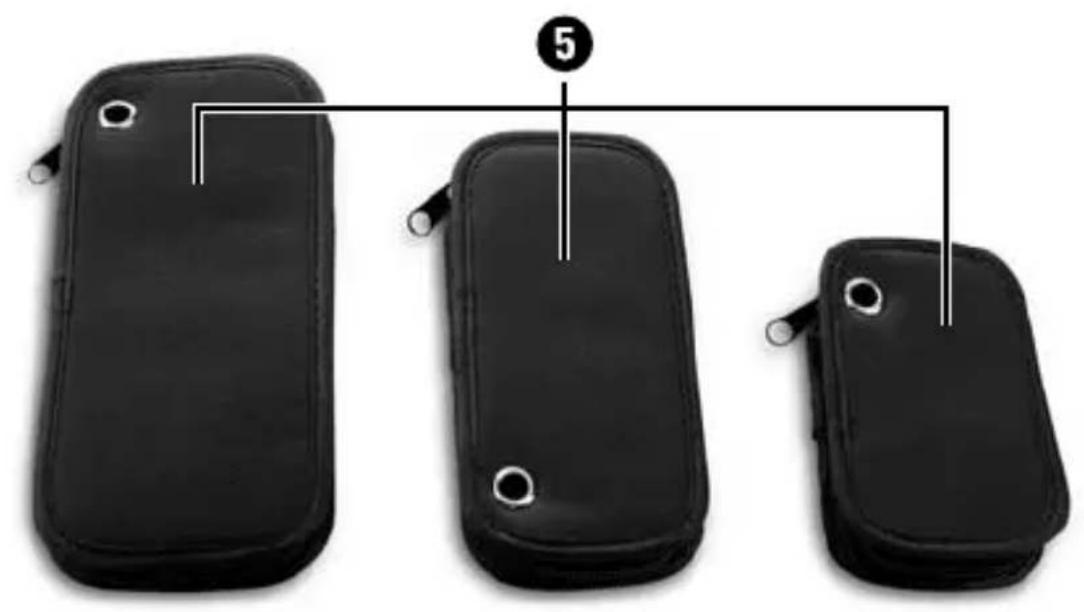

SATO 120 A1 Commissioning WARNING The packaging material is not a toy. Keep plastic sheeting, bags and all other packaging material away from children. There is a risk of suff ocation. Package contents (see fold-out page) The earphones are delivered with the following components as standard: ▯ Earphones 1 with pre-installed ear cushions (medium size 2) ▯ 2 pairs of ear cushions (small 3 and large 4) ▯ Storage bag 5 (suitable for iPhone 4/4S, iPod nano 4th Gen. and iPod nano 6th Gen.*, depending on version) ▯ These operating instructions (not shown)

• iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffl e and iPod touch are registered trade marks belonging to Apple Inc. in the USA and other countries. NOTE

Check contents for completeness and for signs of visible damage. ► If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service). Disposal of packaging The packaging protects the appliance from transport damage. Recirculating the packaging into the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations. IB_42782_SATO120A1_LB3.indb 6IB_42782_SATO120A1_LB3.indb 6 09.10.13 11:1709.10.13 11:177 SATO 120 A1

Operation Use storage bag The storage bag 5 is a safe place to keep your playback device, the length of the earphones 1 can be adapted to your needs, and the earphones can be stored in the bag when they are not being used. ■ Open the zip fastener of the storage bag 5 and lead the jack- plug through the eye of the storage bag 5 from the outside. ■ Secure your playback device in the storage bag 5 using the rubber retainer and connect the earphones 1 using the jackplug. ■ Store excess cable in the storage net of the storage bag 5. Connect the earphones The earphones 1 are equipped with a 3.5 mm jackplug. Many electronic entertainment devices are equipped with an appropriate headphone socket. If your audio device has been equipped with a diff erent headphone connector, you may need to use a suitable adapter (not supplied). IB_42782_SATO120A1_LB3.indb 7IB_42782_SATO120A1_LB3.indb 7 09.10.13 11:1709.10.13 11:17GB

SATO 120 A1 Using the earphones ■ When putting on the earphones 1, pay attention to the side indicators "R" (right) and "L" (left) on the earpieces. ■ Carefully slide one of the earphones 1 deep into the ear canal. In order to straighten the ear channel somewhat and therefore make the earphone easier to insert, pull auricle backwards and upwards a little. ■ Proceed in the same way to insert the other earphone 1. Replacing the ear cushions In the as-delivered condition, the earphones 1 are provided with medium size ear cushions 2. Depending on the size of your auricle you can use ear cushions (3 or 4) of a diff erent size from the ones supplied. NOTE The better the ear cushion seals off the ear canal, the better the sound quality, particularly at lower frequencies. ■ Use your fi ngers to carefully pull on the ear cushions 2 to detach them from the earphones 1. ■ Select suitable ear cushions (3 or 4) from the ones that are supplied. Push these directly onto the earphones 1 until they slip into the recesses on the earphones 1. IB_42782_SATO120A1_LB3.indb 8IB_42782_SATO120A1_LB3.indb 8 09.10.13 11:1709.10.13 11:179 SATO 120 A1

Fault rectifi cation Fault causes and rectifi cation The following table will help with localising and remedying minor malfunctions: Defect Cause/remedy No sound coming from earphones 1. The volume control of the playback device is set to the minimum volume. Increase the playback volume. The 3.5 mm jackplug is not fully inserted into the playback device's headphone socket. Push the

3.5 mm jackplug all the way into the socket.

Sound is only coming from one side of the earphones 1. The 3.5 mm jackplug is not fully inserted into the playback device's headphone socket. Push the

3.5 mm jackplug all the way into the socket.

The Stereo-Balance-Control on the playback device is incorrectly adjusted. Adjust it to the setting you desire. NOTE ► If the malfunction cannot be remedied with the described solution proposals or if other types of malfunctions occur please contact our service department (see chapter Service). IB_42782_SATO120A1_LB3.indb 9IB_42782_SATO120A1_LB3.indb 9 09.10.13 11:1709.10.13 11:17GB

Do not allow any liquids to penetrate the interior of the ear- phones 1. This could cause irreparable damage to them. ■ Clean the earphones 1 and the storage bag 5 with a damp cloth. ■ Remove the ear cushions (2, 3 or 4) for cleaning. Clean the ear cushions under running water. Dry the ear cushions properly. Do not fold the ear cushions back over the earphones 1 until they are properly dry. Storage ■ Store the earphones 1 in the storage bag 5 in a dry, dust-free place. Disposal Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU. Dispose of the appliance through an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre should you be in any doubt. IB_42782_SATO120A1_LB3.indb 10IB_42782_SATO120A1_LB3.indb 10 09.10.13 11:1709.10.13 11:1711 SATO 120 A1

Appendix Technical details Impedance 32 Ω +/- 4 Ω Sensitivity 96 dB +/- 4 dB at 1 kHz Frequency response 20 Hz - 20 kHz Input power max. 50 mW Wide band characteristic voltage approx. 85 mV +/- 10% Connector 3.5 mm jackplug Cable length 120 cm Weight 11 g approx. Operating temperature 15 - 35 °C Humidity (no condensation) 5 - 80 % Notes on the Declaration of Conformity Regarding conformity with essential requirements and other relevant provisions, this appliance complies with RoHS Directive 2011/65/EU. The complete original Declaration of Conformity is available from the importer and may be requested if required (see Chapter Importer). IB_42782_SATO120A1_LB3.indb 11IB_42782_SATO120A1_LB3.indb 11 09.10.13 11:1709.10.13 11:17GB

SATO 120 A1 Warranty The warranty provided for this appliance is 3 years from date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please call Customer Service. This is the only way to ensure that your goods will be dispatched free of charge. NOTE

The warranty only covers claims for material and manufac- turing defects, not for transport damage, wearing parts or for damage to fragile components such as switches and batteries. This appliance is exclusively intended for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifi cations that were not carried out by one of our authorised service centres. Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This also applies to replaced and repaired parts. Damage and defects present at the time of purchase must be reported im- mediately after unpacking, or no later than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable. IB_42782_SATO120A1_LB3.indb 12IB_42782_SATO120A1_LB3.indb 12 09.10.13 11:1709.10.13 11:1713 SATO 120 A1
