USER MANUAL PEXS 270 C3 PARKSIDE

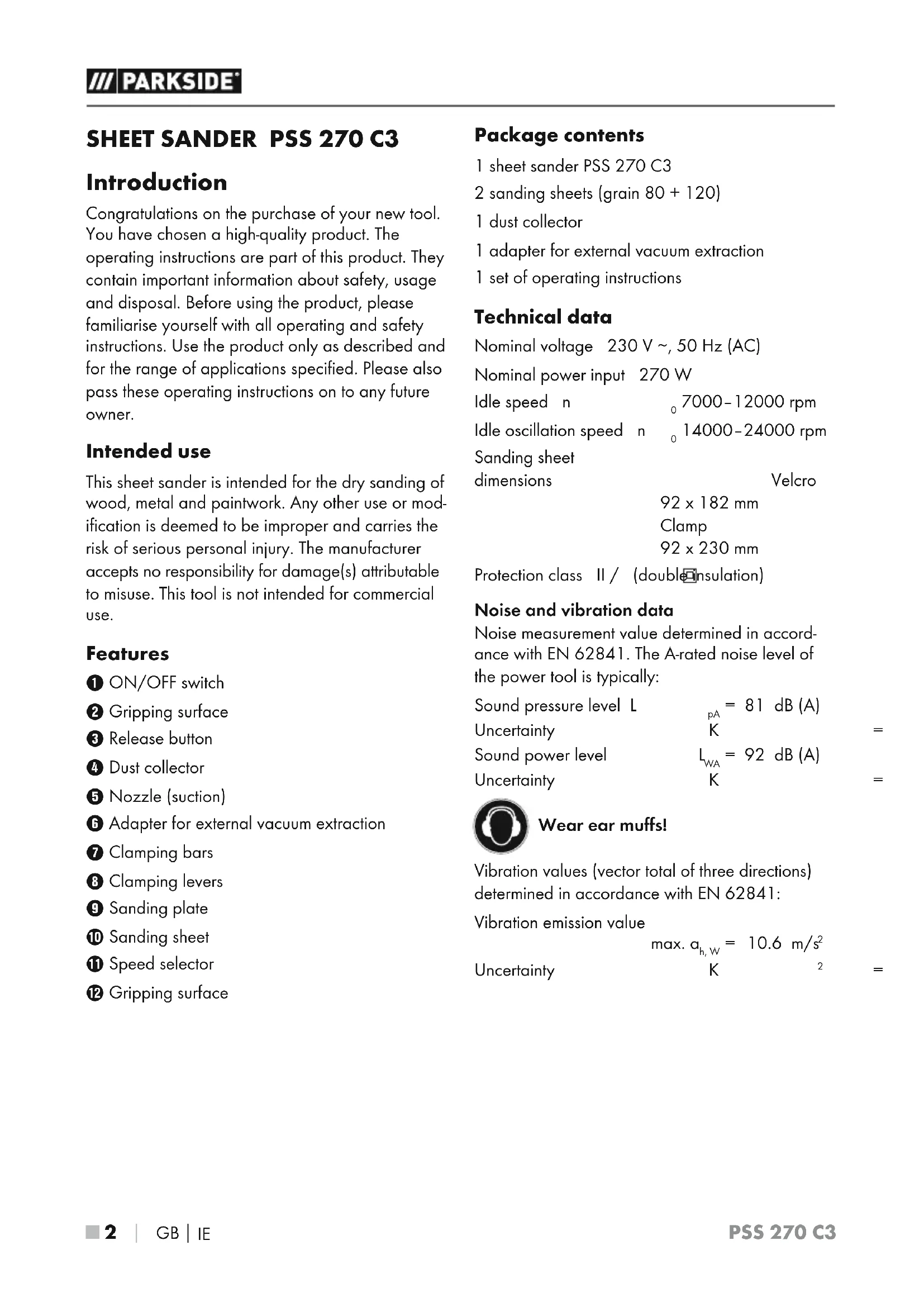

Introduction Congratulations on the purchase of your new tool. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner. Intended use This sheet sander is intended for the dry sanding of wood, metal and paintwork. Any other use or mod- ification is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This tool is not intended for commercial use. Features 1 ON/OFF switch 2 Gripping surface 3 Release button 4 Dust collector 5 Nozzle (suction) 6 Adapter for external vacuum extraction 7 Clamping bars 8 Clamping levers 9 Sanding plate 0 Sanding sheet q Speed selector w Gripping surface Package contents 1 sheet sander PSS 270 C3 2 sanding sheets (grain 80 + 120) 1 dust collector 1 adapter for external vacuum extraction 1 set of operating instructions Technical data Nominal voltage 230 V ∼, 50 Hz (AC) Nominal power input 270 W Idle speed n

14000–24000 rpm Sanding sheet dimensions Velcro fastener 92 x 182 mm Clamp 92 x 230 mm Protection class II / (double insulation) Noise and vibration data Noise measurement value determined in accord- ance with EN62841. The A-rated noise level of the power tool is typically: Sound pressure level L

= 81 dB (A) Uncertainty K = 3 dB Sound power level L

= 92 dB (A) Uncertainty K = 3 dB Wear ear muffs! Vibration values (vector total of three directions) determined in accordance with EN 62841: Vibration emission value max. a h, W = 10.6 m/s

 3 ■ NOTE ► The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool. ► The specified total vibration values and the noise emission values can also be used to make a provisional load estimate. WARNING! ► Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. ► Try to keep the vibration load as low as pos- sible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illus- trations and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD re- duces the risk of electric shock.PSS 270 C3 ■ 4 

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate condi- tions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is danger- ous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detacha- ble, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and accesso- ry tools etc. in accordance with these instruc- tions, taking into account the working condi- tions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.PSS 270 C3

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b) Always arrange for the replacement of the plug or the power cord to be carried out by the manufacturer of the tool or its customer service department. This will ensure that the safety of the power tool is maintained. Appliance-specific safety instructions To avoid the risk of injury or fire as well as health risks ■ When working outdoors, connect the tool via a fault current circuit breaker with a maximum tripping current of 30mA. ■ Use only an extension cable approved for outdoor use. ■ Secure the workpiece. Use clamps/vices to hold the workpiece firmly. This is much safer than simply holding it in your hand. ■ In the event of danger, remove the mains plug from the socket immediately. ■ Always route the power cord towards the rear, away from the tool. ■ RISK OF FIRE DUE TO FLYING SPARKS! Sanding metal generates sparks. Ensure that nobody can be put at risk and that no combus- tible materials are located in the immediate vicinity of where you are working. WARNING! TOXIC DUSTS! ► Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health. Contact with or inhalation of these dusts can represent a health hazard for the person op- erating the tool and any other people in the vicinity. WARNING! RISKS DUE TO DUST! ► When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the tool to an appropriate external dust extraction tool. Wear safety goggles and a protective dust mask! ■ Provide sufficient ventilation when working on plastics, paints, lacquers, etc. ■ Do not soak the materials or the area to be processed with liquids containing solvents. ■ Avoid sanding lead paint or other harmful materials. ■ Materials containing asbestos must not be processed. Asbestos is a known carcinogen. ■ The device is designed for the dry surface sanding of wood, plastic, metal and plaster and painted surfaces. ■ Never work on moistened materials or wet surfaces. Water entering a power tool will increase the risk of electric shock. ■ Always hold the tool firmly with two hands while working. ■ Do not rest your hands next to or in front of the tool and the area being worked as there is a risk of injury if you slip. ■ Always switch the tool off and wait for the sanding sheet 0 to stop moving before putting the sheet sander down. ■ Always remove the plug from the power socket during work breaks, when adjusting the tool (e.g. changing the sanding sheet) and when it is no longer in use. ■ The tool must always be kept clean, dry and free from oil or grease. Original accessories/attachments ■ Use only the additional equipment and acces- sories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instruc- tions can lead to a risk of injury.PSS 270 C3 ■ 6 

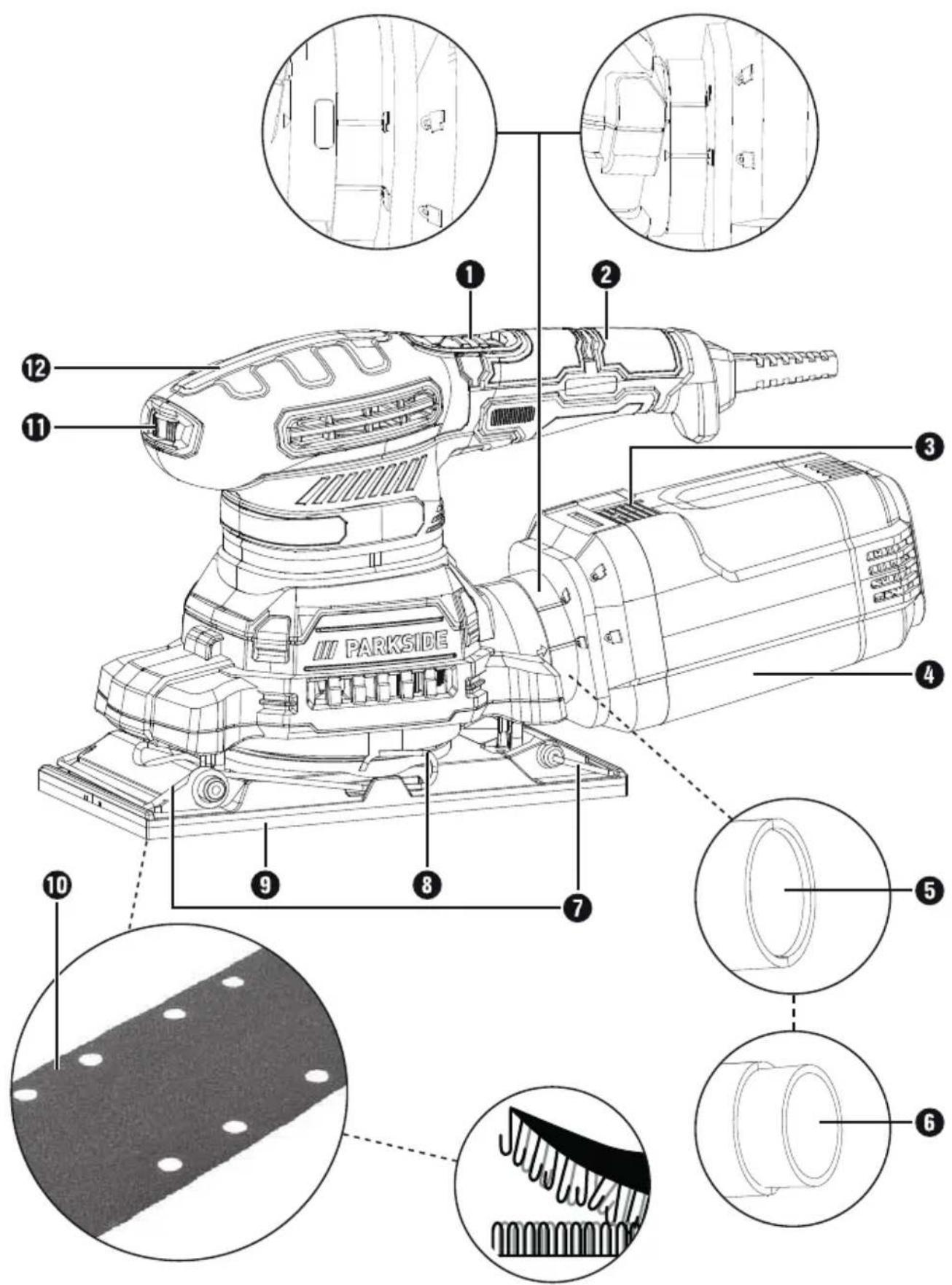

Operation Switching on and off Switching on ♦ To switch the tool on, slide the ON/OFF switch1 forwards. Switching off ♦ Slide the ON/OFF switch1 backwards to switch the tool off. Setting the oscillating speed You can set the desired oscillating speed using the speed selector q as required. The required speed depends on the material being processed and can be determined through practical tests. Fitting the sanding sheet WARNING! ► Always remove the plug from the mains power socket before carrying out any work on the tool. NOTE ► Before fitting a new sanding sheet0, remove any dust and dirt from the sanding plate9. Sanding sheets with Velcro ♦ Position the sanding sheet0 flush on one side of the sanding plate9. ♦ Then lay the sanding sheet0 onto the sanding plate 9 and press it firmly into place. Sanding sheets without Velcro ♦ Open the two clamping levers8 by pressing them slightly outwards and then carefully pulling them upwards out of the catches. ♦ Push one end of the sanding sheet0 under the open clamping bar7 and clamp it firmly in place with the clamping lever8. ♦ Follow the same procedure at the other end. Different materials require different grain sizes. You can find out which grain is suitable for which work in our non-binding recommendations in “Work instructions, tips and tricks”. Extracting dust WARNING! RISK OF FIRE! ► When working with power tools that have a dust collector4 or can be connected to a vacuum cleaner via the vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust bag (or in the bag of the vacuum cleaner) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, avoid allowing the workpiece or tool to over- heat and always empty the dust collector 4 or the dust bag of the vacuum cleaner before taking a break from work. Wear a dust mask! Dust extraction with dust collector Connection ♦ Push the dust collector4 onto the appliance. Turn the dust collector4 to the symbol to lock it in place. Removal ♦ Turn the dust collector4 towards the symbol. Pull the dust collector4 off the appliance (see detailed illustration on fold-out page). NOTE ► To ensure optimum extraction, empty the dust collector4 regularly. ♦ To do this, remove the dust collector4 from the appliance as described above. To do this, open the dust collector4 by pressing on the release button3 and pulling off the rear part (see detailed illustration on fold-out page). Now remove the dust bag. Clean the dust bag thoroughly by tapping it out.PSS 270 C3

 7 ■ Dust extraction using an external extraction device Connection ♦ To remove dust using a vacuum cleaner, push the suction hose of a suitable dust extraction device (e.g. a workshop vacuum cleaner) onto the nozzle5. NOTE ► If necessary, use the adapter6 by pushing it into the nozzle5. Removal ♦ Pull the hose of the vacuum cleaner off the nozzle5 or the adapter6. Work instructions, tips and tricks ♦ Move the sheet sander parallel to the surface and in a flat circular motion or alternatively lengthwise and across the surface. ♦ Do not press down hard on the sheet sander. The sanding sheets will get clogged and the sanding performance will deteriorate. ♦ Clean the sanding sheet0 every once in a while using a vacuum cleaner. ♦ The proper choice of sheet speed and grain of the sanding sheet0 will determine the removal rate and thus also the result of your work. ♦ Never use the same sanding sheet0 for sanding different materials (e.g. wood and then metal). In the table below, you will find some recommended values that will help you determine which sanding sheet0 to use for which job. Wood Sanding sheet/grain Working on wood 40–240 Pre-sanding, e.g. of unfinished, unplaned beams and planks 40, 60 Surface sanding 80, 100, 120 Fine sanding of hardwoods 180, 240 Paint/varnishes Sanding sheet/grain Working on coats of paint/ varnish or primers such as filler 40–320 Removal of paint 40, 60 Sanding undercoat 80, 100, 120 Final sanding of primers before painting 180, 240,

Maintenance and cleaning WARNING! RISK OF INJURY! ► Always remove the plug from the mains power socket before carrying out any work on the tool. ■ Always clean the tool as soon as you finish your work. ■ Do not use any sharp objects to clean the tool. Do not allow any liquids to get into the tool. ■ Use a dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that can damage plastic. A vacuum cleaner is required to clean the tool thoroughly. ■ Ventilation openings must never be obstructed. ■ Remove any adhering sanding dust with a brush.PSS 270 C3 ■ 8 

Disposal Applies only to France The product, its packaging and the operating in- structions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packag- ing material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your prod- uct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims fordefects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery.PSS 270 C3

 9 ■ The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instruc- tions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. The warranty does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (IAN)421948_2210 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 421948_2210. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 421948_2210 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

Original declaration of conformity We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic tools. Related harmonised standards EN 62841-1:2015 EN 62841-2-4:2014

EN 61000-3-3:2013/A2:2021 EN IEC 63000:2018 Type/tool designation: Sheet sander PSS 270 C3 Year of manufacture: 02–2023 Serial number: IAN 421948_2210 Bochum, 05/01/2023 Semi Uguzlu - Quality Manager - We reserve the right to make technical changes in the context of further product development.PSS 270 C3
