USER MANUAL PGG 15 D3 PARKSIDE

Translation of the original instructions

NL BE

GRAVEERAPPARAAT

GB/IE Translation of the original instructions Page 25

IEC 62321-4 (2013) Ed. 1.0

IEC 62321-5 (2013) ED. 1.0

IEC 62321-7-1:2015

IEC 62321-6

List of pictograms used

Introduction.. Page 27

Intended use. Page 27
Description of parts.. Page 28
Scope of delivery.. Page 28
Technical data.. Page 28

General power tools safety warnings

Initial use

Switching on/off Page 35
Setting the cutting depth.. Page 35
Changing the engraving point.. Page 36
Engraving.. Page 36

Maintenance and cleaning.. Page 37

Disposal

Service

Warranty claim procedure.. Page 39
Service Page 40

Warranty

Translation of original conformity declaration

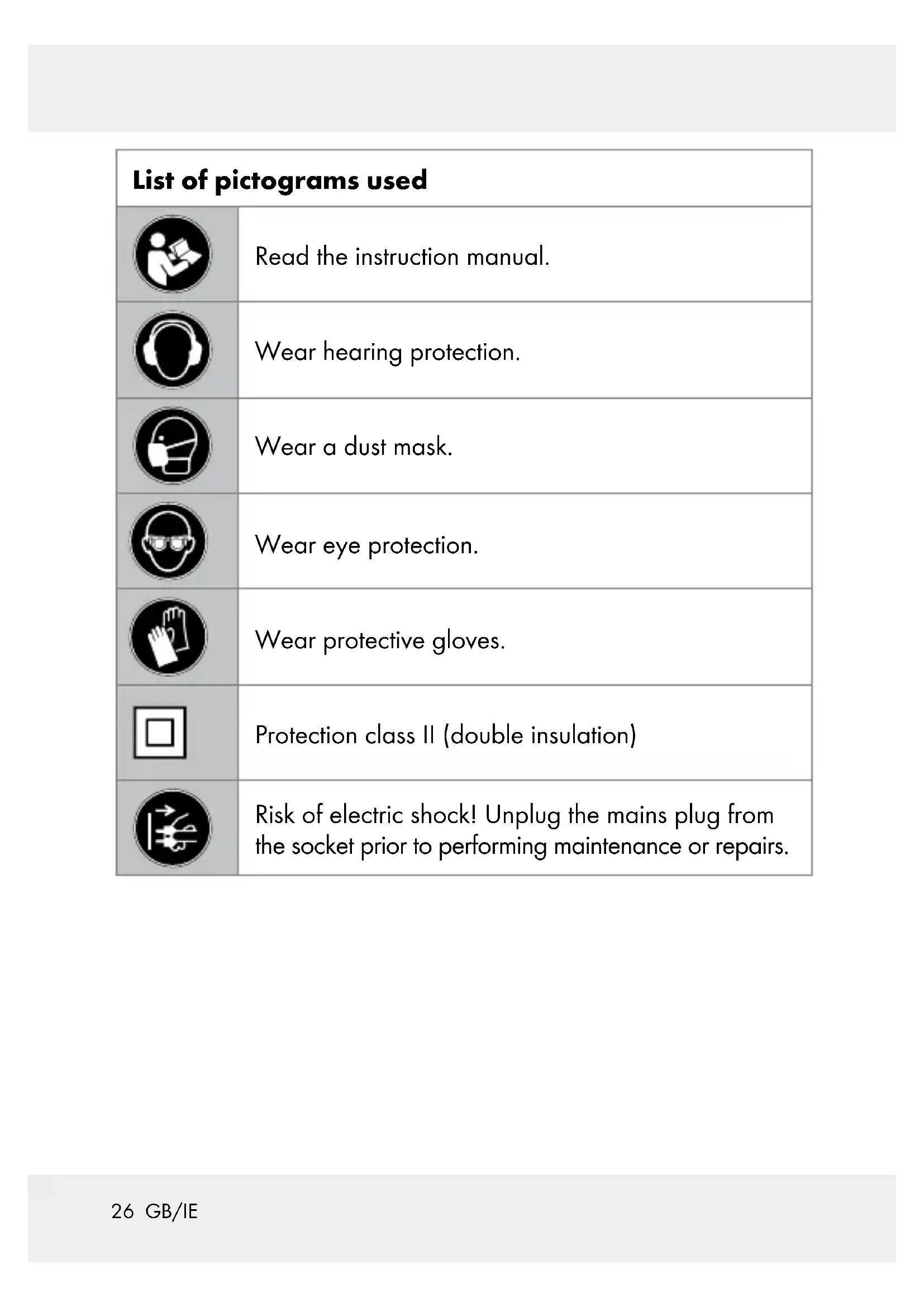

List of pictograms used
	Read the instruction manual.
	Wear hearing protection.
	Wear a dust mask.
	Wear eye protection.
	Wear protective gloves.
	Protection class II (double insulation)
	Risk of electric shock! Unplug the mains plug from the socket prior to performing maintenance or repairs.

Engraving tool PGG 15 D3

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is designed to engrave or decorate materials such as metal, plastic, glass, ceramics, wood and leather. Any other use or modification to the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. Damages occurring due to improper use are not covered by the manufacturer. The product is not intended for commercial use or for any other use.

Description of parts

1 ON/OFF switch
2 Stroke rate rotary controller
3 Eye
4 Mains lead

5 Engraving point
6 Engraving point holder
7 Templates

- Scope of delivery

1 Engraving tool PGG 15 D3
4 templates
1 set of operating instructions

-Technicaldata

Rated voltage: 230V (alternating current), 50 Hz

Operating mode: periodic intermittent operation: S3 20%

Note: A duty cycle (in %) explicitly

specifies the maximum continuous duration of use and the subsequent rest period. In this case the tool requires a cooling phase of eight minutes after an operating period of two minutes, for example.

Rated current: 0.15 A

Number of strokes: 6000 min

Weight approx.: 370 g

-1

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the product is typically as follows:

Chiselling:

Sound pressure level L_pA : 71.7 dB dB(A)

Uncertainty K: 3 dB

Sound power level LwA: 82.7 dB(A)

Uncertainty K: 3 dB

Wear hearing protection!

Total vibration value:

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Total vibration value: 1.457 m/s

Uncertainty K: 1.5m / s

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used to make product comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the product and may be higher than the value specified in these instructions in some cases. Regular use of the product in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the product is switched off and times where the product is switched on but running without load).

- General power tools safety warnings

WARNING!

Read all safety directions and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power

tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Initial use

Never use the product for any purpose other than the intended purpose and only use it with the original parts and accessories. Using parts or accessories not specified in the instructions may result in injuries.

- Switching on/off

Plug into a socket.

Switching on:

• Keep pressing the ON/OFF switch 1.

Switching off:

Release the ON/OFF switch 1

- Setting the cutting depth

The cutting depth of the engraver is set using the stroke rate rotary controller 2. A low setting is usually sufficient for most common applications.

Turn the stroke rate rotary controller 2 towards the + sign to increase the cutting depth.

	1 2 3 4 5 6
Material	metal	glas	wood	plastic	ceramic	leather

Turn the stroke rate rotary controller 2 towards the - depth to decrease the cutting depth.

Note: Take care when increasing the cutting depth not to turn the stroke rate rotary controller 2 too far towards the + sign. Otherwise the switch could screw off the product.

- Changing the engraving point

CAUTION! RISK OF INJURY!

• Switch the product off and pull the plug out of the mains socket before carrying out any work on the product.

• Change the engraving point 5 as soon as it gets worn down and no longer delivers the desired results. Turn the engraving point holder 6 counterclockwise until the engraving point can be removed.

Note: Such engraving points are available from speciality retailers.

Remove the spring and the plain washer.
Note: Spring is under pressure.
Push the plain washer and spring onto a new engraving point 5. Then insert this and turn the engraving point holder 6 clockwise until it is firm to lock the engraving point in position.
Ensure that the engraving point 5 is well secured.

-Engraving

You can use this product to create attractive and unique engravings. For example, you can use it to mark valuables as your own. You can engrave numbers and letters into metal, glass, wood,

plastic, ceramic and leather. Use the templates [7] included in the scope of delivery to do so.

Hold the product at an angle like you would a pen. Your arm should be placed on a table while doing so.
Lead the engraving point 5 over the work piece while applying a little surface pressure. Practice the feed rate on scrap material for the best results.

Note: The engraving point 5 included in the scope of delivery is made from tungsten steel. It is therefore not suitable for engraving electronic media such as CDs, DVDs, etc. These materials and their readability could be damaged.

- Maintenance and cleaning

RIS AD ENAEGIRG HOCK!

Unplug the mains plug from the socket prior to performing maintenance or repairs.

Clean the product regularly, preferably immediately after every use.
Use a dry cloth to clean the housing. Never use petrol, solvents or cleaning agents that attack plastic.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

#

Service

A

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.
Always have a plug or power cord replaced by the product manufacturer or its service centre. This will maintain the safety of this product.

Have your tool repaired by a qualified person

This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

#

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

(0.07 £/min - 0.68 £/min +0.13 £/call (set up fee) (fees depends on operator))

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0.052 €/min + 0.20 €/min (set up fee), mobile

0.15 €/min - 0.30 €/min (fee depends on operator))

E-Mail: [e-mail]

IAN 285127

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product.

Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Translation of original conformity declaration

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Engraving tool PGG 15 D3, Model No.: HG02563, Version: 04 / 2017, to which this declaration refers, complies with the standards / normative documents of 2006/42/EG, 2014/30/EU, 2011/65/EU.

Applied harmonised standards:

EN 60745-1/A11:2010

EN ISO 12100:2010

EN 55014-1:2006/A2:2011

EN 55014-2: 2015

EN 61000-3-2:2014

EN 61000-3-3:2013

IEC 62321-4 (2013) Ed. 1.0

IEC 62321-5 (2013) ED. 1.0

IEC 62321-7-1:2015

IEC 62321-6

Serial number: IAN 285127

Tobias König

Division Manager / Responsible for documentation

The declaration of conformity can also be viewed at: www.owim.com.

CE

The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
